CER ELECTRIC BOILER MANUAL

2
1. THE CER ELECTRIC BOILER Page
1.1 Method of operation 3
1.2 Immersion heaters 3
1.3 Boiler control panel 4
1.4 Boiler Dimensions 5
1.5 Fixing the boiler to the wall 5
1.6 Hydraulic connections 5
1.7 Precautions 6
2THE CER POWER & CONTROL CIRCUIT
2.1 Pump & control valve terminally 6
2.2 Digital controller 7
2.3 P T sensor position 7
2.4 Calibration to clock codes 8
2.5 Understanding of the Digital Controller 9
2.6 Pump and control valve operation 9
2.7 Electronicrelays 10
2.8 Drying out the new building 10
3SELECTION OF HEATING CIRCUITS
1a. One underfloor heating zone 11
1b. One underfloor heating zone & DHW 12
2a. One radiator heating zone 13
2b. One radiator heating zone & DHW 14
3. One radiator zone and one underfloor heating zone 15
4. One radiator zone and one underfloor heating zone & DHW 16
4OPERATING THE SYSTEM
4.1 Indication of errors 17
4.2 Electrical drawings 18-21
4.3 Digital control 22
5SPARE PARTS 23-24

3
1. THE CER ELECTRIC BOILERS
MODEL VOLTAGE OUTPUT AMPERAGE CABLE SIZE
SPM CEO1P1-5.8 240V 1phase 0 – 8kW 40 amps 10mm2 3-wire separate insulation
SPM CEO1P1-5.12 240V 1phase 0 – 12kW 60 amps 16mm2 3-wire separate insulation
SPM CEO1P3-5.12 415V 3phase 0 - 12kW 20 amps 6mm2 5-wire
The CER boilers are suitable for radiators, under-floor heating, added solar heat and domestic hot
water
Consult ATLANTIC BOILERS for suitable circuit arrangements.
1.1 METHOD OF OPERATION
The CER boiler is designed for closed-circuit heating
in both domestic and commercial installations.
Four immersion heaters are positioned within a
cast aluminium-silicium heat exchanger.
Turbulent water flow within the exchanger gives
an optimum rate of heat transfer. With this high heat transfer,
the immersion heaters comfortably work with longer
life at lower temperatures. Another advantage comes
from the modulating output. Conventional electrical
heating switches ON/OFF throughout operation.
Modulating heating means agentle,
varying load on the immersion heaters.
Heating flow and return pipes are positioned
atthe base of the boiler.

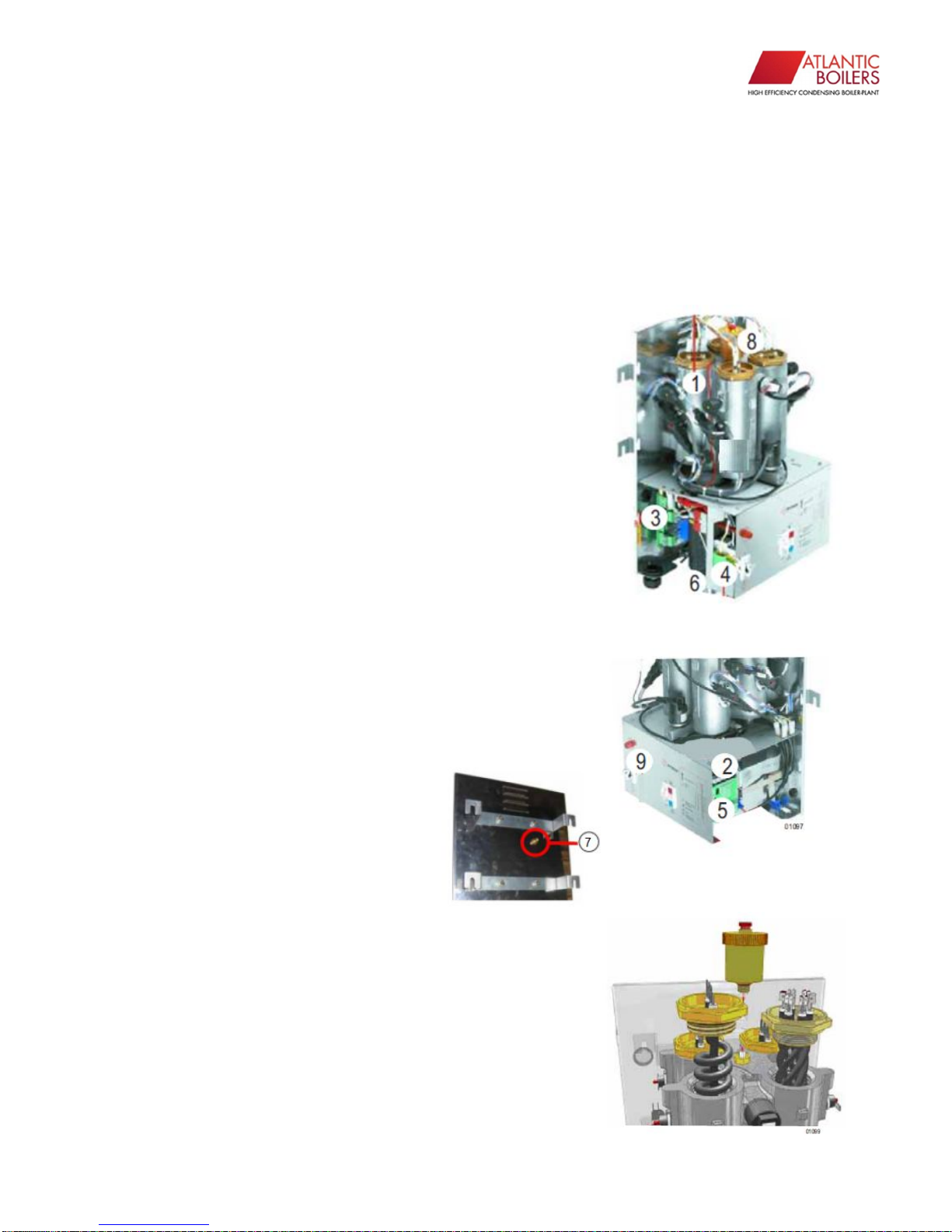

1. Four heat exchangers
2. Digital controller
3. Power output to pumps & control valve
4. Power input to the boiler
5. Terminals to PT1000 external sensors
6. Stop and limit control terminals
7. Mechanical safety valve
8. Automatic air vent
9. On/offmanual control panel
1.2 IMMERSION HEATERS
Each heater is shaped in a helicoil which
assists the heat transfer.There are four
heaters in the boiler - each powered at 2kW or 3kW
They are screwed down into the four
Tubular shapes of each heat exchanger
View from above
View from left hand end
View from right hand end

4

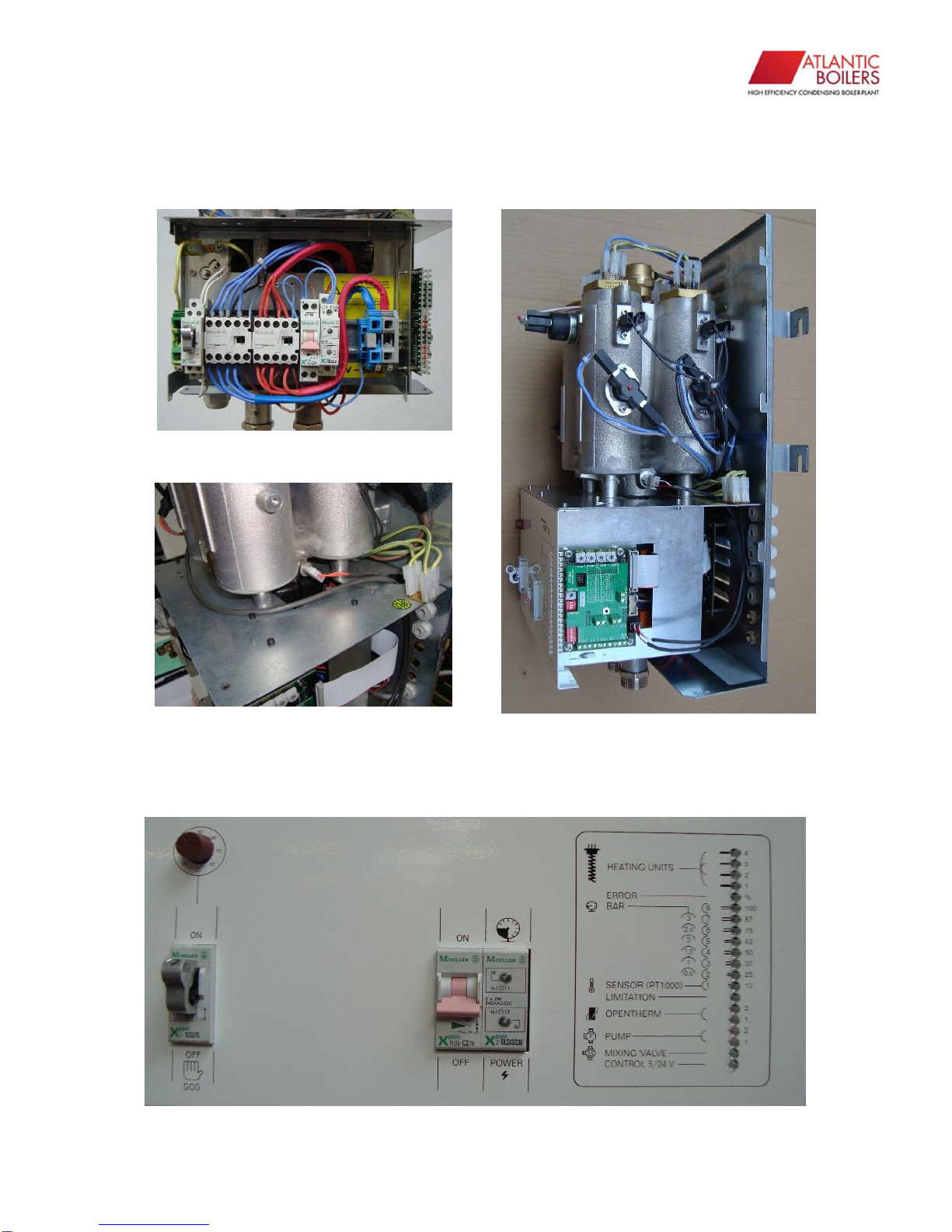

1.3 BOILER CONTROL PANEL (on lower front side of the boiler)
(1) Main Isolator
(2) Manual standby switchreplacing digital control
(3) Manual standby temperature control
(4) Indicators
Red – low water pressure, manual re-set
Green – boiler energised
Single and three phase cable terminals are behind
and on top of the Boiler Control Panel
The fascia panel has to be removed to enable the cable,
to be laid neatly and secured
A is where the external cables enter
B remove the fascia panel to reveal cables
REMOVE BOILER CONTROL PANEL FASCIA REVEALING HORIZONTAL SURFACE FOR CABLE
THE MAIN ISOLATOR SWITCHES ARE MOUNTED ON A DIN RAIL
DO NOT REMOVE THE CASING WHEN THE BOILER & CONTROLSARE ALIVE
SINGLE PHASE
1. Main Isolator
2. Standby isolator
3. Red lamp – pressure below 0.8 BARS
Green lamp – system alive
4. Two 4-pole contactors (normally open)
5. Three cables – Earth (green/yellow)
Neutral (blue)
Live (grey)
THREE PHASE
1. Main Isolator
2. Standby isolator
3. Red lamp – pressure below 0.8 BARS
Green lamp – system alive
4. One 4-pole contactors (normally
open)
5. Five cables – Earth (green/yellow)
Neutral (blue)
3 Live (grey)

5
1.5 FIXING THE CER BOILER TO THE WALL
1. Remove allen screws A & B from the underside of the casing
2. Lay the boiler body on its back, remove the fascia panel and note
the positions of the wall lugs
3. Fix minimum diameter 8mm screws to the wall.
4. Hang the boiler body from the screws; adjust as necessary.
1.6 HYDRAULIC CONNECTIONS
The CER boiler has 32mm flow (A) and return (B) connections
from the underside.
The flow must be fitted with a safety valve, a shunt pump
A dial thermometer & pressure gauge and an
isolating ball valve. The return, leading into the boiler,
must have an isolating ball valve, a strainer and
a cold feed an expansion connection,
Including the expansion vessel.
1.4 BOILER DIMENSIONS
495

6
1.7 PRECAUTIONS
Fix the boiler firmly to a solid wall
Leave approximately 500mm clearance around the boiler
All electrical wiring must be installed by a qualified electrician
The boiler must receive its power supply through an isolator and a circuit breaker
The power supply cable cross-section must be sized according to the boiler power
The power supply isolator mustbe positioned close to the boiler for safe maintenance work
Live neutral and earth cables must be traced and labelled
The boiler must never be switched on when without casing and fixing screws
Never adjust terminal fixings when boiler alive
Do not operate in manual mode without a competent engineer being present
PUMP AND CONTROL VALVE TERMINALS (On lower left hand side of the boiler)
Heating pump P1 (single phase) is connected to (A) – L N E
Heating pump P2 (single phase) is connected to (B) – L N E
High limit – see red arrow position marked “STOP”
This has a link placed at the Factory over-riding “STOP”
Connect to a high limit thermostat located in the
flow pipe for any critical system
Any high temperature sensitive space heating system
and remove the link
2 MIXING & BY-PASS 3-WAY VALVE TERMINALS
2.1 (A) – 2 Live, 1 neutral, 3 wires – N V1+ V1-
(B) – 2 Live, 1 neutral, 3 wires – N V2+ V2-
POWER OUTPUT
DIGITAL CONTROLLER
C
B
D
Switch 1. OFF
–
Limit of 50% power output
ON – Power output sufficient for frost protection
Switch 2. OFF – 50% boiler output if (A) is open
ON – Boiler output if (A) is closed
Switch 3. OFF – Single phase supply
ON – Three phase supply
-
Power output limit contact
s
- Bridged at the factory
- Remove bridge to limit power output to 50%
- Remove bridge to satisfy low price tariff
- Remove bridge to avoid peak period penalty
A

7

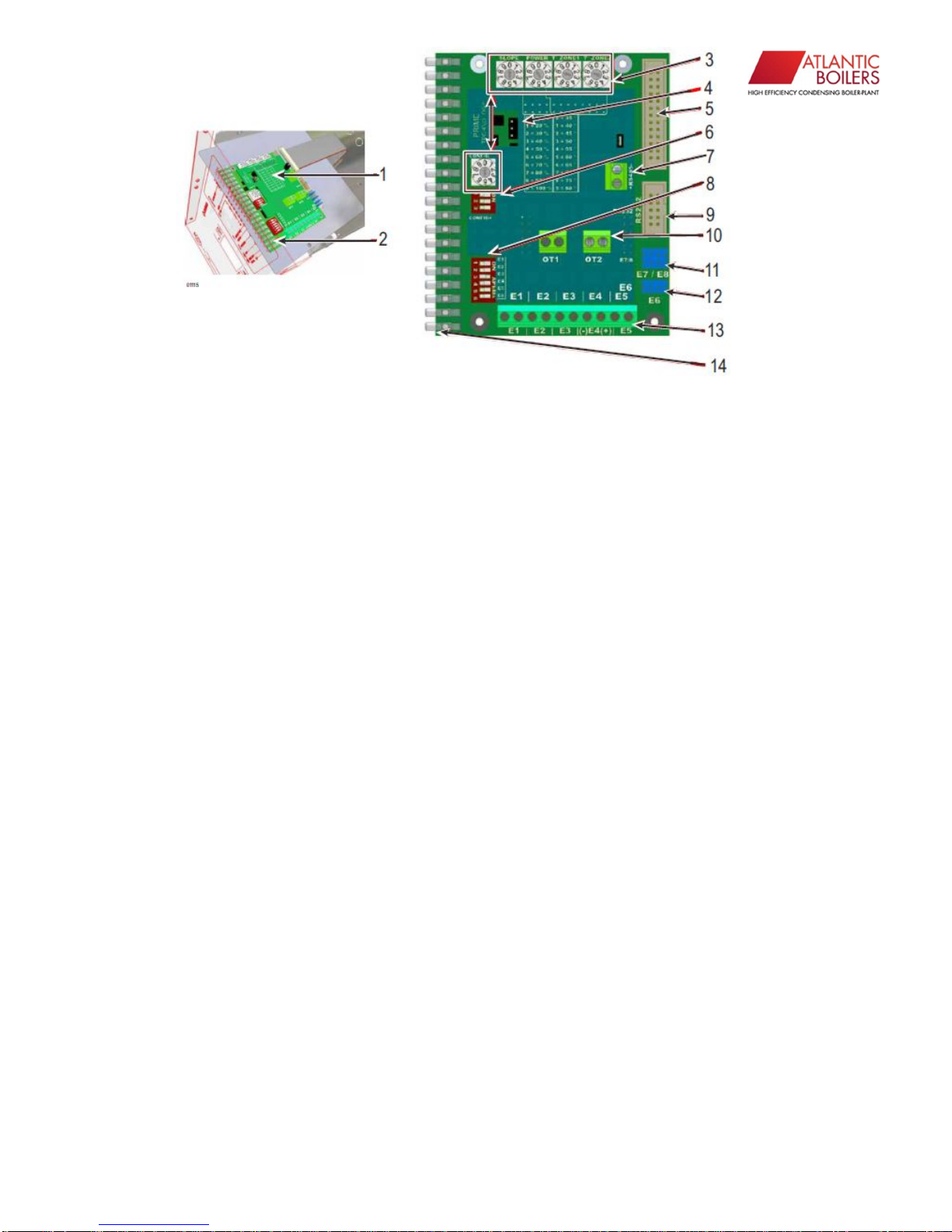

2.2 DIGITAL CONTROLLER (on lower right-hand side of boiler)
(1) Top card, on controller, provides Opentherm sensor control
(2) Lower card provides 20 indicators
(3) 5 adjustable clock codes
(4) Programme Set at factory
(5) Multi-socket Installed at factory
(6) Power limit system (see digital controller settings A & C)
(7) Notused
(8) ON/OFF for maximum 6 HTG/DHW sensor positions
(9) Notused
(10) Zone sensors OT1 & OT2
(11) E7 TO E8 for 2 Flow/return sensors (PT 1000)
(12) Notused
(13) E1 to E5 for maximum 5 sensor positions
(14) 20 LED’s, 3 colours to identify system condition
2.3 EXTERNAL PT1000 SENSOR CONNECTIONS
E1 Not in use
E2 DHW temperature
Centre of vessel
E3 DHW temperature
Base of vessel
E4 Mixed flow temperature
E5 External temperature

8
THE DIGITAL CONTROLLER – 2 computer cards
in position

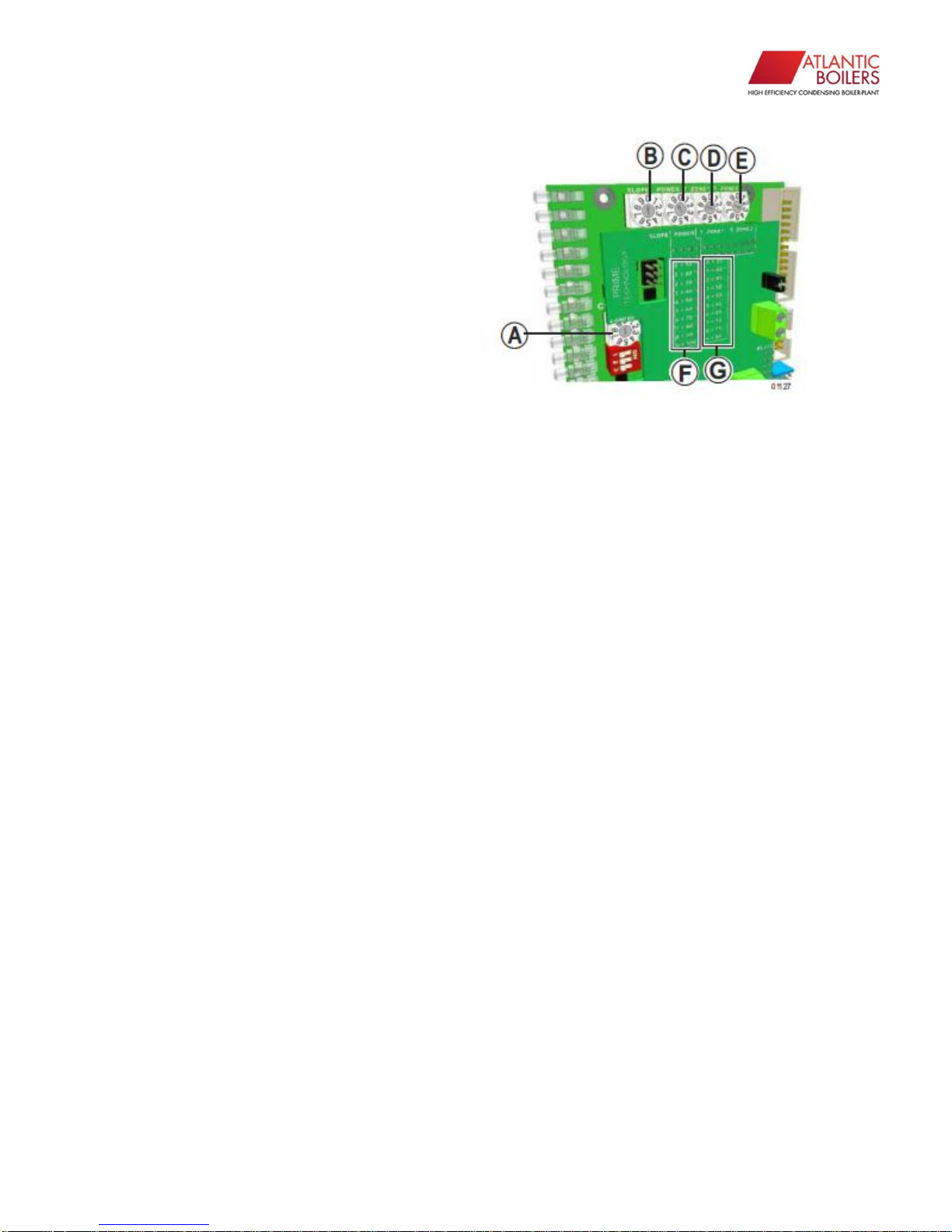

USE OF THE SETPOINTS AND CLOCK CODES
(A) Selection of chosen heating circuit
(B) Slope of weather curve
For underfloor heating setting is 0
(C) Variation in electrical power output
(D) Zone 1 setting for heating type
(E) Zone 2 setting for 2nd heating type
(F) Table of boiler power outputs
(G) Table of zone temperatures
2.4 CALIBRATION TO CLOCK CODE A (CONFIG)
0,3, 5, 6, 7 not used
1 one zone underfloor heating (with option DHW)
2 one zone radiators (with option DHW)
4 two zones; one with radiators; one underfloor (with option DHW)
8 manual setting to dry out the boiler & space are dry
9 automatic setting to dry out the boiler & space are dry
SLOPEOF THE WEATHER CURVE – CLOCK CODEB
The Slope Facility (0 to 9) is available (9) for a radiator circuit, (0) for underfloor.
The position (0) lowers flow temperature against outside weather
The position (9) gives maximum flow temperature againstoutside weather
VARIATION IN ELECTRICAL POWER –CLOCK CODE C
Power variation is a percentage of the nominal output – see Table (F).
For example – for a 50% reduction of the power, adjust to setting 4
ZONE SETTINGS – CLOCK CODES (D) and (E)
The two zone flow temperatures can be separately adjusted
The temperature is selected at table G
For example: 2 circuits : 1 radiators and 1 underfloor heating
For zone 1 at 70°C; set clock code D at 7
For zone 2 at 50°C; set clock code E at 3
PLEASE NOTE that OT1 is reserved to the circuit with high temperature, also radiators
PLEASE NOTE that OT2 is reserved to underfloor heating, except for 2 radiator circuits

9
2.5 THE under card of the DIGITAL CONTROLLER
Assembly (A) - 6 connection switches
E1 not used – Factory position OFF
E2 Sensor PT1000 at base of DHW vessel (arrangement 1b & 2b). Factory position OFF
E3 Sensor PT1000 at base of DHW vessel (arrangement 4b) Factory position OFF
E4 Sensor PT1000 for regulation of the 3-way valve Factory position OFF
E5 Sensor PT1000 for external sensor – in position “ON” when connected
E6 not used – in position “OFF”
Assembly B
SWITCH 1 Position OFF 50% heat output
Position ON Frost Protection
SWITCH 2 ON/OFF Reverse polarity
SWITCH 3 ON – 3 phase boiler
OFF – 1 phase boiler
2.6PUMP & CONTROL VALVE HANDOPERATIONONLY
The panel provides a 5 volt circuit for the digital control panel cards and a 24 volt circuit for the open
therm & PT1000 sensors.
Switch assembly 1 to 10
To restrict the boiler heat output, switch off H4, H3, and H2 with all switches off,minimal heat
outputwill remain for frost protection.
Switch assembly V1+ V1- V2-, 01, 02 to fix the position of the 3 valves

10

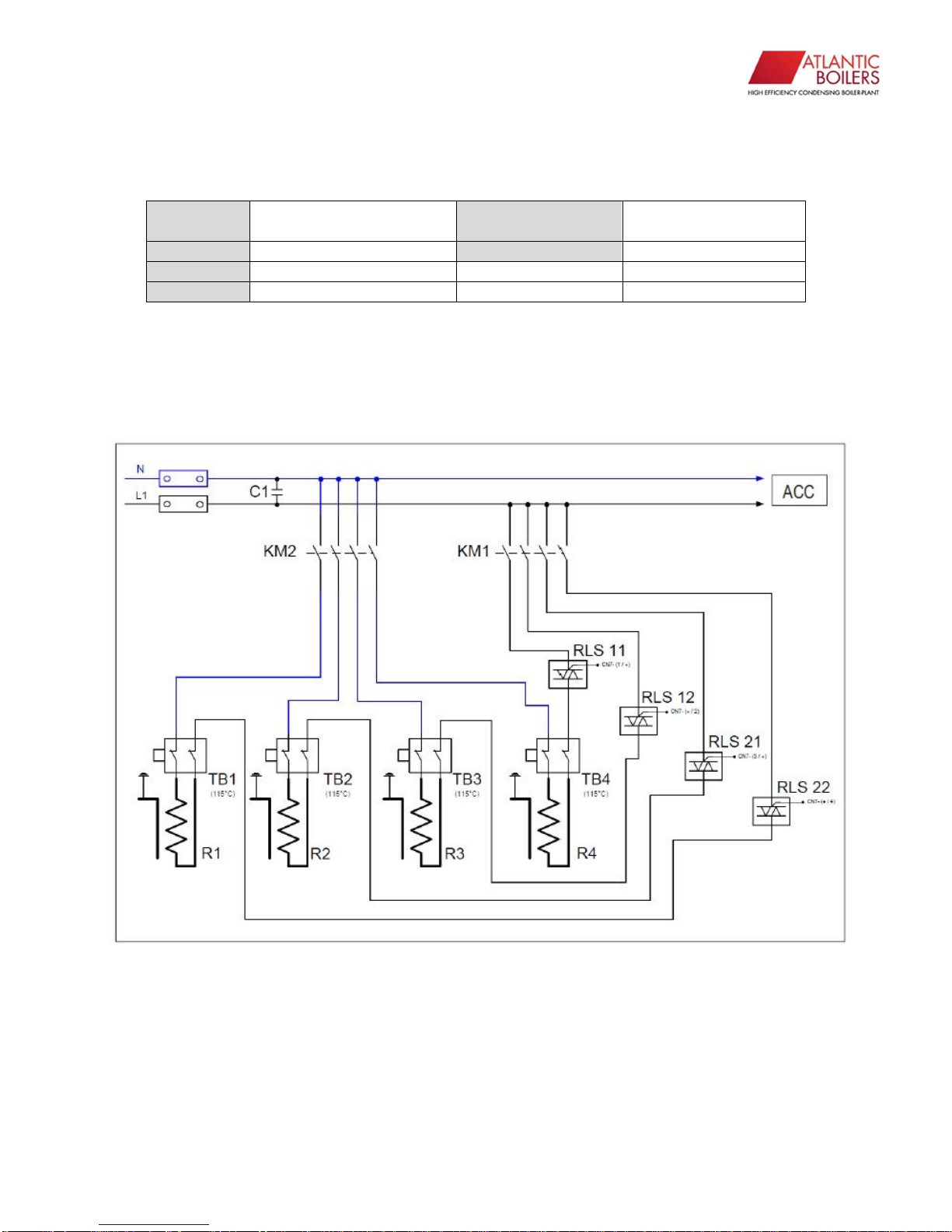

2.7 ELECTRONIC RELAYS

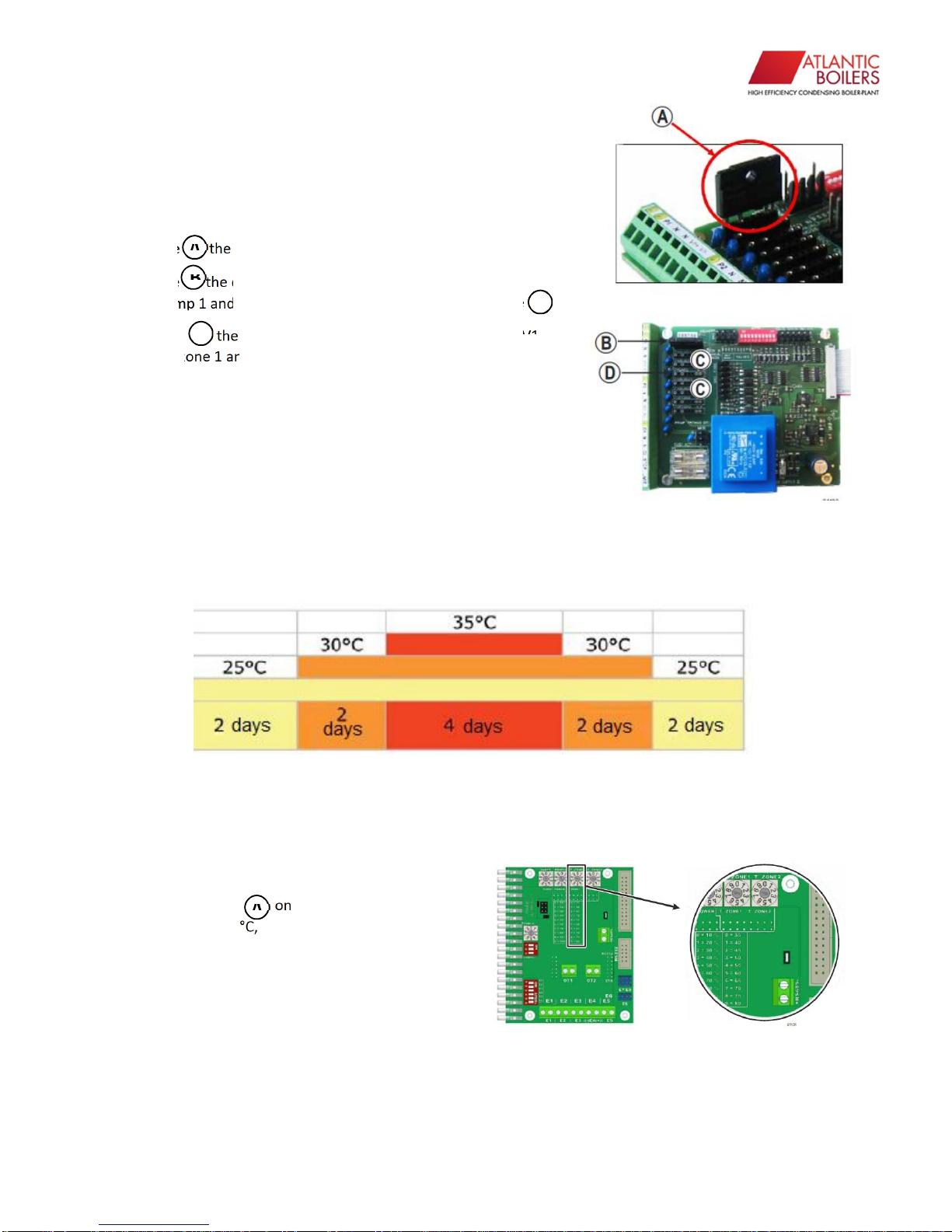

2.8 DRYING OUT THE NEW BUILDING
Modest flow temperature should be used.
Set clock code on 9 to give automatically
48 hours at 25°C,
then 48 hours at 30°C, then 96 hours at 35°C
then 48 hours at 30°C, then 48 hours 25°C
then 48 hours at 20°C – see graph below
C

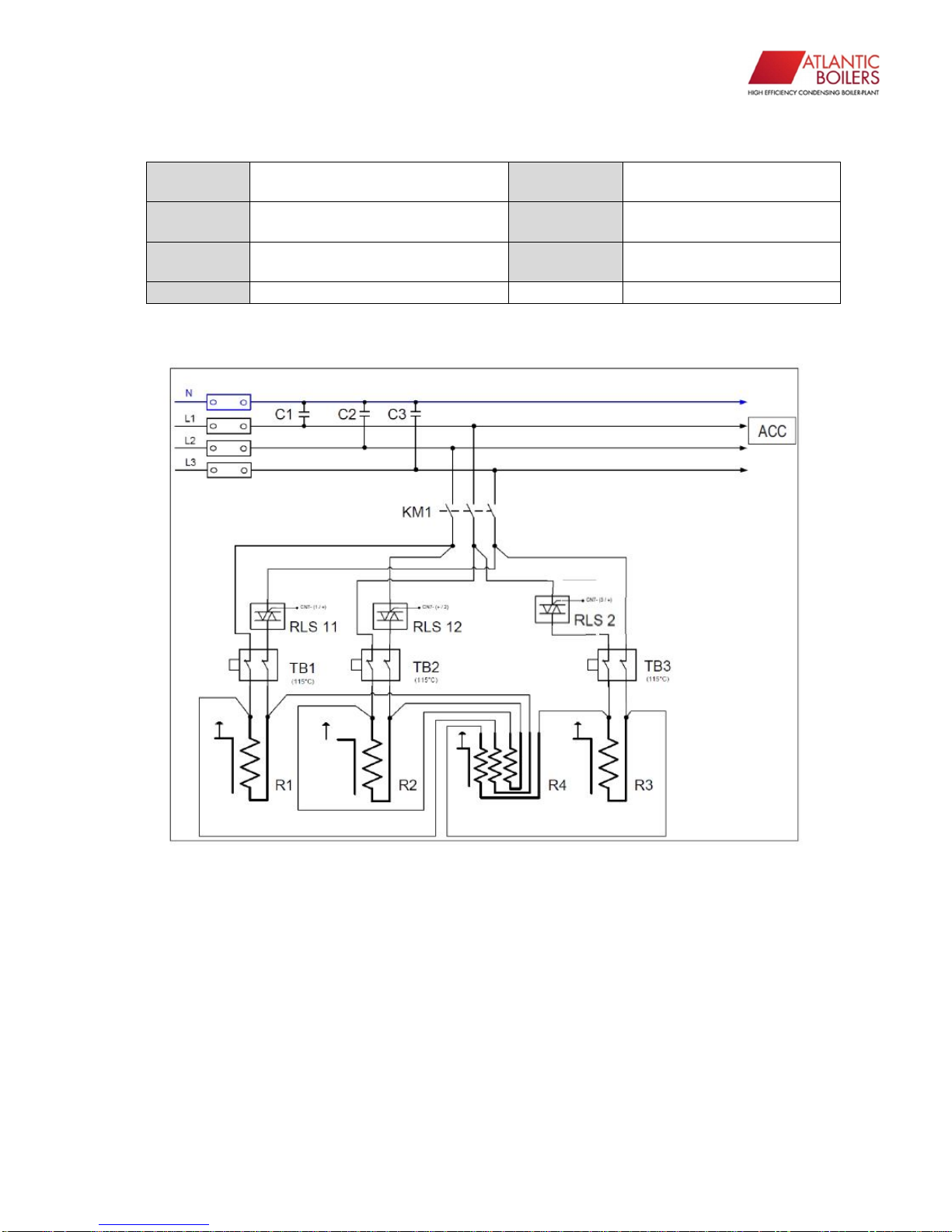

Electronic relays operate each pump, each 3-way mixing
valve and each 2-position valve.
Each valve has 2 power and 2 control contacts.
See the output power control panel has one relay
See the digital controller has one terminal marked P1 for
pump 1 and one terminal also marked P2 for pump2 see
See the 3-way valve require two terminals marked V1
for zone 1 and terminals marked V2 for zone 2
A
B
D
A
C

11
SELECTION OF HEATING CIRCUITS
1a. One underfloor heating zone
1b. One underfloor heating zone & DHW
2a. One radiator heating zone
2b. One radiator heating zone & DHW
3. One radiator zone and one underfloor heating zone
4. One radiator zone and one underfloor heating zone & DHW

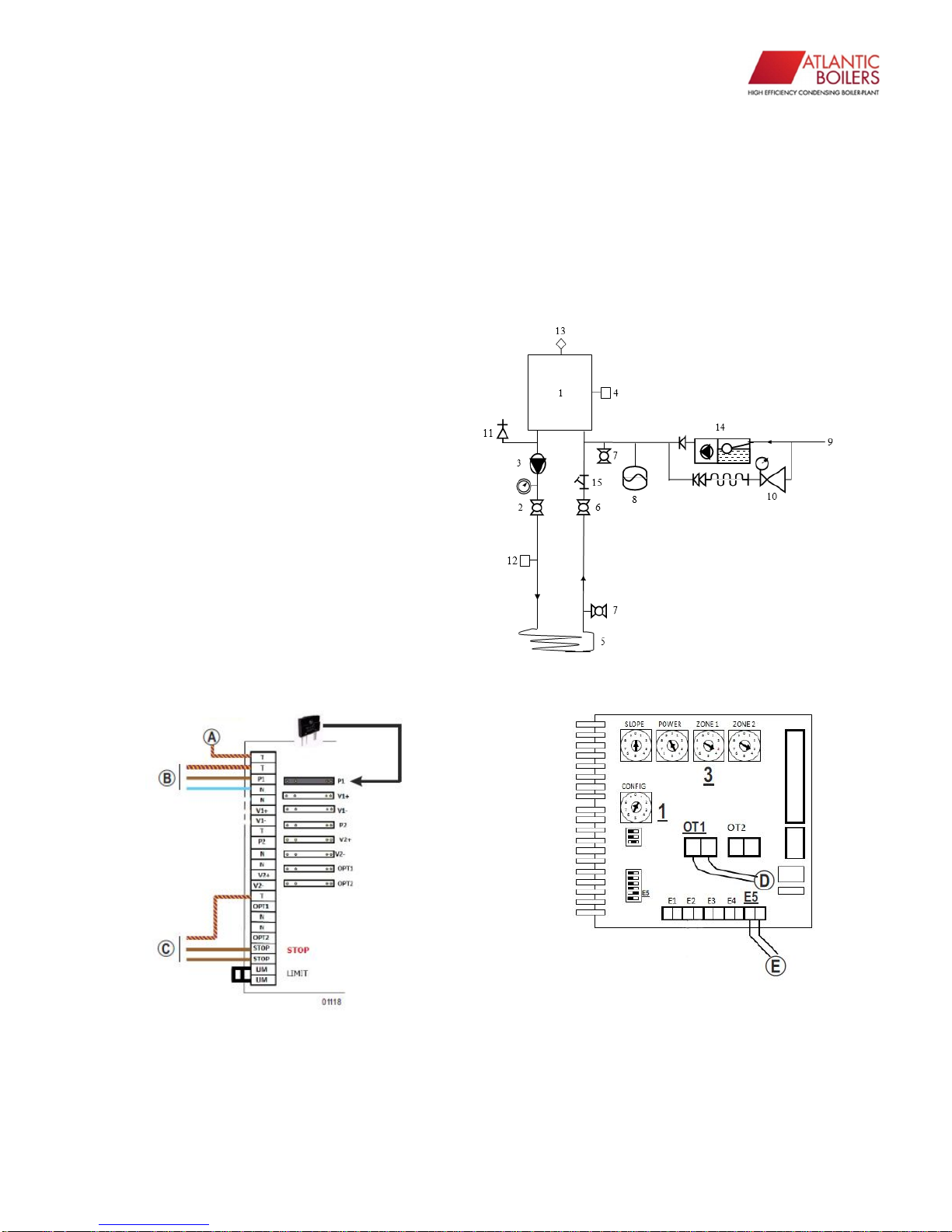

1a. One underfloor heating zone
1CER Boiler
2Isolating valve
3Pump
4High limit stat
5Underfloor heating
6Circuit return valve
7Drain valve
8Expansion vessel
9Cold feed
10 Pressure regulator
11 Safety valve
12 Open therm flow thermostat
13 Automatic air vent
14 Pressurisation unit
POWER CONTROL DIGITAL CONTROL
A
Earth
B Pump
C Flow temperature limit
D Open therm
E External sensor

12

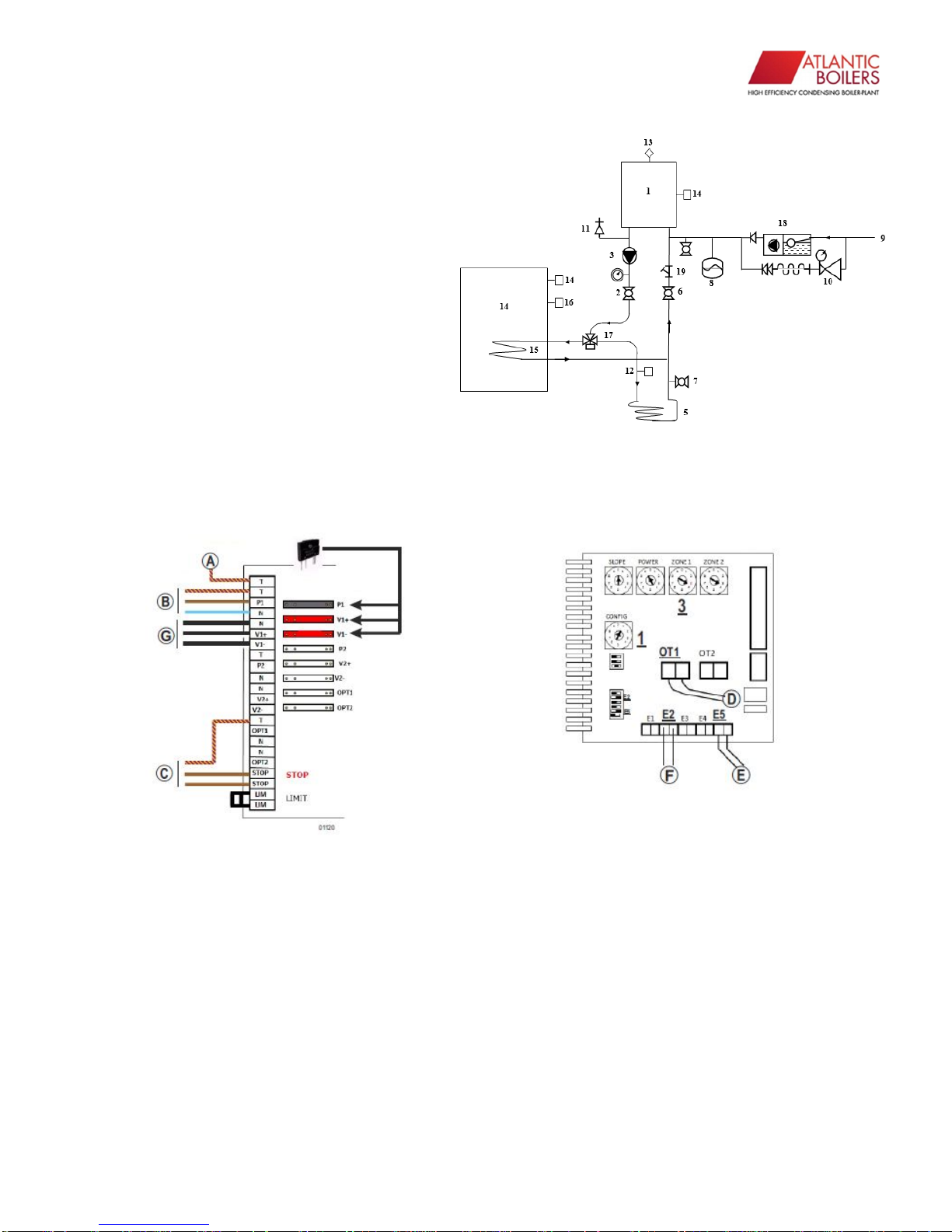

1b. One underfloor heating zone & DHW
1CER Boiler
2Isolating valve
3Pump
4High limit stat
5Underfloor heating
6Circuit return valve
7Drain valve
8Expansion vessel
9Cold feed
10 Pressure regulator
11 Safety valve
12 Open therm flow thermostat
13 Automatic air vent
14 Domestic hotwater indirect cylinder
15 Primary heating coil
16 PT1000-ET domestic hot water sensor
17 3-way motorised valve
POWER CONTROL DIGITAL CONTROL
A Earth
B Pump
C Flow temperature limit
D Open therm 1
E External sensor
F Sensor ECS PT1000
G 3-way valve

13
2a. One radiator heating zone
1CER Boiler
2Isolating valve
3Pump
4Strainer
5Pressurisation unit
6Drain valve
7Safety valve
8Expansion vessel
9Cold water supply
10 Pressure regulating valve
11 Circuit return valve
12 Open therm flow thermostat
13 automatic air vent
14 Radiators
POWER CONTROL DIGITAL CONTROL
A Earth
B Pump
C Flow temperature limit

14
2b. One radiator heating zone & DHW
1CER Boiler
2Isolating valve
3Pump
4DHW indirect cylinder
5Primary heat exchanger
6Main system drain
7Safety valve
8Expansion vessel
9Cold water supply
10 Pressure regulating valve
11 DHW limit stat
12 Open Therm sensor
13 Automatic air vent
14 DHW therm stat
15 3 way motorised valve
16 Radiators
17 Pressurisation unit and fast fill loop
POWER CONTROL DIGITAL CONTROL
A Earth
B Pump
C 3-way motorised valve
D Open therm 1
E Sonde ECS PT1000

15
3. Two zones; One radiator heating zone & one underfloor heating zone
1CER Boiler
2Isolating valve
3Radiators
4Underfloor heating temperature limit
5Underfloor heating
6System drain valve
7Underfloor heating pump
8Expansion vessel
9Cold water supply
10 Pressure regulating valve
11 Pressurised unit
12 Sensor Open Therm 1
13 Sensor Open Therm 2
14 automatic air vent
15 Radiator pump
16 Radiator non-return valve
17 Sensor PT1000-E4
POWER CONTROL DIGITAL CONTROL
A Earth
B Radiator pump
C 3-way mixing valve
D Underfloor heating pump
E Underfloor heating temperature limit
F Underfloor heating PT1000 flow sensor
G External temperature PT1000 sensor
H Sensor Open Therm 1
I Sensor Open Therm 2 (underfloor)

16
4. Two zones : One radiator heating zone, one underfloor heating zone & DHW
1CER Boiler
2Isolating valve
3Radiators
4Underfloor heating temperature limit
5Underfloor heating
6System drain valve
7DHW limit stat
8Expansion vessel
9Cold water fill
10 Pressure regulating valve
11 Pressurisation unit
12 Sensor Open Therm 1
13 Sensor Open Therm 2
14 automatic air vent
15 Radiator pump
16 Sensor PT1000-E3
17 Sensor PT1000-E4
18 Underfloor heating pump
19 Domestic hotwater expansion vessel,
Temperature & pressure relief valve
Domestic hotwater temperature limit stat
20 Primary exchanger
POWER CONTROL DIGITAL CONTROL
A
Earth
B Radiator pump
C Radiator 3-way motorised valve
D Underfloor heating pump
E Underfloor high temperature limit
F PT1000 sensor at 3-way valve outlet
G
PT1000 external sensor
H Open Therm Sensor 1
I Open Therm underfloor heating Sensor b2
J PT1000 DHW sensor
K DHW 3-way motorised valve

17
4. COMMISSIONING THE SYSTEM, using the red or green signals of the DIGITAL CONTROL PANEL
GREEN SYSTEM – normal functioning
1. The four LED lights indicate the operation of the four immersion
heaters
2. The column of LED lights indicate the percentage output at any one
time
3. This one LED indicates a limit to the power output
-either a fixed RED light limit set by the codes in the boiler
control
-or a winking RED light caused by the boiler or circuit going over
limit
4. These LEDS indicate that the OPEN THERM sensors are in operation
5. These LEDS indicate that the PUMPS are in operation
6. This LED indicates that either 3-way valve is in operation
GREEN light – space heating priority: RED LIGHT – DHW priority
7. This LED indicates that the OPEN THERM sensors are receiving 24
volts
4.1 INDICATION OF ERRORS
The DIGITAL CONTROL PANEL can detect and diagnose faults as they occur.
The LED “A” will wink either in GREEN, ORANGE or RED.
FLASHING GREEN - no error
FLASHING ORANGE – error in wiring or connection
FLASHING RED - boiler in lock-outcondition
The error is indicated by a red or orange light in the range of LED lights “B”
LED 7 ORANGE High temperature over-heat/Low water pressure RED
LED 8 ORANGE URGENT High temperature lock-out on underfloor
floor heating or blown fuse on electrical supply RED
FLASHING ORANGE – error in wiring or connection
The error is indicated in ORANGE or RED in one of the LED’s below LED ERROR
1 RED Short circuit
1 ORANGE Faulty connection
2 RED Short circuit
2 ORANGE Faulty connection
3 RED Short circuit
3 ORANGE Faulty connection
4 RED Short circuit
4 ORANGE Faulty connection
5 RED Short circuit
5 ORANGE Faulty connection
7 RED PT1000 in Short circuit
7 ORANGE PT1000 in Faulty connection
8
RED
PT1000 in Short circuit
8 ORANGE PT1000 in Faulty connection
OPENTHERN 2 RED OPENTHERM 2 in Short circuit
OPENTHERM 2 ORANGE OPENTHERM 2 in Faulty
connection
OPENTHERN 1 RED OPENTHERM 1 in Short circuit
OPENTHERM 1 ORANGE OPENTHERM 1 in Faulty
connection
PUMP 2 ORANGE pump two failed
PUMP 1 ORANGE pump one failed
MIXING VALVE ORANGE valve failed
CONTROL 24V RED failed voltage
CONTROL 24V
ORANGE
voltage too high

18
4.2 ELECTRIC DRAWINGS
POWER CIRCUITRY – Single phase
TB1 to TB4
lock
-
outthermostats setat
115degC
R1 to R4
immersion heaters each
2kW or 3kW 240V
C1
Capacitor
RLS11
-
12 & RLS21
-
22
double circuit relays
KM1 & KM2
4
-
pole contactors
ACC
voltage to the control ci
rcuit

19
CONTROL CIRCUITRY - Single phase
A1
Aquastat0
-
90degC
V1
–
V2
LED’s GREEN/RED
S1
Modulating control
KM1
-
2
4 pole contactors
CO
Open Therm controller
T1
–
T4
manual r
e
-
set
STATS
CP
8 step controller
APP
voltage
from Power circuit
DX1
Step Controller
P1
Minimum pressure
-
stat

20
POWER CIRCUITRY – Three phase
KM1
&KM2
4
-
pole contactor
R1 to R3
immersion heaters each single
coil, 3kW 415V
C1
-
3
capacitors
R4
immersion heater t
hree coil
3.1kW,415V
TB1 to TB3
lock
-
outthermostats setat 115degC
RLS11
-
12 &
RLS21-22
-
double circuit relays
ACC
voltage to the control circuit
