ATMT DAB MP3 MP170 User manual

DAB/MP3 Player
MP170
This symbol on the product or in the instructions means that your
electrical and electronic equipment should be disposed at the end of
its life separately from your household waste.
There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your
retailer where you purchased the product.

DIGITAL AUDIO PLAYER
2
Index
1
ATMT has all the rights of the patent, trademark, literary property and
intellectual property related to this manual.
You may not copy or reproduce any part of this manual unless
authorized by ATMT You can be punished by using any part of this
manual illegally.
The software, audio and video which have an intellectual property are
protected by copyright and international laws.
It is user’s responsibilities when he/ she reproduce or distribute the
contents created by this product.
The companies, institutions, products, people and events used in
examples are not real data.
We don t have any intension to be related with any companies,
institutions, products, people and events through this manual and
should not draw inferences.
Users are responsible for observing the copyrights and intellectual
properties.
2006 ATMT All rights reserved.
Copyrights
Before Use
Components ................................................................................................... 3
Features ......................................................................................................... 4
Keys and Controls ......................................................................................... 5
LCD Screen Display ....................................................................................... 6
Before first use .............................................................................................. 7
To use DAB Radio
Tuning On/Off ................................................................................................ 8
Using Manual Mode ....................................................................................... 9
Using Preset Mode ....................................................................................... 11
DAB Record Function .................................................................................. 13
DAB Setting .................................................................................................. 14
DAB Menu Tree ........................................................................................... 17
To use MP3 Player
Play Music File ............................................................................................. 18
Music Library ............................................................................................... 19
A-B Repeat .................................................................................................. 20

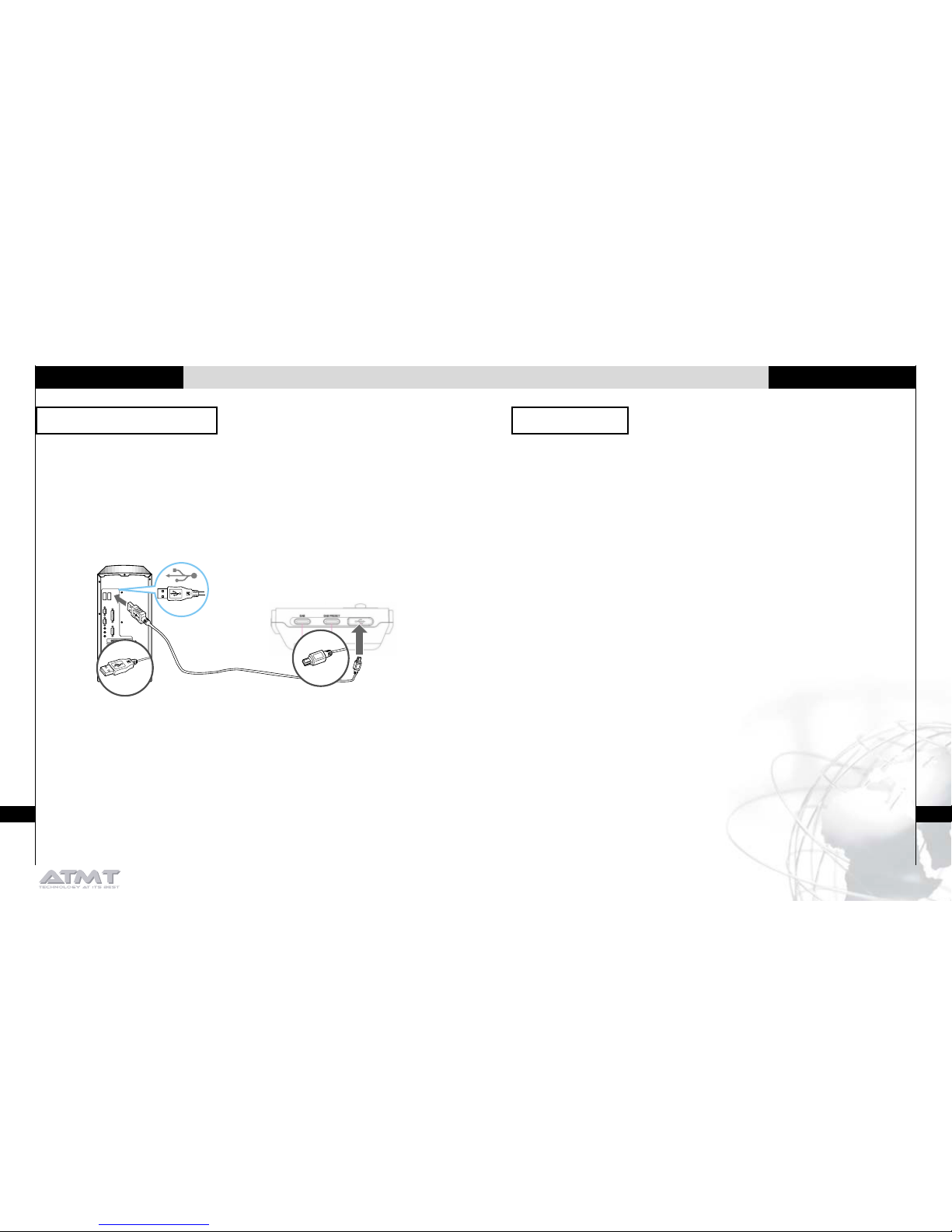

Before Using USB mode ............................................................................. 25
Use USB mode ............................................................................................ 26
Music Menu Tree ......................................................................................... 27
Additional Information
Update MP170 Series .................................................................................. 28
Precautions and safety ................................................................................ 29
About DAB ................................................................................................... 30
DAB Frequency Table ................................................................................. 31
DAB Information .......................................................................................... 32
Trouble Shooting .......................................................................................... 33
Product Specification ................................................................................... 34

DIGITAL AUDIO PLAYER
4
Before Use
3
Components
Before Use
ATMT DAB
Note
Design of accessories is subject to change without notice.
MP170
USB CableEarphone (Antenna)
Quick Guide Manual
CD - USB Driver
(Include Instruction Manual)
Features
DAB Reception
Listening to your DAB radio is made easy with Auto Search,
Manual Search and Local/ Full Scan functions.
MP3 and WMA
This player supports MP3 and WMA playback.
USB 2.0 High Speed
With USB 2.0 high speed PC, data speed transfer is 25 Mbps.

DIGITAL AUDIO PLAYER
6
Keys and Controls
Before Use
5
Before Use
MP170
1. Earphone Jack
2. Power On/ Off/ Play/ Pause/ Cancel
3. Mode Change
4. Hold On/ Off
5. Previous/ REW
6. Up
7. Next/ FF
8. Confirm Menu/ Navi
9. Down
10. USB Connector
11. Save/ Delete Preset
12. DAB Record Start/ Stop
13. Strap Hole
LCD Screen Display
1. File Number
2. Repeat
3. Play/ Pause
4. EQ
5. Battery Status
6. Playing Time
7. Folder Name
8. Artist/ File Name
9. Volume
10. File Info
(Format/ Bit Rate/ Data Rate)
1. Service label
2. Volume
3. Battery / EQ
4. Time
5. Preset Mode
6. Signal Strength
7. Preset Number
8. Frequency Info
9. Ensemble Label / DAB Record
Progressive Bar / Manual Tune
Frequency (Manual Tune Only)
1. Locating the MUSIC MODE Icons
2. Locating the DAB MODE Icons

DIGITAL AUDIO PLAYER
8
Before first use follow the steps detailed below
To Use DAB Radio
7
Before Use
Note
The earphones cable also serves as an aerial. To get optimal signal
reception, avoid coiling the earphone cord. And using the original earphone
is highly recommended.
To avoid corrosion, remove the battery if the player is not to be used for a
long time.
Remove dead battery immediately to avoid damage from corrosion.
When corrosion occurs, wipe the battery compartment immediately with a
dry cloth and insert a new battery.
1. Connect the earphone jack to the earphone socket on
the player.
2. Open the battery cover.
3. Insert the battery. (1x AA : Recommend a alkaline battery)
Be sure to match the + and - ends of the battery with the
diagram inside the battery compartment.
4. Close the battery cover.
To open the battery cover
To close the battery cover
To adjust the volume, move the control stick UP or
DOWN. (UP : increase volume, DOWN : decrease volume)
Turning on/ off the player
1. Turning on the player
: Press the button to turn on the player.
2. Turning off the player
: Press and hold the button to turn off the player.
3. To change volume, move control stick up or
down.
4. Press and hold the MODE button for 3 seconds to select
either MP3 or DAB mode.
Note
If the player doesn’t power on, please try replacing the battery.
To operate the hold function, press the Hold Switch for 3 seconds.
Press again for 3 seconds to disable the Hold function.
If the player doesn’t power off, please check whether the HOLD button is
set to HOLD ON.

DIGITAL AUDIO PLAYER
10
Using Manual Mode
To Use DAB Radio
9
To Use DAB Radio
Note
Area factory default value is UK.
When using for the first time, the unit will start AUTO SCAN automatically.
Manual Tune
Tune to stations
With the first line highlighted :
1. Press and hold the or on the control stick to
select your desired service.
2. The player will highlight the line and step through the
available stations.
Press button when required station appears. The player will
display present service information.
Using Manual Mode
1. Press the button to save current service. ‘save
preset?’ screen will be displayed on LCD screen.
To save service to Preset list
Note
Second line shows which service had been saved in selected preset number.
Fourth line shows the current services which user desired to save.
2. Press or button to change preset memory number.
At desired preset number, please press button to save.
Note
Up to 20 presets can be stored.
If the selected preset number is empty, the display will shows ‘Empty’.
To cancel anything, press Play button.
Preset Memory
Current Service

DIGITAL AUDIO PLAYER
12
Using Preset Mode
To Use DAB Radio
11
To Use DAB Radio
Preset tune
If preset icon is not displayed, first press and hold
button to enter preset tuning mode.
Now pressing or will show saved preset list.
Note
If there are no services in the preset list, the tune mode will be changed to
manual mode automatically. Please auto scan first.
The frequency of manual tune is not saved, last frequency of preset tune
mode will be tuned when user changes tune mode to preset.
Using Preset Mode
1. Press button to delete current service from
preset list.
‘Delete preset’ screen will be displayed on LCD screen.
2. Press button to delete.
To delete service from Preset list
3. After deleting, previous service will be tuned.
Note
Preset deleting is only activated in Preset mode.

DIGITAL AUDIO PLAYER
14
DAB Record Function
To Use DAB Radio
13
To Use DAB Radio
1. Press button to start recording.
2. Press button until time is highlighted.
3. Press or to skip forward or backwards through
the recorded DAB radio.
4. Press button to stop recording.
Temporary Record
Note
This is a temporary record function. As soon as you exit the menu the
recording will automatically be deleted.
The DAB Record function will not operate if the battery is low.
The function will stop if the amount of saved data exceeds the memory
capacity.
DAB Setting
1. For easy and quick station scan, press and hold
button.
2. Move cursor at desired menu – If local scanning be selected,
the scanning will be only scan in UK area, if full scanning be selected,
the scanning will be take some time but scan all band III area.
Note
In areas where the signal is weak, some stations may not be available.
When the player can’t find any service, please check local area has DAB
coverage.
To exit, press Play button.
SCAN

DIGITAL AUDIO PLAYER
16
DAB Setting
To Use DAB Radio
15
To Use DAB Radio
DAB provides data services such as traffic, transport, news,
weather, sports, financial etc. User can select which data to receive.
1. Press and hold button, move cursor at
announcement menu.
2. Press button to enter. At desired data, press
button.
The icon will be change to a smile icon.
3. To deselect, press at smile icon.
Announcement
Note
Announcement information availability will vary from region to region
DAB Setting
User can adjust the sound according to preference.
1. Press and hold the button to get into the menu mode.
2. Move the cursor to EQUALIZER icon. Press button to
enter.
3. Move the cursor to desired EQ and press button.
At custom EQ, there are 5 band frequency steps.
User can adjust equalizer. (- 12dB ~ + 12dB)
Equalizer
Note
To exit, press button.

DIGITAL AUDIO PLAYER
18
DAB Menu Tree
To Use MP3 Player
17
To Use DAB Radio
DAB SETTING
SCAN
LOCAL SCANNING
FULL SCANNING
ANNOUNCEMENT
TRAFFIC
TRANSPORT
SERVICE
NEWS
WEATHER
……
EQUALIZER
NORMAL
ROCK
JAZZ
CLASSICAL
POP
CUSTOM
DAB SETTING
Play Music File
1. While in DAB mode, press and hold the button.
2. Press button to start/ pause music playback.
3. Skip to next/ previous music file, press or using
the control stick.
: Skip to the previous music file
: Skip to the next music file
4. To fast search, press and hold the or using
the control stick.
Release the control stick for normal playback.
: Fast- rewind
: Fast- forward
To Play Music File
