ATN OTS-64 User manual
operator’s manual
Important Export Restrictions! Commodities, products,
technologies and services contained in this manual are
subject to one or more of the export control laws and
regulations of the U.S. Government and they fall under the
control jurisdiction of either the US Department of State
or the US BIS-Department of Commerce. It is unlawful
and strictly prohibited to export, or attempt to export or
otherwise transfer or sell any hardware or technical data
or furnish any service to any foreign person, whether
abroad or in the United States, for which a license or written
approval of the U.S. Government is required, without
first obtaining the required license or written approval
from the Depar tment of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.
ATN OTS-32 / 64
THERMAL MULTI-PURPOSE SYSTEM
Manual ( OTS -32 / 64, ver. 2011) Revision 1 - 2011
The information in this manual furnished for information use only, is subject to
change without notice, is not to be construed as a commitment by ATN Corp.
ATN Corp. assumes no responsibility or liability for any errors or inaccura-
cies that may appear in this book.
© 2011 ATN Corp. All right reserved.
a
SAFETY SUMMARY
STUDY CAREFULLY THIS MANUAL BEFORE TURNING ON
AND OPERATING THIS PRODUCT.
CAUTIONS
The ATN OTS-32/64 thermal multi-purpose system are preci-
sion optical-electronic instruments and requires careful han-
dling. To provide safe use of the systems the following instruc-
tions should be observed:
-
perature drops and shocks.
prints on, or contaminate the glass surfaces, use only clean
and soft materials to clean it.
Do not leave the device in on position during stops in operation.
This producT conTains naTur al rubber laTex which
may cause allergic re acTi ons
CAUTION:
b
WARNING
Do n ot permanent l y at t ac h t h e c a m era to dynam i c -mount a p pl i c a-
tions that continuously transmit vibration (such as on vehicles or
heavy machinery).
WARNING
Do not point the camera directly at any high-intensity objects that
you must not view with your eyes (such as the sun or a welding
arc). If you do, you will damage the camera.
WARNING
Operating OTS outside of its specified operating temperature
range or voltage range can cause permanent damage and will
void the warranty.
WARNING
Use the power button to turn the camera off before you remove
power (remove batteries or disconnect external power supply).
WARNING
NOT use any battery(ies) providing a (combined) voltage greater
than 3.0 volts.
WARNING
Do not install batteries of different types (lithium with lithium-ion
rechargeable). All batteries must be of the same type.
WARNING
Always replace ALL 2 batteries. If you install new batteries with
used batteries, the result may be dangerous.
WARNING
Do not replace batteries in a possibly explosive environment, such
as a gas station (or any place where you must turn off your vehicle
engine). If you do, sparks can cause an explosion.
WARNING
periods (2 weeks or more).
c
WARNING
Do n ot c arr y bat teries in pocke t s c o ntaining met al o bjec t s su c h a s
coins , keys, etc. Met a l o b je c t s c an c ause the bat teries to shor t c ir-
cuit and become very hot. In the case of lithium batteries, a short
circuit could cause them to explode.
WARNING
Observe battery manufacturer’s guidelines for safe handling and
proper disposal of batteries.
EQUIPMENT LIMITATIONS
penetration through smoke, smog, dust, water vapor etc.
the monocular does not sense objects if they are behind a glass
window.
i
TABLE OF CONTENTS
pg.
SECTION I. INTRODUCTION 1-1
1.1 General Information 1-2
1.1.1. Scope 1-2
1.1.3. Storage 1-2
1.1.4. Warranty Information 1-3
1.2. Description and Data 1-5
1.2.1. Description 1-5
1.2.2. OTS Standard Components 1-6
1.2.3. OTS Optional Components 1-8
1.2.4. Specifications 1-9
1.2.5. Mechanical Functions 1-11
1.2.6. Optical Functions 1-11
SECTION II. ASSEMBLY AND PREPARATION 2-1
2.1. Preparation 2-2
2.1.1. Preparation for use 2-2
2.2. Assembly 2-4
2.2.1. Video output 2-4
2.2.2. Head Mount 2-4
2.2.3. Helmet Mount 2-5
2.2.4. Dual Bridge Adapter 2-6
2.2.3. Weapon Mount 2-8
SECTION III. OPERATION 3-1
3.1. General Information 3-2
3.1.1. General 3-2
3.1.2. Controls and Indication 3-2
3.2. Operating procedure 3-4
3.2.1. Turning On 3-4
ii
3.2.2. Focusing 3-4
3.2.3. Polarity and Color modes 3-5
3.2.4. Brightness 3-5
3.2.6. Zoom 3-5
3.2.8. Weapon Mount Adjustment 3-6
SECTION IV. MAINTENANCE INSTRUCTIONS 4-1
4.1. Preventive Maintenance Checks
and Services (PMCS) 4-2
4.1.1. Purpose of PMCS 4-2
4.1.2. Frequency of Performing PMCS 4-2
4.2. Troubleshooting 4-4
4.2.1. General 4-4
4.2.2. Troubleshooting Procedures 4-4
4.3. Maintenance Procedures 4-5
4.3.1. Scope Maintenance 4-5
4.3.2. Cleaning Procedures 4-5
4.3.4. Headmount Maintenance 4-6
Appendix A. Spare Parts List A-1
For Technical Information INFO-1
iii
1-1
SECTION I
INTRODUCTION
1-2
1.1 GENERAL INFORMATION
1.1.1. SCOPE
This manual contains instructions for use in operating and main-
taining the ATN OTS-32/64 thermal multi-purpose systems.
Throughout this manual, the ATN OTS-32/64 will be referred to
as the scope or OTS.
1.1.2. REPORTS
encouraged. Send reports to the address below.
American Technologies Network Corp.
1341 San Mateo Avenue
South San Francisco, CA 94080
(800) 910-2862
(650) 989-5100
info@atncorp.com
www.atncorp.com
1.1.3. STORAGE
Storage of OTS should be done in the factory packing and after a
thorough PMCS as outlined in Section 4.1. of this manual. This will
ensure the scope remains in mission ready condition during stor-
age. Batter y should be stored separately from the scope.
The scope should not be placed on the floor, in any area exposed
to high temperatures or direct sunlight. Presence of acid and al-
kaline vapor, as well as of other aggressive admixtures in the air
is unacceptable.
1-3
1.1.4. WARRANTY INFORMATION
ONE YEAR PRODUCT WARRANTY
This product is guaranteed to be free from manufacturing defects in material
and workmanship under normal use for a period of 1 (one) years from the date
of purchase. In the event a defect that is covered by the foregoing warranty
occurs during the applicable period stated above, ATN, at its option, will either
repair or replace the product, and such action on the part of ATN shall be the
full extent of ATN’s liability, and the Customer’s sole and exclusive remedy.
This warranty does not cover a product (a) used in other than its normal and
-
fications or repairs by the Customer of by any party other than ATN without
that has been discontinued by the manufacturer and either parts or replace-
ment units are not available due to reasons beyond the control of ATN. ATN
shall not be responsible for any defects or damage that in ATN’s opinion is
a result from the mishandling, abuse, misuse, improper storage or improper
operation, including use in conjunction with equipment which is electrically
or mechanically incompatible with or of inferior quality to the product, as well
as failure to maintain the environmental conditions specified by the manufac-
turer. This warranty is extended only to the original purchaser. Any breach of
this warranty shall be waived unless the customer notifies ATN at the address
noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty,
no other warranties written or oral, statutory, expressed or implied, including
any implied warranty of merchantability or fitness for a particular purpose,
shall a ppl y to the produ ct. A ll suc h imp lied wa rr anti es are here by and ex pres s -
ly disclaimed.
LIMITATION OF LIABILITY
ATN will not be liable for any claims, actions, suits, proceedings, costs,
expenses, damages or liabilities arising out of the use of this product. Op-
eration and use of the product are the sole responsibility of the Customer.
ATN’s sole undertaking is limited to providing the products and services
outlined herein in accordance with the terms and conditions of this Agree-
ment. The provision of products sold and services performed by ATN to the
Cu s to m e r sha l l n ot b e i nte r pre ted , c o n str u e d, or r e g ard e d , e ith e r ex p res s l y
or implied, as being for the benefit of or creating any obligation toward any
under this Agreement extend solely to the Customer. ATN’s liability here-
un d er fo r dam a ges , r e g ard l ess o f t he fo rm o r a cti o n, sh all n ot exc e ed
the fees or other charges paid to ATN by the customer or customer’s
dealer. ATN shall not, in any event, be liable for special, indirect, in-
1-4
cidental, or consequential damages, including, but not limited to,
lost income, lost revenue, or lost profit, whether such damages were
foreseeable or not at the time of purchase, and whether or not such
damages arise out of a breach of warranty, a breach of agreement,
negligence, strict liability or any other theory of liability.
PRODUCT WARRANTY REGISTRATION
In order to validate the warranty on your product, ATN must receive a
warranty registration on our website at www.atncorp.com. Please com-
plete the included form and immediately mail it to our Service Center: ATN
Corporation, 1341 San Mateo Avenue, South San Francisco, CA 94080.
OBTAINING WARRANTY SERVICE
-
vice department by calling 800-910-2862 or 650-989-5100 or via e-mail
paid, with a copy of your sales receipt to our service center, ATN Corpora-
tion at the address noted above. All merchandise must be fully insured
-
age or, missing or damaged merchandise during shipment. When sending
-
Address, reason for service return, Contact information such as valid tele-
phone numbers and/or e-mail address and proof of purchases that will help
us to establish the valid start date of the warranty. Product merchandise
returns that do not have an RMA listed may be refused or a signifi-
cant delay in processing may occur.
for warranty service. ATN will cover return postage/shipping after warranty
repair to end-user/customer only if product is covered by aforementioned
warranty. ATN will return product after warranty service by domestic UPS
ground and/or domestic mail. Any other requested, required or interna-
tional shipping method the postage/shipping fee will be the responsibility
of the end-user/customer.
1-5
1.2. DESCRIPTION AND DATA
1.2.1. DESCRIPTION
A. PURPOSE
The OTS-32/64 are compact multi-purpose thermal imaging sys-
tems. They’re built around state of the art uncooled thermal im-
aging technology, integrated DSP-based electronics and a com-
pact, lightweight construction. These thermal imaging monocu-
lars provide excellent image quality through total darkness, fog,
smoke and other visual obstructions. Total darkness, camouflage
or bright lights will not affect the sensitivity of these units.
The included and optional accessories make these models re-
markably versatile. You can put it on a headset or on a helmet,
connect it to another monocular to build a binocular system or
use it as a weapon-mounted scope. The OTS-32/64 is ideal for
-
tection, Police SWAT and Special Operations.
Figure 1-1. ATN OTS Thermal Imaging Systems
B. FEATURES
OTS has the following important features:
1-6
-
5 different color settings
green, or white
1.2.2. OTS STANDARD COMPONENTS
The OTS-32/64 standard components are shown in Figure 1-2 and
presented in Table 1-1.

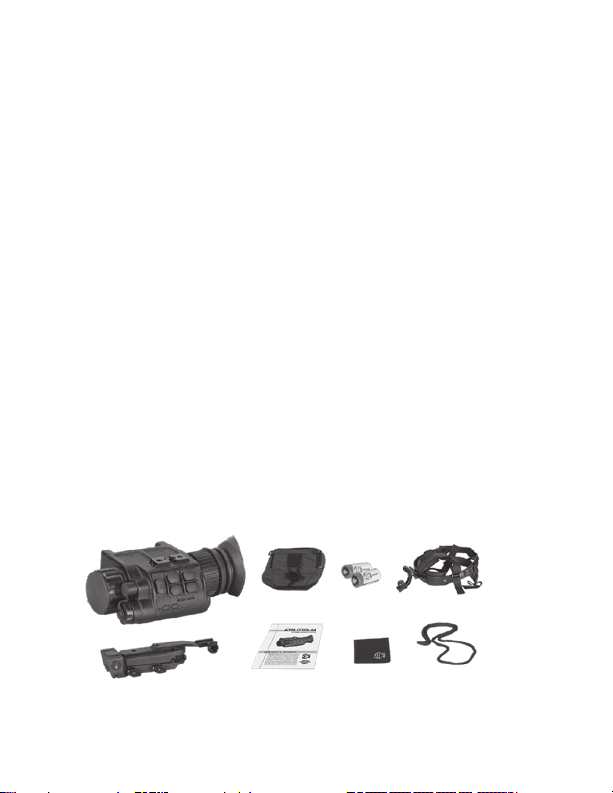

Figure 1-2. OTS-32/64 Standard Components
2
5
3
1
4
6 7 8
Table 1-1. OTS - 32 / 64 Standard Components
ITEM DESCRIPTION QTY
1Scope 1
2Soft Carrying Case 1
3 1
4Headmount Assembly 1
5Weapon Mounting System 2
6Operator’s Manual 1
Lens Tissue 1
8Wrist Strap 1
1) Scope
The monocular thermal imaging device.
2) Soft Carrying Case
A protective bag used for storing of OTS and
accessories.
3) Lithium Battery CR123A
4) Headmount Assembly
Adjustable universal assembly that secures the ATN
OTS-32 / 64 to the operator’s head providing hands free
operation.
5) Weapon Mount System
Uses for installation OTS-32/64 on a weapon using
Picc atinny or Mil-STD 1913 rail and wind age and eleva-
tion adjustment.
1-8
6) Operators Manual
Provides equipment description, use of operator controls
and preventative maintenance checks and service.
7) Lens Tissue
Uses for cleaning of lenses surface.
8) Wrist Strap
Used to prevent damage due to dropping the scope.
1.2.3. OTS OPTIONAL COMPONENTS
The OTS optional components are shown in Figure 1-4 and pre-
sented in Table 1-3.
Figure 1- 4. OTS -32 / 64 Optional Components
Table 1- 3. OTS -32 / 64 Optional Components
ITEM DESCRIPTION ITEM CODE
1Flip-up Helmet Mount ACTIOT14HMNT
2Dual Bridge ACTIOT14DB
3
42X Afocal Lens
5Hard Storage Case ACCSHS1610
1) Flip-up Helmet Mount
Adjustable universal flip-up helmet mount assembly
that secures the ATN OTS-32/64 to the operator’s
helmet providing hands free operation.
12345
1-9
2) Dual Bridge
Adapter that allows the ATN OTS-32/64 to be attached
to in a binocular configuration to the head- or helmet
mount.
3) RCA Video/power adapter
for video transmission
and to connect external power sources.
4) 2X Afocal Lens
Attaches to the ATN OTS-32/64 for enhanced range
performance.
5) Hard Storage Case
A protective case used for shipping/storing OTS and
accessories.
1.2.4. SPECIFICATIONS
The following tables provide information pertaining to the opera-
tional, electrical, mechanical, optical and environmental character-
istics for the sights.
Table 1-4. Specifications
ITEM OTS-32/64 30Hz OTS-32/64 60Hz
320 x 240 or 640 x 480 320 x 240 or 640 x 480
25 µm
Detec tor Typ e Uncooled Microbolometer
Magnification 1X (2X, 4X digital)
Objective Focal
Length 19 mm
FOV 11° x 8°
1-10
ITEM OTS-32/64 30Hz OTS-32/64 60Hz
3 m to infinity
Focus adjustment Fixed
14mm
28 mm
Thermal Sensitivity < 0,1°C
Human
Output Format Analog PAL / NTSC
Display
Display Format 800 x 600 pxl
Brightness
Adjustment Manual
Contrast
Adjustment Automatic
Power Supply 2 x 3V, 123A type
Start-Up Time < 5 sec
Operating Time w/
one battery pack 4+ hrs
Weatherproof Yes
Dimensions 195 x 81 x 105 mm
Weight (w /bat-
teries)
* ATN reser ves the right to change the above specifications at any time without notice
1-11
1.2.5. MECHANICAL FUNCTION
The mechanical adjustments of the OTS sights allow for physical
differences between individual operators using the system. The
scope functions include the switchboard, refresh button, universal
connector, eyepiece diopter adjustment ring, battery compartment
cover, mounting rail. The mechanical controls are identified in Fig-
ure 1-4.
Figure 1-4. OTS Mechanical Controls
1.2.6. OPTICAL FUNCTION
Th e o p t i c a l func t i o n s inc lud e an o bjec t i ve le n s, thermal imag ing de -
tector and eyepiece. Infrared energy is emitted proportionally to the
temperature of an object. The warmer the object, the more energy it
emits. The infrared energy from the objects is focused by the optics,
onto an infrared detector. The information from infrared detector
is passed to electronics for image processing. The signal proces-
sing circuitry translates the infrared detector data into an image that
through an eyepiece by operator.
EYEPIECE DIOPTER
ADJUSTMENT RING
UNIVERSAL CONNECTOR
WITH CAP
FRONT LENS
ASSEMBLY
RECALIBRATE
SWITCH
ON-OFF BUTTON SWITCHBOARD
MOUNTING RAIL
BAT TERI ES COM -
PARTMENT COVER
LENS CAP
RUBBER
EYE-CUP
1-12
1.2.7. ELECTRICAL FUNCTION
The electronic circuit is powered by replaceable batteries - either
Power from the batteries is supplied to the components through the
OFF-ON switch button.
This manual suits for next models
