ATON Storm A53W User manual

In-Ceiling SpeakersLCR Theater Speakers
Model
A53W
Model
A83C

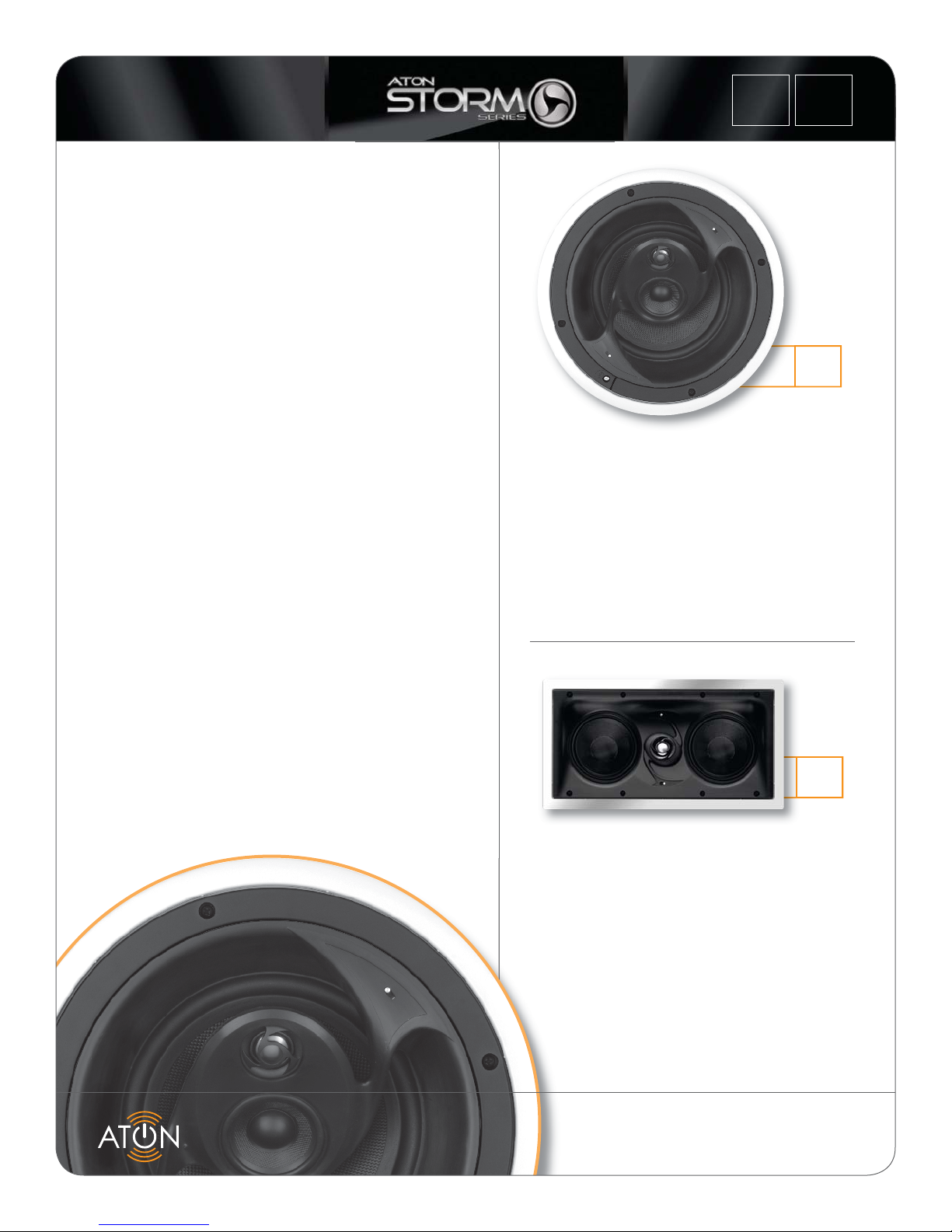

The A53W features a pivoting 1" titanium tweeter placed evenly
between two high-performance kevlar 5.25" midrange/woofer
drivers. The A53W's 15° angled baffle allows for flexibility in
placement of the sound field. The left and right channels can be
angled inward, providing a natural toe-in of the soundstage. And
for applications where the center channel speaker needs to be
above or below a plasma/LCD or other screen, the A53W can
be angled up or down to provide excellent placement of center
channel dialog.
BUILT FOR HOME THEATER
Whether it's the majestic crescendo of your favorite movie soundtrack, the
spine-tingling sensation of an unexpected sound, or the rumble you can
feel with every explosion – we all want to truly experience home theater.
Speakers designed for surround sound must balance clarity, accuracy and
power to create the ultimate movie experience, just as the directors intended.
Introducing ATON's Storm Series LCR Theater Speakers. Voiced in our
sound labs, each model was built to deliver what we love about the movies:
drama, tension and surprise...the perfect edge-of-your-seat experience.
HEARD, NOT SEEN
Storm Series Speakers are designed to blend in with any home environment.
Both models feature flat, unobtrusive profiles, paintable mesh grills and
sleek perimeter trims.
All Storm Series models are designed for indoor and outdoor use and carry
a limited lifetime warranty, ensuring years of listening enjoyment.
Pre-construction brackets are available for easy, reliable installation.
The A83C uses an innovative design that offers the best in
quality sound and flexibility. Utilizing a rotating 3-way baffle
with a downfiring 8" kevlar woofer and an angled midrange/
tweeter assembly, the A83C allows the sound field to be directed
with pin-point accuracy into the ideal listening area. Additionally,
the pivoting 3/4" titanium tweeter provides further accuracy of
the high-frequency range.With its tight, deep bass, smooth and
articulate midrange and airy, open highs, the A83C represents
the finest in in-ceiling audio.
IDEAL FOR WHOLE-HOUSE AUDIO APPLICATIONS
FLEXIBLE, TIMBRE-MATCHED DESIGNS
Available in two configurations, in-wall and in-ceiling, each LCR model can
be used as a left, right or center front stage speaker. Both models can also
be used as a rear or side channel surround speaker.
Designed as a family of timbre-matched speakers, the in-wall and in-ceiling
models can be used in any combination to create the perfect home theater
environment - regardless of a room's size or shape.
Storm Series LCR Theater Speakers perform beautifully in whole-house audio
applications as well, bringing the best in audio to every room of the house.
Ideal for rooms that require a defined listening area, each model can be
directed to the perfect sweet spot.
Technology in reach.
™
Model
A53W
Model
A83C
LCR THEATER SPEAKERS

P/N CSLCRSPK Rev: A
LCR THEATER SPEAKER FEATURES
Built for the home theater experience
Directed sound field
– A83C - Patent-pending, rotating, 3-way design with angled
tweeter and midrange for pin-point accuracy
– A53W - 15° Angled baffle, perfect for placement above or
below plasma/LCR screens
Flexible configurations - Use for left, right, center and rear
or side surround
Timbre-matched - Constructed with woven kevlar woofer/midrange
drivers and titanium tweeters and voiced to sound perfect together
Ideal for whole-house audio applications
High power handling
Designed to blend in with any home environment
Limited Lifetime Warranty
Category A83C A53W
System Type 3-Way, Ceiling 2-Way MTM Design, In-Wall
Woofer 8" Woven Kevlar Dual 5.25" Woven Kevlar
Midrange 2.5" Woven Kevlar N/A
Tweeter Pivoting 3/4" Titanium Pivoting 1" Titanium
Crossover 2nd Order Custom Q @ 250 Hz & 3 kHz 3rd Order Custom Q & Slope 2.4 kHz
Sensitivity 92 dB 88 dB
Frequency Response 28 Hz – 22 kHz 40 Hz – 20 kHz
Power 175 W 150 W
Impedance 6 Ohms 6 Ohms
Switches Treble/Bass Treble/Bass
Cutout Dimensions 11-1/4" (286 mm) 7-1/4" x 14-3/8" (184 mm x 365 mm)
Outside Dimensions 12-1/8" (308 mm) 8-3/8" x 15-7/16" (213 mm x 392 mm)
Depth 6-1/16" (178 mm)* 4" (102 mm)*
Pre-Construction Bracket BK82C BK52W
LCR THEATER SPEAKER SPECIFICATIONS
5-CHANNEL SURROUND SOUND POPULAR SPEAKER LAYOUTS
A53W SURROUND A83C SURROUND A53W & A83C SURROUND
TV TV TV
* A83C requires a minimum ceiling joist height of 6 inches. A53W's depth is compatible with all 2x4 walls.
