ATREA DUPLEX EC Series User manual

Disassembling manual
Separate part of the ventilation unit (RVU)
DUPLEX EC/ECV/EASY/R_X
Version: 01
EN
Date in force: 22. 12. 2015
Code: R_25_V01_CZ_2015_12
ATREA s.r.o.
ATREA SK s. r. o.
Československé armády 32
Družstevná 2
466 05 Jablonec nad Nisou
945 01 Komárno
Česká republika
Slovensko
tel.: [phone]
tel: [phone]
fax: [phone]
fax: [phone]
e-mail: [email protected]
e-mail: [email protected]
www.atrea.cz
www.atrea.sk

Information according to ANNEX V of COMMISSION REGULATION
(EU) No 1253, 1254/2014.
Information requirements for RVUs as referred to in Article 4(2), point 3.

The part of the unit with photo
Description and disassembling
Tools
description
Fan EBM-PAPST
104.EC1
Unit type: EASY 400; EC4 370; ECV4 390; RA4; RB4; RK4
Description: Use a wrench to remove fan from unit.
Disconnect supply connector. Use a TORX to separate
semi spiral casing from the motor
Tools: Side wrench, wrench TORX
105.EC1
Unit type : EC4 180; ECV4 190
Description : Use a wrench to remove fan from unit.
Disconnect supply connector. Use a TORX to separate
semi spiral casing from the motor
Tools: Side wrench, wrench TORX
106.EC1
Unit type : EC4 510; ECV4 520; RA4; RB4; RDH4;
Description: Use a wrench to remove fan from unit.
Disconnect supply connector. Use a TORX to separate
semi spiral casing from the motor
Tools: Side wrench, wrench TORX
107.EC1
Unit type : RK4; KAPPA 4V, RDH4
Description: Use a wrench to remove fan from unit.
Disconnect supply connector. Use a TORX to separate
semi spiral casing from the motor
Tools: Side wrench, wrench TORX
115.EC1
Unit type : EASY 250; EASY 300
Description: Use a wrench to remove fan from unit.
Disconnect supply connector. Use a TORX to separate
semi spiral casing from the motor
Tools: Side wrench, wrench TORX
Actuator for By-pass damper
Unit type : EASY 250; EASY 300; EASY 400; EC4 180;
EC4 370; EC4 510; ECV4 190; ECV4 390; ECV4 520; RA4;
RB4; RK4; RDH4
Description: Use a wrench to remove each fixing part
from unit. Disconnect supply connector. Remove from
unit
Tools: Side wrench
Actuator for circulation damper
Unit type : RA4; RB4; RK4; RDH4
Description: Use a wrench to remove each fixing part
from unit. Disconnect supply connector. Remove from
unit
Tools: Side wrench

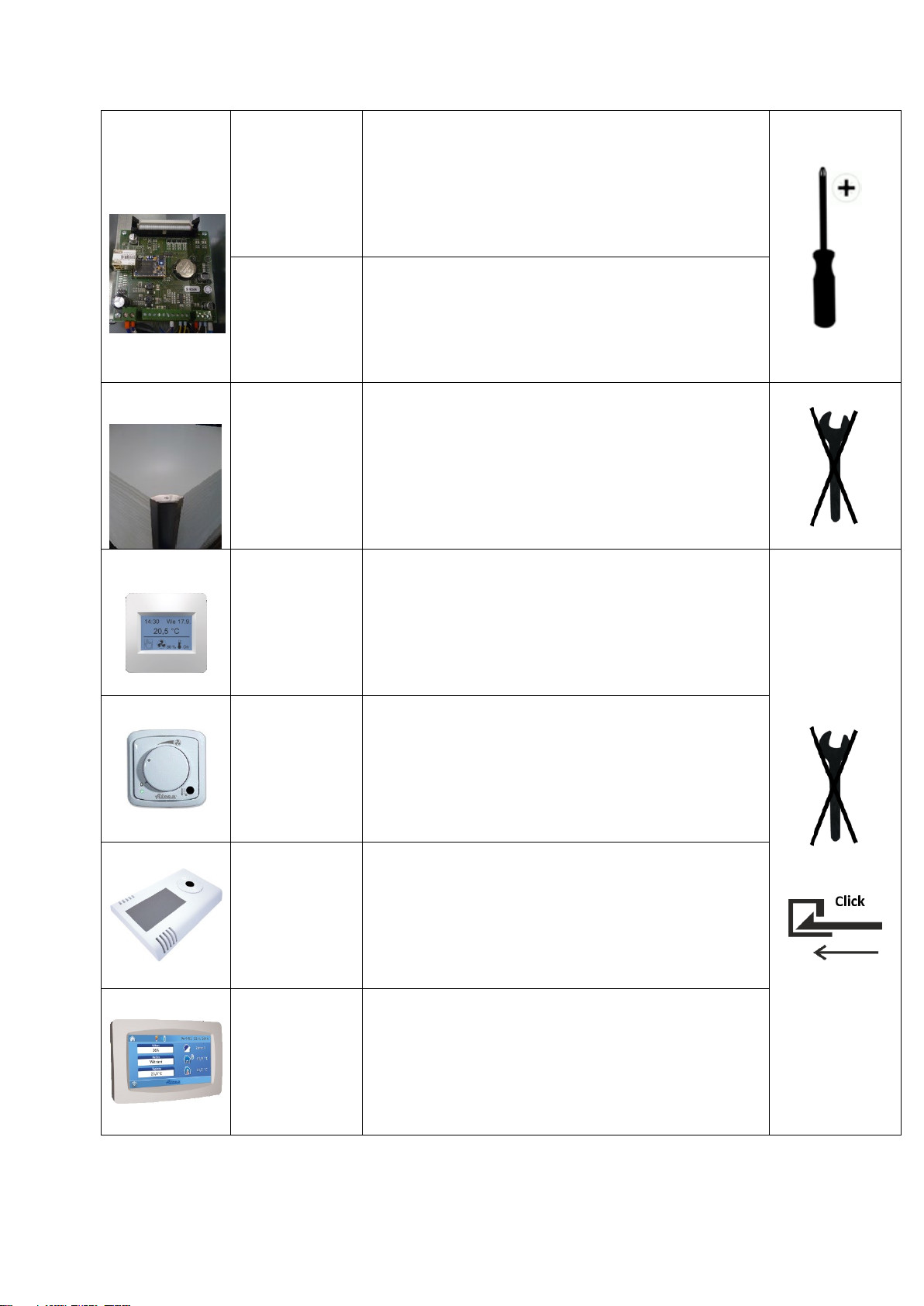

Build-in
regulation
module
Regulation
module
Unit type : EASY 250; EASY 300; EASY 400; EC4 180;
EC4 370; EC4 510; ECV4 190; ECV4 390; ECV4 520; RA4;
RB4; RK4; RDH4
Description: Use a screwdriver to remove the cover.
Use a screwdriver or TORX for remove the board from
basement.
Tools : Screwdriver , wrench TORX
Solid state
Unit type : EC4 180; EC4 370; EC4 510; ECV4 190;
ECV4 390; ECV4 520; RA4; RB4; RK4; RDH4
Description: Use a screwdriver to remove the cover.
Use a screwdriver or TORX for remove the board from
basement.
Tools : Screwdriver , wrench TORX
Heat recovery
core
Unit type : EASY 250; EASY 300; EASY 400; EC5 200;
EC5 380; EC5 570; ECV5 220; ECV5 370; ECV5 550
Description: Use hand lock for separated the whole
heat recovery core. Remove whole heat exchanger
(cannot be separated)
Tools : hand lock
Controler
CPA
Unit type : EASY 250; EASY 300; EASY 400; EC5 200;
EC5 380; EC5 570; ECV5 220; ECV5 370; ECV5 550
Description: Disassemble the plastic frame to get
access to a printed circuit board and battery - no tools
needed. Use a screwdriver to remove the back part of
controller
Tools : hand lock, Screwdriver
CPB
Unit type : EC5 200; EC5 380; EC5 570; ECV5 220;
ECV5 370; ECV5 550
Description: Disassemble the plastic frame to get
access to a printed circuit board and battery - no tools
needed. Use a screwdriver to remove the back part of
controller
Tools : hand lock, Screwdriver
CP 18 RD;
CP 19 RD
Unit type : EC4 180; EC4 370; EC4 510; ECV4 190;
ECV4 390; ECV4 520; RA4; RB4; RK4; RDH4
Description: Disassemble the plastic frame to get
access to a printed circuit board and battery - no tools
needed. Use a screwdriver to remove the back part of
controller
Tools : hand lock, Screwdriver
CP Touch
Unit type : EC5 200; EC5 380; EC5 570; ECV5 220;
ECV5 370; ECV5 550
Description: Disassemble the plastic frame to get
access to a printed circuit board and battery - no tools
needed. Use a screwdriver to remove the back part of
controller
Tools : hand lock, Screwdriver

Note: ………………………………………………………………………………………………………………………………………….
……………………………………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………………………………………
CP 10 RT
Unit type : EC5 200; EC5 380; EC5 570; ECV5 220;
ECV5 370; ECV5 550
Description: Disassemble the plastic frame to get
access to a printed circuit board and battery - no tools
needed. Use a screwdriver to remove the back part of
controller
Tools : hand lock, Screwdriver
