ATV IPVD2RWI User manual

USER’S MANUAL
2MP, True-WDR IP VANDAL
DOME CAMERA: IPVD2RWI
Please read this manual thoroughly before use and keep it handy for future reference.

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-
POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY
METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER
OPENNINGS ON THE EQUIPMENT.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is in-
tended to alert the user to the presence of “dangerous voltage” within the prod-
ucts enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the product.
2

FCC COMPLIANCE STATEMENT
FCC INFORMATION: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commer-
cial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the in-
struction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful in-
terference in which case the user will be required to correct the interference
at his own expense.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the users authority to operate the
equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numrique de la classe A est conforme la norme NMB-003 du
Canada.
CE COMPLIANCE STATEMENT
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
3

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturers in-
structions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your safety,
If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is used.
Use caution when moving the cart/apparatus combination to avoid in-
jury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is re-
quired when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate nor-
mally, or has been dropped.
15. CAUTION −THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING IN-
STRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source only.
17. ITE is to be connected only to PoE networks without routing to the outside plant.
4

Contents
1 Introduction 6
1.1 Components .................................... 6
1.2 KeyFeatures .................................... 7
2 Installation 8
2.1 Overview ...................................... 8
2.2 Installation ..................................... 10
2.3 Connection ..................................... 12
2.3.1 Network Connection & IP assignment . . . . . . . . . . . . . . . . . . 15
3 Operation 16
3.1 Accessfromabrowser .............................. 16
3.2 Access from the internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.3 Setting the admin password over a secure connection . . . . . . . . . . . . . 17
3.4 LiveViewPage................................... 18
3.5 Playback ...................................... 20
3.6 NetworkCameraSetup .............................. 22
3.6.1 Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.6.2 LiveView .................................. 26
3.6.3 Video&Image ............................... 27
3.6.4 Audio .................................... 36
3.6.5 Event .................................... 38
3.6.6 System ................................... 60
3.7 Help......................................... 81
3.8 Resetting to the factory default settings . . . . . . . . . . . . . . . . . . . . . 82
A Appendix 83
A.1 Troubleshooting................................... 83
A.2 AlarmConnection ................................. 84
A.3 Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
A.4 ProductSpecification................................ 85
A.5 System Requirement for Web Browser . . . . . . . . . . . . . . . . . . . . . . 87
A.6 General Performance Considerations . . . . . . . . . . . . . . . . . . . . . . 87
5

1 Introduction
This manual applies to the IPVD2RWI network camera.
The network camera is fully featured for security surveillance and remote monitoring needs.
It is based on the DSP compression chip, and makes it available on the network as real-time,
full frame rate Motion JPEG and H.264 video streams.
The alarm input and alarm output can be used to connect various third party devices, such
as, door sensors and alarm bells.
1.1 Components
This system comes with the following components;
Dome Camera ························1
Installation Guide/CD ························ 1
Template Sheet ························1
Accessory Kit ························1
OSD Controller ························1
Check your package to make sure that you received the complete system, including all
components listed above.
6

1.2 Key Features
•Brilliant video quality
The network camera offers the highly efficient H.264 video compression, which drasti-
cally reduces bandwidth and storage requirements without compromising image qual-
ity. Motion JPEG is also supported for increased flexibility.
•Wide Dynamic Range
The network camera provides true WDR (Wide Dynamic Range) that improves video
exposure quality in scenes with high contrast between bright and dark areas in the
video, for example a shady area and a sunny area in the same scene.
•Dual or Triple Streams
The network camera can deliver dual or triple video streams simultaneously at full
frame rate in all resolutions up to Full-HD (1920 x 1080p) using Motion H.264 and
JPEG. This means that several video streams can be configured with different com-
pression formats, resolutions and frame rates for different needs.
•Resolution
Full-HD, Max. 60fps@1920x1080
•Image setting adjustment
The network camera also enables users to adjust image settings such as contrast,
brightness and saturation to improve images before encoding takes place.
•Intelligent video capabilities
The network camera includes intelligent capabilities such as enhanced video motion
detection. The network cameras external inputs and outputs can be connected to de-
vices such as sensors and relays, enabling the system to react to alarms and activate
lights or open/close doors.
•Video Content Analysis
Video analytic functions known as Video Content Analysis (VCA), are included with
this camera.
•Improved Security
The network camera logs all user access, and lists currently connected users. Also, its
full frame rate video can be provided over HTTPS.
•PoE (Power over Ethernet)
This network camera can be powered through PoE (IEEE802.3af), which simplifies
installation since only one cable is needed for carrying power, as well as video controls.
•ONVIF Certificate
This is a global interface standard that makes it easier for end users, integrators, con-
sultants, and manufacturers to take advantage of the possibilities offered by network
video technology. ONVIF enables interoperability between different vendor products,
increased flexibility, reduced cost, and future-proof systems.
•Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for local recording with
removable storage.
•Audio support
The Network Camera also supports two-way audio.
7

2 Installation
For the operation of the Network Camera it is necessary to connect a network cable for data
transmission and a power connection from supplied power adapter. Depending on operation
methods, it is possible to connect an alarm cable additionally. For its fixation on different
locations, please consult with an installer.
2.1 Overview
•Parts and Description
8

•Camera Dimension
See the diagrams below for the exact dimension of the vandal proof dome network cameras.
Dimensions Unit: mm
9

2.2 Installation
•Base Installation
1. Make mounting holes and cable hole in the place (ceiling) to which this dome camera
is installed using the supplied template sheet.
Warning: The total mass of the main unit is approx 1.3kg. Check whether the ceiling
to which the Dome Camera is installed is strong enough to hold the unit mass. If not,
the Dome Camera could fall, causing injury.
2. Attach the safety wire for securing the dome camera to ceiling or structure not to fall.
3. Extract each wire through the cable hole, connect BNC cable and communication lines.
4. Unlock torx screws (4x) the dome cover and fix the dome case firmly with supplied
mounting screws (4x), plastic anchors (4x), O-Rings (4x).
5. Adjust desired focus and scene by turning and moving the hemisphere by hand.
6. Lock the housing cover with torx screws (4x).
•Adjusting the 3-Axis Gimbal

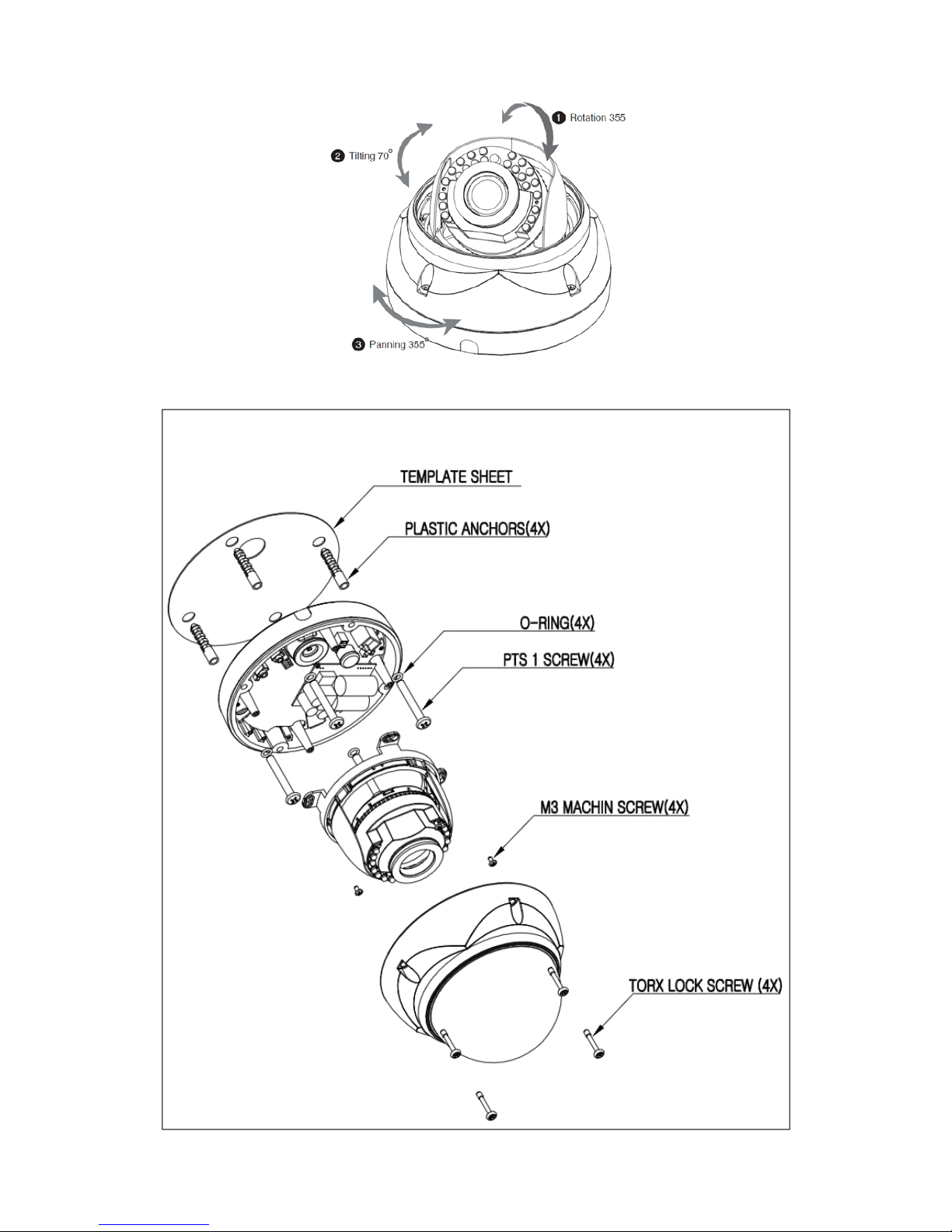

The Gimbal mechanism yields maximum rotation and placement as shown below.
•Z-Axis: Rotation 355o
•Y-Axis: Tilting 70o
•X-Axis: Panning 355o
10

11

2.3 Connection
•Connection Description

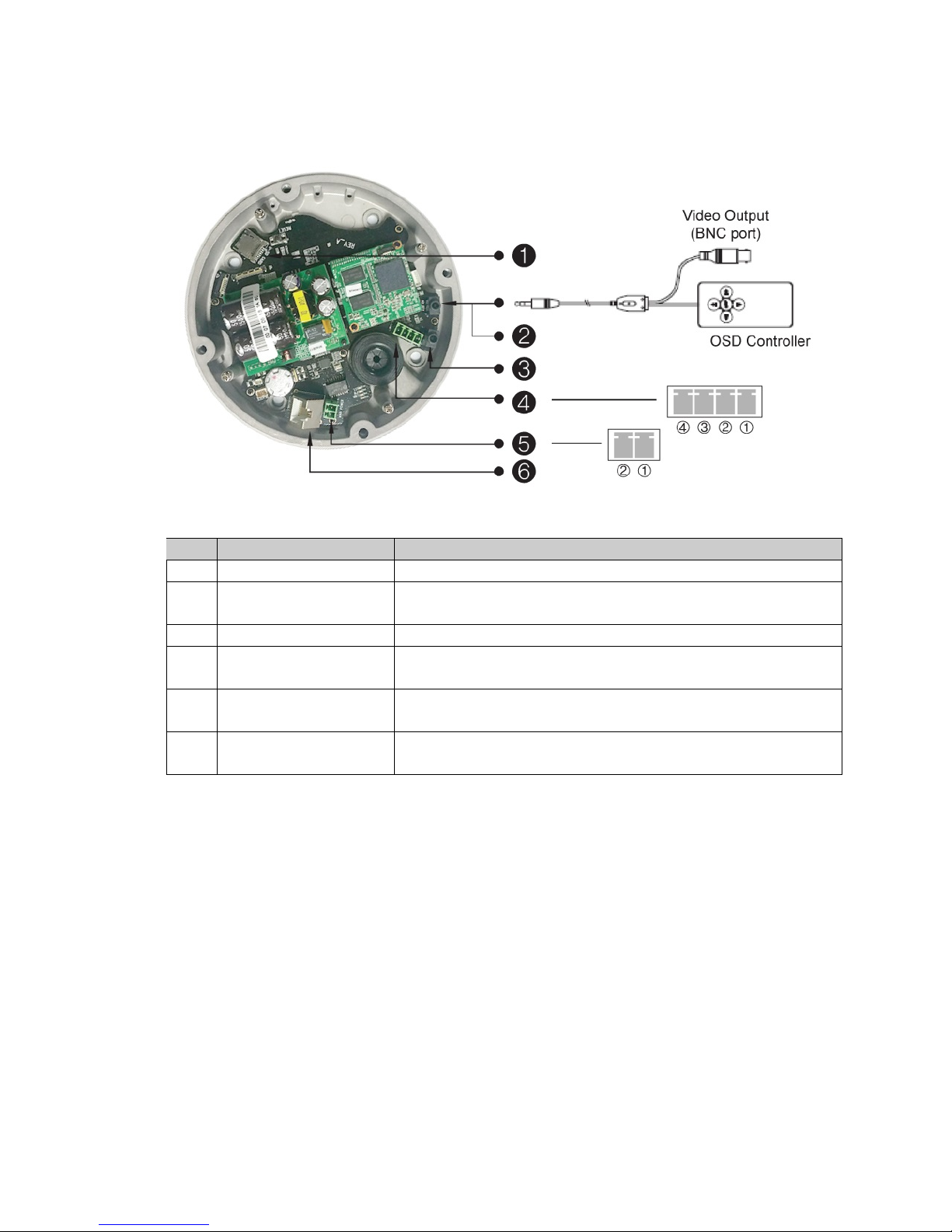

No. Connector Name Description
1Micro-SD Slot Micro-SD memory slot

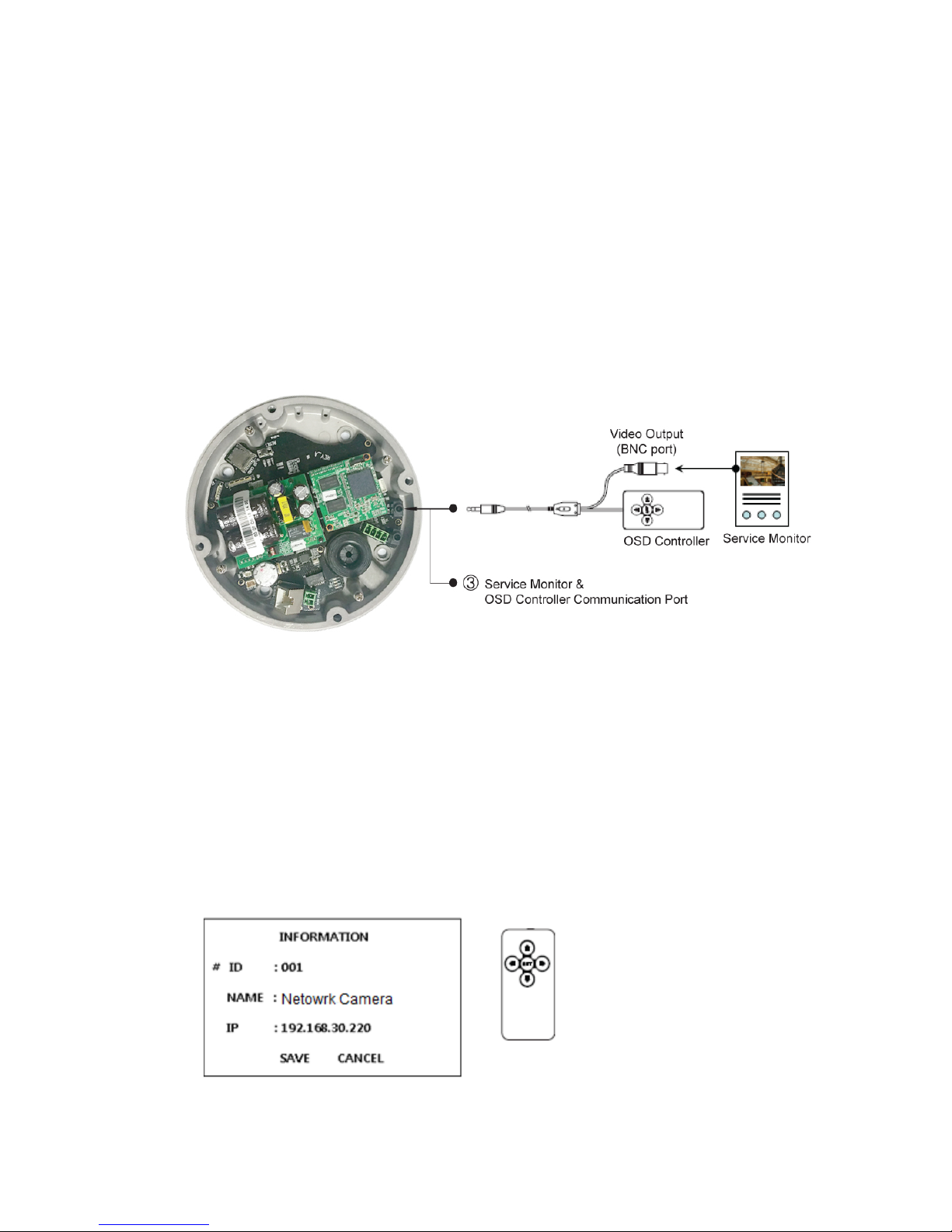

2Service Monitor Port Service Monitor & OSD Controller Communication Port,
Stereo Jack
3Audio In & Out Port Audio Input and Output, Stereo Jack
4Alarm In & Out Port Alarm Input and Output, 4pin terminal.
Pin1,2: Alarm In #1,#2, Pin3:GND, Pin4: Alarm Out
5Main Power Main Power, 2 pin terminal,
Pin 1: GND/24VAC, Pin2: 12VDC/24VAC
6RJ-45 port Ethernet, RJ-45 port compatible with 10/100Mbps
having PoE functionality.

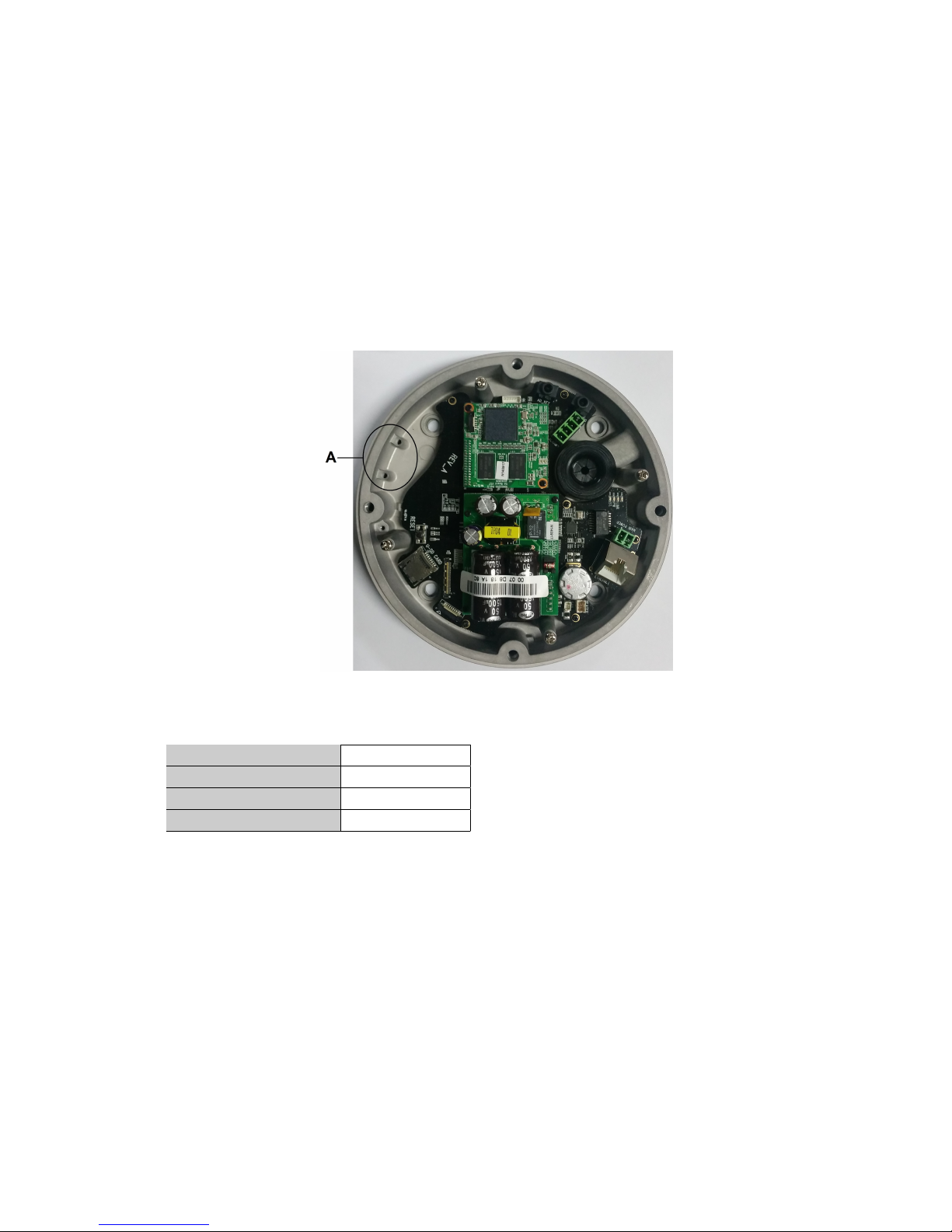

•Micro SD memory slot on the Board
Card Slot for Micro SD memory: Socket “J2”
•Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally
a cross-over cable is used for directly connection to PC, while a direct cable is used for
connection to a hub. You can also use a router featuring PoE (Power over Ethernet) to
supply power to the camera.
•Connecting Alarms
IN#1, IN#2 (Alarm In): You can use external devices to signal the network camera
to react on events. Mechanical or electrical switches can be wired to the IN#1, IN#2
(Alarm In) and GND (Ground) connectors.
GND (Ground): Connect the ground side of the alarm input and/or alarm output to the
GND (Ground) connector.
OUT (Alarm Out): The network camera can activate external devices such as buzzers
or lights. Connect the device to the OUT (Alarm Out) and GND (Ground) connectors.
12

•Connecting the Power
Connect the power of 12VDC or 24VAC for the network camera. Connect the positive
(+) pole to the + position and the negative (-) pole to the - position for the DC power.
–Be careful not to reverse the polarity when connecting the power cable.
–A router featuring PoE (Power over Ethernet) can also be used to supply power to
the camera.
–The heater will only operate properly with the power source of 24VAC.
–For the power specifications, refer to the Appendix, Product Specification.
•Connecting Service Monitor Port
Service monitor output port (J8) is located on the board of the dome camera, and is
used for an easy OSD setup.
– ID & IP assignment
To make changes in the OSD menu, please use the OSD controller provided
optionally with your camera purchase. You can set Camera Title and IP Address.
1. Connect the OSD Controller to the Service Monitor port of the network cam-
era.
2. Connect Service Monitor and the Video Output port of the OSD Controller.
3. Press the SET button to access main Menu.
4. Change Camera ID, and IP Address. You can change the Name or Title and
IP address of the camera. Using the ↑↓ → buttons on the controller, you can
change the parameters.
5. Select SAVE or CANCEL to exit the Main Menu.
Video Output is also used for an easy zoom and focus control when installing lens.
Video Output is restricted to 704x480(576) resolution.
13

– Zoom & Focus Control
The camera enters Zoom and Focus control mode as soon as connecting OSD
Controller to the Service Monitor port.
∗Zoom Control: ↑(Zoom In), ↓(Zoom Out)
∗Focus Control: (Focus Near), →(Focus Far)
∗Smart Focus: Press and hold the SET button for 2 or more seconds. The
camera readjusts focus automatically.
•Heater Kit Power and Temperature Specs:
This unit is equipped with a 24VAC heater.
•Heater has been placed in the above ‘A’ position.
Power Supply 24VAC
Power Consumption 20Watt
Heater On at 41oF (5oC)
Heater Off at 59oF (15oC)
14

2.3.1 Network Connection & IP assignment
The camera supports the operation through the network. When a camera is first connected
to the network, it is necessary to allocate an IP address to the device with the “SmartMan-
ager” utility on the CD. (Default IP 192.168.30.220)
1) Connect the network camera/device to the network and power up.
2) Start SmartManager utility (Start >All programs >SmartManager >SmartManager).
The main window will display, and after a short while any network devices connected to the
network will be displayed in the list.
3) Select the camera on the list and click right button of the mouse. You can see the pop-up
menu as below.
4) Select Assign IP Address. The Assign IP window will display. Enter the required IP ad-
dress.
NOTE: For more information, refer to the SmartManager Users Manual.
15

3 Operation
The network camera can be used with Windows operating system and browsers. The rec-
ommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with
Windows.
NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow
ActiveX controls.
3.1 Access from a browser
1. Start a browser (Internet Explorer).
2. Enter the IP address or host name of the network camera in the Location/Address field
of your browser.
3. You can see a starting page. Click Live View, Playback, or Setup to enter web page.
4. The network cameras Live View page appears in your browser.
16

3.2 Access from the internet
Once connected, the network camera is accessible on your local network (LAN). To access
the network camera from the Internet you must configure your broadband router to allow
incoming data traffic to the network camera. To do this, enable the NAT traversal feature,
which will attempt to automatically configure the router to allow access to the network cam-
era. This is enabled from Setup >System >Network >NAT. For more information, please
see “3.5.7 System >Network >NAT” of User’s Manual.
3.3 Setting the admin password over a secure connection
To gain access to the product, the password for the default administrator user must be set.
This is done in the “Admin Password” dialog, which is displayed when the network camera
is accessed for the setup at the first time. Enter your admin name and password, set by the
administrator.
NOTE: The default administrator user name and password is “admin”. If the password is
lost, the network camera must be reset to the factory default settings. Please see “Resetting
to the factory default settings.”
To prevent network eavesdropping when setting the admin password, this can be done via
an encrypted HTTPS connection, which requires an HTTPS certificate (see NOTE below).
To set the password via a standard HTTP connection, enter it directly in the first dialog shown
below. To set the password via an encrypted HTTPS connection, please see “3.5.7 System
>Security >HTTPS” of User’s Manual.
NOTE: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the
traffic between web browsers and servers. The HTTPS certificate controls the encrypted
exchange of information.
17

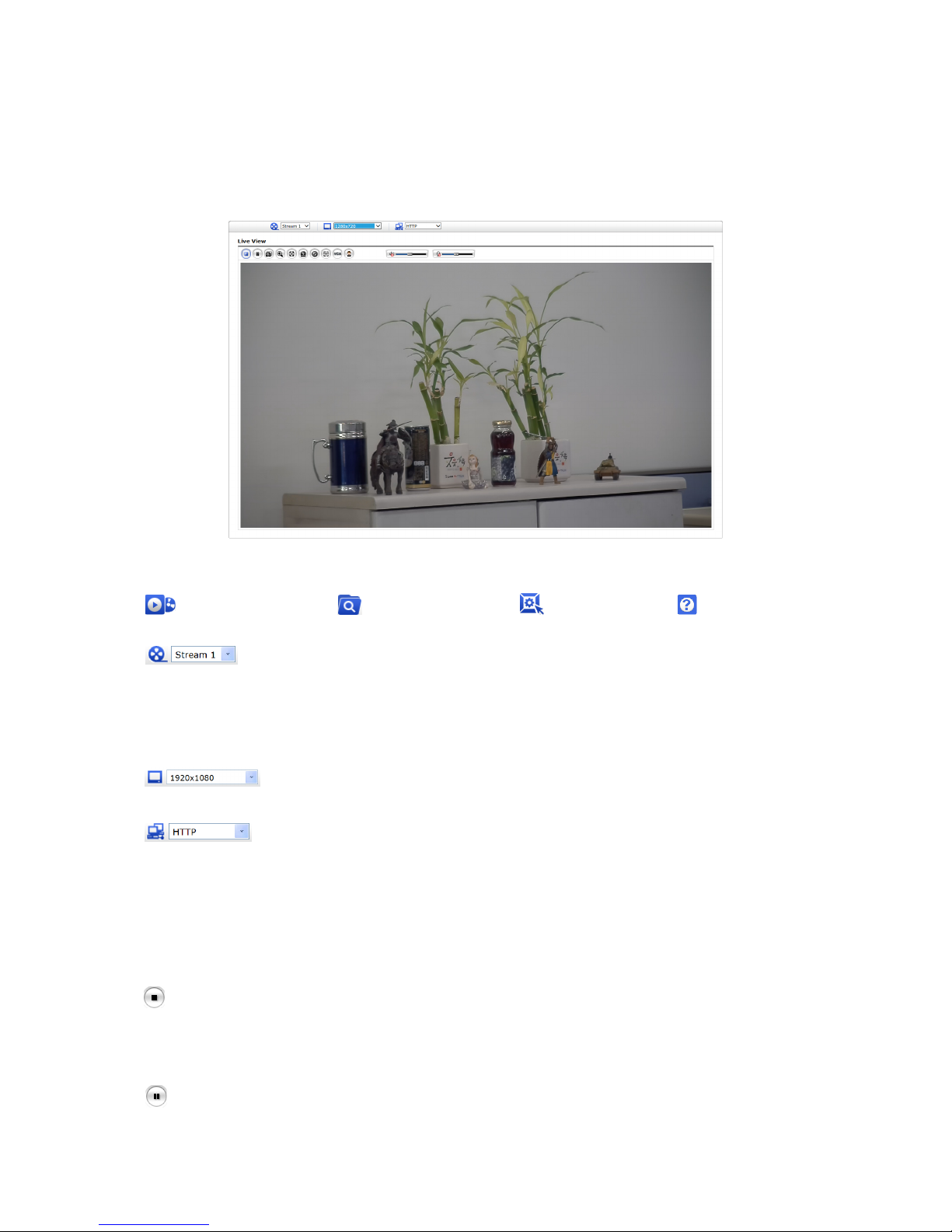

3.4 Live View Page
The Live View page comes in several screen modes: 1920x1080, 1280x1024, 1280x720(960),
1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed to select the most
suitable one out of those modes. Adjust the mode in accordance with your PC specifications
and monitoring purposes.
1) General controls
Live View Page Playback Page Setup Page Help Page
The video drop-down list allows you to select a customized or pre-
programmed video stream on the Live View page. Stream profiles are con-
figured under Setup >Basic Configuration >Video & Image. For more in-
formation, please see “3.5.1 Basic Configuration >Video & Image” of Users
Manual.
The resolution drop-down list allows you to select the most suitable one
out of video resolutions to be displayed on Live View page.
The protocol drop-down list allows you to select which combination of pro-
tocols and methods to use depending on your viewing requirements, and
on the properties of your network.
2) Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following
buttons:
The Stop button stops the video stream being played. Pressing the key again toggles
the start and stop. The Start button connects to the network camera or starts playing
a video stream.
The Pause button pauses the video stream being played.
18

The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The Digital Zoom button activates a zoom-in or zoom-out function for video image on
the live screen.
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the ‘Esc’ button on the computer keyboard to cancel full
screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the
event.
The Lens Control button allows user to control Zoom and Focus manually. (This Icon
appears for motorized lens model only.)
•Zoom: Click “<<” or “<” button to zoom out
and click “>>” or “>” button to zoom in. The
focus is moved slightly after adjusting zoom;
adjust the focus again, as necessary.
•Focus: Click “<<” or “<” button for far focus
and click “>>” or “>” button to near focus.
The Smart Focus button activates smart focus function which set the focus to the
optimum position. (This Icon appears for motorized lens model only.)
The VCA button shows/hides VCA rule setting and detected objects.
The Face Detector button shows/hides detected faces.
The Speaker button activates/deactivates external speaker.
The Mic button activates/deactivates microphone input.
Use this scale to control the volume of the speakers and microphones.
NOTE1: VCA and Face Detection buttons appear only when each function is activated.
NOTE2: VCA and Face Detection works exclusively to each other.
3) Video Streams
The network camera provides several images and video stream formats. Your require-
ments and the properties of your network will determine the type you use.
The Live View page in the network camera provides access to H.264 and Motion JPEG
video streams, and to the list of available video streams. Other applications and clients
can also access these video streams/images directly, without going via the Live View
page.
19

3.5 Playback
The Playback window contains a list of recordings made to the memory card. It shows each
recording’s start time, length, the event type used to start the recording, calendar and time
slice bar indicates if the recording is existed or not.
The description of playback window follows.
(1) Video Screen
You can see the video screen when playing the video clip in the Micro SD memory.
(2) Playback Buttons
To view a recording data in the SD local storage, select it from the list and click the
Playback buttons.
Go to the first: go to the beginning of the video clip.
Fast backward play: fast play backward of the video clip.
Backward play: play backward of the video clip.
Step backward play: go back one frame of the video clip.
Pause: pause playback of the video clip.
Step forward play: go forward one frame of the video clip.
Forward Play: play forward the video clip.
Fast forward play: play fast forward of the video clip.
Go to the last: go to the end of the video clip.
Clip copy: copy the video clip.
Zoom In: zoom in the video clip.
Full Screen: display full screen of the video.
20
