Ceiling tile speakers are generally poor sounding speaker systems because the acoustics diminish the
audio response due to the absence of an acoustic enclosure. However the audio response of the AUDAC
CIRA524 exceeds in quality when compared to many of the similar speakers made by competitors.
The CELO5 and CELO6 or even the CELO8 are able to deliver a high fidelity sound with details in both
high and low frquencies unheard in his type of speakers. But if the intelligibility of speech matters, the
CIRA524 is an outstanding value for money and isn’t inferior to its competitors
.
CIRA-524
With white grill With black grill
Plafondtegel-luidsprekers zijn over het algemeen minderwaardige klinkende luidsprekersystemen
omdat door het ontbreken van een klankkast, de weergave negatief wordt beinvloed. Maar de audio-
respons van de AUDAC de CIRA524 overtreft de kwaliteit van veel gelijkaardige luidsprekers van de
concurrenten. De CELO5 en CELO6 of zelfs de CELO8 zijn in staat om een hifi-geluid te leveren
met details in beide hoge en lage frequenties ongehoord in dit type luidsprekers. Maar als het op de
verstaanbaarheid van spraak ertoe doet, biedt de CIRA524 een uitstekende prijs-kwaliteitverhouding
en hoeft deze niet onder te doen voor zijn concurrenten.
Les haut-parleurs de plafond sont généralement des systèmes de haut-parleurs de qualité inférieure
car en raison de l'absence d’une ecnceinte acoustique, la reproduction audio est inférieure. Mais
La réponse du CIRA524 de l'AUDAC surpasse la qualité de nombreux haut-pârleurs de dimension
similaires de la concurreence. Le CELO5 et le CELO6 ou même le CELO8 sont capables de délivrer
un son qui pourra être qualifié de haute fidelité avec des détails dans les basses et hautes fréquences
inouïes pour ce type de haut-parleur. Mais si l'intelligibilité de la parole compte, le CIRA524 offre une
valeur qualité/prix et sans être inférieur à ses concurrents.
INSTALLATION MANUAL
CIRA SERIES QUICK-FIT™ CEILING SPEAKERS WITH TWIST-FIX™ GRILL

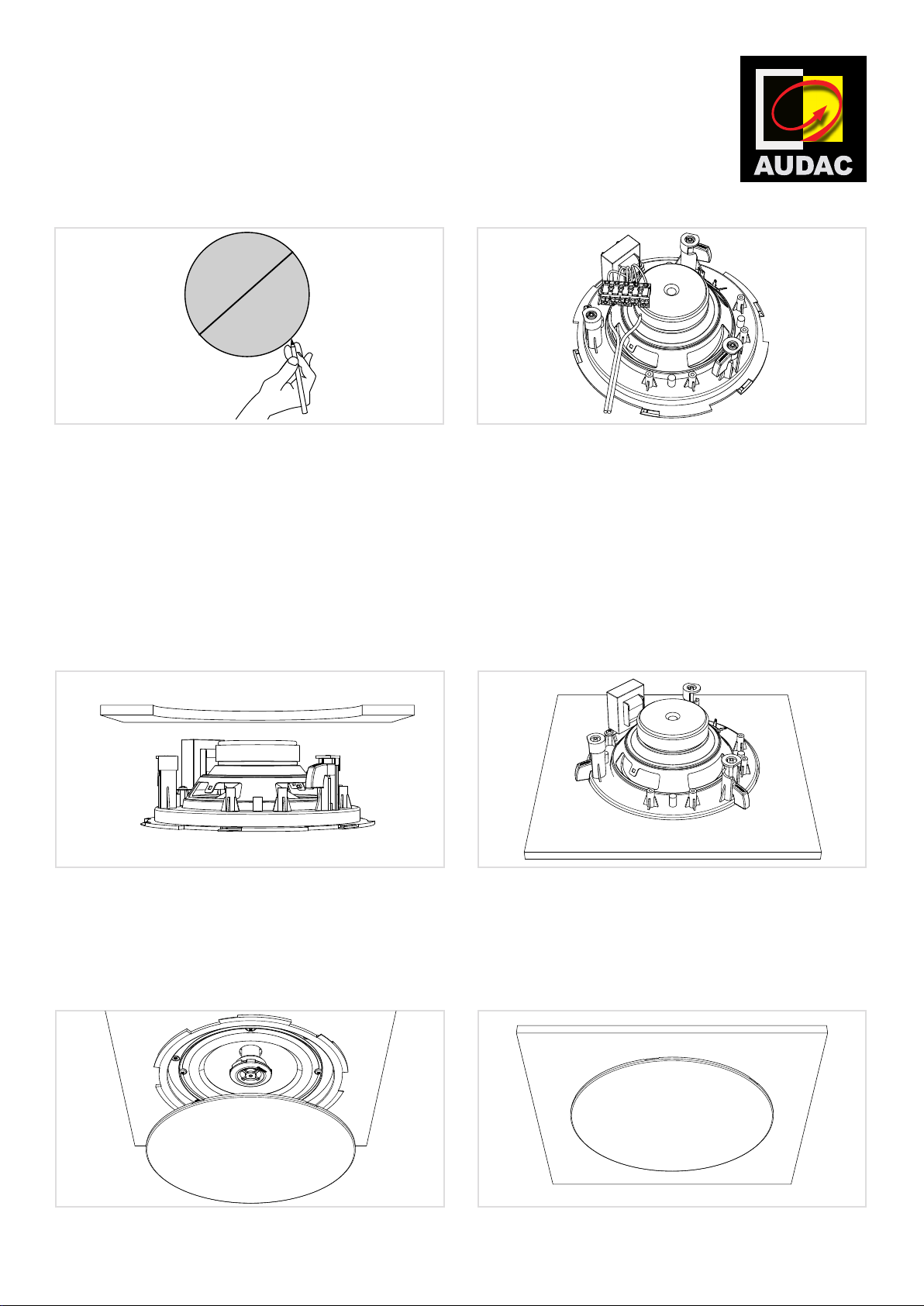

STEP 1 STEP 2
Cut a hole on the mounting location in the ceiling.
Make sure the diameter is matching the cut-out
measurement for the installing loudspeaker.
Double check if there are no cables or other
obstructions behind the mounting surface before
making the cut-out.
Connect the wires coming from the amplier to the
FastCon™ terminal block connector on the loudspeaker.
The correct power tapping is chosen by connecting the
appropriate terminals of the connector. A description
of the power tap selection is shown on the magnet
sticker on the rear side of the loudspeaker.
When using 100V speakers in low impedance mode
(8Ω), disconnect the ground wires by interrupting the
cable lugs.
Ø Diameter
STEP 3 STEP 4
Make sure the mounting clamps are fully bended
inwards, allowing the speaker t through the cut-out.
Insert the speaker to the opening.
Fix the speaker in the provided opening by tightening
the screws of the mounting clamps using a screw
driver. A quarter turn will make the mounting clamps
ip-out, locking the speaker in place. Tighten the
screws for proper xation of the speaker.
STEP 5 STEP 6
Attach the grill to the speaker by inserting the lips
into the provided openings on the speaker bae and
rotating it over a partial turn (15°).
The speaker is now correctly installed and ready for
use.
The WEEE marking indicates that this product
should not be disposed with regular household
waste at the end of its product life. This regulation
is created to protect both the environment and
human health.
This product is developed and manufactured with
high quality materials and components which can
be recycled and/or reused. Please dispose of this
product at your local collection point or recycling
center for electrical and electronic waste. Do this
to make sure that the product is recycled in an
environmental friendly way, and help to protect
the environment in which we all live.
INSTALLATION MANUAL
CIRA SERIES QUICK-FIT™ CEILING SPEAKERS WITH TWIST-FIX™ GRILL
•
IF THERE IS ANY DAMAGE TO THE CARTON BOX
OR THE UNIT ITSELF, INFORM YOUR VENDOR
IMMEDIATELY.
•
ALWAYS FOLLOW THE LOCAL REGULATIONS AND
REQUIREMENTS REGARDING INSTALLATION,
SUSPENSION AND CONNECTION OF THIS
LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED
IN THIS DOCUMENT.
• THE INSTALLATION OF THIS LOUDSPEAKER SHALL
BE DONE BY QUALIFIED PERSONNEL ONLY.
•
USE CABLES OF THE RIGHT GAUGE TO CONNECT
THE LOUDSPEAKER
•
USE CABLES WITH CLEAR COLOR CODING
INDICATING THE POLARITY AND MAINTAIN THE
SAME POLARITY THROUGHOUT THE WHOLE
SYSTEM.
•
ONLY USE THE CORRECT AMPLIFIER OUTPUT
VOLTAGE AND IMPEDANCE. EXCEEDING THESE
LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
•
AVOID EXPLOSIONS: DO NOT USE THE SPEAKER
AROUND GASOLINE, THINNER OR OTHER
COMBUSTIBLES
•
AVOID ELECTRIC SHOCKS: SWITCH OFF THE
AMPLIFIER WHEN CONNECTING THE LOUDSPEAKER
•
DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED
PERIOD OF TIME AT DISTORTED SOUND. THIS
COULD CAUSE PERMANENT DAMAGE.
•
ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE. NEVER THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
• CLEAN ONLY WITH DRY CLOTH
•
HEED ALL WARNINGS AND FOLLOW ALL
INSTRUCTIONS
•
NEVER EXPOSE THIS EQUIPMENT TO RAIN,
MOISTURE, ANY DRIPPING OR SPLASHING LIQUID.
•
DO NOT INSTALL THIS UNIT NEAR ANY HEAT
SOURCES SUCH AS RADIATORS OR OTHER
APPARATUS THAT PRODUCE HEAT
•
DO NOT PLACE THIS UNIT IN ENVIRONMENTS
WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR
VIBRATION
• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY.
DO NOT USE IT OUTDOORS
•
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED
BY THE MANUFACTURER.
•
ONLY INSTALL THE SPEAKER IN LOCATIONS THAT
CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE
SPEAKER. IGNORING THIS CAN BRING THE SPEAKER
DOWN.
•
DO NOT USE ANY OTHER METHOD THAN SPECIFIED
TO MOUNT THE SPEAKER. IF EXTREME FORCE IS
APPLIED TO THE SPEAKER, IT COULD FALL DOWN
•
ATTACH A SAFETY WIRE TO THE SPEAKER WHEN
IT IS MOUNTED HIGH UP. ONLY USE INDUSTRY-
ACCEPTED RIGGING TOOLS AND METHODS
• CAREFULLY CHECK THE UNIT’S CONDITION AFTER
UNPACKING.
PRECAUTIONS
This product contains no user serviceable parts.
Refer all servicing to qualied service personnel. Do
not perform any servicing (unless you are qualied
to do so.)
CAUTION - SERVICING
This product conforms to all the essential
requirements and further relevant specications
described in following directives: 2014/30/EU (EMC)
and 2014/35/EU (LVD)
EC DECLARATION OF CONFORMITY
WASTE OF ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
Model Max. Power RMS Power Cut-out
dimension
Dimensions Line transformer power
tappings - Impedance
CIRA506
CIRA524
CIRA530D
CIRA724
CIRA730D
CIRA824
CIRA840D
60 Watt
60 Watt
60 Watt
60 Watt
60 Watt
80 Watt
80 Watt
30 Watt
30 Watt
30 Watt
30 Watt
30 Watt
40 Watt
40 Watt
Ø 170 mm
Ø 170 mm
Ø 170 mm
Ø 200 mm
Ø 200 mm
Ø 243 mm
Ø 243 mm
Ø 193 x 83 mm
Ø 193 x 83 mm
Ø 193 x 83 mm
Ø 224 x 78 mm
Ø 224 x 78 mm
Ø 270 x 82 mm
Ø 270 x 82 mm
6W / 3W / 1.5W - 8 Ω
24W / 12W / 6W - 8 Ω
16 Ω
24W / 12W / 6W - 8 Ω
16 Ω
24W / 12W / 6W - 8 Ω
16 Ω
This manual suits for next models
