Audio Enancement K-SHH14 User manual

1
Rev.1.0
1.9GHz Wireless Handheld Microphone
K-SHH14

2
Rev.1.0
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Radio Frequency (RF) Exposure Warning
The available scientific evidence does not show that any health problems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure of low-level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low-level RF exposures have not found
any biological effects. Some studies have suggested that some biological effects might occur, but
such findings have not been confirmed by additional research. 1.9GHz Wireless Handheld
Microphone, model K-SHH14 has been tested and found to comply with FCC radiation exposure
limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF)
Exposure Guidelines.
Notice
FCC ID can be found on the battery compartment of the units.

3
Rev.1.0
WARNING:
1) To prevent fire or electric shock hazard, do not expose this apparatus to rain or moisture.
2) The apparatus should not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, should be placed on the apparatus.
3) Batteries shall not be exposed to excessive heat such as sunshine, fire or the like
The model number and serial number of this product may be found on the surface of the unit.
You should note the model number and serial number of this unit in the space provided and
retain this book as a permanent record of your purchase to aid identification in the event of
theft.
Model No.
Serial No.
A lithium ion/polymer battery that is recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
MEDICAL:
Consult the manufacturer of any personal medical devices, such as pacemakers, to determine if
they are adequately shielded from external RF (radio frequency) energy. The unit operates in the
frequency range of 1.92 GHz to 1.93 GHz.
Do not use the unit in health care facilities if any regulations posted in the area instruct you not to
do so. Hospitals or health care facilities may be using equipment that could be sensitive to
external RF (radio frequency) energy.

4
Rev.1.0
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Only use attachments/accessories specified by the manufacturer.

5
Rev.1.0
Precautions
Turn off the power supply when inside an aircraft.
The product might interfere with operational safety of the aircraft.
Do not attempt to disassemble or shortcircuit rechargeable batteries.
An exploding battery or leaking battery fluid may result in fire, injury and burns.
Avoid placing the product in unstable conditions.
Failure to do so may cause injury.
Stop operation immediately when something is wrong with the product.
When smoke goes up from the product or the smell of smoke comes from the product,
continued use will result in fire. Immediately remove the battery and the battery charger, and
contact your dealer.
Do not swing the product around on its strap.
The strap might come off, resulting in personal injury or damage to the product.

6
Rev.1.0
[Precautions for use]
• Operating temperature:
5 °C - 35 °C {41 °F - 95 °F}
When calculating the battery life, note that temperatures below 10 °C {50 °F} shorten the
battery duration.
• Do not disassemble the product or touch internal parts.
• Battery power is slightly consumed even when the power of this product is OFF. If the
battery is left unused, that may result in liquid leakage. To prevent this, remove the battery
from the product when unused for a long time.
• Exercise care when using the product in high places. If it falls down, it may cause personal
injury or suffer damage.
• Do not use or leave the battery in places where it will be exposed to high temperatures,
such as in strong direct sunlight, in a sun-heated car, by the fire, or in front of a stove.
• Do not touch the battery poles or contacts inside the battery cover with dirty hands.
Otherwise poor contact or noise may result. If dirty, wipe off with a dry soft cloth.
The contacts inside the battery cover tend to get dirty. Clean them regularly (about once a
month) with ethyl alcohol. Do not use solvents, such as benzine or thinner, or a metal polish.
Otherwise the contacts may become deformed or discolored, or the brass plating may come
off.
• Do not use a deteriorated or short-circuited battery. A battery in this condition may leak
fluid, overheat and cause damage.
• The product is not made to drip-proof specification. Do not use the product with the wet
hands in a place where it is directly exposed to water.
• Do not swing the product around on the neck strap. To prevent strangling, the closure of
the strap provided for hanging the product around the neck is designed to give way under
pressure. If swung around on the neck strap, the closure will open and the product will fly
away, resulting in personal injury or damage to the product.
• The product is designed for indoor use.
• Use the product in a location where it is relatively shielded from noise produced by rotating
machinery, transformers or the ignition system or automobiles.
• Do not place the product on top of heatgenerating equipment, such as powered amplifiers,
video monitors or measuring instruments, and do not leave it in a closed car in hot summer.
When storing the product, do so in a dry place.
• The product is high-precision adjusted; exposing it to strong impact or dropping it on the
floor may change its characteristics. Handle the product with due care. Do not expose the
product to shock or impact as this will cause the audio output of the receiver to give off noise
on impact.
Product care
• Clean the power source with a dry cloth.
• Do not clean with volatile liquids such as benzine and thinner.
• When using a chemical cloth for cleaning, observe the cautions provided with that product.
Useful hints
• Noise prevention
Turn off the power of this product, and turn down the volume of a powered amplifier, mixer,
etc. before replacing, removing or inserting the battery, as this might produce a large noise
from these devices.
• Volume control
When the volume control from this product goes wrong, move closer to the receiver and
then try again to adjust the volume.

7
Rev.1.0
CONTENTS
Important Safety Instructions
Precautions
Major operating controls and their functions
Inserting a battery
Using the microphone
Connecting an external device
Replacing a battery
Charging a rechargeable battery
Troubleshooting
Specifications

8
Rev.1.0
[1]Microphone opening
This opening picks up the speaker’s voice.
[2] Charge indicator (red) [CHG]
Indicates the charging status.
ON: Charging completed .
OFF:, No connected a charge connector or no battery installed.
Blinking ( 2 seconds ) : Charging
*In the case of a complete discharge state, the first about 1minute red LED lights RED.
Blinking( 1 second ) : Charge Error
(3)Battery indicator [BATT]
Indicates the status of the microphone power supply and the battery condition as
follows:
Green light: Power is turned "ON".
Yellow light: Power is turned “ON”, but battery is nearing its end.
Red light: Battery is depleted. Charge the battery.
Light off: Power is turned "OFF".
Blinking ( green ): Standby state.( A microphone is ready )
Blinking ( yellow ): Out of Range.
[4]Talk push-button
While pushing the Talk-push button, it can talk with a microphone.
[5][TALK] button
[ON] : Usable Classroom Audio condition (It can talk with a microphone.)
[OFF] : standby condition. (It cannot talk with a microphone.)
[6][LINK] button (rear)
Pressing this button will turn the microphone power [ON/OFF]. To turn "ON", press it for 1
second or more, to turn "OFF", press it for 2 seconds or more.
(Pairing with a receiver is performed at the time of the power ON.)
[7]External input terminal [AUDIO IN] (rear)
Transmits the audio from a connected external device to the receiver.
[Slide switch]
Select s receiver connection mode
OFF[Same receiver connection]Default
ON[Different receiver connection]
8
1
3
2
4
5
7
8
6
[rear] [side]
[Inside the battery cover]
[OFF] [ON]

9
Rev.1.0
When an external device is connected to this terminal, audio from the [1]Microphone
opening is muted.
[8]DC input terminal (rear)
Used to connect the charger for charging the battery installed in the microphone and to
supply power to the microphone.
[9]Battery cover(side)
To remove the battery cover, push it down and pull it off.
[10]Slide switch (inside the battery cover)
Select the starting connection mode..
[ON] : Different receiver connection
[OFF]: Same receiver connection (Default)
[11]Battery slot (inside the battery cover)
Install one lithium-ion rechargeable battery, paying attention to the charging terminal inside
the battery cover.

10
Rev.1.0
Inserting a battery
• To insert a battery, turn off the power of the microphone, and make sure that the
microphone is not connected to the charger.
• To replace a battery, refer to “Replacing a battery”.
Note:
• Do not touch the battery poles with hands. Otherwise poor contact or noise may result.
If dirty, wipe off with a dry soft cloth.
1 Confirm that the battery indicator is off.
2 Remove the battery cover.
Pull the battery cover in the arrow direction while pressing the A portion with both right
and left thumbs to remove the cover.
3 Install a battery.
Insert the battery and card, making sure that their orientation is correct.
About batteries that you can use with this unit
The 1U583136R-B006A (Lithium Ion Battery) is the only battery that can be used in this
microphone.
4 Attach the battery cover.
Push up the battery cover to the direction of the arrow in the figure, and fit it to its
original position.
1
Battery indicator
4
2
A
Battery cover Battery
3

11
Rev.1.0

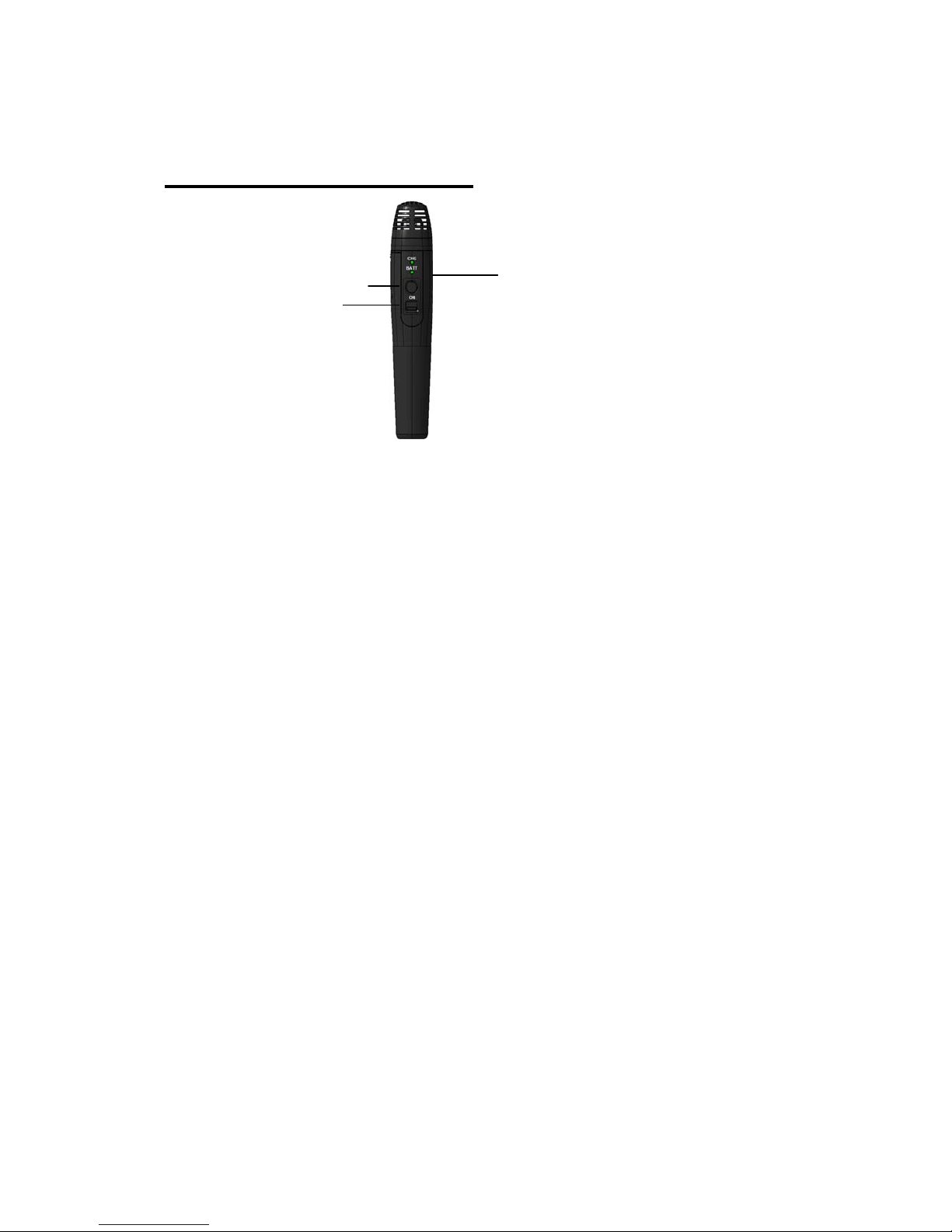

Using the microphone
1 To turn on the microphone, press its LINK-button
The battery indicator of the microphone lights.
Memo:
When [BAT] indicator RED Blink, the registration to a receiver is required.
Microphone slide switch( inside battery cover ) ON. (Different receiver connection)
After turn on receiver’s [LINK] button,
turn on Microphone [LINK] button. ( microphone power OFF state)
2[TALK-push] button ON.
While pushing the Talk-push button, it can talk with a microphone.
(MIC1 or MIC2 indicator of the receiver lights green.)
Memo:
Turns the [TALK] button ON when pushed up and maintains this condition. Used when
talking for extended periods of time.
Important:
• While using the microphone, do not take the microphone close to the speaker.
Loud noises such as feedback may damage your hearing.
Note:
• Also read the operating instructions of the receiver (K-SRC14), and the Access point
(K-SAP14).
Battery indicator
2. Talk push-button switch
Talk button switch

12
Rev.1.0
Connecting an external microphone
You can connect an external device (for example, a portable CD player) to the external
input terminal and transmit the audio to the receiver.
1 Turn off the power of the microphone and the external device.
2 Connect an external device.
Use a ø3.5 stereo mini-plug to connect the external device (for example, a portable CD
player) to the external input terminal.
3 Turn on the power of the external device (for example, a portable CD player).
4 Turn on the power of the microphone.
5 Adjust the volume.
Adjust the audio volume of the external device.
Note:
• Once a ø3.5 stereo mini-plug is plugged into the external input terminal, priority is
given to this input and the audio from the microphone opening and the microphone input
terminal will not be transmitted.
• If the audio of the external device is stereo, stereo signals will be mixed.
• In addition to this manual, refer to the operating instructions of the device to be
connected.
External input terminal

13
Rev.1.0
Replacing a battery
• To replace the battery, turn off the power of the microphone, and make sure that the
microphone is not connected to the charger.
Note:
• Do not touch the battery poles with hands. Otherwise poor contact or noise may result. If
dirty, wipe off with a dry soft cloth.
• Battery power is slightly consumed even when the power of this product is OFF. If the
battery is left unused, that may result in liquid leakage. To prevent this, remove the battery
from the product when unused for a long time.
1 Turn off the power by pressing the power switch.
Confirm that the battery indicator is off.
2 Remove the battery cover.
Pull the battery cover in the arrow direction while pressing the A portion with both right and
left thumbs to remove the cover.
3 Install a new battery.
Insert the battery and card, making sure that their orientation is correct
About batteries that you can use with this unit
The 1U583136R-B006A (Lithium Ion Battery) is the only battery that can be used in this
microphone.
4 Attach the battery cover.
Push up the battery cover, and fit it to its original position.
5 Confirm that the battery indicator lights.
Press the power switch or power push-button switch, turn on the power of the microphone,
and confirm that the battery indicator lights green or orange.
1,5
Battery indicator
Battery
Battery cover
4
2
A

14
Rev.1.0
Charging a battery
1 Turn off all microphones.
2 Connect the micro-USB plug of the charger to the DC input terminal of the
microphone.
When inserting the micro-USB plug into the DC input terminal, of the microphone.
After connecting the microphone to the charger, the charge indicator (red) indicates the
charging status as follows:
ON: Charging completed .
OFF:, No connected a charge connector or no battery installed.
Blinking ( 2 seconds ) : Charging
*In the case of a complete discharge state, the first about 1 minute red LED lights RED.
Blinking( 1 second ) : Charge Error. Indicates one of the following conditions.
• The temperature of the battery may be out of the acceptable range. Confirm that
the temperature is within the acceptable range.
Important:
• If the microphone is connected to the charger with the power turned on, the microphone
will be powered off and charging will start.
Button operation does not move during charge connector connection.
Note:
• If the charger remains connected after charging is completed, it will not restart charging to
make up for any amount lost due to self-discharge.
• If the microphone is turned off and the charger is connected, but the charge indicator does
not light, check to see that the micro-USB plug of the charger is properly plugged into the
DC input terminal, the power cable of the charger into the charger.
Power push-button switch
Charge indicator
DC input terminal
[rear]
Micro-USB plug

15
Rev.1.0
• Charging takes up to 4 hours, but the charging time varies depending on status of use.
• Charging at a temperature outside the normal range may result in significantly longer
charging times.
Note, however, that charging times may become longer even within the operating
temperature range, if the temperature of the microphone is higher or lower than the normal
condition.
• The charger and the microphone may get hot slightly during charging.
• Do not charge a rechargeable battery that has just been fully charged. Otherwise you will
shorten the life of the battery.
• Also read the operating instructions of the charger.

16
Rev.1.0
Trouble shooting
Before asking for repairs, check the symptoms with the following table.
Contact a dealer if the suggested remedies do not correct the problem or if the problem is
not described below.
Symptom Cause/solution
The power cannot be turned on.
• Is the battery charger connected to the
microphone (with no battery)?
>> Connect the charger to the microphone.
Is microphone charging?
(CHG indication RED or RED brink)
>>Please extract a charge cable.
• Is the battery depleted?
>> charge the battery.
Does not use(CHG LED is RED)
Pairing registration with a receiver has not been
performed.
>>
(1) Press a receiver's [LINK] button, and a receiver is
made into register mode.
(2)Press microphone [LINK] button will register for
receiver. ( microphone power OFF state)
No sound
Is the ø3.5 stereo mini-plug connected to the
external input terminal?
>> Disconnect the ø3.5 stereo mini-plug from the
external input terminal.
Does not charge
(charge indicator is off)
• Is a battery installed?
>> Install a rechargeable battery.
• Is the micro-USB plug of the charger inserted
all the way into the DC input terminal?
>> Confirm the connection.
Does not charge
(The charge indicator brink, but goes lights
after a few minutes)
Are you trying to charge a battery that has just been
charged?
>> The battery is already fully charged. Remove the
charger from the microphone, and use the
microphone with the battery
Does not charge
(charge indicator is blinking)
Is the battery extremely hot?
>> Disconnect the charger once and allow the
battery to cool off before reconnecting.
Has the battery deteriorated?
>> Deteriorated rechargeable battery will shorten
the battery duration or cannot turn on the
microphone. Replace the deteriorated battery with a
new rechargeable one.

17
Rev.1.0
Does not use(CHG LED is Yellow blinking)
Microphone is out of range.
Please use in the range
Is the receiver's power supply on?.
Please check a receiver's power supply.

18
Rev.1.0
Specifications
Radio Standard DECT
Frequency Range: 1,920.0~1,930.0MHz
Coverage 20m (NORMAL)
30m(HiPOWER)
Microphone type Unidirectional electret condenser microphone
Audio Frequency Response 100Hz to 8 kHz (From Microphone to receiver)
External input –14 dBV ø3.5 stereo mini jack (monaural mix)
Battery Lithium Ion Battery (Chargeable)
Battery life about 2years
(Battery needs to be replaced every 2 years)
Talk time Around 8 hours
Charge Time Around 4 hours
Charging method Powe
r Supply with micro USB Port
Dimensions 217 H x 38W x 44 D [mm], excluding projections.
Weight 115g (not including Batteries)
Temperature Range 5C ~ +35C {41 °F - 95 °F}
Humidity Range ~90%
The Condition of Installation Indoor use
Weights and dimensions indicated are approximate.
Specifications are subject to change without notice.
