Saramonic Vmic Pro User manual

www.saramonic.com
The Saramonic logo is trademark which is registered
and owned by Saramonic International.
COPYRIGHT 2011-2021 SARAMONIC INTERNATIONAL
A brand of DSQN
Email: [email protected]
8
9
6
7
9
8
10
1
2
Audio output jack
Headphone output
Battery compartment
Integrated shock mount
Cold shoe
2 Set Up Guide
2.1 Install the battery
Lock the battery compartment
Unlock the battery compartment
Insert the AA batteries into place aligning + and - polarity as shown.
1 Product Introduction
1.1 General Introductions

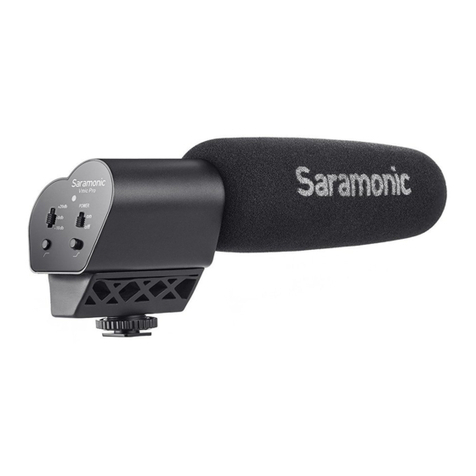

The Saramonic Vmic Pro is a super directional video condenser
microphone that provides professional audio for DSLR cameras and
camcorders. The Vmic Pro allows you to adjust level control (-10dB,
0dB, +20dB), high-pass filter (150 Hz) and high-frequency boost
(+6dB) to increase intelligibility of dialogue. The detachable 3.5mm
cable connects the Vmic Pro to your camera's audio input, while the
stereo headphone output allows you to monitor the incoming audio.
The Saramonic special designed shock mount system provides
isolation from vibration and mechanical noise.
1.2 Highlights
• Super directional video microphone
• Integrated shock mount system
• High pass filter (150 Hz)
• High frequency boost (+6dB)
• Three position level control (-10dB, 0dB, +20dB)
• Headphone monitor output
• 1/8’’ audio output to camera
• LED power on/low battery indicator
• Pop shield included
• Lightweight all-metal construction
• Powered by two AA batteries
1.3 Product Structure
LED indicator
Three position level control (-10dB, 0dB, +20dB)
Power button
High-pass filter (150Hz)
High frequency boost (+6dB)
1
2
3
4
5
Vmic Pro
Super Directional Video Condenser Microphone For DSLR Cameras
and Video Cameras
1
23
45
6
7
9
10

Type Condenser Microphone
Polar Pattern Super Directional
Frequency Response 20HZ---20KHZ
Sensitivity -30±3dB(0dB=1V/Pa,at 1kHZ)
Signal to Noise Ratio 75dB or more
Output Impedance 200Ohm or less
Power Two AA batteries
Plug Mini-pin plug (3.5mm)
Filter High-pass filter (150Hz)
Dimensions(LxHxD) 253 x 69.4 x 98.4 mm
Net Weight 270g (9.5 oz.)
Frequency Response
Vmic Pro
Super Directional Video Condenser Microphone For DSLR Cameras
and Video Cameras
www.saramonic.com
The Saramonic logo is trademark which is registered
and owned by Saramonic International.
COPYRIGHT 2011-2021 SARAMONIC INTERNATIONAL
A brand of DSQN
Email: [email protected]
2.2 Attach the Vmic Pro to the hot shoe of your camera or camcorder.
Connect the supplied audio transmission line from the audio output of Vmic
Pro to the MIC input of the camera or camcorder.
2.3 Turn on your camera and long press the power button to turn
the Vmic Pro on, the LED indicator will turn green. When the battery
power is low, the LED indicator will turn red.
2.4 Adjust the level control according to your needs.
The -10dB level: ideal for recording loud sound sources, such as live
music, motorsport, or interviews where the subject is very close to
the camera.
The +20dB level boost: For use with DSLR cameras, allowing the
user to reduce the camera's preamp level (or mic-input level),
effectively reducing the amount of noise generated by the camera's
comparatively low quality audio circuitry.
2.5 Plug a headphone to the headphone output of the Vmic Pro, then
you can monitor the audio.
We suggest you could do a test recording and playback the audio to
see if it is acceptable.
3. Specification
