AudioBahn A12005DN User manual

QUALITY, RELIABILITY, & PURE BLISS
INTAKE SERIES CLASS D AMPLIFIER
A6005DN / A8005DN / A12005DN
OPERATING INTSTRUCTIONS
PLEASE RETAIN MANUAL FOR FUTRE USE AND REFERENCE

The Audiobahn Way
To bring the product to market that excites the consumer through
sound and vision from an orientation of integrity and customer service. We
make you look as good as you sound. We strive to take car audio to an
extreme the world has never seen, and a world that never stops evolving.
Audiobahn was established in 1997 with one long-term goal in mind,
"Build it Bigger, Badder, & Better, and the people will take notice!" We
back this statement with an engineering team that has brought home several
Innovations, Design & Engineering Showcase Awards, and a marketing team
from around the world that spends countless hours developing our no
compromise products to satisfy the most discriminating enthusiasts.
Our global manufacturing facilities feature ISO9002 ratings (the highest
level of quality control awarded in the electronics manufacturing industry), fully
robotic assembly lines and a state of the art, California based R & D
laboratory.
Due to overwhelming response from our competitors, and our goal to
participate in even more events this year, we created *"TEAM AUDIOBAHN."
This organization is designed to create a support network along with shirts and
perks for team members. "TEAM AUDIOBAHN" is not only for the diehard
competitor, but also for anyone that loves car audio as much as we do. With
four levels of play, one is right for you to get started in the Audiobahn family.
Our Technical Department and entire staff look to strive above and
beyond the rest of the pack by going that extra mile to help you out. Whether
you happen to be a veteran competitor, or a beginner car audio enthusiast
who does not know a voice coil from a spider. We are all her to help you get
the best system you can with what you have.
Judge for yourself, and remember what it's all about, "If it's not
Bigger, Badder & Better, it's not Audiobahn." If audio is your life,
Audiobahn is the brand for you! We make you look as good as you sound.
People never stop trying to get the best product, so we will never stop making
it.
*To learn more about "TEAM AUDIOBAHN" please give us a call, see our website at
website at www.audiobahn.com, or email us at [email protected] to learn about all the
details.

Table of Contents
Introduction
Features and Specifications
Control and Functions
High Level Input Wiring
Planning / Mounting Your System
Wiring Diagrams
Adjustments and Tunning
Trouble Shooting
Warrning / Disclaimer
Warranty
3
4
5-11
12
13
14
16
17
18-19
15
Table of Contents
2

Introduction
Dear Customer,
Congratulations on your purchase of the worlds finest brand of car audio products. Here at
Audiobahn Inc. we are devoted to making our musical reproduction the vert best, and we are
pleased you have chosen our product. Through years of engineering expertise, hand
craftsmanship, and critical testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your Audiobahn product installed by an
Authorized Audiobahn Dealer, as we provide specialized training through our Audiobahn
Installer Training Programs. Please read your warranty, keep your receipt, and original carton
for possible future use.
To get a free brochure on Audiobahn products in the US call (714) 988-0400 or e-mail us at
WARNING
Continuous exposure to sound pressure levels over 100dB may cause permanent
hearing loss. High powered autosound systems may produce sound pressure levels
well over 135dB. Need we say more! Use common sense.
If after reading this manual you still have questions regarding your product, we
recommend that you see your nearest Audiobahn Dealer. A list of Authorized
Audiobahn Dealers can be found on our web page. If you need further assistance, feel
free to call us at (800) 488-8595 and ask for the Technical Department. Be sure to have
the model number, date of purchase, and invoice number available when you call.
The model number can be located on the outside of the carton. Record this in the space
provided below along with the date of purchase. It is a good idea to keep your receipt
with this as you will need it in the case of needing a warranty, repair service or
exchange.
Model Number:___________________ Date of Purchase: _____________________
3

A6005DN : 600 watts ACH Power
150 watts x 1 @ 4 Ohms RMS power
A8005DN : 800 watts ACH Power
200 watts x 1 @ 4 Ohms RMS power
A12005DN : 1200 watts ACH Power
375 watts x 1 @ 4 Ohms RMS power
11 1/16" x 1 7/8" x 6 5/16"
11 1/16" x 1 7/8" x 7 3/8"
11 1/16" x 1 7/8" x 10 1/4"
278 x 55 x 160mm
278 x 55 x 200mm
278 x 55 x 260mm
4
300 watts x 1 @ 2 Ohms RMS power
400 watts x 1 @ 2 Ohms RMS power
600 watts x 1 @ 2 Ohms RMS power
A6005DN: 1 x 30A
A8005DN: 1 x 40A
A12005DN: 2 x 30A
Class D Power Amplifier
2 Ohm Stable
RCA (Low Level) and Speaker (High Level) Inputs
RCA Outputs
Mono Output
Input Sensitivity: 200mV ~ 8V
THD: <0.05%
Variable Low-Pass Filter: 40Hz ~ 120Hz
Variable Bass Boost Control @ 45Hz: 0 ~ 18dB
Air Induction Fan Cooled
Optional Accessories:
ABR100T (Remote Mount Bass Boost Control Knob)
ADM100T (Remote Mount Digital Volt Meter)
4-Way Protection Circuitry: Thermal, Short Circuit, Overload, DC Offset
A6005DN
A8005DN
A12005DN

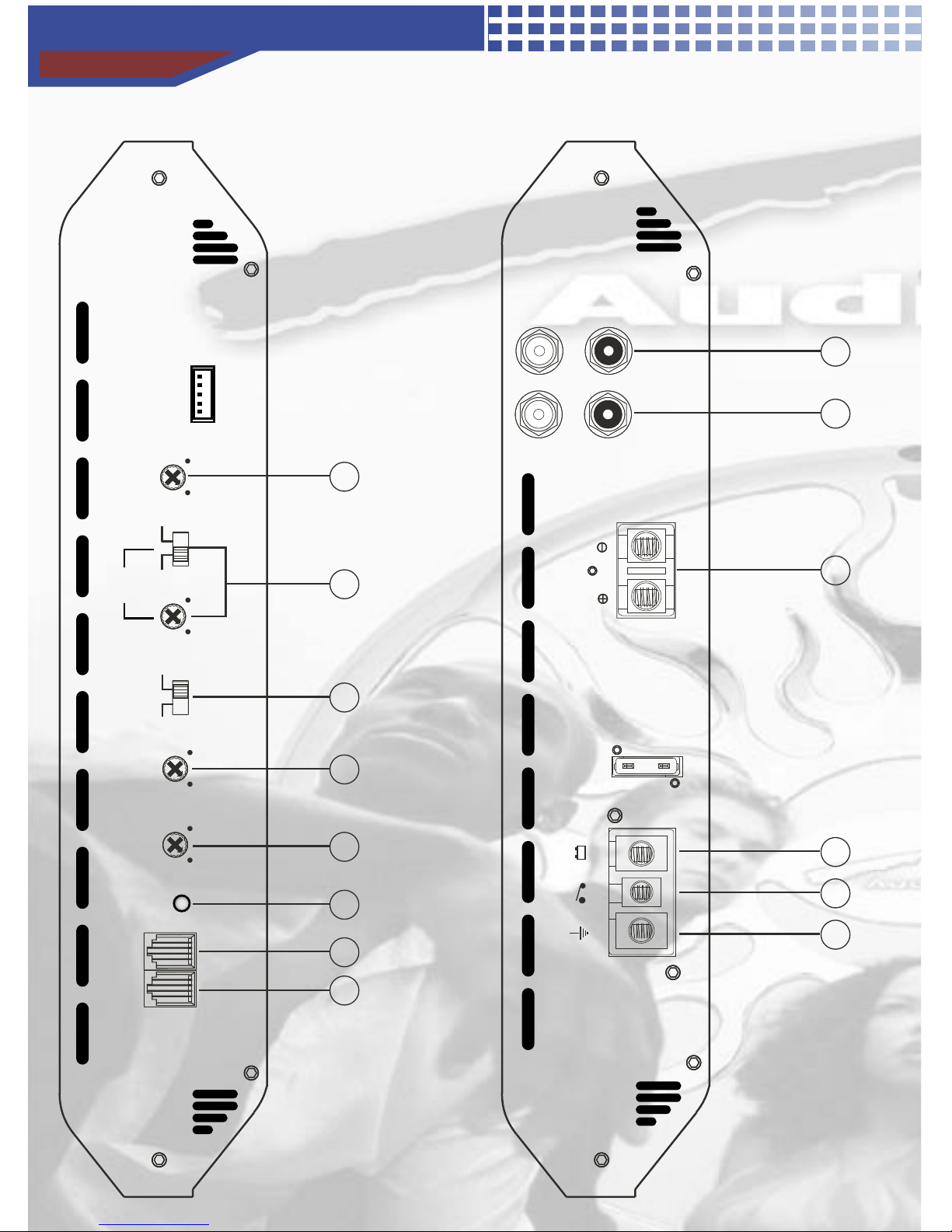

Controls and Functions
5
X-OVER
LEVEL INPUT
+ L - G - R -
11 12
LPF
50 150
7 6
BASS
BOOST
0 +18dB
13
LEVEL
MIN MAX
5
POWER
14
REG AND WILSON ROCK
POWER
GND REM BATT
L
R
LOW INPUT LINE OUT
L
R
2 3 4 9 10 1
SUB
SONIC
15 60
8
ON OFF
FULL
REMOTEDVM
Patent: DES 423,503
LPF
A6005DN
A8005DN
A12005DN

Controls and Functions
1. Speaker Terminals
These chrome plated connectors can accept from 16 to 8 gauge wire. Be careful to observe proper polarity when
connecting the cables
2. B - Terminal (Chassis ground)
REM BATTGND
POWER
To avoid unwanted ignition noise caused by ground loops, it is essential that the amplifier be grounded to a
clean, bare, metal surface of the vehicles chassis.
Note: GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT. (1 METER)
Controls and Functions
6
REM BATTGND
POWER
3. Remote Turn-On Input
To remote or power antenna output of car stereo. This amplifier is turned "ON" remotely when the vehicle's stereo
is turned "ON".
Note: IF YOUR RADIO DOES NOT HAVE +12 VOLT OUTPUT LEAD WHEN THE RADIO IS TURNED ON, THE
"REMOTE" TERMINAL ON THE AMPLIFIER CAN BE CONNECTED TO THE VEHICLE'S ACCESSORY
CIRCUIT THAT IS LIVE WHEN THE KEY (IGNITION) IS "ON".
A6005DN
A8005DN
A12005DN
A6005DN
A8005DN
A12005DN
A6005DN
A8005DN
A12005DN

Controls and Functions
Controls and Functions
REM BATTGND
POWER
4. B+ Terminal (Battery Positive)
5. Input Sensitivity Adjustment
Due to the power requirements of the amplifier, this connection should be made directly to the positive (+)
terminal of the battery. For a safety measure, install an in-line fuse holder (not included) as close to the battery
positive (+) as possible with an ampere rating not to exceed the total value of fuses in the amp.
MIN MAX
This control adjusts the amplifier's sensitivity. Input sensitivity is variable from 200 Millivolts to 4 volts. Clockwise
increases sensitivity. Counterclockwise decreases sensitivity. THE KNOB IS NOT A VOLUME CONTROL. A
lower signal level will require increased sensitivity for full power. A higher signal will require decreased sensitivity.
7
A6005DN
A8005DN
A12005DN
A6005DN
A8005DN
A12005DN
A6005DN
A8005DN
A12005DN

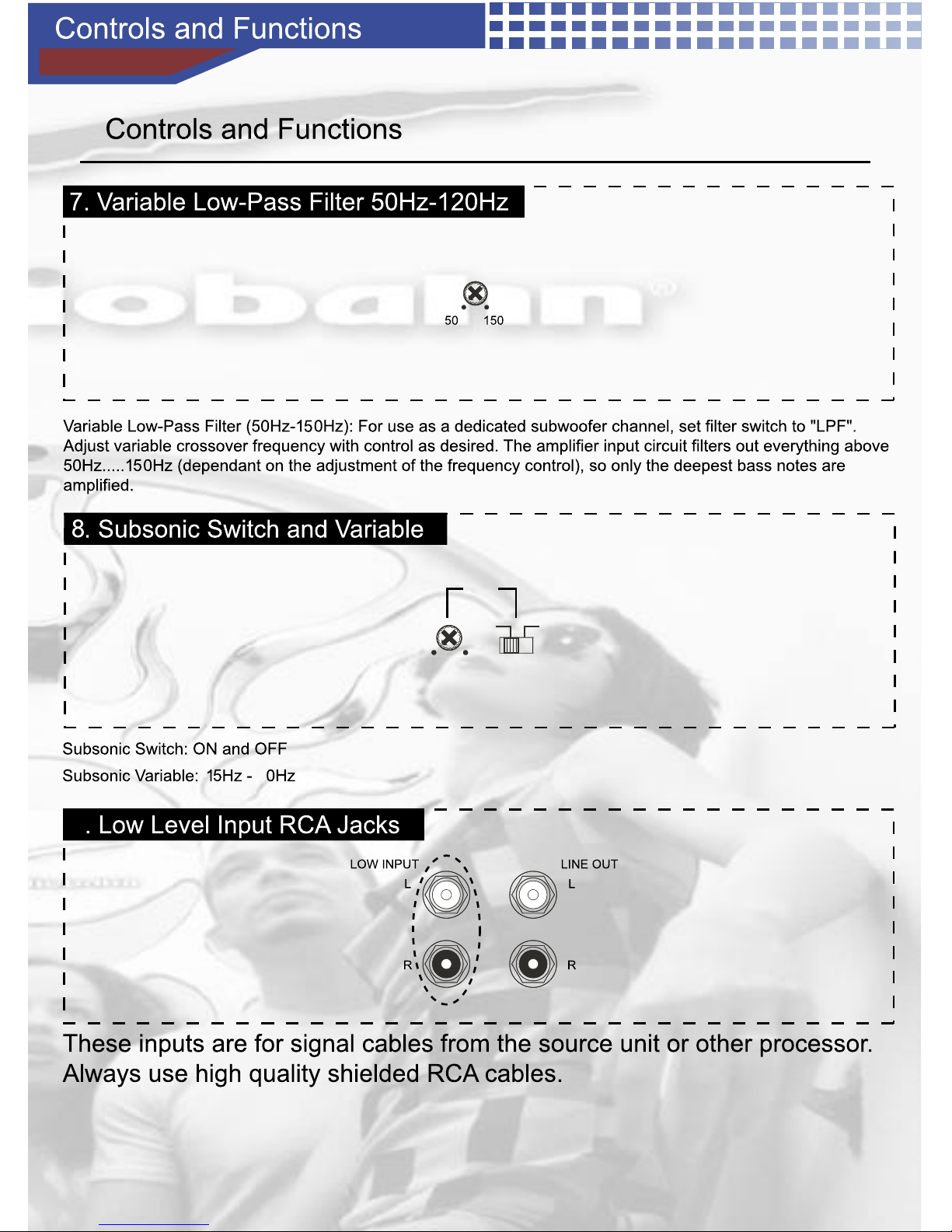

SUB
SONIC
15 60
ON OFF
6
9
8
A6005DN
A8005DN
A12005DN
A6005DN
A8005DN
A12005DN
A6005DN
A8005DN
A12005DN

0

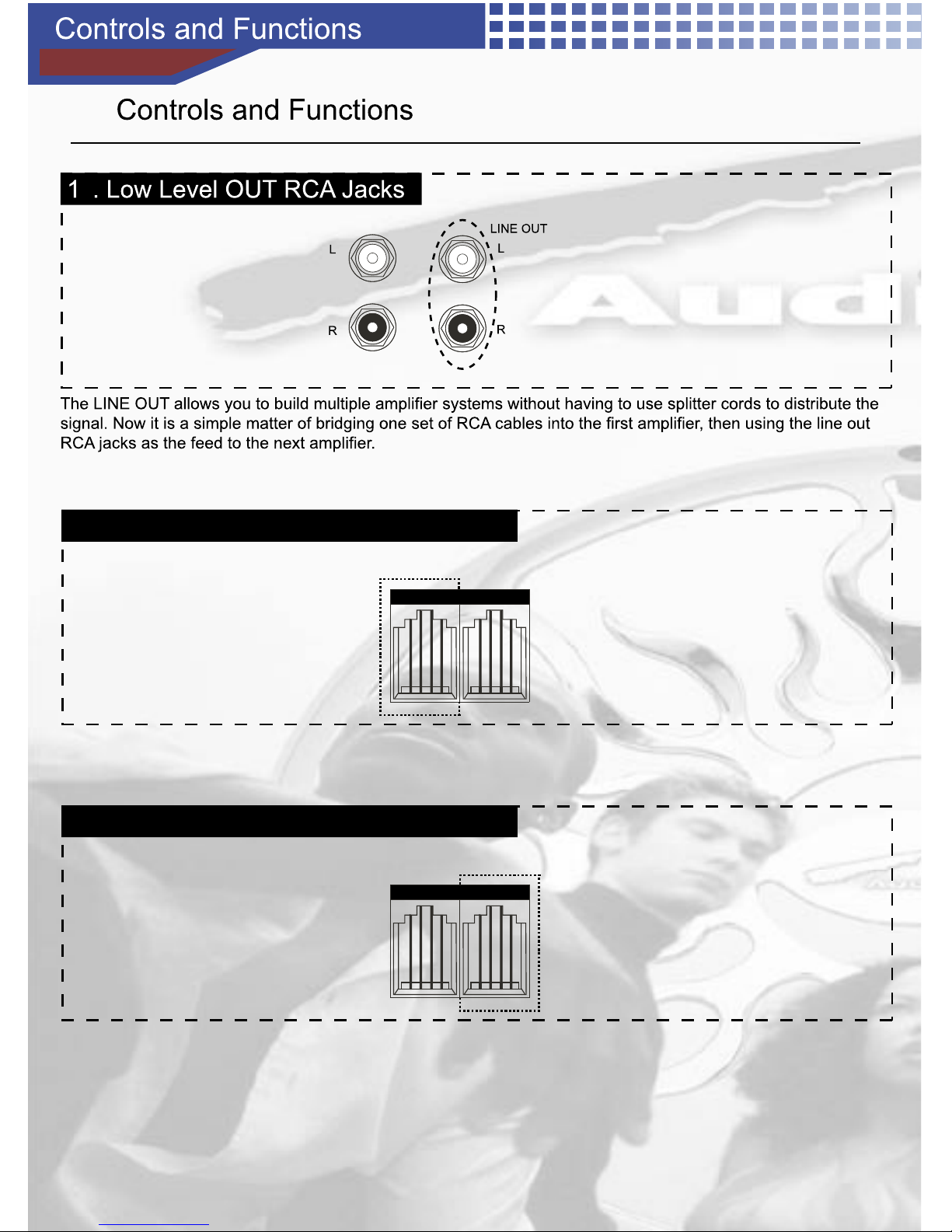

11. DVM (Digital Volt Meter Input) Fig 1
DVM REMOTE
12. DVM (Digital Volt Meter Input) Fig 1
DVM REMOTE
Remote Control for Digital Display Voltmeter: Optional ADM100T
9
A6005DN
A8005DN
A12005DN
A6005DN
A8005DN
A12005DN
A6005DN
A8005DN
A12005DN

Controls and Functions
Controls and Functions
10

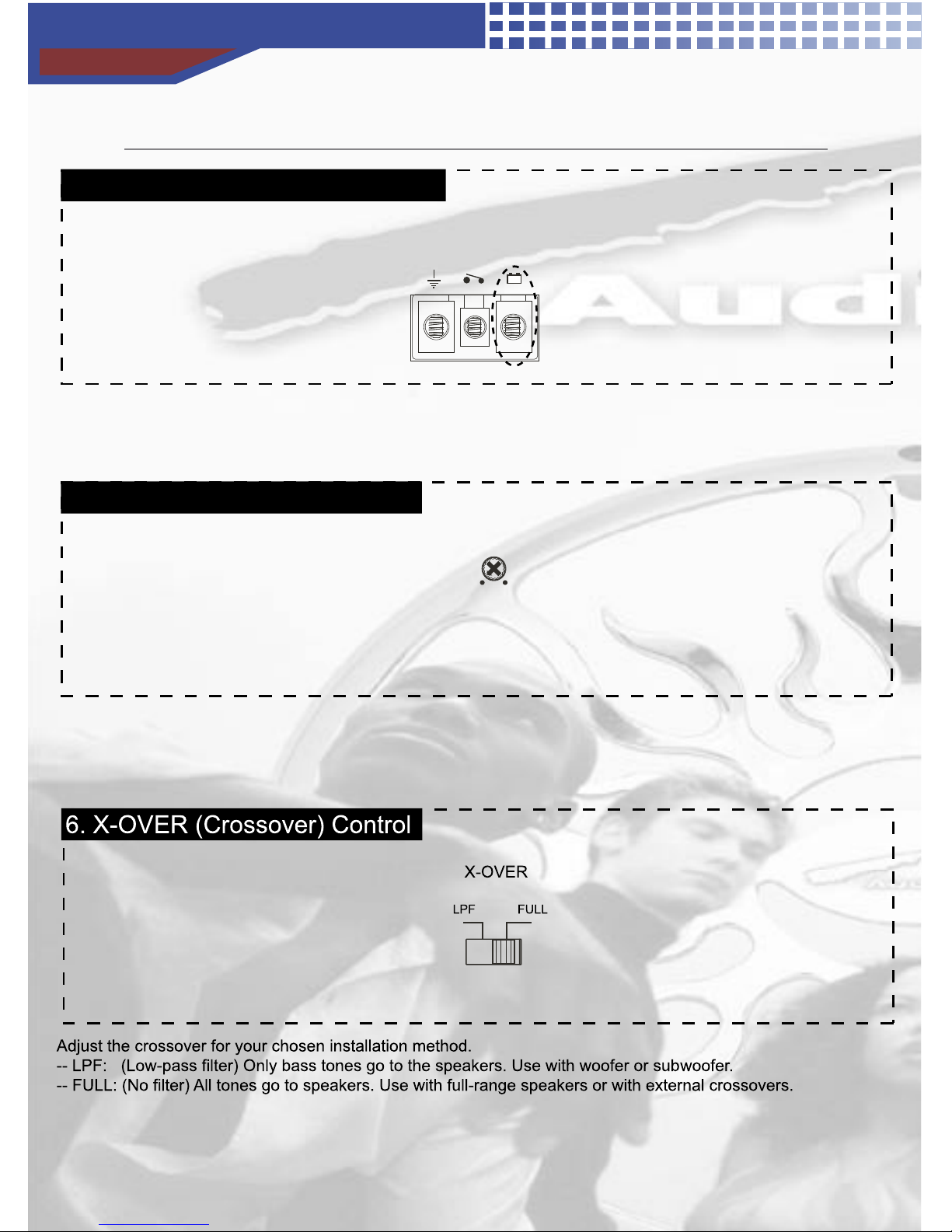

13. Bass Boost Switch and Variable Crossover
BASS
BOOST
Bass Boost Control (MIN / MAX) : Optional ABR100T
Bass Boost Switch: ON and OFF Bass Boost Variable: 0dB - 18dB
14. LED indicator (Status)
POWER
-PWR (Power) : This BLUE LED will illuminate when the amplifier is turned "ON". If it fails to illuminate, check the power
connections to the amplifier and fuses.
- PROT (Protection) : The amplifier protection circuitry will disable the amplifier if input overload, short circuit, or extremely
high temperature conditions are detected. When the protection mode is in operation, the LED indicator on the side
panel will be illuminated red, indicating the amplifier has gone into a self-preservation mode.
If you observe that the protection LED is lit, please check the system carefully to determine what has caused the
protection circuit to engage. The amplifier shut down due to a thermal overload condition, please allow it to cool
down before restarting. If the amplifier shut down because of an input overload or short circuit, be sure to repair these
conditions before attempting to power up the amplifier again.
A6005DN
A8005DN
A12005DN
0 +18dB
A6005DN
A8005DN
A12005DN

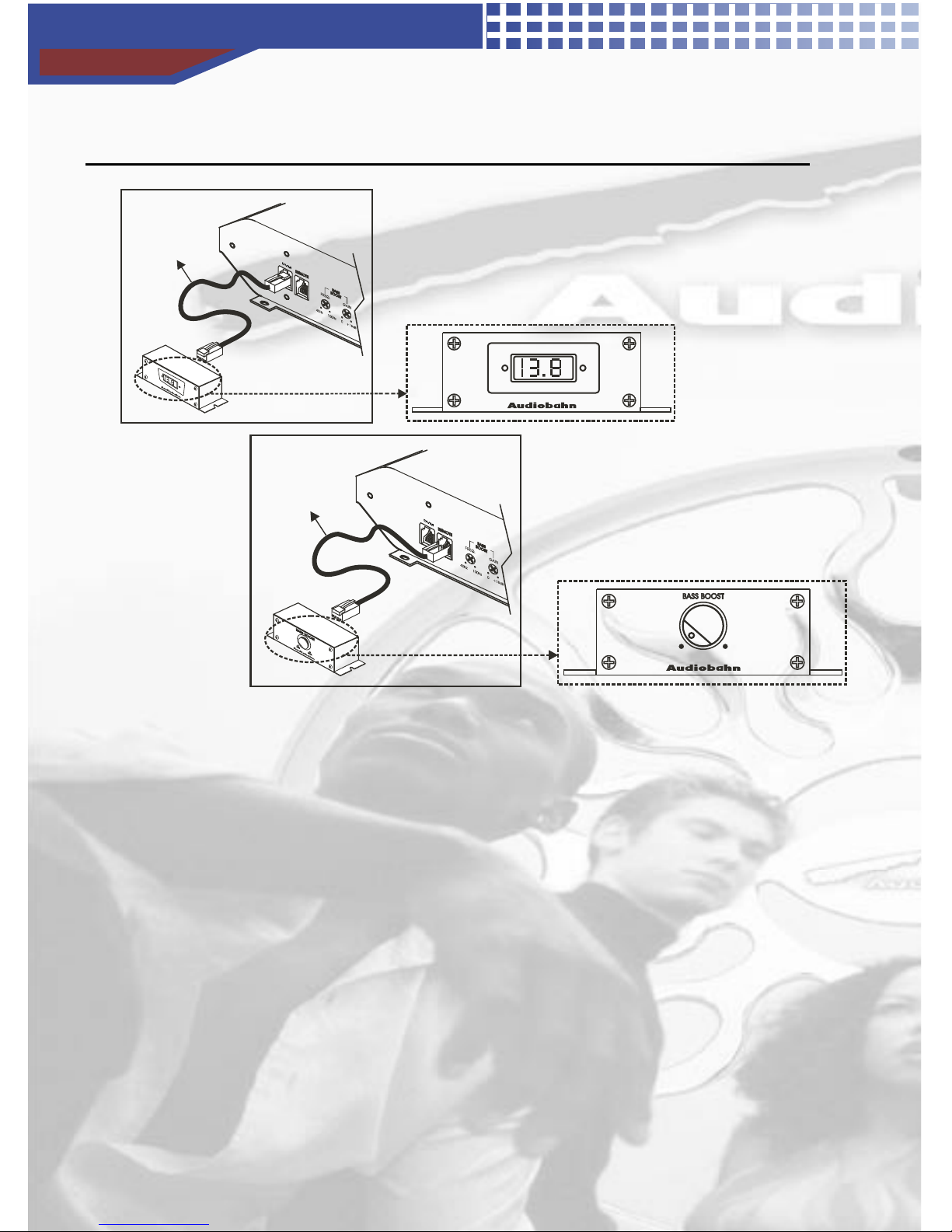

Control and Functions
Fig 1.
LINE CORD
Fig 2.
LINE CORD
MIN MAX
Optional Remote Bass Boost Control : ABR-100T
Optional Remote Digital Volt Meter : ADM-100T
Controls and Functions
11
DES. 423,503

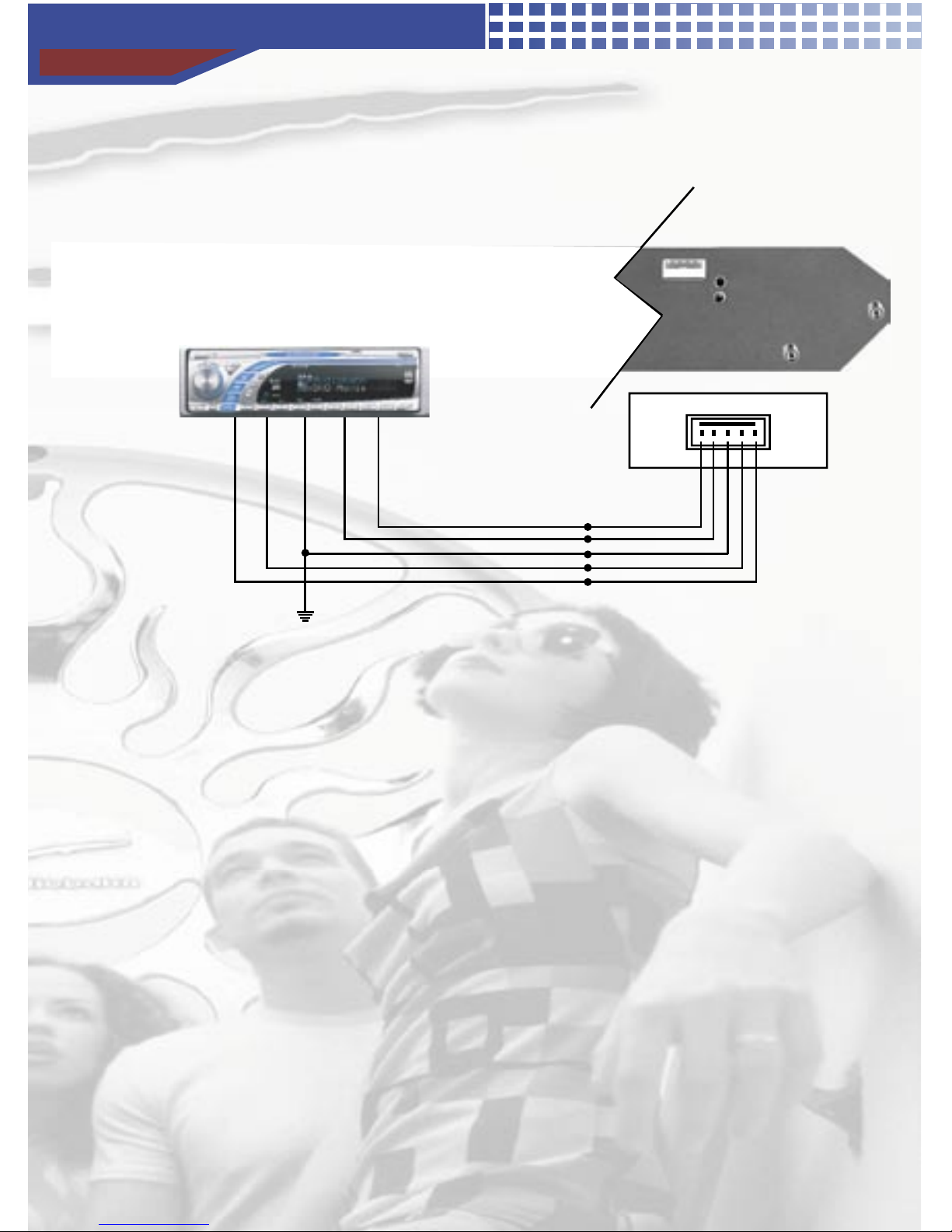

High Level Input Wiring
HIGH INPUT
+ L - G - R +
L+
L-
R-
R+
CHASSIS GND
If the HIGH LEVEL INPUTS are used, do not use the low level RCA inputs at the same time
12
DES. 423,503
A6005DN A8005DN A12005DN

b. Are your components matched? The RMS power rating of your speakers must be
equal or greater than the amplifier's. They also must be 2-8 Ohms impedance
(this information is normally printed on the speaker magnet).
c. Consider both the length of your leads, and routing when determining the mounting
location. Pre-Amp input Jacks require a length of high quality shielded male to male
RCA patch cord.
NOTE:
DISTORTION LEVEL IS CONSIDERABLY LOWER FROM PRE-AMP (LOW LEVEL)
OUTPUTS, THAN SPEAKER
(HIGH LEVEL) OUTPUTS.
Before beginning the installation, consider the following:
a. If you plan to expand your system by adding other components sometime in the
future, ensure that adequate space is left, and cooling requirements are met.
If your radio/source is equipped with Pre-Amp outputs, it is possible to utilize them
to drive an Amplifier and connecting (amplifier) to the 2 rear speakers.
Then, use the built-in power of your radio to drive the 2 front speakers.
a. Select a suitable location that is convenient for mounting, accessible for wiring, and
has ample room for air circulation and cooling.
b. Use the amplifier as a template to mark the mounting holes. Remove the amplifier
and drill holes. Use extreme caution. Inspect underneath the surfaces before drilling!
c. Secure the amplifier using the screws provided.
The mounting position of your amplifier will have a great effect on its ability to dissipate
the heat generated during normal operation. It has an ample heat sink for heat
dissipation, and also is designed with a thermal shut-down (for heat protection) circuit,
having enough air directed over the cooling fins will improve heat dissipation dramatically.
DO NOT enclose the amplifier in a small box or cover it so that air can not flow around
the fins. Temperatures in car trunks have been measured as high as (155 F) in the
summer time. Since the thermal shut-down point for the amplifier is (158 F) it is easy
to see that it must be mounted for maximum cooling capability. To achieve the maximum
advantage of convection air flow in an enclosed trunk, mount the amplifier in a horizontal
position. Cooling requirements are considerably relaxed when mounting inside the
passenger compartment since the driver will not allow temperatures to reach a critical
point. Floor mounting under the seat is usually satisfactory as long as there is at least 1
inch (2.54 cm) above the amplifier's fins for ventilation.
CAUTION: Before connecting any wires to the amplifier, disconnect the ground lead from
the battery. Leave the ground lead disconnected until you are done wiring the
amplifier.
Planning Your System
Mounting Your System
Planning and Mounting Your System
13

14
SUBWOOFER
2~8OHM
MONO MODE
: :
Wiring Diagrams
INDUCTOR LOW PASS FILTER CAPACITOR HIGH PASS FILTER
A6005DN A8005DN A12005DN

TURNING ON THE AMPLIFIER
The amplifier automatically turns on a few seconds after you turn your vehicle's ignition
switch to ACC or turn on your auto sound system (depending on how you have wired
the system). The POWER indicator on the top of the amplifier illuminates when the
amplifier is on.
Important: Your amplifier requires 30 amps or more of power from your vehicle's
battery during operation. To protect your battery from discharging, do not operate the
amplifier unless your vehicle is running.
Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically
once it cools.
NOTE Raising the LPF frequency allows higher frequencies to reach the bass speakers
while blocking lower frequencies from midrange speakers. Lowering the LPF frequency
allows lower frequencies to reach the midrange speakers while blocking higher
frequencies from bass speakers.
+ 10dB
+ 20dB
0dB
- 10dB
- 20dB
- 30dB 10 50 100 500 1K 5K 20K 50K
FREQUENCY (Hz)
RESPONSE (dB)
FREQUENCY RESPONSE BASS BOOST ON
Adjusting and Tuning
For the best performance, you must set GAIN (MIN/MAX) on the side of the amplifier to
adjust the level of the audio signals that enter the amplifier.
1. Use a screwdriver to turn GAIN (MIN/MAX) fully counterclockwise to MIN.
2. Turn the auto sound system's volume control to about one-third of its full range.
3. Adjust GAIN (MIN/MAX) to a comfortable listening level.
4. Turn up the auto sound system's volume control until the sound begins to distort.
Then immediately turn the volume down to a point just before where the distortion
began.
Caution Never turn up the auto sound system's volume control more than needed
to adjust the audio level (More than two thirds of its maximum volume).
5. Adjust GAIN (MIN/MAX) until the sound is at the maximum level you want the amplifier
to produce.
6. Adjust the auto sound system's volume control to a comfortable listening level.
ADJUSTING THE AUDIO LEVEL
15

16

Investigate the layout of your automobile thoroughly before drilling or cutting any holes.
Take care when you work near gas tanks, gas lines, hydraulic lines, and electrical wiring.
Do not use the power amplifier unmounted. Attach the system securely to the automobile
to prevent damage, particularly in the event of an accident. Do not mount the system
so that the wire connections are unprotected or are subject to pinching or damage
from nearby objects.
The +12V DC power wire must be fused at the battery positive terminal connection.
Before making or breaking power connections at the system power terminals,
disconnect the +12V wire at the battery end. Confirm your radio/head unit and/or other
equiptment is turned off while connecting the input jacks and speaker terminals.
If you need to replace the power fuse, replace it only with a fuse identical to that
supplied with the system. Using a fuse of a different type or rating may result in damage to
this system which is not covered by the warranty.
Disclaimer
Specifications are subject to change with out notice.
For the most updated Specifications call Audiobahn,
your local Authorized Audiobahn Dealer,
or check the Audiobahn web site.
www.audiobahn.com
Warning / Disclaimer
17
WARNING

Audiobahn Consumer
Product Warranty Policy
Audiobahn products are manufactured with the highest quality components and some of
the most advanced technology available. Because of this, we recommend that you have
your new products installed by an Authorized Audiobahn Dealer. (A list of Authorized
Audiobahn Dealers can be found on our web page).
Warranty Period: One year from the original date of purchase.
Warranty Coverage: This warranty covers manufacturer defects only. The warranty is
applicable to the original purchaser, and is non-transferable. You must provide a receipt
from an Authorized Audiobahn Dealer that shows the location of purchase, price paid,
and date of purchase.
(Products purchased by consumers from an Authorized Audiobahn Dealer outside the
United States are covered only by the Distributor of that specific country and are not
covered by Audiobahn).
Notes:
Complete subwoofer enclosures (Audiobahn will replace defective subwoofers,
plexiglass, or neon only. Do not send the entire enclosure, unless the enclosure is
defective itself. You must receive prior authorization and an RA# before sending in any
complete enclosure).
AUDIOBAHN DOES NOT WARRANTY ANY PRODUCTS NOT PURCHASED
THROUGH AN AUTHORIZED DEALER.
(A list of Authorized Audiobahn Dealers can be found on our web page).
Any product not purchased from an Authorized Audiobahn Dealer (including Internet
dealers)
Damage caused by abuse, misuse, accident, water / flood, or theft (including any
cosmetic damage to the body of the product)
Damage caused by improper installation
Any cost or expense related to removal or reinstallation
Any unauthorized services
Any product that has the serial number removed, altered, or defaced
Subsequent damage to any other components
Pinched, cut, or stripped wires / terminals
Any product that is new, and/or found to be in working condition
L.E.D. indicators on electronics (Audiobahn will only replace L.E.D.(s) found to be
defective at the time of purchase)
Warranty
18
AUDIOBAHN WARRANTIES DO NOT COVER THE FOLLOWING:

How to receive warranty service: Contact your local Authorized Audiobahn Dealer, or call Audiobahn at
(800) 488-8595 between the hours of 9:00 AM and 5:00 PM PST.
If you are having problems with your system, we recommend you check the product carefully and
thoroughly to confirm that the product truly has a manufacturer defect; as opposed to abuse, or other
components in the system causing the failure. This might include having an Authorized Audiobahn
Dealer look at the product to confirm the source of the problem. Any product found to have a
manufacturer defect will be replaced with a new piece of the same or similar model, or repaired at the
discretion of Audiobahn. Any product found to have no manufacturer defect will be returned to the sender
at their cost.
You must acquire a Return Authorization Number ( #) prior to returning ANY product to
Audiobahn. That Return Authorization Number (RA#) must be prominently and clearly marked on the
outside of the shipping carton, or product delivery will be refused (no exceptions will be made).
Please note: All shipping and handling (to and from) charges will be the sole responsibility of the
consumer.
Please record and keep your Return Authorization Number (RA#) in the event that further communication
is required.
Return Authorization Number (RA#): ______________________________
Date product was sent: ______________________________
Warranty Continued
Brea, CA 92821
114 South Berry St.
Audiobahn Headquarters
Phone (800)488-8595 Fax. (714)988-0433
Pacific Coast Time : 9am-5pm Mon. - Fri.
Contact Information
19
This manual suits for next models
2
Table of contents
Other AudioBahn Car Amplifier manuals

AudioBahn
AudioBahn A1004DP User manual

AudioBahn
AudioBahn A4002J User manual

AudioBahn
AudioBahn AMPP210H User manual

AudioBahn
AudioBahn A12001DJ User manual

AudioBahn
AudioBahn A2301T User manual

AudioBahn
AudioBahn A12001DT User manual

AudioBahn
AudioBahn A752DP User manual

AudioBahn
AudioBahn ABD40J User manual

AudioBahn
AudioBahn A12001DJ User manual

AudioBahn
AudioBahn AMA12004H User manual
