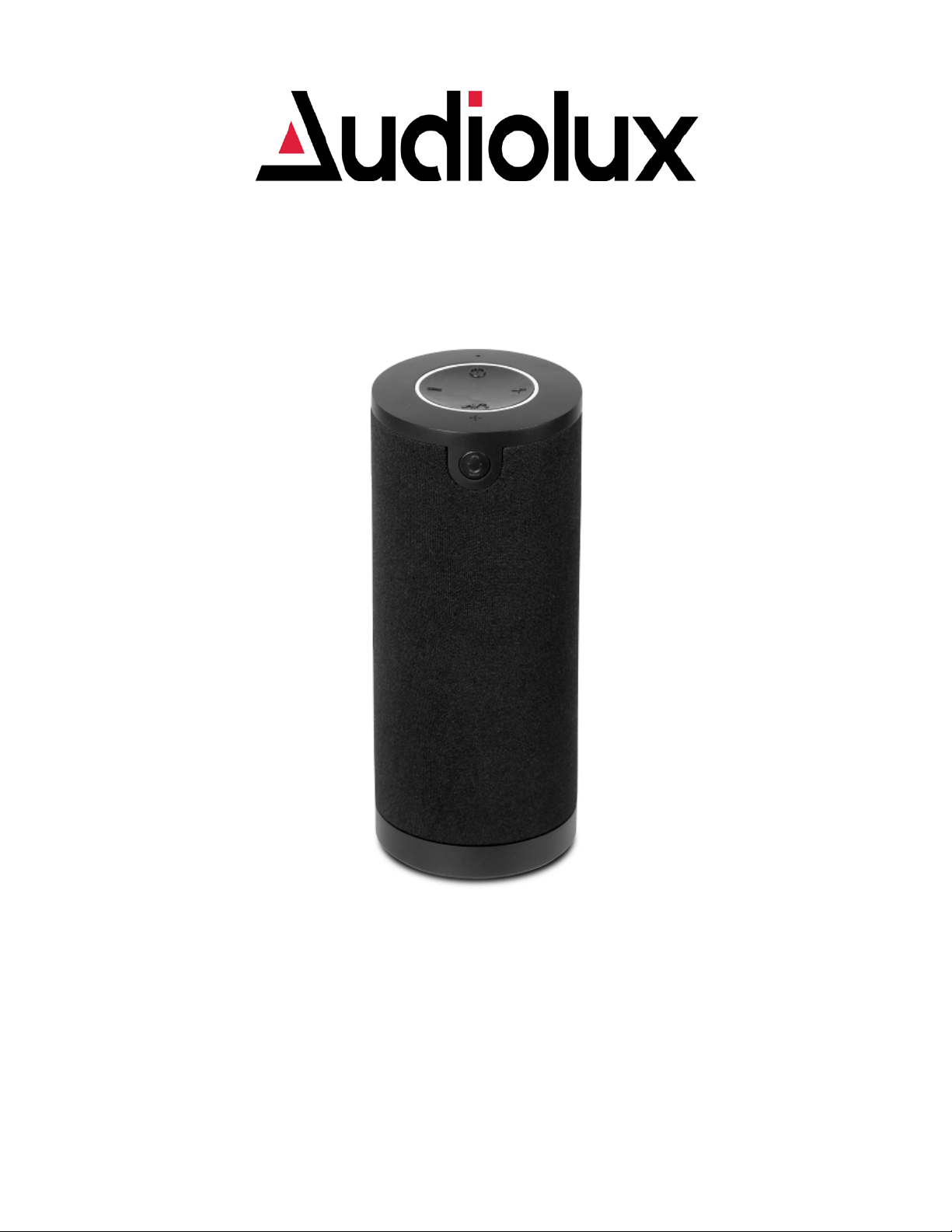

Audiolux VA-WTS-6/1153 User manual

1
VOICE-ASSISTANT
WIRELESS SPEAKER
VA-WTS-6/1153
INSTRUCTION MANUAL
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE USE

2
Getting started
•Remove the product from the box.
•Remove any packaging from the product.
•Please retain all packaging after you have checked and counted all the parts and the contents
against the list.
Package Contents
•Bluetooth Speaker
•Auxiliary audio cable
•USB charging cable
•Instruction Manual
Key Features
•Wireless Speaker supports Siri & Google Assistant Voice Commands
•Just press the “Voice Assistant” button to start conversation with your Siri or Google Assistant
•Connects to any Bluetooth enabled devices
•Streams wireless music from your iPhone, iPad and other Android/Windows smartphones and
tablets
•Speaker delivers crisp & stereo sound
•Built-in microphone for hands-free calls
•Portable & light weight
•Built-in auxiliary jack
•Built-in rechargeable battery
Safety Instructions
Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids.
Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent
against electric shock, explosion and/or injury to yourself and damage to the unit.
Do not use the unit if it has been dropped or damaged in any way.
Repairs to electrical equipment should only be performed by a qualified electrician. Improper
repairs may place the user at serious risk.
Do not use the unit with wet hands.
Do not put objects into any of the openings.
Keep the unit free from dust, lint etc.
Do not use this unit for anything other than its intended use.
Keep the unit out of reach of children.
This product is not a toy.
Do not use the handset at excessive volume levels, as damage to hearing may occur

3
Description of Parts
1
Voice Assistant Button
2
Volume Decrease / Previous Track
3
LED Light Indicator
4
ON/OFF Button
5
LED Ring
6
Volume Increase / Next Track
7
Play/Pause/Phone Button
8
Built-in microphone
9
Charging Port
10
Auxiliary Port

4
INSTRUCTIONS FOR USE
Charging Instructions
The Bluetooth Speaker comes with a built in rechargeable battery. Before using it for the first time we
recommend you to charge the battery fully. It takes 5-7 hours to fully charge the battery. Only use the
supplied USB Cord to charge the Bluetooth Speaker.
Connect the USB charging cord to a computer USB port and the Micro USB plug to the charging port of
the device. The Red LED light turns on while the device is charging. It takes 5-7 hours for the speaker to
fully charge. When the battery is fully charged, the LED light will turn off.
Switching on/off the device
Press and hold the ON/OFF button for 2-3 seconds to turn on/off the device.
Pairing the device with Bluetooth devices (phone or music device)
Ensure the device is turned off, then press and hold the ON/OFF button for 2-3 seconds to turn on the
device, you would hear an indication tone and the LED flashes blue rapidly. Place the Bluetooth Speaker
and Bluetooth device (phone or music device) so that they are no further than 3 feet apart;
Activate the Bluetooth function on your Bluetooth device (phone or music device). Please refer to the
manufacturer’s instructions for instructions on enabling Bluetooth on your device.
Once you have activated Bluetooth on your device, select the “Audiolux Speaker” from the list of
available Bluetooth devices.
If required, enter the password ‘0000’ to confirm & finalize pairing.
Once paired successful, you would hear another indication tone, and the LED would flash slowly.
You can now start to use the device.
If pairing is unsuccessful, turn off the device first and then re-pair following the above steps.
Once you have paired the Bluetooth Speaker with a device, the Speaker will remember this device and
will pair automatically when the device’s Bluetooth is activated and in range. You do not need to re-pair
any previously connected devices.
The Bluetooth Speaker will attempt to automatically connect to the last device it was paired with when
switched on. If you want to pair it with a new device, please follow the steps outlined above.
Once the Bluetooth Speaker is paired with your device the music will transmit through the Bluetooth
Speaker. Please refer to your device’s user manual for further information.
Making a call with the Bluetooth Speaker in Bluetooth mode
Basic operation
Please ensure that you are paired with the Bluetooth Speaker to use the below functions.
Function
Operation
Button
Answer Incoming
Call
Incoming Call
Press the Phone once to answer an incoming call.
Reject incoming call
Incoming Call
Press and hold the Phone button
End Call
Incoming Call
After your phone conversation, short press the Phone button
Increase Volume
During a call
Press and hold the +button to increase the volume
Decrease Volume
During a call
Press and hold the -button to decrease the volume
Redial last number
Standby mode
and connected
to a device
Short press the Phone button twice

5
Please Note
•Not all mobile phones support all the functions listed above. Please refer to your cell phone’s user’s
manual for further information.
•Certain functions and indication tone maybe vary depending on your mobile phone.
Listening to Music
Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the
Bluetooth Speaker to stream music wirelessly. Once it is paired, play music from your device.
Function Operation Button
Increase Volume
Playing music
Press and hold the + button to increase the volume
Decrease Volume
Playing music
Press and hold the -button to decrease the volume
Pause
Playing music
Short press the Play/Pause button will pause the music
Play
Pausing
Short press the Play/Pause button will resume the music
Previous track
Playing music
Short press the Skip Backward button will return you to the
previous track
Next track
Playing music
Short press the Skip Forward button will take you to the next
track
(Note: The above functions only can be used in Bluetooth mode only. An indication tone will alert you
when the volume is adjusted to the minimum or maximum level. In Aux mode, besides the volume
increase/decrease, you will need to control through your source device.)
Play music through “Auxiliary” mode
Turn ON the speaker.
Insert one end of the Auxiliary cable (included) into the Auxiliary port, and the other end to the audio
device (such as phone / MP3 Player / computer / tablet etc.).
Select your favourite song at the source device to play.
Long press + to increase the volume or - to decrease the volume.
Note: Media can be controlled only through the source devices, while playing music in Auxiliary mode.
Voice Assistant Operation
AudioLux Voice Assistant is a built-in interactive feature that allows you to Start Conversation with Your
Siri or Google Assistant, with a click of a button on your AudioLux device.
This feature enables you to ask questions and seek assistance on a number of things from your Voice
Assistant, even when you’re several feet away from your phone. Below are some of the many examples
listed below.
Note: Google Assistant is available on eligible Android 5.0 devices or later. Works on Lollipop,
Marshmallow and Nougat Android Phones with Google Play Services, >1.5GB of memory and 720P or

6
higher screen resolution. Please ensure Google Assistant App is downloaded and made as default Voice
Assistant on your mobile device.
While the speaker is paired using Bluetooth, press the Voice Assistant button to start conversation
with your Siri or Google Assistant. An indication tone would be heard before you speak into the
speaker.
oExample 1: Press the Voice Assistant button and then speak into the speaker, how’s the weather
today?
Voice Assistant will reply with something like: mainly cloudy with a few showers.
oExample 2: Press the Voice Assistant button, and then speak into the speaker, what’s the time now?
Voice Assistant will reply with something like: it is 8pm now.
oMore examples:
Set an alarm for 7am tomorrow.
Play some music.
What’s in the news?
Tips!!
When the speaker is not in use, turn it OFF in order to save the battery power.
Troubleshooting
Problem
Possible Cause
Solution
Low sound level
Source (Tablet, Mobile Phone, Laptop,
etc.) volume too low.
Battery dead
Adjust source volume.
Charge Battery.
Sound distorted
Battery nearly dead
Charge Battery.
No sound at all.
Source (Tablet, Mobile Phone, Laptop.)
turned off.
Speaker turned off.
Volume turned down source.
Media paused on source.
Turn the source on.
Turn the speaker on.
Adjust volume source.
Play media from source.
Your Google
Assistant not
responding
Your mobile device does not have
Google Assistant App downloaded and
set to default voice assistant
This is only available for Android
Mobile Devices
Make sure Google Assistant is
downloaded on your mobile device
and set to default voice assistant
Make sure your Android Mobile
Device is Bluetooth paired with
Speaker
Make sure you are in a country
where Google Assistant is available
For additional support, visit
www.support.google.com/assistant
Loud Dial Tone
Noise When
Activating Google
Old Android Version and possibly not
updated
Make sure you have latest version
of Google Assistant App
On your Android mobile device, go

7
Assistant
to Settings > Apps > Google App >
Disable. After that, tap Enable (If
you have uninstalled Google App,
please uninstall and reinstall the
App).
Care and maintenance
Read the following recommendations before using the Bluetooth Speaker. Following these you will be
able to enjoy the product for many years.
•Do not expose the unit to liquid, moisture or humidity to avoid the product’s internal circuit being
affected.
•Don’t use abrasive cleaning solvents to clean the unit.
•Do not expose the unit to extremely high or low temperature as this will shorten the life of electronic
devices, destroy the battery or distort certain plastic parts.
•Don’t dispose of the unit in fire as it will result in an explosion.
•Don’t expose the unit to contact with sharp objects as this will cause scratches and damage.
•Don’t let the unit fall down onto the floor. The internal circuit might get damaged.
•Don’t attempt to disassemble the unit as it may get damaged if you are not professional.
Specifications –
Bluetooth® Version: 4.2
Wireless Streaming Range: 26-33 Feet
Speaker output: 2x5W
Size: Dia. 3-1/8 ” x H 7 -1/2 ”
Weight: 19.4 oz approx.
Power Input: DC 5V
Charging Time: 5-7 hours
Play time: up to 3 hours (max. volume)
Built-In Rechargeable Battery: 3.7V / 1800mAh
(Note: Battery life & charging time may vary based on usage, types of devices connected & wireless
distance.)
FCC Instructions
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the product.
NOTE: This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This product generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If the product does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures :
-Reorient or relocate the receiving antenna.
-Increase the separation between the product and receiver.
-Connect the product into an outlet on a circuit different from that to which the receiver is connected.

8
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Limited Warranty
This manufacturer's product warranty extends to the original consumer purchaser of the product. Neither the
retailer nor any other company involved in the sale or promotion of this product is a co-warrantor of this
manufacturer warranty.
WARRANTY DURATION: All materials and workmanship are warranted to the original consumer purchaser
for a period of ninety (90) days from the original purchase date.
WARRANTY COVERAGE: This product is warranted against defective materials or workmanship. This warranty
is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect,
improper service, commercial use, repairs by unauthorized personnel or other causes not arising out of
defects in materials or workmanship. This warranty is effective only if the product is purchased and
operated in USA, and does not extend to any units which have been used in violation of written instructions
furnished by manufacturer or to units which have been altered or modified or, to damaged products or parts
thereof which have had the serial number removed, altered, defaced or rendered illegible.
WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied and no representative or
person is authorized to assume for manufacturer any other liability in connection with the sale of our products.
There shall be no claims for defects or failure under any theory of tort, contractor commercial law including but
not limited to, negligence, gross negligence, strict liability, breach of warranty and breach of contract. Under no
circumstances will Manufacturer’s / Distributor’s maximum liability exceed the retail value of the product.
WARRANTY PERFORMANCE: During the above 90 day warranty period, a product with a defect will be either
repaired or replaced with a reconditioned comparable model (at manufacturer's option). The repaired or
replacement product will be in warranty for the balance of the 90 day warranty period and an additional
one-month period. No charge will be applicable for such repair or replacement.
SERVICE AND REPAIR: If service is required for this product, you should first contact Midwest Trading Group
Customer Service at [email protected] or by calling 1 [phone], Monday to Friday 10am to 6pm
EST.
NOTE: Manufacturer cannot assume responsibility for loss or damage during incoming shipment. As a
precautionary measure, carefully package the product for shipment, and insure it with the carrier. Be sure to
enclose the following details with the product: your full name, return address and daytime phone number, a
note describing the problem you experienced, a copy of your sales receipt or other proof of purchase to
determine warranty status. C.O.D. shipments cannot be accepted.
