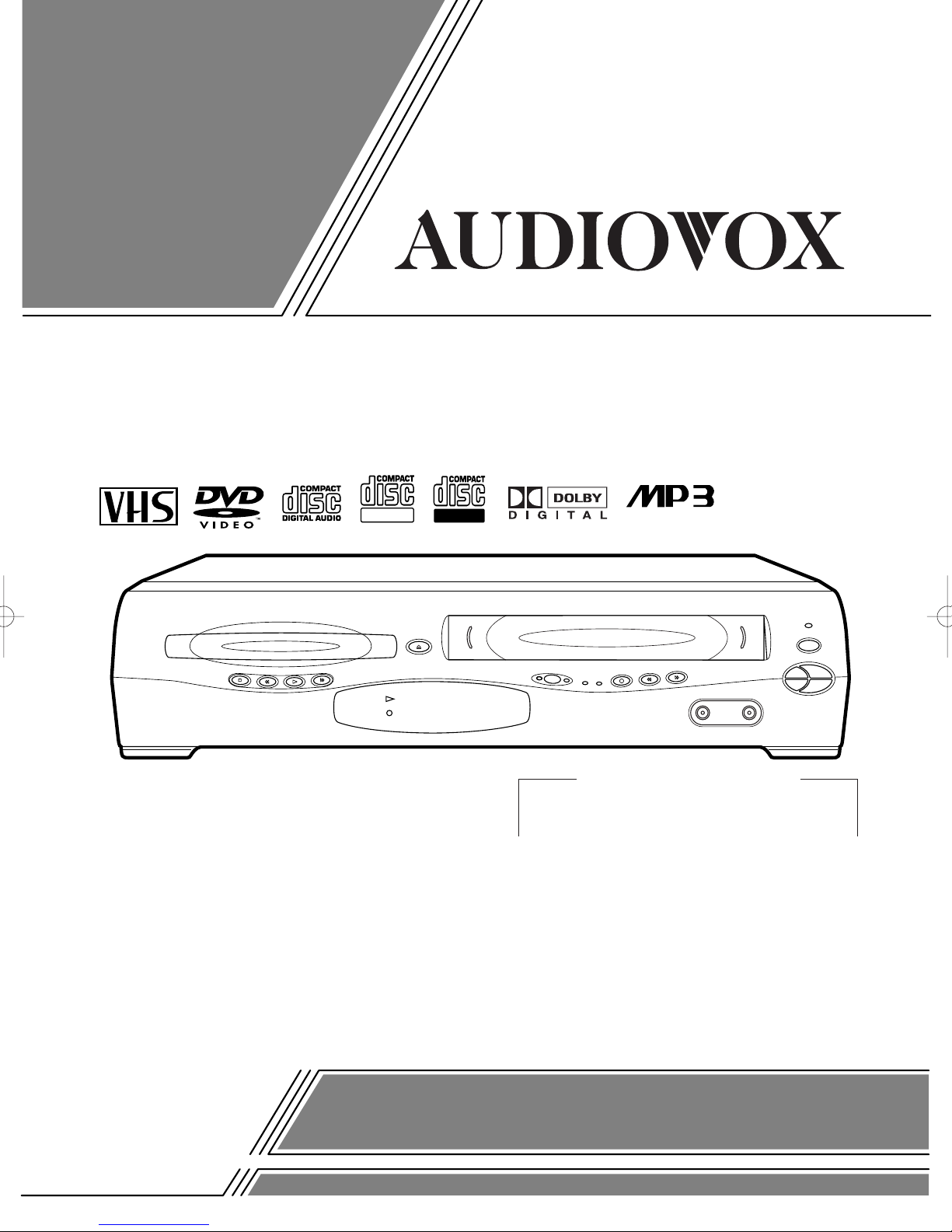

Audiovox AXWD2003 User manual

OWNER’S
MANUAL
SERVICING
Should your DVD/VCR COMBINATION UNIT become inoperative, do not try to
correct the problem by yourself. There are no user-serviceable parts inside.Turn
off, unplug the power plug, and take the unit to our Authorized Service Center.
Please read before using this equipment.
OPEN/CLOSE
OUTPUT REC REW FF
VIDEO AUDIO
CH-DOWN
POWER
CH-UP STOP/EJECT
PLAY
DVD VCR
TIMER REC
STOP
PLAY
DISC IN
FWD
REV PLAY
ReWritable
Recordable
DVD PLAYER with VIDEO CASSETTE RECORDER
AXWD2003

–2–EN
1L25
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
LASER SAFETY
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to
possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO
NOT STARE INTO BEAM.
LOCATION: INSIDE, NEAR THE DECK MECHANISM.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the pres-
ence of important operating and maintenance
(servicing) instructions in the literature accom-
panying the appliance.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER SER-
VICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual.
The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

–3–EN
1L25
IMPORTANT SAFEGUARDS
1. Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions- The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions
should be followed.
5. Cleaning - Unplug this video product from the wall outlet
before cleaning. Do not use liquid cleaners or aerosol clean-
ers. Use a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninterrupted ser-
vice and, that for some specific reason, such as the possibil-
ity of the loss of an authorization code for a CATV convert-
er, is not intended to be unplugged by the user for cleaning
or any other purpose, may exclude the reference to unplug-
ging the appliance in the cleaning description otherwise
required in item 5.
6. Attachments - Do not use attachments not recommended by
the video product manufacturer as they may cause hazards.
7. Water and Moisture- Do not use this video product near
water, for example, near a bath tub, wash bowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool,
and the like.
8. Accessories - Do not place this video
product on an unstable cart, stand, tripod,
bracket, or table. The video product may
fall, causing serious injury to a child or
adult, and serious damage to the appli-
ance. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the video
product. Any mounting of the appliance should follow the
manufacturer's instructions and should use a mounting
accessory recommended by the manufacturer. An appliance
and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
9. Ventilation - Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of the video
product and to protect it from overheating, and these open-
ings must not be blocked or covered. The openings should
never be blocked by placing the video product on a bed,
sofa, rug, or other similar surface. This video product should
not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufac-
turer's instructions have been adhered to.
10. Power Sources - This video product should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your
home, consult your appliance dealer or local power compa-
ny. For products intended to operate from battery power, or
other sources, refer to the operating instructions.
11. Grounding or Polarization - This video product is equipped
with a polarized alternating-current line plug (a plug having
one blade wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your elec-
trician to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
12. Power Cord Protection - Power supply cords should be rout-
ed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular atten-
tion to cords at plugs, convenience receptacles, and the point
where they exit from the appliance.
13. Outdoor Antenna Grounding - If an outside antenna or cable
system is connected to the video product, be sure the anten-
na or cable system is grounded so as to provide some pro-
tection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSI/NFPA
No. 70, provides information with regard to proper ground-
ing of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection
to grounding electrodes, and requirements for the grounding
electrode. (Fig. A)
14. Lightning - For added protection for this video product dur-
ing a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall out-
let and disconnect the antenna or cable system. This will pre-
vent damage to the video product due to lightning and
power-line surges.
15. Power Lines - An outside antenna system should not be
located in the vicinity of overhead power lines or other elec-
tric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching
such power lines or circuits as contact with them might be
fatal.
16. Overloading - Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
17. Object and Liquid Entry - Never push objects of any kind
into this video product through any openings as they may
touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any
kind on the video product.
18. Servicing - Do not attempt to service this video product
yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
19. Damage Requiring Service - Unplug this video product from
the wall outlet and refer servicing to qualified service per-
sonnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
video product.
c. If the video product has been exposed to rain or water.
d. If the video product does not operate normally by following
the operating instructions. Adjust only those controls that
are covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the video product to its normal operation.
e. If the video product has been dropped or damaged in any
way.
f. When the video product exhibits a distinct change in perfor-
mance this indicates a need for service.
20. Replacement Parts - When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteris-
tics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
21. Safety Check - Upon completion of any service or repairs to
this video product, ask the service technician to perform
safety checks to determine that the video product is in prop-
er operating condition.
22. Heat - This video product should be situated away from heat
sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.

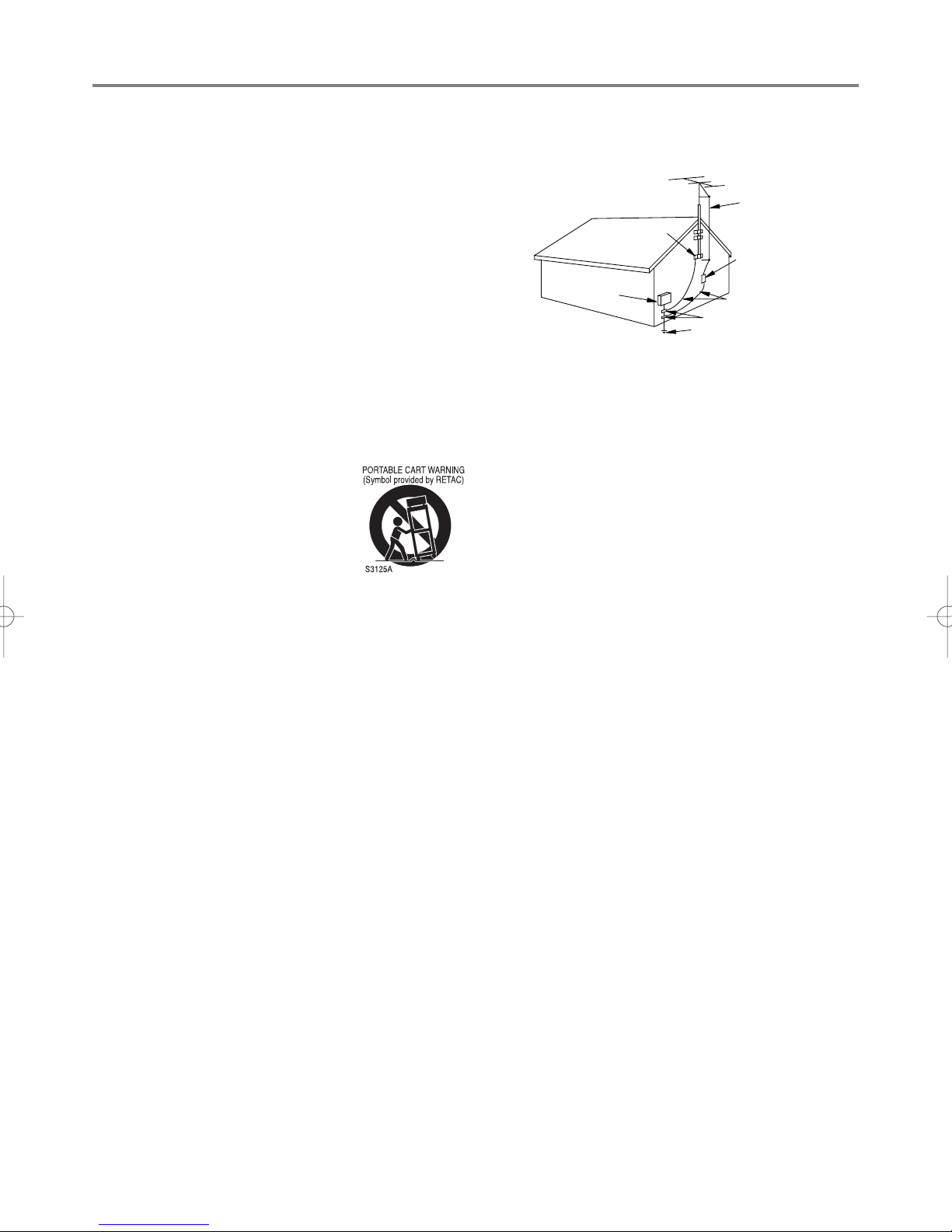

FIGURE A
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL ELECTRICAL CODE
ANTENNA
LEAD
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND
CLAMP
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC – NATIONAL ELECTRICAL CODE
S2898A

–4–EN
1L25

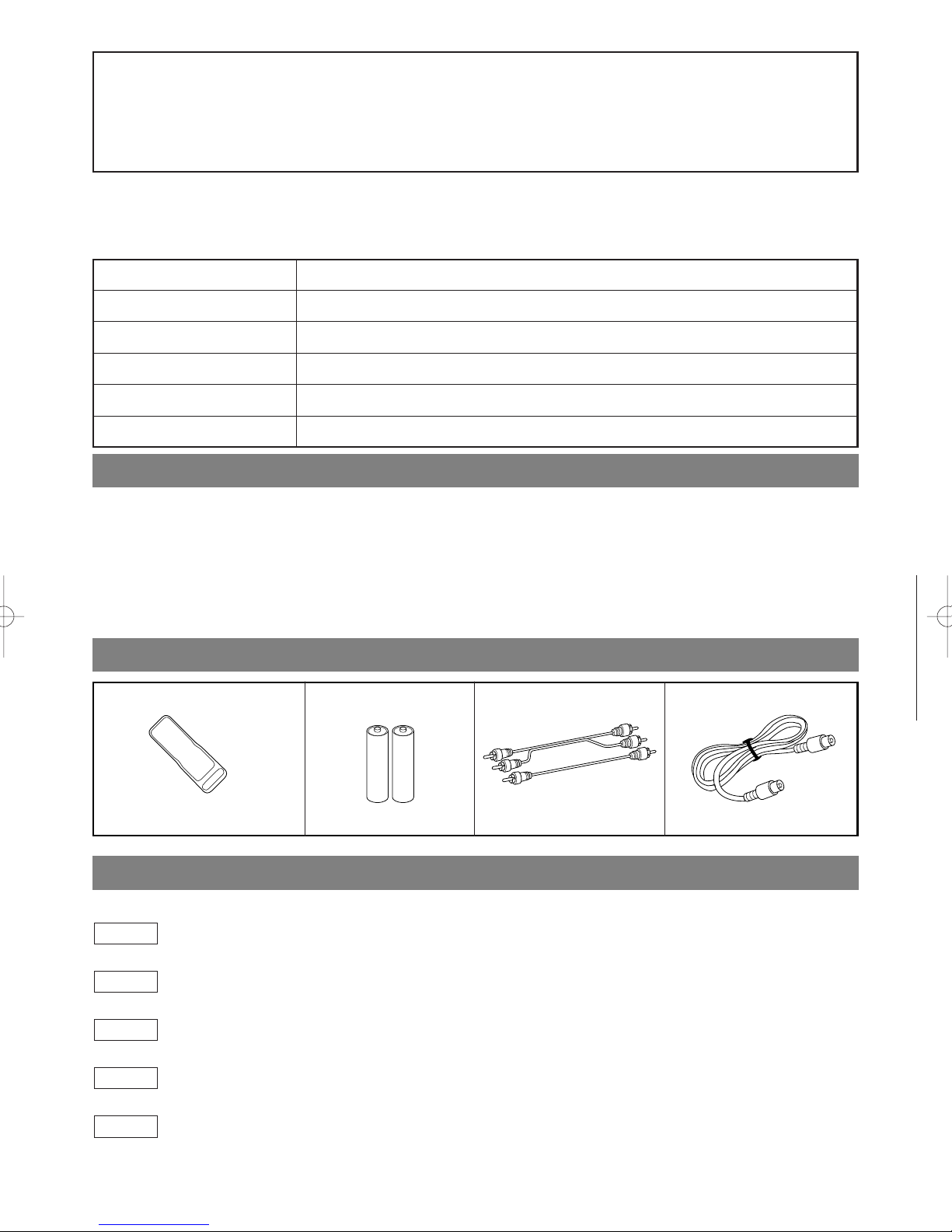

ANOTE ABOUT RECYCLING
This product’s packaging materials are recyclable and can be reused. Please dispose of all materials in
accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local
regulations concerning chemical wastes.
The serial number of this product may be found on the back of the DVD/VCR COMBINATION UNIT. This ser-
ial number is unique to your machine. You should record the number and other vital information here and retain
this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not
kept on file.
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
ABOUT COPYRIGHT
Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use
of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
SYMBOLS USED IN THIS MANUAL
The following symbols below appear in some headings and notes in this manual, with the following meanings
: Description refers to playback of video cassette tapes.
: Description refers to playback of DVD video discs.
: Description refers to playback of audio CDs.
: Description refers to playback of MP3 discs.
: Description refers to the items to be set in the QUICK mode.
QUICK
MP3
CD
DVD-V
VCR
SUPPLIED ACCESSORIES
Remote control
(NA209UD) or (NA259UD)
Two AA batteries A/V cables
(approx. 3 feet (100 cm)
long) (WPZ0102TM015) (WPZ0901TM002)
RF Cable

–5–EN
1L25
TABLE OF CONTENTS
■ LASER SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . 3
ABOUT COPYRIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SUPPLIED ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SYMBOLS USED IN THIS MANUAL. . . . . . . . . . . . . . . . . . 4
■ FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
■ PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
■ ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
PLAYABLE DISCS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DISC TYPES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

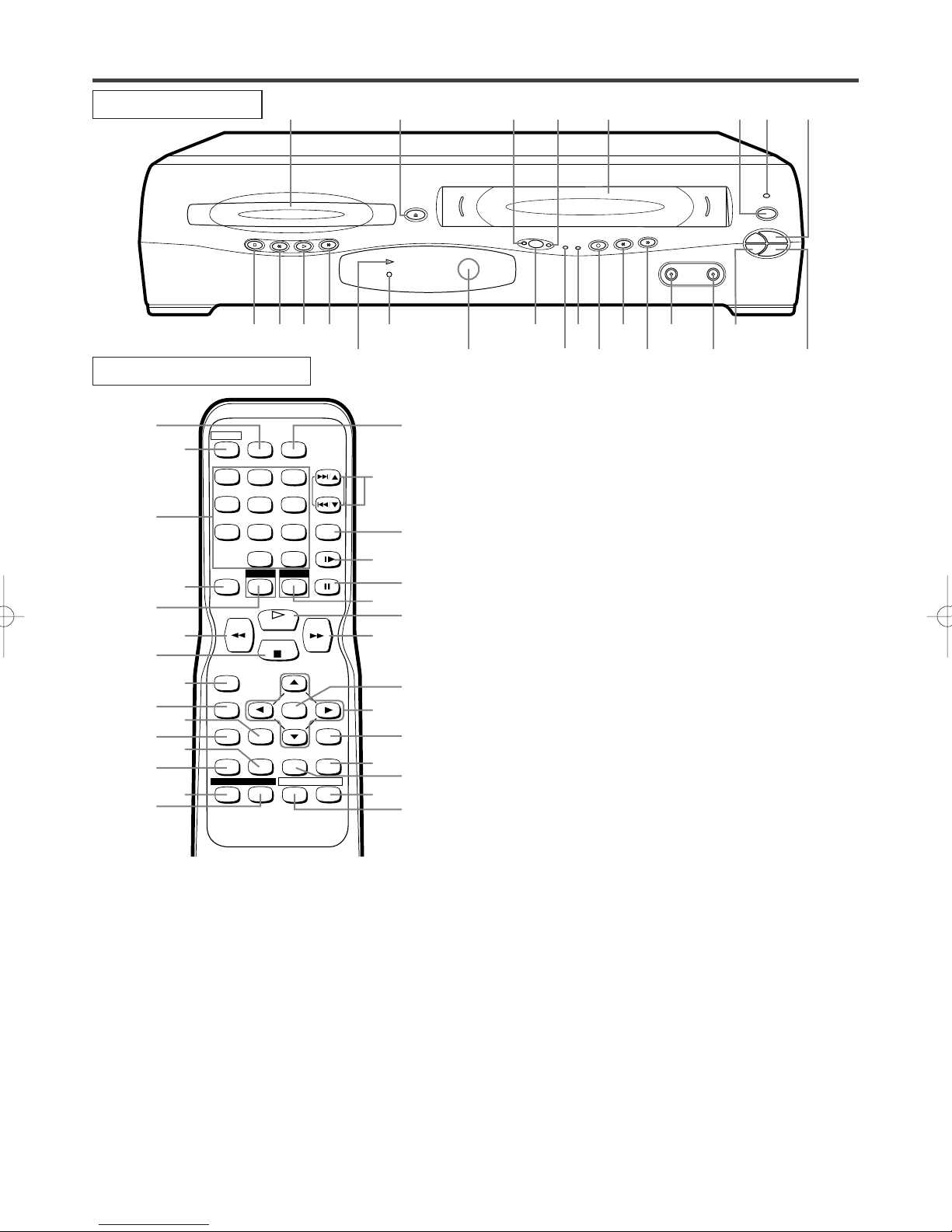

■ OPERATING CONTROLS AND FUNCTIONS. . . . . . . . . . . 8
LOADING THE BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . 11
■ VCR/DVD SWITCHING . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
■ HOOKUPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CONNECTING TO A TV WITHOUT A/V TERMINALS . . . 13
CONNECTING TO A TV WITH A/V TERMINALS. . . . . . . 13
CONNECTING TO A TV THAT HAS AN S-VIDEO INPUT
JACK OR COMPONENT VIDEO IN JACKS. . . . . . . . . . . . 14
CONNECTING TO A STEREO AMPLIFIER EQUIPPED
WITH DIGITAL INPUT JACKS SUCH AS MD DECK OR
DAT DECK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

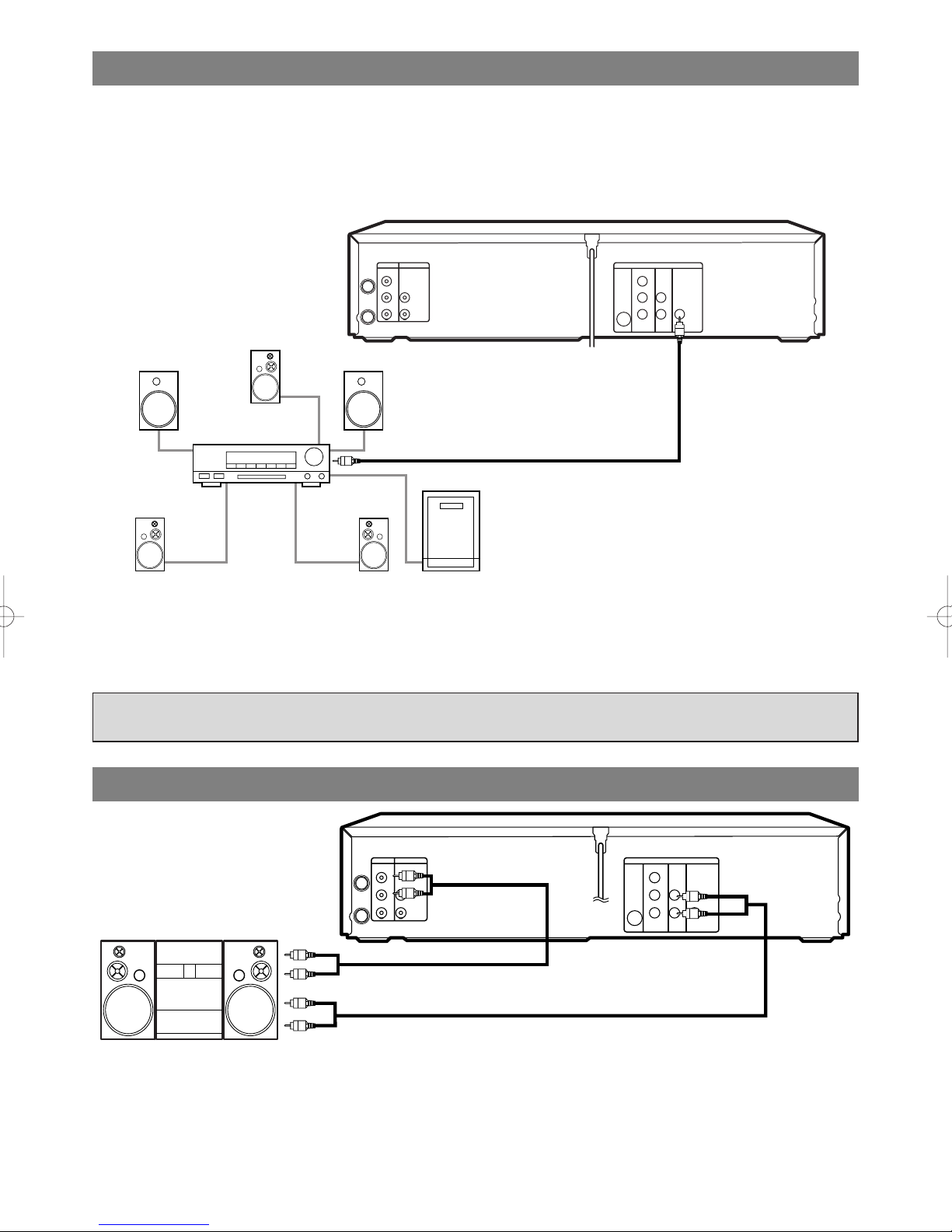

CONNECTING TO A RECEIVER WITH
DOLBY DIGITAL DECODER . . . . . . . . . . . . . . . . . . . . . . . 15
CONNECTING TO AN ANALOG AUDIO SYSTEM. . . . . . 15
■ SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
AUTOMATIC CHANNEL SET UP. . . . . . . . . . . . . . . . . . . . 16
TO CHANGE THE ON-SCREEN LANGUAGE. . . . . . . . . . 17
CLOCK SET UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
■ PLAYBACK FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
NORMAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
AUTO REPEAT PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . 18
SEARCH FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
■ RECORDING FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . 19
NORMAL RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
OTR (One Touch Recording) . . . . . . . . . . . . . . . . . . . . . . . . . 19
TIMER RECORDING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
HINTS FOR TIMER RECORDING . . . . . . . . . . . . . . . . . . . 20
■ SPECIAL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
COPYING A VIDEO TAPE. . . . . . . . . . . . . . . . . . . . . . . . . . 21
AUTO REWIND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
REAL TIME TAPE COUNTER. . . . . . . . . . . . . . . . . . . . . . . 21
INDICE
■ CONTROLES DEL FUNCIONAMIENTO Y SUS FUNCIONES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
■ CAMBIO DE VCR/DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
■ CONEXIONES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
DVD/VCR A CONEXIÓN DE TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CANAL DE SALIDA RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CONECTANDO A UN TV ................................................................. . . . . . . . . . . . . . . . . 39
CONECTANDO A UN TV QUE TIENE TOMA DE ENTRADA DE S-VÍDEO o TOMAS DE ENTRADA DE VÍDEO
COMPONENTE ................................................................. . . . . . . . . . . . . . . . . . . . . . . . . 39
CONECTANDO A UN AMPLIFICADOR EQUIPADO CON TOMAS DE ENTRADA DIGITAL, TALES COMO PLATINA MD O
PLATINA DAT ................................................................. . . . . . . . . . . . . . . . . . . . . . . . . . 39
CONECTANDO A UN DESCODIFICADOR DIGITAL DOLBY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
CONECTANDO A UN AUDIO ANALÓGICO................................................................. . 39
■ PREPARACIÓN................................................................. . . . . . . . . . . . . . . . . . . . . . . . . 39
PREPARACIÓN DE CANAL AUTOMÁTICA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
PREPARACIÓN DE RELOJ................................................................. . . . . . . . . . . . . . . . 40
■ REPRODUCCIÓN DE UN DISCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
REPRODUCIENDO UN DVD, VIDEO O UN CD AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
■ PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
GENERAL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
PAUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DISC MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TITLE MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
STEP BY STEP PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . 23
RESUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FAST FORWARD / REVERSE SEARCH . . . . . . . . . . . . . . . 23
SLOW FORWARD / SLOW REVERSE . . . . . . . . . . . . . . . . 23
ZOOM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TRACK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TITLE / CHAPTER SEARCH. . . . . . . . . . . . . . . . . . . . . . . . 24
TIME SEARCH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
RANDOM PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
MP3 PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
ON-SCREEN INFORMATION . . . . . . . . . . . . . . . . . . . . . . . 26
TRACK SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
RANDOM PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
AUDIO LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
STEREO SOUND MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
SUBTITLE LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
CAMERA ANGLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
CHANGING THE ON-SCREEN DISPLAY . . . . . . . . . . . . . 28
PARENTAL CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
MARKER SETUP SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . 29
■ DVD SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
AUDIO SETTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
BLACK LEVEL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . 30
VIRTUAL SURROUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
DISPLAY SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
LANGUAGE SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
■ TROUBLESHOOTING GUIDE. . . . . . . . . . . . . . . . . . . . . . 32
■ SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

–6–EN
1L25
FEATURES
Mode
¡Dolby Digital sound
This DVD/VCR COMBINATION UNIT can output a
Dolby Digital audio signal.
¡Still/fast/slow/step playback
¡Random playback for audio CD and MP3
¡Program playback for audio CD and MP3
¡DVD menus in a desired language
¡Screen saver/Auto power-off functions
The screen saver program starts when there is no input
from the player for five minutes in the stop mode. When
the screen saver program is activated for 30 minutes, the
power automatically turns off.
¡Subtitles in a desired language
¡Selecting a camera angle
¡Choices for audio language and sound mode
¡Parental lock
¡Automatic detection of discs
This player automatically detects if the loaded disc is
DVD, audio CD or MP3 on disc.
¡Playback an MP3 disc
¡Direct Search
¡On-screen display
Information about the current operation can be displayed
on the TV screen, allowing you to confirm the currently
active functions (such as program playback), on the TV
screen using the remote control.
¡Search
Chapter search / Title search / Track search / Time search
¡Repeat
Chapter / Title / Track / Group / All / A-B
¡Zoom
¡Marker
The part designated by user can be called back.
¡Resume Play
DVD
¡Virtual Surround Sound
¡Component Video Out Jacks
Jacks located on the back of the DVD/VCR COMBINA-
TION UNIT which are used to send high-quality video to
a TV via Component Video In Jacks.
¡Bit rate indication
¡DRC (Dynamic range control)
You can control the range of sound volume.
¡Black Level Setting
Mode
Hardware specifications
¡Auto Head Cleaner
¡Trilingual on-screen menu display selectable in
English, French, or Spanish
¡181 channel capability PLL frequency synthesiz-
er tuner with direct station call
(A cable converter box may be necessary to view scram-
bled cable channels.)
Automatic functions
¡Auto power on system
Automatically turns the VCR on when you insert the cas-
sette.
¡Digital Auto Tracking (DTR)
Playback
¡Auto Repeat
¡2 Step Picture Search Operation
¡Index Search
¡Time Search
Recording
¡1Year, 8 events (including Daily and WeeklyTimer
Recording)
¡OTR (One Touch Recording)
VCR
INSTALLATION LOCATION
For safety and optimum performance of your
DVD/VCR COMBINATION UNIT:
• Install the DVD/VCR COMBINATION UNIT in a hor-
izontal and stable position. Do not place anything
directly on top of the DVD/VCR COMBINATION
UNIT. Do not place the DVD/VCR COMBINATION
UNIT directly on top of the TV.
• Shield it from direct sunlight and keep it away from
sources of intense heat. Avoid dusty or humid
places. Avoid places with insufficient ventilation for
proper heat dissipation. Do not block the ventilation
holes on the sides of the DVD/VCR COMBINATION
UNIT. Avoid locations subject to strong vibration or
strong magnetic fields.
PRECAUTIONS
AVOID THE HAZARDS OF
ELECTRICAL SHOCK AND FIRE
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it
from AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on your DVD/VCR
COMBINATION UNIT, unplug the power cord imme-
diately and take the unit to our Authorized Service
Center for servicing.
• Do not put your fingers or objects into the DVD/VCR
COMBINATION UNIT cassette holder.
MOISTURE CONDENSATION WARNING
Moisture condensation may occur inside the unit when
it is moved from a cold place to a warm place, or after
heating a cold room or under conditions of high
humidity. Do not use the DVD/VCR COMBINATION
UNIT at least for 2 hours until its inside is dry.

–7–EN
1L25

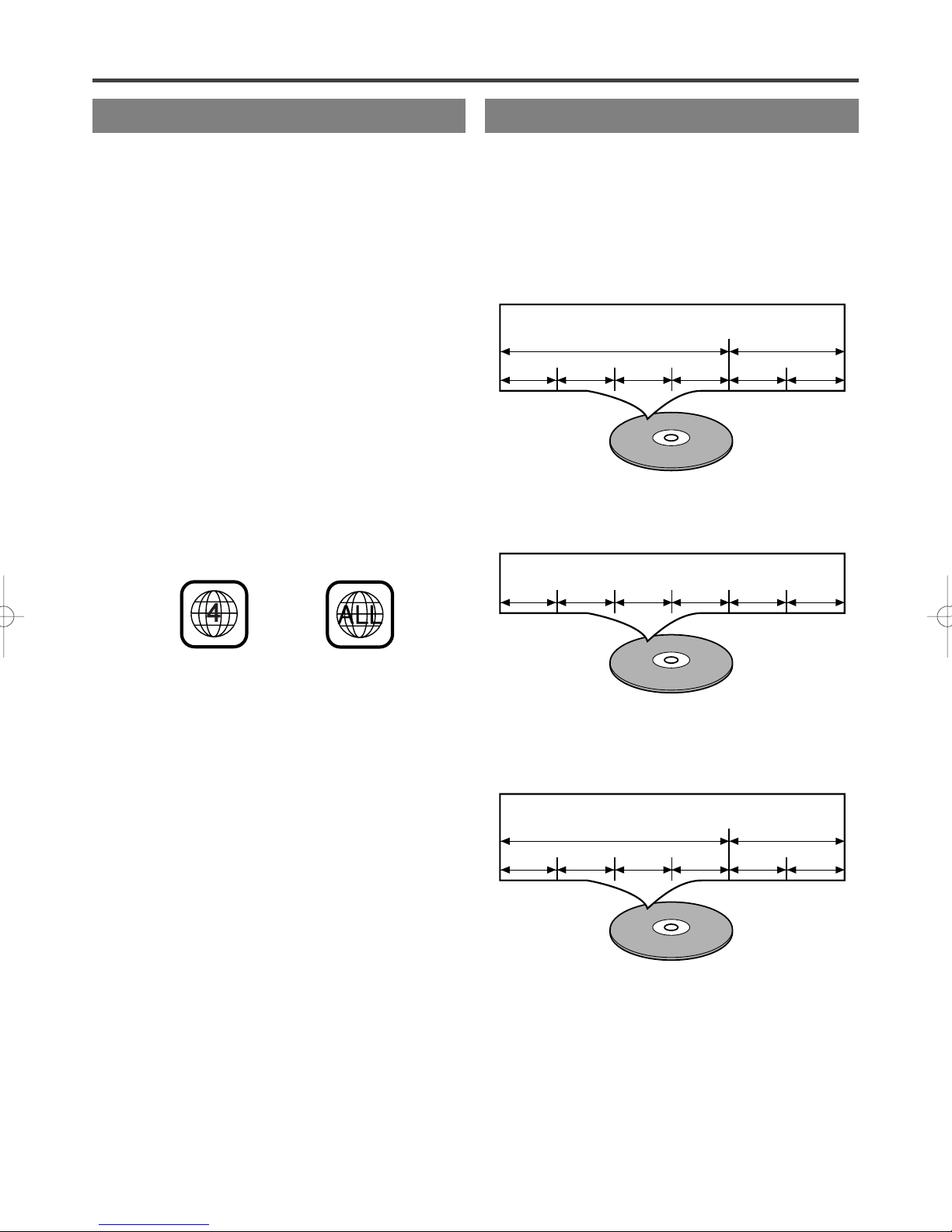

ABOUT THE DISCS
The following discs can be played back on this
DVD/VCR COMBINATION UNIT.
¡DVD video ¡DVD-R/RW*
¡DVD+R/RW* ¡Audio CD
¡CD-R/RW* ¡MP3*
* Depending on the types or the writing method of the
medium some discs can not be played.
• Some DVD-R/RW, DVD+R/RW, or CD-R/RW discs
made on personal computers, or on DVD recorders may
not be played back properly due to factors such as
scratches, dirt or special properties of the disc.
• Discs made on personal computers may not be played
back properly due to different environments or the set-
tings of the application you use. We recommend always
to use the standardized, properly formatted discs.
(Please contact the sales agency for more detail).
This player conforms to the NTSC color system. You can-
not play discs recorded in other color systems such as
PAL or SECAM.
¡Some discs include region codes as shown below.
¡The number inside the symbol refers to a region of the
world, and a disc encoded in a specific region format
can only be played back on DVD/VCR COMBINA-
TION UNIT with the same region code.
The following discs cannot be played back on this
DVD/VCR COMBINATION UNIT.
¡DVD with region codes other than 4 or ALL.
¡DVD-ROM
¡DVD-RAM (Never play back, otherwise malfunc-
tion may result.)
¡CD-ROM
¡VSD
¡CDV (Only plays back the audio part.)
¡CD-G (Only plays back the sound.)
¡CD-I (Never play back, otherwise malfunction
may result.)
¡SACD
¡Photo CD (Never play back, otherwise malfunc-
tion may result.)
¡Video CD (Never play back, otherwise malfunc-
tion may result.)
Any other discs without compatibility indications.
PLAYABLE DISCS
[DVD]
Data on a DVD is divided into sections called "titles", and
then into subsections called "chapters", each of which is
given a title or chapter number. Playback conditions are
preset on some DVD video discs, and these playback con-
ditions take priority over user operations on this player. If
a function you selected does not run as desired, refer to
the manual accompanying the disc.
DISC TYPES
Example
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 1 Chapter 2Chapter 3 Chapter 4
[AUDIO CD]
Data on an audio CD is divided into sections called
“tracks”, each of which is given a track number.
Example
Track 1 Track 2 Track 3 Track 4 Track 5 Track 6
[MP3]
Data on an MP3 is divided into sections called "groups",
and then into subsections called "tracks", each of which is
given a group or track number.
Example
Group 1 Group 2
Track 1 Track 2 Track 1 Track 2Track 3 Track 4

–8– EN
1L25
OPERATING CONTROLS AND FUNCTIONS
OPEN/CLOSE
OUTPUT REC REW FF
VIDEO AUDIO
CH-DOWN
POWER
CH-UP STOP/EJECT
PLAY
DVD VCR
TIMER REC
STOP
PLAY
DISC IN
FWD
REV PLAY
1 2 3 4 768
25 2324 22 20
19
18
17
16
15
14
13
12
11
10
5
921
FRONT PANEL
REMOTE CONTROL
+
123
456
789
010
SPEED AUDIO
POWER
SKIP/CH.
SLOW
VCR/TV
DISPLAY PAUSE
PLAY
STOP
RECORD
ENTER
RETURNTITLE
MENU
SETUP
CLEAR/
C.RESET
ZOOMMODE
A - B ANGLE
SEARCH
MODE
REPEAT SUBTITLE
T-SET
DVD VCR
27
26
28
29
30
31
32
33
34 35
37
38
40 39
36
55
51
52
53
50
54
49
48
46
45
47
42 43
44
41
1. Disc loading tray
2. OPEN/CLOSE Button [page 22]
Press to insert discs into or remove them from the
tray.
3. DVD OUTPUT Light (Green) [page 12]
This light appears when the DVD output mode is
selected. You can only watch DVDs when the green
DVD OUTPUT light is on. To make the green DVD
OUTPUT light come on, press DVD on the remote
control or OUTPUT on the front panel.
4. VCR OUTPUT Light (Green) [page 12]
This light appears when the VCR output mode is
selected. You can only watch tapes when the green
VCR OUTPUT light is on. To make the green VCR
OUTPUT light come on, VCR on the remote control
or OUTPUT on the front panel.
5. CASSETTE COMPARTMENT
6. POWER Button [page 16]
Press to turn the power on and off.
7. POWER Light (red)
Light appears when the power is on.
8. STOP/EJECT Button (VCR)
EJECT Button
Press to remove the tape from the VCR.
STOP Button
Press to stop the tape motion.
9. PLAY Button(VCR) [page 18]
Press to begin playback.
10. CH(ANNEL) Buttons [page 16]
In VCR mode, press to change TV channels on the
VCR; press to adjust the tracking during normal or
slow motion playback; press to remove vertical jitter
in a Still picture.
11. AUDIO In Jack [page 21]
Connect an audio cable coming from the audio out
jack of a camcorder, another VCR, or an audio source
here.
12. VIDEO In Jack [page 21]
Connect a video cable coming from the video out
jack of a camcorder, another VCR, or a video source
(laser disc player, camcorder, etc.) here.
13. FF Button (VCR) [page 18]
Press to rapidly advance the tape, or view the picture
rapidly in forward during playback. (Forward
Search).
14. REW Button (VCR) [page 18]
Press to rewind the tape, or to view the picture rapid-
ly in reverse during the playback mode (Rewind
Search).
15. REC Button [page 19]
Press once to start a recording. Press repeatedly to
start a One-Touch Recording.
16. REC Light [page 19]
Light appears during recording.
17. TIMER Light [page 19]
Light appears when the DVD/VCR is in standby
mode for a timer recording or during a One-Touch
Recording. It flashes if T-SET is pressed for a timer
recording, but there is no tape in the DVD/VCR. It
flashes when all timer recordings or One-Touch
Recordings are finished.

–9–EN
1L25
18. OUTPUT Button [page 12]
Press to select DVD mode or VCR mode.
●You can switch the output mode either by pressing
OUTPUT on the front panel, or by pressing DVD
or VCR on the remote control. However, if you
press OUTPUT on the front panel first, you
need to re-select the corresponding mode by
pressing DVD or VCR on the remote control.
19. Remote Sensor Window
20. DISC IN Light (green)
Light appears when a disc is in the DVD Player.
21. PLAY Light (green)
Light appears during Disc playback.
22. FWD Button (DVD) [page 23]
Press to fast forward the Disc. Press PAUSE, then
press this button to begin slow motion playback.
Press this button repeatedly to change the forward
speed of slow motion.
Press to skip Chapters or Tracks.
23. PLAY Button (DVD) [page 22]
Press to begin playback.
24. REV Button (DVD) [page 23]
Press to view the DVD picture in fast reverse motion
or to reverse playback of an Audio CD.
Press to skip Chapters or Tracks.
25. STOP Button (DVD) [page 22]
Stops operation of the disc.
26. SPEED Button [page 19]
Press to select the VCR’s recording speed
(SP or SLP)
27. POWER Button
Press to turn the power on and off.
28. Number Buttons
●DVD mode [page 24]
Press to select numbered items in a menu.
+10
Use this button to enter number 10 and above.
●VCR mode [page 16]
Press to select TV channels on the VCR.
To select channels, enter channel numbers as a
two-digit number for the quickest results. For
example, to select channel 6, press 0 then 6.
29. DISPLAY Button
●DVD mode [page 28]
Press to access or remove the display screen during
DVD or Audio CD playback.
●VCR mode
Press to access or remove the VCR’s on-screen sta-
tus display.
30. DVD Button [page 12]
Press to select DVD mode for the remote control.
●You can switch the OUTPUT mode either by
pressing OUTPUT on the front panel, or by pressing
DVD or VCR on the remote control. However, if you
press OUTPUT on the front panel first, you need
to re-select the corresponding mode by pressing
DVD or VCR on the remote control.
31. hButton
●DVD mode [page 23]
Press to view the DVD picture in fast reverse
motion.
Press PAUSE, then press this button to begin
slow motion playback. Press this button repeatedly to
change the reverse speed of slow motion.
●VCR mode [page 18]
Press to rewind the tape, or to view the picture rapidly
in reverse during the playback mode (Rewind Search).
32. STOP Button
●DVD mode
Press to stop the disc motion.
●VCR mode
Press to stop the tape motion.
33. RECORD Button [page 19]
Press once to start a recording.
34. MENU Button
●DVD mode [page 23]
Press to display the menu of the Disc.
●VCR mode [page 17]
Press to access the VCR menu.
35. TITLE Button [page 23]
36. SETUP Button [pages 28-31]
Press to enter DVD player setup mode.
37. ZOOM Button [page 24]
Enlarges part of a DVD-reproduced image.
38. MODE Button [pages 26,27,and 30]
Activates program playback or random playback
mode when playing CDs or MP3. Sets Black level
and virtual surround.
39. SUBTITLE Button [page 27]
Press to select the desired subtitle language.
39. T-SET Button [page 19]
Press to put the VCR into standby mode for a timer
recording.
40. ANGLE Button [page 27]
Press to change the camera angle to see the sequence
being played back from a different angle.
41. REPEAT Button [page 25]
Repeats playback of the current disc, title, chapter or
track.
42. A-B REPEAT Button [page 25]
Repeats playback of a selected section.
43. SEARCH MODE Button
●DVD mode [page 24]
Press to access or remove the Search display,
which allows you to go directly to a specific
Title/Chapter/Track/Time.
●VCR mode [page 18]
Press to perform a Time Search or an Index Search.
44. CLEAR/C.RESET Button
●DVD mode [pages 24,25]
Press to reset the setting.
●VCR mode [page 16]
Press to reset the counter. Press to exit from the
MENU screen.
45. RETURN Button [page 30]
●DVD mode
Returns to the previous operation.
46. Arrow Buttons
Use when making settings while watching the dis-
play on a TV screen.
●DVD mode [pages 22-31]
Moves the cursor and determines its position.
●VCR mode [page 16]
p/oButtons
Press to enter digits when setting program (For
example: setting clock or timer program). Press to
select the setting modes from the on screen menu.
BButton
When setting program (For example: setting clock
or timer program), press to determine your selec-
tion and proceed to the next step you want to input.
Press to determine the setting modes from the on
screen menu. Press to add or delete channel num-
bers during channel preset.

–10 –EN
1L25
sButton
Press to cancel a setting of timer program. Press to
correct digits when setting program (For example:
setting clock or timer program). Press to add or
delete channel numbers during channel preset.
47. ENTER Button
●DVD mode [page 22]
Press to accept a setting.
48. gButton
●DVD mode [page 23]
Press to fast forward the Disc. Press PAUSE, then
press this button to begin slow motion playback.
Press this button repeatedly to change the forward
speed of slow motion.
●VCR mode [page 18]
Press to rapidly advance the tape, or view the pic-
ture rapidly in forward during playback (Forward
Search).
49. PLAY Button
●DVD mode
Press to begin playback.
●VCR mode
Press to begin playback.
50. VCR Button [page 12]
Press to select VCR mode for the remote control.
●You can switch the OUTPUT mode either by
pressing OUTPUT on the front panel, or by pressing
DVD or VCR on the remote control. However, if you
press OUTPUT on the front panel first, you need
to re-select the corresponding mode by pressing
DVD or VCR on the remote control.
51. PAUSE Button
●DVD mode [page 22]
Press to pause Disc playback. Press repeatedly to
advance the DVD picture step by step (or one
frame at a time).
●VCR mode [page 18]
While recording, press to temporarily stop the
recording (pause). Press a second time to resume
normal recording. You can not pause a One-Touch
Recording. Or, press during tape playback to
freeze the picture. Press to advance the picture one
frame at a time during still mode.
52. SLOW Button [page 18]
During tape playback, press to view the video tape in
slow motion. Press again to resume normal playback.
This button does not affect DVD playback.
53. VCR/TV Button [page 19]
Use to select VCR or TV position.
●VCR Position
To view playback, to monitor video recording or to
watch TV using the VCR tuner.
●TV Position
To watch TV or to view one program while record-
ing another.
54. SKIP/CH. Buttons
●DVD mode
Press to skip Chapters or Tracks.
●VCR mode
Press to change TV channels on the VCR.
55. AUDIO Button [page 27]
Press to select a desired audio language or sound
mode.
Notes
¡To use the remote control to operate the DVD/VCR
COMBINATION UNIT and its features, press DVD on
the remote control before pressing other DVD opera-
tion button. Verify that the green DVD OUTPUT Light
is on.
¡To use the remote control to operate the VCR and its
features, press VCR on the remote control before
pressing other VCR operation button. Verify that the
green VCR OUTPUT Light is on.

–11 –EN
1L25
LOADING THE BATTERIES
1. Open the battery compartment cover.
2. Insert two AA batteries (supplied), with each one oriented correctly.
3. Close the cover.
Notes
¡Do not mix alkaline and manganese batteries.
¡Do not mix old and new batteries.
56. ANT-IN (Antenna In) Jack
Connect your antenna, Cable Box, or Satellite decoder
box.
57. DVD/VCR AUDIO OUT Jacks
Connect the supplied audio cables here and to the
Audio In jacks of a television or other audio equip-
ment.
58. AUDIO IN Jack
Connect an audio cable coming from the audio out
jack of a camcorder, another VCR, or an audio
source here.
59. AC Power Cord
Connect to a standard AC outlet to supply power to
the DVD/VCR COMBINATION UNIT.
60. COMPONENT VIDEO OUT Jacks
Connect optional component video cables here and
to the component Video In jacks of a television.
61. COAXIAL Jack
Connect an optional coaxial digital audio cable here
and to the Coaxial Digital Audio In jack of a decoder
or audio receiver.
62. DVD ANALOG AUDIO OUT Jacks
Connect the supplied audio cables here and to the
Audio In jacks of a television or other audio equip-
ment (DVD only).
63. S-VIDEO OUT Jack
Connect an optional S-Video cable here and to the S-
Video In jack of a television. (DVD only).
64. VIDEO IN Jack
Connect a cable coming from the video out jack of a
camcorder, another VCR, or an audio-visual source
(laser disc player, video disc player, etc.) here.
65. DVD/VCR VIDEO OUT Jack
Connect the yellow video cable (supplied) here and
to the TV’s Video In jack.
66. ANT-OUT (Antenna Out) Jack
Use the supplied RF coaxial cable to connect this
jack to the ANTENNA IN Jack on your TV.
Notes
¡The S-VIDEO OUT jack, COAXIAL jack, and COM
PONENT VIDEO OUT jack are only useful in DVD
mode.
Caution: Do not touch the inner pins of the jacks
on the rear panel. Electrostatic discharge may
cause permanent damage to the player.
DVD Playback only
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT S-VIDEO
OUT AUDIO OUT
DIGITAL
AUDIO OUT
COAXIAL
Y
Cb
Cr
L
R
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
DVD/VCR VCR DVD
R
L
66 65 64 63 62 61
5756 58 59 60
REAR VIEW

–12 –EN
1L25
VCR/DVD SWITCHING
Because this product is a combination of a VCR and DVD player, you must first select
which component you wish to operate with the OUTPUT BUTTON.
+
123
456
789
010
SPEED AUDIO
POWER
SKIP/CH.
SLOW
VCR/TV
DISPLAY PAUSE
PLAY
STOP
RECORD
ENTER
RETURNTITLE
MENU
SETUP
CLEAR/
C.RESET
ZOOMMODE
A - B ANGLE
SEARCH
MODE
REPEAT SUBTITLE
T-SET
DVD VCR
OPEN/CLOSE
OUTPUT REC REW FF
VIDEO AUDIO
CH-DOWN
POWER
CH-UP STOP/EJECT
PLAY
DVD VCR
TIMER REC
STOP
PLAY
DISC IN
FWD
REV PLAY
OUTPUT
DVD VCR
OUTPUT button
DVD OUTPUT Light
VCR OUTPUT Light
DVD button
VCR button
Press VCR on the remote control.
(Verify that the VCR OUTPUT Light is lit.)
VCR MODE
Notes
¡Pressing only OUTPUT on the front panel does not switch the mode of the remote control. You always need
to select the correct mode on the remote control too.
Press DVD on the remote control.
(Verify that the DVD OUTPUT Light is lit.)
DVD MODE

–13 –EN
1L25
CONNECTING TO A TV WITH A/V TERMINALS
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT S-VIDEO
OUT AUDIO OUT
DIGITAL
AUDIO OUT
COAXIAL
Y
Cb
Cr
L
R
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
DVD/VCR VCR DVD
R
L
To VIDEO OUT jack
To VIDEO INPUT jack
To Right (red) and Left (white)
Antenna/Cable signal
To ANT. IN
of TV
To AUDIO INPUT jacks To AUDIO OUT jacks
A/V-compatible or
wide screen TV
[Fig. 1]
Notes
¡Connect the DVD/VCR COMBINATION UNIT directly to a TV. If the A/V cables are connected into a
VCR, pictures may be distorted due to the copy protection system.
CONNECTING TO A TV WITHOUT A/V TERMINALS
1. Disconnect the AC power cord of the TV from the
AC outlet.
2. Disconnect the antenna or cable from the TV.
3. Connect the antenna or cable to the ANT-IN jack of
the DVD/VCR COMBINATION UNIT.
4. Connect the DVD/VCR COMBINATION UNIT to
the TV using the RF cable.
5. Plug the AC power cords of the DVD/VCR COM-
BINATION UNIT and TV into the AC outlets.
UHF/VHF
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT
AUDIO IN
VIDEO IN
DVD/VCR VCR
R
L
[VHF/UHF
combination antenna] [Back of the DVD/VCR]
IN OUT
[Cable box or satellite box]
OR
[Indoor antenna] [Back of the
UHF/VHF combination TV]
RF cable
(supplied)
From Cable or
Satellite Company
OR
Note to CATV system installer
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that pro-
vides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected
to the grounding system of the building, as close to the point of cable entry as practical.
HOOKUPS
CAUTION:
¡Be sure to turn off the DVD/VCR COMBINATION UNIT and equipment to be connected.
¡Read through the operation manual for the equipment to be connected.
¡Be sure that the colors of the jacks and plugs match up when using VIDEO/AUDIO cables.
¡Be sure to keep the DVD/VCR COMBINATION UNIT connection cables separate from the TV antenna cable
when you install the DVD/VCR COMBINATION UNIT, because it may cause electrical interference when you
are watching television programs.
RF OUTPUT CHANNEL for DVD/VCR
1. Connect the DVD/VCR COMBINATION UNIT to a TV using RF cable (see above steps).
2. Select channel 3 on your TV.
3. Press PLAY.
¡If noise appears, change the RF output channel of the DVD/VCR COMBINATION UNIT to channel 4 by
pressing PLAY on the VCR for 3 seconds during playback.
¡There is case that the RF output channel does not change by situation (For example, when you adjust track-
ing using CHANNEL(UP/DOWN)).
In this case, stop the playback, and start the playback again. After that, press PLAY on the VCR for 3 sec-
onds.
¡If there is a power failure or the DVD/VCR COMBINATION UNIT is unplugged for more than 30 seconds,
the RF output channel setting will return to CH3.

–14 –EN
1L25
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT S-VIDEO
OUT AUDIO OUT
DIGITAL
AUDIO OUT
COAXIAL
Y
Cb
Cr
L
R
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
DVD/VCR VCR DVD
R
L
A/V-compatible
or
wide screen TV
To COMPONENT VIDEO
INPUT jacks To COMPONENT VIDEO
OUT jacks
To Right (red) and Left (white)
AUDIO INPUT jacks
To Right (red) and Left (white)
AUDIO OUTPUT jacks
FOR TVs WITH COMPONENT VIDEO IN JACKS
Use a component video cable (commercially available) in place of the yellow DVD/VCR video cable and S-VIDEO
jack to enjoy higher quality pictures.
The component video connection only supplies video (picture) in the DVD mode of the DVD/VCR COMBINATION
UNIT. Therefore, in order to use the VCR features or view TV channels at the DVD/VCR COMBINATION UNIT,
you still need to either connect the RF coaxial cable between the ANT-OUT jack of the DVD/VCR COMBINATION
UNIT and the TV’s Antenna In jack, or connect the yellow VCR video cable as described earlier (Fig. 1). To connect
the supplied RF cable, see page 13.
CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH
DIGITAL INPUT JACKS SUCH AS MD DECK OR DAT DECK
Use an audio coaxial digital cable (commercially available) for the audio connections.
Connecting to an amplifier equipped with digital input jacks such as MD Deck or DAT Deck.
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT S-VIDEO
OUT AUDIO OUT
DIGITAL
AUDIO OUT
COAXIAL
Y
Cb
Cr
L
R
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
DVD/VCR VCR DVD
R
L
To COAXIAL DIGITAL AUDIO INPUT jack
To COAXIAL DIGITAL
AUDIO OUT jack
(Stereo Receiver)
Amplifier equipped with digital
input jacks, MD deck,
DAT deck, etc.
Notes
¡The audio source on a disc in the 5.1 channel Dolby Digital surround format cannot be recorded as digital
sound by an MD or DAT deck.
¡Set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a DVD disc using incorrect set-
tings may generate noise distortion, and may also damage the speakers. (See page 29 to set DOLBY DIGITAL
to ON)
[Fig. 4]
FOR TVs WITH S-VIDEO INPUT JACK
Use an S-Video cable (commercially available) in place of the yellow video cable to enjoy higher quality pic-
tures.
The S-Video connection only supplies video (picture) in the DVD mode of the DVD/VCR COMBINATION
UNIT. Therefore, in order to use the VCR features or view TV channels on the DVD/VCR COMBINATION
UNIT, you still need to either connect the RF cable between the ANT-OUT jack of the DVD/VCR COMBINA-
TION UNIT and the TV’s Antenna In jack, or connect the yellow video cable as described earlier (Fig.1). To
connect the supplied RF cable, see page 13.
CONNECTING TO A TV THAT HAS AN S-VIDEO INPUT JACK OR
COMPONENT VIDEO IN JACKS
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT S-VIDEO
OUT AUDIO OUT
DIGITAL
AUDIO OUT
COAXIAL
Y
Cb
Cr
L
R
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
DVD/VCR VCR DVD
R
L
To S-VIDEO OUT jackTo S-VIDEO INPUT jack
To Right (red) and Left (white)
To AUDIO OUT jacksTo AUDIO INPUT jacks
A/V-compatible or
wide screen TV
[Fig. 3]
[Fig. 2]

–15 –EN
1L25
CONNECTING TO A RECEIVER WITH DOLBY DIGITAL DECODER
If using this DVD/VCR COMBINATION UNIT to play a DVD disc in 5.1 channel Dolby Digital surround, the
DVD/VCR COMBINATION UNIT outputs a Dolby Digital data stream from its COAXIAL DIGITAL AUDIO
OUT jack. By hooking the DVD/VCR COMBINATION UNIT up to a Dolby Digital receiver, you can enjoy a
more convincing, realistic ambience with powerful and high-quality surround sound as heard in movie theaters.
Use an audio coaxial digital cable (commercially available) for the audio connections.
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT S-VIDEO
OUT AUDIO OUT
DIGITAL
AUDIO OUT
COAXIAL
Y
Cb
Cr
L
R
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
DVD /VCR VCR DVD
R
L
To COAXIAL DIGITAL
AUDIO OUT jack
To COAXIAL DIGITAL
AUDIO INPUT jack
Front speaker
(left)
Center speaker Front speaker
(right)
Surround
speaker
(left)
Surround
speaker
(right)
Subwoofer
Receiver with
Dolby Digital Decoder
[Fig. 5]
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
¡If the output is Dolby Digital audio, connect to a Dolby Digital decoder, and set DOLBY DIGITAL to ON for
audio output in the setup mode.
¡ Unless connected to a Dolby Digital receiver, set DOLBY DIGITAL to OFF for audio output in the setup mode.
Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers.
Notes
¡Be sure to turn off the power to all components in the system before connecting another component.
¡Refer to the Owner's Manuals for stereo systems and any other components to be connected to the DVD/VCR
COMBINATION UNIT.
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT S-VIDEO
OUT AUDIO OUT
DIGITAL
AUDIO OUT
COAXIAL
Y
Cb
Cr
L
R
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
DVD/VCR VCR DVD
R
L
Stereo system
To ANALOG AUDIO INPUT jacks
L
R
To Right (red) and Left (white)
ANALOG AUDIO OUT jacks
To Right (red) and Left (white)
AUDIO INPUT jacks
or
To AUDIO OUT jacks
CONNECTING TO AN ANALOG AUDIO SYSTEM
[Fig. 6]

5 Begin channel preset by pressing Bonce.
The tuner scans and memo-
rizes all active channels in
your area.
¡The VCR distinguishes between
standard TV channels and cable
channels.
6 After scanning, the tuner stops on the low-
est memorized channel. The TV screen
returns to TV mode.
¡If “AUTO SET UP” appears on the TV screen again,
check the cable connections. Press Bonce again and
the VCR will begin preset again.
–16 –EN
1L25
AUTOMATIC CHANNEL SET UP
SETUP
You can automatically program the tuner to scan only
the channels you receive in your area.
¡Channel memory programming is NOT needed
when you connect the VCR to a cable box or a satel-
lite box as in "CONNECTING TO A TV WITHOUT
A/V TERMINALS" on page 13. In this case, select
channel 3 on your TV. Then, the channel you want to
record or view may be selected at the cable box or
satellite box.
¡If noise appears, change the RF output channel of
the VCR to channel 4 by pressing PLAY for 3 sec-
onds during playback. Then select the same chan-
nel (CH4) on your TV.
¡Follow the steps below once. Repeat only if there is
a power failure or if the VCR is unplugged for more
than 30 seconds. (In these cases, the programmed
channels are erased.)
¡You must follow the steps below before attempting
to play or record a video tape. If you want to play
or record a video tape BEFORE programming the
tuner, you can cancel it by pressing
CLEAR/C.RESET.
1 You need to connect the antenna or cable to
the VCR first. Then, connect the DVD /VCR
power plug to a standard AC outlet.
2 Turn on the TV and set the TV to channel 3.
¡If noise appears, change the RF output channel of
the VCR to channel 4 by pressing PLAY for 3 sec-
onds during playback. Then select the same channel
(CH4) on your TV. (See “RF OUTPUT
CHANNEL” on page 13 for the detail.)
3 Turn on the VCR by pressing POWER. the
POWER light will come on.
4 Select the On Screen Language (“ENG-
LISH”, “FRANCAIS” or “ESPAÑOL”) by
pressing Kor L.Then,
press B.
VCR
TO SELECT A DESIRED CHANNEL
You can select the desired channel by using CHAN-
NEL (UP/DOWN) or by directly pressing Number on
the remote control.
Note for using the Number:
¡When selecting cable channels which are higher
than 99, enter channel numbers as a three-digit num-
ber.(For example: 117, press 1,1,7)
¡You must precede single-digit channel numbers with
a zero (For example: 02, 03, 04 and so on).
TO PRESET THE CHANNELS AGAIN
1 Press MENU until the main menu appears.
(If you have already set the clock, you only
have to press it once. If not, you have to
press it twice).
2 Select “CHANNEL SET UP” by pressing K
or L.Then, press B.
3 Select “TV” or “CATV” by pressing Kor L.
Then, press B.
¡After scanning, the tuner stops on the lowest memo-
rized channel.
AUTO SET UP
CH 01

–17 –EN
1L25
CLOCK SET UP
1 Select main menu by pressing MENU.
¡If the clock is not set, the CLOCK SET menu
appears first. In this case, follow step [3].
2 Select "CLOCK SET" by pressing Kor L.
Then, press B.
3 Set the clock.
¡To go back one step, press s.
4 Start the clock by pressing
CLEAR/C.RESET or B.
VCR
CLOCK SET
MONTH DAY YEAR
03 / 17 MON 2003
HOUR MINUTE AM/PM
05 : 40 PM AM
PM
1) Set the month
Press Kor Lrepeatedly.
Then, press B.
2) Set the day
Press Kor Lrepeatedly.
Then, press B.
3) Set the year
Press Kor Lrepeatedly.
Then, press B.
The day of the week will appear automatically.
4) Set the hour
Press Kor Lrepeatedly.
Then, press B.
5) Set the minute
Press Kor Lrepeatedly.
Then, press B.
6) Set AM or PM
Press Kor Lrepeatedly.
TO CHANGE THE ON-SCREEN
LANGUAGE
1 Press MENU twice to call up the main
menu. (If you have already set the clock,
you only have to press it once).
2 Select "LANGUAGE SELECT" by pressing K
or L.Then, press B.
3 Select "ENGLISH", "FRANCAIS" or
"ESPAÑOL" by pressing Kor L.Then, press
CLEAR/C.RESET.
¡If you accidentally select Spanish or French and
need English: Press MENU and choose SELEC.
IDIOMA, or SELECTION LANGUE. Press B,
and select ENGLISH by pressing Kor L.
Finally, press CLEAR/C.RESET.
VCR
TO ADD/DELETE CHANNELS
When scanning, some channels may be skipped due to
a weak signal. In such cases, you can add the channels
to the VCR memory manually.
1 Press MENU until the main menu
appears.(If you have already
set the clock, you only have
to press it once. If not you
have to press it twice).
2 Select "CHANNEL SET UP" by pressing K
or L.Then, press B.
3 Select "MANUAL SET UP" by pressing Kor
L.Then, press B.
4 Enter the desired channel number by press-
ing Kor L.
5 Add or Delete it from memory by pressing
Bor sso that "ADD" or "DELETE" flashes
on the TV screen accordingly.
6 Exit the Preset mode by pressing
CLEAR/C.RESET.
- MENU -
TIMER PROGRAMMING
AUTO REPEAT
CHANNEL SET UP
CLOCK SET
LANGUAGE SELECT
AUDIO OUT
TV STEREO
SAP
[OFF]
[ON]

PICTURE SEARCH
If you want to skip or repeat a scene during playback,
press Dor E.
¡Press it again and the VCR will now search at super
high speed. (in the LP/SLP modes only).
INDEX SEARCH
An index mark will be assigned at the beginning of
each recording you made. You may skip to a specific
marked point by following the steps below.
1 Press SEARCH MODE so that the Index
Search menu appears.
2 Enter the number of recordings you wish to
skip by pressing Kor L
within 30 seconds.
3 Press Bor {to start index search.
¡If you want to go in the forward direction, press B.
¡If you want to go in the reverse direction, press {.
¡If you want to stop search function, press STOP.
¡After index search, the VCR will play the tape auto-
matically.
TIME SEARCH
This feature allows you to go to a specific point on a
tape by entering the exact amount of time you wish to
skip in order to reach the point.
1 Press SEARCH MODE 2 times so that the
Time Search menu appears.
2 Enter your desired time to
skip by pressing Kor L
within 30 seconds.
3 Press Bor {to start time search.
¡If you want to go in the forward direction, press B.
¡If you want to go in the reverse direction, press {.
¡If you want to stop search function, press STOP.
¡After time search, the VCR will play the tape auto-
matically.
VCR
–18 –EN
1L25
PLAYBACK FUNCTION
NORMAL PLAYBACK
1 Insert a prerecorded tape. The VCR will turn
on.
¡If the safety tab has been removed, the
VCR will start playback automatically.
2 Turn on the TV and set the TV to channel 3.
¡If noise appears, change the RF output channel of
the VCR to channel 4 by pressing PLAY for 3 sec-
onds during playback. Then select the same channel
(CH4) on your TV. (See “RF OUTPUT
CHANNEL” on page 13 for the detail.)
3 Begin playback by pressing PLAY.
¡Tracking adjustment will be done automatically
(Digital Tracking function) when you start playback.
To adjust the tracking manually, press SKIP/CH. on
the remote or CHANNEL (UP/DOWN) on the VCR.
¡When a tape has reached the end, the VCR will
rewind the tape to the beginning, and eject the tape.
4 To stop playback, press STOP.
¡If no corresponding symbols appear on the display
when you press buttons such as PLAY, RECORD,
Dor E, that means no cassette tape is in the
VCR. Please insert a tape.
VCR
STILL/SLOW
You can freeze the picture on TV screen by pressing
PAUSE during playback.
¡You can advance the picture one frame at a time by
pressing PAUSE during the Still mode.
¡You cannot manually adjust the tracking of a still
picture. However, if the picture begins to vibrate
vertically during the still mode, you can stabilize the
picture by pressing CHANNEL (UP/DOWN).
¡If the picture is distorted or rolling vertically, adjust
the vertical hold control on your TV, if so equipped.
¡You can watch in the slow motion by pressing
SLOW during playback or the still mode.
¡If a noise bar appears on the TV screen, you can
reduce it by pressing CHANNEL (UP/DOWN).
¡After the VCR has been in Still/Slow mode for 5
minutes, it will stop automatically to protect the tape
and the video head from damage.
¡To return to playback, press PLAY.
AUTO REPEAT PLAYBACK
This feature allows you to play a tape over and over.
1 Select main menu by pressing MENU.
VCR
SEARCH FUNCTIONS
2 Select "AUTO REPEAT" by pressing Kor L.
3 Begin auto repeat playback by pressing B
so that ON appears next to "AUTO
REPEAT".
¡ If the on-screen menu still remains, CLEAR/C.RESET
to exit the menu.
¡To cancel the Auto repeat mode, press Bat step [3]
so that OFF appears next to "AUTO REPEAT".
INDEX SEARCH
03
Counter Reset
¡You can reset the counter by pressing
CLEAR/C.RESET on the remote control twice.
TIME SEARCH
2 : 50

–19 –EN
1L25
RECORDING FUNCTION
It may be UNLAWFUL to record copyrighted materi-
al without the consent of the copyright owner.
Accidental Erasure Prevention
To prevent accidental recording on a
recorded cassette, remove its record
safety tab. To record on it later, cover the
hole with cellophane tape.
Before recording, make sure:
¡The desired channel is selected by pressing Number
on the remote control or CHANNEL (o/p). (If you
connected the VCR to a cable box or satellite box as
in "CONNECTING TO A TV WITHOUT A/V TER-
MINALS" on page 13, select channel 3 on your TV,
and select the specific INPUT channel assigned by
your cable box or your satellite box on the
DVD/VCR COMBINATION UNIT. Then, select the
channel you want to record with the cable box or the
satellite box. In this case, you can ONLY record and
view the SAME channel.)
¡If noise appears, change the RF output channel of
the VCR to channel 4 by pressing PLAY for 3 sec-
onds during playback. Then select the same chan-
nel (CH4) on your TV.
¡There is a tape with a safety tab in the VCR.
¡The desired recording speed is selected in SP (stan-
dard play) or SLP (super long play) mode by press-
ing SPEED on the remote control.
VCR
Type of tape T60 T120 T160
SP mode 1 hour 2 hours 2-2/3 hours
SLP mode 3 hours 6 hours 8 hours
Tape Speed Recording/Playback Time
NORMAL RECORDING
1 Begin the recording by pressing RECORD.
The REC Light comes on.
¡To temporarily stop recording or to resume it, press
PAUSE. After the VCR has been in Pause mode for
5 minutes, it will stop automatically to protect the
tape and the video head from damage.
2 Press STOP when the recording is completed .
Note
¡When you wish to watch another program while
recording, select desired channel on your TV. If
noise appears press VCR/TV.
¡This is not possible when using a cable box or
satellite box.
VCR
OTR (One Touch Recording)
This feature allows you to set the recording length sim-
ply by pressing REC on the VCR.
1 Press REC to begin OTR. The TIMER light
comes on. Change the recording length by
pressing REC repeatedly.
VCR
¡ If a tape ends during OTR, the VCR will stop, eject
the tape, and switch to the DVD mode automatically
as the TIMER REC light blinks. (If the DVD power
is off, the VCR will become STANDBY status) .
¡When OTR is finished , the VCR turns off automat-
ically. To use the VCR again, press T-SET on the
remote, or STOP/EJECT on the DVD/VCR COM-
BINATION UNIT.
TIMER RECORDING
You may set the VCR to start recording while you are
away. You can set eight programs to record on specif-
ic days, daily or weekly within 1 year period.
If you have not yet set the clock, "CLOCK SET"
appears. If so, follow the steps [3] and [4] in
"CLOCK SET UP" section on page 17. Then, set
the timer recording.
1 Insert a tape with its safety tab into the
DVD/VCR COMBINATION UNIT.
2 Select main menu by pressing MENU.
3 Select "TIMER PROGRAM-
MING" by pressing Kor L.
Then, press B.The set up
screen is displayed.
4 Set the timer.
¡To go back one step, press s.
VCR
PROGRAM NUMBER 4
DATE - - / - -
START TIME - - : - - - -
END TIME - - : - - - -
CHANNEL - -
REC SPEED - -
1) Set the program number (1-8)
Program number which is not set up
flashes. Press Kor Lrepeatedly
for the desired program number.
Then, press B.
Record safety tab
PROG 12345678
DATE -
START TIME
END TIME
CHANNEL
REC SPEED
TIMER PROGRAMMING
REC OTR(0:30) OTR(1:00).....
(Normal recording)
OTR(8:00) OTR(7:30)
Note
¡You can not copy a DVD to a videotape.

–20 –EN
1L25
HINTS FOR TIMER
RECORDING
¡If there is a power failure or the VCR is unplugged
for more than 30 seconds, the clock setting and all
timer settings will be lost.
VCR
¡If a tape ends during TIMER RECORDING, the
VCR will stop, eject the tape, and switch to the DVD
mode automatically as the TIMER light blinks. (If
the DVD power is off, the VCR will become
STANDBY status).
¡If a tape is not in the VCR or does not have a safe-
ty tab, the TIMER light flashes and timer recording
will not operate. Please insert a recordable tape.
¡When all timer recordings are finished, the TIMER
light will flash. To use the VCR again as usual, press
T-SET to disable the flashing TIMER light, then
press VCR/TV to select the VCR position. Select
either VCR or DVD mode, then continue with the
other features as described in this manual.
¡When timer recordings are set, the TIMER light will
come on. To use the VCR as usual until the time for
the recording, press T-SET so that TIMER light dis-
appears. Press VCR/TV to choose the VCR position.
Select either VCR or DVD mode, then continue with
the other features as described in this manual.
If you want to use the DVD player during
a VCR timer recording or while the
TIMER light is on or flashes.
¡You can use the DVD player while the TIMER light
is on or flashes, or during a timer recording. Press
POWER to turn on the DVD. Press DVD on the
remote control to choose DVD mode, then continue
with the other DVD features as described in this
manual. You don’t have to set the TIMER off to use
the DVD only.
PROGRAM NUMBER 4
ONCE
DAILY
WEEKLY
PROGRAM NUMBER 4
DATE - - / - -
START TIME - - : - - - -
END TIME - - : - - - -
CHANNEL - -
REC SPEED - -
ONE TIME PROGRAM
PROGRAM NUMBER 4
DATE 05 /12 MON
START TIME - - : - - - -
END TIME - - : - - - -
CHANNEL - -
REC SPEED - -
ONE TIME PROGRAM
PROGRAM NUMBER 4
DATE 05 /12 MON
START TIME 07: 30 PM
END TIME - - : - - - -
CHANNEL - -
REC SPEED - -
ONE TIME PROGRAM
PROGRAM NUMBER 4
DATE 05 /12 MON
START TIME 07: 30 PM
END TIME 08: 30 PM
CHANNEL - -
REC SPEED - -
ONE TIME PROGRAM
Press Kor L repeatedly for the
desired channel number. Then,
press B.
2) Set the frequency of the recording
For once: Press Kor Lto point to
"ONCE".
For daily (Monday~Friday): Press K
or Lto point to "DAILY".
For weekly: Press Kor Lto point
to "WEEKLY".
Then, press B.
3) Set the date
PROGRAM NUMBER 4
DATE 05 /12 MON
START TIME 07: 30 PM
END TIME 08: 30 PM
CHANNEL
16
REC SPEED SP
SP
SLP
ONE TIME PROGRAM
4) Set the start time
First, press Kor Lfor the hour.
Then, press B. Next, press Kor L
for the minute. Then, press B. And
then, press Kor Lfor AM or PM. Then, press B.
5) Set the end time
Follow the instructions of
"Set the start time" to set
the end time.
7) Set the tape speed
Press Kor Lrepeatedly for the
desired tape speed. Then, press B.
6) Set the channel number
If you connected the DVD/VCR COMBINATION UNIT to
a cable box or satellite box as in "DVD/VCR TO TV
CONNECTION" on page 13, select the DVD/VCR to channel 3
or 4 the same channel as RF output channel of the DVD/VCR.
Then, select the channel you want to record with the cable box
or satellite box.
Leave the cable box or satellite box on for timer recording.
First, press Kor Lfor the month.
Then, press B. Next, press Kor
Lfor the day. Then, press B.
5 To set another program, repeat step [4]. To
exit, press CLEAR/C.RESET.
6 Press T-SET to set the timer.
¡The TIMER light on the DVD/VCR COMBINA-
TION UNIT comes on. TIMER RECORDING
WILL NOT BE ACTIVATED UNLESS YOU
PRESS T-SET.
TO STOP AN AUTOMATIC TIMER PRO-
GRAM ALREADY STARTED
Press STOP/EJECT on the DVD /VCR COMBINA-
TION UNIT.
TO CHECK, CORRECT, OR CANCEL AN
AUTOMATIC TIMER PROGRAM
1 Press T-SET.
¡If the DVD output mode is selected, you have to
switch it to the VCR mode by pressing the VCR on
the remote control or the OUTPUT on the VCR.
2 Select main menu by pressing MENU.
3 Select "TIMER PROGRAMMING" by press-
ing Kor L.Then, press B.
4 Select the program number you want to
check by pressing Kor L.
¡The details of the selected program appears on the
TV screen.
¡Go to the digit you want to change by pressing Bor
s. Then, enter correct numbers by pressing oor p.
¡You may cancel the entire program by pressing s
while the program number flashes.
5 Press CLEAR/C.RESET to exit.
6 Press T-SET to return to timer stand-by mode .
