August PD712A User manual

August International Ltd
United Kingdom
Telephone:[phone]
www.augustint.com

Thank you for buying our August TV. You may already be familiar with using
a similar product but please take time to read these instructions carefully. It is
designed to familiarise you with the product’s many features and to ensure
that you get the very best from your purchase.
To ensure your safety and the safety of others, please ensure you read the
Safety Instructions you use this product.
Please ensure the product and its accessories are disposed in compliance with
WEEE (Waste Electrical and Electronic Equipment) Directive and other
regulations. Please check with your local authority for disposal regulations.
If you need help, please contact our Customer Service:
Telephone: [phone]
Email: [email protected]
Safety
Disposal
Customer Service:
before
User Manual
Quick Start Guide
1. To play a DVD or CD, insert the disc into the DVD drive, press DVD to
switch to DVD mode, press PLAY or wait for the player to load the disc
automatically.
2. To play music, photos or video files on a SD card or memory stick, insert
the SD card or memory stick to the card slot or USB port, press DVD to
switch to DVD mode, press LEFT or RIGHT to switch between the
“Audio”, “Photo”, “Video” folders and Subtracks, press UP or DOWN to
select the file you want to play, press ENTER or PLAY to start playing.
3. It is suggested that you use a roof top aerial when scanning for TV channels
for the first time, if any signal is detected, the channel information will be
saved on the TV, you may then switch back to the portable antenna supplied
and change your location to find the best place to receive the signal.
4. To search for Digital Freeview TV at the first time, press DVB to switch to
DVB (Freeview TV) mode, it will ask you to do the “First Time Installation”.
Follow the instructions to select “Country” and “OSD Language”, then start
the “Auto Scan”. Once the scan has finished, press CH+, CH- or EPG to
select channels. Press REV/RADIO to switch between Freeview TV and
Radio channels.
5. If you have done the first time installation before, and would like to search
for Digital Freeview channels again, or if you have moved to a different
region and need to scan channels again, press DVB to switch to DVB
(Freeview TV) mode, then press SETUP, press RIGHT to select
“Installation”, press DOWN to select “Auto Scan”, press ENTER, press
LEFT or RIGHT to select the correct “Country”, press DOWN to select
“Start Scan”, then press ENTER to start. Once the scan has finished, press
CH+, CH- or EPG to select channels. Press REV/RADIO to switch between
Freeview TV and Radio channels.
PD712A

6. To search for Analogue TV, press MODE on the remote and you should see
either “AUTO”, “PAL” or “SECAM” at the top right corner of the screen.
Pressing MENU repeatedly will move to “PRESET” and “AUTO
SEARCH” is selected, press RIGHT to start searching for channels.
7. Please note the included portable antenna may only be used in areas where
signal is very strong. There may be difficulties in receiving signal with the
portable antenna in some regions at present, this is due to the fact that
Freeview (www.freeview.co.uk) is yet to operate in full power in the UK.
The government aims to achieve a full switchover by 2012, which will
occur in stages, region by region between 2008 and 2012, at present the
quality of Freeview reception varies in different regions across the UK.
As mentioned on the Freeview website, only 73% of the UK population is
able to receive Freeview at present and only a small number of households
might be able to use a set top aerial at present. This only applies if you live
in an area with coverage close to a transmitter, but reception would still be
unreliable and they strongly recommend that you use a roof top aerial for
good reception.
The reception will be improving along with the progress of the Digital
Switchover Program. Reception may also be affected by various factors
such as how close you are to transmitters, tall buildings, thick walls,
ceilings and weather etc.
8. For any further queries, please telephone August International Ltd
helpline 0870 850 3525 or email [email protected]
1.Safety Instructions
2.Product Features
3.Accessories
4.Remote Control
5.Part Names and Functions
6.System Connection
7.DVD Player Operation
7.1.Basic Operations

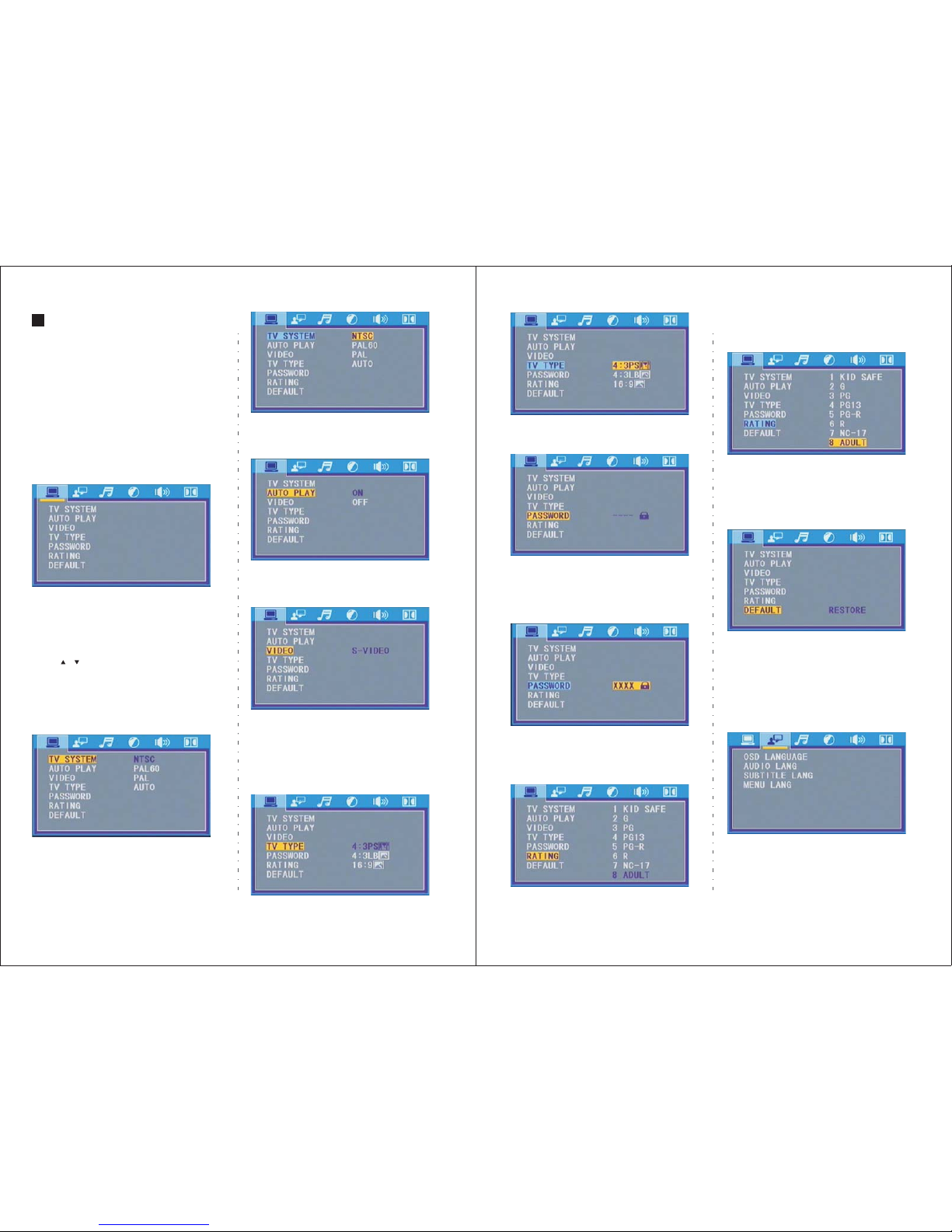

7.2.DVD Setup Menu
7.3.Playing MP3 Music
7.4.Playing JPEG Photos
7.5.Playing MPEG4 Video
7.6.USB Port Function
7.7. Card Reader Function
8.Digital Freeview TV (DVB-T)
9.Screen Setting
10.Analogue TV
11.Battery Charging
12.Troubleshooting
13.Technical Parameters
14.Warranty
1
4
5
5
6
9
10
11
13
18
18
19
19
19
19
23
24
26
27
28
30

Keep the player away
from extreme heat.
Always keep the
player ventilated.
Never block the
ventilation openings
under the player.
Never block any
openings on the
player.
Do not attempt
any repairs, as
this will invalidate
the warranty. Parts
inside are subject
to high voltage.
Avoid this player from
being dropped.
Do not place anything
on top of the power
cable.
Do not use defect
power cable.
Avoid dust as it
may clog player
parts.
Do not overload power
sockets as this can
result in fire or
electric shock.
Keep the player away
from water or damp
environment.
Do not put any objects
inside the player
as this may damage
parts or result in
a shock or fire.
-1-
1. Safety Instructions
Storage and Use
Keep containers filled
with liquids away
from the player.
Keep and use the
player on a stable
surface.
Keep the screen out
of direct light.
If any unusual sounds or
smells are given off,
unplug the power
supply of the
player and contact
our customer service.
Keep candles / flames
away from the player.
If Troubleshooting
doesn't solve your
problem, please
contact our customer
service.
Avoid exposing the
player to impact.
Do not adjust
anything not
covered in the
manual.
If not in use for a long time,
unplug the power supply
of the player.
In case of lightening unplug
the power supply of the player.
-2-

A few highlights or dark spots may appear on the LCD screen. It is a very
common phenomenon of active matrix display technology, and does
-3-
Earphone Operation Precautions
1. Please do not tune your headphone/earphones at high volumes; otherwise
it may lead to ear damage.
2. In case of any tinnitus, please turn down the volume or stop using this player.
3. It is recommended that the earphones should not be used continuously for
a prolonged period.
!
To prevent electric shock, do not expose the unit to rain or moisture. Never
attempt to open the cabinet, high voltages are present in the unit.
1.Please place the unit in a place with a good airflow.
2.It is normal for the cover and rear panel to become warm after the player
has been operating for an extended period of time.
3.Do not move this device during playback. Doing so may cause damage
to the unit and the disc.
4.The DVD Video player is a CLASS 1 LASER product. There may be
dangerous laser radiation inside. As the laser beam used in this DVD
Video player is harmful to the eyes, do not attempt to disassemble the
cabinet
Warning
-4-
2. Product Features
1. 7” portable DVD player with built-in Digital & Analogue tuner,
card reader and USB port.
2. Plays DVD, VCD, SVCD, MPEG4, JPEG, MP3, CD-R, CD-RW, WMA.
3. SD/MMC/MS card reader and USB port.
4. Auto Program Search, Electronic Program Guide.
5. Subtitle, Multi-language, Stereo sound.
6. Built-in rechargeable battery for up to 2 hours playback.
7. 10-bit Video D/A Converter, high-definition multi-media interface of up
to 500 lines.
8. 24-bit/192 KHz Audio D/A Converter, high quality, professional Hi-Fi
standard.
This is the latest converting technology which can apply for 192KHz sampling
rate and 24-bit data soft. The dynamic range of 48 decibel is better than the
traditional 16-bit CD code.
24-bit/192KHz D/A Converter
The laser lens is the most important part of the DVD Player which affects the
unit life and error correction. When reading scratched or non-standard discs,
the laser strength will be up to 24 times as powerful. This dramatically
decreased the life of the laser lens. The laser lens protection system of this unit
ensures the stability of the laser power and increases the life of the laser lens.
Laser Lens Power Protection System

Remote
Pull out the battery holder.
Take the old battery out and
insert a new one with the positive
+ side up (battery type: Cr2025).
Push back the holder.
User manual AC adapter Car adapter TV antenna
DVD CARD USB//
SLOW
712-DVD/TV
MODEDVBDVD
REV/RADIO
FWD/EPG
TTX/MENU
PREV/RETURN NEXT/PRLIST
MUTE
AUTOSLEEPP.P GAME
TFT
10+
3. Accessories
DVDCARDUSB//
SLOW
512-DVD/TV
MODE
MUTE
AUTOSLEEPP.P GAME
TFT
10+
Indicator light
About 8 meters
Earphones
4. Remote Control
Please remove PVC packaging before using the remote
control for the first time.
1. The IR sensor on the remote control should aim
directly to the sensor on the front of the player.
2. Use the remote control no further than 8 meters
away from the sensor.
3. The receiving angle range should be ±30°.
Operating range
If the remote control does not function or if the operating range becomes reduced, replace
the old battery with a new one.
Replacing the battery
Notice:
1. Please ensure proper disposal of used
batteries.
2. Do not expose the remote control to direct
sunlight or very strong/bright light.
3. Keep the remote control away from
extreme hot or humid environment.
4. Keep the remote control away from water.
-5- -6-
PREV
PLAY/PAUSE
ENTER
UP/DOWN/LEFT/RIGHT
This table explains the functions of the buttons on the panel in each mode:
NEXT
TFT ON/OFF
TFT TFT OFF
DVD/DVB/ATV DVD/DVB/ATV
DVD/DVB/ATV
MODE
MODE
MENU
MENU MENU /SETUP
OPEN
7'' TFT LCD DISPLAY(16:9)
ENTER
ENTER ENTER
OPEN
OPEN OPEN
Panel Button Press
1
2
3
4
5
6
7
8
8
8
8
9
/CH+
/CH-
/VOL-
/VOL+
TFT OFF TFT OFF
SETUP
ENTERAUTO
OPEN
Press & Hold DVD
/
/
/VOL-
/VOL+
DVB*
TFT OFF
MENU
EPG/PRLIST
/EPG/PRLIST
RADIO/RETURN/RADIO/RETURN
MENU
AUTO
DVB
/CH+
/CH-
/VOL-
/VOL+
DVD
TFT OFF
AUTO
ATV
/CH+
/CH-
/VOL-
/VOL+VOL+
VOL-
/PRLIST
/ON*
/RADIO/RETURN
/EPG
*Notice: 1. On standby power off, pressing can turn on the player.
2. In DVD mode, press and hold MODE to switch to DVB mode for watching digital Freeview TV.
5. Part Names and Functions
Panel button functions
Parts on the front of the main unit

-7-
DVDCARDUSB//
SLOW
512-DVD/TV
MODEDVBDVD
REV/RADIO
FWD/EPG
TTX/MENU
PREV/RETURN NEXT/PRLIST
MUTE
AUTOSLEEPP.P G A M E
TFT
10+
Antenna in jack
Power On/Off
SD/MMC/MS card slot
Volume control Stereo earphone jack
DC 12V in jack
USB port
NUMBER button
DVD
DVB
MODE
14
17 567
18 8 9 10
19 11 12 13
20 14 15 16
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
41 42 43 44
POWER
TTX/MENU
/CH-
/CH+
LANGUAGE
DVD/CARD/USB
SUBTITLE
REPEAT
TITLE/PBC
DISPLAY
MUTE
SETUP
GOTO
ENTER
23
45 46 47 48
~
ZOOM
PREV/RETURN
A-B
NEXT /PRLIST
STOP
PLAY/PAUSE
R/L
REV/RADIO
FWD/EPG
SLOW
TFT
+/Vol+
-/Vol-
P.P
SLEEP
GAME
AUTO
/MS
1
Parts on the right side of the main unit
Parts on the left side of the main unit
Remote control functions
-8-
1
2
3
4
5~15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Remote Button
POWER
MODE
DVD DVD
DVB DVB
0~9
SUBTITLE
LANGUAGE LANGUAGE
DVD/CARD/USB DVD/CARD/USB
GOTO
ENTER
REPEAT
DISPLAY
TITLE/PBC
L/R
II
▲
-
+
SLOW
SETUP
▲/CH+
/CH-
TTX/MENU TTX
MUTE
A-B
P.P P. P
SLEEP SLEEP
FAV/ZOOM ZOOM FAV
TFT
GAME
AUTO
DVD
POWER
0~9
SUBTITLE SUBTITLE
SLOW
▲ ▲
/RADIO RADIO
▲ ▲
/EPG EPG
▲ ▲
/RETURN RETURN
▲ ▲
/PRLIST PRLIST
GOTO
SETUP SETUP
▲
ENTER
ATV
POWER
0~9
LANGUAGE
MUTE
▲/CH+
/CH-
MODE
DISPLAY
REPEAT
-
+
MENU
SCREEN OFF
P.P
SLEEP
GAME
AUTO
ENTER
DVB
POWER
0~9
LANGUAGE
MUTE
▲/CH+
/CH-
MODE
DISPLAY
-
+
SCREEN OFF
P.P
SLEEP
AUTO
ENTER
REPEAT
DISPLAY
TITLE/PBC
L/R
▲ ▲
▲ ▲
▲ ▲
▲ ▲
MUTE
A-B
MODE
II
▲
-
+
SCREEN OFF
This table explains the functions of the buttons on the remote control in each mode:

-9-
Earphone
AC adapter
/MS
6. System Connection
Connection illustration as follows:
-10-
If there is no disc, the display will show:
Step 2: Press OPEN, the disc drive lid will
open automatically.
Press to pause playback.
To return to playback, press again.
Press to choose the previous track or
chapter.
Press to choose the next track or
chapter.
Press to search forward at different
rate. The player will search the track
at 2, 4, 8, and 20 times of the normal speed.
Press to search backward at different
rate. The player will search the track
at 2, 4, 8, and 20 times of the normal speed.
POWER
OPEN
7. DVD Player Operation
After the system is connected, you can use
the unit in DVD mode. Before use, please
follow the instructions below:
Step 1: Press POWER to turn on the unit
and it will begin to read the disc as follows:
Playing Disc
This unit will begin to play after reading
the disc.
PAUSE
FORWARD 2

-11-
Press to stop playback.
DISPLAY
Display
Display
Subtitle
7.1. Basic Operations
7.1.1. Display
During playback, pressing DISPLAY on
the remote control will show the
following:
For DVD disc:
The first time DISPLAY is pressed, the
play time of the chapter will show.
The second time DISPLAY is pressed,
the language, subtitle and angle
information will show.
For DVD, Super VCD disc:
Pressing DISPLAY, the single track play
time, track number and PBC will show.
7.1.2. Subtitle
Press SUBTITLE repeatedly to select
subtitle language. (Up to 32 different
languages, only for the discs with this
function.)
Language
7.1.3. Language
Press LANGUAGE repeatedly to select
audio language, up to 8 different audio
languages. (4 for SVCD/CVD discs and
only for the discs with this function.)
During playback, press TITLE to enter
the TITLE menu and select by
pressing or numbers
during DVD playback.
7.1.4. Title
7.1.5. Move Selection
During playback, pressing UP, DOWN,
LEFT, and RIGHT allow the user to easily
select Title, Directory or Menu settings.
\\ \
\\ \
BACKWARD 2
DVD TT 1 1 CH 1 16 00 02 45// ::
1 2ENG 2CH 1 1 ENG OFF//
[]1 ENGLISH 2CH
[]1 ENGLISH
-12-
Repeat
REPEAT WHOLE
DISC
7.1.6. Number Buttons
During playback, press number button
directly to select according to the menu
and begin to play a track or chapter.
7.1.7. PBC Play Mode
PBC ON: can only select menu functions
using PREV and NEXT.
PBC OFF: can select tracks directly by
pressing number button during playback
or PREV and NEXT. (This function is
for 3.0 version video CD only)
7.1.8. Repeat
During DVD playback, keep pressing
REPEAT, it will show:
Repeat one chapter
Repeat one title
Repeat (off )
During Super VCD/DVD playback, press
MENU to select PBC OFF, then keep
pressing REPEAT, it will show:
Press REPEAT again to close the Repeat
function.
7.1.9. A-B Repeat
7.1.10. Zoom
7.1.11 Audio Mode
7.1.12. Volume/Mute
7.1.13. Goto
During playback, press [A-B] button once
to set the starting point and again to set the
end point. After setting the points, the
program will repeat between A and B.
Press [A-B] again to cancel the repeat.
The DVD player can zoom up to 4 times
to view a dynamic or still picture. Keep
pressing ZOOM up to 1,2,3,4,5,6 times for
2,3,4,1/2,1/3,1/4 times zoom. Pressing for
the seventh time will return to normal
playback. Whilst zoomed in press the
directional buttons to move.
When playing VCD, pressing [L/R] can
choose between stereo, left mono, right
mono.
Press Volume+/Volume- to adjust the
volume. Press MUTE to turn off the
volume, press again to turn on the volume.
Press GOTO for selecting chapter/time to
play, use LEFT/RIGHT and numbers to
change, press ENTER to confirm. Press
GOTO at any time to exit.
Repeat Chapter
Repeat Title
REPEAT WHOLE
Repeat Close
TITLE PBC/
REPEAT

7.2. DVD Setup Menu
In DVD mode, pressing SETUP, the setup
menu will appear. Use LEFT or RIGHT to
select a setting and then press UP or
DOWN to select one specific function
setting. Press ENTER to confirm. Press
SETUP again to exit.
System Setup has the following options:
TV System, Auto Play, Video, TV Type,
Password, Rating, and Default.
7.2.1. System Setup
Press to select. Press ENTER to
confirm. Press SETUP to exit.
(NOTE: If you have chosen NTSC, your
TV system must support NTSC format,
otherwise the screen is in black or white
only)
7.2.1.1. TV System
\
7.2.1.2. Auto Play
This option allows the user to set the Auto
Play function On or Off.
7.2.1.3. Video
This has been set to S-VIDEO as default.
7.2.1.4. TV Type
Use this option to change the display
aspect ratio.
-14-
7.2.1.5. Password
The default code is 0000, entering this
number to lock or unlock the password
setting, press ENTER to confirm, press
SETUP to exit.
7.2.1.6. Rating
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
This setting only works when the
PASSWORD has been set as UNLOCK,
RATING level can be changed from 1 to 8.
7.2.1.7. Default
Once selected, press ENTER to confirm
the RESTORE setting, Press SETUP to exit.
Use this option to change the unit to
factory default setup.
7.2.2. Language Setup
Language Setup has the following options:
OSD Language, Audio Language, Subtitle
Language, and Menu Language.
-13-

-15-
7.2.2.1. OSD (On Screen Display) Language
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.2.2. Audio Language
Press UP or DOWN to select, press ENTER
to confirm, press SETUP to exit.
7.2.2.3. Subtitle Language
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.2.4. Menu Language
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.3. Audio Setup
Audio Setup has Audio Out and Key options.
7.2.3.1. Audio Out
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
-16-
7.2.4.1. Brightness
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.4.2. Contrast
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.4.3. Hue
7.2.3.2. Key
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.4. Video Setup
Video Setup has the following options:
Brightness, Contrast, Hue, Saturation, and
Sharpness.

-17-
7.2.5.2. Dynamic Range
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.4.5. Sharpness
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.5. Digital Setup
Digital Setup has the following options:
Output Mode, Dynamic Range, and Dual
Mono.
7.2.5.1. OP (Output) Mode
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
7.2.4.4. Saturation
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.
-18-
2. Press and PLAY to select the
submenu. Press to enter the track
menu and press again to select a
track to play. Press PLAY to play this
track or select the track directly in this
submenu by pressing a number button.
/
/
3. Press REPEAT to select Repeat Single
Track, Repeat Directory, Repeat Whole
Disc, or Repeat Off.
Otherfunctions
During MP3 playback, this unit also has
Mute, Volume Control, Pause, Previous Track,
and Next Track options. The operation is the
same as CD playback.
7.4. Playing JPEG Photos
JPEG (Joint Photographic Experts Group)
is the most popular storage format for
pictures used nowadays. JPEG uses a high
compression ratio, compressing by 15-20
times of the original, the images still
remain in good quality. Its size is small
and can be used flexible. JEPG is
supported by most photo management
software and is good for photo storage.
This player can decode Picture CDs made
with JPEG code format.
Select pictures using numbers
1. Insert the disc and the player will begin
to search the disc for data, the TV screen
displays as below (It varies for different
disc)
2. Press to select (Audio) or
(JPEG) at the bottom of the screen.
Press PLAY to confirm then you can
select play music or JPEG picture.
3. Press a number to select the photo
collection, for example:
/
MP3 adopts the third audio compression
format of MPEG to compress the audio
signal to 12:1. A disc can record more
than 600 minutes of music or 170 songs
by using MP3 format and its quality is
near to CD.
7.3. Playing MP3 Music
Basic operation
1. Insert the disc, the player will search the
disc for data and show the following:
7.2.5.3. Dual Mono
Press UP or DOWN to select, press
ENTER to confirm, press SETUP to exit.

-19-
8.2. First Time Installation
A message will appear, asking if the user
wants to run the first time installation
wizard. Upon selecting [YES], a new
message will appear, asking for country
and OSD language. Use the arrow keys
to select the appropriate. Select [NEXT]
and press ENTER to proceed to the next
screen. On this screen, the user will be
asked whether they want to perform an
auto scan of the channels, select [YES]
and press ENTER to start the scan.
.7.7. Card Reader Function
1. Insert the SD, MS, or MMC card to the
card slot on the side of the TV.
2. The files in the card will show on the
screen.
3. Other operations are the same as the
USB function.
8. Digital Freeview TV (DVB-T)
8.1. Turn on the Machine
Press POWER to turn on the machine. It
will enter the mode that it was when last
turned off.
If it enters DVD mode, press DVB to
switch to DVB mode. For DVB mode, it
will select the last channel watched. If
there was no last channel watched, or it is
the first time it is powered on, a message
will appear, asking if the user wants to
run the first time installation wizard.
Picture 1
7.6. USB Port Function
1. The USB port is compatible with flash
memory, it is not guaranteed that it can
be used with all types of MP3 players.
2. Insert the USB stick to the USB port of
this device.
3. The files in the memory stick will show
on the screen.
4. Press to select the (Audio)
or (JPEG picture) at the bottom of
the screen and press PLAY to confirm.
Then you can select play music or JPEG
pictures.
/
Select pictures using
1. Insert the disc, the player will begin to
search the disc for data, menu will appear
on the TV screen. Press to
select the submenu on the left side of the
screen. Press ENTER or PLAY to confirm.
The TV screen shows the following:
///
///
///
2. Press to select the picture
of this submenu, press PLAY to play.
Otherfunctions
1. When playing JPEG files, pause play
and repeat play can also be performed.
2. When playing JPEG files, press
TITLE/RETURN to return to the menu.
3. During playback, press PREV and
NEXT to select the previous or next
picture.
4. During playback, press to
rotate the picture to up, down, left or
right.
///
MPEG4 is a video compressing standard
which supports movie play. The basic
operations are the same as MP3 functions.
Playing MPEG4 Video
///
5. Pressing number buttons or
can select play files.
6. Other operations are the same as the
JPEG function.
-20-
8.3.1.4. Channels Edit
To edit a channel's name, press to
move to the channel, press ENTER to
confirm, press to select a character,
press to change the character,
press ENTER to confirm the change.
To change the channel's display sequence,
press to move to the channel, press
to move the cursor to the MOVE
column, press ENTER to confirm, press
to move the cursor to the row you
prefer, press ENTER to confirm.
To delete a channel, press to move
to the channel, press to move the
cursor to the DELETE column,
press ENTER to confirm, press ENTER
again to cancel. Press RETURN or
SETUP to exit.
/
/
/
/
/
/
/
/
8.3.1.2. Radio Channels
Upon entering the Radio Channels menu,
the channels are listed on the left side of
the screen, and as they are radio channels,
the default screen picture of this TV will
appear in the preview window on the right
side. The channel can be changed using
, press DISPLAY to sort the
channels, press ENTER to start listening
to the radio.
/
Picture 12
8.3.1.3. Channels Class
From the Channels Class menu, each
channel can be classified into a group.
Press ENTER if you wish to add any
channels to a column category, press
ENTER again to cancel. Press RADIO
button to switch to radio channels, press
RADIO again to switch back to TV
channels.
Picture 13
8.3.1.1. TV Channels
Upon entering the TV Channels menu, the
channels are listed on the left side of the
screen, and a preview window is on the
right side. The channel can be changed
using , press DISPLAY
to sort the channels, press ENTER to start
watching TV in full screen.
/
Picture 10 Picture 11
8.3. Main Menu
Pressing SETUP will enter the main menu,
pressing SETUP again or RETURN will
exit the menu.
In the Main Menu, press to select
Channel Guide, System Config,
Installation, or Game submenu, press
or ENTER to enter the submenu setting.
/
Picture 8
Picture 7
8.3.1 Channel Guide
Press to select TV Channels, Radio
Channels, Channels Class and Channels
Edit options, press ENTER to confirm.
/
Picture 6
Picture 9
Picture 5
Picture 2
Picture 4
Picture 3

-22-
Picture 26
8.3.3.3 Default Setup
A message box will appear, asking if you
want to reset the machine to factory
default settings. After the reset, the first
time installation message will appear.
Picture 27
8.3.4 Game
There are three games in the Game menu.
Press to select the game you want
to play, press ENTER to confirm. The
games are played using
button. Press RETURN or SETUP to exit
the game.
/
///
Picture 28
Picture 29 Picture 30
Picture 25
Picture 23
8.3.3 Installation
Press to select Auto Scan,
Manual Scan, and Default Setup Options,
press ENTER to confirm.
/
8.3.3.1 Auto Scan
In Auto Scan, press to select
your country, press to move to Start
Scan, Press ENTER to start.
/
/
Picture 24
8.3.3.2 Manual Scan
In Manual Scan menu, a scan can be
performed by setting the following options:
Country, Scan Type, Start Channel, End
Channel. If the Scan Type is Signal
Channel, only the Country and Start
Channel can be set. If the Scan Type is
Channel Range, the Country, Start Channel,
and End Channel can be set. Use the
to select the options and to change
the settings. Once finish the setting, move
to Start Scan and press
ENTER to start.
/
/
8.3.2.6 Time Setting
TIME ZONE: If you fixed the country
whilst searching for channels, you cannot
adjust the time zone. Restore to factory
settings, and don't search for channels.
Access the TIME ZONE menu, then press
ENTER, a menu will show, use UP or
DOWN to select the time zone you are
and press ENTER to confirm.
8.3.2.7 System Info
System Info displays the firmware version
and date, along with tuner and model
information.
Picture 22
-21-
8.3.2.4 Language
The Language menu allows the user to
change the OSD Language. Press
to change the language, or press ENTER
to change the setting. Press RETURN or
SETUP to exit.
/
Picture 18
8.3.2.5 Parent Control
The Parent Control menu has two options:
Change Pin and Channel Lock. When
selecting Change Pin, the user will be asked
to enter the Old Pin, New Pin and the New
Pin again. In order to change the Channel
Lock, the user will be asked to enter the
password (pin) first, if the password is
correct, the Channel Lock menu will appear.
Use to select a channel, press
ENTER to lock or unlock the channel.
Press RADIO button to switch to radio
channels, press RADIO again to switch
back to TV channels. Press RETURN or
SETUP to exit.
/
Picture 19
Picture 20 Picture 21
The system default password is 0000.
Picture 17
Picture 14
Press RADIO button to switch to radio
channels, press RADIO again to switch
back to TV channels.
8.3.2. System Config
Press to select TV Setting,
Video Setting, Audio Setting, Language,
Parent Control, Time Setting, and System
Info Options, press ENTER to confirm.
/
8.3.2.1. TV Setting
The TV Setting has the following options:
TV System, Video, and TV Type. Press
to move the cursor to one of the
options, press to change the setting,
or press ENTER to change the setting.
Press RETURN or SETUP to exit.
/
/
Picture 16
8.3.2.2. Video Setting
The Video Setting has the following
options: Brightness, Contrast, Hue, and
Saturation. Press to move the cursor
to one of the options, press to
change the setting, or press ENTER to
change the setting. Press RETURN or
SETUP to exit.
/
/
8.3.2.3 Audio Setting
This function is not available yet.
Picture 15

-23-
Reset
Press repeatedly to enter Reset menu.
Press + or - to reset the Brightness, Contrast,
Colour, Hue and Volume settings to the
default level 50.
9. Screen Setting
Bright
Press to enter Brightness menu.
Press + or - to adjust.
Press repeatedly to enter Volume menu.
Press + or - to adjust.
Press repeatedly to enter Contrast menu.
Press + or - to adjust contrast.
Contrast
Color
Press repeatedly to enter Colour menu.
Press + or - to adjust.
Hue(Only in NTSC/SECAM mode)
Press repeatedly to enter Hue menu.
Press + or - to adjust.
RESET
BRIGHT
50
CONTRAST
50
COLOR
50
HUE
50
Volume
VOLUME
50
-24-
BRIGHT
CONTRAST
COLOR
ENGLISH
50
50
50
VOLUME
50
VOLUME
/ Select / Adjust
/ Select / Adjust
/ Select / Adjust
OPTION
ZOOM :16 9
BLUE BACK ON
VERTICAL
HORIZONTAL
10. Analogue TV
Press MODE on the remote control to switch to the Analogue TV mode.
Press MENU repeatedly, the following options will show:
PICTUR VOLUME OPTION
SYSTEM PRESET CLOCK
10.1. Picture
Press UP or DOWN to select between Brightness, Contrast, Colour, and
Language settings.
Press LEFT or RIGHT to change the setting.
10.2. Volume
Press LEFT or RIGHT to change the volume setting.
Press UP or DOWN to select between Zoom, Blue Background, Game,
Calendar, picture up down and mirror effect settings.
10.3. Option
Press LEFT or RIGHT to change the setting.
10.4. System
GAME
CALENDAR
Press UP or DOWN to select between Color-Sys, Sound-Sys, Swap and Copy
settings.

-25-
I
0
0
SYSTEM
AUTO
SOUND SYS-
SWAP
COPY
COLOR SYS-
/ Select / Adjust
PRESET
VHFL
0
ON
AUTO SEARCH-
SEARCH
FINE TUNE
BAND
POSITION
SKIP
//Select Adjust
Color-Sys: Press LEFT or RIGHT to select between AUTO, PAL, and SECAM.
Sound-Sys: Press LEFT or RIGHT to select between I, L, BG, and DK.
Swap: Use LEFT, RIGHT, UP or DOWN to swap channel positions.
Copy: Use LEFT, RIGHT, UP or DOWN to copy and change channels.
10.5. Preset
Press UP or DOWN to select between Auto Search, Search, Fine tune, Band,
Position and Skip settings.
Press LEFT or RIGHT to change the setting.
//Select Adjust
TIME
OFF TIME-
ON TIME-
SLEEP
CLOCK
:
:
:
0
10.6. Clock
Press UP or DOWN to select between Sleep, Time, Off-Time, and On-Time
settings.
TIME
OFF TIME-
ON TIME-
SLEEP
CLOCK
:
:
:
0
Sleep: The unit can be set to turn off automatically after certain time, press
LEFT or RIGHT to select from 0 to up to 240 minutes maximum with 10
minutes intervals.
Adjust hour Adjust minute Select items to be setup:: /:
-26-
!
Use only the supplied power adapters with this device. Failure to do so can
cause damage to the device and risk personal injury.
Time: Press LEFT to change the hours, press RIGHT to change the minutes.
Off-Time: The unit can be set to turn off automatically, press LEFT to change
the hours, press RIGHT to change the minutes.
On-Time: The unit can be set to turn on automatically, press LEFT to change
the hours, press RIGHT to change the minutes.
1. Auto Search Start from Program NO .0.
2. When the signal is received under Manual Search, the indication
frequency will stop, which is the optimum position for signal storage.
If the signal is too weak, the system will automatically identify it as no
signal.
3. In the case of a picture without sound, please check the Sound System
for correct setup first.
4. If the input signal is not strong enough, please adjust “Fine” option, it
may improve the picture and sound quality.
If the signal is too weak, the image will remain poor whatever you do, and
may output loud noises, shaking images and inferior sound etc., which is
not the TV's fault. If the image remains poor when using the telescopic
antenna, please try to use a roof top aerial or an amplified external antenna.
11. Battery Charging
1.A lithium battery is built into this player.
Charging time: 5 hours
Playback time: up to 2 hours
2.To charge, connect the supplied AC adaptor to the socket marked
“DC IN 12V” and the charging indicator will go red. This shows that the
battery is charging. When charging has finished, the red light will turn green.
Warning

-27-
!
!
The replacement of the built-in lithium battery, it must use the same type
of battery factory, otherwise, it could have unclear consequences.
Please ensure unit is turned off when not in use. If the battery has not been
used for some time (6 months) then fully charge the battery to ensure
maximum battery life.
Problems listed below do not necessarily signify a fault with the unit.
Please check this list before requesting repairs.
Problems
12. Troubleshooting
No picture and no sound
Check the connection with the AC adapter/Car adapter.
Use of an unauthorized power supply.
Power switch on the side of the TV is off.
TV is on standby as it was switched off by pressing the
POWER on remote.
Check the channel selection. Scan for channels again.
Always rescan for channels in new locations. Ensure
video settings are correct.
Check the sound volume. If you are using earphones,
test them on another item. Check that the cable is plugged
in. Sound System is not correctly set in Analogue TV mode.
Possible Causes and Solutions
Picture freezing, and/or
sound distorting
Signal too weak, please check the aerial. Try to use a
proper roof top aerial or an amplified aerial.
No signal
Signal too weak, please check the aerial. Try to use a
proper roof top aerial or an amplified aerial.
Please adjust Brightness and/or Contrast settings.
Dark Picture
Motors/Trains/High Voltage Lines and Neon Lights may
affect the signal.
Snowstorm
Achromatic/Flashing/No Colour Please adjust the Colour Setting.
Color-Sys is not correctly set in Analogue TV mode.
No sound
No image
Warning
-28-
13. Technical Parameters
Product Name: 7 inch portable DVD player with built-in Digital
& Analogue tuner, card reader and USB port
Disc Format: DVD, VCD, SVCD, MPEG4, JPEG, MP3, CD-R,
CD-RW, WMA.
Picture Resolution: 500 Line
Video S/N Ratio: 60dB
Frequency Response: fs 96KHz: 4Hz-44KHz:+/-1dB
Audio S/N Ratio: 90dB
Dynamic Range: 90dB
Harmonic Distortion: 0.01%
D/A Converter:96KHz/24bit
Video Output Level: 1Vp-p(75ohm)
Audio Output Level: 1.0V0.1V
DVB Band Wide:6 7 8
DVB VHF:177.5MHz~226.5MHz
UHF:474MHz~858MHz
DVB Decode standard:MPEG2 ISO/IEC13818 MPEG2 MP@ML
ATV Receiving Channel: 48.25MHz~855.25MHz
ATV Sound System: DK I BG L M N
Screen Size: 7 inches
Audio Output: 0.3W (Max)
Loudspeaker: two 40x20mm squareness loudspeaker.
Outer Dimension: 200 x 165 x 41mm
Weight: about 895g
Dot Matrix: 0.107(H) 0.372 (V)
Resolution: 480 RGB 234
Response Speed (ms): R: 30 / F:50
Visible Angle: U: 15 / D:35, R / L:50
Brightness: 200cd/m
Contrast: 150:1
xx
2

No user serviceable components are fitted inside this TV. Do not attempt
any repairs, as this will invalidate the warranty. Any repairs must be carried
out by either the manufacturer or their nominated service centre. Parts
inside this set are subject to high voltage.
-29-
This product is guaranteed for 2 years from the date of the original purchase. This
warranty covers costs of parts and labour for the first 12 months and covers manufacture
defects of major components which include LCD screens, DVD disc loaders and software
on main circuit board for the second 12 months. In the unlikely event of any defect arising
due to faulty materials or workmanship, the unit will be either replaced or repaired
(where possible) during this period. An alternative product will be offered in case the
product is no longer available or repairable.
This warranty is subject to the following conditions:
The warranty is only valid within the country where the product is purchased
The product must be correctly installed and operated in accordance with the
instructions given in the user's manual.
The product must be used solely for domestic purposes.
The warranty only covers the main unit, and does not cover the accessories.
The warranty does not cover the damage caused by misuse, negligence, accident
and natural disaster.
The warranty will be rendered invalid if the product is resold or has been damaged
by inexpert repairs. The manufacture disclaims any liability for incidental or
consequential damages.
Please consult our customer service before returning any product; we are not
responsible for any unexpected product returns.
Any faulty products must be kept and returned in the original packaging with all the
accessories and the original copy of the purchase receipt.
The warranty is in addition to, and does not diminish, your statutory or legal rights.
Please note:
1.A LCD display panel comprises a very large number of pixels and each pixel contains
three sub-pixels - red, green and blue. Due to the complex manufacturing process,
occasional pixel anomalies may occur. Pixel anomalies cannot be fixed or repaired and
can happen at any stage in the LCD's life. August products should not be deemed as
faulty if there are no more than three bright and dark pixels respectively.
2.Portable TV antennas included in the box are for people to watch Freeview TV in areas
where the signal is very strong and there may be difficulties in receiving signal with the
included portable antennas in some regions at present. This is due to the fact that
Freeview is yet to operate in full power in the UK. August TVs should not be deemed
as faulty if it can receive Freeview by connecting to a proper digital rooftop aerial.
Telephone: [phone]
Email: [email protected]
Customer Service:
Warranty
-30-
