aumate TO5712A-UL User manual

INSTRUCTION
MANUAL
AIR FRYER TOASTER OVEN
MODEL: TO5712A-UL
CAPACITY: 18 LITRES/19 Quart
120V~/60Hz,1550W
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS
When using electric appliances, basic safety precautions should always be
followed:
1. Read all instructions.
2.This appliance is not intended for use by persons (including
children younger than 8) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have supervision.
3.Check if the voltage indicated on the appliance corresponds to
the local main voltage before you connect the appliance.
4.Do not use the appliance if the plug, the main cord or the
appliance itself is damaged. Always make sure that the plug is
inserted properly into a wall outlet.
5.Do not operate any appliance with a damaged cord or plug,
after the appliance malfunctions, or has been damaged in any
manner. Return appliance to the nearest qualified service
facility for examination, repair, or adjustment.
6.Close supervision is necessary when any appliance is used
near children. Children should be supervised to ensure that
they do not play with the appliance. Cleaning and user mai-
ntenance shall not be done by children unless they are older
than 8 and supervised.
7.Do not let the cord hang over the edge of the table or counter
or touch hot surfaces.
8.To protect against electric shock, do not immerse cord, plugs,
or appliance in water or other liquid. Do not plug in the appliance or operate
the control panel with wet hands.
9.Never connect this appliance to an external timer switch or
separate remote-control system in order to avoid a hazardous
situation. To disconnect, turn off the appliance, then remove
plug from wall outlet.
10.Do not place the appliance on or near combustible materials
such as a tablecloth or curtain. The accessible surfaces may
become hot during use. Do not place on or near a hot gas or
electric burner, or in a heated oven.
11.Do not place the appliance against a wall or against other
1

appliances. Leave at least 4 inches of free space on the back
and sides and 4 inches of free space above the appliance.
Do not place anything on top of the appliance.
12.Do not use the appliance for any other purpose than desc-
ribed in this manual. The use of accessory attachments not
recommended by the appliance manufacturer may cause
injuries.
13.Do not let the appliance working unattended. Extreme
caution must be used when moving an appliance containing hot
oil or other hot liquids.
14.Do not use outdoors.
15.Do not touch the hot surfaces; use handle. During air frying,
hot steam is released through the air outlet openings. Keep
your hands and face at a safe distance from the steam and from
the air outlet openings. Also be careful of hot steam and air
when you remove the pan from the appliance.
16.After using the appliance, avoid contact with the hot metal
inside. Unplug from outlet when not in use and before cle- aning.
Allow to cool before cleaning the appliance.
17.Immediately unplug the appliance if you see dark smoke
coming out of the appliance. Wait for the smoke emission to
stop before you remove the pan from the appliance.
18.Do not use appliance for other than intended use.
19.Use extreme caution when removing tray or disposing of hot
grease.
20.Do not clean with metal scouring pads. Pieces can break off
the pad and touch electrical parts, creating a risk of electric
shock.
21.Oversize foods or metal utensils must not be inserted in a
toaster oven as they may create a fire or risk of electric shock.
22.A fire may occur if the toaster oven is covered or touching
flammable material, including curtains, draperies, walls, and the
like, when in operation. Do not store any item on top of the
appliance when in operation.
23.Extreme caution should be exercised when using containers
2

constructed of anything other than metal or glass.
24.Do not store any materials, other than manufacturers reco-
mmended accessories, in this oven when not in use.
25.Do not place any of the following materials in the oven:
paper, cardboard, plastic, and the like.
26.Do not cover crumb tray or any part of the oven with metal
foil. This will cause overheating of the oven.
27.For household use only.
SAVE THESE INSTRUCTIONS
A short power-supply cord is provided to reduce risk of
becoming entangled in or tripping over a longer cord.
Extension cords may be used if care is exercised in their use.
If an extension cord is used:
a. The marked electrical rating of the extension cord should be
at least equal to the electrical rating of the appliance;
b. The longer cord should be arranged so that it will not drape
over the countertop or tabletop where it can be pulled on by
children or tripped over.

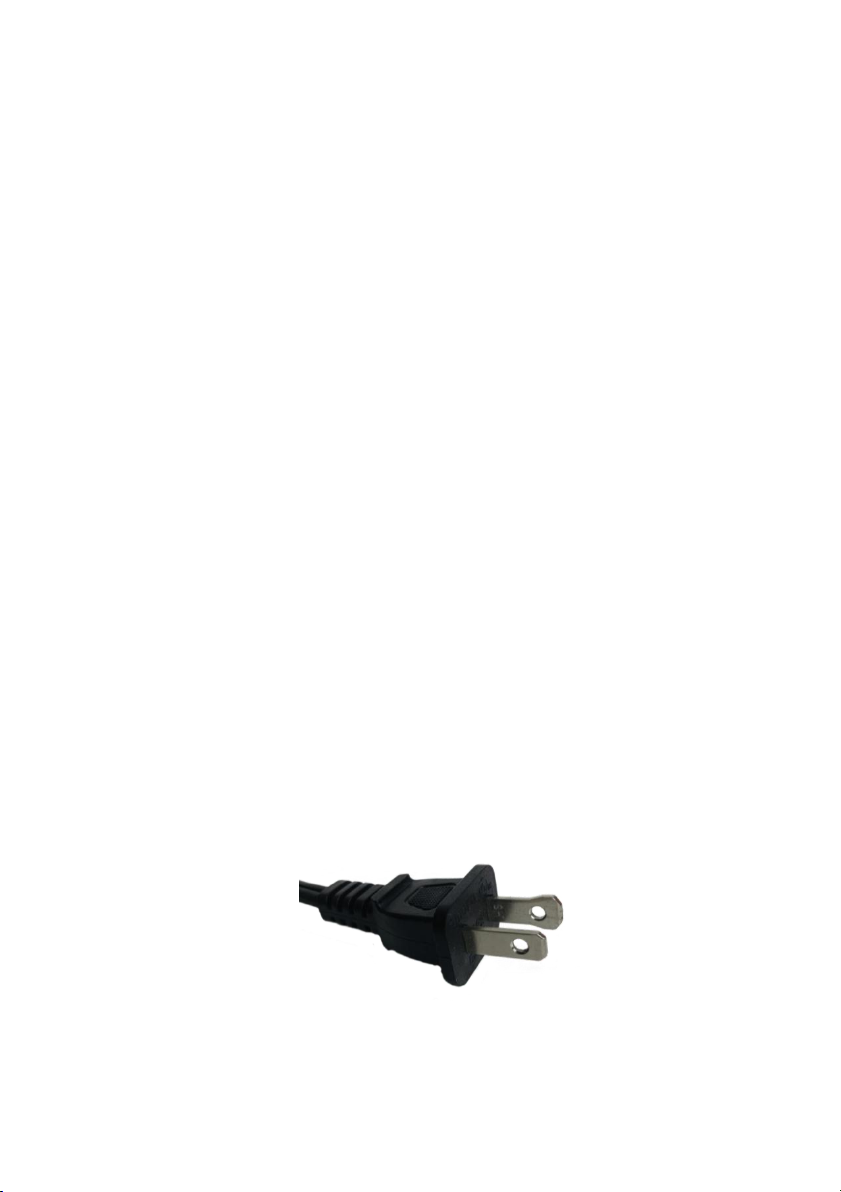

ELECTRICAL POLARIZED PLUG
This unit has a polarized plug (one blade is wider than the
other). To reduce the risk of electric shock, the plug is
intended to be used by inserting it into the electrical outlet only
one way. If the plug does not fit securely into the outlet,
reverse the plug and re-insert. If it still does not fit, contact a
qualified electrician for assistance. Do not modify the plug in
any way.
3

SPECIFICATIONS:
Model Number：TO5712A-UL
Voltage anfrequency：120V~ 60Hz
Product size: 16” x 15” x 13.5” (L x W x H)
Packing size：19” x 17” x 16” (L x W x H)
Power: 1550W
Capacity: 18L/19QT
Net weight: 8.2 Kg/18LB
Gross weight: 9.8Kg/21.6LB
Accessories：Baking pan,fry basket,oven
rack,crumb tray
Up heating tube: 60V~ 350W 60Hz 4pcs
Down heating tube: 60V~ 400W 60Hz 2pcs
USING YOUR AIR FRYER OVEN
BEFORE USING FOR THE FIRST TIME
1.Remove all packaging stickers,and labels from the unit
2.Wash the Fry Basket, Oven Rack, Baking Pan, and Crumb
Tray with hot water, some dishwashing liquid, and a non-
abrasive sponge. Dry before placing trays into Air Fryer Oven.
3.Place the Crumb Tray in the bottom of the Air Fryer Oven
CAUTION:
Do not place the Air Fryer Oven against a wall or against other
appliances. It is important to leave at least 4 inches of free
space on the back and sides, and 4 inches of free space above
the Air Fryer Oven to allow for proper ventilation.
Do not put anything on top of the Air Fryer Oven.
4

Instructions
Indicator light: When theoven is in working state, the indicator
light will be on until it stops working.
Toast Timer: the timer is only used for toast. Rotate the timer
until your desired shade level is displayed.
Position switch: it is used to adjust different levels. The levels
that can be set include: Warm, Broil, Broil Convention, Toast,
Bake, Bake Convention and Air Fry.
Thermostat: it is used to set the working temperature of the
center of oven.
Display lamp
Heat pipe
Door hook
TOAST Timer
Position switch
Thermostat
Master timer
Lamp button
Baking pan
Oven rack
Fry basket
Air outlet
Rear foot
Crumb tray
5

Master timer: it is used to set the working time of all levels
except Toast. After the working time is set, the oven starts
cooking cycle. After the timer returns to zero, the oven is
powered off and stops working.
Lamp button: it is used to control the opening and closing of
oven lamp.
Heat pipe: the heating source of the oven, be careful when
using oven. Do not touch the heating tube, so as to avoid
scalding.
Rear foot: the main function is to support the back when
discharging the machine, so as to prevent the back housing of
the machine from directly contacting the wall.
Air outlet: after the hot air function is turned on, the air outlet will
discharge high temperature gas, and the back needs to leave a
certain space for heat dissipation.
Accessories Instructions
Baking pan: it can be used for grilling fish, cakes, pizzas and
small foods.
Oven rack: used for supporting baking tray and various baking
molds, or directly used for baking bread, sweet potato, corn and
other food.
Fry basket: it is mainly used for air frying, such as French fries,
sweet potatoes, corn, vegetables, etc.
Crumb tray: it is placed at the bottom of the cavity to receive
debris and a small amount of oil, which can be taken out for
cleaning.

CONTROL PANEL
Warm function: turn the function knob to warm, turn the
(temperature knob to warm ,open the OVEN TIMER, oven
working. (down heating tube )
Broil: turn the function knob to broil ,turn the temperature knob
to 450, open the OVEN TIMER, oven working. (2pcs up
heating tube and motor)
Broil (strong fan): turn the function knob to broil the
temperature knob to
450 ,open the OVEN TIMER, oven working. (2pcs up heating
tube and motor)
Toast: turn the function knob to toast, turn the temperature
knob to 450,open the TOAST TIMER, oven working. (down
heating tube and up heating tube and motor The coloring
effect of silk screen printing is based on 4 slices of bread.
When the number of bread slices is reduced, the time set by
toast timer should also be reduced.)
Bake: turn the function knob to bake ,turn the temperature
knob to 450, open the OVEN TIMER, oven working. (down
heating tube and up heating tube and motor)
Bake(strong fan): turn the function knob to bake ,turn the
temperature knob to 450 ,open the OVEN TIMER, oven
working. (down heating tube and up heating tube and motor)
Air fry: turn the function knob to air fry ,turn the temperature
Toast timer
Work light Function switch Oven timer
Lamp keyTemperature F
7

knob to 450,open the OVEN TIMER, oven working. (up heating
tube and motor)
Tips: The above contents are only for function introduction. If
there is a recipe for cooking, please refer to the recipe. If there
is no recipe, the user can adjust it according to the actual
situation.
CLEANING & MAINTENANCE
WARNING: Never immerse cord, plugs, or appliance in water
or other liquid. Do not plug in the appliance or operate the
control panel with wet hands.
Clean the appliance after each use.
Always unplug the appliance and let it cool down completely
before cleaning.
Never use abrasive cleaner or corrosive products to clean the
appliance,as this may damage the appliance surface and
cause rust.
Clean the exterior with soapy sponge or towel.
Wet the towel or sponge in soap water,and clean the interior
with wet towel or sponge.Remove all the residue after each use.
Clean accessories in dishwasher, or hand wash with a nylon
scoring pad or brush in warm, soapy water.
STORAGE
U
nplug the appliance and let it cool down.
M
ake sure all parts are clean and dry
S
tore the appliance in a clean and dry place.
E
NVIRONMENT
D
o not throw away the appliance with the normal household
w
aste at the end of its life, but hand it in at an official collection
po
int for recycling. By doing this, you help to preserve the
en
vironment.
8

TROUBLESHOOTING
Problem Solution
The Air Fryer
Oven does not
work
Ensure the unit is plugged into a dedi-
cated power outlet.
Food is not
cooked
Use smaller batches for more even
cooking
Raise temperature and continue cooking
Food is not fried
evenly
Turn over food halfway through cooking
process
Cook similar sized foods together
White smoke is
coming out of the
Air Fryer Oven
Clean the Air Fryer Oven and accesso-
ries after each use to remove greasy
residue
French Fries are
not cooking
evenly
Fry less potatoes at a time
Blanch potatoes with boiling water
before frying
Use firm, fresh potatoes cut into sticks
Fries are not
crispy Remove excess water from potatoes
Cut potatoes into more narrow strips
Mist with a littlemore oil
9
