aumate TO5712A-UL User manual

AIR FRYER OVEN
INSTRUCTION MANUAL
TO5712A-UL
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

CONTENTS
IMPORTANT SAFEGUARDS…………………………………... 1
FUNCTION DESCRIPTION OF CONTROL PANEL…………. 4
TROUBLESHOOTING GUIDE…………………………………...7
PRODUCT STRUCTURE DIAGRAM……………………………8
CLEANING & MAINTENANCE ………………………………….10
WARRANTY SERVICE AND DISPOSAL……………………….11

1
Household use only
SAVE THESE INSTRUCTIONS
IMPORTANT SAFEGUARDS
WARNING: In order to prevent injury and property damage,
please read this manual carefully to avoid any misuse.
1. Read all instructions.
2. Do not plug and unplug the power supply with wet hands,
otherwise it may cause short circuit and electric shock.
3. If the power cord is damaged, in order to avoid the danger of
short circuit and electric shock. It must be replaced by a
professional of the manufacturer or a similar department.
4. Do not use the appliance if the plug, the main cord or the
appliance itself is damaged. To avoid fire or other hazards.
5. Please keep the power plug clean. If there is too much dust, it
may cause fire and short circuit.
6. Do not let the power cord pass under the machine or close to
the parts with high temperature, so as to avoid fire and electric
shock caused by the damage of the power cord.
7. When unplugging the power plug, be sure to hold the power
plug well and unplug it to avoid failure and electric shock.
8. Do not change, disassemble or repair the machine without
authorization to avoid fire, electric shock, injury and other
hazards.

2
9. Do not use this product near water source or wet place to
avoid electric shock.
10. Do not place the appliance on or near combustible materials
such as tablecloth or curtain.
11. Do not put the needle, iron wire and other metal foreign
matters into the machine to avoid electric shock, injury and
failure.
12. In order to prevent injury, please pay special attention to
infants and young children. Do not let infants and young
children use the machine alone to avoid electric shock, injury
or scald.
13. In case of any abnormality (such as burning, smoke, etc.),
please unplug the power plug immediately and stop using the
well, otherwise it may cause fire or electric shock.
14. Please do not use it for commercial purposes. This machine is
only for domestic use to avoid fire or other injuries.
15. Please do not move, maintain or clean the machine until it is
completely cooled, so as to avoid fire and scald.
16. Do not touch the metal part of the machine body immediately
during or just after use to avoid scalding.
17. Immediately unplug the appliance if you see dark smoke
coming out of the appliance. Wait for the smoke emission to
stop before you remove the pan from the appliance.
18. Oversize foods or metal utensils must not be inserted in a

3
appliance as they may create a fire or risk of electric shock.
19. Do not touch the hot surfaces; use handle. During air frying,
hot steam is released through the air outlet openings. Keep
your hands and face at a safe distance from the steam and
from the air outlet openings. Also be careful of hot steam and
air when remove the pan from the appliance.
20. A fire may occur if the appliance is covered or touching
flammable material, including curtains, draperies, walls, and
the like, when in operation. Do not store any item on top of the
appliance when in operation.
21. Do not place any of the following materials in the oven: paper,
cardboard, plastic, and the like.

4
FUNCTION DESCRIPTION OF CONTROL PANEL
CONTROL PANEL
1. INDICATOR LIGHT
After the operation of the oven is started, the indicator light is on,
and after the operation is stopped, the indicator light is off.
2. TOAST TIMER KNOB
This knob is only effective when the toast function is used.
3. FUNCTION ADJUSTMENT KNOB
Warm: Adjust the function position to the “warm” position, adjust
the temperature adjustment knob to the "warm" position (It's about
200°F ) , turn on the main timer knob on the right, and the oven
starts to work (two lower heating pipes work).
Broil: Adjust the functional gear to “ Broil” position, the
temperature adjustment knob is adjusted to the 450 ℉ , the
Indicator light
Oven lamp button
Toast timer knob
Function switch knob
Temperature
adjustment knob
Main timer knob

5
main timer knob on the right is turned on, and the oven
starts to work (two upper heating pipes + low-speed
running of fan work).
Broil: Adjust the functional gear to “ Broil ” position, the
temperature adjustment knob is adjusted to the 450℉, the main
timer knob on the right is turned on, and the oven starts to work
(two upper heating pipes + high-speed running of fan work).
T oast: Adjust the functional gear to “Toast” position, the
temperature adjustment knob is adjusted to the 450℉, turn on the
knob of toast timer, and the oven starts to work (2 upper heating
pipes + lower heating pipes + low-speed running of fan work. The
silk screen scale corresponds to the coloring reference of 4 pieces
of bread by default, and the bread pieces are reduced, the time
should be reduced as appropriate.)
Bake: Adjust the functional gear to the “Bake” position, the
temperature adjustment knob is adjusted to the 450 ℉ , turn
on the main timer knob on the right, and the oven starts to work (2
upper heating pipes + lower heating pipes + low-speed running of
fan).
Bake: Adjust the functional gear to the “ Bake” position, the
temperature adjustment knob is adjusted to the 450 ℉ , turn
on the main timer knob on the right, and the oven starts to work (2
upper heating pipes + lower heating pipes + high-speed running of
fan).
Air fry: Adjust the functional gear to the “Air fry” position, the
temperature adjustment knob is adjusted to the 450 ℉ , turn
on the main timer knob on the right, and the oven starts to work (4
upper heating pipes + high-speed running of fan).
Warm Tips: The above content is only a function introduction. If
there is a recipe during cooking, you can refer to the recipe. If
there is no recipe, you can adjust it according to the actual
situation.

6
4. TEMPERATURE ADJUSTMENT KNOB
This knob is used to adjust the temperature.
5. MAIN TIMER KNOB
This knob does not apply to the toast function.
It can be set for 60 minutes at most. After setting time run out,
main timer knob will back to OFF position.
When using the time adjustment knob (toast timer, main timer
knob), if the set time angle is less than 90 degrees, you must
turn the knob to a position greater than 90 degrees, and then
turn it to the required time position.
6. OVEN LAMP BUTTON
It is used to track process of cooking clearly, please note you need
to turn ON/OFF it manually.
SPECIFICATIONS
Power parameters 120V 60Hz 1550W
Volume 18L
Accessories
Fry basket, oven rack, baking pan
and crumb tray
Heat pipe
(Straight stainless steel)
Upper 4 heating pipe: 350W each
Lower 2 heating pipe: 400W each
Cavity Size 315 mm(L)x322mm(W)x190 mm(H)
External dimension of
product
400mm(L)×387mm(W)×340mm(H)

7
TROUBLESHOOTING GUIDE
Problem Solution
The Air Fryer Oven
does not work？
Ensure the unit is plugged into a dedicated
power outlet.
F
ood is not cooked
well?

Use smaller batches for more even
cooking.

Raise the temperature and continue
cooking.
Food is not fried
evenly?
Turn over food halfway through cooking
process.
Cook similar sized foods together.
White smoke is
coming out of the Air
Fryer Oven

The first use of the new oven requires
half an hour of empty burning.

Clean the Air Fryer Oven and
accessories after each use to remove
greasy residue.
French fries are not
cooking evenly?
Cook less potatoes at time.
Blanch potatoes before frying.
Use firm, fresh potatoes cut into sticks.
French fries not
crispy?
Remove excess water from potatoes.
Cut potatoes into more narrow strips.

Spray a small amount of oil on potato
strips.

8

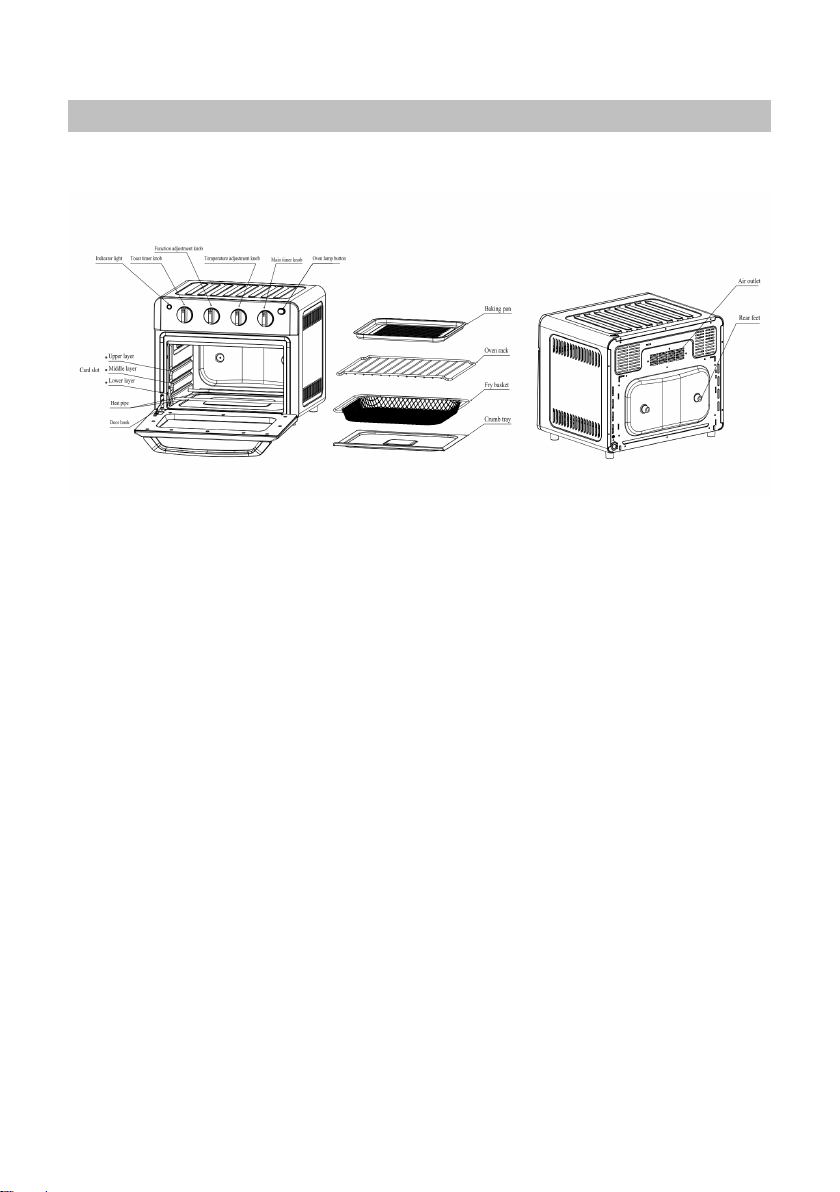

PRODUCT STRUCTURE DIAGRAM
Whole machine structure diagram
Instructions:
1) Heating tube: the heating source of the oven. Be careful not to
touch the heating tube to avoid scalding.
2) Oven foot: the main function is to support the back of the
appliance when discharging the appliance, so as to avoid the rear
housing of the appliance from contacting the wall directly.
3) Air outlet: The air outlet will discharge superhot gas after the
convection fan start work, so please make sure there will be 10 cm
at least from back of oven to the wall.
Suggestions for card slot placement:
1. Upper layer: For toast (Toast), French fries (Air fry), chicken
wings (Air fry), cookies (Bake), popcorn chicken (Air fry), etc.
2. Middle layer: For cake (Bake), whole chicken (Broil), etc.
3. Lower layer: It is generally used to bake food with large size.
Note: Here are only suggestions about recipes. Users can adjust
according to different requirement or personal taste.

9
Instructions for accessories:
1. Baking pan: It can be used to roast fish, cake, pizza and small
food. Tips: The baking pan need to be used together with oven
rack or fry basket.
2. Oven rack: It is used to support baking pan and various baking
molds, or directly used for baking bread, sweet potato, corn
and other food.
3. Fry basket: It is mainly used for air frying of French fries, sweet
potatoes, corn, vegetables, etc., and can also be air dried with
dried fruits.
4. Crumb tray: Put it on the bottom of the cavity, it is be used to
catches any residue and excess oil, which can be taken out for
cleaning.
Placement Suggestion:
1. Please set the distance between the
machine and the wall and furniture as
shown in the right figure to avoid
deformation and discoloration caused
by heating
2. Do not place inflammables above or
below the machine to avoid fire.
3. Do not put it in an unstable position or
on an object that is not heat-resistant,
so as to avoid fire.
4.
When using, please note that the
power cord should not contact the
back of the oven to avoid damage to
the p
ower cord caused by high
temperature.
Placement Suggestion

10
.CLEANING & MAINTENANCE …… ……………
WARNING: Never immerse cord, plugs, or appliance in water or
other liquid. Do not plug in the appliance or operate the control
panel with wet hands.
Clean the appliance after every use.
Apply a cleaning agent to a cloth and wipe down the exterior.
Never use abrasive utensils or corrosive products to clean the
appliance.
Always unplug the appliance and let it cool down completely
before cleaning and maintenance to avoid burns.
Do not use gasoline, Banana Oil, polishing agent and
corrosive cleaner for cleaning.
To avoid short circuit, electric shock, injury, fire, etc, please
unplug when cleaning and maintaining the machine.
Due to the oven body is not waterproof, please do not immerse
or drench machine in water during cleaning. Otherwise it
may cause short circuit, electric shock and damage the
machine, even cause personal injury.

11
WARRANTY SERVICE AND DISPOSAL
AUMATE Kitchencore Provide One Year Full Warranty from date
of purchase.
We're so confident the quality of our products meets the exacting
standards of AUMATE Kitchencore that, if your Air Fryer Oven
should fail within the first year of ownership, AUMATE Kitchencore
will arrange to deliver an identical or comparable replacement to
your door free of charge and arrange to have your original Air
Fryer Oven returned to us. Your replacement unit will also be
covered by our one year limited warranty, which excluding any
wearing parts.
If your Air Fryer Oven should fail within the first year of ownership,
simply contact Customer Experience Center:
[e-mail], Monday through Friday. Proof of
purchase will be required to initiate the claim .Give the consultant
your complete shipping address (no P.O. Box numbers, please ).
Disposal/Environmental protection
Do not dispose of the device in normal domestic waste.
Dispose of the device over a registered waste disposal firm
or through your communal waste disposal facility.
Observe the currently valid regulations. In case of doubt,
consult your waste disposal facility

12
