Aumuller UniPC Training manual

! !
Warranty claims require proper and profes-
sional assembly, installation and maintenance
in accordance with national regulations and
manufacturer‘s instructions of the drives.
The safety instructions in the supplied pro-
duct documentation are to be observed.
Strictly observe the information given in this
and in the instructions for installation of
the drives when parameterize the AUMÜLLER-
drives with UniPC.
Details can be found on our website
www.aumueller-gmbh.de
Keep this instruction over the lifetime of the
product.

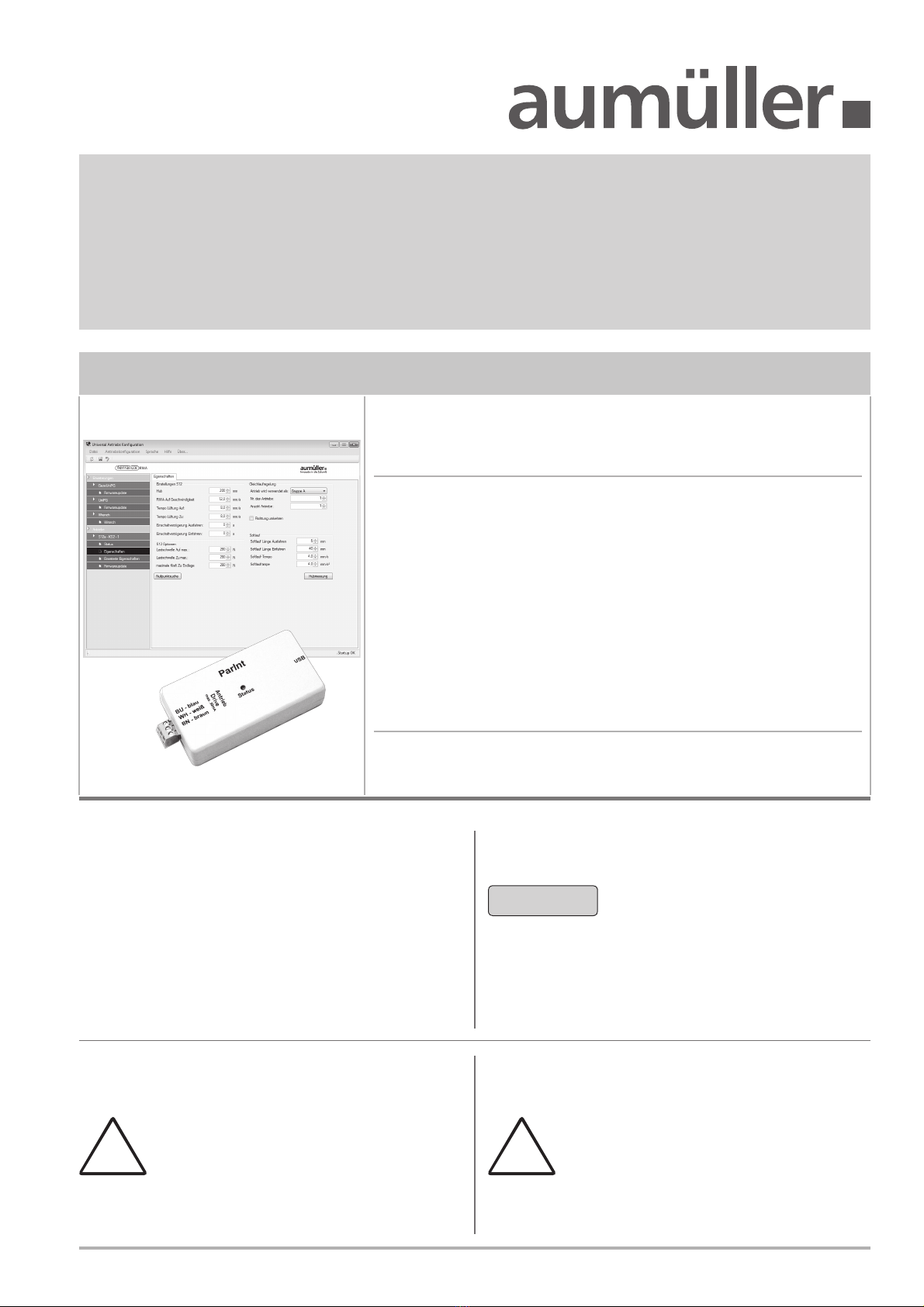

UniPC (Drive Parameterisation)
Assembly and Commissioning Instructions
UniPC (Drive Parameterisation)
UniPC (Drive Parameterisation):
• UniPC is a parameter assigment software AUMÜLLER
drives - with the necessary hardware (ParInt). With
this program, a variety of AUMÜLLER productes can be
congured.
• For each product, a separate „plugin“ is available.
• Each plugin congures and controls other drives.
• Congurable drives: S12, S12 V.2, S3
Part.-No.: 524178
Application: Hard- and software for the conguration of drives
produced by Aumüller AUMÜLLER AUMATIC GMBH.
Rated voltage: 24 V DC +/-20 %
Congurable drives: 24 V DC in version S12, S12 V.2, S3
230 V AC in version S12, S12 V.2
Connections: 3x Pluggable screw terminals 1,0 mm²
1x USB Port
Package contents: 1x Software UniPC (Download link)
http://www.aumueller-gmbh.de/Downloads
1x Interface “ParInt”
1x USB cable
1x Connection cable
Feature / Equipment: Power supply 24 V DC not included!
NOTE
Power supply 24 V DC not included!
The power supply 24 V DC of a
control unit or test equipment (Part.-
No.: 533981) can be used!

Assembly Instruction
UniPC

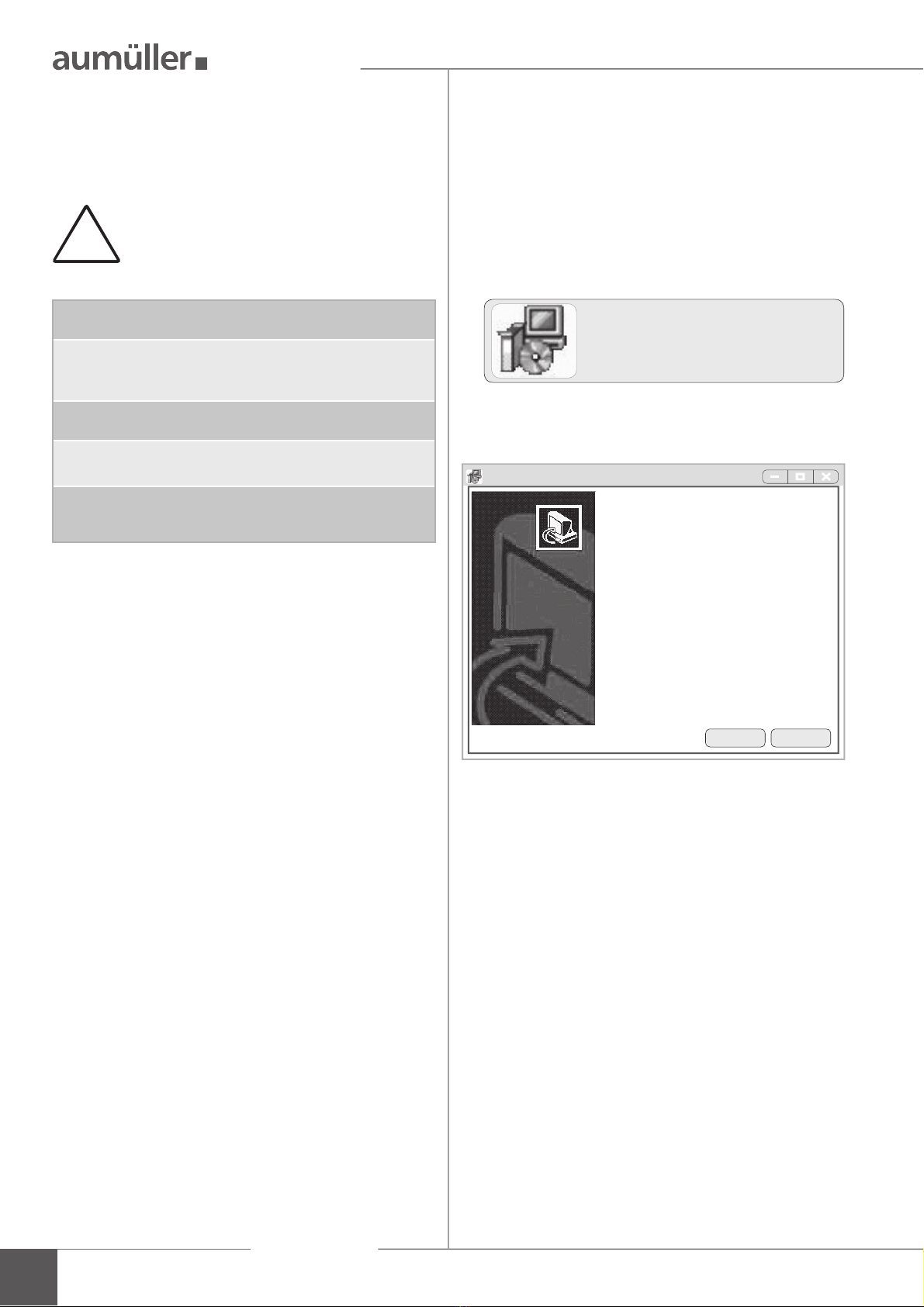

PRELIMINARY REMARK / INSTALLATION
SYSTEM REQUIREMENTS INSTALLATION STEP 1:
INSTALL THE SOFTWARE UNIPC
Download the software UniPC through this link:
http://www.aumueller-gmbh.de / Downloads / Software
Double-click on the icon UniPC_setup_x.x and the
installation starts on the Windows computer.
Follow the instructions of the setup wizard.
The program can be installed on a computer with at least
the following characteristics:
!
The software UniPC is designed exclusively
for the parameterisation of the AUMÜLLER
drives indicated in this instruction.
CPU:
1 GHz or faster.
Operating systems:
Microsoft® Windows 7
Microsoft® Windows 10
Memory:
512 MB RAM or more
Hard disk:
at least 100 MB free memory space required
Accessories:
USB connection for connecting computer<>Control Unit,
Internet connection for system installation and updates.
2
UniPC_setup_x.x.exe
Welcome to
Universal parameterisation
Setup Wizard
This wizard will install now UniPC 3.1.18.06 on your
computer.
You should close all other applications before procee-
ding with the Setup.
„Next“ to continue, „Cancel“ to exit.
Setup - Universal drive parameterisation
Next Cancel

Assembly Instruction
UniPC
+
-
BU
WH
BU
WH
BN
BU
BN
BN
S12
S3
24VDC
24VDC
BU
BN
UniPC
S12
230VAC
WH GY
BU
BN
BK
BU
GN / YE PE
N
L
230V AC
UniPC
BU
WH
BN
CONNETION / NAVIGATION
INSTALLATION STEP 2B:
CONNECTION OF DRIVES 230 V AC
WITH S12
INSTALLATION STEP 2A:
CONNECTION OF DRIVES 24 V DC
WITH S12 OR S3
Connect computer, Interface „ParInt“ and drives.Connect computer, Interface „ParInt“ and drives.
!
INSTALLATION STEP 2C:
CONNECTION OF DRIVES 230 V AC WITH S12 - PARAMETERISATION ON THE 24 V-SIDE
!
Multi-drive operating (set)
285
connection box
site-supplied
connecting „ParInt“separate drives
285
master 230V Rslave 24V L (K)
24V DC, non-halogen
ca. 3m, 3 x 0,5 mm2
230V AC, non-halogen
ca. 3m, 6 x 0,75 mm2
You can only congure one drive. Separate
the drives.
For drives in multi-drive operation (set) a second cable
leads already out of the end cap. This cable can be used
for conguration with the UniPC.Loosen the screws (drive: type KS2).
Remove the end cap from the drive housing .
Pull out the cable
, strip and connect it to the
„ParInt“.
After conguring the drives, insulate the cable .
Mounted the end cap
with screws at the drive
housing
.
At 230V AC drives (type KS2 / KSA) with Z version use the
internal cable on the 24V-side:
3 4
1
1
2
!
Do not use an external power supply, other-
wise the drive will be destroyed.
Program without voltage. Connect only to
the „PartInt“.
3
note polarity!
24V DC from control unit
(direction CLOSE) or
from 24V DC switch
mode power supply
NOTE If only one drive is programmed, an ad-
ditional power supply is not necessary.
During the parameterisation: Do not switch
off the operating voltage when connected to
a control unit, because it leads to problems.
Color DIN IEC 757
BK = black GN /YE = green / yellow
BN = brown GY = grey
BU = blue WH = white
drive
ParInt
drive
ParInt

9000015401_V2.1_KW11/19

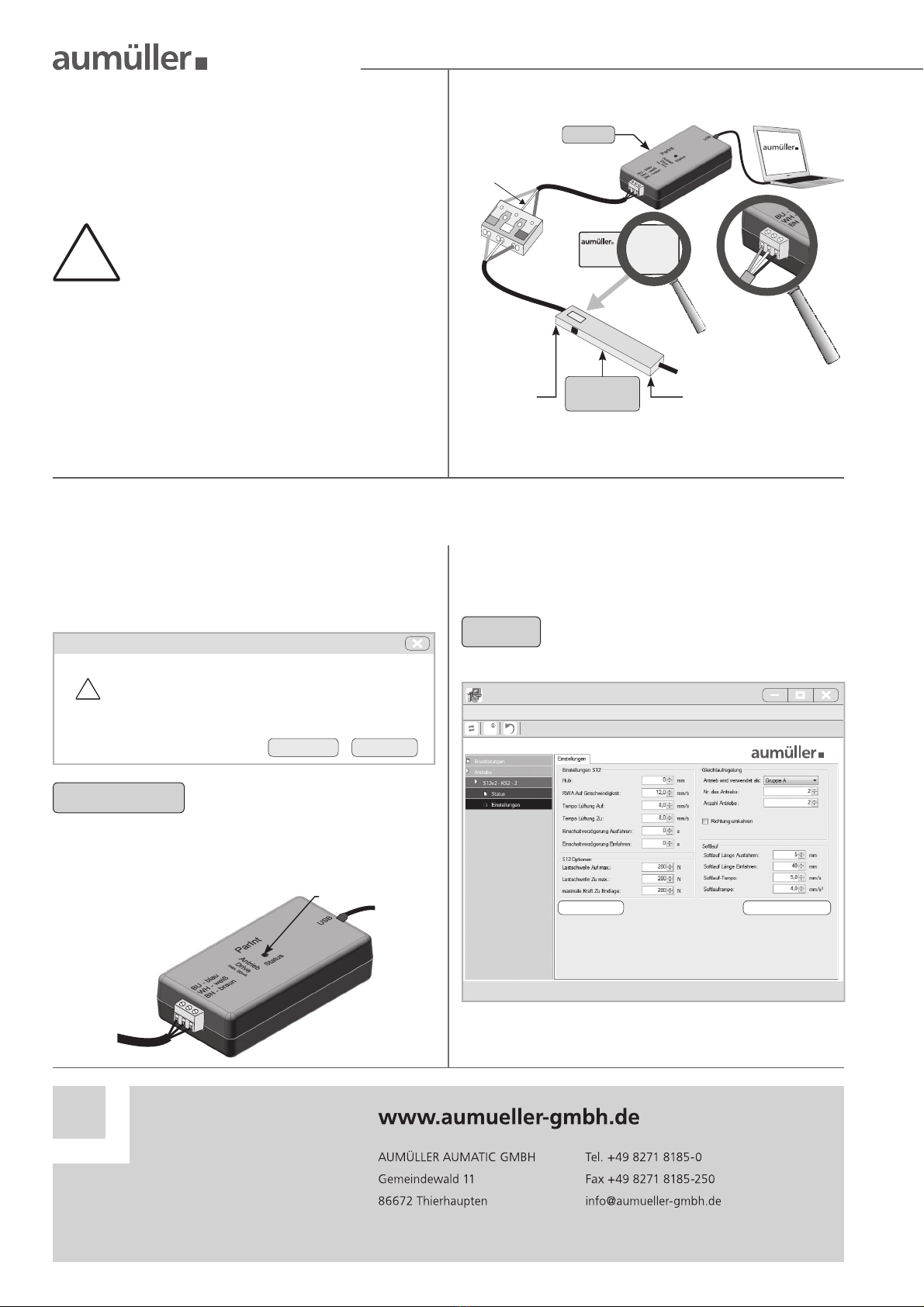

CONFIGURATION
For the navigation thrue the software UniPC there
are menu items, buttons and tabs available.
Connect computer, Interface „ParInt“ and drives.
!
CONNECTION OF DRIVES 230 V AC WITH S12
- PARAMETERISATION ON THE 24 V-SIDE
Do not use an external power supply, other-
wise the drive will be destroyed.
Program without voltage. Connect only to
the „PartInt“.
BU
WH
BN BU
BN
UniPC
S12
230VAC
drive
“Z“ version
ParInt
24V DC side 230V AC side
NOTE
For information about the exact procedure
and the functions of the software UniPC
please refer to the „Help / User‘s Manual“.
Universal drive conguration
.Startup OK
File drive conguration language Help Over.....

Origin search stroke measurement
INSTALLATION STEP: START THE CONFIGURATION
Start the software UniPC with a double-click.
When the program starts it automatically checks
for new updates. Depending on the requirements
click the button Yes or No.
The LED in the „ParInt“ ashes red. The software
UniPC is searching for connected devices.
LED
Updates
!
Perhaps this version is obsolete.
Would you like to check for updates now?
Yes No
RECOMMENDATION Always start updates to keep the
software up to date
