Albatron KM400T-8X Series User manual

KM400T-8X Series
Copyright
All rights are reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the
prior written permission of the company. Brands and product names are trademarks or registered
trademarks of their respective companies.
The vendor makes no representations or warranties with respect to the contents herein and especially
disclaim any implied warranties of merchantability or fitness for any purpose. Further the vendor
reserves the right to revise this publication and to make changes to the contents herein without
obligation to notify any party beforehand. Duplication of this publication, in part or in whole, is not
allowed without first obtaining the vendor’s approval in writing.
Disclaimer
We make no warranty of any kind with regard to the content of this user’s manual. The content is
subject to change without notice and we will not be responsible for any mistakes found in this user’s
manual. All the brand and product names are trademarks of their respective companies.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense. However, there is no guarantee that interference will not occur in a
particular installation.
120410050M1N

KM400T-8X Series
VIA® VT8377 (KT400) & VT8235
Supports Socket 462 AMD®Athlon XPTM/ AthlonTM /DuronTM /BartonTM Processor
USER Manual
Package Contents:
zIDE Cable
zFDC Cable
zUSB Bracket (optional)
zInstallation and Setup Driver CD
zKM400T-8X Series User Manual
Dimensions (Micro ATX form-factor):
z200 mm x 243 mm (WxL)
Operating System:
zSupports most popular operating systems: Windows®9X/ME/2000/XP etc.

Contents
CHAPTER 1. GETTING STARTED ....................................................................................1
INTRODUCTION.......................................................................................................................1
SPECIFICATION .......................................................................................................................2
QUICK CONTENT TABLE.........................................................................................................5
CONFIGURATION .................................................................................................................... 6
HARDWARE INSTALLATION....................................................................................................8
CHAPTER 2. BIOS SETUP.................................................................................................20
INTRODUCTION.....................................................................................................................20
MAIN MENU.........................................................................................................................22
ADVANCED BIOS FEATURES ...............................................................................................24
INTEGRATED PERIPHERALS .................................................................................................. 32
POWER MANAGEMENT.........................................................................................................36
HARDWARE MONITOR..........................................................................................................41
LOAD DEFAULTS .................................................................................................................. 42
EXIT MENU ..........................................................................................................................43
CHAPTER 3: SOFTWARE SETUP....................................................................................44
SOFTWARE LIST ...................................................................................................................44
SOFTWARE INSTALLATION ................................................................................................... 44
CHAPTER 4: TROUBLESHOOTING...............................................................................46
APPENDIX I: SUPER 5.1 CHANNEL SETUP ............................................................................. 49

KM400T-8X Series
Chapter 1. Getting Started
Introduction
Congratulations on choosing the KM400T-8X Series mainboard! The KM400T-8X series includes
the KM400T-8X PRO and KM400T-8X. These are based on VT8377 and VT8235 chipsets. It also
supports AMD®Athlon XPTM/ AthlonTM/ DuronTM/ BartonTM Processors with a FSB (Front Side Bus)
frequency of 200/ 266/ 333 MHz.
The KM400T-8X Series provide 2 sockets using 184 pin DDR SDRAM with a total capacity of up to
2GB. You can install DDR333/ 266/ 200 (PC2700/ 2100/ 1600) SDRAM. This mainboard is capable
of DDR400 without overclocking, simply by using DDR400 SDRAM and making the appropriate
adjustments to the BIOS configuration. (For more details please refer the Frequency / Voltage
Control section.)
The KM400T-8X Series provide one AGP Slot for 2X/ 4X/ 8X (1.5V only) AGP cards.
The KM400T-8X Series include built in IDE facilities that support Ultra DMA 33/66/100/133. The
KM400T-8X Series also comes with an Audio Codec (VIA VT1616) which supports high quality 6
channel audio (Super 5.1 Channel Audio Effect).
The KM400T-8X Series also include CPU Over Temperature Protection (OTP). When CPU
temperature rises above normal values, the system will automatically shut down to protect your
system from overheating. But the OTP is only functional when using an Athlon XPTM CPU.
The KM400T-8X Series also comes with six USB 2.0 ports.
The KM400T-8X PRO also comes with a LAN Chip (VIA VT6103) which supports a back panel
LAN port.
1

KM400T-8X Series
Specification
CPU:
zSupports Socket 462 (Socket A)
zSupports AMD®Athlon XPTM, AthlonTM, DuronTM, BartonTM processors
Speed:
z200/ 266/ 333 MHz Front Side Bus frequency
z33 MHz, 32 bit PCI interface (PCI 2.2 compliant)
z66 MHz AGP 2.0 compliant interface that supports 2X/ 4X data transfer modes
z66 MHz AGP 3.0 compliant interface that supports 8X data transfer modes
Chipset:
zNorthbridge Chip – VIA VT8377 (KT400)
zSouthbridge Chip – VIA VT8235
zI/O Controller – Winbond Super I/O W83697HF
zAudio Codec – VIA VT1616
zLAN Chip – VIA VT6103
DRAM Memory:
zSupports DDR333 (PC2700)/ DDR266 (PC2100)/ DDR200 (PC1600) SDRAM
zSupports 64 MB/ 128 MB/ 256 MB/ 512 MB/ 1 GB unbuffered/ registered non-ECC
DIMM modules
zSupports up to two double-sided memory modules with a total capacity of 2 GB
Green Functionality:
zSupports Phoenix-Award BIOS ™ power management functionality
zWakes from power saving sleep mode with any keyboard or mouse activity
Shadow RAM:
zThis mainboard is equipped with a memory controller providing shadow RAM and
support for ROM BIOS
2

KM400T-8X Series
BUS Slots:
zProvides one AGP slot (1.5V only)
zProvides three PCI bus slots
Flash Memory:
zSupports flash memory functionality
zSupports ESCD functionality
Hardware Monitor Function:
zMonitors CPU Fan/ Chassis Fan Speed
zMonitors CPU & system Temperature
zMonitors System Voltage
Audio Sound Codec Onboard:
zAC-LINK protocol compliance
zCompliant with AC’97 2.1 specification
z6-channel playback capability (Super 5.1 Channel Audio Effect)
zSupports Sony/ Philips Digital Interface (S/PDIF) for output only
LAN Controller on board: (only for KM400T-8X PRO)
z10/ 100 MHz full and half duplex operation
zIndependent 2K byte FIFOs for receive and transmit
zMagic packet and wake-on-address filtering
zSoftware controllable power down
IDE Facilities:
zSupports Ultra ATA 33, Ultra ATA 66, Ultra ATA 100, Ultra ATA 133
zSupports IDE interface with CD-ROM
zSupports high capacity hard disk drives
zSupports installation of up to 4 drives, with separate IDE connections for Primary and
Secondary connectors
3

KM400T-8X Series
I/O facilities:
zOne multi-mode Parallel Port capable of supporting the following specifications:
1. Standard & Bi-direction Parallel Port
2. Enhanced Parallel Port (EPP)
3. Extended Capabilities Port (ECP)
zSupports two serial ports, 16550 UART
zSupports PS/2 mouse and PS/2 keyboard
zSupports 360 KB, 720 KB, 1.2 MB, 1.44 MB, and 2.88 MB floppy disk drives
zMIDI compatible
zGame port compatible
Universal Serial Bus:
zSupports six USB 1.1/2.0 ports for USB interface devices
BIOS:
zPhoenix-Award™ BIOS
zSupports APM1.2
zSupports USB Legacy function
zSupports ACPI power management
Sophisticated OTP (Over Temperature Protection):
zSpecial design for CPU Over Temperature Protection.
zOTP is functional when using an Athlon XPTM CPU.
Watch Dog Timer:
zThe mainboard contains a special feature called the “Watch Dog Timer” which is used to
detect when the system is unable to handle over-clocking configurations during POST
stage. Once detected the system will reset the configurations and reboot the system after
five seconds. On most systems you would need to remove the cover of your system and
re-jumper the clear CMOS switches on the mainboard when your system encounters
over-clocking problems. With the “Watch Dog Timer”, overclocking settings will be
automatically cleared and reset.
4

KM400T-8X Series
Quick Content Table
Function Content Location Page
CPU Socket 462 U3 8
DDR DIMM Sockets DIMM 1、2 10
ATX Power Connector ATX_ PWR 19
IDE Connectors IDE1/IDE2 14
FDC Connector FDC 14
AGP Slot AGP 19
PCI Slots PCI 1、2、3 19
CPU FAN、Chassis FAN、
Auxiliary FAN CPUFAN、CHASFAN、AUXFAN 9
Front Panel Indicator SW/LED、PWRLED 13
Speaker Connector SPEAKER 14
Front USB Headers USB2、USB3 15
Over Temperature Protection
Function JP4 15
Clear CMOS Jumper JP1 16
CPU Clock select Jumper JP5、JP6 16
CPU Ratio select * SW1A*、JP9* 17
Case Open Warning Header CASE OPEN 17
Sony/Philips Digital Interface
Connector S/PDIF 18
Front Panel Audio Header FRONTAUDIO 18
PC99 Color Codec Back Panel Back Panel Connector 11
* means optional
5

KM400T-8X Series
Configuration
Layout of KM400T-8X PRO
V
IA
V
T8377
USB2
SPDIF
Winbond
IO
W83697HF
U3
Socket 462
U6
CPUFAN
BAT1
FDC
ATX_PWR
A
GP
PCI1
PCI2
PCI3
DIMM2 IDE1 IDE2
DIMM1
V
IA
V
T8235
USB3
VIA
VT6103
1
2
2
1
1
1
BIOS
U17
CHASFAN
SW/LED
PWRLED
SPEAKER
1
1129
10
FRONT
AUDIO
1
99
2
10 10
A
UXFAN
1
Codec
JP1
U13
JP4
JP5
JP9
SW1A
JP6
CASE
OPEN
1
1
1
1
1
1
PRT/COM
KB/MS
USB/LAN
SOUND
+1
2
3
4
-
6

KM400T-8X Series
Layout of KM400T-8X
V
IA
V
T8377
USB2
Winbond
IO
W83697HF
U3
Socket 462
U6
CPUFAN
BAT1
FDC
ATX_PWR
A
GP
PCI1
PCI2
PCI3
DIMM2 IDE1 IDE2
DIMM1
V
IA
V
T8235
USB3
1
2
2
1
1
BIOS
U17
CHASFAN
SW/LED
PWRLED
SPEAKER
1
1129
10
99
10 10
A
UXFAN
1
SPDIF
1
FRONT
AUDIO
1
2
Codec
JP1
U13
JP4
JP5
JP9
SW1A
JP6
CASE
OPEN
1
1
1
1
1
1
PRT/COM
KB/MS
USB
SOUND
+1
2
3
4
-
7

KM400T-8X Series
Hardware Installation
This section will assist you in quickly installing your system hardware. Wear a wrist ground strap
before handling components. Electrostatic discharge may damage your system components.
CPU Processor Installation
This mainboard supports AMD®Athlon XPTM/ AthlonTM/ DuronTM/ BartonTM processors using a
Socket A (Socket 462 Pin package). Before building your system, we suggest you visit the AMD
website and review the processor installation procedures. http://www.amd.com
CPU Socket A Configuration Steps:

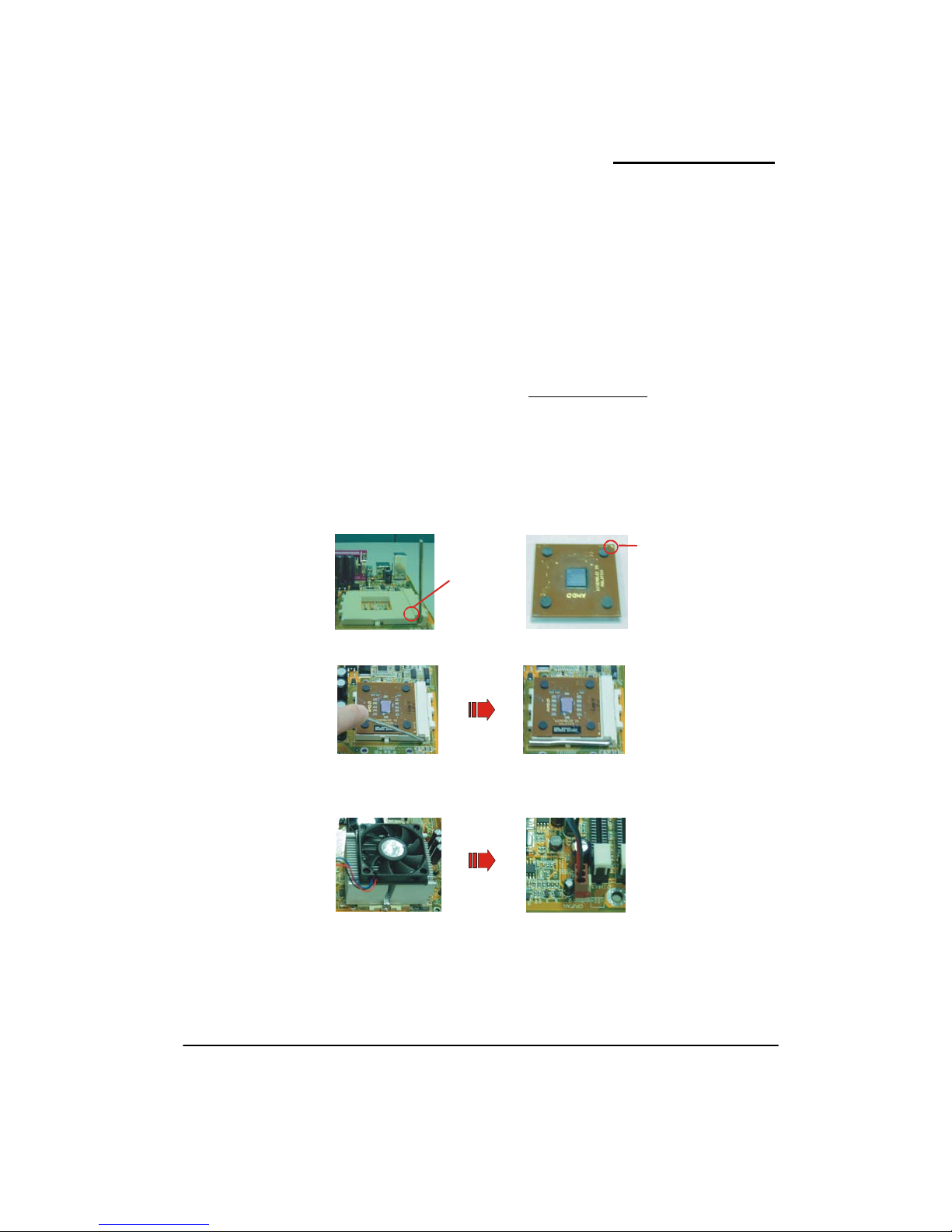

1. Locate the CPU socket on your mainboard and nudge the lever away from the socket. Then lift
the lever to a 90-degree angle.
2. On the socket, locate the corner that has the pin-1 receptor. This corner will be near to the end
of the lever. Match the corner on the CPU with the pin-1 receptor on the socket and lower the
CPU onto the socket. The bottom of the CPU should be flush with the face of the socket.
Pin-1
Receptor
Corner
3. Lower the lever until it snaps back into position. This will lock down the CPU.
4. Smear thermal grease on top of the CPU. Lower the CPU fan onto the CPU and use the clasps
on the fan to attach it to the socket. Finally, extend the power cable from the fan and insert it
onto the CPUFAN adapter.
8

KM400T-8X Series
9
FAN
Headers

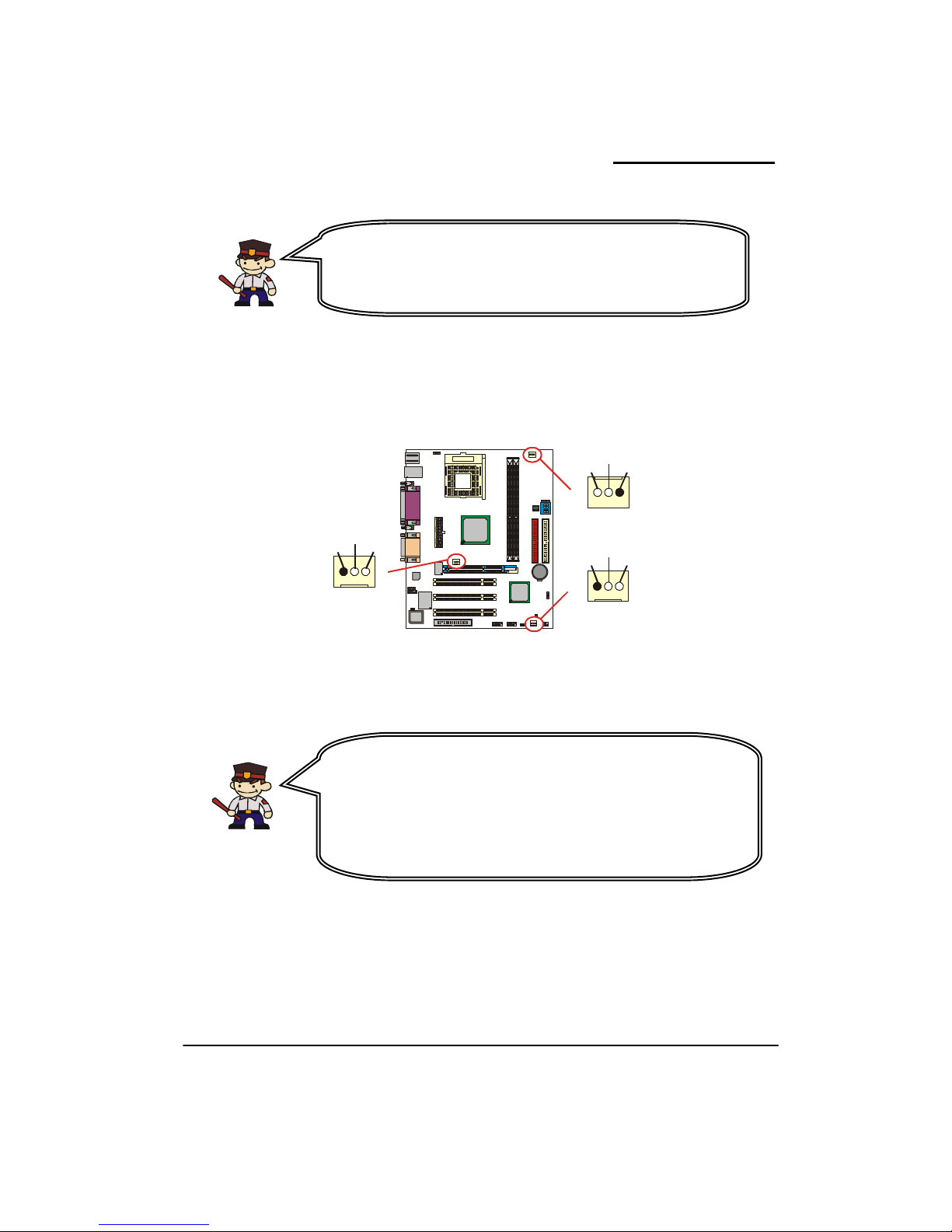

Three power headers are available for cooling fans, which play an important role in maintaining the
ambient temperature in your system.
Attention
Overheating may damage the CPU and other sensitive components.
Please check the installation completely before starting the system.
Make sure the heatsink and the CPU fan are properly installed.
Attention
This system has a BIOS configuration feature that issues a warning
(during POST) when the CPU fan is not plugged in or is not
functioning. In order to make use of this feature. You must make sure
that the CPU power cable is attached specifically to the “CPUFAN”
header. The BIOS configuration option is described in the “Hardware
Monitor” section of the BIOS Setup Utility Chapter.
V
IA
V
T8377
Win bond
IO
W83697HF
Socke t 462
V
IA
VT8235
1
2
2
1
BIOS
1
129
10
99
10 10
1
1
1
1
1
1
VIA
VT6103
1
1
2
Codec
+1
2
3
4
-
CPUFAN
AUXFAN CAHSFAN
1
1
1
Sense
NC
Sense
Ground
Ground
Ground
+12V
+12V
+12V
1
1
1

KM400T-8X Series
10
Memory Installation
The KM400T-8X Series contain 2 sockets, which use 184- pin DDR SDRAM with a total memory
capacity of up to 2 GB. You can install unbuffered/ registered non-ECC DDR333/ 266/ 200
e corresponding pattern in the
DIMM slot. This ensures that the module is inserted properly.
3.
(PC2700/ 2100/ 1600) SDRAM.

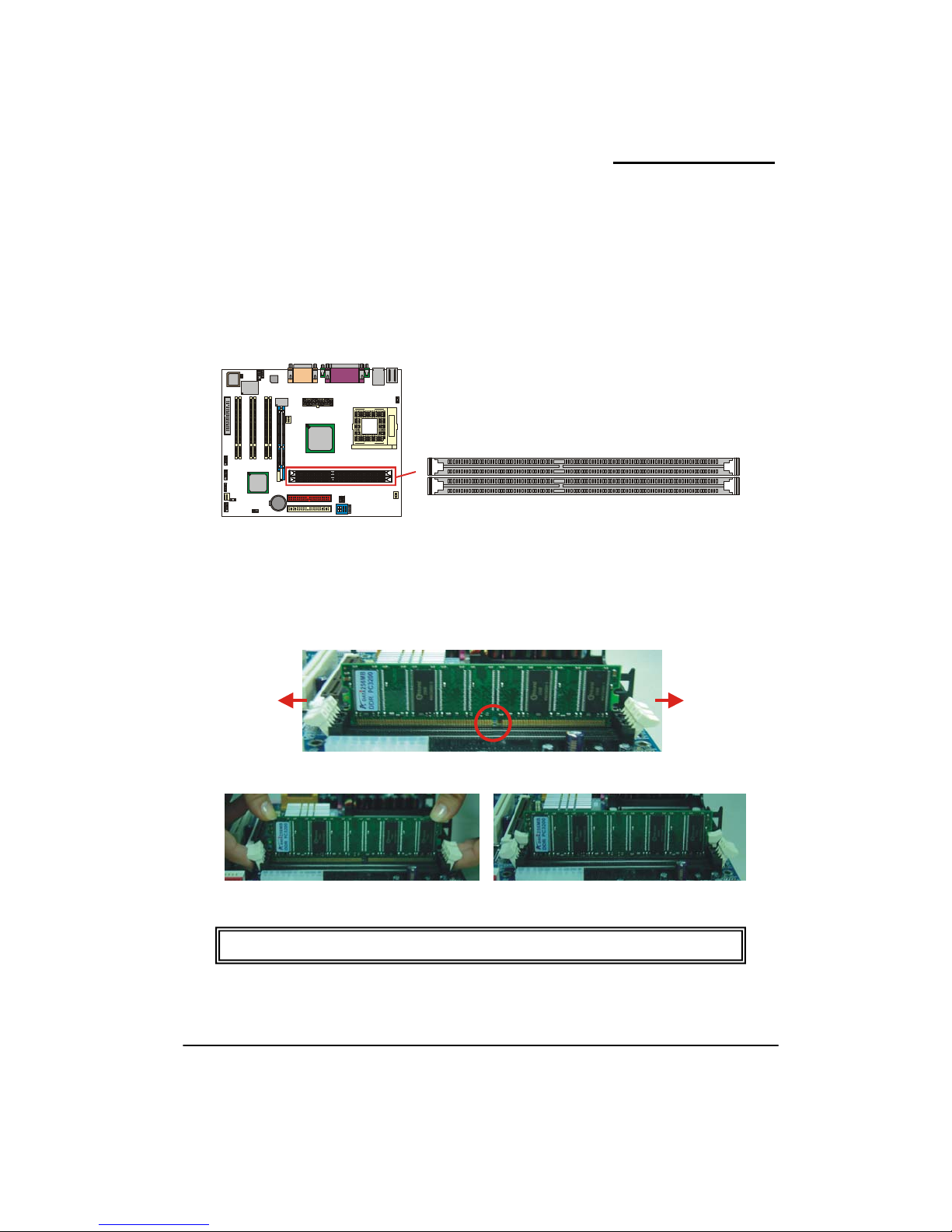

RAM Module Installation:
1. Pull the white plastic tabs on each side of the slot away from the slot.
Match the notch on the button of the RAM module with th2.
Lower the RAM module into the DIMM Slot and press firmly using both thumbs until the
module snaps into place.
4. Repeat steps 1, 2 and 3 for the remaining RAM modules.
* The pictures above are for reference only and may vary slightly for your mainboard.
VIA
VT8377
Winb ond
IO
W8 36 9 7HF
Socket 4 62
V
I
A
V
T8235
1 22
1
BIOS
1
129
10
99
10 10
1
1
1 1
1
1
VIA
VT6103
1 1 2
Codec
+1
2 3 4
-
1
1
1
DIMM1
DIMM2

KM400T-8X Series
11
Back Panel Configuration
PS/2 Mouse & PS/
This mainboard provides a stand
2 Keyboard Connectors: KB/MS
ard PS/2 mouse connector and PS/2 Keyboard connector. The pin
assignments are described below:
s, mice and other USB devices. You can plug the USB devices
dir to The KM400T-8X Series also provides two USB headers on the board
allowing ts. These ed o t
connected to a USB connector bracket l).
You can plug LAN device into nector
USB & LAN Connectors: USB/ (LAN is optional)
There are two USB connectors on the back panel. These USB connectors (UHCI) are used to attach
to USB devices such as: keyboard
ectly into this connec r.
for 4 more USB por attach to
(optionaUSB connectors emb The KM400T-8X PRO also provides a
ded int he computer case or
LAN port.
s directly this con .
Pin Assignment Pin Assignment
1 Data 4 +5 V (fused)
2 No connect 5 Clock
3 Ground 6 No connect
Pin Assignment Pin Assignment
1 TDP 7 NC
2 TDN 8 NC
3 RDP 9 VCC3 SBY
4 NC 10 ACT LED
5 NC 11 VCC3 SBY
6 RDN 12 Speed LED
Pin Assignment Pin Assignment
1/5 +5 V (fused) 3/7 USBP0+/P1+
2/6 USBP0-/P1- 4/8 Ground
PS/2Mouse
PS/2 Keyboard
PS/2
Mouse
PS/2
Keyboard COM1COM1
(SerialPort)
(PrintPort)
Parallel Port
USB
LAN
(optional)
COM2 Speaker
Out
Game Port
Mic In
LineIn
LAN
(o
p
tional)
USB

KM400T-8X Series
12

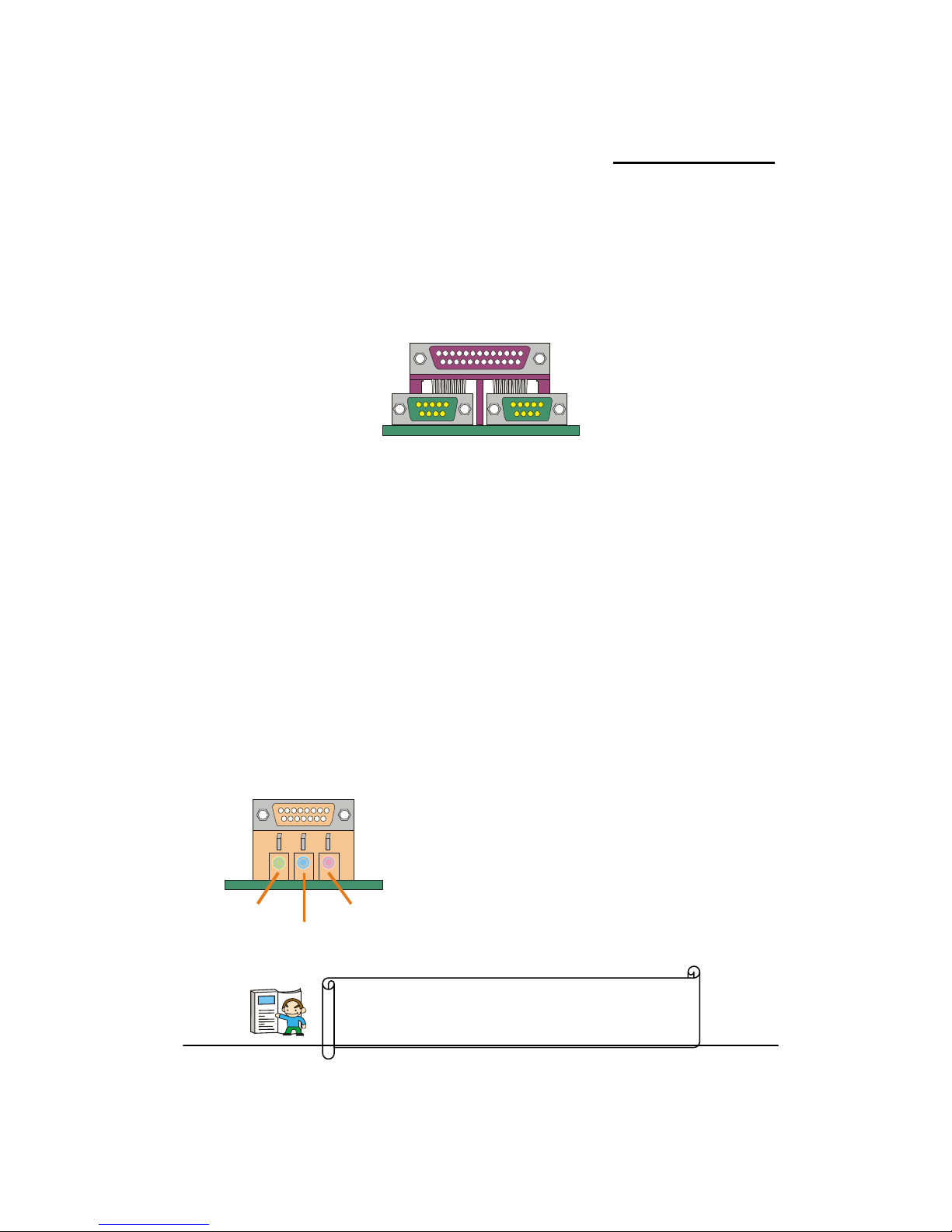

Serial and Parallel Inte ace Po
he KM400T-8X Series come equipped with two serial por d one pa rt.
OM1/ COM2
is sometimes referred to as a RS-232 port or an asynchronous
a serial port.
arallel Interface P has a 25-pin, DB25 connector and is used to interface with parallel
rinters and other devices using a parallel interface.
ame Port Connector: SOUND
his connector allows you to connect a joystick or game pad for playing computer games. This port
n also be used to connect to MIDI devices.
r
headphones. If the Super 5.1 driver is installed the Speaker
omes the Front Speaker.
If the Super
er.
connect to a microphone. If the Super
rf rts
ts anTrallel po
The Serial Interface: C
The serial interface port
communication port. Mice, modems and other peripheral devices can be connected to
P ort: PRT
The parallel port on your system
p
G
T
ca
Audio Port Connectors
1. Speaker Out is used to connect to speakers o
Out bec
2. Line In can be connected to an external CD player, Tape
player or other audio devices for audio input.
5.1 driver is installed Line In becomes the Rear Speak
3. Mic In is used to
5.1 driver is installed the Mic In becomes the Subwoofer/
Center out.
Speaker
Out LineIn
Game Port
Mic In
PrintPort
COM1 COM2
This mainboard supports Super 5.1 ChannelAudio effects
which turns your standard Speaker Out, Lin In, Mic In audio
connectors into a 6 channel audio system. See Appendix I for
more information.

KM400T-8X Series
13
Connector Conf
Front Panel Indicato
Dri
This connector can be at er case. The LED will
flicker during disk activi ives directly attached to the
system board.
RST SW (Reset S
This connector can be a h is normally left open.
When closed it will elf Test).
PWR-LED (2-pin Pow
The mainboard provides two power LED connector.If there is a 2-pin power LED cable on the front
panel of a computer case. You can attach it to the 2-pin power LED connector. The LED will
illumi
PWR (P wi
This connector to a fr w swi must pu Power Button
pin to ground fo w ed is
due to internal d itry on em board). At efore the
power supply w other nal.
er LED Connector)
The mainboard provides two power LED connector. If there is a 3-pin power LED cable on the front
panel of a computer case. You can attach it to the 3-pin power LED connector.
iguration
r: SW/LED、PWRLED
HD LED (Hard ve LED Connector)
tached to an LED on the front panel of a comput
ty. This disk activity only applies to those IDE dr
witch)
ttached to a momentary SPST switch. This switc
cause the mainboard to reset and run the POST (Power On S
er LED Connector)
nate while the computer is powered on.
SW ower on S tch)
can be attached ont panel po er tch. The switch ll the
r at least 50 ms to signal
ebounce circu the po the syst er supply to switch on or off least two seconds (the time requir must pass b
ill recognize an on/off sig
PWR-LED (3-Pin Pow
Pin Assignment Function Pin Assignment Function
1 HD LED (+) e 2 ACPI LED (+) POWERHard Driv
3 HD LED (-) LED 4 ACPI LED (-) LED
5 RST SW (-) Reset 6 PWR SW (+) Power-on
7 RST SW (+) Switch 8 PWRSW(-) Switch
9 NC NC 10 NC NC
V
I
A
VT8377
Winb ond
IO
W83697HF
Socket 46 2
V
I
A
V
T8235
1 22
1
BIOS
1
99
10
10
1
1
1 1
1
VI
A
VT6103
1 1 2
Codec
+1
2 3 4
-
1
1
1
PWRLED
SWLED
1 29
10
1
+NC-
1
1++
+
--
-
-
+
2
4
6
8
10
3
5
7
9

KM400T-8X Series
14
Speaker Header: SPEAKER
A front panel speaker can be connected to this connector. When you boot your computer, the speaker
sounds a short “beep” under normal circumstances. If there is a problem during the Power On
Self-Test, the speaker will sound an “irregular beep”.
nnector (FDC) that supports 360K, 720K, 1.2M,
e floppy drive ribbon cables provided
connect up to must use a ribbon cable
with three conn er and one drive as the slave,
using the jumpers loca
IDE2 (Secondar
The IDE2 controller ration is similar to
IDE1.
Floppy Disk Connector: FDC
The mainboard provides a standard floppy disk co
1.44M and 2.88M floppy diskettes. This connector supports th
in the packaging.
Hard Disk Connectors: IDE1/
The mainboard has a 32-bit Enhanced PCI IDE Con IDE2 troller that supports Ultra DMA / 33, Ultra DMA
/ 66, Ultra DMA / 100 and Ultra DMA / 133. It has two HDD connectors, IDE1 and IDE2.
IDE1 (Primary IDE Connector)
You can two hard drives to IDE1. If you attach two drives, you
ectors. You must also configure one drive as the mast
ted on each drive.
y IDE Connector)
can also support a Master and a Slave drive. The configu
V
I
A
V
T8377
Wi nb o n d
IO
W8 36 9 7HF
Socket 4 62
V
I
A
V
T8235
1 22
1
BIOS
99
10 10
1
1 1
1
1
VI
A
VT61 03
1 1 2
Codec
+1
2 3 4
-
1
1
11
29
10
1
1
PC_BEEP
NC
Ground
+5V
1
2
3
4
SPEAKER
VIA
8377VT
Winb ond
IO
W83697HF
Socket 4 62
V
I
A
V
T8235
1 22
1
BIOS
99
1010
1
1
1 1
1
VI
VT
1
A
6103
1 2
Codec
+1
2 3 4
-
1
1
11
29
10
1
1
IDE2
FDC
IDE1

KM400T-8X Series
15
H
USB bracket (optional)
An optional USB bracket may be included with your board. The bracket is typical secured to the back
side of your computer and has standard USB ports that you can connect to external USB devices. The
bracket will also have cables that you can extend to the USB2, USB3 headers.
* If you are using USB 2.0 devices with Windows®2000/ XP, you will need to install the USB 2.0
driver from the Microsoft®website.
P4
erature Protection. If this function is
ge, the system will automatically shut
own and you h the CPU heat sink
so check to make sure the CPU fan is working properly.
OTP is only functional when using an Athlon XPTM CPU.
eaders & Jumpers

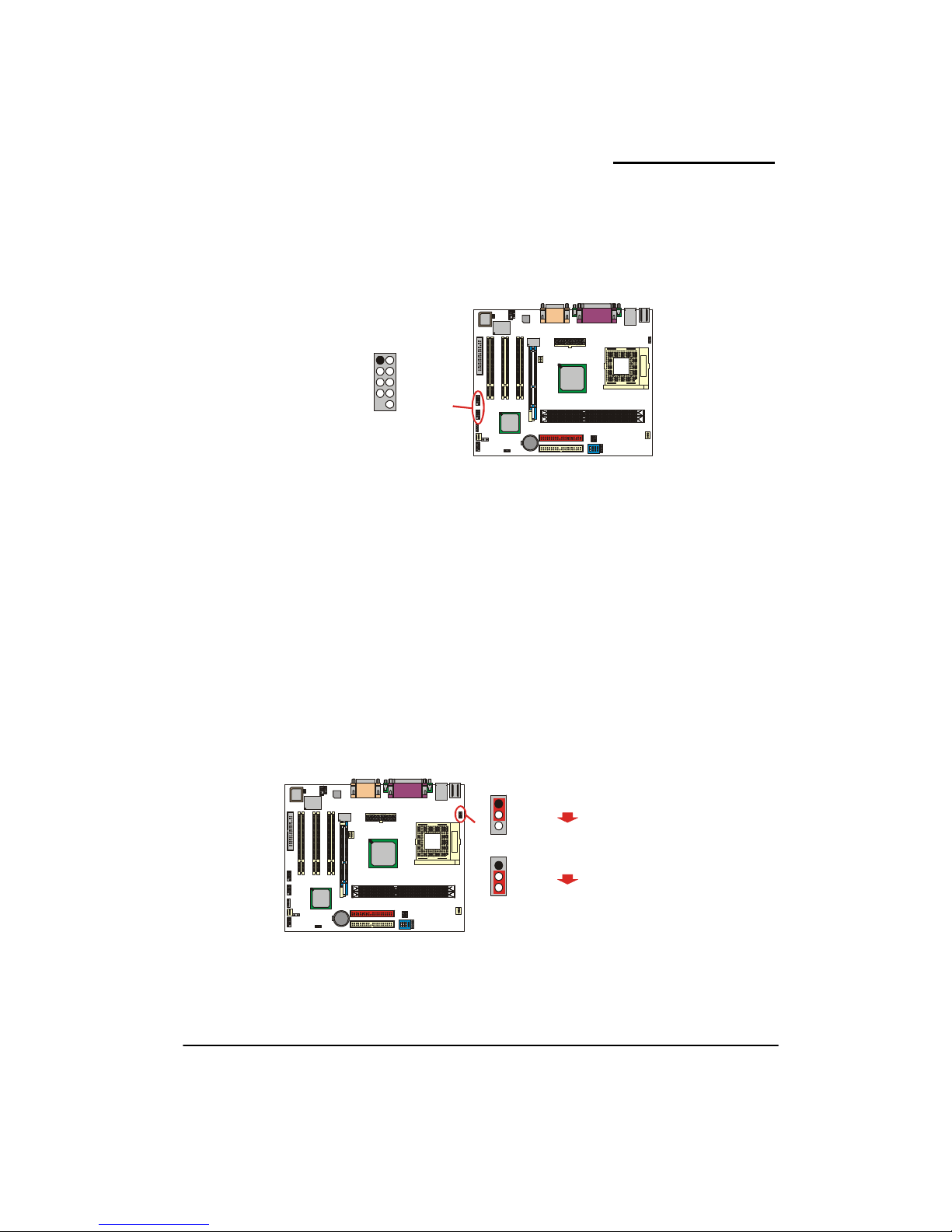

Front USB Headers: USB2 / USB3
OTP (Over Temperature Protection) Jumper: J
The mainboard supports a special design for CPU Over Temp
“Enabled” and the CPU temperature rises above the normal ran
d ave to unplug the ATX_PWR connector. Remove and reinstall
al
*
V
IA
V
T8377
Winb ond
IO
W83697HF
Socket462
V
I
A
V
T8235
BIOS
1
1 1
1
1
VI
A
VT61 03
1 1 2
Codec
+1
2 3 4
-
1
1
11
29
10
1
1
USB2 / USB3
B5VSB 5VS 12
DATA_A- DATA_B-
DATA_A+ DATA_B+
Gruond Gruond
4
6
8
3
5
7
NC NC
109
1 2
19
1029
10
VIA
VT8377
Winb on d
IO
W8 36 9 7HF
Socket 4 62
V
I
A
V
T8235
BIOS
1
1 1
1
VIA
VT61 03
1 1 2
Codec
+1
2 3 4
-
1
1
11
29
10
1
1
1 2
99
10 102
1
1
JP4
1
1
2
2
3
3
JP4
Pin1-2 short
Pin2-3 short
Disable
Enable(default)
(Short means to cover two pins on
a jumper using a jumper cap.)

KM400T-8X Series
16

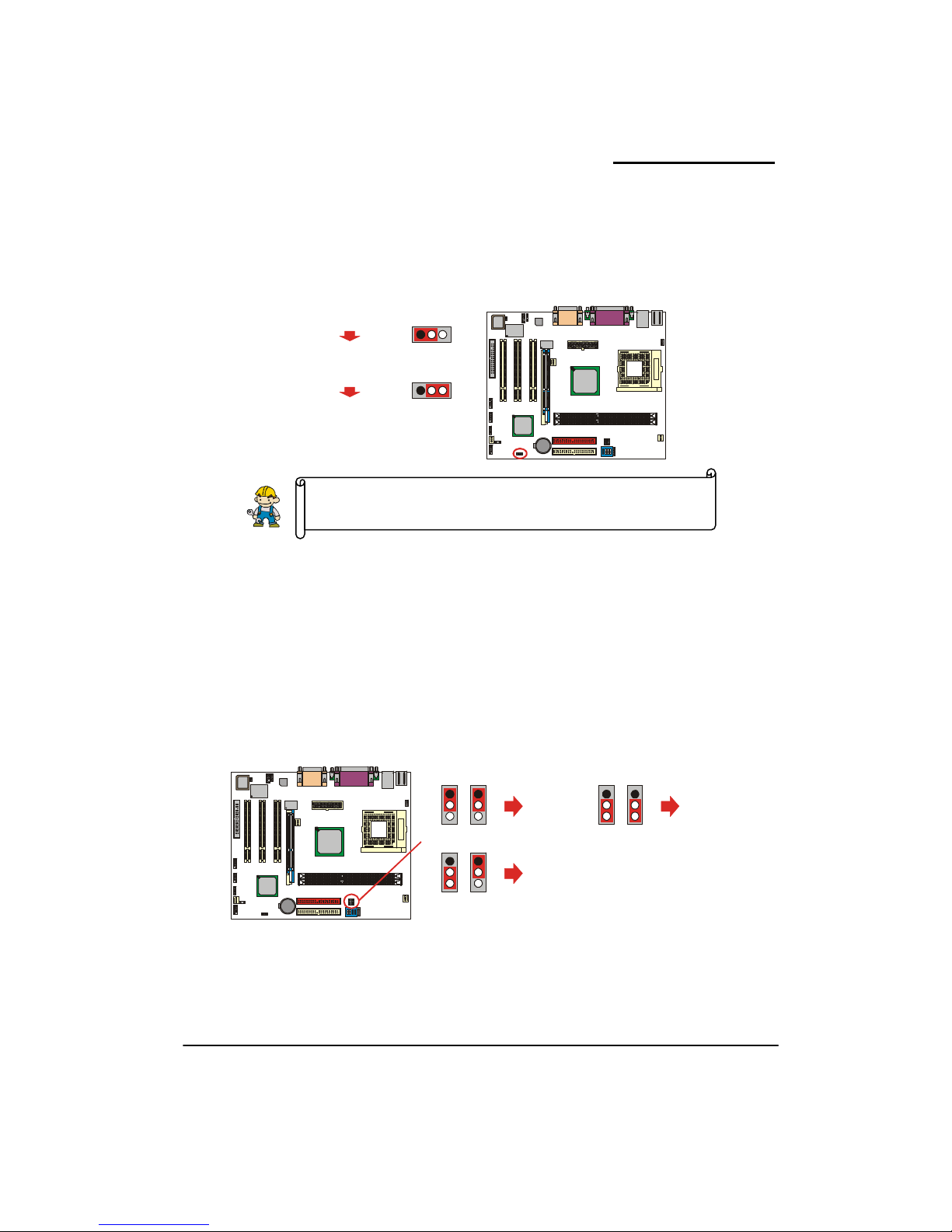

Clear CMOS Jumper: JP1
he CMOS
.Turn off your system and disconnect the AC power cable.
2. Set JP1 pin 2-3 closed.
e the jumpers “JP5” and “JP6” to select the CPU Clock. Refer the pictures below for details.
The following procedures are for resetting the BIOS password. It is
im
The “Clear CMOS” jumper is used when you cannot boot your system due to some CMOS
configuration such as a password that is forgotten. This jumper allows you to reset t
configurations, and then reconfigure.
1
3. Wait several seconds.
4. Set JP1 pin 1-2 closed.
5. Connect the AC power cable and turn on your system.
6. If you need to reconfigure the BIOS configuration data, you can do so by accessing the BIOS
Setup Utility.
CPU Clock select Jumper: JP5、JP6
Us
p
ortant to follow these instructions closel
y
.
V
IA
V
T8377
Winb ond
IO
W83697HF
Socket 4 62
V
I
A
V
T8235
BIOS
1
1 1
1
1
VI
A
VT61 0
1
3
1 2
Codec
+1
2 3 4
-
1
1
11
29
10
1
1
1 22
19 9
10 10
JP1
JP1
1 2 3
1 2 3
Pin1-2 short
Normal(default)
Pin2-3 short
Clear CMOS data
(Short means to cover two pins on
a jumper using a jumper cap.)
VIA
VT8377
Winb ond
IO
W83697HF
Socket 4 62
V
I
A
V
T8235
BIOS
1
1
VIA
VT61 03
1 1 2
Codec
+1
2 3 4
-
1
1
11
29
10
1
1
1 22
199
10 10
1
1 1
JP5 JP5
JP5
JP6 JP6
JP6
1111
2222
3333
1 1
2 2
3 3
100MHz 166 MHz
133MHz

KM400T-8X Series
17
CPU Ratio select: SW1A、JP9 (Optional)
Use the switch “SW1A” and the jumper “JP9” to select CPU Ratio. Refer to the pictures below for
etails.
ase Open W en th previously opened. To
case open” cable which
e CASE OPEN warning
d
C arning Header: CASE OPEN
This connector is used to notify the user wh e computer case has been
configure this functionality, your computer case must be equipped with a “
you need to attach to the CASE OPEN header. Also, you must enable th
functionality in the BIOS Setup Utility. When your computer case is opened, your system will
display alert messages upon boot up.
V
I
A
V
T8377
Winb ond
IO
W83697HF
Socket 4 62
V
I
A
V
T8235
BIOS
1
1
1 1
VI
A
VT6103
1 1 2
Codec
+1
2 3 4
-
1
1
11
29
10
1
1
1 2
2 19 9
10 10
CASEOPEN
1
2
Ground
Caseop-
1
VIA
VT8377
Wi nb
IO
W8 36 9
on d
7H F
Socket 4 62
VIA
VT8235
BIOS
1
1
VIA
VT6103
1 1 2
Codec
+1
2 3 4
-
+
++ + +
+
++
+
+
+ +
+
+
+
+
+ +
+
+ +
+
+ +
+
1
1 1
1
1
1 1
1
1 1
1
1
1 1
1
11
1
1
1 1
1
11
1
1 1
1
2
2 2
2
2
2 2
2
2 2
2
2
2 2
2
2 2
2
2
2 2
2
2 2
2
2 2
2
3
3 3
3
3
3 3
3
3 3
3
3
3 3
3
3 3
3
3
3 3
3
3 3
3
3 3
3
4
4 4
4
4
4 4
4
4 4
4
4
4 4
4
4 4
4
4
4 4
4
4 4
4
4 4
4
-
- -- -
-
- -
-
-
- -
-
-
-
-
- -
-
- -
-
--
-
+
+
+
-
-
-
1
1
11
29
10
1
1
1 22
199
10 10
1
1 1
1
2
1 1
1
1
1 1
1
1 1
1
1
1 1
1
11
1
1
1 1
1
11
1
1 1
1
2 2
2
2
2 2
2
2 2
2
2
2 2
2
22
2
2
2 2
2
22
2
2 2
2
3
33
3
3
3 3
3
33
3
3
3 3
3
3 3
3
3
3 3
3
3 3
3
3 3
3
4
44
4
4
4 4
4
44
4
4
4 4
4
4 4
4
4
4 4
4
4 4
4
4 4
4
Ratio : 5 Ratio : 7
atio : 13
atio : 22
Ratio : 6 Ratio : 8
Ratio : 16
Ratio:5.5 Ratio:7.5
Ratio : 14
Ratio : 2
R
R
3
Ratio:6.5 Ratio:8.5
Ratio : 17
atio : 9 Ratio : 11
Ratio : 13.5
Ratio : 24
Ratio : 10 Ratio : 12
Ratio : 16.5
Ratio:9.5 Ratio:11.5
Ratio : 15
Ratio : 10.5 Ratio : 12.5
Ratio : 18
R
SW1A JP9
