Aura CAYMATIK 106M User manual

Tea Maker
User Manual

Dear Customer,
Thank you for choosing our product. We hope that
Aura Tea Maker, which has been manufactured in
modern facilities in pursuant to high-quality
standards, will provide the best eciency for you.
Therefore, please read the entire user manual
thoroughly and keep it for future reference.
TECHNICAL SPECIFICATIONS
Voltage : 220-240VAC
Frequency : 50 / 60 Hz
Power : 1500VV
Protection Class : l
Tank Volume : 1 L
Net Weight: : 2 kg
Package Size : 195x195x315cm

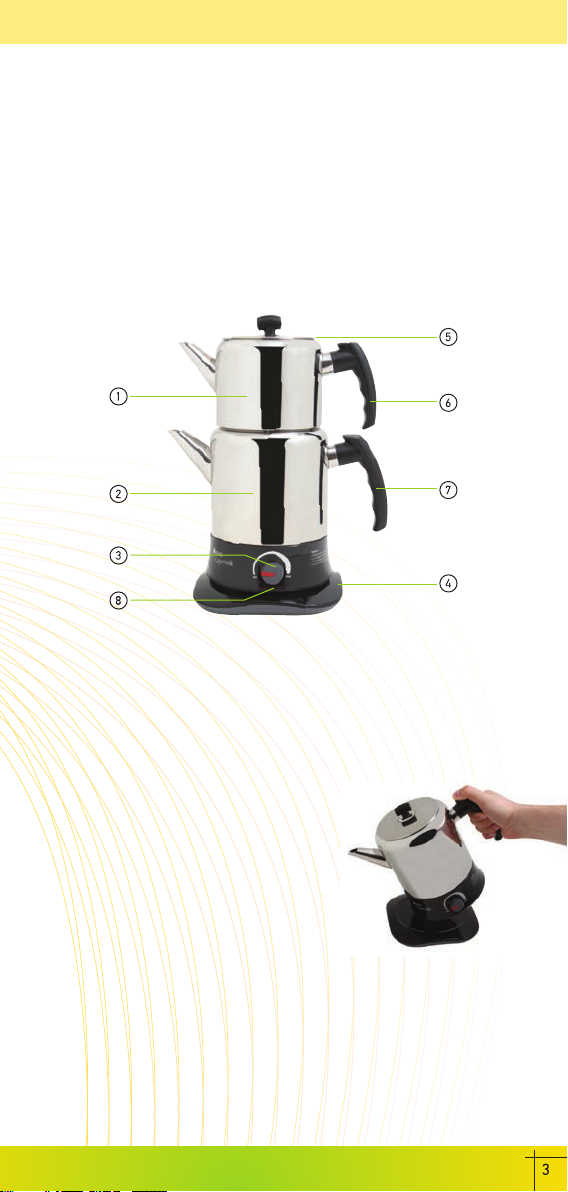

PART NUMBERS
1-Infuser
2-Kettle
3-Thermostat (Heat Adjustment) Button
4-Lower Plate
5-Infuser Cap
6-Infuser Handle
7-Kettle Handle
8-Control Lamp
PRECAUTIONS FOR USE
• After you unpack the appliance, please check it to nd out whether
or not any part of the appliance is missing or damaged.
• If needed, you might use an extension cable manufactured in
accordance with the standards.
• If the kettle is lled with too much
water, the boiling water might
overow.
• The kettle must only be used for
boiling water.
• Do not lift open the cover while the
water is boiling.
• If you only need to use the kettle,
also use the kettle cover. (Figure 1)

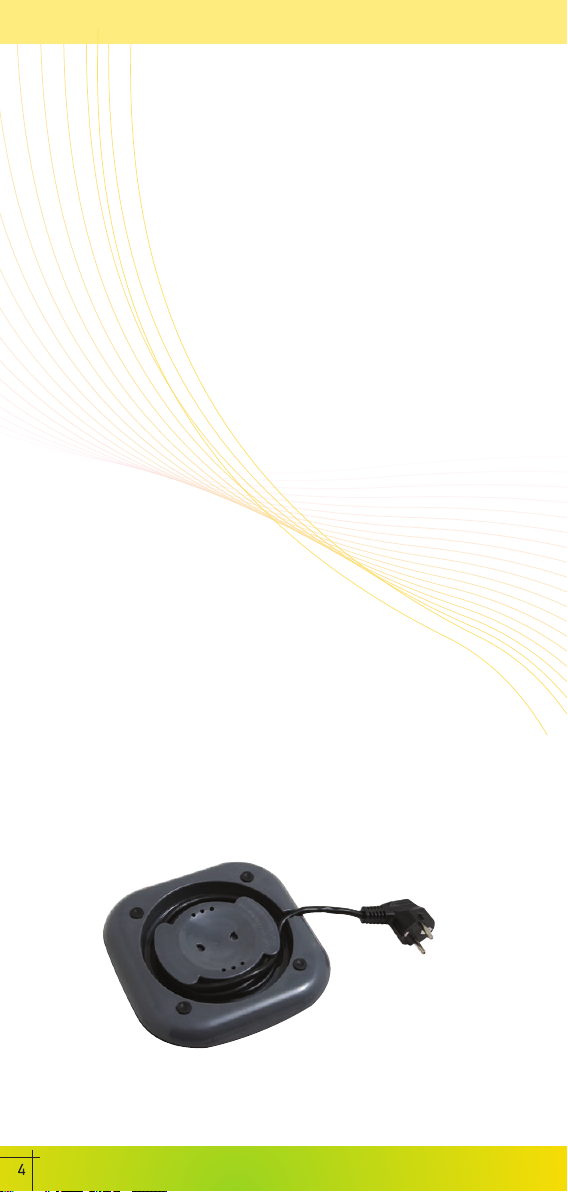

• Use the appliance only with the
lower plate supplied.
CAUTION!
• Before you start to use the appliance, please t it onto the kettle
lower plate properly. Otherwise, your appliance will not operate.
• Before initial use, boil some water in the appliance and wash the
inside of the asks thoroughly. Initial use might result in odour and
smoke for a short period of time.
• Do not spill water on the connector.
Figure 1

ATTENTION! IN ORDER TO USE THE APPLIANCE SAFELY:
• Do not pull at the cable to unplug.
• This appliance has not been designed for use by persons with physical,
perceptual or mental deciency (including children) or lack of
knowledge and experience, unless they are supervised. Children
should be supervised in order to ensure that they do not play with the
appliance.
• While cleaning or performing maintenance, unplug the appliance or
take the tea maker out of the lower plate and perform these
elsewhere.
• The appliance is under warranty only when its electrical connections
are made properly and current written safety standards are abided by.
• The cable system and the fuses must be examined to ensure that they
can meet the maximum values mentioned in the appliance’s label.
When in doubt, please consult a qualied electrician.
• Place the appliance on an even surface. Do not place the cable in hot
places or near ame.
• It is not advised to use the plugged cable when twisted.
• Do not leave the appliance plugged. Unplug the appliance and wrap
the cable in place when not in use. (Figure 2)
• If the feeding cable is damaged, it must be replaced by the manufac-
turer, their service agent or a suciently qualied personnel in order
to prevent dangerous situations.
• There is hot vapour coming our from the cover and the ask while the
appliance is operating; please do not put your hands there. Do not
touch any hot surface of the appliance and take the handles while
using.
• Do not move the appliance while in operation.
• Do not operate the appliance on wet surfaces.
• Do not operate the appliance unless completely dry after cleaning.
• If the appliance is lled too much, the boiling water might overow.
• Since there is electrical equipment in the kettle and lower plate, do
not clean them by merging fully or partially in water.
• This appliance is intended to be used in household and similar
applications such as:
- sta kitchen areas in shops, oces and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
Figure 2

• Unplug power cord by pulling it out of its housing. Fill the kettle
with 1 litre of water, close the cover and plug the appliance in a
grounded outlet. In order to operate, adjust the thermostat as“max".
• When the water is boiling, turn the button to the left until the light
goes out. Afterwards, the thermostat functions automatically. It
does not let the water cool down and preserves it at the tempera-
ture you like. (Figure 4)
• Do not operate the appliance
without any water. In order not to
let the appliance work without
water after all the water has
evaporated, do not operate it
unsupervised. When the red light
under the button is on, it means
the appliance is in operation.
• The appliance is equipped with
an adjustable thermostat. This
means that when the water in
the appliance reaches a certain
boiling point, the circuit is
automatically cut. If you only
want warm water, turn the
button from “max” towards “min".
To raise the water temperature,
turn the button from“min”
towards“max”. (Figure 4)
IN ORDER TO BREW STANDARD TEA
• Put (1) table spoon of tea for every (5) glasses and add the water
boiling in the kettle.
• Open the cover of the kettle and place the infuser upon it.
• Wait until the tea is brewed.
• In parallel with your taste and experience, you might adjust the
process to brew the tea to your liking.
CAUTION!
When the kettle is out of water,
limit thermostat operates and
cuts the electricity supply
automatically. (After the
appliance has cooled down)
Press the yellow button to
operate again.
Figure 3
Figure 4
Figure 5
USAGE

CAUTION!
Do not use the infuser tank for this purpose. Our company cannot
be held responsible for faults and damages caused by misuse.
Figure 6
RATIO OF BREWED TEA IN THE
INFUSER AND WATER IN THE KETTLE
FOR ALL YOUR HOT BEVERAGES
• Put 1 litre of water in the kettle.
• Place the kettle cover on.
• Boil the water as described in the operating section.
• After the water has boiled, turn the adjustment button from “max”
towards“min”until the light goes out.
• Add this boiling water on your instant coee, cocoa, fruit drinks or
instant soup.
Amount of
water for
brewed tea
200 ml
400 ml
One drinking cup can hold approximately 180 ml water.
One tea glass can hold approximately 85 ml water.
Amount of water to
be put into the
kettle after brewing
500 ml
1000 ml

CALL CENTER 444 49 49
