Cavecool CC80SB User manual

- 1 -

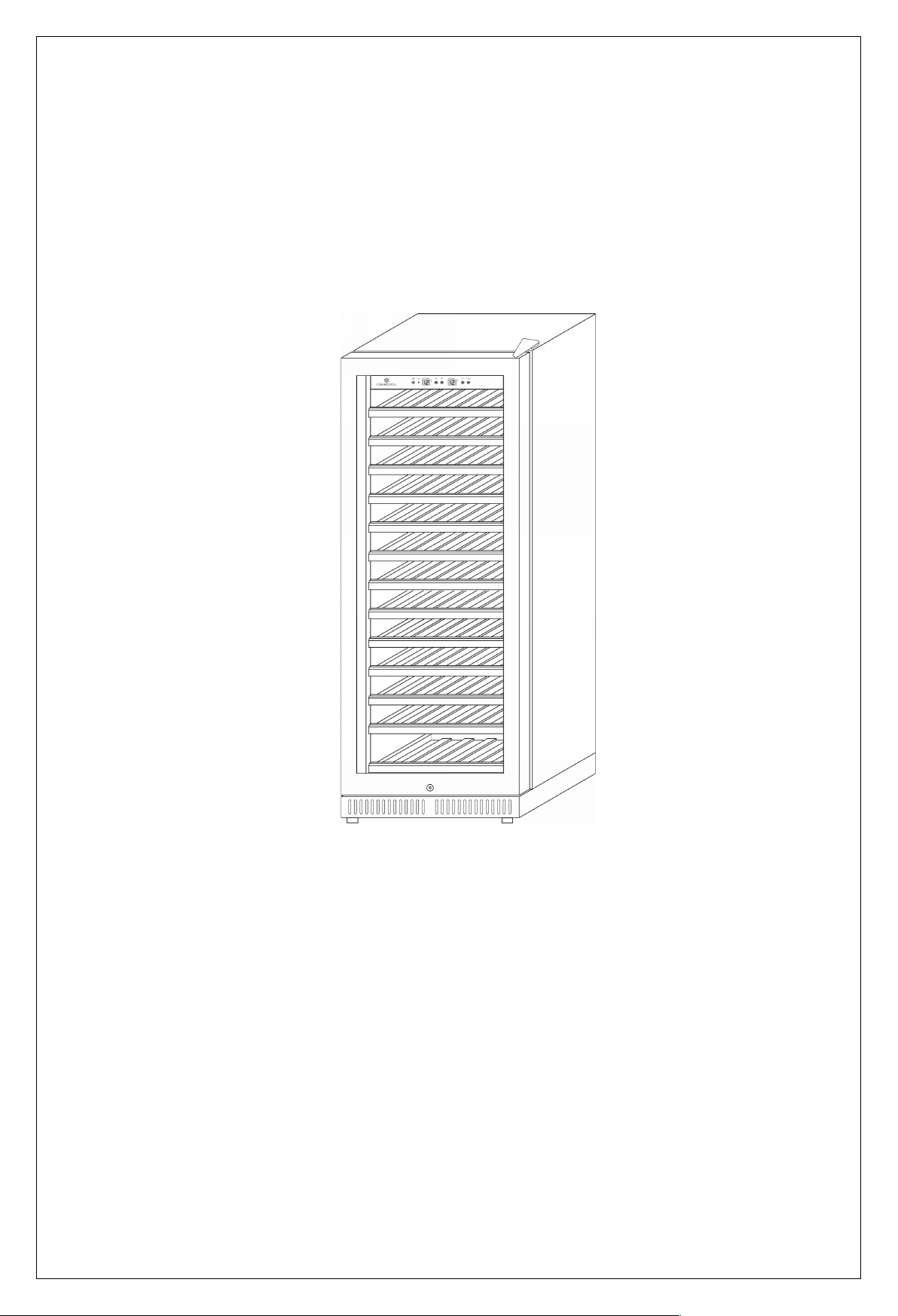

WINE COOLER
USER MANUAL
Model:
Cavecool Affection Jade - CC80SB
Cavecool Affection Jade - CC80DB
Cavecool Affection Emerald - CC120SB
Cavecool Affection Emerald - CC120DB
WWW.CAVECOOL.COM

- 2 -
THANK YOU FOR PURCHASING A CAVECOOL WINE COOLER.
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
WARNING!
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE WINE COOLER.
• DANGER / WARNING •
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Discarded or abandoned
appliances are still dangerous. Even if they will “just sit in the garage a few days”.
Before discarding your old wine cooler: remove the door completely.
Leave the shelves in place so that children may not easily climb inside. Never allow children
to operate, play with, or crawl inside the appliance. Never clean appliance parts with
flammable fluids. The fumes can create a fire hazard or explosion. Do not store or use
gasoline or any other flammable vapours and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard or explosion.
- Keep these instructions for any future use -
~
WARNING
~
To reduce the risk of fire, electrical shock, or
injury when using your appliance, follow these
basic precautions:
To prevent damaging the door gasket, make sure to have the door all the way opened
when pulling shelves out of the rail compartment. The appliance must be positioned so
that the plug is accessible. Release the electric cord. Move your cabinet to its final
location. Do not move your cabinet while loaded with wine, you might distort the cabinet.
The wine cooler should be installed in a suitable place in order to avoid hands touching
the compressor. If the power cord is damaged, it must be replaced by the
manufacturer’s service agent or a similarly qualified person in order to avoid a hazard.

- 3 -
Before using your wine cooler
Remove the exterior and interior packaging.
• Before connecting the wine cooler to power source, let it stand upright for approximately 2
hours. This will reduce risk of a malfunction in the cooling system from handling during
transportation.
• Clean interior surface with lukewarm water by using a soft cloth.
• When replacing the illuminating lamp, please select the lamp which comply with rated
power input of lamp according to the rating label. Shut off the power supply before replacing
the lamp.
• When disposing your appliance, please choose an authorized disposal site.
Installation of your wine cooler
• Place your wine cooler on a floor/surface that is strong enough to support it when it is fully
loaded. To level your wine cooler, adjust the levelling leg at the bottom of wine cooler.
• Locate the wine cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
energy consumption. Extreme cold ambient temperatures may also cause the unit not to
perform properly.
• Avoid locating the unit in moist areas.
• Plug the wine cooler into an exclusive, properly installed wall outlet.
• Any questions concerning power should be directed toward a certified electrician or an
authorized products service center.
Attention
Store wine in sealed bottles. Do not overload the cabinet. Do not open door unless
necessary. Do not cover shelves with aluminium foil or any other shelf material which may
prevent air circulation. Should the wine cooler be stored unused for a longer period of time, it
is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the
cabinet in order to avoid possible formation of condensation, mold or odours. The carbon
filter should be cleaned and dried at least once a year.

- 4 -
REVERSING THE DOOR OPENING OF YOUR WINE COOLER
The door of this appliance can be opened from either left or right side. The unit is delivered
to you with the door opening from left side.
Reversing door direction is shown as below diagram:
(1) Take off screws on hinge cover on top of the cabinet and then separate the door from the
cabinet.
(2) Remove screws and hinge supporter beneath the cabinet, then reverse the door at an
angle of 180°to sit it on mounting hole of the pedestal, using the EXTRA bracket.
(3) Hold the door in vertical position, put the hinge cover on top of the cabinet and fasten it
with screws.

- 5 -
ADJUSTMENT OF WINE CABINET FEET
NOTICE!
The wine cooler must be perfectly plumb and level.

- 6 -
ACTIVATED CARBON FILTER
1. Appearance:
2. Function:
This item is intended for cleaning the air and getting rid of odours inside the
cabinet.
3. Maintenance:
Take it out of the cabinet in every three months and expose it to the sun for a
few hours before putting it back. It can be used repeatedly.
4. How to place it:
The filter can be put on any position between two shelves.

- 7 -
STRUCTURE AND FUNCTIONS
1. Door hinge
2. Key press control panel
3. Shelf for wine storage
4. Door frame
5. Safety lock
6. Supporting feet

- 8 -
OPERATING INSTRUCTIONS
You are recommended to place the cabinet in a space with a surrounding temperature
ranging from 0-35°C!(32-95°F). The working conditions will be affected if surrounding
temperature goes beyond or lower than suggested temperature.
THE MOST SUITABLE TEMPERATURE INSIDE THE CABINET
STORAGE OF ALL WINES 12-16°C (53-61°F)
SERVING TEMPERATURES:
WHITE WINE 6-14°C!(43-58°F)
ROSE WINE 6-14°C!(43-58°F)
SPARKLING WINE 6-12°C!(43-53°F)
RED WINE 14-18°C!(58-64°F)
TEMPERATURE SETTING
Control panel for single zone cabinet:
The left LED “Set Chamber” indicates setting temperature, ranging from 5-22°C!(40-72°F)，
when temperature is set between 5-12°C or 12-22°C, the indicator corresponding the
chamber on left side will flash. The LED on the right “Chamber” indicates actual temperature
inside the cabinet, ranging from 0-37°C (32-99°F).
Temperature setting range for single zone wine cooler: 5-22°C!(40-72°F). You can re-set
temperature inside the cabinet based on actual requirement, after starting to work, the
cabinet will keep on refrigerating till it reaches set temperature, and work around setting
temperature within range of ± 2°C. Under circumstances such as power stop or cutting off in
the process of normal operation, the last setting figure is automatically memorized by the
cabinet.

- 9 -
FUNCTIONAL INSTRUCTIONS FOR CONTROL PANEL
Power:
This button controls starting and stopping of the whole cooling system. (indicates the
situation of power supply)
°C/°F:
This button can switch Fahrenheit to Celsius and vice versa, their temperature indications
are corresponding. When switching between Celsius and Fahrenheit, the corresponding
indicator on the right corner of the LED will start, and user can also choose the procedure of
memorizing Fahrenheit when starting operation.
Attention:
You can switch temperature display at will by pressing the button: “°C/°F” for 3 seconds.
:
Operate this button to control turn on/off LED lighting inside the cabinet.
▲/▼(+/-):
This button controls progressive increase or decrease of temperature. When temperature
range is between 5-8°C (40-47°F), orange lighting will indicate on the below corresponding
indicator, while the range between 9-14°C (48-57°F), white lighting will indicate on the below
corresponding indicator.
RUN:
Only when the compressor is working, the below corresponding LED indicator will be lit up.
The operational status of the compressor can be judged from lighting/stopping of the
indicator.
SET CHAMBER:
Digital display of temperature setting.
CHAMBER:
Digital display of temperature inside the cabinet.
Control requirement for cooling circulation system:
When cooling system inside the cabinet meet the setting of the temperature, the compressor
will stop working. When temperature inside the cabinet rises up to the level which requires
compressor to start, it’ll enter the process of re-starting, ≥ 5 minutes is required each time for
stopping of the compressor. If operating the button POWER to control cooling system of the
whole cabinet, 5 minutes interval for delay protection is required to re-start the compressor.

- 10 -
Dual-zone control panel:
Dual-zone temperature control system is characterized by dividing the cabinet into two
temperature control compartments (upper chamber and lower chamber) through
combination of circuit control system, sheet metal forming process and cooling system.
NOTICE: It is strongly advised to maintain a difference of 7-8°C between the two
temperature zones in order to allow the temperature sensors to operate properly.
UPPER CHAMBER
Temperature control ranges from 5-12°C (40-54°F)
LOWER CHAMBER
Temperature control ranges from 12-22°C (54-72°F)
After the wine cooler is plugged in, if temperature is not set, the figure of temperature will be
marked automatically as 5°C (40°F) for upper chamber and 12°C (54°F) for lower chamber.
The last setting temperature will be memorized automatically by the system in the process of
normal operation in the event of power supply cutting.
After set temperature is locked, it will flash for 3 seconds, indicating the actual temperature
inside the cabinet. Afterwards, temperature inside the cabinet will reach the set temperature,
fluctuating around ± 2,5°C of set temperature which is regarded as normal.
SET (+/-)
Button for temperature setting.
Operate this button to control turn on/off LED lighting inside the cabinet.
Temperature setting for both upper and lower chamber is circulation type, setting can be
stopped when temperature reaches the target, the control system will have a reaction period
of 3 seconds, the corresponding digital display will flash. If temperature setting remains
unchanged for 3 seconds, the control system will assess and confirm the set temperature,
and then return to indication of actual temperature.

- 11 -
POWER or OFF/ON
this button controls starting and stopping of the software system. (the indicator for POWER
on control panel indicates system in function). The button power controls running and
stopping of the whole system of wine cooler, but at every starting and stopping, the system
won’t start until 5 seconds after delay protection.
°C/°F
This button can switch from Fahrenheit to Celsius and vice versa. The temperature
indications are switching correspondingly. When switching, the corresponding indicator on
the right corner of digital display will start, and you can also choose the procedure of
memorizing Fahrenheit when starting operation.
Attention:
You can switch temperature display at will by pressing the button ”°C/°F” for 3 seconds.
RUN:
Only when the compressor is working, the below corresponding LED indicator will be lit up.
The operational status of the compressor can be judged from lighting/stopping of the
indicator.
Self-detection:
When power is on for the whole cabinet by touching button ‘power’, mode of self-detection
will start.
In the process of detection, the figure on digital tube will be circularly lighted up, all the
electrical ports will be put into power from which we can judge whether the whole system is
running normally. Upon completion of detection after 10 seconds, normal mode of working
will automatically start.
Alarm system:
When faults of cooling systems for all the models of wine coolers occur, temperature inside
the cabinet runs higher than ≥ 30°C (86°F) for more than 2 hours, alarm system will work,
the cooling system will be automatically shut off with the buzzer buzzing intermittently.

- 12 -
INSTALLATION INSTRUCTIONS
Notes before installation.
• Remove all the packing materials inside and outside the wine cooler.
• The cabinet must be placed steadily in vertical position for at least two hours before
power connection, thus reducing harm done to the cooling system in the process of
handling and transportation so as to avoid fault occurrence.
• To cleanse surface of the cabinet with soft cloth soaked in warm water.
Attention points for installation.
• All these models are designed for built-in or as free-standing.
• Please place the cabinet on a solid ground suitable to support full loading of wines
and adjust the two supporting feet on the front of the cabinet to make the cabinet at
level.
• Please do not place your cabinet close to heat radiating appliances as furnace, stove
and radiator, these items will increase power consumption of the cabinet.
• Avoid installing the cabinet in a damp and humid environment.
• For any query regarding power supply, please consult the authorized service center.
Embedded diagram:
Please follow the diagram as shown below if you want to insert the wine cabinet into any
solid structure.
Keep in mind that the door must be able to open and close after installation. Make a space
of at least 1 cm for the opening door.

- 13 -
• For wine cooler with recessed base:

- 14 -
• For wine cooler with standard base:
Remarks:
1. When the wine cabinet is inserted into a solid closed structure, supporting feet can be
adjusted to meet actual requirements.
2. A minimum of 2 cm. between top of wine cooler and closed structure must be kept for
better air circulation.
CLEANING AND MAINTENANCE
Exterior cleaning
Please cleanse the exterior and the door sealing of your cabinet with soapy water before
drying off with soft cloth. Do not cleanse the cabinet with concentrated detergent and
scratching tools.
Interior cleansing
Un-plug before removing all wines from the cabinet. Then cleanse the interior with water and
dry off them with soft cloth.
Standby time
For short term, specifically, within less than three weeks, you can keep the cabinet in
working conditions.
For long term, more than a few months, please unplug the unit. Please keep the inside of the
cabinet clean to avoid generating odour and mold. Please keep the door of cabinet slightly
open and shut off the wine cooler if necessary.

- 15 -
Tips for energy-saving
Please place the cabinet in an area with the lowest temperature in the room and try not to
put it close to heat electric appliances and avoid exposure to sunshine.
INSTRUCTIONS FOR MINOR PROBLEMS
Problem
Cause
Power unconnected
Socket unconnected
Circuit closing, or fuse burnt out
When temperature inside the
cabinet is not low enough
Check up the set temperature.
Too f requent opening of the door.
Door not closed tightly.
Improper sealing.
Abnormal voltage.
Lamp not illuminated
Not turn on the lighting.
Socket unconnected.
Circuit closing, or fuse burnt out.
Lamp break down.
Vibrating
Check if the cabinet is in level.
Door cannot be closed tightly
Unsteady placing.
Door improper installation.
Sealing break-down.
Wooden shelf too close to the door.
Odour inside the cabinet
Remove the articles sending off odour.
