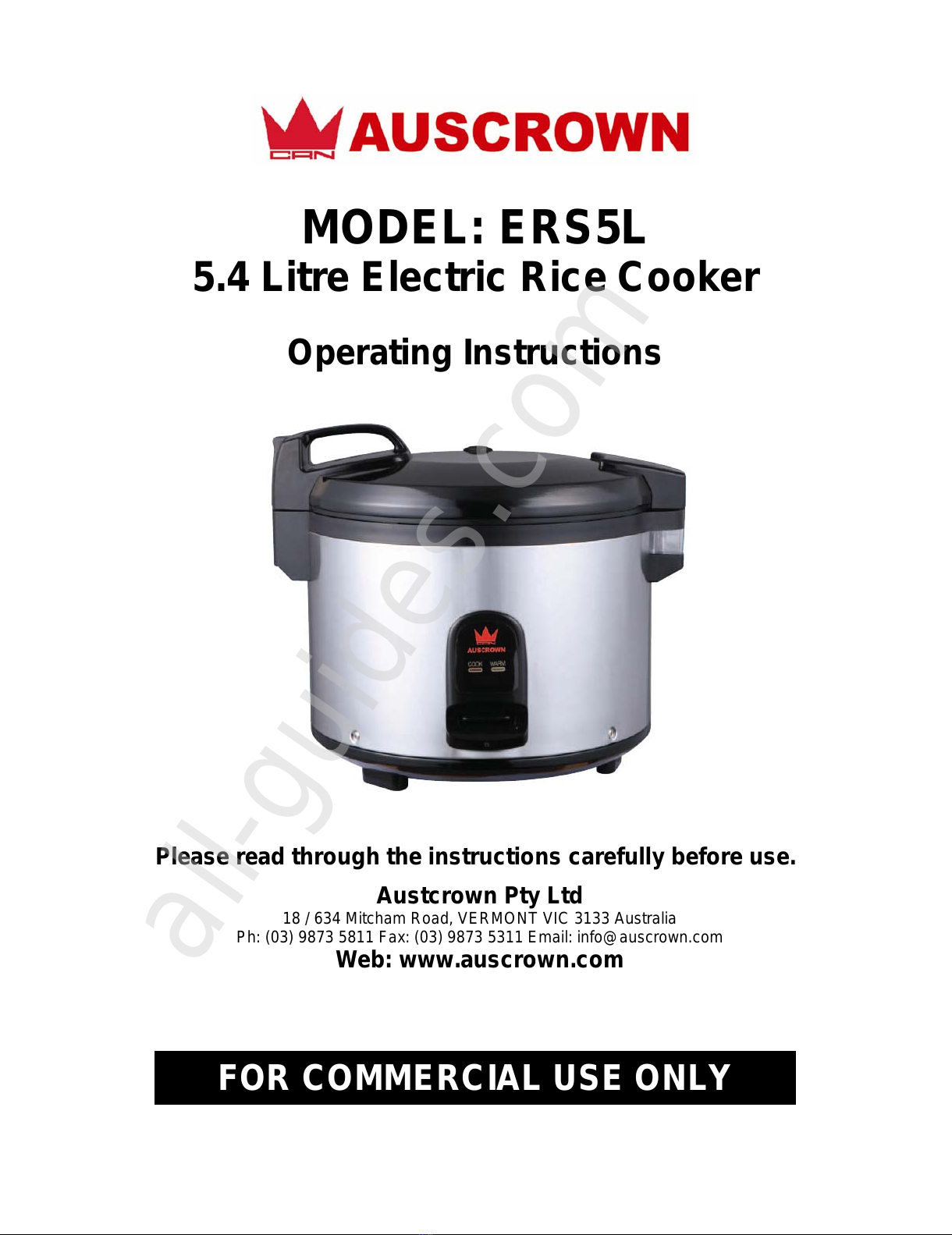

Auscrown ERS5L User manual

5.4 Litre Electric Rice Cooker
MODEL: ERS5L
Operating Instructions
Please read through the instructions carefully before use.
Austcrown Pty Ltd
18 / 634 Mitcham Road, VERMONT VIC 3133 Australia
Ph: [phone] Fax: [phone] Email: [e-mail]
Web: www.auscrown.com
FOR COMMERCIAL USE ONLY
All manuals and user guides at all-guides.com
all-guides.com

All manuals and user guides at all-guides.com

ERS5LOperating Instructions Page 1
IMPORTANT: Always operate the product from a power source of the same Voltage, Frequency and Rating as
indicated on the Product Data Plate.
Close supervision is necessary when product is used or operated near children. Do not leave product
unattended when in use. Keep out of reach of children.
Do not operate the product with a damaged cord or plug, or after the product malfunctions, is dropped or
appears damaged in any manner. Return the complete product immediately to your supplier for service and
inspection.
Do not operate the product outdoors.
Always operate the product on a dry, level surface.
If water should accidentally enter the switch mechanism or spill onto the heating base, unplug the cord
immediately and return the complete product to your supplier for service and inspection.
Do not operate the product in the presence of explosive and/or flammable liquids or fumes.
Do not operate or place any part of the product on or near any hot surfaces or let the cord hang over the edge
of a table or bench.
The product will be severely damaged if it is plugged into the power supply and turned on without contents in
the rice bowl.
Always allow the product to cool before cleaning and disassembling parts.
When storing the product, loosely coil the cord. Avoid wrapping the cord around the product.
Do not use the product for other than its intended use as described in these instructions. This product is
intended for Commercial Use only. Any misuse of the product may cause safety hazards.
CAUTION: To reduce the risk of electric shock, do not immerse or expose the product base, flexible cord or plug to
rain, moisture or any liquid or use the product near baths, basins or other vessels containing water or other liquids,
or when standing in or on damp or wet surfaces. If the product falls into water, unplug it immediately. DO NOT
REACH INTO THE WATER.
CAUTION: Burns can occur from touching hot parts, hot water, or steam. During and immediately after cooking,
this product generates heat and escaping steam at a high temperature around the lid and in an area around the
steam vent. To prevent the risk of burns or other personal or property damage, do not come into contact with this
area. Do not block the steam vent or operate the product without the lid in place.
PARTS
ACCESSORIES
Measuring Cup
Rice Spoon
All manuals and user guides at all-guides.com

ERS5LOperating Instructions Page 2
HOW TO COOK
1. Using the measuring cup provided, measure out the required quantity of rice.
1 cup of uncooked rice makes approximately 3 cups of cooked rice. Do not
under or over fill measuring cup (See Figure 1).
2. Before cooking, use a colander or fine sieve to wash the rice thoroughly
under cold water to remove starch then add rice to the inner bowl (See
Figure 2).
3. Add the right amount of water. (See Table 1 below).
4. Clean and dry the inner bowl surface and place it into the cooker (See
Figure 3). Make sure the rice is spread evenly across the bottom of the inner
bowl and not heaped to one side (See Figure 4). Make sure the Rice Bowl is
correctly seated into the cooker.
5. Close the Lid.
6. Connect the Power Cord to the Power Supply and turn ON.
7. The “WARM” indicator will illuminate. Press the “Cook Button” to start
cooking (The “WARM” indicator will turn off and the “COOK” indicator will
illuminate). The Rice Cooker is thermostatically controlled by the amount of
water with the rice. The cooking cycle will complete when all the water has
evaporated. (See Figure 5).
8. When the rice is cooked, it will automatically switch to the Keep Warm cycle
and the “WARM” indicator will illuminate. (See Figure 6).
9. It is important not to open the lid for 10 minutes after switching to the Warm
cycle to “steam out” the rice.
10. Open the Lid, loosen and fluff out the rice with the Rice Spoon and serve.
Figure 3 Figure 4
Figure 5
Figure 6
TABLE 1: RICE PROPORTION TABLE
No of Cups
(Use provided Measuring Cup) Water Level in Bowl (Including Rice)
5 Level 10
8 Level 16
12 Level 24
15 Level 30
Note: One Measuring Cup of rice each to 2 Levels of water.
Note: Amount of water may vary according to individual taste of preference.
Figure 2
Figure 1
All manuals and user guides at all-guides.com

ERS5LOperating Instructions Page 3

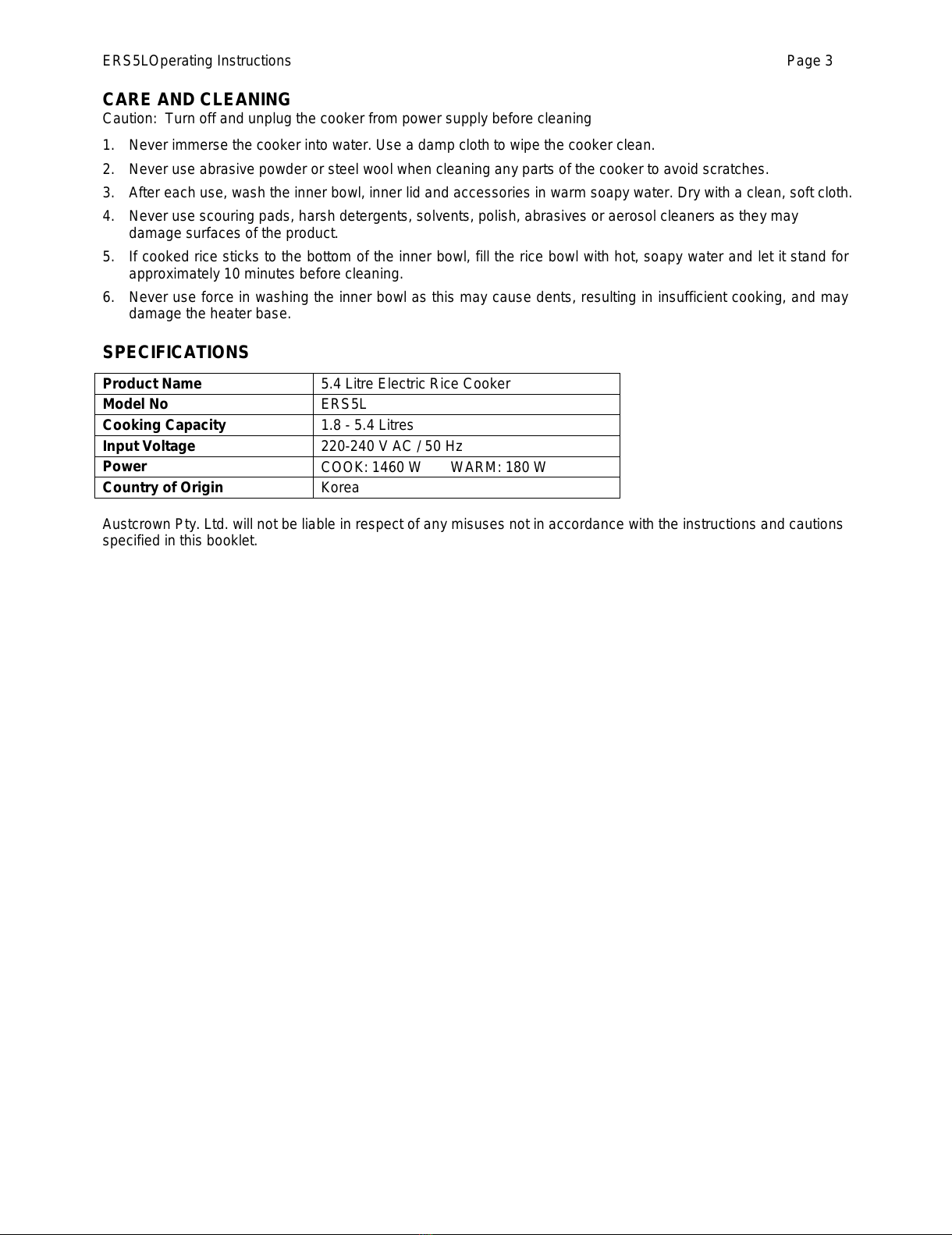

CARE AND CLEANING
Caution: Turn off and unplug the cooker from power supply before cleaning
1. Never immerse the cooker into water. Use a damp cloth to wipe the cooker clean.
2. Never use abrasive powder or steel wool when cleaning any parts of the cooker to avoid scratches.
3. After each use, wash the inner bowl, inner lid and accessories in warm soapy water. Dry with a clean, soft cloth.
4. Never use scouring pads, harsh detergents, solvents, polish, abrasives or aerosol cleaners as they may
damage surfaces of the product.
5. If cooked rice sticks to the bottom of the inner bowl, fill the rice bowl with hot, soapy water and let it stand for
approximately 10 minutes before cleaning.
6. Never use force in washing the inner bowl as this may cause dents, resulting in insufficient cooking, and may
damage the heater base.
SPECIFICATIONS
Product Name 5.4 Litre Electric Rice Cooker
Model No ERS5L
Cooking Capacity 1.8 - 5.4 Litres
Input Voltage 220-240 V AC / 50 Hz
Power COOK: 1460 W WARM: 180 W
Country of Origin Korea
Austcrown Pty. Ltd. will not be liable in respect of any misuses not in accordance with the instructions and cautions
specified in this booklet.
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com
all-guides.com

AUSCROWN
www.auscrown.com
All manuals and user guides at all-guides.com

- Natural Gas or LP gas - Stainless Steel Body
- Piezo Ignition - Pans & Pots Compatible
- Indoor or Outdoor Use - BBQ Side Burner
- Alfresco Cooking - Adjustable Double Ring Flame
AUSCROWN
WITH
BEEHIVE
BURNER
CK107LP/RB18NG CK203LP/RB28NG
CK801NG RB18NG CK801PG CK107LP CK802NG RB28NG CK802PG CK203LP
15.8MJ/hr 14.2MJ/hr 13.5MJ/hr 12.5MJ/hr 2 x 15.8MJ/hr 2 x 14.2MJ/hr 2 x 13.5MJ/hr 2 x 12.5MJ/hr
Outer Ring Ø0.95mm Ø0.90mm Ø0.95mm Ø0.90mm
Inner Ring Ø0.45mm Ø0.40mm Ø0.45mm Ø0.40mm
Pilot
2.75kPa 1.0kPa 2.75kPa
Ø0.90mm Ø0.50mm Ø0.90mm Ø0.50mm
Piezo-Electric
1/4" BSPM60º Coned
7092
China
W292mmxD382mmxH145mm
3.41kg W720mmxD382mmxH145mm 6.53kg
Dimensions
Natural Gas Propane Gas Propane Gas
1.0kPa
Ø1.65mm
Ø0.7mm
Natural Gas
Ø0.7mm
Ø1.65mm
Inlet Fitting
Country Of Origin
Model
Heat Capacity
AGA Approval No
Net Weight
Ignition System
Gas Type
Gas Pressure
Injector Size
CK801PG/NG CK802PG/NG
Outer Ring High
Inner Ring High Outer Ring Low
Inner Ring High Outer Ring Low
Inner Ring Low Outer Ring Off
Inner Ring High Outer Ring Off
Inner Ring Low
WITH
BRASS CAP
BURNER
All manuals and user guides at all-guides.com

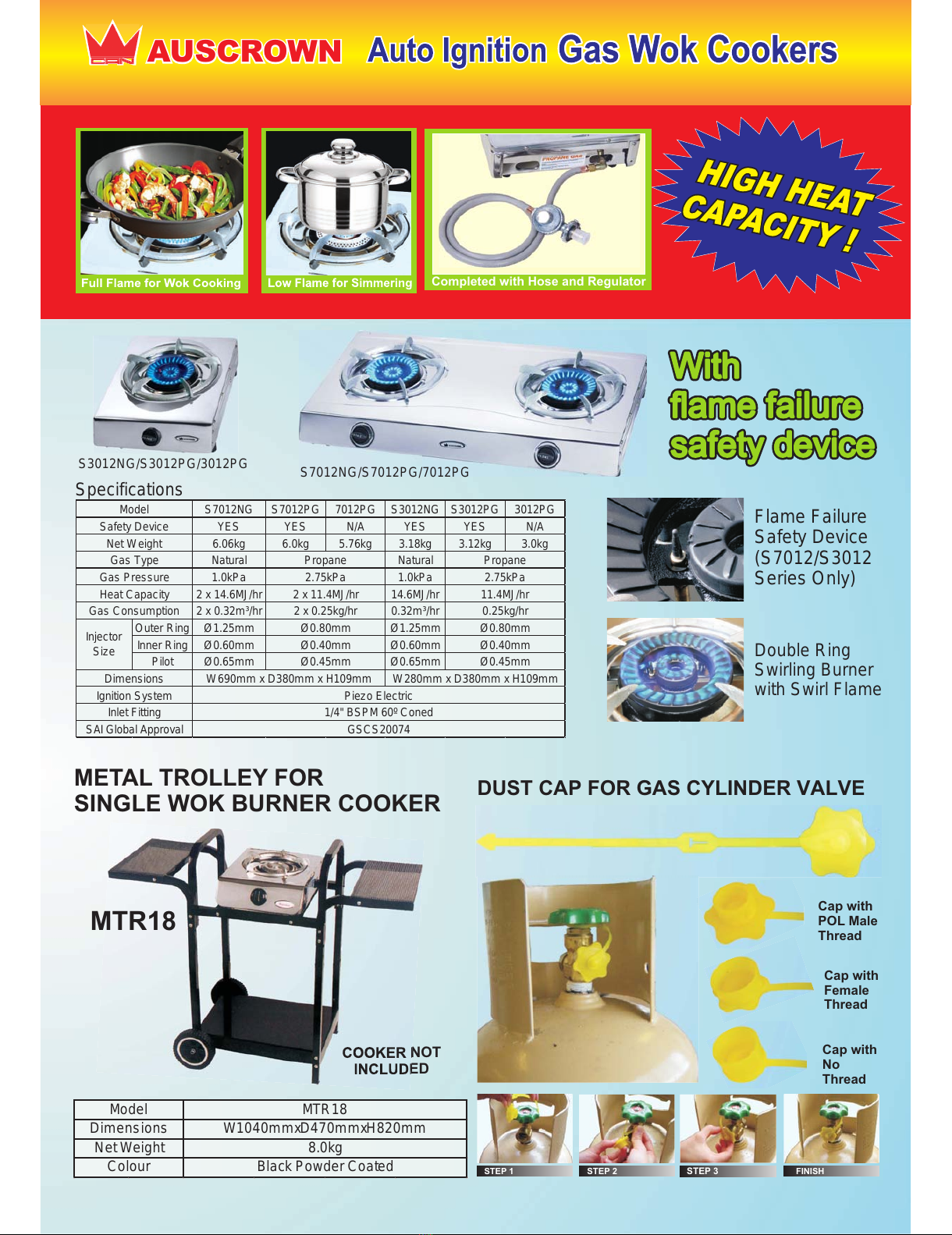

METAL TROLLEY FOR
SINGLE WOK BURNER COOKER DUST CAP FOR GAS CYLINDER VALVE
STEP 1 STEP 2 STEP 3 FINISH
Cap with
POL Male
Thread
Cap with
Female
Thread
Cap with
No
Thread
COOKER NOT
INCLUDED
COOKER NOT
INCLUDED
MTR18
S7012NG/S7012PG/7012PG
S3012NG/S3012PG/3012PG
Flame Failure
Safety Device
(S7012/S3012
Series Only)
Double Ring
Swirling Burner
with Swirl Flame
Specifications S7012NG S7012PG 7012PG S3012NG S3012PG 3012PG
YES YES N/A YES YES N/A
6.06kg 6.0kg 5.76kg 3.18kg 3.12kg 3.0kg
Natural Natural
1.0kPa 1.0kPa
2 x 14.6MJ/hr 14.6MJ/hr
2 x 0.32m³/hr 0.32m³/hr
Outer Ring Ø1.25mm Ø1.25mm
Inner Ring Ø0.60mm Ø0.60mm
Pilot Ø0.65mm Ø0.65mm
Model
Gas Type
Heat Capacity
Gas Consumption
Injector
Size
Safety Device
Net Weight Propane
2.75kPa
2 x 11.4MJ/hr
Propane
Dimensions W690mm x D380mm x H109mm W280mm x D380mm x H109mm
11.4MJ/hr
Gas Pressure
0.25kg/hr2 x 0.25kg/hr
Ø0.40mm
Ø0.45mm
Ignition System
2.75kPa
SAI Global Approval
Ø0.80mm
Ø0.40mm
Ø0.45mm
Ø0.80mm
GSCS20074
Piezo Electric
Inlet Fitting 1/4" BSPM60º Coned
Model MTR18
Colour
NetWeight
Dimensions W1040mmxD470mmxH820mm
Black Powder Coated
8.0kg
Completed with Hose and Regulator
AUSCROWN
All manuals and user guides at all-guides.com

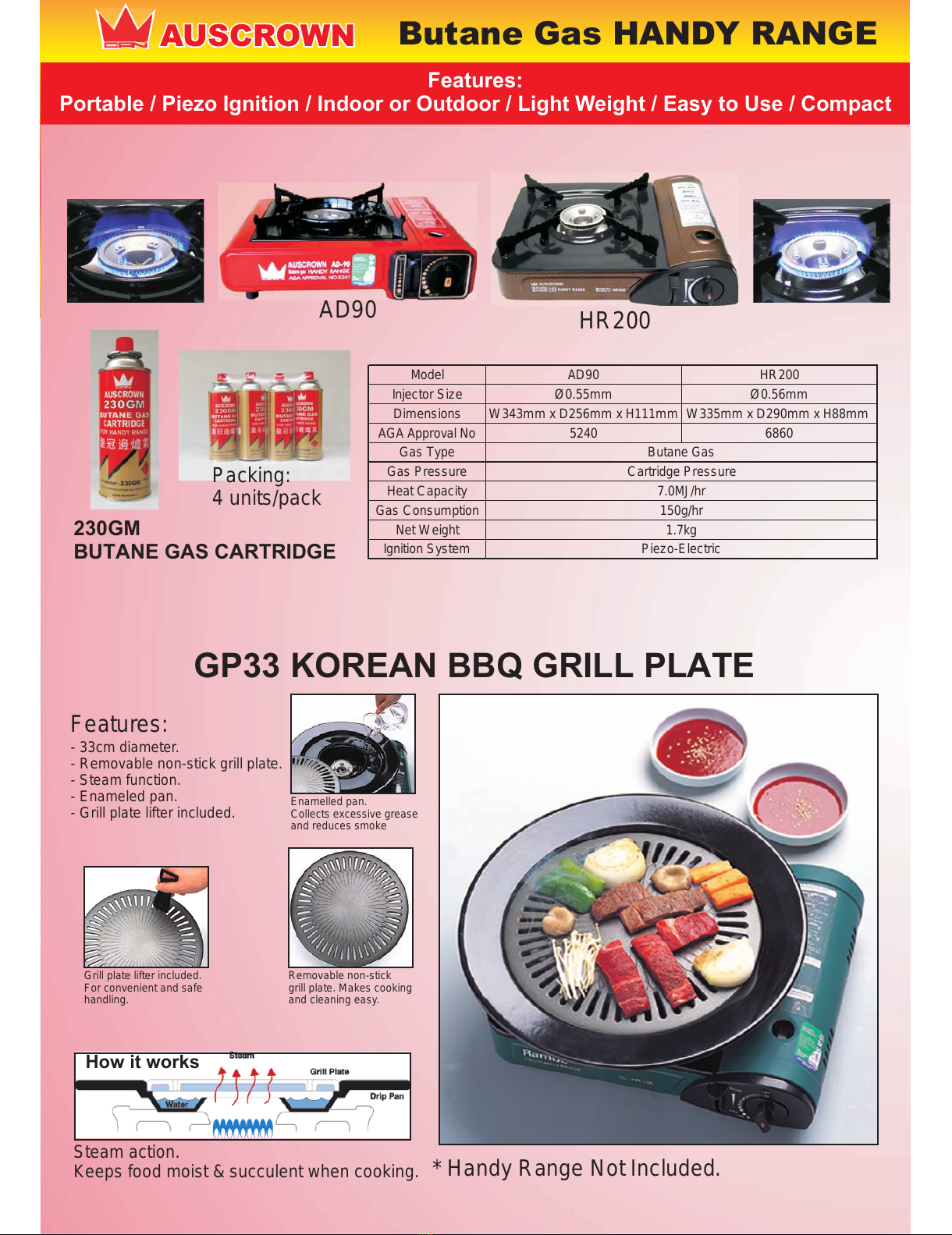

AUSCROWN Butane Gas HANDY RANGE
Features:
Portable / Piezo Ignition / Indoor or Outdoor / Light Weight / Easy to Use / Compact
Model AD90 HR200
Injector Size Ø0.55mm Ø0.56mm
Dimensions W343mm x D256mm x H111mm W335mm x D290mm x H88mm
AGA Approval No 5240 6860
Gas Type
Gas Pressure
Heat Capacity
Gas Consumption
Net Weight
Ignition System 1.7kg
150g/hr
7.0MJ/hr
Piezo-Electric
Butane Gas
Cartridge Pressure
Packing:
4 units/pack
Grill plate lifter included.
For convenient and safe
handling.
Removable non-stick
grill plate. Makes cooking
and cleaning easy.
Enamelled pan.
Collects excessive grease
and reduces smoke
How it works
* Handy Range Not Included.
230GM
BUTANE GAS CARTRIDGE
GP33 KOREAN BBQ GRILL PLATE
HR200
AD90
Features:
- 33cm diameter.
- Removable non-stick grill plate.
- Steam function.
- Enameled pan.
- Grill plate lifter included.
Steam action.
Keeps food moist & succulent when cooking.
All manuals and user guides at all-guides.com

AUSCROWN BRUSHED STAINLESS STEEL
CANOPY RANGE HOODS
Features:
Strong Suction / Brushed Stainless Steel Body / 3 Speed Control /
Micromesh Filters /Optional Charcoal Filter / Ducted or Re-circulated Exhaust
CS900 900MM CS600 600MM
CI900G 900MM ISLAND TYPE
WITH TEMPERED GLASSCI900 900MM ISLAND TYPE
C900GH 900MM CANOPY
WITH TEMPERED GLASS
X: Heigh when duct cover fully extended.
Model C900GH CS900 CS600 CI900 CI900G
Dimensions
W900mm
D475mm
H579mm
X960mm
W900mm
D500mm
H582mm
X980mm
W600mm
D500mm
H580mm
X980mm
W895mm
D600mm
H637mm
X1204mm
W895mm
D600mm
H613mm
X1180mm
Net Weight 21kg 22kg 17kg 27kg 29kg
Lamp Power
Flow Rate
Load of Motor
Duct Size
C tick Approval
AS Approval
Power
No. of Motor
1000m³/hr
2 x 2W
150mm
4 x 2W
240V 60Hz
1
V06076/0
N2788
250W
All manuals and user guides at all-guides.com
all-guides.com

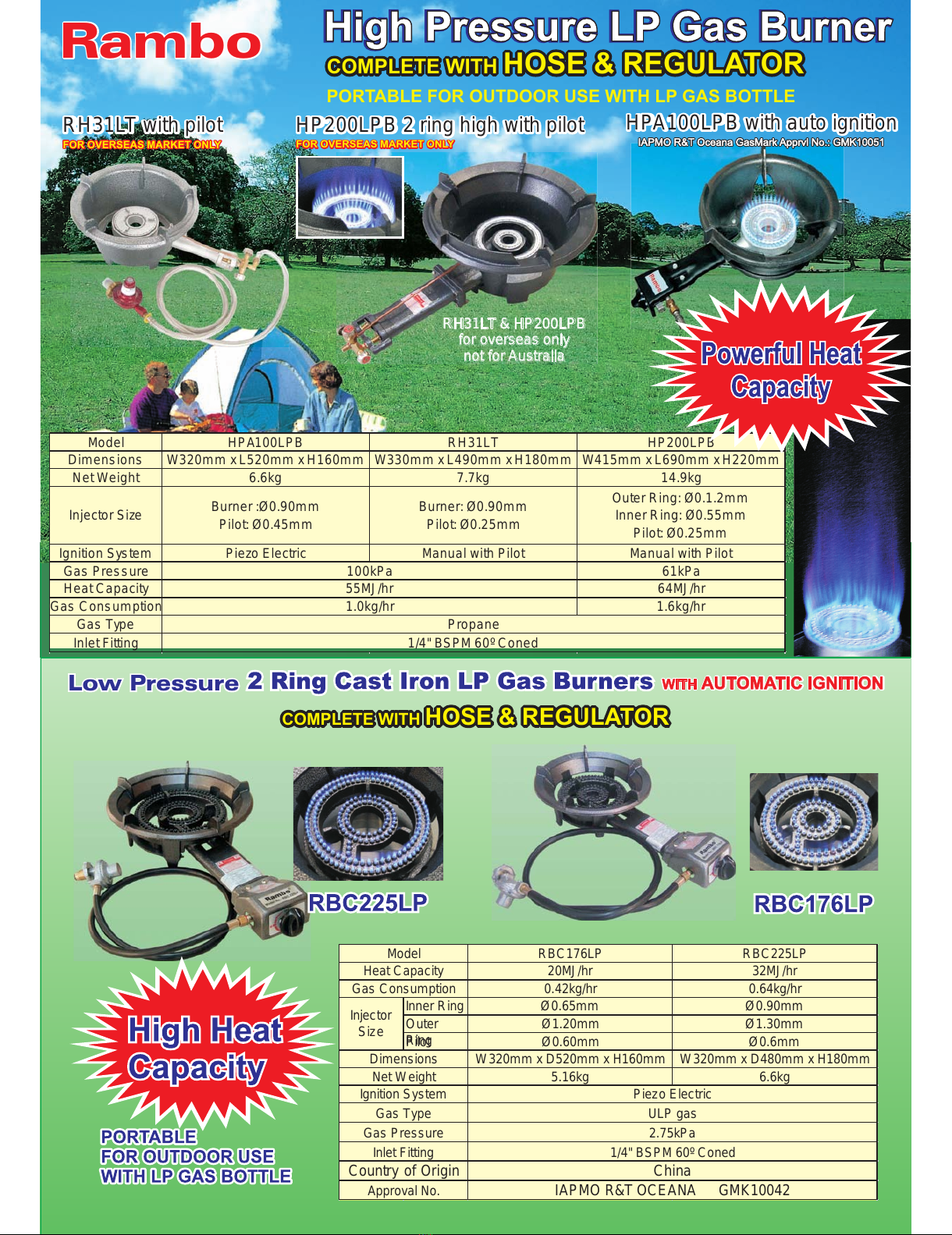

PORTABLE FOR OUTDOOR USE WITH LP GAS BOTTLE
Rambo
Model HPA100LPB RH31LT HP200LPB
Dimensions W320mm xL520mm xH160mm W330mm xL490mm xH180mm W415mm xL690mm xH220mm
NetWeight 6.6kg 7.7kg 14.9kg
Injector Size Burner :Ø0.90mm
Pilot: Ø0.45mm Burner:Ø0.90mm Pilot: Ø0.25mm
Outer Ring:Ø0.1.2mm
Inner Ring: Ø0.55mm
Pilot: Ø0.25mm
Ignition System Piezo Electric Manual with Pilot Manual with Pilot
Gas Pressure 61kPa
HeatCapacity 64MJ/hr
Gas Consumption 1.6kg/hr
Gas Type
InletFitting 1/4" BSPM60ºConed
Propane
55MJ/hr
100kPa
1.0kg/hr
COMPLETE WITH HOSE & REGULATOR
WITH AUTOMATIC IGNITION
Low Pressure
COMPLETE WITH HOSE & REGULATOR
RBC176LP RBC225LP
20MJ/hr 32MJ/hr
0.42kg/hr 0.64kg/hr
Inner Ring Ø0.65mm Ø0.90mm
Outer
Ring Ø1.20mm Ø1.30mm
Pilot Ø0.60mm Ø0.6mm
W320mm x D520mm x H160mm W320mm x D480mm x H180mm
5.16kg 6.6kg
Inlet Fitting 1/4" BSPM 60º Coned
Country of Origin China
Approval No. IAPMO R&T OCEANA GMK10042
Net Weight
Dimensions
Injector
Size
Gas Consumption
Model
Gas Pressure
Heat Capacity
ULP gas
2.75kPa
Gas Type
Ignition System Piezo Electric
RH31LT with pilot HP200LPB 2 ring high with pilot HPA100LPB with auto ignition
FOR OVERSEAS MARKET ONLY FOR OVERSEAS MARKET ONLY
RH31LT & HP200LPB
for overseas only
not for Australia
All manuals and user guides at all-guides.com

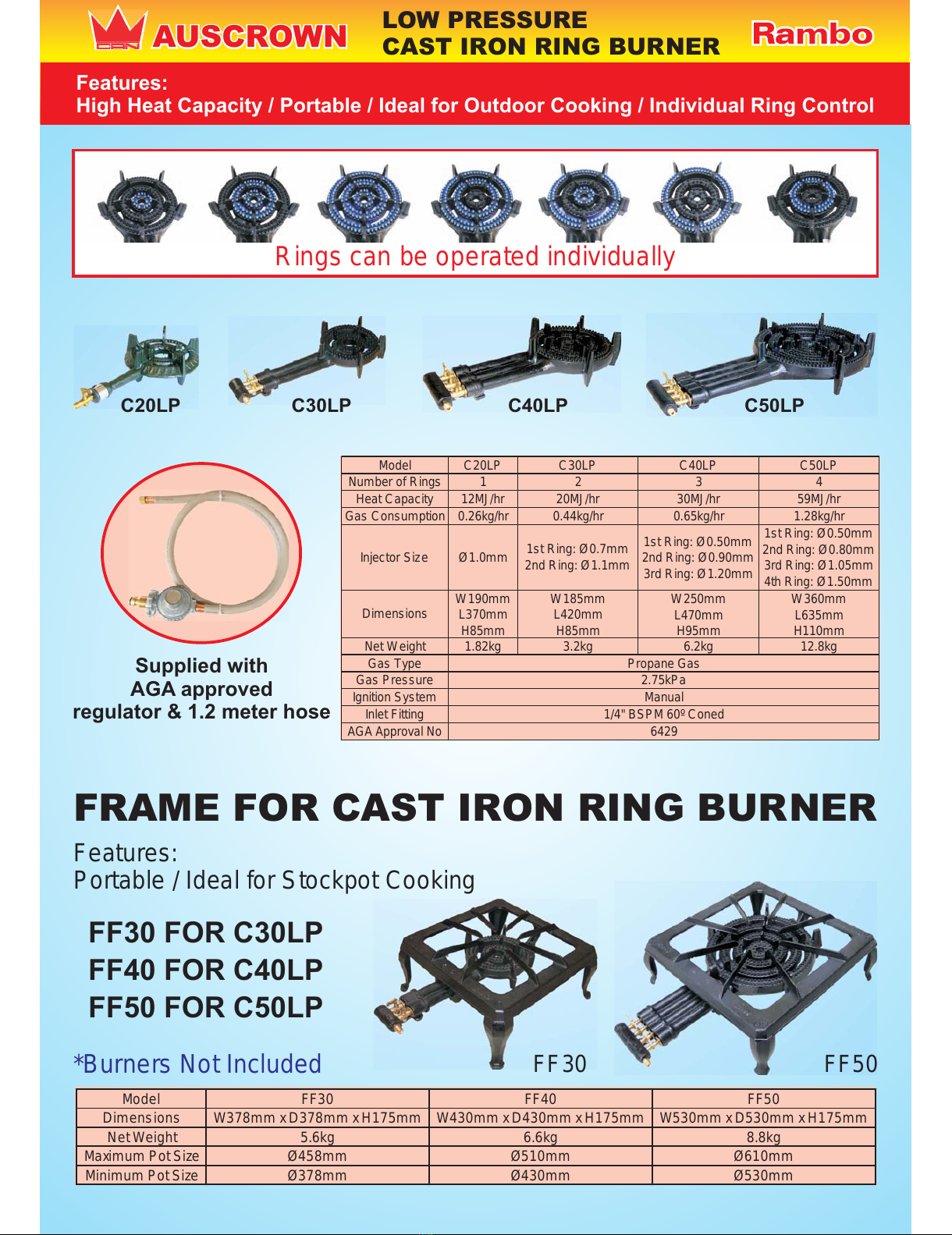

AUSCROWN LOW PRESSURE
CAST IRON RING BURNER
Features:
High Heat Capacity / Portable / Ideal for Outdoor Cooking / Individual Ring Control
*Burners Not Included
FRAME FOR CAST IRON RING BURNER
Features:
Portable / Ideal for Stockpot Cooking
FF30 FOR C30LP
FF40 FOR C40LP
FF50 FOR C50LP
Rings can be operated individually
C20LP C30LP C40LP C50LP
Model C20LP C30LP C40LP C50LP
Number of Rings 1 234
Heat Capacity 12MJ/hr 20MJ/hr 30MJ/hr 59MJ/hr
Gas Consumption 0.26kg/hr 0.44kg/hr 0.65kg/hr 1.28kg/hr
Injector Size Ø1.0mm 1st Ring: Ø0.7mm
2nd Ring: Ø1.1mm
1st Ring: Ø0.50mm
2nd Ring: Ø0.90mm
3rd Ring: Ø1.20mm
1st Ring: Ø0.50mm
2nd Ring: Ø0.80mm
3rd Ring: Ø1.05mm
4th Ring: Ø1.50mm
Dimensions W190mm
L370mm
H85mm
W185mm
L420mm
H85mm
W250mm
L470mm
H95mm
W360mm
L635mm
H110mm
Net Weight 1.82kg 3.2kg 6.2kg 12.8kg
Gas Type
Gas Pressure
Ignition System
Inlet Fitting
AGA Approval No
Propane Gas
2.75kPa
Manual
1/4" BSPM 60º Coned
6429
Supplied with
AGA approved
regulator & 1.2 meter hose
FF30 FF40 FF50
W378mm xD378mm xH175mm W430mm xD430mm xH175mm W530mm xD530mm xH175mm
5.6kg 6.6kg 8.8kg
Ø458mm Ø510mm Ø610mm
Ø378mm Ø430mm Ø530mm
Model
Dimensions
NetWeight
Minimum PotSize
Maximum PotSize
FF30 FF50
All manuals and user guides at all-guides.com

AUSCROWN

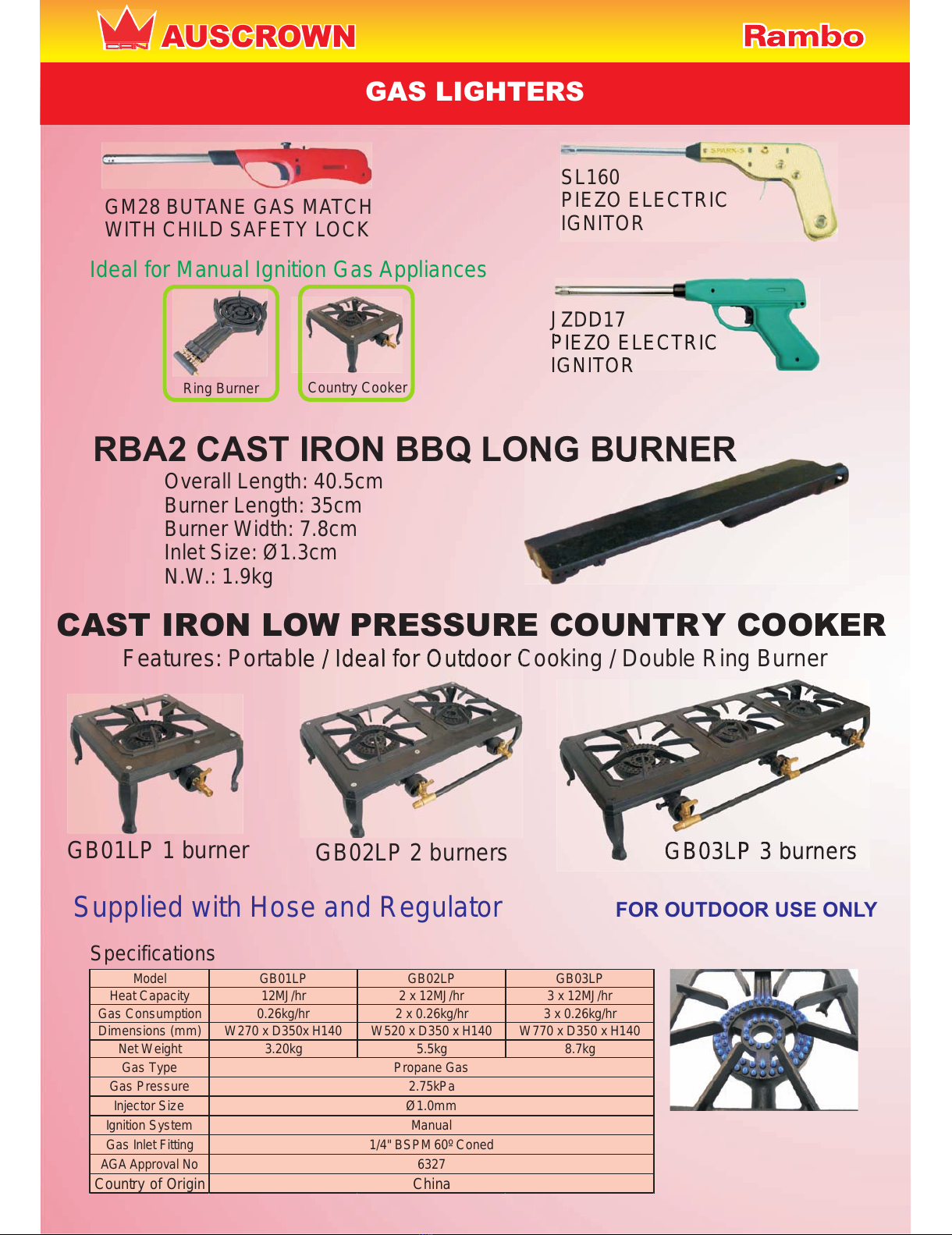

GAS LIGHTERS
SL160
PIEZO ELECTRIC
IGNITOR
JZDD17
PIEZO ELECTRIC
IGNITOR
RBA2 CAST IRON BBQ LONG BURNER
Overall Length: 40.5cm
Burner Length: 35cm
Burner Width: 7.8cm
Inlet Size: Ø1.3cm
N.W.: 1.9kg
GM28 BUTANE GAS MATCH
WITH CHILD SAFETY LOCK
Ideal for Manual Ignition Gas Appliances
RBA2 CAST IRON BBQ LONG BURNER
Ring Burner Country Cooker
CAST IRON LOW PRESSURE COUNTRY COOKER
GB01LP 1 burner GB02LP 2 burners GB03LP 3 burners
FOR OUTDOOR USE ONLY
Features: Portable / Ideal for Outdoor Cooking / Double Ring Burner
Specifications
Supplied with Hose and Regulator
Features: Portable / Ideal for Outdoor Cooking / Double Ring Burner
GB03LP 3 burners
JZDD17
PIEZO ELECTRIC
IGNITOR
Model GB01LP GB02LP GB03LP
Heat Capacity 12MJ/hr 2 x 12MJ/hr 3 x 12MJ/hr
Gas Consumption 0.26kg/hr 2 x 0.26kg/hr 3 x 0.26kg/hr
Dimensions (mm) W270 x D350x H140 W520 x D350 x H140 W770 x D350 x H140
Net Weight 3.20kg 5.5kg 8.7kg
Gas Type
Gas Pressure
Injector Size
Ignition System
Gas Inlet Fitting
AGA Approval No
Country of Origin
1/4" BSPM60º Coned
Propane Gas
2.75kPa
6327
China
Ø1.0mm
Manual
All manuals and user guides at all-guides.com

AUSCROWN
28 Jet Flame 18 Jet Flame
Y018LPWF
LOW PRESSURE DUCKBILL STOCKPOT BURNERS
LP gas models supplied with hose and regulator
Natural gas models supplied with regulator
Heat/boil 100 to 200 litre pot
HIGH PRESSURE STOCKPOT BURNERS
FOR OUTDOOR USE ONLY
FOR OUTDOOR USE ONLY
HP200LPWF
double ring
HPA100LPWF
single ring with
auto ignition
HIGH PRESSURE STOCKPOT BURNERS
HPA100LPWF
single ring with
auto ignition
Y018LPWF Y018NGWF Y028LPWF Y028NGWF
Propane Gas Natural Gas Propane Gas Natural Gas
2.75kPa 1.0kPa 2.75kPa 1.0kPa
67MJ/hr 67MJ/hr 104MJ/hr 104MJ/hr
1.34kg/hr 1.76m³/hr 2.08kg/hr 2.74m³/hr
Duckbill jet Ø0.55mm Ø1.05mm Ø0.55mm Ø1.05mm
Pilot Ø0.40mm Ø0.80mm Ø0.40mm Ø0.80mm
18 28
Manual with Pilot
1/2" BSPF
China
44kg
W490 x D570 x H410
27kg
Min: Ø440 Max: Ø490
GASMARK CERTIFICATE GMK10005
W610 x D690 x H490
Min: Ø440 Max: Ø610
Pot Size (mm)
Net Weight
Ignition System
Inlet Fitting
Approval No
Country of Origin
Model
Gas Type
Gas Pressure
Heat Capacity
Gas Consumption
Dimensions (mm)
Injector
SizeNo. of jets
Y018LPWF
with Flame Failure Safety Device
Flame Failure
Safety Device
HP200LPWF for overseas only, not for Australia
Model HP200LPWF HPA100LPWF
Gas Pressure 61kPa 100kPa
Heat Capacity 64MJ/hr 55MJ/hr
Gas Consumption 1.6kg/hr 1.0kg/hr
Ignition System Manual Pilot Piezo Electric
Injector Size Outer Ring: Ø1.20mm Inner Ring: Ø0.55mm
Pilot: Ø0.25mm
Burner: Ø0.90mm
Pilot: Ø0.45mm
Dimensions (mm) W456 x D760 x H440 W456 x D600 x H440
Net Weight 33kg 29kg
Approval No For overseas only IAPMO GMK10051
Gas Type
Inlet Fitting
Pot Size
country of Origin Min: Ø400mm Max: Ø610mm
Propane Gas
1/4" BSPM60º coned
China
All manuals and user guides at all-guides.com

AUSCROWN
TYPE B / SECOND TIER APPROVAL FROM A LICENSED GAS INSPECTOR MUST BE OBTAINED PRIOR TO OPERATION
A30NG
and A30LP
A30NG
and A30LP
LOW PRESSURE CAST IRON MUSHROOM BURNER
A7NG and A7LP A12NG and A12LP
A7NG and A7LP
A12NG and A12LP
A16NG and A16LP
LP gas models supplied with hose and regulator
Natural gas models supplied with regulator
Heat/boil 100 to 200 litre pot
ProductName
Model A07LP A07NG A12LP A12NG A16LP A16NG A30LP A30NG
Gas Type Propane GasNatural Gas Propane GasNatural Gas Propane GasNatural Gas Propane Gas Natural Gas
Gas Pressure 2.75kPa 1.0kPa 2.75kPa 1.0kPa 2.75kPa 1.0kPa 2.75kPa 1.0kPa
HeatCapacity 25.1MJ/hr 33.7MJ/hr 47.4MJ/hr 57.8MJ/hr 58.9MJ/hr 77.0MJ/hr 118.2MJ/hr 144.5MJ/hr
Gas Consumption 0.5kg/hr 0.88m³/hr 0.95kg/hr 1.52m³/hr 1.18kg/hr 2.03m³/hr 2.37kg/hr 3.81m³/hr
Nozzle Size Ø0.58mm Ø1.10mm Ø0.58mm Ø1.10mm Ø0.58mm Ø1.10mm Ø0.58mm Ø1.10mm
Dimensions (mm)
NetWeight
Ignition System
Flame Failure Safety
Inlet Fitting
CountryofOrigin Taiwan
1/4" BSPM60ºconed
Mushroom stockpotburnerMushroom burner
Manual Pilot
YesNo
W265 xL490 xH180 W300 xL540 xH210 W370 xL570 xH220
1/2" BSPM
Piezo Electric
W430 xL720 xH300
6kg 8.5kg 14kg 32kg
All Rings On
Outer Ring OnInner Ring On
All Rings On
Outer Ring OnInner Ring On
Specifications
With Flame Failure Safety Device
and Manual Pilot Ignition
A16NG and A16LP
All manuals and user guides at all-guides.com
all-guides.com

AUSCROWN Rambo
LOW PRESSURE DUAL RING BURNER
*Recommended size only. Size may be adjusted according to the user’s requirements
LOW PRESSURE GAS JET BURNER
Product Name
Gas Type Propane Natural Propane Natural Propane Natural Propane Natural
Gas Pressure 2.75kPa 1.00kPa 2.75kPa 1.00kPa 2.75kPa 1.00kPa 2.75kPa 1.00kPa
Gas Consumption 0.74kg/hr 0.97m3/hr 1.48kg/hr 1.95m3/hr 1.71kg/hr 2.24m3/hr 2,37kg/hr 3.11m3/hr
Injector Size Ø0.55mm Ø1.05mm Ø0.55mm Ø1.05mm Ø0.55mm Ø1.05mm Ø0.55mm Ø1.05mm
Heat Capacity
Dimensions
Net Weight
Inlet Fitting
37MJ/hr 74MJ/hr 85MJ/hr 118MJ/hr
Ø143mm x H60mm Ø204mm x H60mm Ø230mm x H60mm Ø260mm x H65mm
3/8" BSPF
1.1kg 2.4kg 2.7kg 3.9kg
1/2" BSPF 3/4" BSPF
32 jet Mongolian Burner10 jet Mongolian Burner 23 jet Mongolian Burner20 jet Mongolian Burner
Model/Product Name
Gas Type Propane Gas Natural Gas
Gas Pressure 2.75kPa 1.00kPa
Gas Consumption 1.4kg/hr 1.8m³/hr
Injector Size* Outer Ring: Ø1.90mm
Inner Ring: Ø1.30mm Outer Ring: Ø3.10mm Inner Ring: Ø2.10mm
Heat Capacity
Inlet Fitting
Dimensions
Net Weight
Approval
Country of Origin
70MJ/hr
China
CRN8 Dual Ring Burner
W250mm x D405mm x H80mm
7.1kg
Gas Fitter Applied
1/4" BSPM(Injectors)
Specifications
Specifications
Specifications
LOW PRESSURE DUCKBILL BURNER AND CHIMNEY BURNER
Product Name
Gas Type Propane Natural Propane Natural Propane Natural Propane Natural
Gas Pressure 2.75kPa 1.00kPa 2.75kPa 1.00kPa 2.75kPa 1.00kPa 2.75kPa 1.00kPa
Gas Consumption 1.34kg/hr 1.76m3/hr 2.09kg/hr 2.74m3/hr 1.34kg/hr 1.76m3/hr 1.97kg/hr 2.58m3/hr
Injector Size Ø0.55mm Ø1.05mm Ø0.55mm Ø1.05mm Ø0.55mm Ø1.05mm Ø0.55mm Ø1.05mm
Heat Capacity
Inlet Fitting
Dimensions
Net Weight 2.75kg 6kg 6.8kg
Ø192mm x H100mm Ø270mm x H105mm Ø300mm x H95mm Ø300mm x H185mm
3/4" BSPF 1/2" BSPF1/2" BSPF
7.4kg
28 jet duckbill burner 18 jet duckbill chimney burner24 jet Mongolian chimney burner
67MJ/hr67MJ/hr 98MJ/hr104MJ/hr
18 jet duckbill burner
1/2" BSPF
CRN8
10 jets 20 jets 23 jets 32 jets
18 jets 18 jets 24 Mongolian jets
28 jets
All manuals and user guides at all-guides.com

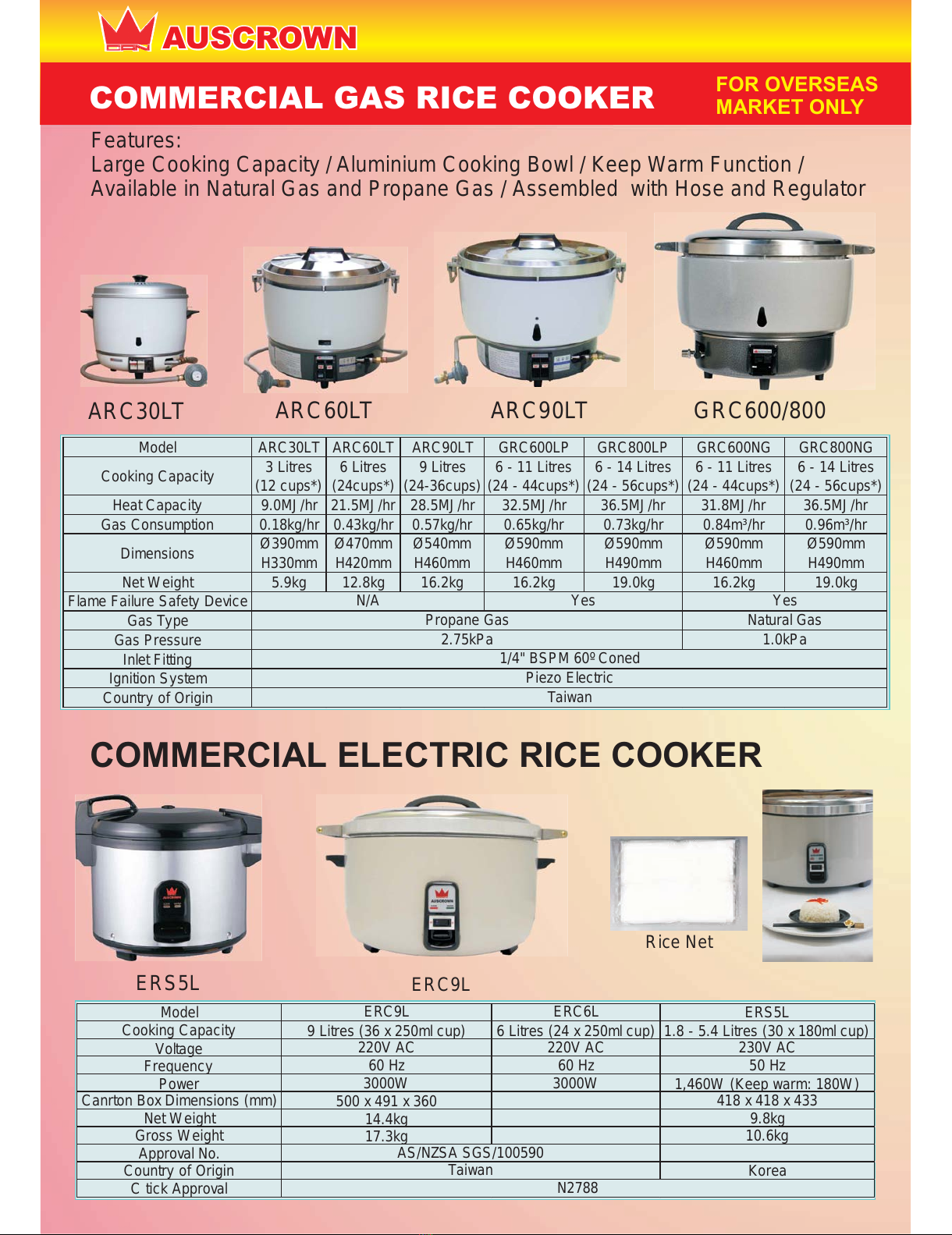

COMMERCIAL GAS RICE COOKER
GRC600/800
ARC30LT
ARC60LT ARC90LT
Model ARC30LT ARC60LT ARC90LT GRC600LP GRC800LP GRC600NG GRC800NG
Cooking Capacity 3 Litres
(12 cups*) 6 Litres (24cups*) 9 Litres (24-36cups) 6 - 11 Litres (24 - 44cups*) 6 - 14 Litres (24 - 56cups*) 6 - 11 Litres (24 - 44cups*) 6 - 14 Litres (24 - 56cups*)
Heat Capacity 9.0MJ/hr 21.5MJ/hr 28.5MJ/hr 32.5MJ/hr 36.5MJ/hr 31.8MJ/hr 36.5MJ/hr
Gas Consumption 0.18kg/hr 0.43kg/hr 0.57kg/hr 0.65kg/hr 0.73kg/hr 0.84m³/hr 0.96m³/hr
Dimensions Ø390mm
H330mm Ø470mm H420mm Ø540mm H460mm Ø590mm H460mm Ø590mm H490mm Ø590mm H460mm Ø590mm H490mm
Net Weight 5.9kg 12.8kg 16.2kg 16.2kg 19.0kg 16.2kg 19.0kg
Flame Failure Safety Device
Gas Type
Gas Pressure
Inlet Fitting
Ignition System
Country of Origin
Natural Gas
1/4" BSPM 60º Coned
N/A
1.0kPa2.75kPa
Yes Yes
Piezo Electric
Taiwan
Propane Gas
AUSCROWN
Features:
Large Cooking Capacity / Aluminium Cooking Bowl / Keep Warm Function /
Available in Natural Gas and Propane Gas / Assembled with Hose and Regulator
ERC9L
Rice Net
COMMERCIAL ELECTRIC RICE COOKER
ERS5L
Model ERC9L ERC6L ERS5L
Cooking Capacity 9 Litres (36 x 250ml cup) 6 Litres (24 x 250ml cup) 1.8 - 5.4 Litres (30 x 180ml cup)
Voltage 220V AC 220V AC 230V AC
Frequency 60 Hz 60 Hz 50 Hz
Power 3000W 3000W 1,460W (Keep warm: 180W)
Canrton Box Dimensions (mm) 500 x 491 x 360 418 x 418 x 433
Net Weight 14.4kg 9.8kg
Gross Weight 17.3kg 10.6kg
Approval No.
Country of Origin Korea
C tick Approval N2788
AS/NZSA SGS/100590
Taiwan
FOR OVERSEAS
MARKET ONLY
All manuals and user guides at all-guides.com

Rambo
AUSCROWN
LF103
7010-1C
7020R-1C 7068R
M12P14S
M18P14S

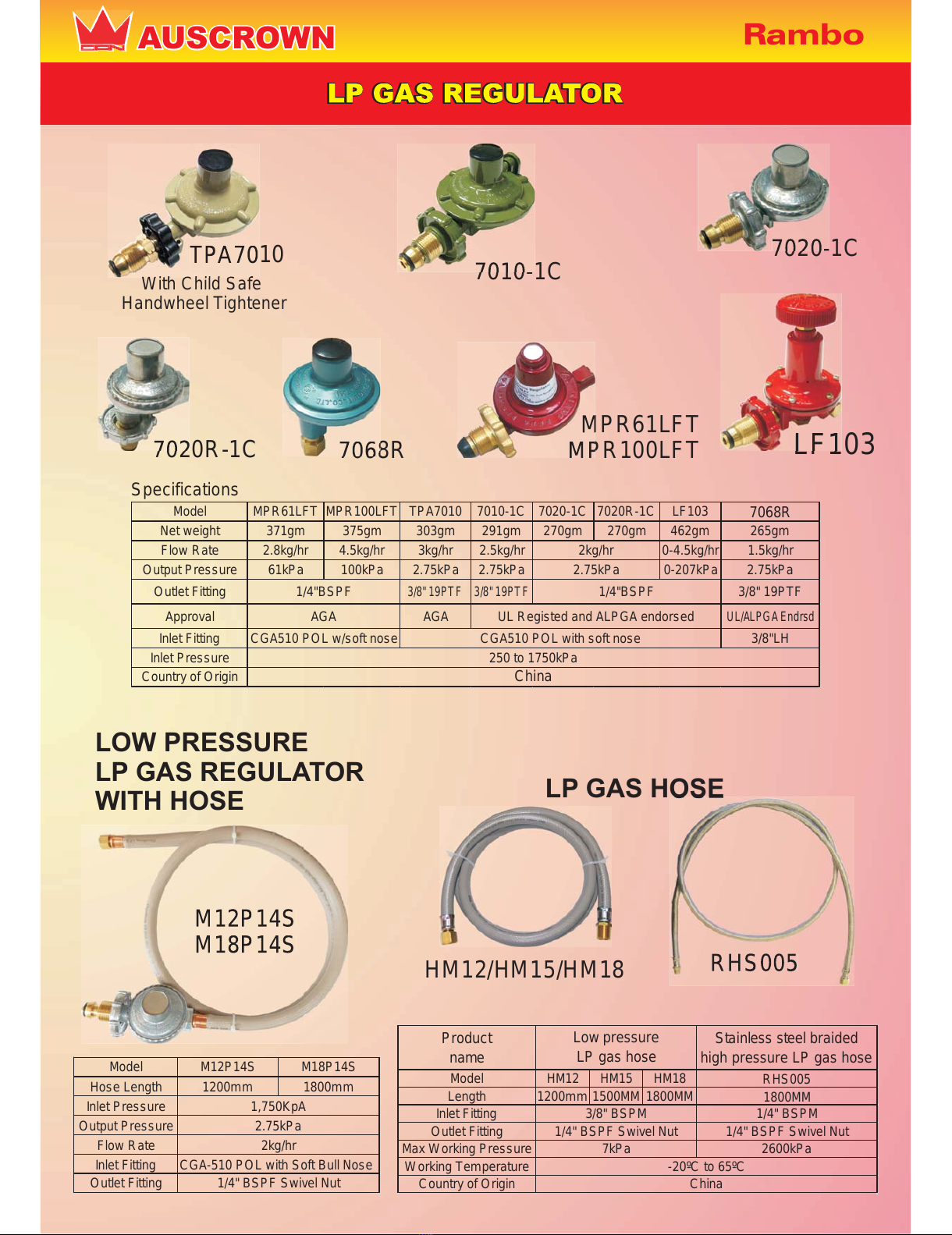

LOW PRESSURE
LP GAS REGULATOR
WITH HOSE
RHS005
TPA7010
With Child Safe
Handwheel Tightener
MPR61LFT
MPR100LFT
Model MPR61LFT MPR100LFT TPA7010 7010-1C 7020-1C 7020R-1C LF103 7068R
Net weight 371gm 375gm 303gm 291gm 270gm 270gm 462gm 265gm
Flow Rate 2.8kg/hr 4.5kg/hr 3kg/hr 2.5kg/hr 0-4.5kg/hr 1.5kg/hr
Output Pressure 61kPa 100kPa 2.75kPa 2.75kPa 0-207kPa 2.75kPa
Outlet Fitting 3/8"19PTF 3/8"19PTF 3/8" 19PTF
Approval AGA UL/ALPGAEndrsd
Inlet Fitting 3/8"LH
Inlet Pressure
Country of Origin
2kg/hr
2.75kPa
1/4"BSPF1/4"BSPF
CGA510 POL with soft noseCGA510 POL w/soft nose
AGA UL Registed and ALPGAendorsed
China
250 to 1750kPa
Specifications
HM12/HM15/HM18
Product
name Stainless steel braided high pressure LP gas hose
Model HM12 HM15 HM18 RHS005
Length 1200mm 1500MM 1800MM 1800MM
Inlet Fitting 1/4" BSPM
Outlet Fitting 1/4" BSPF Swivel Nut
Max Working Pressure 2600kPa
Working Temperature
Country of Origin
7kPa -20ºC to 65ºC
Low pressure
LP gas hose
3/8" BSPM
1/4" BSPF Swivel Nut
China
Model M12P14S M18P14S
Hose Length 1200mm 1800mm
Inlet Pressure
Output Pressure
Flow Rate
Inlet Fitting CGA-510 POL with Soft Bull Nose
Outlet Fitting
1,750KpA
2.75kPa
2kg/hr
1/4" BSPF Swivel Nut
LP GAS HOSE
TPA7010
With Child Safe
LF103
7010-1C
7020-1C
7020-1C
7020R-1C
7068R
MPR61LFT
MPR100LFT
M12P14S
M18P14S
RHS005
LP GAS HOSE
All manuals and user guides at all-guides.com

AUSCROWN

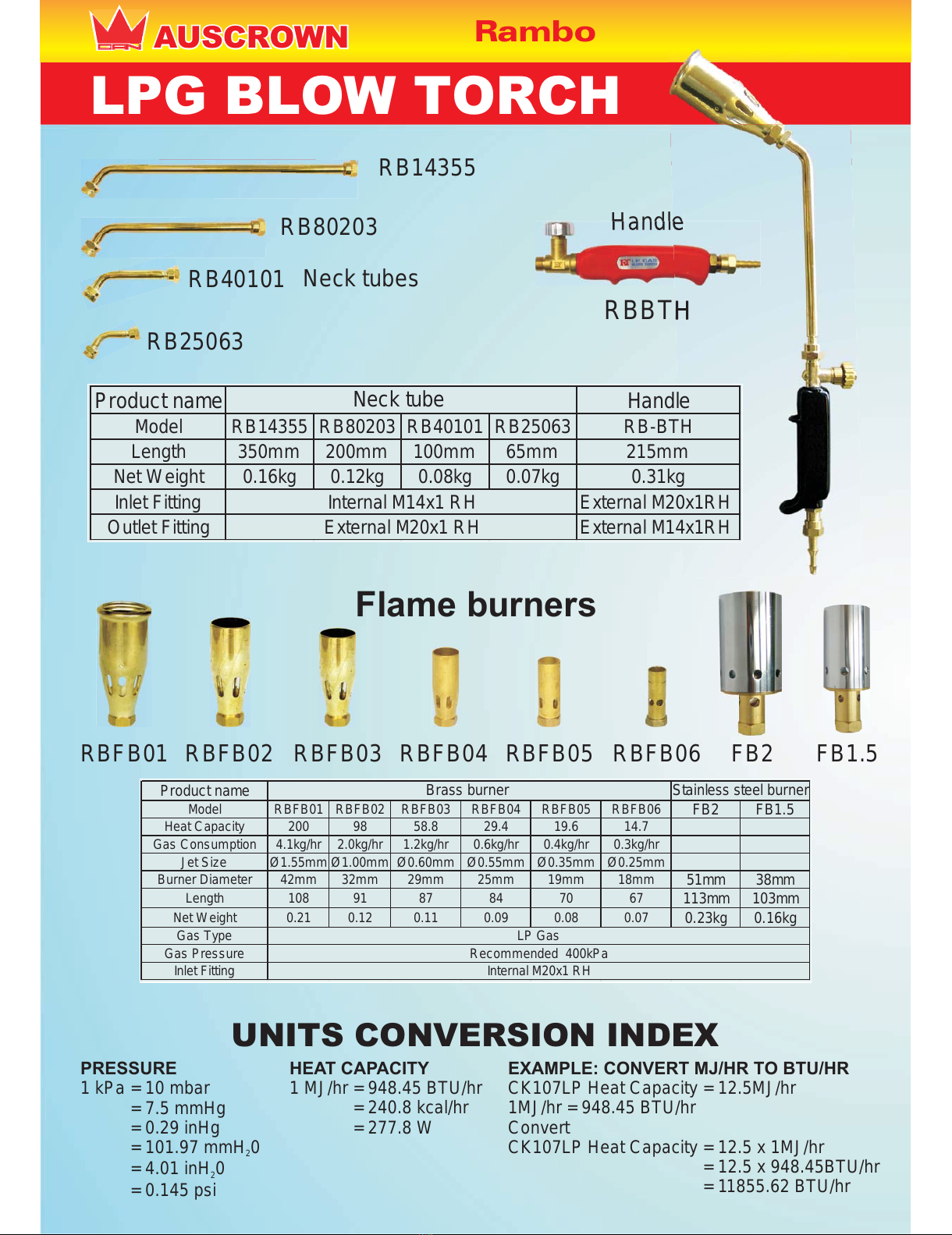

LPG BLOW TORCH
Rambo
RB14355
UNITS CONVERSION INDEX
PRESSURE
1 kPa = 10 mbar
= 7.5 mmHg
= 0.29 inHg
= 101.97 mmH 0
2
= 4.01 inH 0
2
= 0.145 psi
HEAT CAPACITY
1 MJ/hr = 948.45 BTU/hr
= 240.8 kcal/hr
= 277.8 W
EXAMPLE: CONVERT MJ/HR TO BTU/HR
CK107LP Heat Capacity = 12.5MJ/hr
1MJ/hr = 948.45 BTU/hr
Convert
CK107LP Heat Capacity = 12.5 x 1MJ/hr
= 12.5 x 948.45BTU/hr
= 11855.62 BTU/hr
RBFB01 RBFB02 RBFB03 RBFB04 RBFB05 RBFB06 FB2 FB1.5
Product name
Model RBFB01 RBFB02 RBFB03 RBFB04 RBFB05 RBFB06 FB2 FB1.5
Heat Capacity 200 98 58.8 29.4 19.6 14.7
Gas Consumption 4.1kg/hr 2.0kg/hr 1.2kg/hr 0.6kg/hr 0.4kg/hr 0.3kg/hr
Jet Size Ø1.55mm Ø1.00mm Ø0.60mm Ø0.55mm Ø0.35mm Ø0.25mm
Burner Diameter 42mm 32mm 29mm 25mm 19mm 18mm 51mm 38mm
Length 108 91 87 84 70 67 113mm 103mm
Net Weight 0.21 0.12 0.11 0.09 0.08 0.07 0.23kg 0.16kg
Gas Type
Gas Pressure
Inlet Fitting Recommended 400kPa Internal M20x1 RH
Brass burner Stainless steel burner
LP Gas
RB80203
RB40101
RB25063 RBBTH
RBBTH
Handle
Neck tubes
Flame burners
Handle
Handle
Product name Handle
Model RB14355 RB80203 RB40101 RB25063 RB-BTH
Length 350mm 200mm 100mm 65mm 215mm
Net Weight 0.16kg 0.12kg 0.08kg 0.07kg 0.31kg
Inlet Fitting External M20x1RH
Outlet Fitting External M14x1RH
Neck tube
Internal M14x1 RH
External M20x1 RH
All manuals and user guides at all-guides.com
