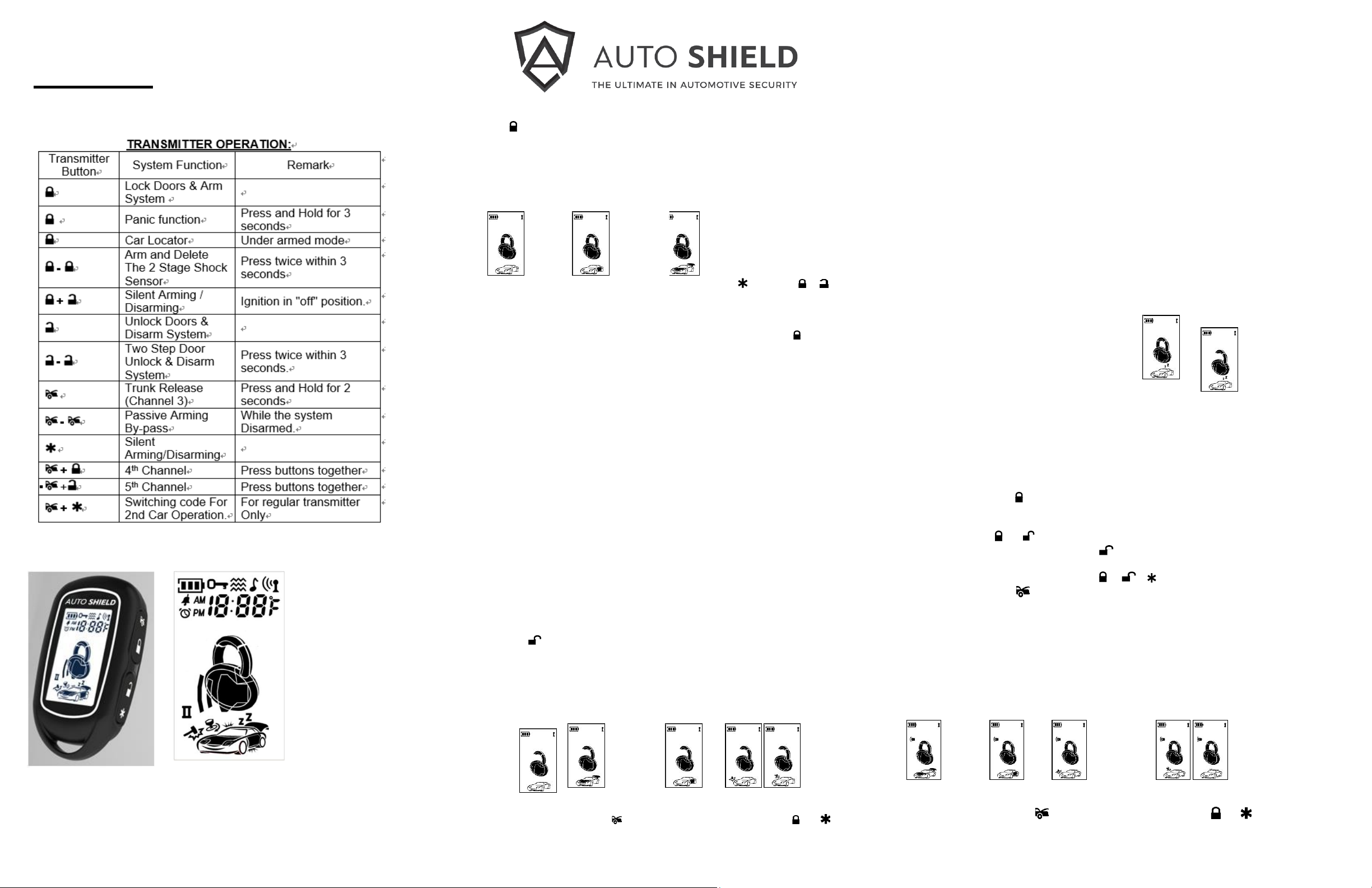

AUTO SHIELD AS-475A User manual

LCD REMOTE CONTROL TRANSMITTER: AS-LCD
Note: If the system is interfered by stronger radio
frequency around, sources of high voltage electric
power or such Obstacles like tall buildings and so
on, the transmission range may get shorter as the
system uses low out put powered frequency.
ACTIVE ARMING –LOCK & ARM:
1.Press
button on transmitter.
2.The siren will chirp once and parking light will flash once indicating that the
system is now armed. The vehicle doors will lock upon arming when interfaced
with the security system.
Note: Defective sensor reminder: If the siren or horn sounds 3 chirps, then you
have left a door, trunk, or hood lid ajar.
System Arm
Door Ajar
Trunk / Hood Ajar
AJAR WARNING:
If the siren sounds 3
chirps, then you
have left a door,
trunk, or hood lid
ajar.
SILENT LOCK/UNLOCK OR ARM / DISARM:Press the
button or + buttons
together on the transmitter on the transmitter to arm or disarm your security
system with no chirp sound heard; arm / disarm confirmation will be through the
vehicles parking lights only.
SHOCK SENSOR / OPTIONAL SENSOR BY-PASS: Press the
button on the
transmitter twice within 3 seconds will arm the security system, by-pass the shock
sensor or the optional sensor connected to 4 pin plug. The system will chirp one
additional time to confirm the sensor bypass mode was activated. The sensor
bypass feature is programmed to activate for one arming cycle only. The security
system will return to normal operation during the next arming cycle.
PASSIVE LOCKING OR ARMING :Programmable
Active arming / disarming is controlling your security system via the remote
transmitter. This security system is equipped with an optional Passive Arming
feature, which allows the security system to arm 30 seconds after the last door is
closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 30
seconds. If you reopen any door / hood / trunk, the security system LED will
stop flashing. It will begin flashing again once all vehicle entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically
“ARM”. The siren or horn will chirp [1] time and the parking lights will flash [1]
time.
PASSIVE DOOR LOCKING: Programmable
The vehicle doors will automatically lock after passive arming cycle has been
completed.
ACTIVE UN-LOCKING –UNLOCK & DISARM:
1. Press the
button on the transmitter.
2. The siren will chirp twice and parking lights will flash twice to indicate that the
security system is now disarmed. The vehicle doors will unlock and disarm
when interfaced with the security system
System
Disarm
Trunk/Hood
Trigger
Doors
Trigger
Shock Sensor Ignition
Trigger Trigger
Clear the Flash Icon and Melody Sound:Cycle Ignition then
press the button first, within 3 seconds press and buttons
at the same time.It will clear theflash icon and melody sound
on the LCD screen transceiver
AUTOMATIC RE-ARM: If this feature is selected, the security system will
automatically re-arm itself 60 seconds after disarming with remote transmitter.
Automatic rearm will cancel if any door is opened before the 60 seconds timer
has elapsed.
DISARMING WITHOUT A TRANSMITTER
The Override function may be used if the remote transmitter is lost or
inoperative.
1. Enter the vehicle and turn the ignition switch to 'ON’ position. (Alarm will
sound.)
2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode. You can now start and
operate the vehicle normally.
VALET MODE:
The valet switch allows you to temporarily bypass all alarm functions eliminating
the need to hand your transmitter to parking attendants or garage mechanics.
When the system is in valet mode, all alarm functions are bypassed, however,
the remote panic feature and remote door locks will remain operational.
Enter Valet Mode:
1. From the disarmed condition, turn
the ignition to “ON” position.
2. Push and hold valet switch for 2
seconds until the LED turns on.
The LED wills remain on as long
as the system is in 'valet mode'.
RemoteDoor Lock
Remote Door
Unlock
Exit Valet Mode:
1. Return to normal operation, turn ignition 'ON'.
Push and hold valet switch for 2 seconds; the LED will turn off indicating the system
is exiting the valet mode
PANIC FUNCTION:
The transmitter can be used as a remote panic switch to manually trigger the alarm
in case of emergency.
1.Press and hold the
button on the transmitter for 3 seconds. The alarm will
immediately sound.
2.During panic mode, the normal function of this transmitter button will be
suspended. The
and
buttons can be used to lock and unlock the doors (if the
option is installed), however once the
button is pressed, the vehicle’s starter
disable device, (where installed) will be enable allowing the vehicle to start.
3.To stop the alarm, press and hold the
or
or
button on the transmitter for 3
seconds. Also if the button is pressed and released, the panic mode will be
turned off immediately.
4.If the button is not pressed, the alarm will automatically stop after 30 seconds.
TRIGGER THE SYSTEM: (OPTIONAL) If alarm option is installed.
When armed, your vehicle is protected as follows:
1. Light impacts will trigger the warn-away signal. A long chirp from siren /horn.
2. Heavy impacts / Doors open / Hood open / Trunk open / Turning on the
ignition switch- All will trigger the programmed sequence.
Trunk/Hood
Trigger
Doors
Trigger
Shock
Sensor Trigger
Ignition Warn-away
TriggerTrigger
Clear the Flash Icon and Melody Sound: Cycle ignition then
press the button first, within 3 seconds press and
buttons at the same time. It will clear theflash icon and melody
sound on the LCD screen transceiver
AS-475A

SelectAlarm
Clock Enable or
Disable
On + or
OFF
Press button => Enable or
Press button => Disable
Press button confirm its
selection, move to next option.
3
Parking Meter
countdown
Default is OFF
Adjust Parking
Meter
countdown
hours from 0 to
2
0 :00
0 is flashing
Press button = (+)or
Press button = (-)
Press button confirm its
selection, move to next option.
Adjust Parking
Meter
countdown
minutes from 0
to 59.
0 : 30
30 is flashing
Press button => (+)or
Press button => (-)
Press button confirm its
selection, move to next option.
SelectParking
meter
countdown
Enable or
Disable
ON + or
OFF
Press button => Enable or
Press button => Disable
Press button confirm its
selection, move to next option.
There is a beep sound at 5 min.
before Parking countdown reach 0.
4
Power Save
Default is OFF
SelectPower
Save Enable
or Disable
PSor
Press button => Enable or
Press button => Disable
When power save enable, the LCD
remotetransceiver uses “0” current
to save the battery power. LCD
show “Save” on text area
Exit: Press any button of the LCD
remote transmitter to exit the
“Power Save Mode”.
Press button confirm its
selection, move to next option.
5
2-way HHU
Response mode
Default is Buzzer
Select2-way
HHU
confirmation by
Melody or
Vibration
or or
+
Press button =>Melody or
Press button =>Vibration
Press button confirm its
selected, move to next option.
6
Second Car
Security Option
C1 or C2
Default is CAR 1
Car Select
CAR 1 or
CAR 2 ( II icon
On)
- CAR 1 operation.
- CAR 2 operation (II icon On
mean 2nd car operation).Press
button confirm its selected, move
to next option.
IGNITION CONTROL DOOR LOCKS.
If the vehicle’s door locks have been interfaced to the security system, the system will
automatically lock the vehicle's doors when the ignition is turned “ON” and /or unlock the
vehicle’s doors when the ignition is turned “OFF”.
TRUNK RELEASE: Press and hold button on transmitter for three seconds to remote
control the trunk release or other electric devices.
CAR LOCATOR : Press the button on the transmitter when the vehicle is in the
armed / locked mode to active car locator function. The siren or horn will chirp 6 times.
The parking light will flash 12 times, allowing you to easily locate your car.
Stop The Trigger Melody Sound:
While triggering the alarm the LCD screen will alert user through melody sound and
flashing trigger icon, press any button on the LCD remote transmitter to stop melody
sound only, the remote control buttons will not send a command to the system.

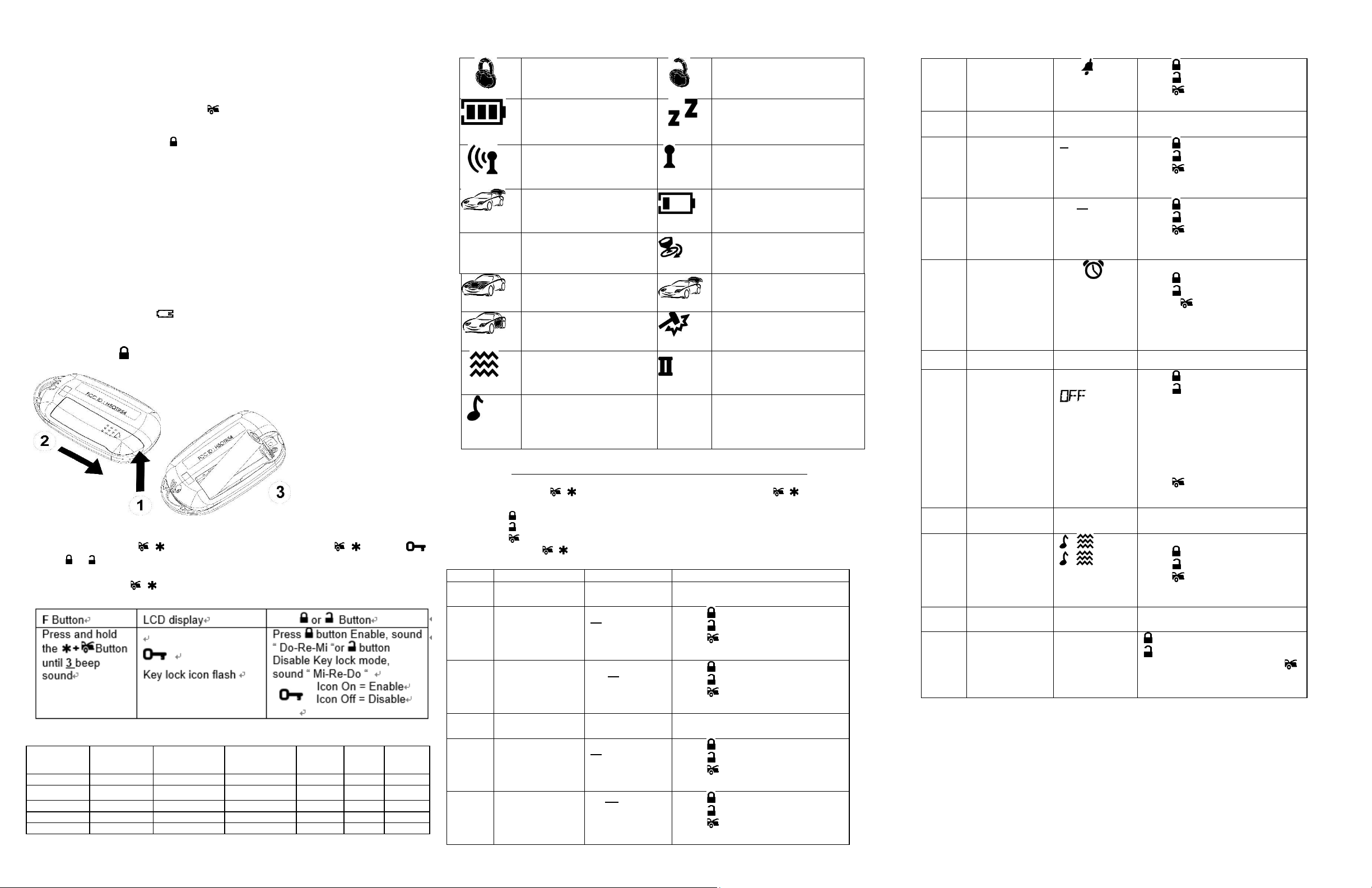

BATTERY REPLACEMENT LCD TRANSMITTER:
A 1.5V type AAA Alkaline battery powers the Remote Transmitter. When the power
of the battery weakens a icon shall be displayed on the LCD screen. When the
old battery is replaced to new one, there will be beep sounds indicate the power is
up.
Note: Press the button two times when the battery compartment is empty,
and then insert the new battery.
Key lock (by 2-way LCD HHU programming)
Enter : Press & hold +button until 1 beep heard, release +buttonto icon.
Press or button to Enableor Disable the key lock feature on your 2-way LCD
HHU.
Exit : Press & hold +button for 2 sec. or do nothing wait for 5 sec. automatic exit
2-way LCD (1 beep) Confirm Exit.
ALARM OPERATING CONDITION: (OPTIONAL)
Function
Siren or horn
Parking Lights
LED
Doors
Starter
Disable
Pager
Option
1. Arm
1 Chirp
1 Flash
Slow flash
Locking
On
2. Disarm
2or4 Chirps
2 or 3 Flashes
Off or Fast flash
Unlocking
Off
3. Trigger
Alarming
Flashing
Slow flash
On
On
4. Panic
Alarming
Flashing
Slow flash
Locking
On
5Car Locator
6 Chirps
12 Flashes
THE REMORE LCD ICONS WITH FUNCTION:
Door Lock
Your vehicle doors are
locked.
Door Unlock Your vehicle doors
are unlocked
Power Save Mode
Save the battery power
(Full bar icon flash)
Valet Mode
All the function shall be
temporarily on hold.
Remote Transmission You
are transmitting the signal
to control unit
* In –Range Indicator
You are within the remote
control range.
Trunk Release (Channel 3
op) Trunk open.
Low Battery
You have to replace the
battery of remote control.
0:10
Parking Meter
Reminder when time is up
for parking
Ignition On
Hood Trigger (Zone 1)
Hood is illegally opened
Trunk Trigger (Zone 2)
Trunk is illegally opened
Door Trigger(Zone 3)
Doors are illegally opened
Sensor Trigger(Zone 4)
Trigger on Sensor 1
Vibration Mode
Remote Control vibrates
when system is triggered
2nd Car Operation
Melody Mode
Remote Control alert
user through melody
sound
C4
or
C5
Activate Channel 4
(or Chanel 5) Output.
PROGRAM MODE2-WAY LCD REMOTE TRANSCEIVER:
Enter:
1. Press and hold +button until 2beeps heard then release the +button. (LCD
display show Hours of current time set up, set up hour(s) first.)
2. Press button to increase value, or Enable the selected feature.
3. Press button to decrease value, or Disable the selected feature.
4. Press button to confirm its selection, move to the next option.
EXIT: Press & hold +button or do nothing wait for 5 sec.
exit 2-way LCD programming mode automatically (1 beep) Confirm Exit.
Item
Menu Option
LCD display
Functions
1
Current time set
up
Default is 12:00
Adjust clock
hours from 0 to
12
12 : 00
12 is flashing
Press button => (+)or
Press button = >(-)
Press button confirm its
selection, move to next option.
Adjustclock
minutes from 0 to
59
12: 00
00 is flashing
Press button => (+)or
Press button => (-)
Press button confirm its
selection, move to next option.
2
Alarm Clock set
up
Default is OFF
Adjust Alarm
Clock hours from
0 to 12
12 :00
12 is flashing
Press button => (+)or
Press button => (-)
Press button confirm its
selection, move to next option.
Adjust Alarm
Clock minutes
from 0 to 59
12: 00
00 is flashing
Press button => (+)or
Press button => (-)
Press button confirm its
selection, move to next option.
