AUVIO 16-913 User manual

THE PERFORMANCE YOU NEED
TM
19” LCD HDTV with Dock for iPod®
User’s Guide 16-913
Please read this user’s guide before using your new TV.

2
Contents
Important Safety Instructions .............................................................................................4
Overview ..............................................................................................................................7
Features ..........................................................................................................................7
Package Contents...........................................................................................................7
Setup................................................................................................................................... 11
Install Remote Control Batteries ................................................................................. 11
Connect the Power Cord.............................................................................................. 11
Connecting an Antenna ...............................................................................................12
Indoor Antenna.......................................................................................................12
Outdoor Antenna....................................................................................................12
Connecting an HDMI Device .......................................................................................12
Connecting a Component Video Device.....................................................................13
Connecting an S-Video Device....................................................................................13
Connecting a Composite Video Device ......................................................................13
Connecting a PC...........................................................................................................14
Connecting an iPod......................................................................................................14

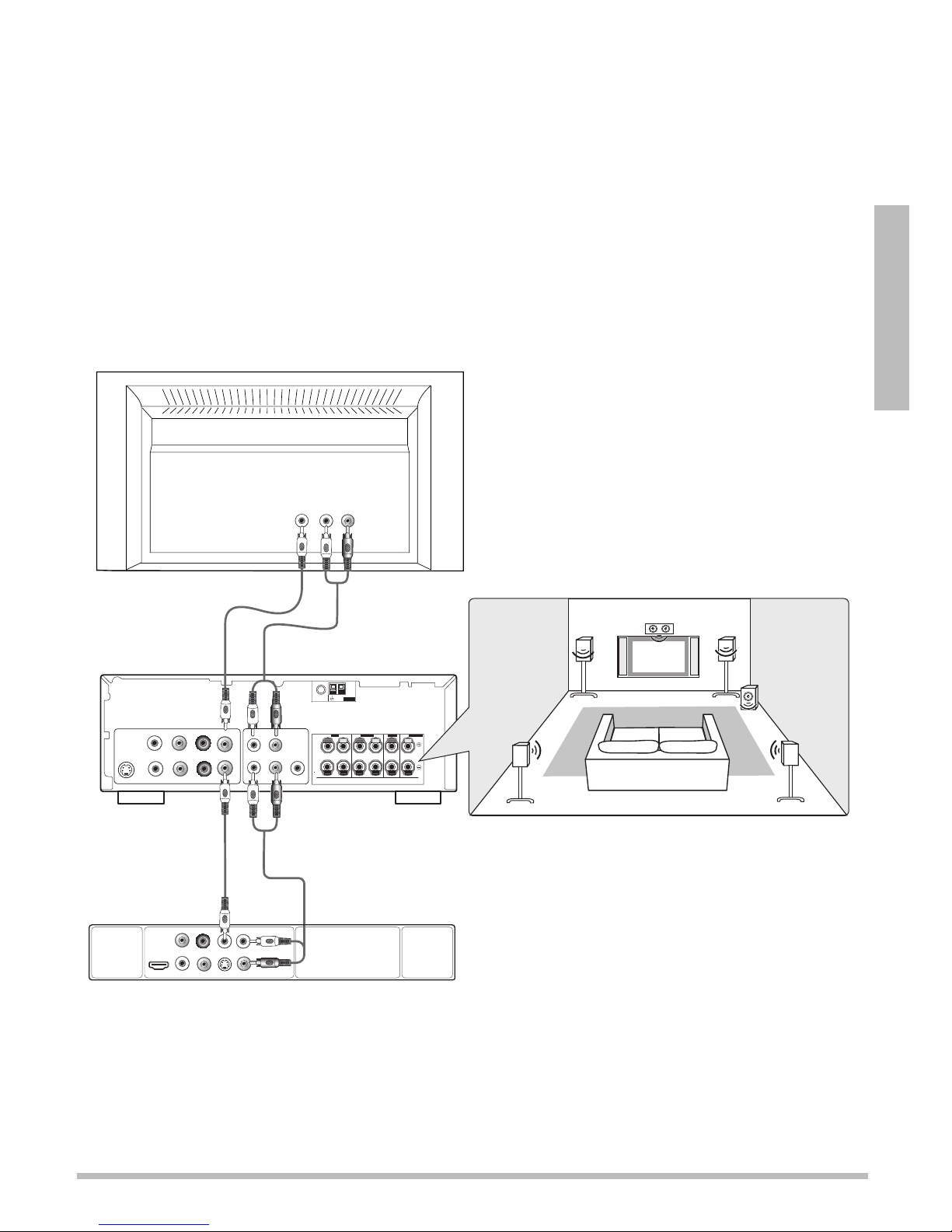

Connecting to a HomeTheater....................................................................................15
Basic Operation..................................................................................................................16
Initial Set Up Menu ......................................................................................................16
Adjust the Volume........................................................................................................16
Change Channels .........................................................................................................16
Closed Captions ...........................................................................................................16
iPod Operation .............................................................................................................17
Playing Music .........................................................................................................17
Playing Videos ........................................................................................................17
Viewing Photos.......................................................................................................17
Shuffle and Repeat.................................................................................................17
Now Playing Screen...............................................................................................17
Advanced Settings.............................................................................................................18
Picture Settings ............................................................................................................18
Use Preset Picture Settings ...................................................................................18
Customize Picture Settings....................................................................................18
Advanced Video Settings .......................................................................................18
Audio Settings..............................................................................................................19
Use Preset Audio Settings .....................................................................................19
Customize Audio Settings......................................................................................19
Advanced Audio Settings ......................................................................................20
Channel Settings ..........................................................................................................20
Set theTuning Band ...............................................................................................20
Search for Channels Automatically.......................................................................20

3
Search for Channels Manually ..............................................................................21
View the Channel List.............................................................................................21
Add or Delete Favorites .........................................................................................21
Edit a Channel Label ..............................................................................................21
General Settings...........................................................................................................22
Parental Control Options .......................................................................................22
Set theTime and Date ............................................................................................23
Set Closed Captions ...............................................................................................24
Change Menu Settings...........................................................................................24
Change Input Labels ..............................................................................................25
Reset to Factory Defaults .......................................................................................25
Change PC Settings .....................................................................................................25
Additional Information ......................................................................................................26
Troubleshooting ...........................................................................................................26
Specifications ...............................................................................................................27
FCC Information ...........................................................................................................27
Limited Warranty ..........................................................................................................28

4
Important Safety Instructions
1. Read these instructions. All the safety and operating instructions should be read before
this product is operated.
2. Keep these instructions. The safety and operating instructions should be retained for
future reference.
3. Heed all warnings. All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions. All operating and use instructions should be followed.
5. Do not use this apparatus near water. The appliance should not be used near water or
moisture, for example, in a wet basement or near a swimming ppol, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators,heat registers,stoves,or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart,stand, tripod, bracket,or table specified by the
manufacturer,or sold with the apparatus.When a cart is used, use
caution when moving the cart / apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture,does not operate normally, or has been dropped.
15.Please keep the unit in a good ventilation environment.
16.WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no
objects filled with liquids, such as vases, shall be placed on apparatus.
17. WARNING: The mains plug/appliance coupler is used as disconnect device, the
disconnect device shall remain readily operable.
18. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

5
19.
20. The apparatus shall be connected to a mains outlet with a protective earthing
connection.
The backlight unit of display in this product contains mercury.
Dispose of properly. Do not put in trash.
WARNING: To reduce the risk of fire or shock hazard, do not
expose this product to rain or moisture.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
This symbol is intended to alert you to the presence
of uninsulated dangerous voltage within the product’s
enclosure that might be of sufficient magnitude to constitute
a risk of electric shock. Do not open the product’s case.
This symbol is intended to inform you that important
operating and maintenance instructions are included in the
literature accompanying this product.
CAUTION
!
!

6
wChild Safety Tips w
Severe injuries can occur if children climb, grab, or jostle an improperly secured TV. To
significantly reduce the risk of injury, proper steps should be taken.
Displaying on aTV Stand/Entertainment Center:
1. Make sure your TV is situated on an appropriately-sized TV
stand, generally one that is larger than the TV.
2. Do not place the TV on anything that can easily be used as
stairs, such as dressers.
3. Keep children from climbing on or playing with the TV
stand/entertainment center.
4. Consider purchasing a TV lock or furniture bracket to
secure your TV to a wall even if it is not wall mounted.
Mounting on a wall:
1. Make sure the mount you purchase works with UL-approved vesa mounts that match
the size, make, and model of your TV.
2. Pick a wall mount that works with the type of wall you have. Some wall mounts are
designed specifically for steel or cinder block, whereas others are only for wood or
drywall.
3. Follow ALL instructions supplied by the wall mount manufacturer.

7
Overview
Overview
Features
Widescreen display provides 16:9 aspect ratio and has a native resolution of 1366×768
(720p)
HDMI, component, composite, antenna, and VGA inputs for a variety of connection
options
Compatible with High Definition broadcasts
Allows iPod video playback
Multilanguage on-screen display in English, Spanish or French
Closed-Caption and Program Information support
Parental Control to prevent children from viewing adult programs
Package Contents
19” LCD TV Remote Control
Dust Cover AV Cable
iPod Universal Dock Adapter
Quick Start
User’s
Guide
AC Power Cord

8
Overview
Power Indicator
POWER – Turn the TV on or to
standby.
nNote: To turn power off
completely, unplug the TV.
MENU
Access and navigate the
TV menu.
CHANNEL +/–
Browse through channels.
On the main menu and source screens, press
to go and .
VOL +/VOL –
Press + to increase volume, or – to decrease it.
On the main menu and source screens, press to
go and .
SOURCE
Toggle between all
available input sources. On
the main menu, press to
confirm selections.
IR Receiver
iPod Dock
The iPod
menu appears
automatically when
you place an iPod
in the dock.
Dust Cover
Cover the iPod Dock
when not in use.
iPod Universal
Dock Adapter
Install adapter for your
iPod

9
Overview
HDMI
Connect to HDMI
devices via HDMI
cables to transmit
audio and video.
PC AUDIO
Connect to the
audio output of
a computer.
PC-RGB (VGA)
Connect to a
computer
Component Video
Connect to A/V devices
using component video
cables. Match the colors on
your cable connections with
the colors on the jacks.
TUNER
Connect an antenna
or cable for TV
reception.
S-VIDEO
Connect S-Video
signal from a
camcorder or VCR.
AV-IN (Composite)
Connect A/V composite video
and audio signal (R/L) cables.
Match the colors on your
cable connections with the
colors on the jacks.
SERVICE
For service
personnel use
only.

10
Overview
nNote: The remote works best within of 20 ft (6 m) of the TV.
POWER – Turn the TV on or to
standby.
SOURCE – Select an
available video input
source.
f– Return to the previous
channel.
EXIT – Exit the menu.
MENU – Access the TV menu.
VOL +/–
Decrease or increase the
volume.
CH  –
Select next /previous channel.
SLEEP – Set the sleep timer.
ASPECT – Select the screen size.
S.MODE
Select an audio preset.
P.MODE – Select a video preset.
CC – Turn closed captions on/off.
INFO – Turn show
information on or off.
Number Buttons (0-9, –)
Set the channel or enter
password.
 – Navigate menus.
OK – Make selections.
FAV – Display a list of
favorite channels.
MUTE – Turn sound off or on.
FREEZE – Pause live TV.
AUDIO LIST –
Switch between audio channels,
if available.
CH. LIST –
Display a list of channels saved in
Tuner memory.
ADD/ERASE –
Add or delete a Favorite channel.
AIR–CABLE –
Switch broadcast type.
IPOD MODE –
Enter the main iPod menu.
AUDIO ONLY –
Press to hide video. Hold for 3
seconds to restore..
IPOD MENU/EPG –
Navigate iPod menus or view
scheduled programming for the
current channel.
MTS – Select alternate audio if
available.
/// –
Play, pause/stop/previous track/
next track.
/–
Rewind or Fast Forward through
iPod tracks.
LED Indicator – Blinks red
while remote is in use.

11
Setup
Setup
Install Remote Control Batteries
1. Press the tab to remove the battery cover.
2. Insert the two supplied AAA batteries as indicated by the polarity
symbols (+ and –) marked on the remote control.
3. Replace the battery cover.
bBattery Notes:
Dispose of batteries promptly and properly. Do not burn or bury
them.
Use only fresh batteries of the required size and type.
Do not mix old and new batteries, different types of batteries (alkaline, or rechargeable),
or rechargeable batteries of different capacities.
If you do not plan to use the remote control for a long time, remove the batteries.
Batteries can leak chemicals that can damage electronic parts.
Connect the Power Cord
Connect one end of the power cable into the power cord jack on the back of the TV, then the
3-prong plug into a standard AC outlet.

12
Setup
Connecting an Antenna
Indoor Antenna
Plug one end of a 75-ohm coaxial cable with an F connector (not supplied) to the TUNER
jack on back of the TV, and its other end to the antenna (not supplied).
Outdoor Antenna
For best reception, use a high-quality outdoor antenna (not supplied).
Plug one end of a 75-ohm coaxial cable with an F connector (not supplied) to the TUNER
jack on the back of the TV, and the other end to the antenna’s wall outlet. If your outdoor
antenna uses a 300-ohm coaxial cable, plug it into the TUNER jack using a 300-to-75-ohm
transformer.
If you have separate UHF and VHF antennas, connect the separate antenna cables to a
VHF/UHF combiner, then connect the combiner’s output to the TUNER jack on the TV.
wWarning: When you install an outdoor antenna, use extreme caution. If the antenna starts
to fall, let it go! It could contact overhead power lines. If the antenna touches the power line,
contact with the antenna, mast, cable, or guy wires could cause electrocaution and death. Call
the power company to remove the antenna. DO NOT attempt to remove it yourself!
Connecting an HDMI Device
Use a standard high speed HDMI cable (not supplied) to connect to the HDMI port. The
HDMI connection supports HD video signal up to 720p.
VHF/UHF Combiner
VHF Antenna UHF Antenna

13
Setup
Connecting a Component Video Device
1. Connect the device’s component outputs (Y/Pb/Pr) to the COMPONENT jacks on the
back of the TV. Match the colors on the connection cables with the colors on the jacks. For
component cables and jacks, Green = Y, blue = Pb, and red = Pr.
2. Use an audio cable (not supplied) to connect a device’s audio output jacks to the AV-IN
audio jacks on the back of the TV. Red jacks are for right audio, and white jacks are for
left audio.
nNote: Component cables do not provide audio. Use component cables for video and
composite L/R audio cables for audio.
Connecting an S-Video Device
1. Use an audio cable (not supplied) to connect a device’s audio output jacks to the AV-IN
audio jacks on the back of the TV. Red jacks are for right audio, and white jacks are for
left audio.
2. Use a S-video cable (not supplied) to connect a device’s S-Video output to the TV’s
S-VIDEO jack.
Connecting a Composite Video Device
1. Use an audio cable (not supplied) to connect a device’s audio output jacks to the AV-IN
audio jacks on the back of the TV. Red jacks are for right audio, and white jacks are for
left audio.
2. Use a video cable (not supplied) to connect each device’s video output to the TV’s
COMPOSITE video jack.
nNotes: Both S-Video and COMPOSITE share the same set of audio jacks on the back of
the TV.
Audio Cables
S-Video Cable

14
Setup
Connecting a PC
1. Your TV automatically adjusts the screen resolution and saves it when receiving a VGA
signal from a PC. If the receiving signal is not the standard mode signal, refer to the
table to set your PC’s resolution.
Resolution Vertical Frequency Horizontal Frequency
640 x 480 (VGA) 60 Hz – / –
72 Hz – / –
75 Hz – / –
720 x 400 70 Hz – / +
800 x 600 60 Hz 48.363 KHz
1024 x 768 (XGA) 60 Hz 63.974 KHz
1360 x 768 (recommended) 60 Hz 47.7 KHz
2. Use a VGA cable (not supplied) to connect the PC-RGB port on the back of the TV, to the
VGA port on your PC.
3. Use a PC audio cable (not supplied) to connect the PC-Audio jack on the back of the TV
to the audio out jack on your PC.
Connecting an iPod
Insert the iPod adapter for your iPod model into the docking station on the front of the TV,
then insert your iPod. Wait 3 to 5 seconds for the iPod to connect before use.
Choose the adapter that fits
your iPod. Refer to the number
marked on the adapters:
Adapter
No.
Compatible
Models
10 Video 60G/80G
& Classic 160G
13 Nano 3G
14 Touch 1G
16 Touch 2G
17 Nano 4G
VGA Cable
PC Audio
Cable

15
Setup
Connecting to a Home Theater
Connect Audio and Video through your A/V receiver/amplifier
1. Connect audio and video cables from your DVD player or other device to your A/V
receiver/amplifier, then connect the receiver/amplifier to the TV.
2. Refer to the instructions from your A/V receiver/amplifier or speaker system to make
speaker connections.
nNote: For best results, use the highest quality of audio/video cables that your devices
will accept. Use the same type of audio and video cables to go from the device to the
receiver/amplifier that you use to go from the TV to the receiver/amplifier.
Optimal Speaker Layout
A/V Receiver
TV
DVD Player or
Other Device
Video Out
Video In
Y Pb Pr
AM
LOOP
FM UNBAL
75
Ω
ANTENNA
FRONT
RL
CENTER
SURROUND
S
K
E
R
S
RL
SUBWOOFER
S-VIDEO
Audio In
Component Video
Out
In
Audio Out
Coaxial
Digital
Audio
Video
YPR
PB
L
R
S-VideoCoaxialHDMI
Audio Out

16
Basic Operation
Basic Operation
Initial Setup Menu
Before watching any programs, you must configure your TV.
1. Plug the TV’s power cord into a standard AC outlet, then
press POWER. The Initial Setup Menu appears.
2. Press or to select a language: English, French, or
Spanish and press to go to the next setting.
3. Press or to select Air or Cable for over-the-air
broadcast or for paid cable or satellite input.
4. For over-the-air broadcasts, press  to highlight Auto
Channel Search, then press to begin.
5. When the search completes, you can watch TV.
nNotes:
To turn off the TV completely, press POWER, then unplug
the TV. To put the TV in standby mode, just press POWER.
Weak electric power is consumed in standby mode.
After 5 minutes with no signal or a blank screen, the TV
automatically goes to standby mode.
See page 21 for manual channel search instructions.
Press SOURCE to select input sources: TV, Composite,
S-Video, Component, VGA, HDMI, or iPod.
Adjust the Volume
Press VOL+ and VOL– to increase or decrease the volume.
Press MUTE on the remote control to temporarily silence the sound. To restore the
sound, press VOL+, VOL–, or MUTE.
Change Channels
To cycle through channels, press CH  or CH  .
To directly select a channel, press the number buttons on the remote control and –for
the desired channel. Wait for 5 seconds, or press OK to confirm the channel change. For
example, to select the channel 5, press 5 OK. To select the channel 22-1, press
22–1OK.
To switch between the current and previously tuned channel, press f.
Closed Captions
Press CC on the remote control to cycle through available captions:
•CCOff
•CCOn
•CCOnMute
nNote: To set Analog, Digital , and Advanced CC Settings, see “Set Closed Captions” on
page 24.
Initial Setup Menu
Initial Setup Menu

17
Basic Operation
iPod Operation
Connect your iPod or iPhone. Wait 3 to 5 seconds until the iPod menu appears.
nNote:
The iPod charges automatically while connected to the TV. When it is finished charging, appears.
Press IPOD MODE to switch from Normal mode to Manual mode (switch controls from the
remote to the iPod). Press again to switch back.
Playing Music
1. From the main iPod menu, press or  to select Music, then
press OK.
2. Press or  to choose Playlists, Artists, Albums, Genres,
Tracks, Composers, Audiobooks, or Podcasts. Press OK to
select a category to browse subfolders.
3. Press OK to view tracks. Press OK or to play the current
subfolder.
Optional: Select Shuffle Songs to start playing your entire library shuffled.
4. Press IPOD MENU to return to the main iPod menu without interrupting your music.
Playing Videos
1. From the main iPod menu, press or  to select Videos, then
press OK. A list of available video categories appears.
2. Press or  to select a category, then press OK to view tracks.
Press OK or  to play.
3. Press IPOD MENU at to the main iPod menu.
Viewing Photos
1. Press IPOD MODE to switch controls from the remote to the iPod.
The TV has no menu for photo viewing.
2. Navigate to a photo using the iPod’s menu and controls and press Play on your iPod to display
photos on your TV.
Shuffle and Repeat
1. From the main iPod menu, press or  to select Settings, then
press OK.
2. Press or  to highlight Shuffle or Repeat, then press OK to
change settings.
Shuffle: choose to play songs, albums, or turn shuffle off.
Repeat: repeat one track or all tracks, or turn repeat off to play
through songs once.
Now Playing Screen
Use the /////buttons to pause, stop, skip to the next track, or go to the previous track while
playing a music or video track. Track information appears at the bottom of the screen.
Track time –
Elapsed/total track time
Shuffle status –
Shuffle off
Shuffle on
Repeat status –
Repeat off
Repeat one track
Repeat all tracks
Track number –
Current track/total number of tracks
Albums
Rented Movies

18
Advanced Settings
Advanced Settings
Picture Settings
Use Preset Picture Settings
Change picture settings based on preselected criteria.
1. Press MENU on the TV or remote control. The main
menu displays.
2. Press or on the TV or remote control to select
Picture, then press OK or .
3. Press or to highlight Picture Mode, press , and select Standard, Vivid, Bright,
or User.
nNote: The Standard setting is recommended for most viewing environments.
Depending on the ambient light level in the room, you may find one of the other options
is better for viewing.
4. Press MENU to accept changes and go back to the menu.
Customize Picture Settings
1. Follow Steps 1 through 4 under “Use Preset Picture Settings.” Set Picture Mode to
User.
2. Press or to select Brightness, Contrast, Color, Sharpness, or Tint, then press
.
3. Press or to adjust the picture settings.
4. Press MENU to go back to the previous menu.
Advanced Video Settings
1. Follow Steps 1 through 4 under “Use Preset
Picture Settings.” Set Picture Mode to User.
2. Press or to select Advanced Video. Press OK
or to go to the next screen.
3. Press or to select Aspect Ratio, Color
Temperature, Noise Reduction, 3D Y/C, Gradient
Enable, or Blue Screen, then press or to
adjust settings (explained below).
4. Press MENU to accept changes and go back to the previous menu.
Aspect Ratio
Normal – Recommended for viewing content broadcast in 4:3 widescreen. Adds black
bars on either side of the image to avoid image distortion.
Wide – Stretch some 4:3 content. Reduces or eliminates black bars, but may distort
image.
Zoom – Stretch an image vertically and horizontally to fill the screen while viewing 4:3
widescreen content. No distortion, but parts of the image may be cut off.
Cinema – Fills the entire screen and eliminates black bars. May cut off parts of images,
but will not distort or stretch the picture.

19
Advanced Settings
nNote: You can also use the ASPECT button on the remote control to cycle through the
aspect ratio options.
Color Temperature
Normal – Does not enhance colors for warmth or coolness.
Cool – Provides more blue/green tones.
Warm – Provides more yellow/orange/red tones.
nNote: The tones in the Warm setting are considered the most accurate for viewing
standard broadcasts.
Noise Reduction
Use this setting to change the level of noise reduction on the TV. These levels are subjective.
What works for one person may not work for another.
Off
Low (Default setting)
Medium
High
3D Y/C settings:
Your television is equipped with a 3D Y/C filter, which is designed to prevent the degredation
and warping of regular analog signals sent through Composite or RF cables.
On or Off
Gradient Enable
Turn this setting On to allow for the gradual blending of colors. Turn it Off to reduce
blending.
Blue Screen
Turn this setting On to show a blue screen when a channel is not receiving an adequate
signal. Turn Off to show a black screen when the signal is inadequate. Defaults to On.
Audio Settings
Use Preset Audio Settings
Change audio settings based on preselected criteria.
1. Press MENU on the TV or remote control. The main menu displays.
2. Press or to select Sound, then press OK or .
3. Press or to highlight Equalizer mode.
4. Press to select User, Standard, Movie, Music, or News.
5. Press MENU to accept changes and go back to the previous menu.
Customize Audio Settings
1. Follow Steps 1 through 3 under “Use Preset Audio
Settings.” Choose User.
2. Press or to highlight Balance, Audio Channel,
Audio Language 1, Audio Language 2, or Advanced
Audio.
3. Press OK or to change settings, and use or  to
navigate.
4. Press MENU to accept changes and go back to the previous menu.

20
Advanced Settings
Balance
Use to move the sound to the right speaker and to move sound to the left speaker.
Defaults to 0.
Audio Channel
Mono
Stereo (default)
SAP (second audio program)
Audio Language 1 and 2
Set up to two different languages for alternate language broadcasts: English, Spanish, or
French. Not every program will have an alternate language. Audio Language 1 defaults to
English, Audio Language 2 defaults to Spanish.
Advanced Audio Settings
1. Follow steps 1 through 3 under “Use Preset Audio Settings.” Choose User.
2. Press or to highlight Advanced Audio and press OK or .
3. Use or to choose 5-band Equalizer Set or Audio Only (explained below).
4. Press MENU to accept changes and go back to the previous menu.
5-Band Equalizer Set
To achieve better sound quality, use   to adjust
each band until you achieve the best results.
120Hz
500Hz
1.5KHz
5KHz
10KHz
Audio Only
1. Press to highlight and OK to change this setting
to Yes. The screen goes blank.
2. To exit audio only mode, press and hold the POWER button on the TV, or the AUDIO
ONLY button on the remote for 3 seconds.
Channel Settings
Set the Tuning Band
1. Press MENU on the TV or remote control. The main menu displays.
2. Press or on the TV or remote control to select Channels, then press OK or .
3. Press to choose Cable (for satellite or cable
broadcasts) or Air (for over-the-air antenna).
Search for Channels Automatically
1. Follow steps 1 and 2 under “Set the Tuning Band.”
2. Press or to select Auto Channel Search, then
press .
3. Wait for the progress bar to reach 100%, then press
MENU to exit.
