August DA700B User manual

August International Ltd
United Kingdom
Telephone:[phone]
www.augustint.com
®
User Manual
DA700B
7 Inch Digital & Analogue LCD TV
with built-in card reader and USB port

Thank you for buying our August TV. You may already be familiar with using
a similar product but please take time to read these instructions carefully. It is
designed to familiarise you with the product’s many features and to ensure
that you get the very best from your purchase.
To ensure your safety and the safety of others, please ensure you read the
Safety Instructions you use this product.
Please ensure the product and its accessories are disposed in compliance with
WEEE (Waste Electrical and Electronic Equipment) Directive and other
regulations. Please check with your local authority for disposal regulations.
If you need help, please contact our Customer Service:
Telephone: [phone]
Email: [email protected]
Safety
Disposal
Customer Service:
before
User Manual
Quick Start Guide
1. It is suggested that you use a roof top aerial when scanning for TV channels
for the first time, if any signal is detected, the channel information will be
saved on the TV, you may then switch back to the portable antenna supplied
and change your location to find the best place to receive the signal.
2. The TV/AV button on the TV or MODE on the remote is for switching
between 3 modes: Analogue TV, Digital Freeview TV & Media Player and
AV Input.
3. When turning on the device for the first time, “Initial Install” will show,
follow the instructions to select OSD Language and Area, then press
ENTER, it will ask whether to install, select YES, the auto search will then
start. Once the search has finished, press CH+, CH- or EPG to select
channels. Press REV/RADIO to switch between Freeview TV and Radio
channels.
4. If you have done the first time installation before, and would like to search
for Digital Freeview channels again, or if you have moved to a different
region and need to scan channels again, press TV/AV on the TV or MODE
on the remote to switch to Digital TV & Media Player mode, press MENU,
select “Digital TV” by pressing ENTER, select “Installation”, then select
“Auto Search”, press ENTER to start the search. Once the search has
finished, press CH+, CH- or EPG to select channels. Press REV/RADIO to
switch between Freeview TV and Radio channels.
5. To search for Analogue TV, press TV/AV on the TV or MODE on the remote
to switch to Analogue TV mode and you should see either “AUTO”, “PAL”
or “SECAM” at the top right corner of the screen. Press MENU repeatedly,
it gives you menu “PICTURE”, “VOLUME”, “OPTION', “SYSTEM”,
“PRESET”, and “CLOCK” respectively. To start the auto search, move to
DA700B

“PRESET” menu and “AUTO SEARCH” is selected, press ARROW
RIGHT to start search for channels.
6. To play video, music, or photos on a SD card or memory stick, insert the
SD card or memory stick to the card slot or USB port, press TV/AV on the
TV or MODE on the remote to switch to Digital TV & Media Player mode,
press MENU to select “Movie”, “Music”, or “Photo”, press ENTER or
PLAY to start playing, press EXIT to stop and exit to main menu.
7. Please note the included portable antenna may only be used in areas where
signal is very strong. There may be difficulties in receiving signal with the
portable antenna in some regions at present, this is due to the fact that
Freeview (www.freeview.co.uk) is yet to operate in full power in the UK.
The government aims to achieve a full switchover by 2012, which will
occur in stages, region by region between 2008 and 2012, at present the
quality of Freeview reception varies in different regions across the UK.
As mentioned on the Freeview website, only 73% of the UK population is
able to receive Freeview at present and only a small number of households
might be able to use a set top aerial at present. This only applies if you live
in an area with coverage close to a transmitter, but reception would still be
unreliable and they strongly recommend that you use a roof top aerial for
good reception.
The reception will be improving along with the progress of the Digital
Switchover Program. Reception may also be affected by various factors
such as how close you are to transmitters, tall buildings, thick walls,
ceilings and weather etc.
8. For any further queries, please telephone August International Ltd
helpline 0870 850 3525 or email [email protected]
1.Safety Instructions
2.Accessories
3.Part Names and Functions
4.Remote Control
5.Connections
6.Digital Freeview TV (DVB-T)
7.Card Reader & USB Functions
8.Games
9.Screen Setting
10.Analogue TV
11.AV Input
12.Troubleshooting
13.Technical Parameters
14.Warranty
1
3
4
6
8
9
15
17
18
19
22
24
25
26

Alcohol
STRONG
STRONG
STRONG
STRONG

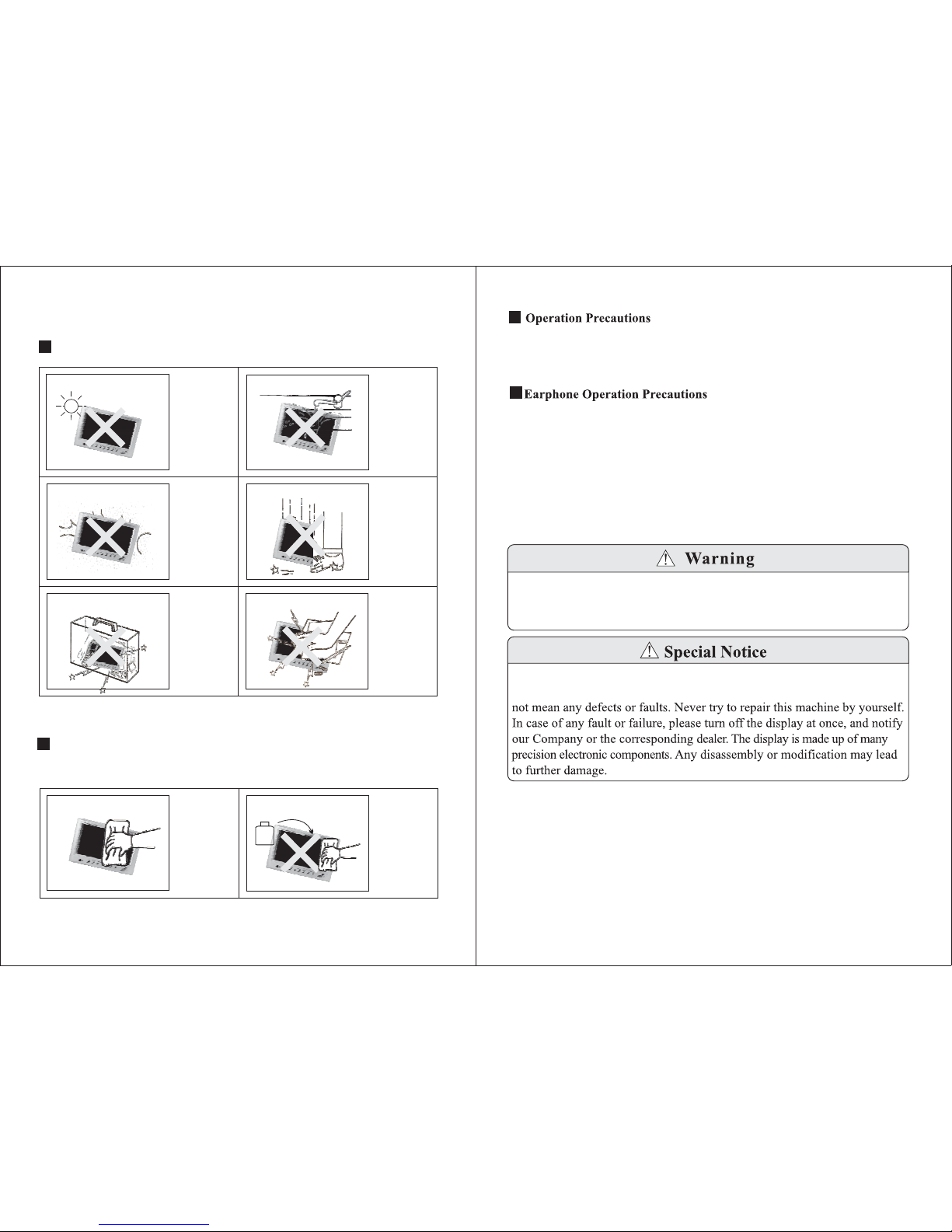

1. Safety Instructions
Maintenance
Please unplug all connection wires before start cleaning this machine.
-1-
Storage and Use
Never expose the
TV set to
moisture,dust oil
or smoke.
Never put this
machine in
containers that are
unstable as this
may cause
damage.
Never extrude or
chafe this
machine with
sharp objects.
Keep this machine
away from hot or
cold places.
temperature of
this machine is
-20~ 60 , the
application
temperature of
this machine is
5~ 35 .
℃
℃
Keep the TV set
away from water
or damp
environment.
Avoid dropping
or exposing to
impacts.
Please wipe the
display screen and
buttons with a soft
cloth. Only clean
the screen with
professional LCD
TV screen cleanser.
Never wipe this
machine with
abrasive cloth,
detergent powder,
alcohol and
benzene etc.
various propellants
or chemical
cleaning products.
-2-
1.Please do not tune your headphone / earphone at high volumes, otherwise,
it may lead to ear damage.
2.For open-designed earphone, to avoid annoying those close by, please tune
down the volume.
3.In case of any tinnitus, please turn down the volume or stop using this
machine.
4.It is recommended by aurists that the earphones should not be used
continuously for a prolonged period.
For the sake of safety for yourself and others, please do not watch the TV
while driving.
1.Only the attached AC adapter and the car adapter are suitable.
2.For the sake of safety, when you do not intend to use the display, please
switch off the AC adapter or car adapter.
A few highlights or dark spots may appear on the LCD screen. It is a very
common phenomenon of active matrix display technology, and does

-3-
RED
PP.
REV RADIO/
FWD EPG/
SLEEP
ZOOM
FAV
EXIT
REPEAT
MUTE
DISPLAY AUTO MODE
MENU
TTX GAME
PRLIST
RETURN
GREEN YELLOW BLUE
DA700
AUDIO
2 Accessories.
AV in/out cord
Double-sided adhesive
pad for base support
Remote control
Base support
u
A
g
u
s
t
DA700B
-4-
3. Part Names and Functions
OK
TFT COLOR DPF DVB ATV MONITOR///
u
A
g
u
s
t
123 4 56 7 8910
12
13
11
1 Remote receiver
2 Base Support
3 OK confirm
4 TV/AV Shift
5 Volume - / Left
6 Volume + / Right
7 Menu
8 Channel -/ Down
9 Channel +/ Up
10 Power Indicator
Standby: Red
Turn on: Green
11 Power Switch
12 Telescopic Antenna
13 TFT LCD Screen
．
．
．
．
．
．
．
．
．
．
．
．
．
15
16
17
18
19
14
20
21
14. AV OUT
15. AV IN
16. Earphone jack
17. SD/MMC/MS port
18. Power ON/OFF switch
19. + 12V DC IN jack
20. USB jack
21. Stereo speakers

-5-
CH+/
▲
CH+/
▲
CH+/
▲
▲
CH-/
▲
CH-/
▲
CH-/
OK OK OK OK
TV AV/
MENU
①
②
③
④
⑤
⑥
⑦
⑧
Panel Button Functions
Panel Button AV
POWER POWER
MENU
▲
▲
▲
VOL-/
▲
VOL-/
▲
VOL-/
▲▲
Card & USB
POWER
▲
DVB-T
POWER
ATV
POWER
MENU
▲
VOL+/
▲
VOL+/
▲
VOL+/
VOL-
VOL+VOL+
VOL-
MENU MENU
This table explains the functions of the buttons on the panel in each mode:
MODE MODE MODE MODE
-6-
RED
PP.
REV RADIO/
FWD EPG/
SLEEP
ZOOM
FAV
EXIT
REPEAT
MUTE
DISPLAY AUTO MODE
MENU
TTX AUDIO
PRLIST
RETURN
GREEN YELLOW BLUE
DA700
1 POWER
2 DISPLAY
3 MUTE
4. SUBTITLE
.
.
.
.
.
.
./ //
.
.
./
./
.
.
..
.
.
.
.
.
.
.
.
.
.
.
.
.
.+
.-
.
.
.
.
5 LANGUAGE
6SLOW
7MENU
8 LEFT RIGHT UP DOWN
9 ENTER
10 TTX
11 REV RADIO
12 FWD EPG
13 STOP
14 PLAY
15 P P
16 SLEEP
17 MODE
18 AUTO
19 NUMBER
20 REPEAT
21 RETURN
22 EXIT
23 PRLIST
24. AUDIO
25 FAV
26 NEXT
27 PREV
28
29 ZOOM
30 VOL
31 VOL
32 RED
33 GREEN
34 BLUE
35 YELLOW

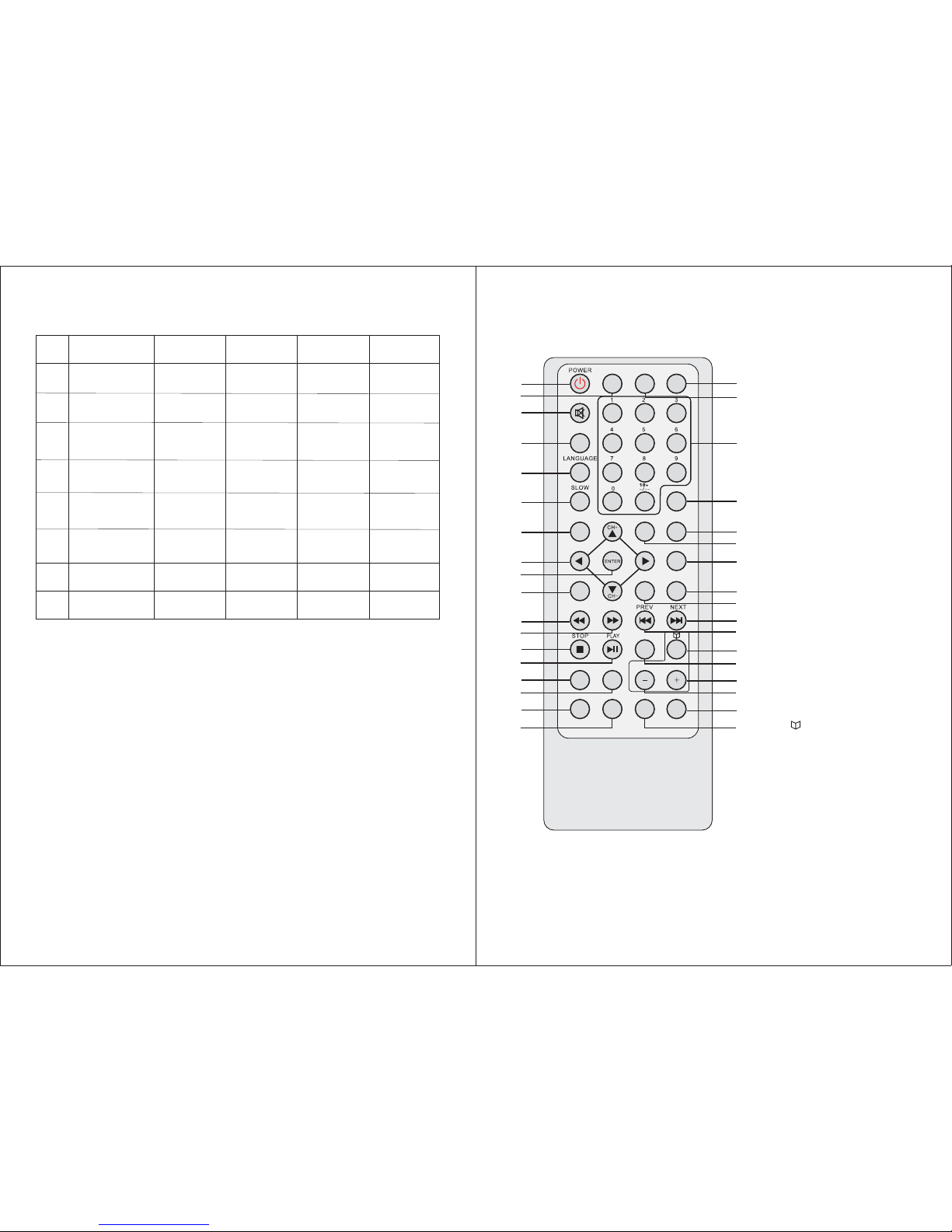

4. Remote Control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
SUBTITLE
u
A
g
u
s
t
DA700B

-7-
MUTE MUTE MUTE MUTE MUTE
AV
FWD EPG/EPG FWD
STOP STOP
AUTO AUTO AUTO
REPEAT REPEAT
RETURN RETURN RETURN
EXIT EXIT EXIT
PRLIST PRLIST
AUDIO AUDIO
FAV FAV
NEXT NEXT
PREV PREV
VOL+VOL+VOL+VOL+VOL+
VOL-VOL-VOL-VOL-VOL-
RED RED
GREEN GREEN
BLUE BLUE
YELLOW YELLOW
ZOOM ZOOM ZOOM
NUMBER 0 9(～) NUMBER 0 9(～) NUMBER 0 9(～) NUMBER 0 9(～)
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
▲ ▲ ▲ ▲ ▲
Remote Control Functions
Remote button Card & USB
DVB ATV
POWER POWER POWER POWER POWER
DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY
SUBTITLE SUBTITLE SUBTITLE
LANGUAGE LANGUAGE LANGUAGE
SLOW SLOW
(video only)
MENU MENU MENU MENU MENU
ENTER ENTER ENTER
TTX TELETEXT
REV RADIO/RADIO REV
PLAY PLAY PLAY
PP.PP.PP.PP.PP.
SLEEP SLEEP SLEEP SLEEP SLEEP
MODE MODE MODE MODE MODE
This table explains the functions of the buttons on the remote control in each mode:
AUDIO
5. Connections
5.1. Installing the base support
Unscrew the oval handle on the ball-joint,
it will split into halves, embrace them on
the top of the base support, then tighten
the oval handle. Slide the metal surface
of the ball-joint into the slot on the back
of the TV, then tighten the wheel screw.
5.2. Connecting the power supply
Insert the power supply plug on the AC
adapter to the jack on the TV marked
DC 12V.
Insert the earphone plug to the jack
on the TV marked earphones.
5.3. Connecting the earphones
Notice
If earphones are used, sound is only transmitted through the earphones,
and no sound is available from the stereo speakers of the TV.
Notice
5.4. Connection of AV Input
5.5. Connection of AV Output
Connect the yellow port of the AV
cable to video jack, the white port to
the left audio jack and the red port to
the right audio jack, then insert the
AV head into the AV input jack on
the TV.
Connect the yellow port of the AV
cable to video jack, the white port to
the left audio jack and the red port
to the right audio jack, then insert
the AV head into the AV output jack
on the TV.
The AV output function is only available when using DVB-T function.
-8-

6. Digital Freeview TV (DVB-T)
6.1 Channel Manager
In Digital TV mode, select Channel
Manager, press ENTER for the submenus.
When in Digital TV mode, press MENU
and select Digital TV, it gives the following
options: Channel Manager, Installation,
Configuration, Software Upgrade, Factory
Default, and Version Information.
Channel Manager allows the user to sort,
edit, delete, and classify the channels.
6.1.1 Channel Organizer
Channel organizer is used to set favourite
channels, change channel positions, lock
and delete channels, and edit channel's name.
1. Channel Organizer can be accessed by
selecting MENU -> Digital TV ->
Channel Manager -> Channel Organizer.
2. If there is no channel saved on the TV,
Channel Organizer can not be accessed,
and it will show “Channel not available”.
3. Use UP/DOWN to select the channel
you want to edit.
- Press RED to select or cancel a favourite.
- Press GREEN to delete or undelete a
channel.
- Press YELLOW to set or cancel a
channel's position change.
- Press BLUE to lock or unlock a channel,
it will ask you to enter the password, the
system default password is 0000.
4. To change the channel name, use
UP/DOWN to select the channel line,
press LEFT/RIGHT to enter the page to
change the name, press RED/GREEN
/YELLOW/BLUE to edit the name.
5. Press EXIT or MENU to exit Channel
Organizer.
-9-
6.1.2 Channel Sorting
It allows the user to sort the channels by
area, alphabetically or by number sequence.
1. Channel Sorting can be accessed by
selecting MENU-> Digital TV->
Channel Manager->Channel Sorting.
6.1.3 Channel Grouping
It allows the user to sort channels into 8
different categories: News, Science, Sports,
Movie, Kids, Music, Fashion and None.
1. Channel Sorting can be accessed by
selecting MENU-> Digital TV->
Channel Manager->Channel Grouping.
2. If there is no channel saved on the TV,
Channel Grouping can not be accessed,
and it will show “Channel not available”.
3. Use UP/DOWN to select the channel,
and then select the category by pressing
the numbers (1-8).
4. After setting, press EXIT, it will show
“Successfully updated”.
It allows the user to add and edit channels.
1. Edit Channels can be accessed by
selecting MENU-> Digital TV->
Channel Manager-> Edit Channels.
6.1.4 Edit Channels
-10-
2. If there is no channel saved on the TV,
Edit Channels can not be accessed, and it
will show “Channel not available”.
3. To add a new channel, press RED, and
then press UP/DOWN to select between
the 6 parameters as shown:
①
②
③
④
Area Name: press RIGHT to enter the
area list, use UP/DOWN to select, press
ENTER to confirm.
Carrier: press RIGHT to enter the
carrier list, use UP/DOWN to select,
press ENTER to confirm.
Channel Name: press RIGHT to enter
the edit page, use RED/GREEN
/YELLOW/BLUE to edit, press ENTER
to confirm.
Audio PID: can be changed by pressing
the numbers.
2. If there is no channel saved on the TV,
Channel Sorting can not be accessed,
and it will show “Channel not available”.
3. Press UP/DOWN to select:
First Option: Area, press RIGHT to
enter the area list, use UP/DOWN to
select, press ENTER to confirm.
Second Option: Sorting rules, press
RIGHT to enter the rule list, use UP
/DOWN to select, press ENTER to confirm.
4. Sorting rules can be selected by pressing
RIGHT/UP/DOWN/LEFT.
5. After sorting rules is selected, press
ENTER to confirm, it will ask “Are you
sure?”, select “Yes” to confirm and to
proceed the sorting, or select “No” to cancel.
①
②
6. Press EXIT or MENU to exit Channel
Organizer.

-11-
⑤
⑥
⑦
⑧
Video PID: can be changed by pressing
the numbers.
PCR PID: can be changed by pressing
the numbers.
Once finish the settings, press ENTER
to confirm, it will show “Successfully
updated” and return to Edit Channels.
During setup, press EXIT at any time
to cancel and exit to Edit Channels.
5. To edit a channel, press YELLOW, and
then press UP/DOWN to select between
the 4 parameters as shown:
①
②
③
④
⑤
⑥
Channel Name: press RIGHT to enter
the edit page, use RED/GREEN/
YELLOW/BLUE to edit, press ENTER
to confirm.
Audio PID: can be changed by pressing
the numbers.
Video PID: can be changed by pressing
the numbers.
PCR PID: can be changed by pressing
the numbers.
Once finish the settings, press ENTER
to confirm, it will show “Successfully
updated” and return to Edit Channels.
During setup, press EXIT at any time to
cancel and exit to Edit Channels.
6.1.5 Delete All
To delete all the TV and Radio channels,
select MENU-> Digital TV->
Channel Manager-> Delete All.
1. It will ask you to enter the password,
the default one is 0000. After entering
the correct password, it allows you to
select to delete all TV channels or
Radio channels.
2. Use UP/DOWN to select TV channels,
it will ask “ Delete all TV channels?”,
select “Yes” to confirm and proceed
the delete, select “No” to cancel.
3. Use UP/DOWN to select Radio
channels, it will ask “ Delete all Radio
channels?”, select “Yes” to confirm and
proceed the delete, select “No” to cancel.
Installation is for searching TV and Radio
channels, it can be accessed by selecting
MENU-> Digital TV-> Installation.
6.2 Installation
Pressing ENTER, it gives two search
options: Auto Search and Manual Search.
-12-
6.2.1 Auto Search
Select Auto Search, press ENTER, it will
start the search.
After searching, the system will automatically
exit the searching page, save program
information and return to Installation menu,
press EXIT or MENU to exit.
6.2.2 Manual Search
If you know a channel's broadcasting
frequency and bandwidth, using manual
search to find the channel can be quicker.
Select Manual Search, press ENTER, it will
ask you to provide two parameters:
①
②
Freq (KHz): scanning frequency, the
default is 474000 KHz, use numbers
or LEFT/RIGHT to change.
Band Width: use LEFT/RIGHT to select.
After setting, press ENTER to start the search.
After searching, the system will automatically
exit the searching page, save program
information and return to Installation menu,
press EXIT or MENU to exit.
6.3 Configuration
Configuration menu has the following
options: On Screen Display, TV, System
Setup, Time, Wakeup Timer and Parental
Lock. It can be accessed by selecting
MENU->Digital TV->Configuration.
6.3.1 OSD (On Screen Display)
Through OSD, you can set the interface
pattern.
Left of the menu lists all the options under
OSD. Press UP/DOWN to select an option.
1. OSD: supports 5 menu patterns, press
LEFT/RIGHT to select between Theme1-5.
2. OSD Timeout: sets the display time of an
information dialog window, press
LEFT/RIGHT to select between 1-6
seconds, the system default is 3seconds.
3. OSD Trans: sets the diaphaneity of the
menu, press LEFT/RIGHT to adjust from
0%-60%.
4. OSD Language: the system supports
multi-language user interface, press RIGHT
to enter the language list, use UP/DOWN
to select, press ENTER to confirm.

-13-
7. Saturation: press RIGHT to enter the
list, use UP/DOWN to select, press
ENTER to confirm, press ENTER
again to exit the setting, or press UP
/DOWN to select another option.
5. MP4 Subtitle Language: press RIGHT to
enter the subtitle language list, use
UP/DOWN to select, press ENTER to
confirm.
6. 1st Audio Language: press RIGHT to
enter Audio Language list, use UP/DOWN
to select, press ENTER to confirm.
7. 2nd Audio Language: press RIGHT to
enter Audio Language list, use UP/DOWN
to select, press ENTER to confirm.
8. After setting, press ENTER confirm, press
EXIT or MENU to exit the setup, it will
show “Successfully updated”.
This option allows the users to set their
preferred TV output settings.
6.3.2 TV
Left of the menu lists all the options. Press
UP/DOWN to select an option.
1. Display Mode: press LEFT/RIGHT to
select between AUTO, PAL, & SECAM,
press ENTER to confirm and exit the
setting. Or press UP/DOWN to select
another option.
2. Aspect Ratio: press LEFT/RIGHT to select
between 16:9, 4:3 Pan Scan, 4:3 Letter
Box, press ENTER to confirm and exit the
setting. Or press UP/DOWN to select
another option.
3. Video Output: press LEFT/RIGHT to
select between S-Video and CVBS, press
ENTER to confirm and exit the setting. Or
press UP/DOWN to select another option.
4. Brightness: press RIGHT to enter the list,
use UP/DOWN to select, press ENTER to
confirm, press ENTER again to exit the
setting, or press UP/DOWN to select
another option.
5. Contrast: press RIGHT to enter the list,
use UP/DOWN to select, press ENTER
to confirm, press ENTER again to exit
the setting, or press UP/DOWN to select
another option.
6. HUE: press RIGHT to enter the list, use
UP/DOWN to select, press ENTER to
confirm, press ENTER again to exit the
setting, or press UP/DOWN to select
another option.
-14-
8. After setting, press ENTER, EXIT or
MENU to exit the setup, it will show
“Successfully updated”.
Press UP/DOWN to select an option, use
LEFT/RIGHT to change the settings.
After setting, press ENTER, EXIT or MENU
to exit the setup, it will show “Successfully
updated”.
You can set Timer Mode, Date, Time, GMT
Offset, and Summer Time under Time menu.
There are two Timer modes, one is Auto,
and one is Manual.
The system default is Auto timer mode,
press UP/DOWN to select Timer Mode or
GMT Offset, use RIGHT/LIFT to change.
In Manual timer mode, press UP/DOWN
to select an option, use RIGHT/LEFT or
numbers to change the Date, Time, GMT
Offset or Summer Time.
Press ENTER to confirm, press EXIT or
MENU to exit the setup, it will show
“Successfully updated”.
6.3.5 Wakeup Timer
If you know what time a program will be
on, or want a hint when it is on, you can set
this through Wakeup Timer.
You can set Timer Mode, Wakeup Mode,
Wakeup Message, Wakeup Channel,
Wakeup Date, Time, and Duration.
1. Timer No: the number of this Wakeup
timer setting.
2. Timer Mode: select between Once, Daily,
Weekly, Yearly or Off.
3. Wakeup Mode: use LEFT/RIGHT to
choose to show a message, a channel,
or a hint asking whether to turn on or
switch off the TV.
6.3.3 System Setup
6.3.4 Time

-15-
6.5 Factory Default
To restore the system configuration to factory
default, press MENU, selectDigital TV->
Factory Default, press ENTER.
It will ask whether you want to perform the
factory default, select [No] to cancel or
select [Yes] to confirm.
6.6 Version
This provides the hardware, software and
system information.
7. Card Reader & USB Functions
This player has built-in SD/MMC/MS card
reader and USB port. It supports the playback
of MP3, JPEG and MPEG4 (AVI) files.
Insert a SD/MMC/MS card or an USB
memory stick to the card slot or USB port
on the player.
Press MENU, select Movie, press ENTER,
the Movie menu will show:
7.1 Movie
①
②
Wakeup Message: use LEFT/RIGHT to
select between Birthday, Anniversary or
General.
Wakeup Channel: use LEFT/RIGHT to
select a channel from the channel list.
4. Wakeup Date: press RIGHT to enter the
Calendar, use UP/DOWN/LEFT/RIGHT
to select a date.
5. On Time: use numbers to set the on time.
6. Duration: use numbers to set the duration
time of the TV program you want to watch.
After setting, press ENTER, it will show “Set
successful”. Press EXIT or MENU to exit
the setup, it will show“Successfully updated”.
Enter the old password, if it is correct, the
cursor will move to Enter New Password
option, enter and confirm the new password.
The system will show “Password changed”.
6.3.6 Parental Lock
User can change system password under
this option.
The system default password is 0000.
6.4. Software Upgrade
This function is for manufacturer use only.
-16-

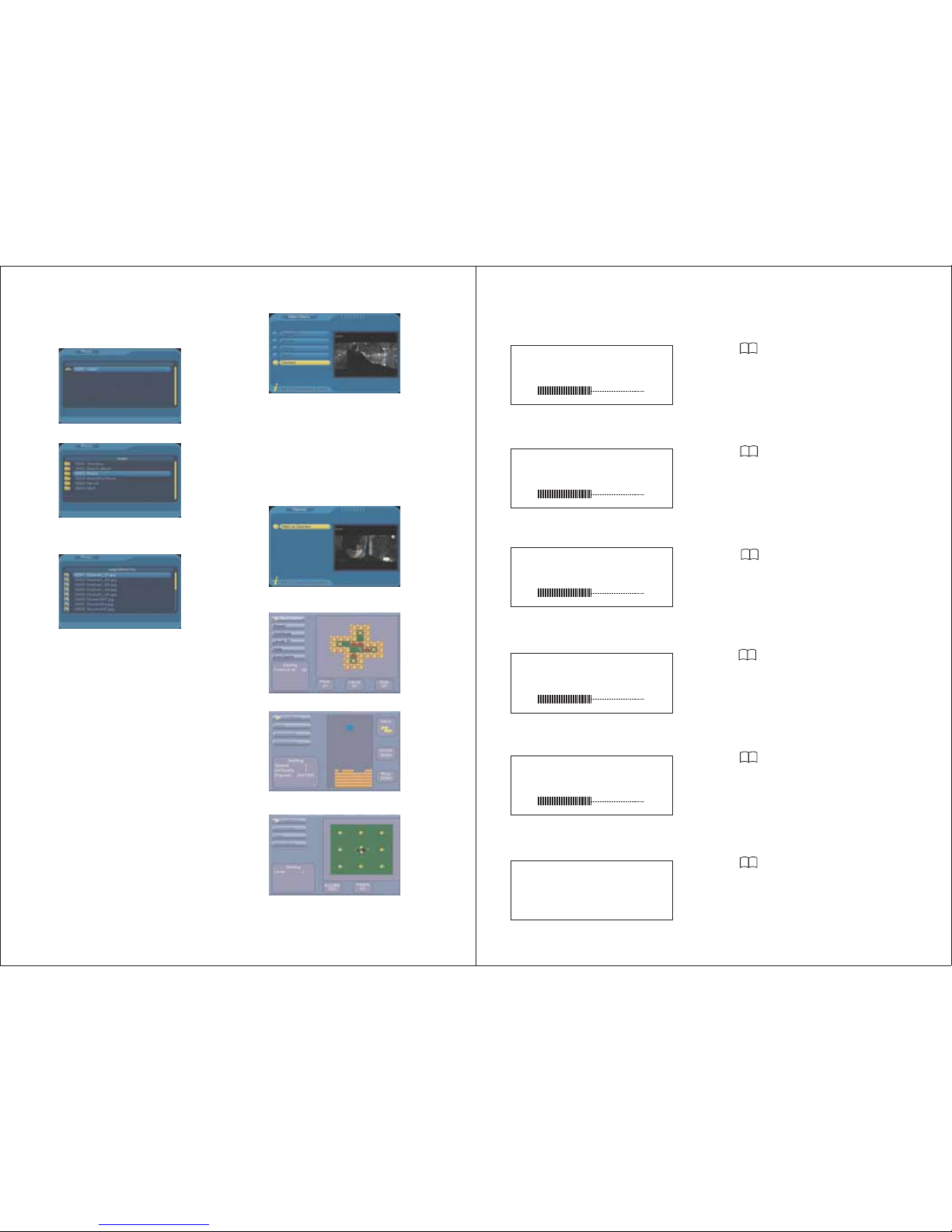

Press PLAY/PAUSE to start, pause and
resume the play.
Press FWD to search forward at 2, 4, 8 and
20 times of the normal speed.
Press REV to reverse at 2, 4, 8 and 20 times
of the normal speed.
Press SLOW to start slow playback at 1/2 or
1/4 times of the normal speed.
Press PREV to play the previous movie,
press NEXT for the next one.
Press REPEAT to choose Repeat Once,
Repeat Directory, Repeat Shuffle, Repeat Off.
Press ZOOM to view the picture at 2, 3, 4,
1/2, 1/3, or 1/4 times of the normal view.
Press STOP and EXIT to exit the playback.
7.2 Music
Press MENU, select Music, press ENTER,
the Music menu will show:
Use UP/DOWN to select a subtrack.
Press ENTER to view the music files in the
subtrack.
Use UP/DOWN to select a file you want to
play, press ENTER to confirm.
Use UP/DOWN to select a subtrack.
Press ENTER to view the video files in the
subtrack.
Use UP/DOWN to select a movie you want
to watch, press ENTER to confirm.
Press PLAY/PAUSE to start, pause and
resume the play.
Press FWD to search forward at 2, 4, 8 or
20 times of the normal speed.
Press REV to reverse at 2, 4, 8 or 20 times
of the normal speed.
Press PREV to play the previous music file,
press NEXT for the next one.
Press REPEAT to choose Repeat Once,
Repeat Directory, Repeat Shuffle, Repeat Off.
Press STOP and EXIT to exit the playback.

-17-
8. Games
Games can be accessed by selecting Menu
->Game-> Native Games.
Press UP/DOWN to select the game you
want to play, press ENTER to confirm.
The games are played using UP/DOWN
/LEFT/RIGHT buttons. To exit the game,
press ENTER to pause, and then select
Exit Game.
7.3 Photo
Press MENU, select Photo, press ENTER,
the Photo menu will show:
Use UP/DOWN to select a subtrack.
Press ENTER to view the photo files in the
subtrack.
Use UP/DOWN to select a file you want to
play, press ENTER to confirm.
Press PREV to play the previous photo,
press NEXT for the next one.
Press RIGHT to rotate clockwise, press
LEFT to rotate anticlockwise.
Press UP for mirror effect, press UP again
to back to normal.
Press DOWN for upside down effect,
press DOWN again to back to normal.
Press ZOOM to view the picture at 2, 3,
4, 1/2, 1/3, or 1/4 times of the normal view.
Press STOP and EXIT to exit the playback.
-18-
Reset
Press repeatedly to enter Reset menu.
Press + or - to reset the Brightness, Contrast,
Colour, Hue and Volume settings to the
default level 50.
9. Screen Setting
Bright
Press to enter Brightness menu.
Press + or - to adjust.
Press repeatedly to enter Volume menu.
Press + or - to adjust.
Press repeatedly to enter Contrast menu.
Press + or - to adjust.
Contrast
Color
Press repeatedly to enter Colour menu.
Press + or - to adjust.
Hue(Only in NTSC/SECAM mode)
Press repeatedly to enter Hue menu.
Press + or - to adjust.
RESET
BRIGHT
50
CONTRAST
50
COLOR
50
HUE
50
Volume
VOLUME
50

-19-
BRIGHT
CONTRAST
COLOR
ENGLISH
50
50
50
VOLUME
50
VOLUME
/ Select / Adjust
/ Select / Adjust
/ Select / Adjust
10. Analogue TV
Press MODE on the remote control to switch to the Analogue TV mode.
Press MENU repeatedly, the following options will show:
PICTUR VOLUME OPTION
SYSTEM PRESET CLOCK
10.1. Picture
Press UP or DOWN to select between Brightness, Contrast, Colour, and
Language settings.
Press LEFT or RIGHT to change the setting.
10.2. Volume
Press LEFT or RIGHT to change the volume setting.
Press UP or DOWN to select between Zoom, Blue Background, Game,
Calendar, picture up down and mirror effect settings.
10.3. Option
Press LEFT or RIGHT to change the setting.
10.4. System
OPTION
ZOOM :16 9
BLUE BACK ON
VERTICAL
HORIZONTAL
GAME
CALENDAR
Press UP or DOWN to select between Color-Sys, Sound-Sys, Swap and Copy
settings.
-20-
I
0
0
SYSTEM
AUTO
SOUND SYS-
SWAP
COPY
COLOR SYS-
/ Select / Adjust
PRESET
VHFL
0
ON
AUTO SEARCH-
SEARCH
FINE
BAND
POSITION
SKIP
//Select Adjust
Color-Sys: Press LEFT or RIGHT to select between AUTO, PAL, and SECAM.
Sound-Sys: Press LEFT or RIGHT to select between I, L, BG, and DK.
Swap: Use LEFT, RIGHT, UP or DOWN to swap channel positions.
Copy: Use LEFT, RIGHT, UP or DOWN to copy and change channels.
10.5. Preset
Press UP or DOWN to select between Auto Search, Search, Fine, Band,
Position and Skip settings.
Press LEFT or RIGHT to change the setting.
//Select Adjust
TIME
OFF TIME-
ON TIME-
SLEEP
CLOCK
:
:
:
0
10.6. Clock
Press UP or DOWN to select between Sleep, Time, Off-Time, and On-Time
settings.
TIME
OFF TIME-
ON TIME-
SLEEP
CLOCK
:
:
:
0
Sleep: The unit can be set to turn off automatically after certain time, press
LEFT or RIGHT to select from 0 to up to 240 minutes maximum with 10
minutes intervals.
Adjust hour Adjust minute Select items to be setup:: /:

-21-
Time: Press LEFT to change the hours, press RIGHT to change the minutes.
Off-Time: The unit can be set to turn off automatically, press LEFT to change
the hours, press RIGHT to change the minutes.
On-Time: The unit can be set to turn on automatically, press LEFT to change
the hours, press RIGHT to change the minutes.
1. Auto Search Start from Program NO .0.
2. When the signal is received under Manual Search, the indication
frequency will stop, which is the optimum position for signal storage.
If the signal is too weak, the system will automatically identify it as no
signal.
3. In the case of a picture without sound, please check the Sound System
for correct setup first.
4. If the input signal is not strong enough, please adjust “Fine” option, it
may improve the picture and sound quality.
If the signal is too weak, the image will remain poor whatever you do, and
may output loud noises, shaking images and inferior sound etc., which is
not the TV's fault. If the image remains poor when using the telescopic
antenna, please try to use a roof top aerial or an amplified external antenna.
/ Select / Adjust
-22-
11. AV Input
VOLUME
VOLUME 50
Press MODE on the remote control to switch to the AV mode.
Press MENU repeatedly, the following options will show:
PICTURE VOLUME OPTION
SYSTEM CLOCK
BRIGHT
CONTRAST
COLOR
ENGLISH
50
50
50
Press LEFT or RIGHT to change the setting.
Press LEFT or RIGHT to change the volume setting.
11.2 Volume
/ Select / Adjust
11.3 Option
Press UP or DOWN to select between Zoom, Blue Background, Game,
Calendar, picture up down and mirror effect settings.
OPTION
ZOOM :16 9
BLUE BACK ON
VERTICAL
HORIZONTAL
GAME
CALENDAR
/ Select / Adjust
Press LEFT or RIGHT to change the setting.
11.1 Picture
Press UP or Down to select between Brightness, Contrast, Colour and Language
settings.

TIME
OFF TIME-
ON TIME-
:
:
:
CLOCK
SLEEP 0
COLOR SYS-
SYSTEM
AUTO
-23-
TIME
OFF TIME-
ON TIME-
:
:
:
CLOCK
SLEEP 0
11.4 System
Color-Sys: Press LEFT or RIGHT to select between AUTO, PAL, NTSC and
SECAM.
/ Select / Adjust
11.5 Clock
Press UP or DOWN to select between Sleep, Time, Off-Time, and On-Time
settings.
/ Select / Adjust
Sleep: The unit can be set to turn off automatically after certain time, press
LEFT or RIGHT to select from 0 to up to 240 minutes maximum with 10
minutes intervals.
Time: Press LEFT to change the hours, press RIGHT to change the minutes.
Off-Time: The unit can be set to turn off automatically, press LEFT to change
the hours, press RIGHT to change the minutes.
On-Time: The unit can be set to turn on automatically, press LEFT to change
the hours, press RIGHT to change the minutes.
/ Select / Adjust
-24-
Problems listed below do not necessarily signify a fault with the unit.
Please check this list before requesting repairs.
Problems
12. Troubleshooting
No picture and no sound
Check the connection with the AC adapter/Car adapter.
Use of an unauthorized power supply.
Power switch on the side of the TV is off.
TV is on standby as it was switched off by pressing the
POWER on remote.
Check the channel selection. Scan for channels again.
Always rescan for channels in new locations. Ensure
video settings are correct.
Check the sound volume. If you are using earphones,
test them on another item. Check that the cable is plugged
in. Sound System is not correctly set in Analogue TV mode.
Possible Causes and Solutions
Picture freezing, and/or
sound distorting
Signal too weak, please check the aerial. Try to use a
proper roof top aerial or an amplified aerial.
No signal
Signal too weak, please check the aerial. Try to use a
proper roof top aerial or an amplified aerial.
Please adjust Brightness and/or Contrast settings.
Dark Picture
Motors/Trains/High Voltage Lines and Neon Lights may
affect the signal.
Snowstorm
Achromatic/Flashing/No Colour Please adjust the Colour Setting.
Color-Sys is not correctly set in Analogue TV mode.
No sound
No image
No user serviceable components are fitted inside this TV. Do not attempt
any repairs, as this will invalidate the warranty. Any repairs must be carried
out by either the manufacturer or their nominated service centre. Parts
inside this set are subject to high voltage.

-25-
D/A Converter:96KHz/24bit
Video Output Level: 1Vp-p(75ohm)
Audio Output Level: 1.0V± 0.1V
DVB Band Wide:6 7 8
DVB VHF:177.5MHz~226.5MHz
UHF:474MHz~858MHz
DVB Decode standard:MPEG2 ISO/IEC13818 MPEG2 MP@ML
ATV Receiving Channel: 48.25MHz~855.25MHz
ATV Sound System: DK I BG L M N
Screen Size: 7 inches
Audio Output: 0.3W (Max)
Loudspeaker: two 40x20mm squareness loudspeaker.
Outer Dimension: 197×132×40mm
Weight: about 895g
Dot Matrix: 0.107(H) 0.372 (V)
Resolution: 480×RGB×230
Response Speed (ms): R: 30 / F:50
Visible Angle: U: 15 / D:35, R / L:50
Brightness: 200cd/m
Contrast: 150:1
2
13. Technical Parameters
Product Name: 7 inch Digital & Analogue LCD TV with built-in card
reader and USB port
Disc Format: DVD, VCD, SVCD, MPEG4, JPEG, MP3, CD-R,
CD-RW, WMA.
Picture Resolution: 500 Line
Video S/N Ratio: 60dB
Frequency Response: fs 96KHz: 4Hz-44KHz:+/-1dB
Audio S/N Ratio: 90dB
Dynamic Range: 90dB
Harmonic Distortion: 0.01%
This product is guaranteed for 2 years from the date of the original purchase. This
warranty covers costs of parts and labour for the first 12 months and covers manufacture
defects of major components which include LCD screens, DVD disc loaders and software
on main circuit board for the second 12 months. In the unlikely event of any defect arising
due to faulty materials or workmanship, the unit will be either replaced or repaired
(where possible) during this period. An alternative product will be offered in case the
product is no longer available or repairable.
This warranty is subject to the following conditions:
The warranty is only valid within the country where the product is purchased
The product must be correctly installed and operated in accordance with the
instructions given in the user's manual.
The product must be used solely for domestic purposes.
The warranty only covers the main unit, and does not cover the accessories.
The warranty does not cover the damage caused by misuse, negligence, accident
and natural disaster.
The warranty will be rendered invalid if the product is resold or has been damaged
by inexpert repairs. The manufacture disclaims any liability for incidental or
consequential damages.
Please consult our customer service before returning any product; we are not
responsible for any unexpected product returns.
Any faulty products must be kept and returned in the original packaging with all the
accessories and the original copy of the purchase receipt.
The warranty is in addition to, and does not diminish, your statutory or legal rights.
Please note:
1.A LCD display panel comprises a very large number of pixels and each pixel contains
three sub-pixels - red, green and blue. Due to the complex manufacturing process,
occasional pixel anomalies may occur. Pixel anomalies cannot be fixed or repaired and
can happen at any stage in the LCD's life. August products should not be deemed as
faulty if there are no more than three bright and dark pixels respectively.
2.Portable TV antennas included in the box are for people to watch Freeview TV in areas
where the signal is very strong and there may be difficulties in receiving signal with the
included portable antennas in some regions at present. This is due to the fact that
Freeview is yet to operate in full power in the UK. August TVs should not be deemed
as faulty if it can receive Freeview by connecting to a proper digital rooftop aerial.
Telephone: [phone]
Email: [email protected]
Customer Service:
Warranty
-26-
