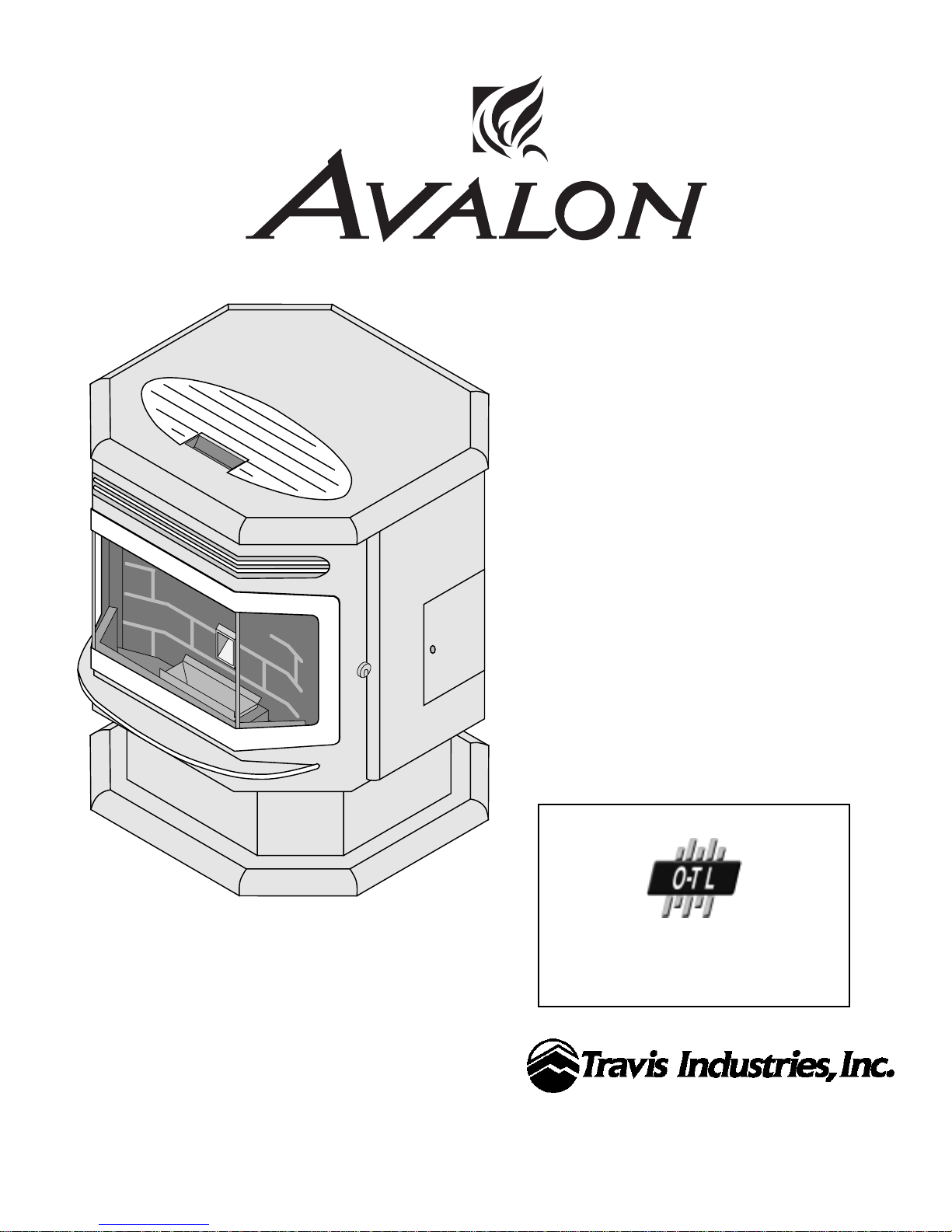

Avalon Astoria User manual

Astoria
Pellet Stove
• Horizontal Or Vertical Vent
• Freestanding Stove
• Mobile Home Approved
• Class A Chimney Retrofit
• Hearth Stove into Existing
Masonry Chimney , Masonry
Fireplace, or Z.C. Fireplace
-- Please read this entire manual
before installation and use of this
pellet fuel-burning room heater.
Failure to follow these instructions
could result in property damage
bodily injury or even death.
-- Contact local building or fire officials
about restrictions and installation
inspection requirements in your
area.
Tested and Listed by
Omni-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028–S–42-2
ASTME-1509 1995, ULCC 1482
Installer: After installation give this manual to the home-
owner and explain operation of this stove.
$10.00 Copyright 2001, T.I. Part # 93508126
4011009
10850 117th Place N.E. Kirkland, WA 98033

Introduction 1
Travis Industries 4011009 93508126
Introduction
We welcome you as a new owner of an Astoria pellet heater. In purchasing an Astoria you have joined
the growing ranks of concerned individuals whose selection of an energy system reflects both a
concern for the environment and aesthetics. The Astoria is one of the finest home heaters the world
over. This manual will explain the installation, operation, and maintenance of this pellet-burning
heater. Please familiarize yourself with the Owner's Manual before operating your heater and save the
manual for future reference. Included are helpful hints and suggestions which will make the
installation and operation of your new heater an easier and more enjoyable experience. We offer our
continual support and guidance to help you achieve the maximum benefit and enjoyment from your
heater.
Important Information
No other Astoria heater has the same serial number as
yours. The serial number is on the hopper lid.
This serial number will be needed in case you require
service of any type.
Model: Astoria
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card
Today, and Save Your Bill of
Sale.
To receive full warranty coverage,
you will need to show evidence of
the date you purchased your
heater. Do not mail your Bill of
Sale to us.
We suggest that you attach your
Bill of Sale to this page so that you
will have all the information you
need in one place should the need
for service or information occur.

2Safety Precautions
Travis Industries 4011009 93508126
•Do not operate the
heater if you smell
smoke coming from
the heater. Turn the
MODE switch to
"OFF", monitor your
heater, and call your
dealer.
Ok
• Contact your local building
officials to obtain a permit
and information on any
installation restrictions or
inspection requirements
in your area. Notify your
insurance company of this
heater as well.
Gas
• Never use gasoline,
gasoline-type lantern fuel,
kerosene, charcoal lighter
fluid, or similar liquids to
start or 'freshen up' a fire in
this heater. Keep all such
liquids well away from the
heater while it is in use.
Sealant
• The exhaust system must
be completely airtight and
properly installed. The
pellet vent joints must be
sealed with RTV 500oF.
(260oC.) silicone sealant.
• Do not unplug the heater
if you suspect a
malfunction. Turn the
MODE SWITCH to "OFF"
and periodically inspect
the heater.
• This unit must be properly
installed to prevent the
possibility of a house fire.
The instructions must be
strictly adhered to. Do not
use makeshift methods or
compromise in the
installation.
• Never try to repair or
replace any part of the
heater unless instructions
are given in this manual.
All other work should be
done by a trained
technician.
• Your heater requires
periodic maintenance and
cleaning (see "Maintaining
Your Heater"). Failure to
maintain your heater may
lead to smoke spillage in
your home.
• The viewing door and
ashpan must be closed
and latched during
operation.
• Never block free airflow
through the open vents of
the unit.
A
A
A
A
• Allow the heater to cool
before carrying out any
maintenance or cleaning.
Ashes must be disposed
in a metal container with a
tight lid and placed on a
non-combustible surface
well away from the home
or structure.
• Do not operate the heater
if the flame becomes dark
& sooty of if the firepot
overfills with pellets. Turn
the MODE SWITCH to
"OFF" and periodically
inspect the heater (see
"Running Your Heater").
AA
A
AA
AA
A
AA
AA
A
A
A
A
AA
AA
A
A
AA
AA
A
A
AA
AA
A
AA
AA
AA
AA
AA
A
A
AA
A
A
A
A
A
A
A
A
A
AA
AA
A
A
A
AA
A
AA
AA
A
A
AA
A
• This heater is designed
and approved for
pelletized wood fuel only.
Any other type of fuel
burned in this heater will
void the warranty and
safety listing.

Safety Precautions 3
Travis Industries 4011009 93508126
• The heater will not operate
during a power outage. If
a power outage does
occur, check the heater
for smoke spillage and
open a window if any
smoke spills into the room.
• This heater must be
connected to a standard
115 V., 60 Hz grounded
electrical outlet. Do not
use an adapter plug or
sever the grounding plug.
Do not route the electrical
cord underneath, in front
of, or over the heater.
?• Keep foreign objects out
of the hopper.
Mobile
Home
• When installed in a mobile
home, the heater must be
bolted to the floor, have
outside air, and NOT BE
INSTALLED IN THE
BEDROOM (Per H.U.D.
requirements). Check
with local building officials.
• Disconnect the power
cord before performing
any maintenance.
NOTE:
Turning the Mode Switch
to "OFF" does not
disconnect all power to
the heater.
• The exhaust system
should be checked twice a
year minimum for any
build-up of soot or
creosote.
This
Manual
• Do not throw this manual
away. This manual has
important operating and
maintenance instructions
that you will need at a later
time. Always follow the
instructions in this manual.
• Do not touch the hot
surfaces of the heater.
Educate all children of the
danger of a high-
temperature heater.
Young children should be
supervised when they are
in the same room as the
heater.
• Do not place clothing or
other flammable items on
or near the heater.
Because this heater can
be controlled by a
thermostat there is a
possibility of the heater
turning on and igniting any
items placed on or near it.
•Travis Industries, Inc.
grants no warranty,
implied or stated, for
the installation or
maintenance of your
heater, and assumes
no responsibility of
any consequential
damage(s).

4Table of Contents
Travis Industries 4011009 93508126
Introduction
Introduction......................................................1
Important Information.........................................1
Safety Precautions
Safety Precautions ............................................2
Specifications
Heating Specifications........................................5
Dimensions.......................................................5
Electrical Specifications......................................5
Fuel.................................................................5
EPA Compliance................................................5
Installation
Before you Begin ...............................................6
Installation Options............................................6
Planning the Installation......................................6
Stove Placement...............................................6
Floor Protection Requirements..............................6
Clearances - Straight Installation ..........................7
Clearances - Corner Installation............................7
Venting the Pellet Stove......................................8
Maximum Venting Distance.............................8
Pellet Vent Type............................................9
Installing the Pellet Vent.................................9
Pellet Vent Termination...................................9
Mobile Home Requirements..................................10
Outside Air .......................................................10
Alcove Installation Requirements..........................11
Setting the Restrictor..........................................11
When to Adjust the Restrictor..........................11
How to Adjust the Restrictor ............................11
Installation Example: Direct "Through the Wall" ........12
Installation Example: Interior Vertical.....................13
Installation Example: Type A Chimney Retrofit.........14
Installation Example: Masonry Fireplace.................15
Installation Example: Zero-Clearance (Metal) Firepl...16
Installation Example: Interior Masonry Chimney.......17
Operation
Safety Notice....................................................18
Location of Controls ...........................................18
Starting the Heater for the First Time......................18
Curing the Paint ............................................18
Priming the Auger..........................................18
Loading Pellets..................................................19
The Two Modes of Operation ................................19
Operation (continued)
Manual Mode.....................................................20
Auto Mode........................................................21
Adjusting the Fan Speed......................................22
Start-Up Sequence.............................................22
"AUGER ON" Light..............................................22
"FAULT" Light....................................................23
Power Outages..................................................23
Maintenance
Daily Maintenance (whenever using the stove).........24
Inspect the Burn...........................................24
Make Sure Pellets are not Piling Up...................24
Check Firepot for Clinkers...............................24
Cleaning the Firepot.......................................25
Bi-Weekly Maintenance (or every 10 bags pellets)....26
Clean the Heat Exchange Tubes.......................26
Vacuum Hopper ............................................26
Clean the Gold Door.......................................26
Opening the Door ..........................................27
Sweep Ash Into Ashpan..................................28
Check Ashpan, Dispose if Necessary................29
Clean the Glass ............................................29
Yearly Maintenance (or every two tons)..................30
Clean the Exhaust Duct..................................30
Clean the Exhaust Blower ...............................31
Clean the Vent..............................................31
Check for Air Leaks - Door, Glass and Ashpan....32
Normal Operating Sounds
Normal Operating Sounds....................................33
Safety Label
Safety Label .....................................................34
Warranty
Warranty..........................................................35
Optional Equipment
Thermostat.......................................................36
Pellet Log.........................................................37
Index
Index...............................................................38

Specifications 5
Travis Industries 4011009 93508126
Heating Specifications:
Approximate Maximum Heating Capacity (in square feet)*.................................800 to 2,250 Sq. Feet
Burn Rate (Pounds per Hour)**.......................................................................1.7 to 5.5
Maximum Burn Time on Low Burn**................................................................67.5 Hours
Hopper Capacity............................................................................................115 Pounds
* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside
temperature. It is also affected by the fuel size, quality, and moisture level.
** Small pellets will increase or decrease the stated burn rates and burn times. Differences of plus or minus 20%
depending on fuel quality may occur.
Dimensions:
Weight: 250 Lbs.
Air Inlet
(1-3/4"
Outside
Diameter)
A
4"
Diameter
Exhaust
10-1/2” 17-5/8"
1/2"
7-1/4"
Center
Line
33-3/8"
26-1/2"
28"
This keyhole is for
the door handle.
This tab is for
the scraper
rod tool.
Electrical Specifications:
Electrical Rating.......................................................................................115 Volts, 3.6 Amps, 60 Hz
Watts During Start-Up Sequence..............................................................400 (approximately)
Watts During Operation............................................................................180 (approximately)
Fuel:
The unit is designed for wood pellets that comply with the standards set by the Association of Pellet
Fuel Industry (density of at least 40 lbs. per cubic foot, 1/4" to 5/16" diameter, length no greater than
1–1/2", 8200 BTU's/lb., moisture under 8% by weight, ash under 1% by weight, and salt under 300
parts per million). If the fuel does not comply to this standard, the unit may not operate as designed.
EPA Compliance:
This heater has been tested exempt from EPA Phase II Requirements by OMNI Test Labs.

6Installation
Travis Industries 4011009 93508126
Before You Begin
READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE THIS HEATER.
FAILURE TO FOLLOW THE INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY, OR EVEN DEATH.
Check with local building officials for any permits required for installation of this pellet heater and notify
your insurance company before proceeding with installation.
Packing List
• Thermostat & Wire • Door Latch Tool • Scraper Rod Tool • Brush • Fuses (2) • Lag Bolts (2)
Installation Options:
•Residential or Mobile Home (see the section "Mobile Home Requirements")
•Alcove Compatible (see the section "Alcove Installation")
•Horizontal or Vertical Vent
•Outside Air Compatible
•Vent with L-Vent, L-Vent Fireplace Liner, or Type A Chimney (with adapter)
Planning The Installation
HINT: Have an authorized Travis Industries dealer install this heater. If you install the heater
yourself, have your dealer review your installation plans.
HINT: Sketch out a detailed plan of the installation including dimensions. Then verify the
dimensions with the requirements listed in this manual.
HINT: When determining the location of the stove, locate the wall studs (for horizontal
penetrations) and ceiling trusses (for vertical penetrations). You may wish to adjust the
stove position slightly to ensure the vent does not intersect with a framing member.
HINT: Place the heater outside and load 10 pounds of pellets inside the hopper. Plug the
heater in and let it run on HIGH until the pellets run out. This will cure the paint and burn
off any oil on the steel, eliminating any smell inside the home.
Stove Placement
•Stove must be placed so that no combustibles are within, or can swing within (e.g. drapes,
doors), 36" of the front of the heater.
?If the stove is placed in a location where the ceiling height is less than 7', it must follow the
requirements in the section "Alcove Installation Requirements".
HINT: REDUCING CLEARANCES - Clearances may be reduced by methods specified in NFPA
211, listed wall shields, pipe shields, or other means approved by local building or fire
officials.
• Heater and floor protection must be installed on a level, secure floor.
Floor Protection Requirements
• The heater must be installed on a non-combustible floor protector extending the full width
and depth of the heater and extending 6" in front (Minimum 28" wide by 32-1/2" deep)
(minimum .018" thick - 26 gauge) .
• Must extend under and 2" to each side and rear of a "Tee" (if used).

Installation 7
Travis Industries 4011009 93508126

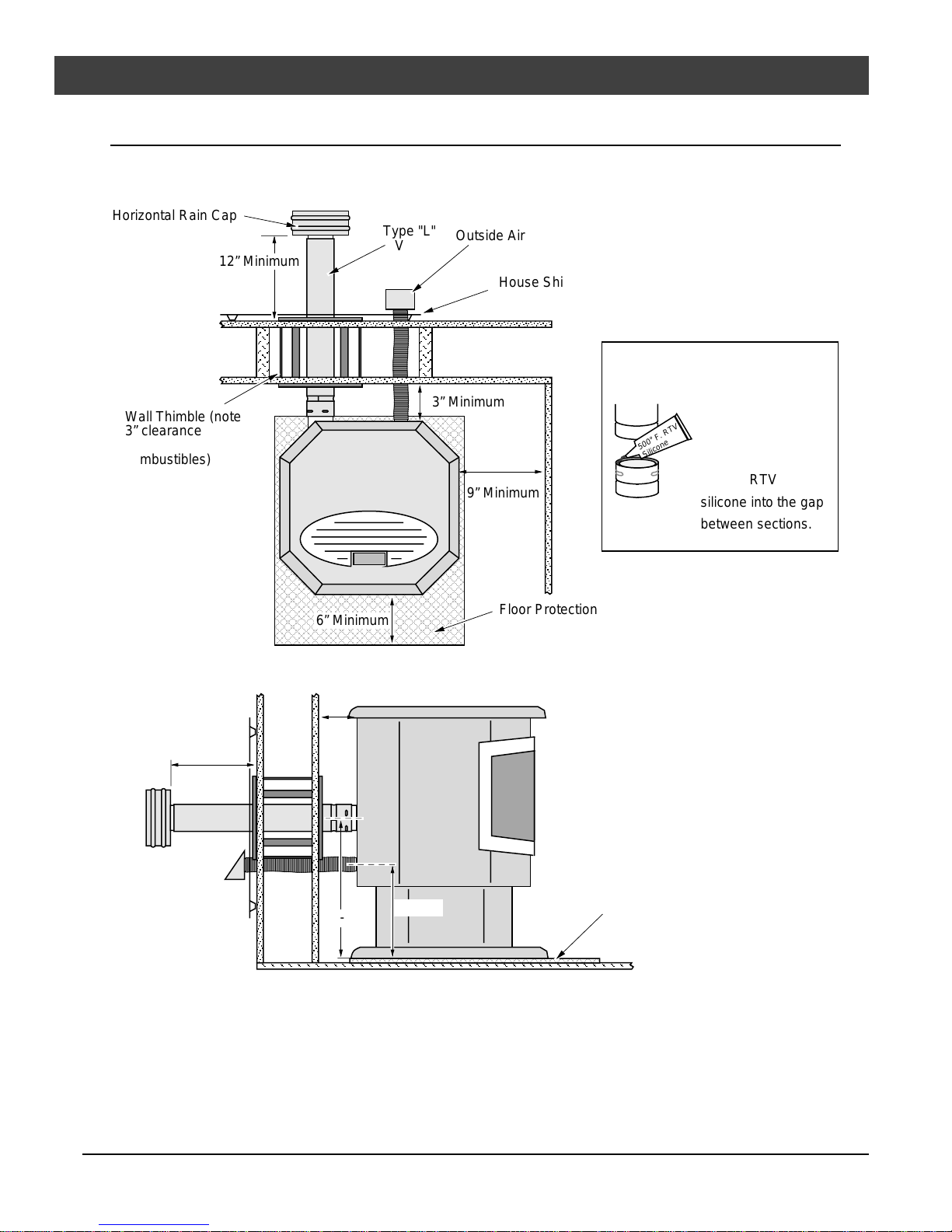

Clearances - Straight Installation
AAAAAAAAA
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
AAAAAAAAA
6” Minimum
AAAAAAAA
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
AAAAAAAA
3” Minimum
9” Minimum
3”
Minimum
Through the Wall Installations Interior Vertical Vents
A
A
A
A
A
A
Floor Protection
6” Minimum
2”
Minimum
9” Minimum
“Tee”
AAAAAA
AAAAAA
AAAAAA
AAAAAAA
AAAAAAA
AAAAAAA

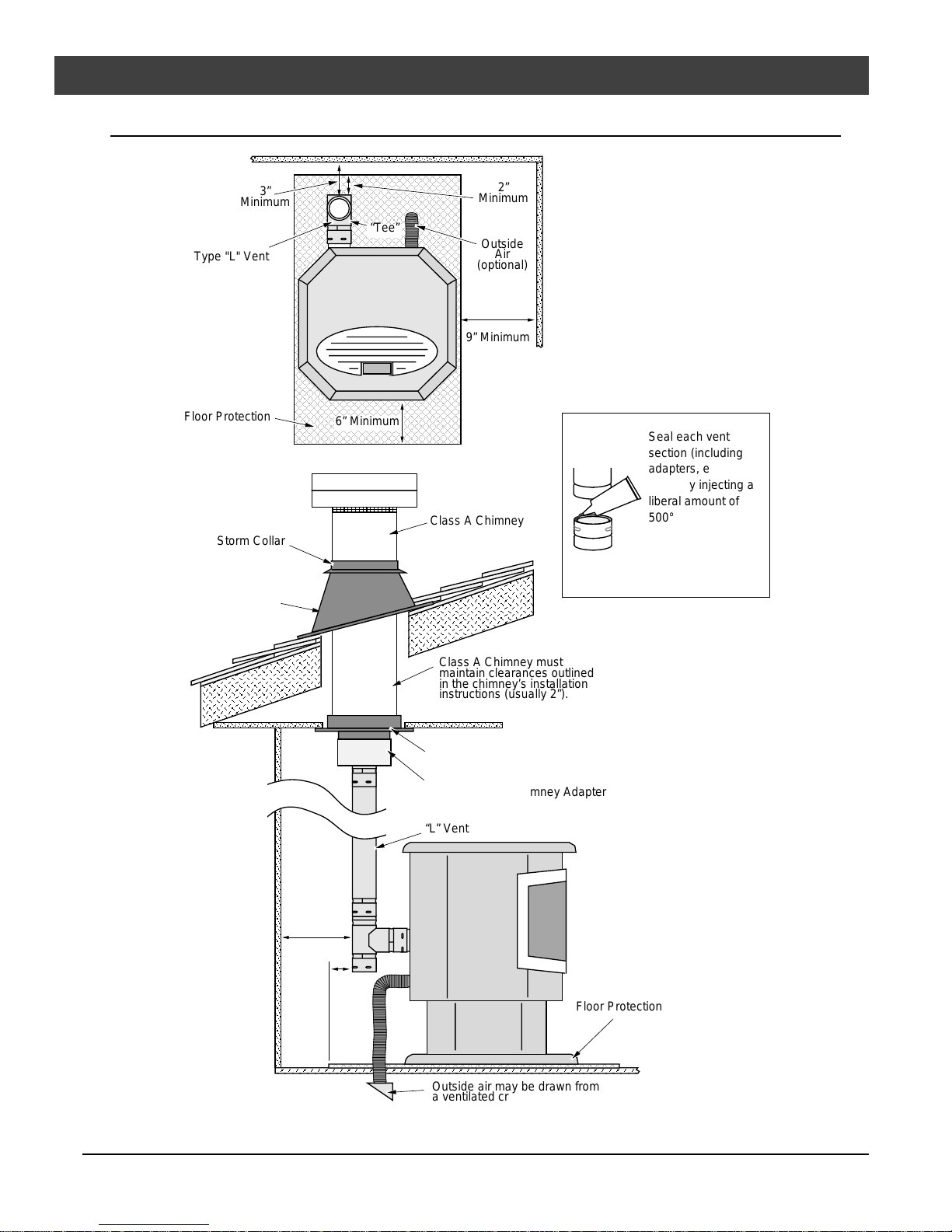

Clearances - Corner Installation
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
6” Minimum
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
Through the
Wall Vents
A
A
A
AA
AA
AA
3” Minimum
45° Elbow
45°
3” Minimum
Interior Vertical
Vents
3”
Minimum
6” Minimum
2”
Minimum
Floor Protection
“Tee”
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
3” Minimum
3”
Minimum
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
Note: If interior vertical pellet vent is used, the clearance to the backwall is determined by the
upward-turning elbow or "Tee". It will vary in depth depending on the brand of pellet vent
used (it is approximately 5"). Before placing the heater, connect the elbow or "Tee" and
measure off the 3" clearance.

8Installation
Travis Industries 4011009 93508126
Venting the Pellet Stove
• PELLET VENT MUST MAINTAIN A MINIMUM 3" CLEARANCE TO ANY
COMBUSTIBLE (INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER).
• DO NOT CONNECT THE PELLET VENT TO A VENT SERVING ANY
OTHER APPLIANCE OR STOVE.
• DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM
OF THIS UNIT.
• USE AN APPROVED WALL THIMBLE WHEN PASSING THE VENT
THROUGH WALLS AND A CEILING SUPPORT/FIRE STOP SPACER
WHEN PASSING THE VENT THROUGH CEILINGS (MAKE SURE TO
MAINTAIN 3" CLEARANCE TO ANY COMBUSTIBLES.
• No more than one tee and 180° of elbows (one tee with two 90° elbows, one tee with one
90° and two 45° elbows, etc.).

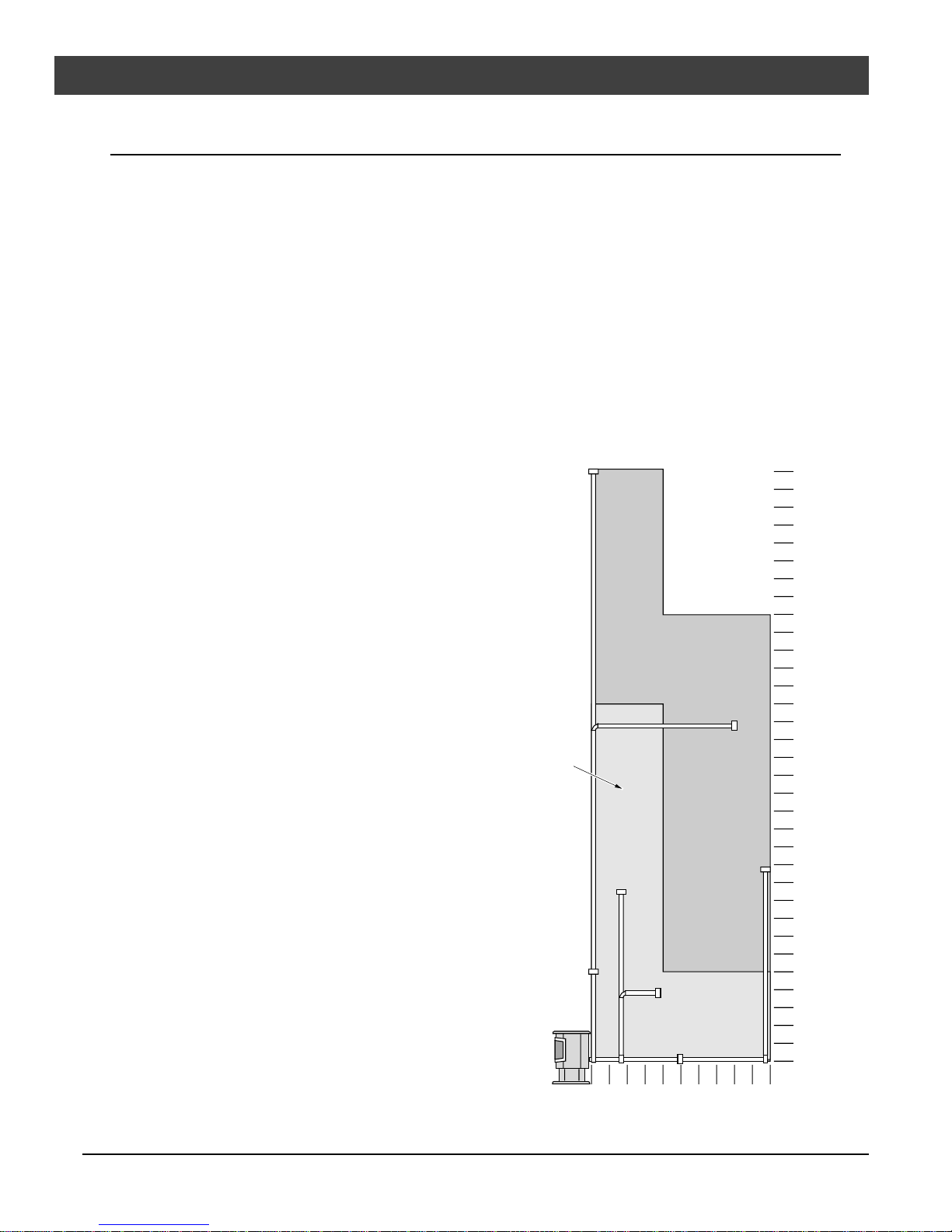

Maximum Venting
Distance:
• Vent must have a support
bracket every 5' of pellet vent
when exterior of structure
0 Feet
5 Feet
10 Feet
(max.)
0 Feet
5 Feet
10 Feet
15 Feet
20 Feet
25 Feet
30 Feet
33 Feet
(max.)
The vent height and run
must not exceed the
distance shown in the
shaded region shown to the
right.
NOTE: To achieve optimum
performance, we
recommend keeping the
vent as short as possible
(horizontal run especially).
Venting into this shaded
area may require restrictor
adjustments. See the
section “Restrictor
Adjustment” for details.

Installation 9
Travis Industries 4011009 93508126
Pellet Vent Type
• Must be 4" diameter Type "L"(except for masonry fireplace installations) - or - connect the
vent to a factory built type "A" chimney. All vent joints (including adapters, elbows, etc…)
must be sealed with 500° F. RTV silicone.
Installing the Pellet Vent
Seal each vent section (including
adapters, elbows, etc...) by
injecting a liberal amount of 500°
F. RTV silicone into the gap
between sections.
500° F. RTV
Silicone
• Horizontal sections must have a 1/4" rise every 12" of travel.
• Pellet vent connections must be sealed airtight with 500° F. RTV silicone and screwed
together with at least three sheet metal screws.

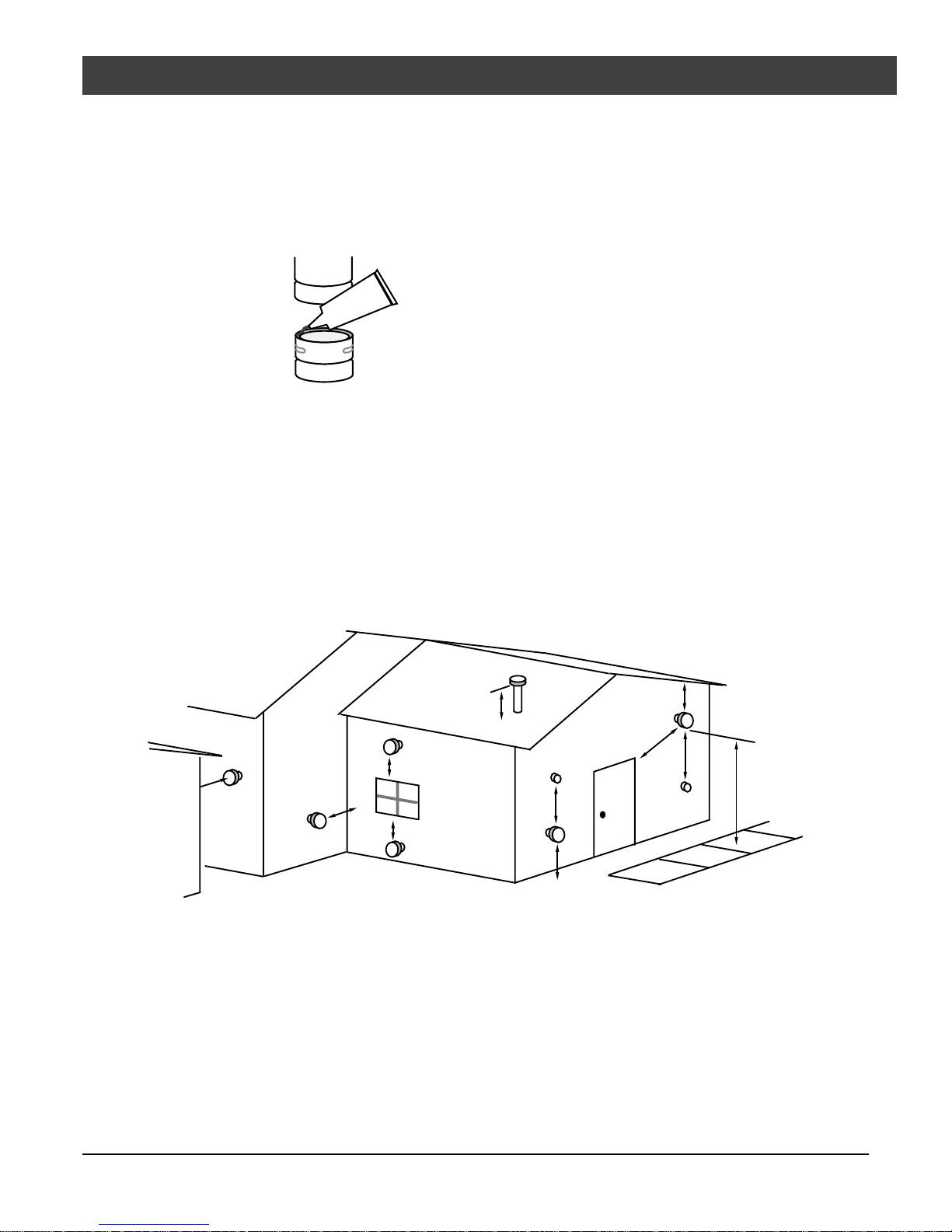

Pellet Vent Termination (See the illustration below)
• Must have an approved cap (to prevent water from entering) or a 45° downturn.
• If the termination is located on a windy side of the house, an approved house shield is
recommended to prevent soot from building up on the side of the house.
• Must not be located where it will become plugged by snow or other material.
• Horizontal terminations must protrude 12" from the wall, verticall terminations require 24".
H
G
A
D
F
NOTE: Measure clearances to the nearest edge of the exhaust hood.
A
E
B
C
F
X
A Minimum 4' clearance below or beside any door or window that opens
B Minimum 1' clearance above any door or window that opens
C Minimum 2' clearance from any adjacent building
D Minimum 7' clearance above any grade when adjacent to public walkways
NOTE: Vent may not terminate in covered walkway or breezeway.
E Minimum 2' clearance above any grass, plants, or other combustible materials
F Minimum 3' clearance from any forced air intake of any other appliance
G Minimum 2' clearance below eaves or overhangs
H Minimum 1' clearance horizontally from combustible wall
X Must be a minimum of 2' above the roof

10 Installation
Travis Industries 4011009 93508126
Mobile Home Requirements
• Outside air is required (used for
combustion) - see the directions
below.
• The heater must be bolted to the
floor (Some states do not require
this; check with your local building
department). See the illustration
to the right.
• The heater must be grounded to
the steel chassis of the mobile
home (Some states do not require
this; check with your local building
department).
WARNING: DO NOT INSTALL IN
SLEEPING ROOM.
CAUTION: THE STRUCTURAL
INTEGRITY OF THE
MANUFACTURED HOME
FLOOR, WALL, AND
CEILING/ROOF MUST BE
MAINTAINED.
7/16”
Socket
Remove the ash pan
(see page 29).
Use the lag bolts (used
to secure the stove to
the pallet) to screw the
pedestal to the floor.
a
b

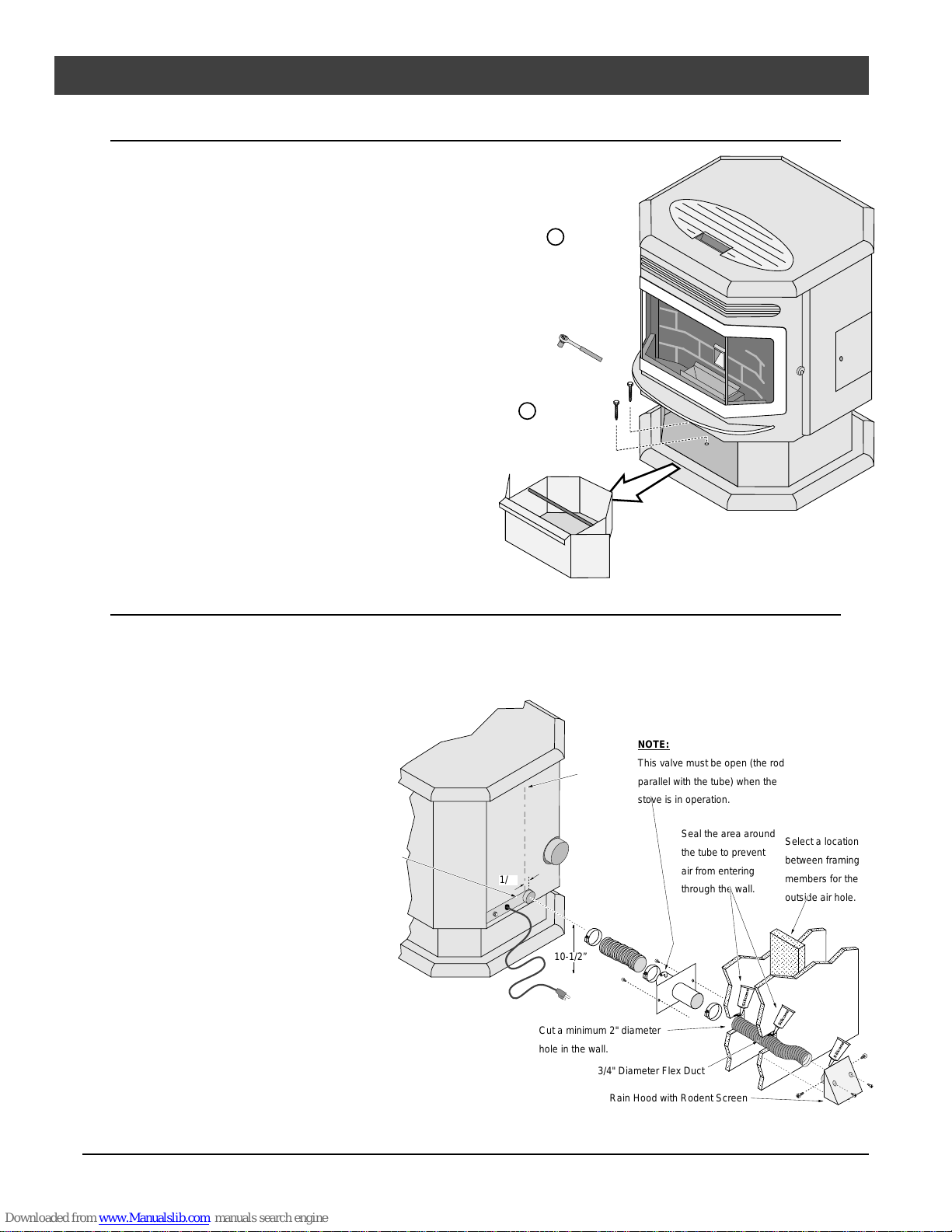

Outside Air (used for combustion)
• Must not be drawn from an enclosed space (garage, unventilated crawl space).
HINT: Travis Industries strongly suggests outside air for all residential installations, especially for
those that are energy efficient, air-tight homes.
• Must not be over 15'
long.
• Must be made with 1 3/4"
diameter or larger metal
or aluminum duct with a
metal screen attached to
the end to keep out
rodents (P.V.C. or other
combustible materials
may not be used). We
recommend the Travis
Industries Outside Air Kit
(part # 99200136).
• Must not terminate above
or within 1' of the
chimney termination.
• Must have a rain cap or
down-turned elbow to
prevent water from
entering.
• Must be located so that it
will not become plugged
by snow or other material.
Air Inlet
(1-3/4"
Outside
Diameter)
A
A
1/2"
Center
Line
AA
AA
AA
AA
A
A
AA
AA
AA
AA
AA
A
A
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
A
A
AAAA
AAAA
AAAA
AAAA
A
A
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAAA
AAAA
AAAA
AA
AA
AA
AA
A
A
A
A
A
AA
AA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
A
A
A
A
A
A
A
A
A
A
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
1-3/4" Diameter Flex Duct
Select a location
between framing
members for the
outside air hole.
Rain Hood with Rodent Screen
Silicone
Cut a minimum 2" diameter
hole in the wall.
Silicone
Seal the area around
the tube to prevent
air from entering
through the wall.
Silicone
AA
AA
AA
AA
A
A
A
A
A
A
A
AA
AA
10-1/2”
NOTE:
This valve must be open (the rod
parallel with the tube) when the
stove is in operation.

Installation 11
Travis Industries 4011009 93508126
Alcove Installation Requirements
When the pellet stove is placed in a location where the ceiling height is less than 7' tall, it is considered
an alcove installation. Because of the reduced height, the requirements listed below must be met.
•Minimum height is 60"
•Minimum width is 46"
•Maximum depth is 48"
•Minimum clearance of 9" on each side and 3" on back
Restrictor Adjustment (qualified installers only)
In rare cases the vent will produce too much draft for the stove, leading to an inefficient burn, and in
some cases, the flame going out. The factory setting is wide open.
When to Adjust Restrictor(s):
Run the heater with the restrictors open (factory setting). If the fire goes out on low, or if un-burned
pellets are expelled from the firepot often (make sure they are un-burned, not just cylindrical embers),
the restrictor(s) will require adjustment. Follow the directions below.
Adjusting the Restrictor(s)
The intake restrictor acts as a fine
adjustment to the airflow where
the exhaust restrictor acts as a
coarse adjustment. To adjust the
restrictor(s), first close the intake
restrictor and assess heater
performance over time. If the
problem is not solved, open the
intake restrictor and adjust the
exhaust restrictor following the
directions listed under "Exhaust
Restrictor Adjustment".
Use these index marks to gauge restrictor
movement. Push in for more restriction
(pull out for less restriction).
Intake Restrictor
Intake Restrictor Adjustment
Phillips
Screwdriver
7/16”
Socket with
Extender
Open the hopper
and remove the
screw holding
the left panel in
place.
Restrictor Bolt
Indicator
Tab
NOTE: you will not notice much change
in the flame after adjusting the
restrictor. Check stove performance
over a long period of time.
Exhaust Restrictor Adjustment (qualified installers only)
a) Start the heater and allow it to get up to temperature. Set it to low burn.
b) Rotate the restrictor bolt until the indicator tab is at position # 1 (to the left)
c) Inspect the flame - if it is in-active and the spent pellets do not jump out of the burnpot, turn the restrictor bolt
so the indicator tab is at position # 3. Repeat this process until the flame is active and the spent pellets jump
out of the burn pot. Also verify the heater burns correctly on high.
1 2 3 4 5 6 7 8 9 10
Closed Open

12 Installation
Travis Industries 4011009 93508126
Installation Example: Direct "Through-the-wall" Installation
AAAAAAAA
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
AAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
A
A
A
A
A
A
A
A
A
3” Minimum
9” Minimum
AA
AA
A
A
AAAAAAAAAAAAA
AAAAAAAAAAAAA
Floor Protection
6” Minimum
A
12” Minimum
Horizontal Rain Cap
Wall Thimble (note
3” clearance
between vent and
combustibles)
Outside Air
Type "L"
Vent
12”
Minimum
A
A
A
A
A
A
A
A
A
A
A
A
AAAAAAAAAAAAAAA
AAAAAAAAAAAAAAA
AAAAAAAAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
3” Minimum
17-5/8” 10-1/2” Floor Protection
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500° F. RTV
Silicone
AAAAAA
AAAAAA
AAAAAA
AAAAAA
House Shield - prevents discoloration to outside of
home - HIGHLY RECOMMENDED

Installation 13
Travis Industries 4011009 93508126
Installation Example: Interior Vertical Installation
AAAAAAAA
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
A
AAAAAA
A
AAAAAAAA
AAAAAAAAAAAA
A
A
A
A
A
A
A
A
Type "L" Vent
6” Minimum
3”
Minimum
Floor Protection
2”
Minimum
9” Minimum
Outside
Air
(optional)
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAAAAAAAAAAAAA
AAA
A
A
A
A
A
A
AAA
AAAAAAAAAAAAA
AAAAAAAAAAA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Floor Protection
AA
AA
AA
AAAAAA
AAAA
AA
AA
AAAAAAA
AAAAAAA
AAAAAAA
24” Minimum
Insulation
must maintain
3” clearance.
Outside air may be drawn from
a ventilated crawl space.
2” Min.
3” Min.
Ceiling Support
Roof Flashing
Storm Collar
Vertical Cap
Vent must
maintain 3”
clearance to
combustibles.
“L” Vent
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500° F. RTV
Silicone
AAAAAA
AAAAAA
AAAAAA
“Tee”

14 Installation
Travis Industries 4011009 93508126
Installation Example: Class A Chimney Retrofit
AAAAAAAAA
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
A
AAAAAAA
A
AAAAAAAAA
AAAAAAAAAAAAAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
Type "L" Vent
6” Minimum
3”
Minimum
Floor Protection
2”
Minimum
9” Minimum
Outside
Air
(optional)
AAAA
AAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAA
AAAA
A
AA
A
A
AA
A
A
AA
A
AAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Floor Protection
AA
AA
AA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AA
AA
AA
Outside air may be drawn from
a ventilated crawl space.
2” Min.
3” Min.
Class A Chimney Ceiling Support
Roof Flashing
“L” Vent to Class A Chimney Adapter
Class A Chimney
“L” Vent
AAAA
A
AA
A
A
AA
A
A
AA
A
A
AA
A
A
AA
A
A
AA
A
A
AA
A
A
AA
A
AAAA
AAAAAA
A
AAAA
A
AAAAAA
Storm Collar
Class A Chimney must
maintain clearances outlined
in the chimney’s installation
instructions (usually 2”).
AAAAAAA
AAAAAAA
AAAAAAA
“Tee”
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500° F. RTV
Silicone

Installation 15
Travis Industries 4011009 93508126

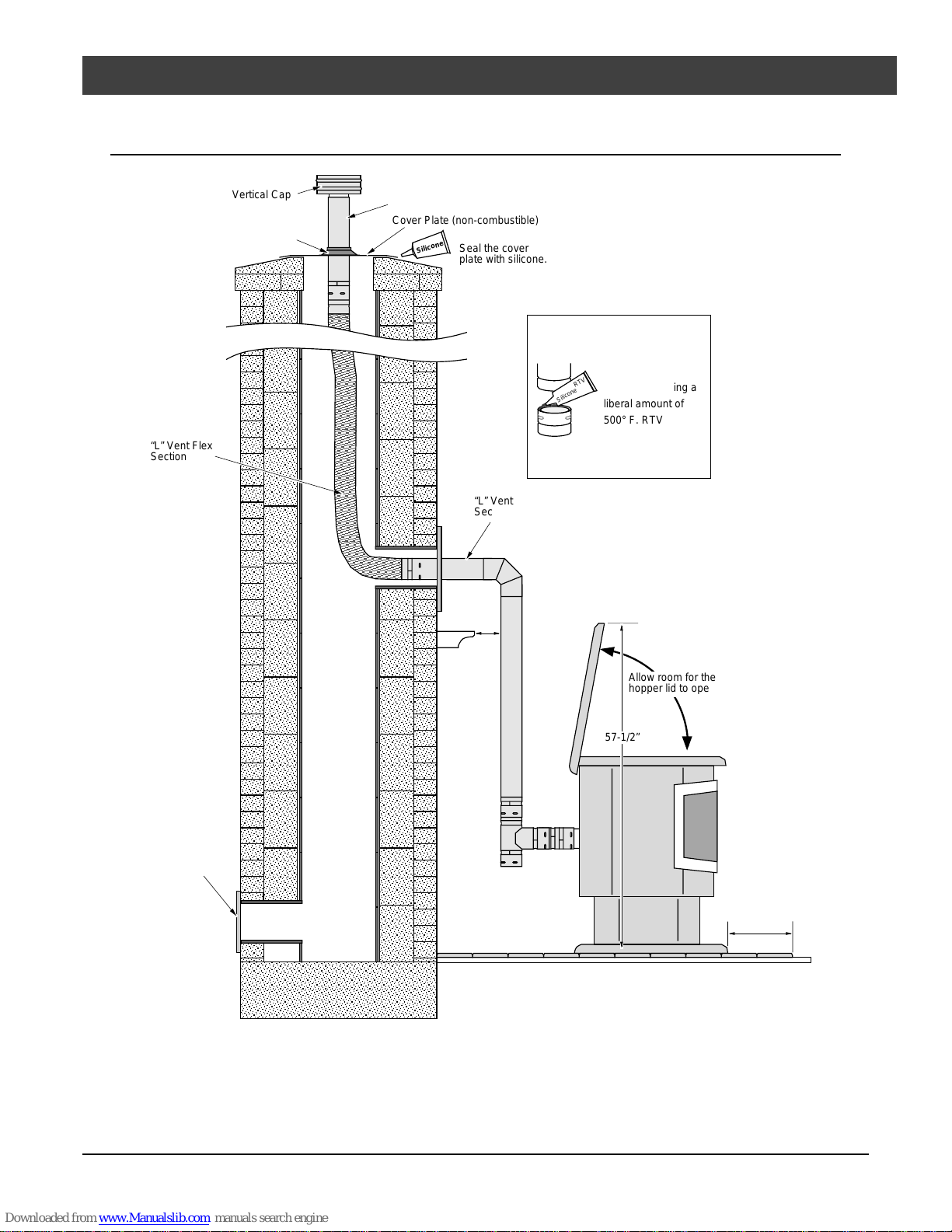

Installation Example: Masonry Fireplace Hearth Stove
AAA
AAA
AAA
Outside air
may be
drawn from
the ash
cleanout. 6” Min.
“L” Vent
AA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
A
A
A
AAA
AAA
A
A
A
A
A
A
AAA
AAA
A
A
A
AAA
AA
AA
AA
AA
AA
AAAAA
AAAAA
AAA
AAA
AAAA
AAAA
AAA
AA
Storm Collar
Vertical Cap
Cover Plate (non-combustible)
Silicone
Seal the cover
plate with silicone.
AAAA
A
AA
A
A
AA
A
AAAA
AAAA
A
AA
A
A
AA
A
AAAA
AA
AA
AA
AA
NOTE: you will probably need a short horizontal section
here to clear the lintel and allow the hopper lid to open.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
Allow room for the
hopper lid to open
Lintel 3”
AA
AA
AA
AA
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500° F. RTV
Silicone
57-1/2”
“L” Vent Flex
Section

16 Installation
Travis Industries 4011009 93508126

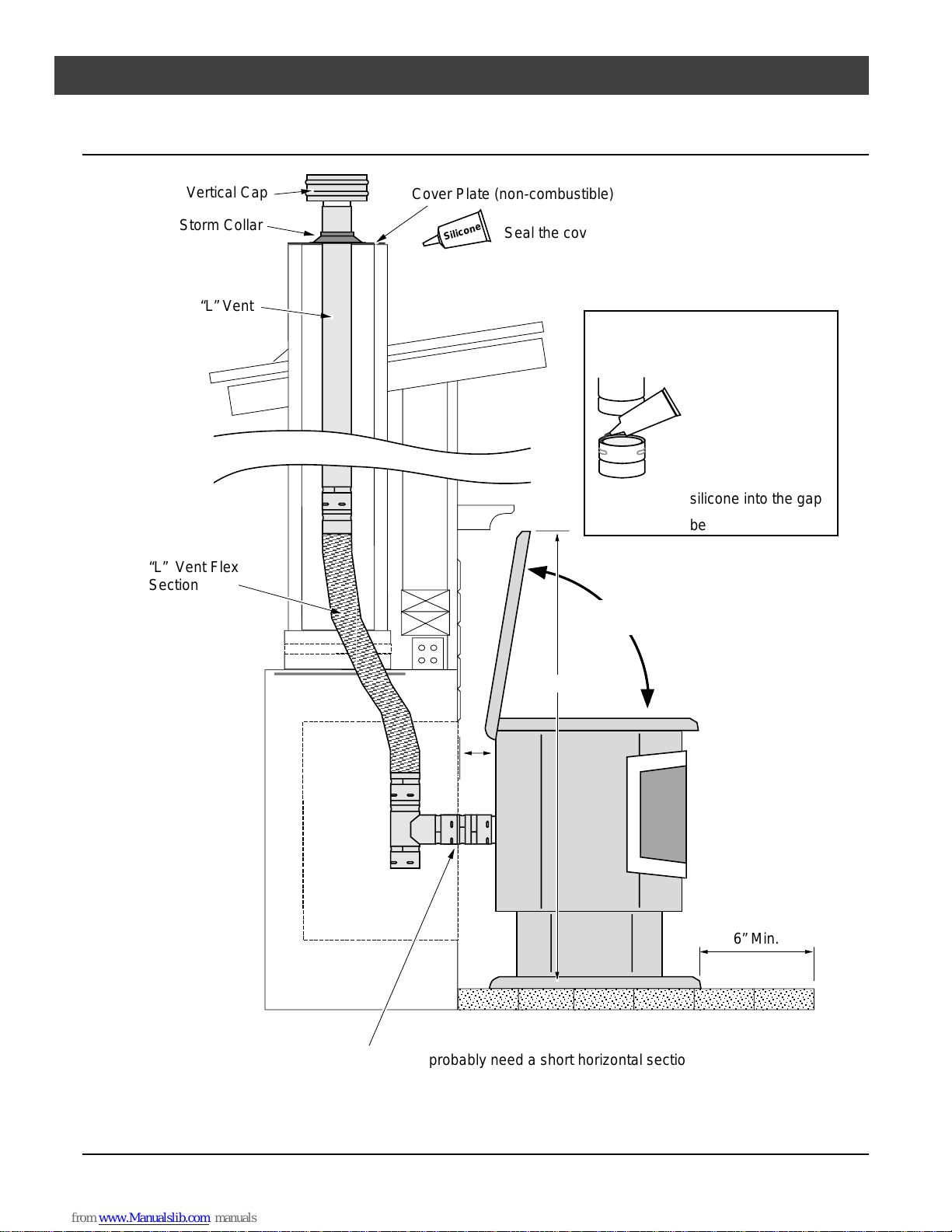

Installation Example: Zero-Clearance (Metal) Fireplace Hearth Stove
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAAA
AAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
“L” Vent Flex
Section
6” Min.
“L” Vent
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
Storm Collar
Vertical Cap Cover Plate (non-combustible)
Silicone
Seal the cover
plate with silicone.
NOTE: you will probably need a short horizontal section
here to clear the lintel and allow the hopper lid to open.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
Allow room for the
hopper lid to open
57-1/2”
3”
AAAA
A
AA
A
A
AA
A
AAAA
AAAA
A
AA
A
A
AA
A
AAAA
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500° F. RTV
Silicone
AAA
AAA

Installation 17
Travis Industries 4011009 93508126
Installation Example: Interior Masonry Chimney
AA
AA
AA
AA
AA
AA
“L” Vent
Sections
6” Min.
“L” Vent
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAA
AAAA
AAA
AA
AAAA
AAAA
AAA
AA
Storm Collar
Vertical Cap
Cover Plate (non-combustible)
Silicone
Seal the cover
plate with silicone.
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Allow room for the
hopper lid to open
3”
Minimum
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAAAAAAAAAAAAAAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAAAAAAA
A
AAAAAAA
A
A
AAAAAAA
A
AAAAAAAAA
Clean-Out Access
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500° F. RTV
Silicone
57-1/2”
“L” Vent Flex
Section
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
A
AA
A
A
AA
A
AAAA
AAA
A
A
A
A
A
A
AAA

18 Operation
Travis Industries 4011009 93508126
Safety Notice
Read this entire manual (especially the "Safety Precautions" on pages 2 and 3)
before using this stove. Failure to follow the instructions may result in property
damage, bodily injury, or even death.
!Do not unplug the stove to turn it off. This stove relies upon electricity to push the flue
gases out the pellet vent – unplugging it may lead to smoke entering your room.
!Failure to maintain your heater will lead to a restricted combustion air system, leading to
poor performance and in some cases, smoke spillage into the room. See the
"Maintenance" section for details.
Location of Controls
Control Panel
Thermostat or Remote
(required for Auto
Operation)
To Open the Control Panel:
Use the knob to open up this panel,
revealing the control panel.
Firepot Removable Door Handle
(store the handle by
hanging it in the keyhole
on the back panel)
OFF
ROOM TEMP
°F
°F
SETTEMP
TIMER
MIN
Time
Set
Time
Cancel
A
u
t
o
Starting the Heater for the First Time
Curing the Paint
This stove uses a heat-activated paint that will
emit some fumes while starting the first fire.
Open doors and windows to the room to vent
these fumes. You may also notice oil burning
off of the interior of the stove. This rust-
stopping agent will soon dissipate.
Priming the Auger
AAA
AAA
AA
AA
A
A
A
A
2 to 4 hours
Because of its electronic control panel, this stove does not require priming. If you run out of pellets
you may notice it will take approximately 5 minutes longer for the stove to start.
