Avandeo DESTIN II User manual

CAUTION / INFORMATION
IMPORTANT: Please read this manual carefully.
1. This height-adjustable desk has electric motors and is designed for use in dry work areas
only.
2. Make sure no obstacles are in the desk’s path.
Make sure the desktop is not touching any walls.
Make sure all cords are appropriate length to accommodate the change in height.
3. Do not sit or stand on the desk frame.
Do not crawl or lie under the desk frame.
4. Do not place any objects taller than 20” underneath the desk.
5. Do not open any of the components –the legs, control box or switch. There is a risk of injury
and electric shock.
6. Make sure that the power supply is between 100v and 240v before plugging the control box
into it.
7. This product is designed with a 10% duty cycle (2 min. on, 18 min. off).
8. Under no circumstances does the manufacturer accept warranty claims or liability claims
for damages caused by improper use or handling of the desk frame.
SAFETY INSTRUCTIONS
1. Keep all electrical components away from liquids.
There is a risk of injury and electric shock.
EN

2. Keep children away from electric height adjustable desks, control units and memory
controller.
There is a risk of injury and electric shock.
3. People who do not have the product knowledge or have reduced physical or mental abilities
shouldn't use it unless they are under surveillance or have been thoroughly instructed of the
apparatus' usage.
4. Before troubleshooting:
• stop the desk legs,
• switch off the power supply and pull out the main plug,
• remove everything that might contribute to weight from the desktop.
5. Before start-up:
• before plugging the control box into the power supply, make sure that it's between 100v and
240v,
• any individual parts must be connected before the control box is plugged to the main power
supply.
6. During operation:
• switch off the main power immediately if the control box makes unusual noises or smells,
• take care that the cables are not damaged,
• unplug the main power cable on mobile equipment before it is moved.
The usage of cable tie clamps
1. The surface you use cable tie clamps on must be clean, uniform,
and dry.
Do not use it on concrete, rough or lose surfaces.
2. Carefully remove the body paper, then quickly place the product
in the proper position and press it firmly to maintain full contact.
3. The pasted product will be affected by the size of the bottom area,
temperature and pressure holding time.

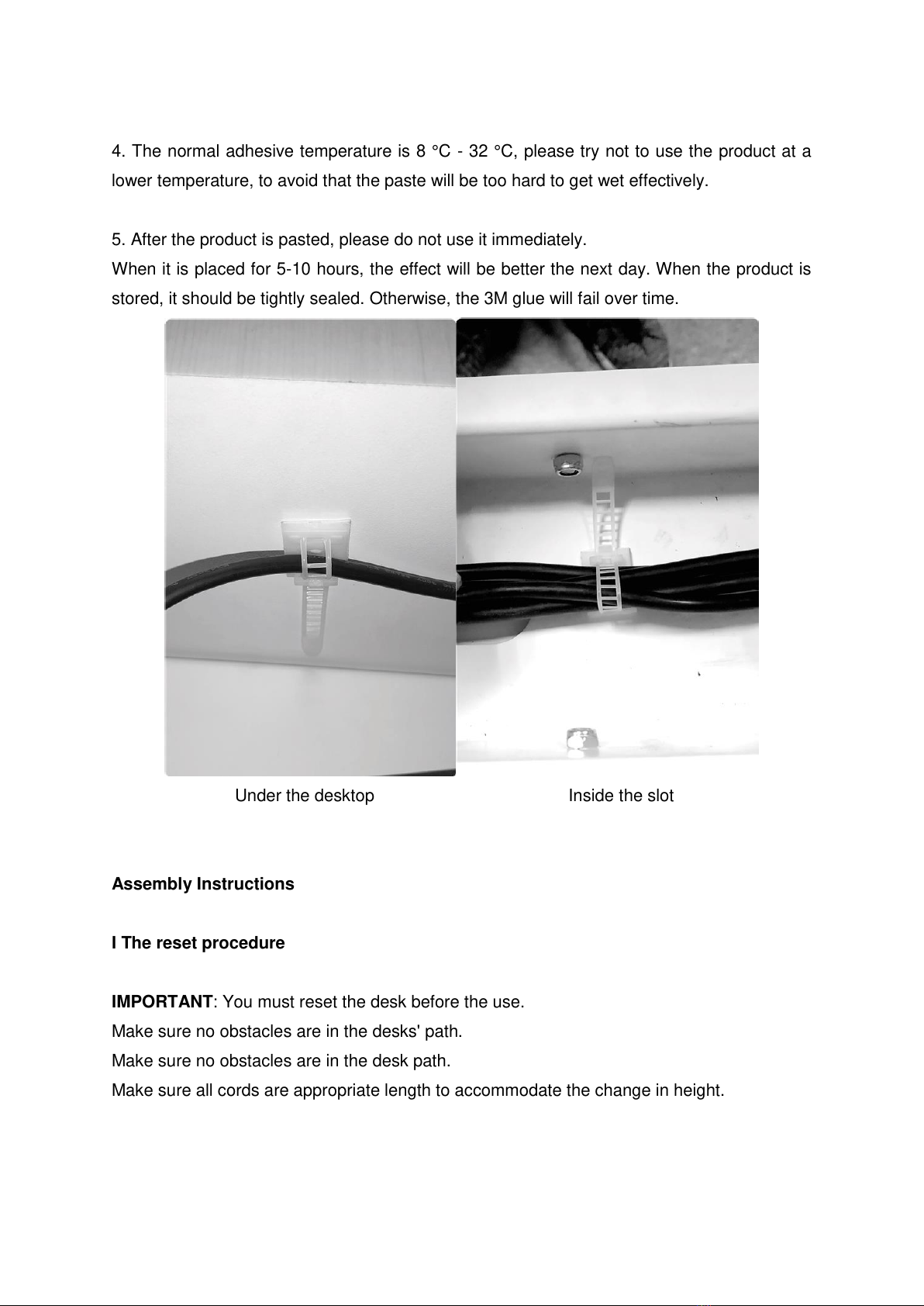

4. The normal adhesive temperature is 8 °C - 32 °C, please try not to use the product at a
lower temperature, to avoid that the paste will be too hard to get wet effectively.
5. After the product is pasted, please do not use it immediately.
When it is placed for 5-10 hours, the effect will be better the next day. When the product is
stored, it should be tightly sealed. Otherwise, the 3M glue will fail over time.
Under the desktop Inside the slot
Assembly Instructions
I The reset procedure
IMPORTANT: You must reset the desk before the use.
Make sure no obstacles are in the desks' path.
Make sure no obstacles are in the desk path.
Make sure all cords are appropriate length to accommodate the change in height.

RESET: In the "E10, E20, E60" alarm state or after running to the lowest altitude position,
press and hold the button for 3 seconds, display and release the button and the
table will start to run down to the bottom and rebounds to a certain height, and the reset
completes to display the minimum height.
II Up and down height adjustment
Press and hold the button and button to adjust the desk up or down.
Press and hold the button to adjust the desk up, the increase in height (displayed digitally)
can be seen on the LED screen display.
Press and hold the button to adjust the desk down, the decrease in height (displayed
digitally) can be seen on the LED screen display.
III The memory height function
In the normal state, if you press the button, “H1” will be displayed on the LED display. If
you release the button, the desk will lift from the current height to the sitting position. If you
press the button, “H2” will be displayed on the LED display. If you release the button, the
desk will lift from the current height to the standing position.
IV Awake extinguishing screen
To avoid misoperation, the LED display of manual control will go to rest after some time with
no action by pressing any button. Please hold and press button several seconds, and the
LED display lights on.
V Memory height setting
In a normal state, press the button, the height start to flash. If you press the button, the
LED display will show “1” and record the current height as the height. If you press the
button, the LED display will show “2” and record the current height as the height.
If you won't press the button within 6 seconds during display flashing, the memory mode will
be turned off.
VI Parameters settings

Press and hold the button for 3 seconds, the “S--” will be displayed and the screen will
start flashing.
Press the button again to enter the setting mode and display functions names, switch
between them by using .
The functions that can be set are:
The display unit of the table height: Unit ( );
Display brightness: Brightness ( );
The strength of collision protection: Collision Force( );
Use the height limit setting: Set Height( );
Buzzer switch: Beep ( );
The function of each button in the setting mode:
Back button - use it to return to the previous menu.
Switch between options.
Confirmation button (confirm to enter the next level menu of the current interface or confirm
the current parameter). If the button is not pressed within 20 seconds, the setting mode will be
exited.
Tube material
Steel
Expandable desk frame
46.4" - 66.1" / 1180 - 1680 mm
Adjustable frame height
23.4"-49.2" / 595 - 1250 mm
Desk frame depth
27.6" / 700 mm
Load capacity
265 lbs / 120 kg
Speed
0.98" / s,25 mm/s
Main menu interface
Submenu interface
Description

Unit
SI Metric
Press button to display the last height
unit value set. Use buttons to flip
between the options (SI, IN). After
selecting one, press button to save
the current option value. Hold it for 2
seconds to exit.
Inch
Brightness
Low
Press button to display the last
brightness unit value set. Use
buttons to flip between the options (L, N,
H). After selecting one, press button
to save the current option value. Hold it
for 2 seconds to exit.
Normal
High
Collision Force
Off
Press button to display the last
collision velocity position. Use
buttons to flip between the options (Off,
L, N, H). After selecting one, press
button to save the current option value.
Hold it for 2 seconds to exit.
Light
Normal
Heavy
Seat height
Original
Press button
to enter. Use
the
buttons to flip
between the
options (
Original, Low,
High). After
selecting one,
press button
to enter the
After entering, the
starting height of the
last setting will be
displayed. Use the
buttons to adjust
it. Press button to
confirm and save the
current value. Exit
setting mode.
Low
After entering, the last
height limit will be

parameter
settings.
displayed. Use the
buttons to adjust
it. Press button to
confirm and save the
current value. Exit
setting mode.
High
After entering, the last
seat height limit will be
displayed. Use the
buttons to adjust
it. Press button to
confirm and save the
current value. Exit
setting mode.
Beep
Off
Press button, it displays the last
buzzer switch status. Use button to flip in
the options (Off, On). After selecting one,
press button to save the current
option value, and keep the current
option. Hold it for 2 seconds to exit.
On
VII Trouble shooting
Down below, you can see possible errors which can be displayed. The errors will only be
displayed when a button is pressed.
Error code
Description
Resolve
HOT
Over-heating protection
Hot: This protection may be initiated for
continuous long-term operations. The device
should be re-powered o you should wait for at

least 18 minutes before the next usage.
E02
Resist protection
E02: During the movement, the table vibrates, is
bumped or the table itself is tilted. It immediately
stops the movement. The reverse movement is
automatically released after setting the distance.
Press any key to stop and release the movement
during the reverse running. It should be checked
and ensured that the table does not vibrate
significantly, hit obstacles or tilt and then run.
E10
Motor abnormal
protection
E10: Power should be removed and rechecked.
Make sure that the motor and the controller
connections are reliable and then plug it back on.
E20
Overload protection
E20: This alarm occurs when running up. Any
heavy objects on the table should be removed
before running. If this alarm occurs when running
down, power off, remove heavy objects from the
table and then power on again.
E31
Under voltage protection
E31,E32: Power should be removed and
rechecked. Make sure, that the power supply to
the controller is secure and then powered back
on.
E32
Overvoltage protection
E60
Out of step protection
Power should be removed and rechecked. Make
sure that
the motors in each channel are identical and their
connection to the controller is reliable and then
powered back on.
If the error message persists after the reset procedure, please contact the supplier.
The initialization procedure must be completed before the first running after the table is
installed or parts are replaced.
