User Manual
www.AvantcoEquipment.com 1
Electric Griddles
Models: EG16N, EG24N, EG30N
Please read and keep these instructions. Indoor use only.
Intertek
08/2015
Model #: FN-01, FN-02, FN-03
User Manual

User Manual
2 www.AvantcoEquipment.com
Specifications
Model Voltage Power Dimensions (LxWxH) Temp. Range Net Wt. Shipping Wt. Plug Type
EG16N
EG24N
EG30N
120V AC
208V/240V
208V/240V
1750W
2675/3560W
3375/4500W
16" x 19.75" x 9.5"
24" x 19.75" x 9.5"
30" x 19.75" x 9.5"
120°F - 570°F
120°F - 570°F
120°F - 570°F
52 lbs.
80 lbs.
87 lbs.
62 lbs.
90 lbs.
110 lbs.
NEMA 5-15P
NEMA 6-20P
NEMA 6-20P
Safety
1. Ensure that the power supply you are using is adequate for continual grilddle use and the voltage is correct.
2. Allow at least 8" of clearance around all sides.
3. Unplug the unit when not in use and before cleaning.
4. Do not immerse unit, cord or plug in liquid at any time.
5. Do not operate unattended.
6. Do not use this unit for anything other than its intended use.
7. Do not use outdoors.
8. Always use on a firm, dry and level surface.
9. Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has been damaged in any
manner.
10. Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to property loss and
injury. All repairs should be done by authorized professionals.
Instructions for First Time Use
There is a thin layer of wax paper on top of the grill plate that must be removed prior to using the griddle.
In order to protect the plates of your new grill during transportation, a layer of food-safe oil was coated on the surface
prior to shipment. This oil is harmless, but must be removed before you begin to use. To remove, preheat the grill until
the oil liquifies. Next, carefully wipe away the melted oil with a clean, soft cloth. Once all of the oil is removed you can
begin to use your grill.
Operation
1. Plug the power cord into the appropriate outlet. The red "Power" light will illuminate.
2. Set the desired temperature by turning the rotary temperature knob clockwise. The heating element will begin to heat
up and the green "Heating" light will illuminate.
3. When the temperature reaches the desired setting, the green "Heating" light will cycle on and off with the heating
element to maintain the set temperature.
4. For best results, allow the unit to preheat for 15 minutes before placing food on cooking surface.
5. Turn temperature knob to the "Off" position to turn the green "Heating" light and heating element off. You must unplug
the unit for the red "Power light" to turn off.
Transportation And Maintenance
During transportation, the machine should be handled with care.
Cleaning
Unplug the unit and allow it to cool before cleaning. Do not use abrasive cleaners or scouring pads. If soap or chemical
cleaners are used, be sure they are completely rinsed away with clear water immediately after cleaning. Chemical
residue could damage or corrode the surfaces of the unit.
All units come with a 6 ft. commercial cord.

User Manual
www.AvantcoEquipment.com 3
Attack tough grease, oil, and carbon with this ready to use decarbonizer
and degreaser. Its unique formula is designed to clean ovens, grills,
hoods and a wide variety of other surfaces.
Exploded Parts Diagram
177EG16N 177EG24N 177EG30N
Description Label Item # Compatible
Power Cord, 120V 1 & 2 177COPCORD 16"
Power Cord, 208/240V 1 & 2 177COPCORD2 24", 30"
Terminals 4
16" Heating Element 5 177EGELEM16 16"
24" Heating Element 5 177EGELEM24 24"
30" Heating Element 5 177EGELEM30 30"
Insulation 6
Heating Element Holder 7
Insulation Board 8
Bottom Plate 9
S/S Legs 10 177EGLEG ALL
Bottom Screws 11
Thermostat & 2 Screws 12 & 13 177EGTHERM1 16"
Thermostat & 2 Screws 12 & 13 177EGTHERM2 24", 30"
Temperature Knob 14 177EGKNOB ALL
Power Light (Red) 15 177COPLIGHT ALL
Heating Light (Green) 15 177COWLIGHT ALL
Grease Tray 16 177EGTRAY ALL
1
1 1
2
2 2
3 3 3
4 4 4
5 5 5
66 6
77 7
888
9
9 9
10
10 10
11
11
11
12
12 12
13
13 13
14
14
14
15
15
15
16
16
16

User Manual
4 www.AvantcoEquipment.com
Circuit Diagrams
EG16N
EG24N

User Manual
www.AvantcoEquipment.com 5
Limited Warranty

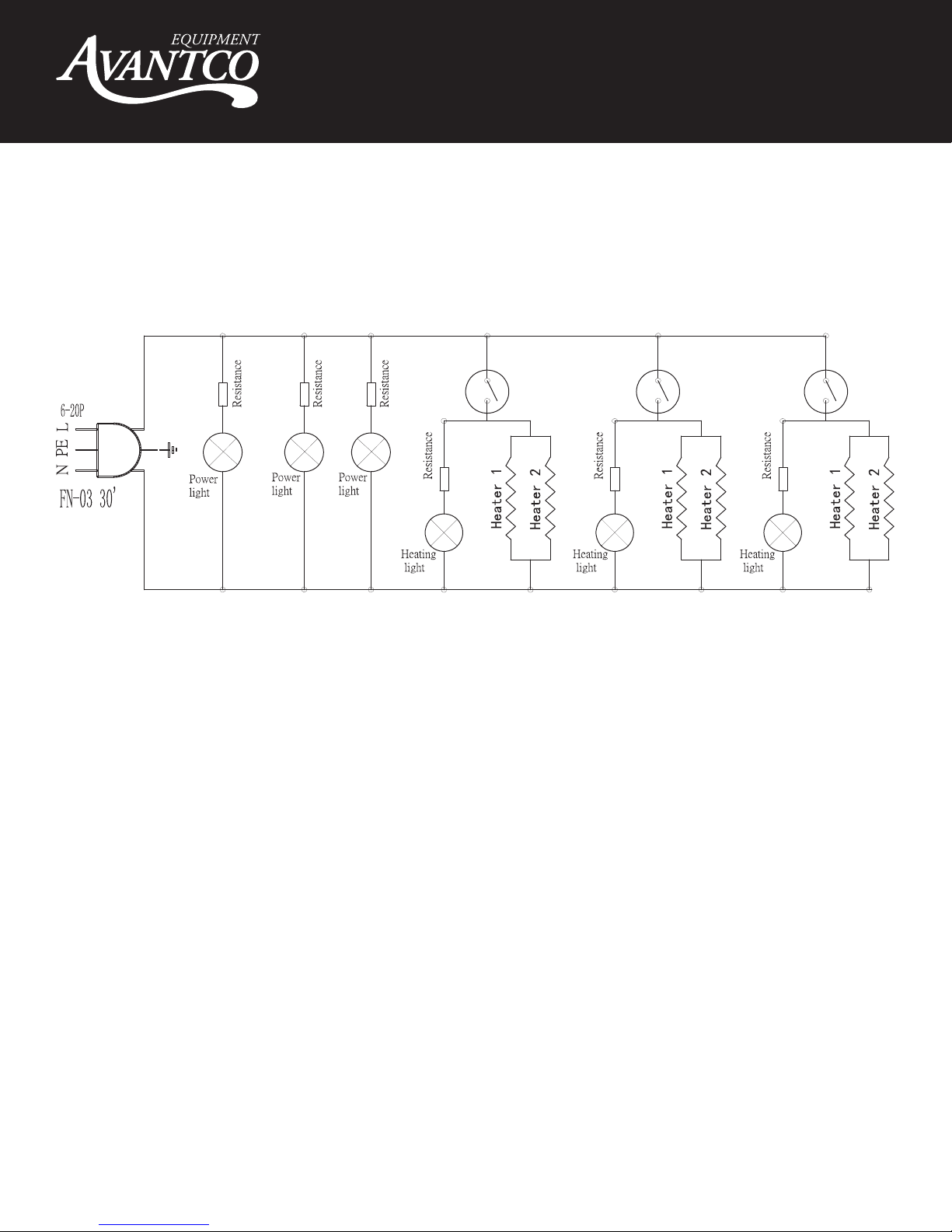

EG30N
All equipment, which is sold under Avantco trademark and used for commercial purpose is warranted against defects
in materials and workmanship. The warranty runs for six months from the date of original installation and is for the
benefit of the original purchaser only. All other Warranties, Expressed or Implied, Statutory or Otherwise, including
Without Limitation any implied Warranty of Merchantability or Fitness for Purposes are excluded. The Seller shall in no
event be liable for direct, indirect or consequential damages in connection with Avantco commercial products.
This warranty is not effective if damage occurs because of accident, carelessness, improper installation, lack of proper
set–up, supervision when required or if the equipment is installed or operated in any manner contrary to the installation
and operating instructions. Work performed by unauthorized personnel or unauthorized service agencies voids this
Warranty.
This warranty does not apply to, and Avantco is not responsible for, any warranty claims made on products sold or
used outside of the United States.
