Avantco Equipment 177ID18SBSA User manual

User ManualUser Manual
Double Drop-In Induction Range
Model: 177ID18DB, 177ID18SBSA, 177ID18DBA
Please read and keep these instructions. Indoor use only.
CONFORMS TO UL STD. 197
CONFORMS TO NSF/ANSI STD. 4
www.AvantcoEquipment.com 1
06/2023

User Manual
Index
Important Safeguards ................................. 2
In The Box .......................................... 4
Before First Use...................................... 4
Function & Advantages of Induction Cooking Plate ......... 5
Operation........................................... 7

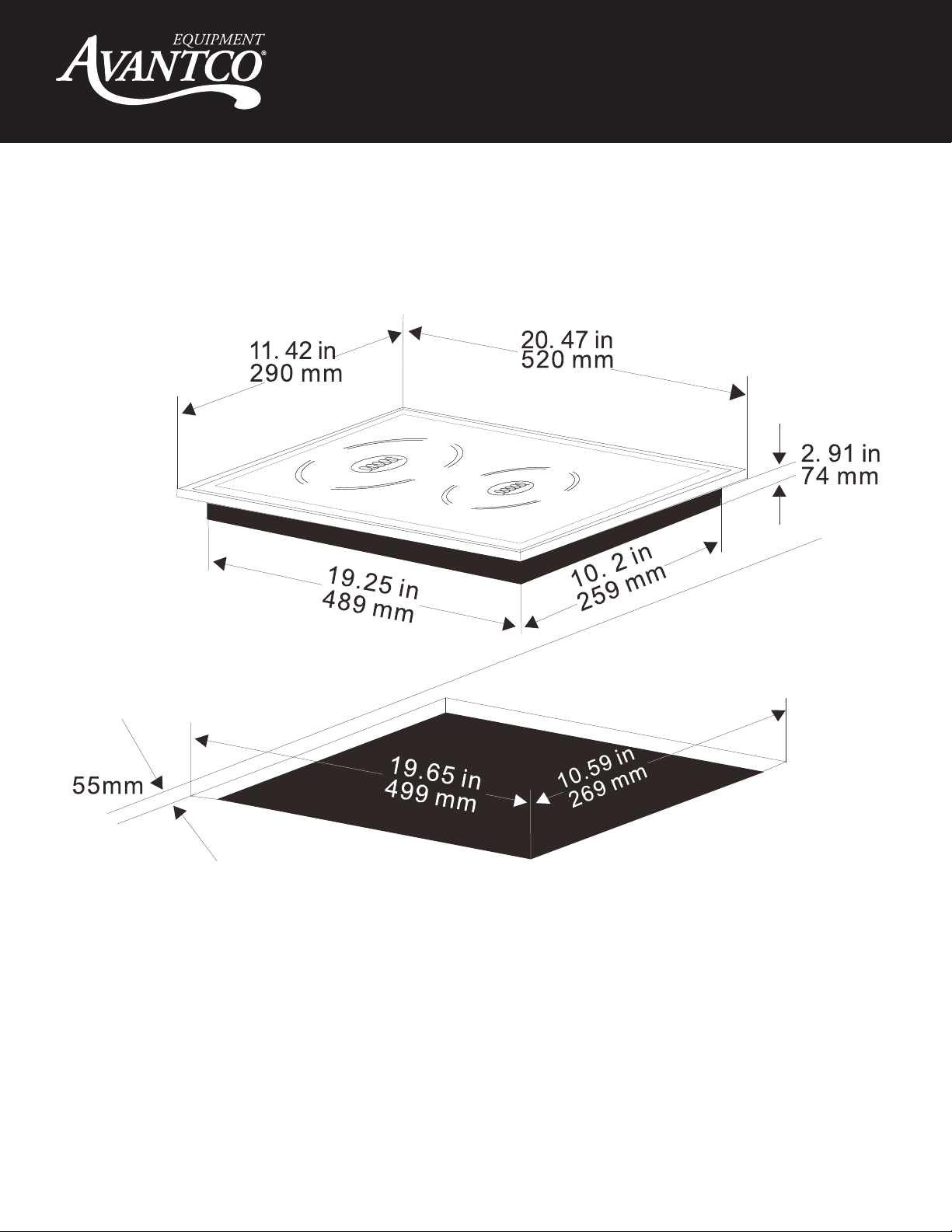

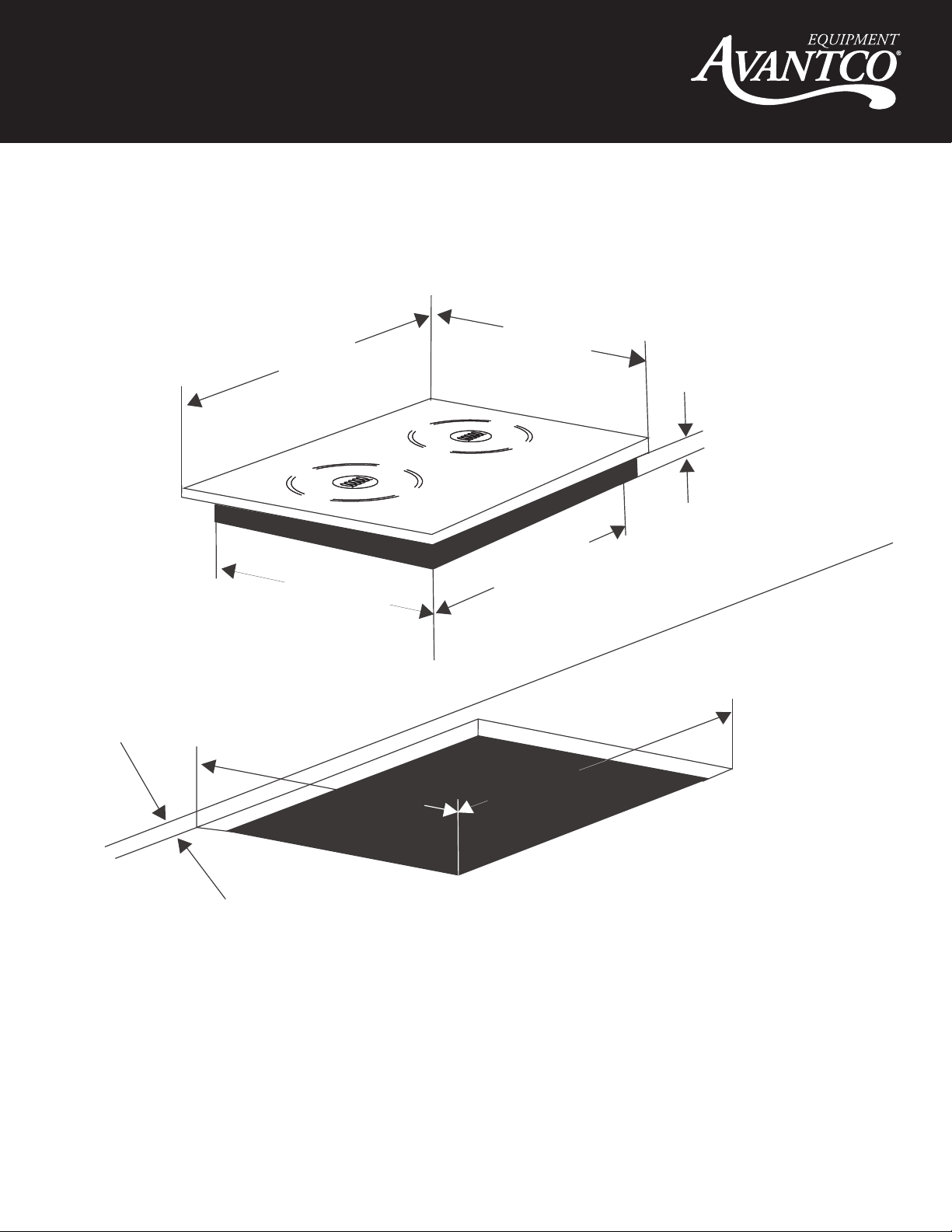

Technical Drawing .................................... 8

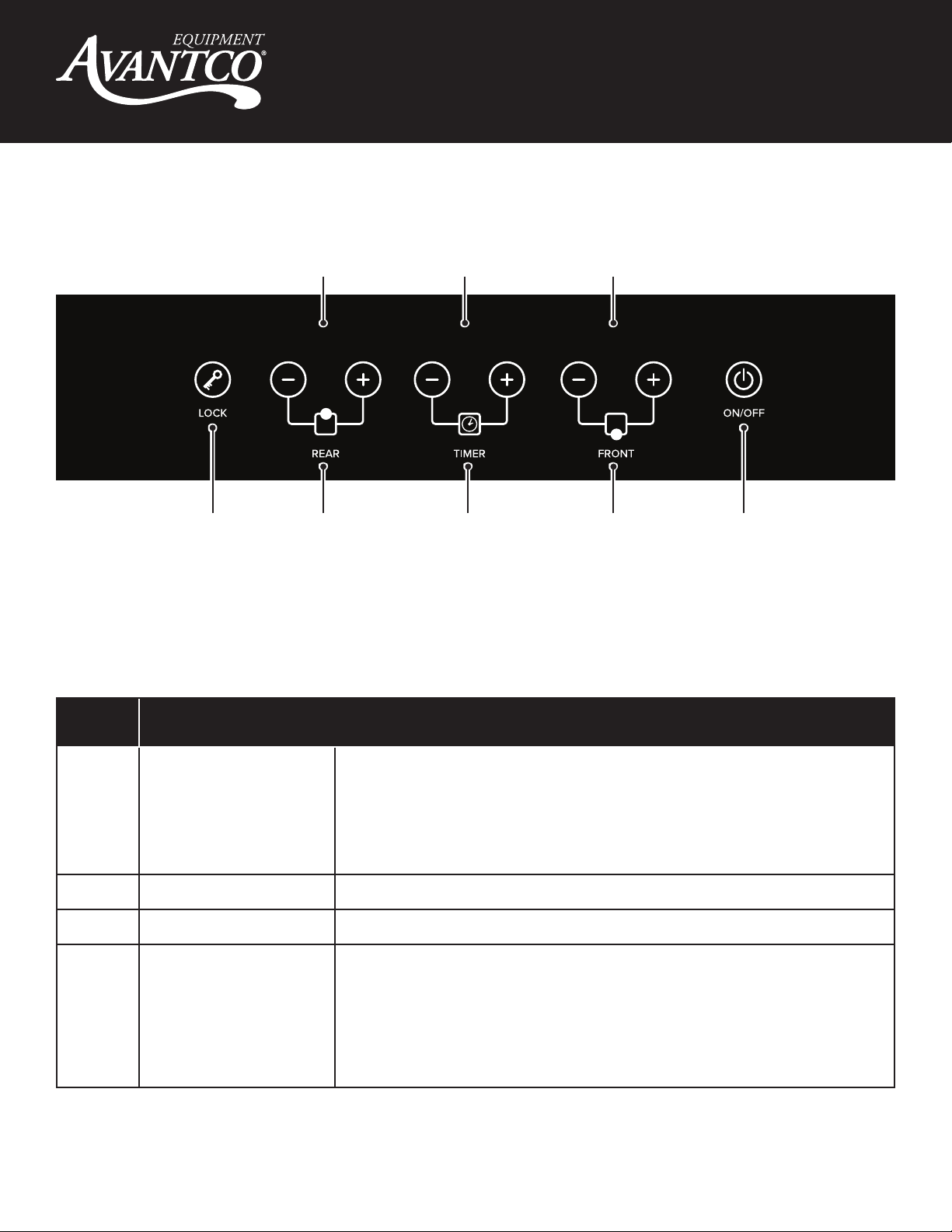

Control Panel....................................... 10
Safety Functions .................................... 10
Usable & Non-Usable Utensils ......................... 11
Cleaning, Maintenance, & Storage...................... 11
Important Safeguards
WARNING! IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE, OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY, OR DEATH. READ THE INSTALLATION,
OPERATING, AND MAINTENANCE INSTRUCTIONS THROUGHLY BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT.
FOR YOUR SAFETY! DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
ELECTRICAL SHOCK HAZARD! KEEP WATER AND OTHER LIQUIDS FROM ENTERING
THE INSIDE OF THE UNIT. LIQUID INSIDE THE UNIT COULD CAUSE ELECTRICAL SHOCK. IF LIQUID
SPILLS OR BOILS OVER ONTO THE UNIT, IMMEDIATELY UNPLUG THE UNIT AND REMOVE
COOKWARE. WIPE UP ANY LIQUID WITH A PADDED CLOTH.
To avoid damage or danger by improper use, this instruction manual should be read and followed carefully.
Save the instruction manual together with the warranty information and receipt for further reference. If you give
the appliance to another person, also supply them with this instruction manual.
The safeguards must be followed closely, and the appliance must be used in the way indicated in the
instruction manual. In case of damage and accidents caused by not following this instruction manual,
manufacturer assumes no liability.
• The surface of the cooking plate is made of tempered glass. If the glass surface is damaged, even if it
shows a very small break only, the appliance is NOT to be used. In such case immediately unplug the
appliance.
• Connect your appliance to a grounded power socket with appropriate voltage.
Do not connect other electrical appliances in the same socket and do not use multiple sockets.
• Make sure that the main installation is providing enough power to run this appliance. See the rating plate
of the appliance to confirm this.
• Run the cord in a way that nobody can stumble over it or pull on it. The cord should never come into
contact with sharp edges or hot objects.
2 www.AvantcoEquipment.com

User Manual
CAUTION! AN ELECTRIC APPLIANCE IS NOT A TOY!
CAUTION! DANGER OF ELECTRIC SHOCK! DO NOT IMMERSE CORD, PLUG, OR APPLIANCE IN
WATER OR OTHER LIQUID TO AVOID ANY RISK OF ELECTRICAL SHOCK.
CAUTION! DANGER OF BURNING AND FIRE! NEVER TOUCH THE HEATED SURFACES WITH
YOUR HANDS OR OTHER PARTS OF SKIN. DO NOT PLACE EMPTY POTS OR OTHER EMPTY
COOKWARE ON THE APPLIANCE WHEN IT IS IN OPERATION.
• Never leave the appliance unsupervised when in use. This appliance is not intended for use by
persons (including children) with reduced physical, sensory, or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
• Explain to your children all risks which can be caused by electric current:
- Danger of heat or hot steam
- Danger of sharp edges
- Danger caused by electric current
• Keep the appliance out of reach of children or persons who cannot handle electric appliances properly.
When plugged in, the cord should not be reached by children to avoid hazard.
• Do not leave packaging components (plastic bags, cardboard, polystyrene, etc.) within the reach of
children - danger of suffocation!
• Keep the appliance out of reach of children or persons who cannot handle electric appliances properly.
When plugged in, the cord should not be reached by children to avoid hazard.
• Do not leave packaging components (plastic bags, cardboard, polystyrene, etc.) within the reach of
children - danger of suffocation!
• Never place the appliance on wet ground.
• To avoid electrical shock or short circuit, never let the cord hang into water, other liquids, or over a
washing basin.
• Do not use the appliance while standing on wet ground or if hands or the appliance are wet
• Do not pour or drip any liquids at the motor base or cord. When liquids are spilled on the motor base,
immediately switch OFF, unplug, and let the motor base dry thoroughly
• Never wash the appliance and power cord in the dishwasher:
- Danger of sharp edges
- Danger caused by electric current
• When operating electrical heating appliances (such as hot plates, hot pans, or hot fat) please beware
that high temperatures are achieved which may cause serious injuries. Please use handles or pot cloth if
necessary. Inform other people using this appliance as well.
• Use the item only on heat-resistant surfaces, such as stone or ceramics, and do not place the appliance
near or on hot surfaces or near other strong heating devices.
• To avoid heat congestion, do not place the appliance directly next to a wall or under a wall cupboard.
Make sure product is placed at a safe distance away from items which may easily melt or flame. Do not
store any objects which may easily melt or flame near the appliance.
• Do not block the air supply and ventilation of the appliance.
• Never place or use the appliance on carpets or cloth or other objects which are easily flammable.
www.AvantcoEquipment.com 3

User Manual
• Do not place any kind of tissues or cloth or other objects which are easily flammable under or on the
appliance to avoid the risk of fire or electrical shock. Never store flammable products near the appliance,
they could catch fire.
• Do not place any empty containers, pots, or any metal objects on the device while in operation. Never
overheat the cookware.
• Never pull on the cord to move the appliance. Never move the appliance while in operation or with hot
cookware on it. Danger of burning!
• In case of flames, never try to extinguish with water, use a damp cloth.
• Do not place any other magnetic objects near the appliance (i.e. TV, radio, credit cards, cassettes, etc.).
Do not place any empty cookware on the glass field. Heating an empty pot or pan activates the overheating
protection and the device will turn off after a while.
• Do not operate the device if it is damaged in any way or does not function properly.
• Do not operate the appliance if any parts of it are damaged to avoid all risks. The appliance is damaged
when there are any cracks, excessively broken or frayed parts, or leaks. In this case, immediately stop
using the appliance and return the entire appliance (including any parts and accessories).
• After each use, let the device cool down sufficiently and clean it with a slightly damp cloth to prevent the
surface from damage. Always handle with care. Do not use any abrasive cleaners or cleaning pads to avoid
damage. Do not use any sharp or hard objects while cleaning the device. Do not leave any food residues to
dry on the surfaces of the appliance.
• Make sure to store the appliance in a dry clean place, safe from frost, excessive strain (mechanical or
electrical shock, heat, moisture), and out of the reach of children.
• The use of accessories and spare parts that are not recommended by the manufacturer may cause
damage to the device or injuries to person.
• Unplug the appliance:
- After each use and when the appliance is not in use.
- Before changing accessories or cleaning the appliance.
- To unplug the appliance, never pull on the cord, take the plug directly at the outlet and unplug.
• Check the cord for damages from time to time. Never use the appliance if cord or appliance shows any
signs of damage as it could be dangerous.
• Do not operate appliance when:
- Power cord is damaged
- If product has fallen down and shows visible damage or malfunction
In The Box
• Induction Range
• Instruction Manual
• Drop-In Cutout Template
Before First Use
• Remove all packaging components and make sure that the appliance is in perfect condition.
• Clean the unit surface with a slightly moist cloth and dry.
4 www.AvantcoEquipment.com

User Manual
Functions & Advantages
of Induction Cooking
Eddy currents
heat the bottom of
the cooking pot
Alternating
electromagnetic field
The bottom of the
cookware is made
of magnetic material
Control element
ca. 25KHz/60Hz
• The cookware must be magnetic. Before switching on the appliance, always place the magnetic cookware
centered onto the cooking field.
Special notes for your safety:
• According to today’s standards of knowledge, persons with pacemakers are not at risk. In case of
misuse or unfavorable situation, we cannot eliminate remaining risks. For persons with pacemakers, we
recommend consulting a doctor before using any induction cooking plates. Persons with a pacemaker
should keep a minimum distance of 60 cm to the device while in operation.
• To avoid any risks, do not place large magnetic objects (i.e. griddles) onto the cooking zone of the glass
field. Do not place other magnetic objects other than cookware (i.e. credit cards, TV, radio, cassettes) near
or on the glass surface of the induction cooking plate when it is in operation.
• Place the appliance on a stable, flat, large, and dry surface to eliminate the risk of falling down. Do not
place the appliance on flammable surfaces (i.e. tablecloth). Do not place the appliance near or onto hot
surfaces or other strong heating devices (i.e. cookers, open fire, heater, etc.).
• It is recommended not to put metallic utensils (i.e. knives, pot or pan covers, etc.) on the cooking plate as
they might get hot when the appliance is switched on.
• Do not insert any objects (i.e. wires or tools) into the ventilation slots.
Attention! This may cause electrical shock.
• Do not touch the hot surface of the glass field. Please note: Even though the induction cooking plate does
not heat up during cooking, the temperature of the heated cookware heats up the cooking plate.
The system of induction cooking
The induction cooking plate and the cookware placed on it build up one unit by reason of electro-magnetism.
The emerging energy will change into heat directly in the bottom of the cookware.
This avoids heat loss which is caused by constant heating and permanent warming on standard cooking
plates. It is not necessary to preheat the induction cooking plate. When connected it is in “Standby Mode”,
without any power consumption.
www.AvantcoEquipment.com 5

User Manual
Technical operating mode
A copper induction spool under the glass plate generates an alternating electro-magnetic field. The eddy
current creates magnetic fields and directly heats up the bottom of the cookware. The eddy current changes
immediately into heat. The glass plate itself stays cold, but the hot bottom of the cookware releases its heat to
the glass plate and heats it up. Compared to other common cooking plates, this saves time and energy as the
cookware is heated up, not the heating element and the glass plate itself. The heat input promptly adapts the
changed settings and can be controlled in small steps.
The induction cooking plate reacts to change settings just as a gas stove. The energy reaches the pot
immediately without having to heat up other materials first. Induction technology combines fast reaction with
the basic advantage of highly precise adjustment of the heat consumption.

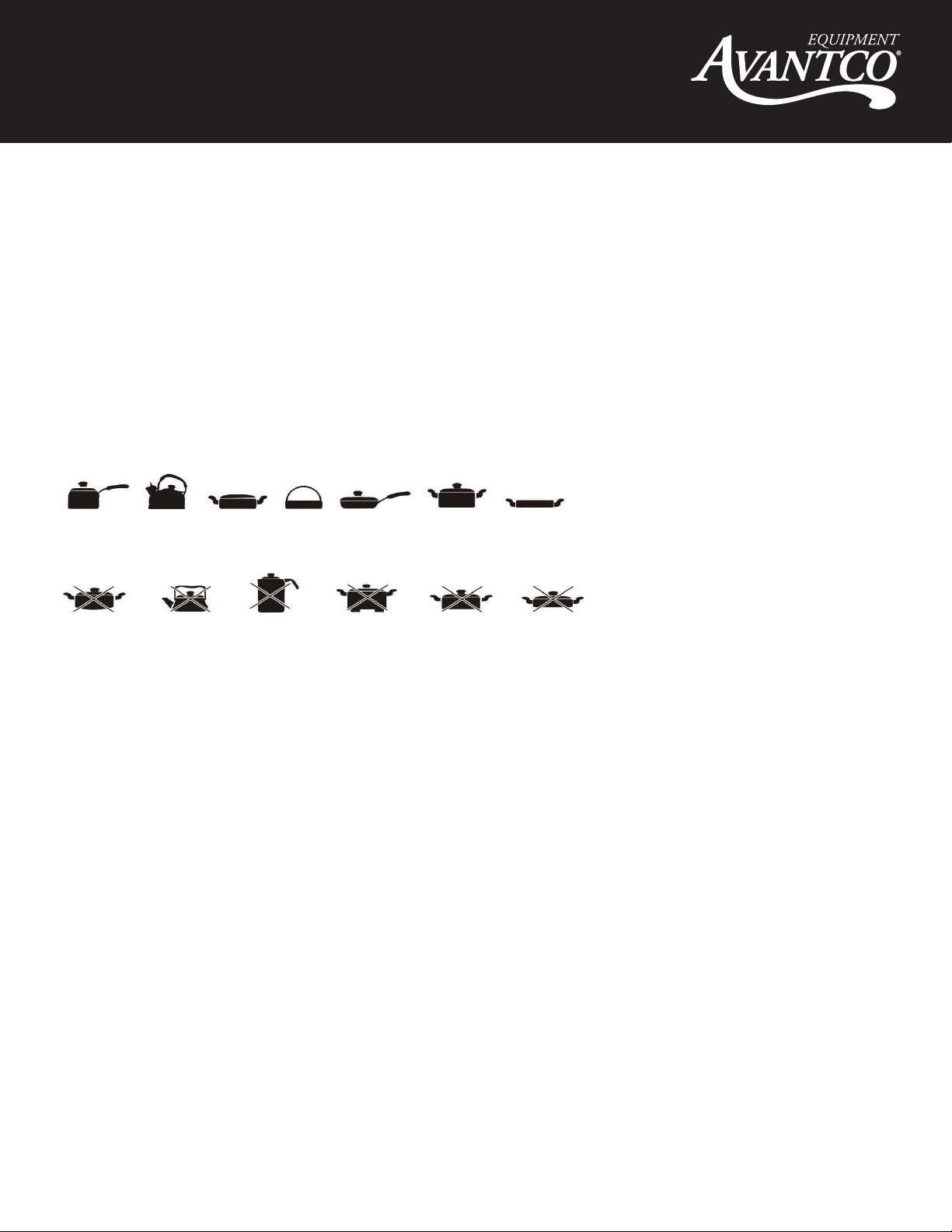

Usable & Non-Usable Utensils
Examples of Usable Pans
Steel or cast iron, enameled iron, stainless steel, flat-bottom pans / pots with diameter from 4¾ inches to 10¼ inches.
Examples of Non-Usable Pans
Heat-resistant glass, ceramic, copper, aluminum pans/pots. Rounded-bottom pans/pots with bottom measuring less
than 4 ¾ inches.
Suitable cookware
It is important that the heat conductance of the cookware is extremely high to guarantee a constant heat
distribution. The bottom of the cookware used with the induction plate must be magnetic (ferromagnetic).
Recommended for use are enamelled pots made of magnetic steel, roasting tins made of cast iron, or
special stainless steel cookware with a special steel “sandwich” bottom. The specialized trade sells suitable
cookware. Suitable is all cookware with a spiral symbol engraved into its bottom.
Tip: Test with a magnet if the cookware you plan to use is suitable for induction cooking.
Note: Do not use cookware made of glass, ceramic, or aluminium. This kind of cookware is not suited
for use with induction cooking plate.
Note: Induction-ready cookware must be used with these units. The quality of the cookware will have
an impact on equipment performance.
Advantages of an induction cooking plate:
• Energy transfer only while cookware is put on the cooking plate = maximum energy saving (up to ca. 50%).
• Heat is generated in the bottom of the cookware and immediately directed into the food. The energy is
absorbed immediately into the cookware. This guarantees extremely high cooking speed.
• High effectiveness during parboiling and minimum power consumption during cooking reduces total energy
consumption up to 30%.
• Precise controlling (by 2 different adjustable functions) guarantees quickly and tightly focused heat input.
• As the induction cooking plate is only heated up by the heated cookware, the risk of scorching or burning of
food residues is reduced. The induction cooking plate does not stay hot as long as standard cooking plates
(easy cleaning).
• When the cookware is removed, the device automatically switches into the Standby Mode.
• The device detects whether suitable cookware is placed on the cooking plate. If not, no energy is transmitted.
• When operating the induction cooking plate with empty cookware, a temperature sensor turns off the heating
function in case of overheating.
6 www.AvantcoEquipment.com

User Manual
Installation Instructions
Installation must conform to all applicable codes. Improper installation will void the manufacturer’s warranty.
Do not obstruct or reduce the airflow of the ventilation openings on the sides, bottom, or the rear of the unit.
Blocking airflow could cause the unit to overheat.
Do not install near any combustible surfaces. There must be a minimum of 4” between the induction range
and any non-combustible surface to allow sufficient airflow around the unit. There must be at least ¾”
between the bottom of the induction range and the surface. Avoid placing on soft surfaces that could restrict
the airflow to the bottom of the unit. There must be at least 12” of clearance on the sides and back from
combustible surfaces.
Do not operate this product in high heat environments. Avoid placing this product near gas equipment. The
maximum ambient room temperature must not exceed 100F. Temperatures are measured in ambient air while
all appliances in the kitchen are in operation.
The power supply must comply with the rated voltage, frequency, and plug specified on the data plate and
must be grounded. Do not use an extension cord with plug and cord models.
This product conforms to UL-197 standards and requires it to be under an exhaust hood. A vertical distance
of not less than 48" shall be provided between the top of the appliance and filters or any other combustible
material. Exhaust installation must conform to applicable codes. The ranges are designed to operate only for
the voltages indicated on the serial plate.
As a precaution, persons using a pacemaker should stand back 12” from an operating unit. Studies have
shown that the induction element will not disrupt a pacemaker. Keep all credit cards, driver licenses and
other items with a magnetic strip away from an operating unit. The unit’s magnetic field might damage the
information on these strips.
www.AvantcoEquipment.com 7

User Manual
Operation
CAUTION! NEVER LEAVE THE APPLIANCE UNATTENDED WHEN IT IS IN OPERATION!
Please follow the sequence below when adjusting the appliance. You can adjust power level,
temperature, and cooking time (minutes) by using the “+” key to increase or “-” key to decrease.
The appliance provides 2 induction cooking plates. You can use the plates separately or both
at the same time.
Front induction cooking plate:
1. Power levels: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8; defaults to 8
2. Time pre-setting: 0 – 99 minutes (in 5 minute steps); will default to 99 if not set
Rear induction cooking plate:
1. Power levels: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8; defaults to 8
• Before plugging in always place suitable cookware filled with food centred onto the induction cooking plate.
Otherwise error function will occur (see “Safety function”).
• Insert the plug into a suitable socket, a long acoustic signal sounds. The display shows -- .
• Pressing the ON/OFF key will switch the device into Standby Mode. The display shows 0 and a short acoustic
signal sounds (whenever you press button again or new button, a short acoustic signal sounds).
• Press the arrows to adjust the power level “ - ” or “ + ”. The fan inside will automatically begin to work. The
display will show 8 , this is an automatic setting. The appliance is now in the power mode. Select the desired
power by using “ - ” to decrease or “ + ” to increase (adjustable power from 1-8 levels for both burners).
• If desired, press the timer arrow switch to set timer. Adjust the desired cooking time by using “ - ” to decrease
or “ + ” to increase. The time is adjustable from 0 – 99 minutes (5 minute steps). This is an optional timer.
If you do not set the timer, it will default to 99 minutes and then shutoff for safety reasons.
• Press the “Lock” button to put device into child lock mode. To Cancel this mode, press the ‘Lock” key and
hold for 2-3 second or [on/off] to stop the Operation.
Cooking time will be indicated at the display by counting down the minutes. When cooking time is finished, this
will be indicated by several acoustic signals and the unit will switch off automatically. After cooking or warming
process is finished, always switch the device off and unplug. All functions can be adjusted manually by pressing
the corresponding buttons.
Do not use the appliance if it shows any sign of damage or malfunction, please contact customer service. Do not
place empty cookware on the appliance and do not leave cookware on the appliance for too long to avoid liquid
from cooking off completely. Overheating the cookware will activate the boil dry protection of the device.
All models are equipped with an “overheating protection” feature. If the temperature of the cooking surface
becomes too hot, the unit will turn off. All models are equipped with a pan detection system and a ‘Safety Off’
feature so that when cookware is removed, the unit is switched to Standby Mode until a pot or pan is placed back
on the hob.
8 www.AvantcoEquipment.com

User Manual
MODEL NO. 177ID18DB, 177ID18DBA
www.AvantcoEquipment.com 9

User Manual
77 mm
3.03 in
520 mm
20 47 in. 360 mm
14 17 in.
329 mm
12.95 in
489 mm
19 2 in.
19.64 in
499 mm
339 mm
13 34 in.
1MODEL NO.:
55 mm
77ID18DBA
MODEL NO. 177ID18SBSA
10 www.AvantcoEquipment.com

User Manual
Control Panel
LED Display
Rear Burner
Controls
Lock
Key
LED Display
Timer Controls
LED Display
Front Burner
Controls
ON/OFF
Key
Safety Functions
Safety
Code Indicates Procedure
EO Without Cookware or
Non-usable Cookware
Please make sure to you are using the correct and high quality induction-ready
cookware. Steel, cast iron, enameled iron, or stainless steel with flat-bottom
pans / pots with diameter from 5"to 10".
• Unit will not switch ON to heat
• Unit will switch to Standby mode after 1 minute
E1 Low-Voltage It E1 occurs when the voltage is lower than 100V;Please ensure Voltage><100V.
E2 High-Voltage It E2 occurs when the voltage is higher than 280V;Please ensure Voltage >280V.
E3 Top Plate Sensor Overheat
or Short Circuit
1. When the temperature of sensor overheat and boil dry protection is activated
(which can be caused when the temperature of cookware is over 450°F) during
cooking, the E3 occur; the induction cooker needs to be turned off, unplugged
and allowed to cool. Then you can turn it back on.
2. If E3 occurs after following step above, then sensor has failed. Please contact
customer service.
www.AvantcoEquipment.com 11

User Manual
Safety
Code Indicates Procedure
E4
Top Plate Sensor Open Circuit or
without connection
1. The sensor has been damaged. Could
be damaged during the shipping.
2. The connection of sensor and PCB is
bad because the fasteners are loose.
If you can see loose wires, then contact customer service.
E5 IGBT Sensor Overheat or Short Circuit or
Fan without connection
1. If E5 occurs and the cooling fan is still functioning, please contact
customer service.
2. If E5 occurs and the cooling fan has stopped functioning or is not
running well, check to see if anything is lodge or jamming the
cooling fan.
E6 IGBT Sensor Open Circuit Please contact customer service.
Cleaning, Maintenance, & Storage
CAUTION! DANGER OF BURNING AND ELECTRIC SHOCK!
• ALWAYS SWITCH OFF AND UNPLUG YOUR APPLIANCE AFTER USE AND BEFORE CLEANING.
• LET THE APPLIANCE COOL DOWN BEFORE CLEANING AND STORAGE.
• NEVER IMMERSE THE APPLIANCE IN WATER OR CLEAN IT UNDER RUNNING WATER.
• Wipe the plates and stainless steel surface with a damp cloth only.
• Clean the device after each use to remove food residues.
• Make sure that no water gets into the device.
• To avoid any danger or risk of electrical shock, never immerse the device or the cord into water or any other
liquid. Do not put the device and the cord into the dishwasher!
• To avoid damaging the surface of the unit, never use abrasive cleaners, cleaning pads, or any sharp objects
(i.e. metal scouring pads). If using metal objects to clean, the sensitive surface can be damaged easily by
scratches. Always handle the appliance with care and without any force.
• Use of additional cleaning liquids is recommended for induction cooking plates to extend their lifetime.
• Do not use any petrol products to clean the device to avoid damaging the plastic parts and the control panel.
• Do not use any flammable acid or alkaline materials or substances near the device, as this may reduce the
service life of the device.
• Make sure that the bottom of the cookware does not scrape across the glass field.
• When not in use, store the device in a dry place. The appliance must be stored in a place which is not
within reach of children.
12 www.AvantcoEquipment.com
