Avantco RG100 User manual

User Manual
www.AvantcoEquipment.com 1
Hot Dog Roller Grills
User Manual
Models: RG100, RG102
Please read and keep these instructions. Indoor use only.
11/2010

User Manual
2 www.AvantcoEquipment.com
Product Features
1. Avantco Equipment’s hot dog roller grills feature a convenient temperature control that makes them energy efficient
and power saving.
2. The high torque motor drive system is designed for long lasting durability.
3. The seven and nine roller grills have separate controls for front and back rollers.
4. The bottom is made of #304 stainless steel with a extractable stainless steel oil plate which keeps the machine
easy to clean.
Parts Identification
Technical Specifications
Model Dimension (inches) Voltage (V) Power (W) Hot Dog Quantity
RG100 22 " x 87/8" x 85/8"120V/60HZ 400 12
RG102 22
7/8" x 151/8" x 85/8"120V/60HZ 720 24
2
BRIEF INTRODUCTION
1 Product Features
1) Admiral Craft Equipment’s hot dog roller grills feature a convenient
temperature control that makes it energy efficient and power saving.
2) The high torque motor drive system is constructed for long lasting
durability.
3) The seven and nine roller grills have separate controls for front and back
rollers.
4) The bottom is made of #304 stainless steel with extractable stainless
steel oil plate which keeps the machine easy to clean.
5) Convenient temperature control for rapid heating.
2. Parts Identification
3. Technical Parameter
Model Dimension
(mm)
Voltage
(V)
Power
（W）
Hot dog
quantity
RG-05 580x225x222 120V/50HZ 400 12
RG-07 580x305x222 120V/50HZ 560 18
RG-09 580x385x222 120V/50HZ 720 24

User Manual
www.AvantcoEquipment.com 3
Important Safeguards
1. Thoroughly read this instruction manual prior to first use.
2. Do not submerge unit and/or cord in water or any other liquids. Failure to heed this warning may result in electric
shock, unit damage and/or bodily injury.
3. Close supervision is suggested when unit its in use, especially when children are present.
4. Check to make ensure unit is in off position and unplugged when not in use or prior to cleaning. Allow grill to cool
completely before cleaning.
5. Do not operate if the machine suffers serious damage or malfunctions. Contact dealer for repair or adjustment.
6. It is recommended that you use only manufacturer issued parts and accessories with this unit. Using unapproved
parts may result in damage or injury.
7. Do not use outdoors.
8. Do not let cord hang over the edge of table or counter. Do not let it touch any hot surfaces.
9. Do not place appliance on or near gas or electric burners or heated ovens.
10. Securely insert plug into outlet. When unplugging, be sure to remove plug only. Never pull by the power cord.
Installation
1. To avoid equipment or electrical damage, make certain that the nameplate voltage is the same as the outlet voltage.
2. Electrical and grounding connections must be in compliance with the applicable portions of the electrical code.
3. Prior to first use, it is recommended that you clean the rollers of the machine with a cotton or wipe-pad.
Operation Guide
1. Evenly place unfrozen hot dogs on the rollers.
2. Depending on the unit, the left knob handles the front rollers and the right knob handles the back rollers
For high-volume application use the both rows may be used together.
3. Turn the rollers switch on the control plate to “ON”. This switch controls the rotation of the rollers.
4. Turn the knob to the desired heat level. After 40 minutes of heating the hot dogs, turn the temperature control knob
lower to continuously keep warm.
5. The heating duration depends on the hot dogs' quality. Please adjust as needed or required. Average heating
duration is 40 minutes, but may vary.

User Manual
4 www.AvantcoEquipment.com
Cleaning Instructions
1. To avoid electric shock or scalding, unplug the power cord and allow the unit to cool before cleaning.
2. Do not submerge the hot dog grill in water or directly apply liquids to clean unit.
3. When cleaning the rollers, wipe from the end of the rollers to the center. This will reduce grease and particles
from getting into the bearings. Proper cleaning may extend the life of the unit and extend the period between
routine maintenances.
4. For product with high fat or sugar content, clean the rollers every 3-4 hours.
5. Remove the hot dogs from the rollers when wiping. Do not touch the heated rollers directly as this may result in burn-
ing or scalding.
6. Do not clean roller tubes with abrasive cleaners or scouring pads because this may damage the rollers surface and
the particles may get into the bearing.
Suggestions
1. Hot dogs must be fully unfrozen.
2. Do not leave hot dogs on the grill too long to ensure the best results. If warming for more than four hours, the hot
dogs may become thick and hard.
Attack tough grease, oil, and carbon with this ready to use carbonizer
and degreaser. Its unique formula is designed to clean ovens, grills,
hoods and a wide variety of other surfaces.

User Manual
www.AvantcoEquipment.com 5

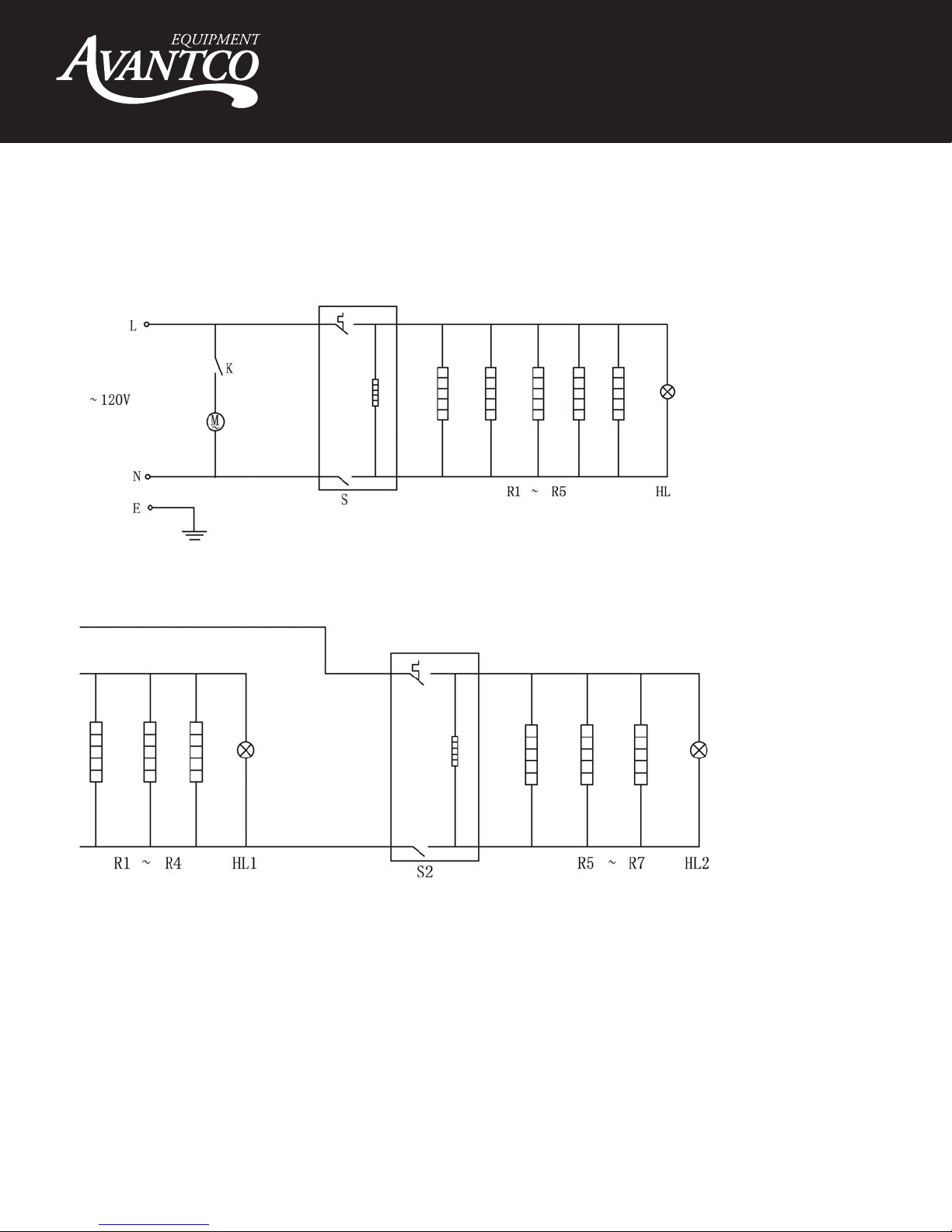

Circuit Diagram
5
Circuit Diagram
RG-05：
RG-07:
RG-09:
RG102
RG100

User Manual
6 www.AvantcoEquipment.com
3
Solid Solution Graph
No. Name Specification Qty. (PCS)
01 Bolt M4 x 8,Galvanized 6
02 Bolt M5 x 16,stainless steel 6
03 Foot Rubber 6
04 Glass cotton Glass cotton 2
05 Housing Stainless steel 1
06 Round head screw M4 x 8,Stainless steel 4
07 Side board Stainless steel 1
08 Insulated plate 2
09 Heating element supporter Aluminum Plated 1
10 Heating element supporter Aluminum Plated 1
11 Coil Plastic 1
12 Power cord with plug 16#cord, NEMA 5-15 PLUG 1
13 Tube φ38x6.2
RG-05:10pcs;
RG-07:14pcs;
RG-09:18pcs

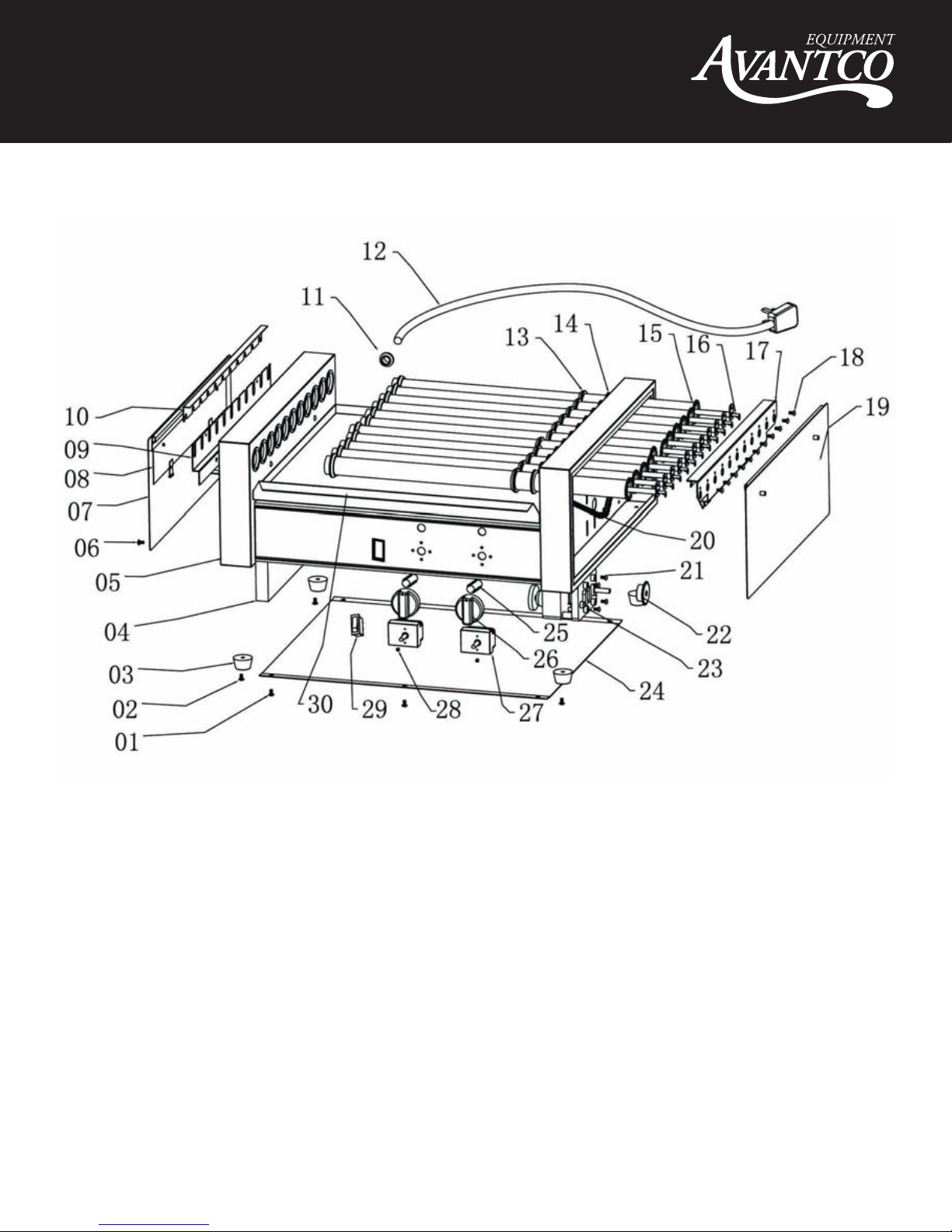

Parts Diagram

User Manual
www.AvantcoEquipment.com 7
Parts List
No. Name Specification Qty. (PCS)
1 Bolt M4 x 8,Galvanized 6
2 Bolt M5 x 16,stainless steel 6
3 Foot Rubber 6
4 Glass cotton Glass cotton 2
5Housing Stainless steel 1
6Round head screw M4 x 8,Stainless steel 4
7 Side board Stainless steel 1
8Insulated plate 2
9Heating element supporter Aluminum Plated 1
10 Heating element supporter Aluminum Plated 1
11 Coil Plastic 1
12 Power cord with plug 16#cord, NEMA 5-15 PLUG 1
13 Tube 11/2"x 1/4"RG100:10pcs;
RG102:18pcs
14 Tube pin 11/2"x 1/8"RG100:10pcs;
RG102:18pcs
15 Tube with wheel 11/8"x 19 3/4"RG100:5pcs;
RG102:9pcs
16 Heating element 120V 80W RG100:5pcs;
RG102:9pcs
17 Heating element fixer Stainless steel 1
18 Bolt M4 x 8,Galvanized RG100:5pcs;
RG102:9pcs
19 Side board Stainless steel 1
20 Chain 3.2mm a 1
21 Bolt M4 x 8,Galvanized 4
22 Motor wheel 1
23 Motor 120V,5.6round/min 1
24 Mesh supporter Plastic 8
25 Indication light 16A,250V(yellow) 2
26 Switch 41 2
27 Thermostat EGO 2
28 Bolt M4 x 6, Galvanized 4
29 On/off 1
30 Oil Pot 1
