Avantco 178PICL1HC User manual

Commercial Refrigerator
And Freezer User’s Manual
- 1 -
User Manual
Please read the manual thoroughly prior to equipment set-up,
operation and maintenance.
05/2017
Refrigerated Pizza Prep Units
178PICL1HC, 178PICL2HC, 178PICL3HC
Refrigerated Sandwich Prep Units
178SSPT27HC, 178SSPT36HC, 178SSPT48HC, 178SSPT60HC,
178SSPT71HC, 178SSPT27MHC, 178SSPT36MHC, 178SSPT48MHC,
178SSPT60MHC, 178SSPT71MHC

- 2 -
User Manual
Warning
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY
TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA
SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA
REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES
RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE
FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR
MANUAL/OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY
PRECAUTIONS MUST BE FOLLOWED.
ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. CONSULTE
EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR SERVICIO A ESTE
PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER LE
MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES LE
MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA
REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE
INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE
EST PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST
INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA
MUNICIPALIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE
LES INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION
GOUVERNEMENTALE LOCAUX.

- 3 -
User Manual
Installation
Important!!! Please Read Before Installation
• If the unit has recently been transported on its side, please let unit stand still for a minimum of 24
hours before plugging it in.
• Make sure that the unit drops down to desired temperature before loading the unit with product.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed (i.e.. Shelves, shelf clips, casters) before plugging the unit in.
• Please read through the manual in its entirety.
Cabinet Location Guidelines
• Install the unit on strong and leveled surfaces
- Unit may be noisy if surface is uneven.
- Unit may malfunction if surface is uneven.
• Install the unit in an indoor, well-ventilated area
- Unit performs more efficiently in a well-ventilated area.
- For best performance, please maintain clearance of 4” on the back of the unit. Brackets should be attached on the
back of the unit.
- Outdoor use may cause decreased efficiency and damage to the unit.
• Avoid installation in a high humidity and/or dusty area
- Humidity could cause unit to rust and decrease efficiency of the unit.
- Dust collected on condenser coil will cause unit to malfunction.
- Malfunction due to dirty condenser will void warranty.
• Select a location away from heat and moisture-generating equipment
- High ambient temperatures will cause the compressor to overwork, leading to higher energy bills and gradual
breakdown of the unit. With the lid open, the unit should not be used in areas over 80 degrees. The unit should not
be used in areas over 90 degrees.
- Malfunction due to high ambient temperature will void warranty.
Electrical
• Please ensure that the required voltage of the compressor is being supplied at all times. Low or
high voltage can detrimentally affect the refrigeration unit.
• All units should be plugged into a grounded and properly-sized electrical outlet with appropriate
overcurrent protection. Please refer to the electrical requirements on the nameplate.
• Please make sure that your unit has its own dedicated outlet.
• Do not use an extension cord.

- 4 -
User Manual

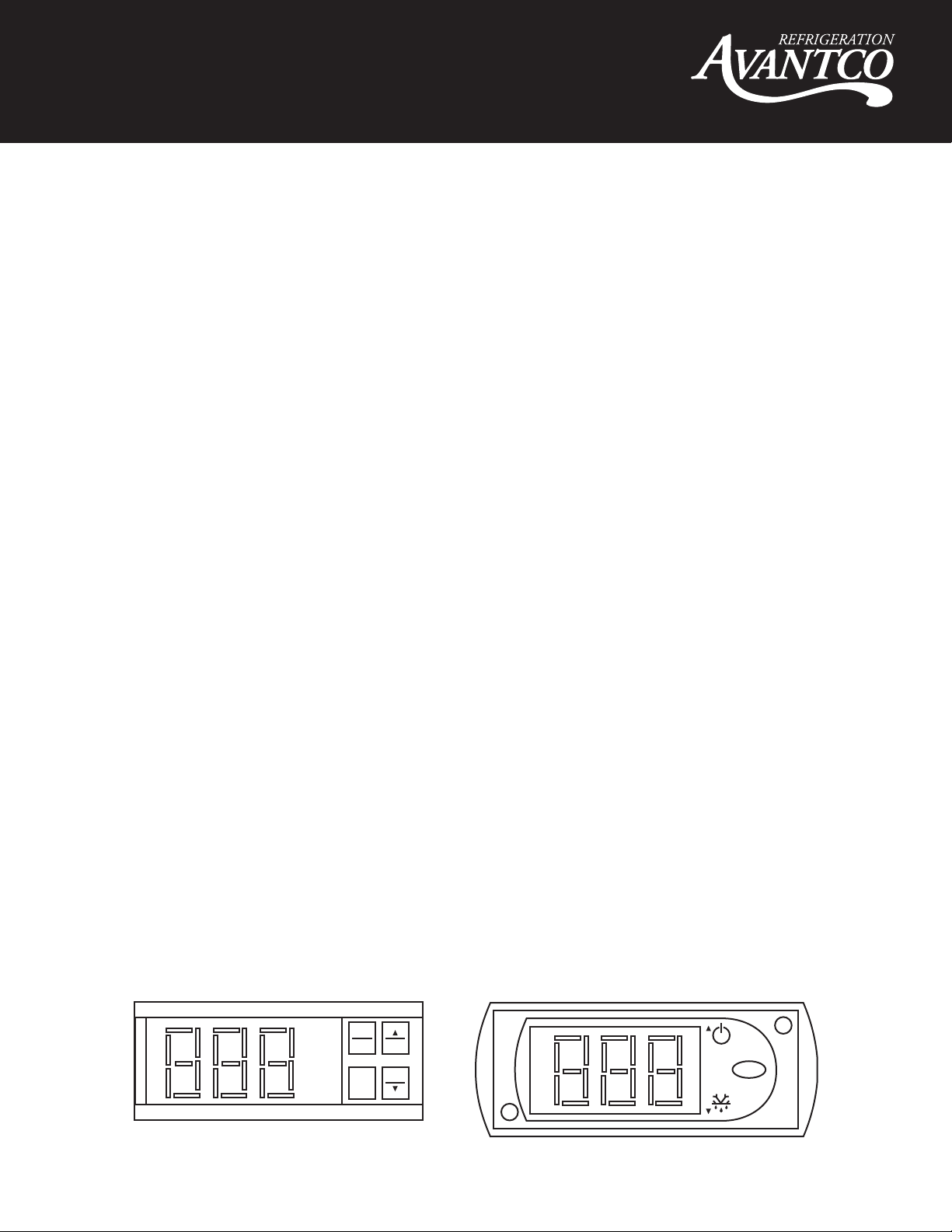

Temperature Controls
• Refrigerant LED - Compressor is on
• Fan LED - Fan is on
• Defrost LED - Defrost cycle is running
Functions
Adjusting the Temperature
Your new refrigerator or freezer is already factory-set to run at optimum temperatures for food
safety and should require no adjustments.
Refrigerators are set to cycle between a minimum temperature of 33 degrees Fahrenheit and a
maximum temperature of 40 degrees Fahrenheit.
Freezers are set to cycle between a minimum temperature of -5 degrees Fahrenheit and a maximum
temperature of 2 degrees Fahrenheit.
Adjusting the temperature changes the minimum temperature your unit will run at. Your unit will not
run constantly at this setting. To change it, follow these instructions:
Digital Control Units
• Hold “SET” for 1 sec. The display will flash the current minimum temperature.
• Use the arrow buttons to adjust the minimum temperature you want it to run at.
• Press “SET” again to save your settings
Always remember to calculate the differential if you change the minimum temperature setting. The
cabinet temperature will fluctuate up to +7 degrees over your set minimum temperature as the
compressor runs and shuts off. Setting the temperature too high will result in unsafe maximum
temperatures and possible health code violations.
Prg
mute
Set
aux
def
Freezer Control
set
mute
Refrigerator Control

- 5 -
User Manual
Loading Product
Before loading shelves, please be sure that all shelf clips are completely fastened in their correct
locations. It is important that all shelves rest completely level before stocking your cabinet with product.
In order to maintain correct air flow inside the unit, please be sure to leave two to four (2 to 4) inches
of space between the back wall and stored product. Blocking the evaporator fans will result in a
warmer cabinet temperature, and ultimately compressor failure.
Running a Manual Defrost Cycle
This unit is pre-programmed to run automatic defrost cycles at preset intervals. However, if you
would like to run a manual defrost cycle at any time, please follow the steps below:
Refrigerators: Press the defrost button (snowflake symbol and down arrow) for approximately 3
seconds. Repeat to stop the defrost cycle.
Defrost Systems
Refrigerator coils are kept below the freezing point (32° F). During compressor down-time, the
evaporator fan continues to circulate air through the evaporator coil. This air circulation raises the coil
temperature above the freezing point, melting any accumulated frost. Run-off water is drained into
the evaporator pan and evaporated. Freezer coils are defrosted electrically. Automatic defrost timers
automatically initiate at pre-set intervals and for a pre-determined duration.
Loading Food Pans
Pizza prep units and sandwich prep units are designed to function with all pans in place, even if
some pans are to be left empty. For maximum food freshness, fill the pans only with an amount that
can be used in a specific usage period. During non-use, please close the insulated lid cover.
Safety / Warning
Please pay close attention to the safety notices in this section. Disregarding these notices may lead
to serious injury and/or damage to the unit.

- 6 -
User Manual
Attention
• To minimize shock and fire hazards, be sure not to overload outlet. Please designate one outlet for
your unit.
• Do not use extension cords.
• Do not put your hands under the unit while it is being moved.
• When the unit is not in use for a long period of time, please unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could
cause damage to the compressor.
Unplug Cord
• To minimize shock and fire hazards, please do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, please unplug the unit.
Proper Grounding Required
• To minimize shock and fire hazards, make sure that the unit is properly grounded.
Warning
• Do not attempt to remove or repair any component unless instructed by factory.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any flammable and explosive gas or liquids inside the unit.
• Do not attempt to alter or tamper with the electrical cord.

- 7 -
User Manual

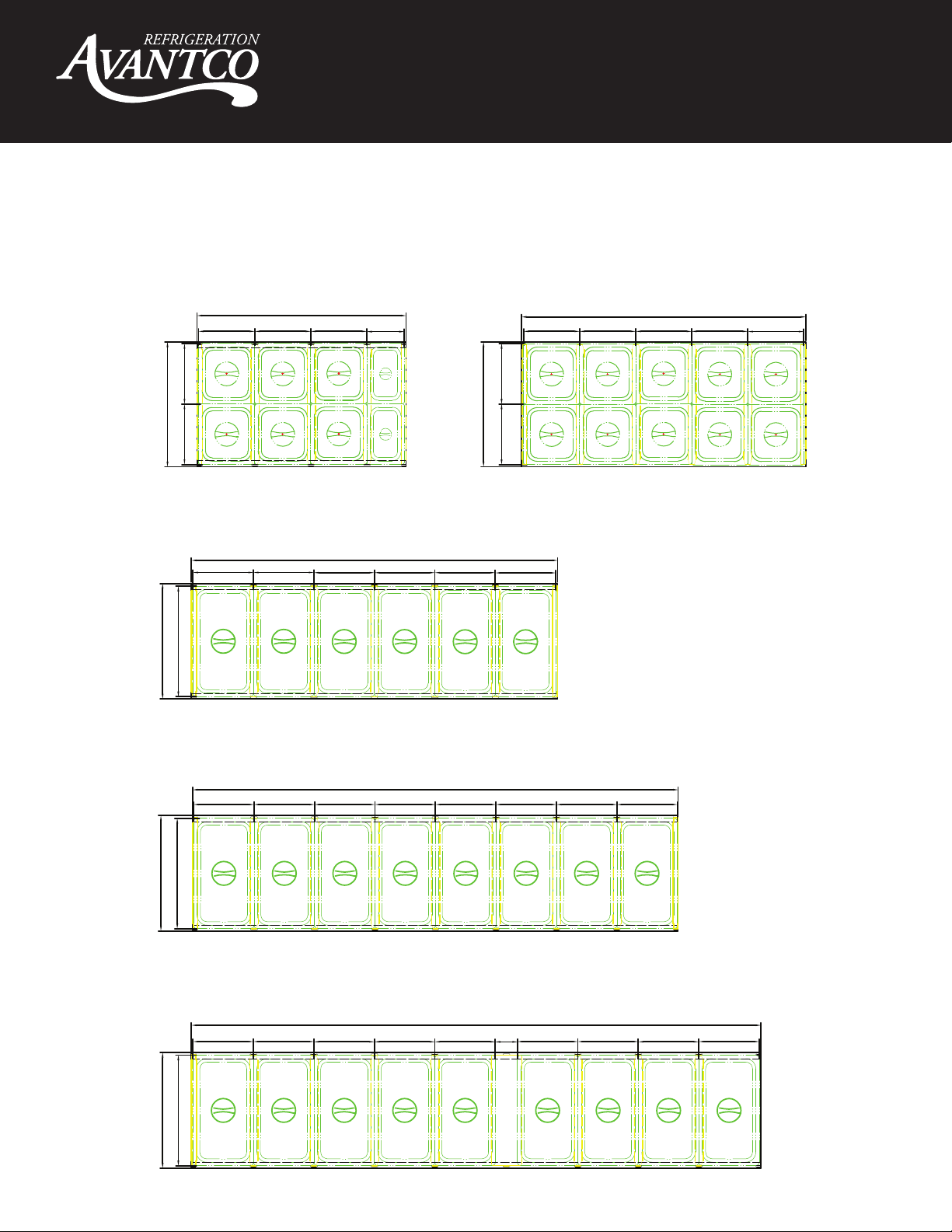

Food Pan Layouts: SSPT
14.5”
13.375”
13.375”
12.75”
12.75”
13.375”
12.75”
24.25”
42.5”
56.25”
66”
6.5” 6.5” 6.5” 6.5” 6.5” 6.5”
33”
6.5” 6.5”4.33”
7”
7”
7”
7” 7” 7” 7” 7” 2.5” 7” 7” 7” 7”
7” 7” 7” 7” 7” 7” 7”
7” 7” 7” 7” 7”
7”
14.5”
7” 7”
(6) 1/6 Size, (2) 1/9 Size
178SSPT27
(12) 1/6 Size, (6) 1/3 Size
178SSPT48
(16) 1/6 Size, (8) 1/3 Size
178SSPT60
(18) 1/6 Size, (9) 1/3 Size
178SSPT71
(10) 1/6 Size
178SSPT36

- 8 -
User Manual

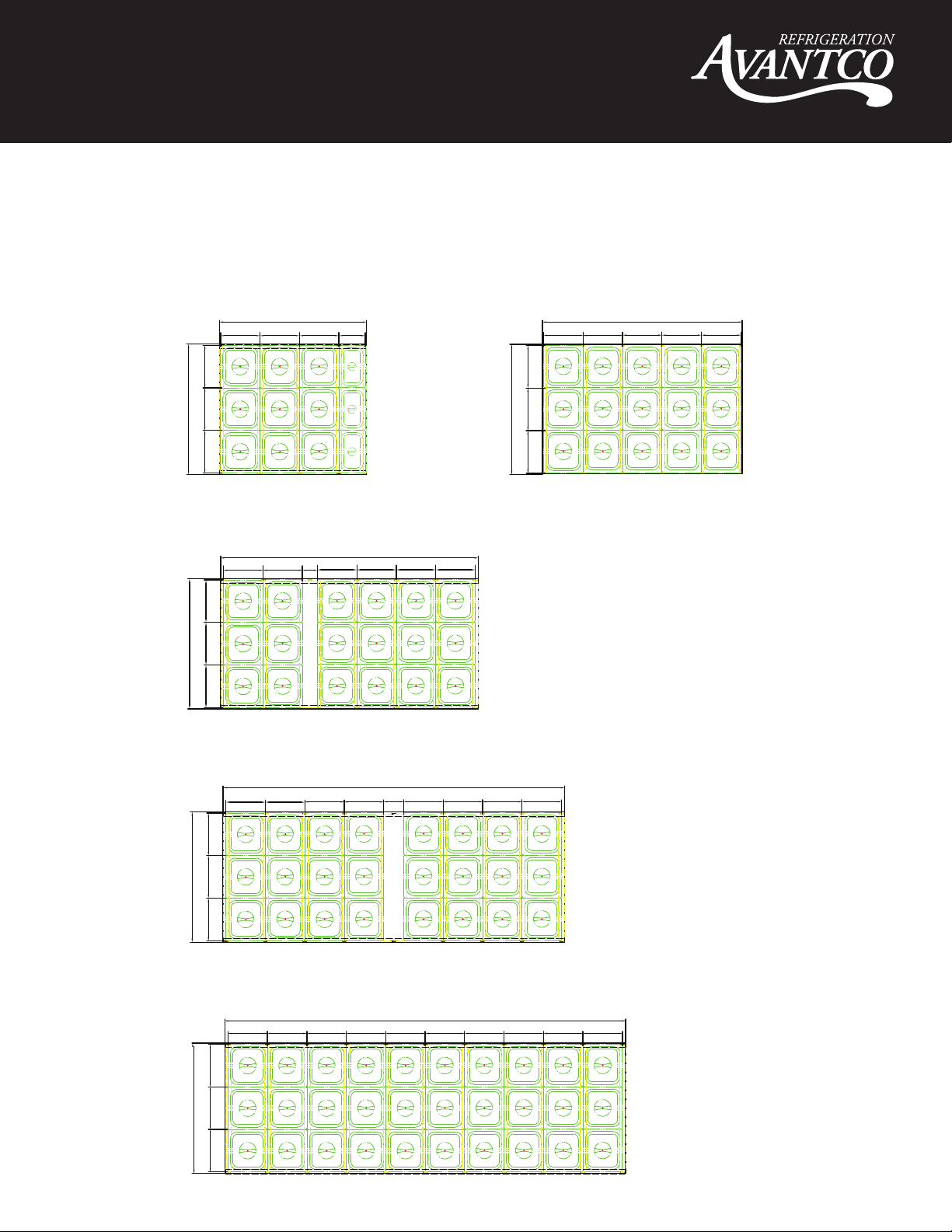

Food Pan Layouts: SSPT-M
(9) 1/6 Size, (3) 1/9 Size
178SSPT27M
(18) 1/6 Size
178SSPT48M
(24) 1/6 Size
178SSPT60M
(30) 1/6 Size
178SSPT71M
(15) 1/6 Size
178SSPT36M
21.5”21.5”21.5”21.5”
7” 7”7”7” 7”7”
24.25”
42.25”
56.25”
66”
2.5”
3.3”
6.5”
6.5”
6.5” 6.5” 6.5” 6.5” 6.5” 6.5” 6.5” 6.5” 6.5” 6.5”
6.5” 6.5” 6.5” 6.5” 6.5” 6.5” 6.5”
6.5” 6.5” 6.5” 6.5” 6.5”
6.5” 6.5” 6.5” 6.5” 6.5” 6.5” 6.5” 6.5”4.33”
33”
21.5”
7” 7”7”
7”7”7”
7”7”7”

- 9 -
User Manual
Food Pan Layouts: PICL
42.3”
63.3”
84.5”
13.25”13.25”13.25”
7.15”
7.15”
7.15”
7.15”
7.15”
7.15”7”
7”
7” 7” 7” 7” 7” 7” 7” 7” 7” 7”
7” 7” 7” 7” 7” 7”
7” 7”
6”
6”
6” 6” 6”
6” 6”
6” 6”
7”
(6) 1/3 Size
178PICL1
(9) 1/3 Size
178PICL2
(12) 1/3 Size
178PICL3

- 10 -
User Manual
Food Pan Divider Bars: SS-PT
Food Pan Divider Bars: SS-PT-M
Food Pan Divider Bars: PICL
ITEM # SIZE SS-PT-27 SS-PT-36 SS-PT-48 SS-PT-60 SS-PT-71
178SCLB15354 13 ⁄” x ⁄” 2 2
178SCLB15327 12 ⁄” x ⁄” 2 2 2
178SCLB25354 13 ⁄" x 1" 3 4
178SCLB25327 12 ⁄" x 1" 5 7 7
178SCLB90354 12 ⁄" x 3 ⁄" 1
ITEM # SIZE SS-PT-27M SS-PT-36M SS-PT-48M SS-PT-60M SS-PT-71M
178SCLB15532 20 ⁄" x ⁄" 2 2
178SCLB25532 20 ⁄" x 1" 3 4 6 8 11
178SCLB90532 20 ⁄" x 3 ⁄" 1
178SCLB10853 20 ⁄" x 4 ⁄" 1
ITEM # SIZE PICL1 PICL2 PICL3
178PICB15331 13" x ⁄" 2 2 2
178PICB25331 13" x 1" 5 8 11

- 11 -
User Manual
Regular Maintenance
WARNING: DISCONNECT POWER CORD BEFORE
CLEANING ANY PARTS OF THE UNIT.
Cleaning The Condenser Coil
• For efficient operation, it is important that the condenser surface be kept free of dust, dirt, and lint.
• We recommend cleaning the condenser coil and fins at least once per month.
• Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer.
Brush the condenser fins from top to bottom, not side to side.
• After cleaning, straighten any bent condenser fins with a fin comb.
Cleaning The Fan Blades and Motor
If necessary, clean the fan blades and motor with a soft cloth. If it is necessary to wash the fan
blades, cover the fan motor to prevent moisture damage.
Cleaning The Interior of Unit
• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stainless
steel surface.
• Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from the
frame of the door, soak in warm water and soap for thirty (30) minutes, dry with soft cloth, and
replace.
• Check door gaskets for proper seal after they are replaced.
• Periodically remove the shelves and pilasters from the unit and clean them with mild soap and
warm water. To remove the pilasters, first remove the shelves and shelf brackets. Then, simply lift
the pilaster up and out.

- 12 -
User Manual
Troubleshooting
Compressor Not Running
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to lower temperature.
Cabinet in defrost cycle. Wait for defrost cycle to finish.
Condensing Units Run For Long Periods of Time.
Excessive amount of warm product placed in cabinet. Allow adequate time for product to cool down.
Prolonged door opening or door ajar. Ensure doors are closed when not in use. Avoid
opening doors for long periods of time.
Door gasket(s) not sealing properly. Ensure gaskets are snapped in completely. Remove
gasket and wash with soap and water. Check condition
of gasket and replace if necessary.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over. Unplug unit and allow coil to defrost. Make sure
thermostat is not set too cold. Ensure that door
gasket(s) are sealing properly.
Cabinet Temperature is too Warm.
Thermostat set too warm. Set thermostat to lower temperature.
Airflow blocked. Re-arrange product to allow for proper air flow.
Make sure there is at least four inches of clearance
from evaporator.
Excessive amount of warm product placed in cabinet. Allow adequate time for product to cool down.
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over. Ensure doors are closed when not in use. Avoid
opening doors for long periods of time.

- 13 -
User Manual
Warranty Information
Units in this manual are backed by a 1 year parts and labor warranty, with a 5 year warranty on the
compressor. For warranty inquiries or service, first locate:
• The model number and cabinet serial number (located on the front of the unit, or inside the
door jamb).
• The bold number on the service plate (located on the front of the unit).
Next, call 1-800-678-5517. Be sure to have the model number, cabinet serial number, and service
plate number available when contacting service technicians.
This warranty does not apply to, and Avantco is not responsible for, any warranty claims made on
products sold or used outside of the United States.
RESIDENTIAL USERS: Avantco assumes no liability for parts or labor coverage for component
failure or other damages resulting from installation in non-commercial or residential applications.
