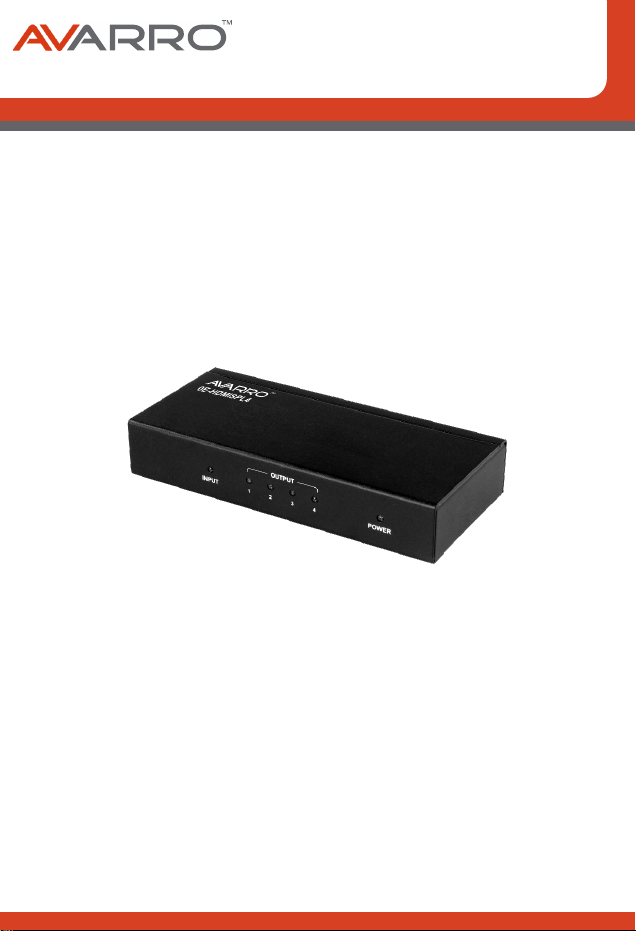

AVARRO 0E-HDMISPL4 User manual

For more information please call 1-833-574-9124 or email AVA[email protected]m ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
MANUAL
HDMI SPLITTER
4 PORTS
0E-HDMISPL4

1
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Table of Contents
Introduction ....................................................................................... 2
Overview .................................................................................... 2
Features ..................................................................................... 2
Package Contents ..................................................................... 3
Panel .......................................................................................... 3
Specification .............................................................................. 4
Wiring ................................................................................................ 5
EDID Management............................................................................ 6
Troubleshooting................................................................................. 6
Limited Warranty ............................................................................... 7
Introduction ..................................................................................... 11
Aperçu...................................................................................... 11
Caractéristiques....................................................................... 11
Contenu de l’emballage........................................................... 12
Panneau ................................................................................... 12
Spécification ............................................................................ 13
Instructions d’installation................................................................ 14
Gestion EDID................................................................................... 15
Dépannage...................................................................................... 16
Garantie limitée ............................................................................... 17
Introducción .................................................................................... 21
Descripción .............................................................................. 21
Características ......................................................................... 21
Contenido del paquete ............................................................ 22
Panel ........................................................................................ 22
Especificaciones ...................................................................... 23
Cableado......................................................................................... 24
Gestión de EDID.............................................................................. 25
Solución de problemas ................................................................... 26
Garantía limitada ............................................................................. 27

2
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Introduction
Overview
0E-HDMISPL4 is a 1 to 4 splitter for HDMI with Ultra HD 4K support. It
reliably distributes one HDMI source signal to four HDMI outputs. It
supports HDMI 1.4a specification features including data rates up to
10.2 Gbps, 3D, Lip Sync, and HD lossless Audio/Video formats. The
splitter features HDCP management,
which continuously authenticates HDCP encryption between all devices,
ensuring the simultaneous distribution of source content to all outputs.
The splitter ensures signal integrity by equalizing and regenerating the
incoming signal. It is ideal for applications, such as offices, schools,
conferences rooms, shopping malls, hotels, or museums, which require
the distribution of an HDMI source signal to multiple outputs.
Features
Slim appearance and space saving.
HDMI 1.4a and HDCP compliant.
Supports HD resolutions up to 3840 x 2160@30Hz.
Distributes one HDMI source to four HDMI displays.
Automatic input cable equalization and signal regeneration
compensation.
Supports automatic EDID management.
Supports signal transmission distance up to 33 feet (10 meters) at
4K when used with standard HDMI cables.
Reshapes marginal or noisy HDMI signals, ensuring a strong, stable
digital signal.

3
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us
Package Contents
Before you start the installation of the product, please check the
package contents:
1 x 0E-HDMISPL4
1 x DC 5V Power Adapter
1 x User Manual
Panel
Front Panel
ID.
Name
Description
1 INPUT LED
STEADY BLUE:
When a source device is
powered on and connected to the splitter.
OFF:
No source device is connected or it is
powered off.
2 OUTPUT
(1~4) LED
STEADY BLUE:
When the HDMI displays are
powered on and connected to corresponding
numbered outputs 1~4.
OFF:
No HDMI display is connected or it is
powered off.
3 POWER LED
STEADY BLUE:
When the splitter is powered
on.
13 2

4
For more information please call 1-833-574-9124 or email AVA[email protected] ··· To learn more about AVARRO products visit avarro.adiglobaldistribution.us

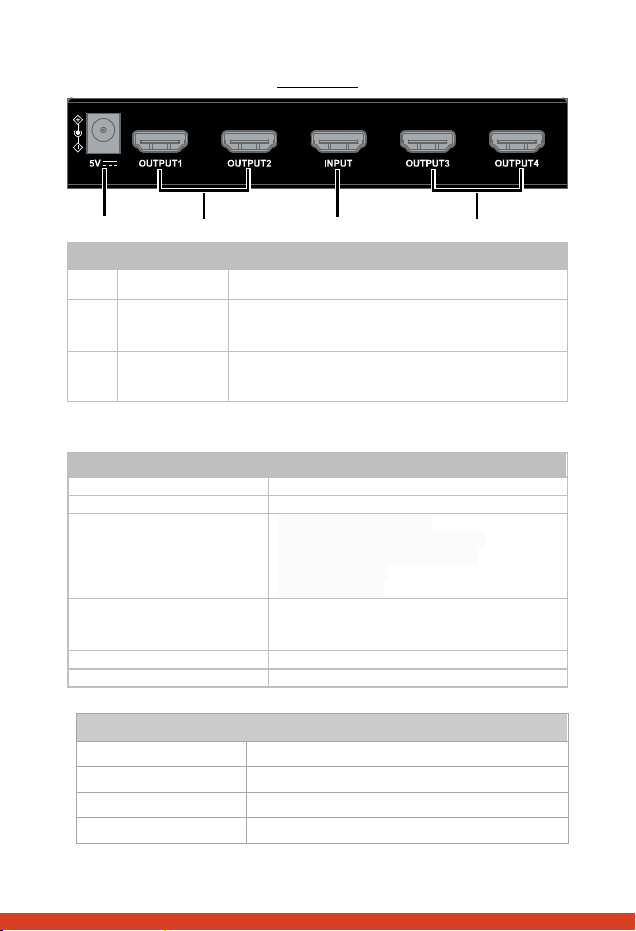

Rear Panel
ID.
Name
Description
1 DC 5V Connect the power supply provided.
2&4 OUTPUT
(1~4)
Connect to four HDMI displays using HDMI
cables.
3 HDMI IN Connect to an HDMI source using an HDMI
cable.
Specification
Technical
Input/Output Port
1 x HDMI IN, 4 x HDMI OUT
Input/Output Signal Type
HDMI 1.4a, 3D and DVI 1.0
Input/Output Resolution
Supported
3840 x 2160@30Hz (4K),
1920 x 1080@60/50/30/25/24Hz,
1280 x 720@60/50/30/25/24Hz,
720 x 576@50Hz,
720 x 480@60Hz
Audio Format
Fully supports audio formats in HDMI 2.0
specification, including PCM, Dolby TrueHD,
Dolby Atmos, DTS-HD Master Audio, DTS:X
Maximum Data Rate
10.2Gbps
Maximum Pixel Clock
340MHz
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection ±8kV (Air-gap discharge)/
13
24
