Aven 26100-258 User manual

Mighty Cam Pro
User Guide
Item# 26100-258
Tools for
Innovation
AVEN
®
Advancing
aventools.com
Aven Inc
99 Washington Street
Melrose, MA 02176
Phone [phone]
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

4. Use in HDMI Mode---------------------------------------- 13
4.1 Camera Installation------------------------------------- 13
4.2 Basic Use ------------------------------------------------- 14-
3. Use in PC Mode--------------------------------------------- 6-
3.1 Camera Installation-------------------------------------- 6-
3.3 Software Installation------------------------------------- 7-
3.4 Software Settings----------------------------------------- 9-
Contents
1. Product Series & Lists ------------------------------------ 2
2. Camera Interface Specification------------------------- 4-
5. Precautions------------------------------------------------- 17
6. Maintenance------------------------------------------------18
1. Product Series & Lists
1.1 USB Cameras
FL ooled CameraC
Overviews
1 x USB3.0 data cable
2 x
1 x Camera
1 x Software (U disk)
Screws
20MP Resolution
Cooling noise reduction
Real-time 3D noise reduction
Real-time sharpening
Real-time stitching
Real-time EDF
USB3.0
1 x Camera
1 x Power
1 x Power adapter
1 x Software (U disk)
1 x USB3.0 data cable
cable
(12V 8A)
5MP-20MP Resolution
Real-time stitching
Real-time EDF
USB3.0
Standard lists
1 x Software (U disk)
1 x USB2.0 data cable
1 x Camera
2MP-12MP Resolution
Graphics acceleration
Frame rate greatly improved
USB 2.0
GT Camera
3.2 System Configuration------------------------------------ 7
-2--1-

TrueChrome AF TrueChrome Metrics HD Lite
1.2 HDMI Cameras
Built-in Autofocus
Built-in measuring system
Built-in ISP
Real-time stitching
Real-time EDF
HDMI+USB2.0 interface
Built-in measuring system
Built-in ISP
Real-time stitching
Real-time EDF
HDMI+USB2.0 interface
Built-in ISP
HDMI+USB2.0 interface
Overviews
Standard lists
1 x Camera
1 x Software ( CD/U disk )
1 x SDcard
1 x Mouse
1 x Power adapter
1 x USB cable
1 x HDMI cable ( 2m )
( 12V 2A )
*1 x
*1 x
*1 x HDMI cable ( 0.5m )
*5 x Butterfly screw or 2xHand screw
*4x Black hexagon socket screw
Screen with bracket
HDMI adapter
Note: * items are only available when the camera is purchased with the screen.
2. Camera Interface Description
2.1 FL Cooled Camera
① USB3.0 ② 2pcs Indicator lights ③ Screw positioning hole
⑤ Power switch② USB3.0
③ Power interface
④ Indicator light① * External trigger interface
①
② ③ ④ ⑤
2.2 USB3.0 Camera
2.3 USB2.0 Camera
When the USB cable is connected, one indicator is always on; when the software is
running, another indicator flashes.
The body has only one USB2.0 interface, which can be
used directly after connecting to the computer.
1) After the camera is powered on, turn on the power on key, the indicator light is red;
2) After the software is turned on, the power indicator turns yellow.
3) * The color and monochrome cooled camera interface layout is slightly different, and
the color camera has no external trigger interface.
-4--3-
Mighty Cam Auto Focus

1) USB interface:
A the mouse to the USB port, the camera can then be controlled directly
by the mouse;
B connect the USB port to PC to make the camera work as a Driver-Free
camera. Use Mosaic software to control it.
2) HDMI interface Use the HDMI cable to connect HDMI camera to the screen.
Image data is transferred and displayed on the monitor according to the HDMI
protocol.
3) Power interface Please use the provided 12V/2A power supply. When power is
plugged in, the red light is on. When camera is switched on, blue light is on.
4) ON/OFF key Press the ON/OFF key until the blue light is on or off to turn on or
off the HDMI camera.
5) SD card To get faster and more stable data transfer, we recommend you to
use a Class10 SD card.
: Connect
: Or
:
:
:
:
⑤ Power supply*
* Note: Some cameras support USB power supply, no need to install additional power
supply, please refer to whether the power supply accessories are provided in the
accessory list.
3.1 Camera Installation
① Camera
③ USB Cable
② Microscope
④ PC
⑤ Indicator light
① USB ② HDMI ③ Power
⑥ SD card slot
④ ON/OFF
2.4 HDMI Cameras
①
⑥
⑤
③
④
②
2.5 Optical Interface Description
① Standard C-mount optical port
② Anti-dust seal
Please tear off before installation
③ Adjustable ring
In PC mode, connect the camera to the computer with a USB cable and use the software
to control the camera. It is suitable for all cameras that provide a USB interface. The
camera installation is as follows:
-6--5-
3. Use in PC Mode

3.2 System Configuration Recommendation:
OS Windows 7/8/10 ( )32&64bit
CPU Intel Core i5 or better
Memory
USB ports Support USB3.0,USB2.0
① Connect the camera to the PC. Insert the that comes with the
camera, copy the software "Mosaic 2.1. exe " to the computer. Double click on it
and follow the [Next] button to finish the installation. After [finish], a software
shortcut will be created on the desktop.
USB-Stick(or CD)
④The software version number, camera model and computer configuration
information can be obtained from the information in the info menu at the top right of
the software.
Note: If the camera is connected correctly, the camera device will automatically
recognize and enter the preview state when the software is turned on. If the “No
Camera” error appears, it could be the camera is not detected by the PC or the
driver is not installed properly. Please go to Device Manager to check the camera
driver installation status.
Windows 7/8/10 (32&64bit)
Intel Core i3 or better
4GB or more
Camera
USB3.0 Series USB2.0 Series

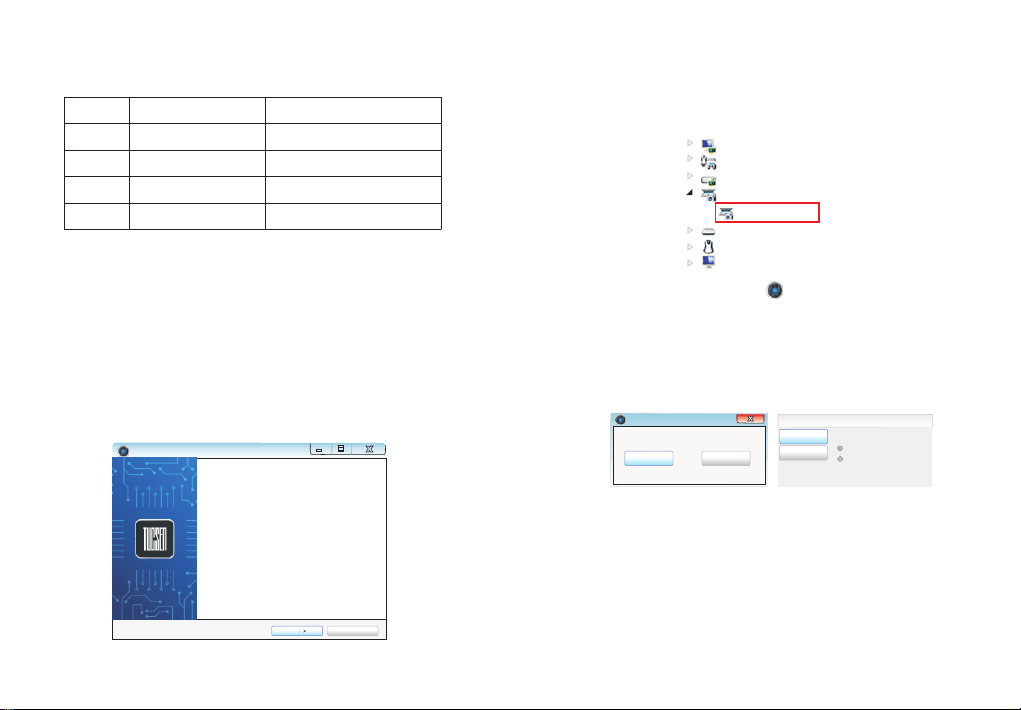

3.3 Software Installation
Setup-Mosaic 2.1
Welcome to the Mosaic 2.1 Setup
Wizard
This will install Mosai c 2.1 o n you r com put er.
It is reco mme nded that you close al l oth er ap plicat ions before
continuing.
Click Next to c unt inue, or Can cel to exit Setup.
Nex t Cancel
②Go to the Device Manager and check whether the driver is installed properly. If
there is NO YELLOW FLAG with the camera under Imaging Devices in Device
Manager, the driver is installed successfully. If there is YELLOW FLAG, you need to
reinstall the driver.
* Note: When running advanced functions such as "real-time stitching" or "real-
time EDF", the camera should be used in 64bit OS and the memory is
recommended to be 8GB or more.
..
..........
.......
..
..
..
..
..
..
..
Display adapters
Human Interface Devices
IDE ATA /ATAPI controllers
Imaging devices
MI chrome 5 Pro
Keyboards
Mice and other pointing devices
Monitors
√
Camera Model
-8--7-
4GB or more
Support USB3.0,USB2.0
③Double-click the Mosaic 2.1 shortcut to start the software. When installing
and starting up the software for the first time, the biological or industrial
application option box will pop out, select your application direction to enter the
software. The software will automatically optimize parameter settings based on
your choice. While using software, the application direction can also be switched
through [Information] - [Options] - [Microscope] on the right upper part of menu
bar.
Please select...
Biology Industry
Preferences
Language
Microscope
Please select...
Biology
Industry
X

① Click the resolution drop-down box to select the working resolution.
② Binning can improve the sensitivity of the image. The larger the value is, the
higher the sensitivity is.
③ Observe the preview screen, and select the automatic or manual exposure
setting according to the actual application requirements to obtain the desired
image intensity. Under industrial application, automatic exposure brightness can
be adjusted via manual adjustment of exposure target value based on picture
brightness; there's no exposure target value under the biological mode.
④ Display and view the live preview frame rate.
⑤ Depending on the application requirements, adjust the gain value to obtain the
required image signal enhancement effect.
Default
White Balance
Red：
Green：
Blue：
Lock WhiteBalance
CCT：
Gray
128.0
128.0
128.0
2000K
① ②
3.4 Software Settings
1).Basic Settings
2).Image Adjustment
① Under the biological mode, software defaults automatic white balance:
Conduct white balance calculation by moving samples under microscope to empty
space, and then select [Lock White Balance] to complete white balance calibration
operation;Under the industrial mode, by opening white balance options, regional
white balance box will pop out on the preview pictures. Under stable lighting
environment, move the regional white balance box to any white part of the pictures,
then adjust size, and check [Lock White Balance] to lock present white balance,
which will make white balance calibration more accurate.
② After selecting [Gray], the preview screen will turn into monochrome mode.
③ Huerefers to the shade of the color, saturation is thepurity of the color, light is the
brightness and darkness of the image, contrast is to adjust the difference of the
brightness of the image, andsharpnessis to adjust the sharpness of the image
edges.
④ When the preview shows a hazy effect, adjust [Permeability] to restore the clear
picture.
⑤
⑥When the light source is not uniform, or the preview image has dirty spots, use
the [Flat Field Calibration Wizard] option to correct the image default background
and obtain greater uniformity.
Note: GT series cameras do not support CCT, Hue, Light.
When the preview image has dead pixels and color points, adjust [DPC] the dead
pixel correction function to effectively remove the dead pixels to obtain a cleaner
image.
-10--9-
①
②
Default
Resolution
Exposure Time:
Auto Exposure
Gain:0
2448x2048Resolution:
Exposure Control
36.7fps
0 25 34 OK
s ms μs
③
⑤
Binning
1x1 2x2 3x3 4x4
Target: 128
④
Image Adjust
Hue：
Saturation：
Light：
Contrast：
180
64
64
33
Permeability：16
Flat Field Calibration Wizard
DPC：0
Real-time dynamic adjustment
Default
⑥
④
③
Sharpness：0
⑤

3).Image Stitching and EDF (Live)
①Run the live image stitching, move the stage X Y axis according to the selected
stitching speed, splice the image to obtain a high resolution image.
Run the live depth of field expansion, observe the preview picture, rotate the focus
knob of the microscope, and fuse different depths of field to finally obtain a clear
image effect. Different samples have different qualities of high, medium and low.
Note: GT series cameras do not support live stitching and depth of field integration.
②
High Speed
Start Stitching
Image Stitching(Live)
Stitching：
Background Color：
Quality：
High
Start EDF
EDF(Live)
②
①
⑦ To select R, G, B channel can check grey maps in different channels and also
can adjust channel color order individually.
⑧ [Auto Min]&[Auto Max] automatically obtains the pixel values o󰾬󰾬 f the darkest and
brightest intervals with even distribution. (Single channel does not support).
⑨ Appropriately adjust the gamma value, change the brightness value of the gray
tone of the image, and increase the layering of a monochrome image.
RGB
R
G
B
Auto Mi n Auto Max
0255
Gamma：2.10
Line Default
Hitogram
⑦
⑧
⑨
-11-
4).Image Acquisition
① Select [Use Dialog]: the software will pop up the Dialog to set the picture save
path, picture name and format when taking pictures.
② Select [Use File Name]: A file will be saved with the name "TS" as default, but the
name can be customized. "Customized name + time stamp" is supported. A name
can contain up to 64 bytes ; File format: Support JPG \TIF \PNG \DICOM, default to
TIF, and can be checked simultaneously, but at least one of them must be chosen.
Under default status, the image file shall be saved to a file folder specified in defined [
Path ]; user can modify the saving path through [Browse].
③ The video provides two encoding modes: [Compression] and [Full frame (No
compression). [Full frame (No compression)] is chosen as default.
④ Select [Auto Stop], the recording mode is available in [Total Frame] and [Total
Time]. [Total Frame] is chosen as default. Unselect [Auto Stop] ,user can manually
click to stop the current video recording.
⑤ Selecting [Delay Time], you can set a period of time after which video recording
will start.
⑥ [Hard Disk] In the process of capturing images, the function will automatically
write the data into disk. Which is suitable for long-term shooting .[RAM] Save the
data into computer memory; after image capturing, write the data into a disc file.
Limited by the size of memory space, this mode is not suitable for a long time
capturing images .
-12-
Video Record
Flie Save
File Name：
Format：
Path：
Total Frame：
Total Time(s)：
Save to：
Hard Disk
RAM
Video Record
Use Dialog
Use File Name
Auto Stop
①
②
③
④
⑤
⑥
Delay Time:
DICO MPNG
yyyymmddHHMMSS
C:/Users/tuc/Desttop/Image Browse
Default
+
JPG TIF
TS
√
Encoder：Full frame(No compression)
10
10
0min

4. Use in HDMI Mode
4.1 Camera Installation
4.2 Basic Use
1. After the connection is completed, press ON/OFF key until the blue light is on and
the moving cursor appears on the screen.
3. When the cursor is moved to the right of the screen, the shortcut button appears.
2. When the cursor is moved to the left of the screen, “Capture” and “Setting” icons
will appear. Click “Setting” to get the parameter setting menu.
Calibration
Horizontal flip
Vertical flip
Zoom in
Mask
Album
Compare
Back
Zoom out
Cross line
Cross line with scale
① Retina screen ③ Microscope
⑤HDMI cable ⑥ Y power splitter cable ⑦12V2A Power adapter
②HDMI camera ④ Mouse
-14--13-
Note: Different models of cameras have different functions. Please refer to the
camera's actual function interface.
⑦
④
③
①
⑥
⑤
②
Capture
Setting

4. Right-click to enter the calibration and measurement module.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
-16--15-
1 Scale Bar On/off the scale bar on the picture.
2 Coordinate Get the coordinates of the selected points.
3 Line Arbitrary, horizontal and vertical line measurement.
4 Freehand Line Get a freehand line length.
Measure rectangle perimeter and area.
Selectable to have the data of height, width, perimeter or area.
1) Center Point: Use center point and point on the circle
2) Two Point: Draw a circle according to the diameter;
3) Three Point: Use 3 points on the circle to draw a circle.
Selectable to have the data of radius, perimeter or area.
Measure polygon perimeter and area.
Selectable to have the data of perimeter or area.
8 Perpendicular Measure the perpendicular length.
9
Concentric circles Get the diameters of the two concentric circles.
10 Bicircle Get the distance between two circles’ center points.
11 Angle Measure the angle.
1) Set the measurement line width, color and font color.
2) Magnifier On/off: Switch on/off the magnifier.
(When the magnifier is switched on, the cursor located area
will be zoomed in and placed at the corner to help accurately
Select to export the measurement results to an excel or text file.
The exported results will be saved in the SD card \ MEASURE folder .
14 Set Scale It allows to create 10 groups calibration files in calibration table,
and the .user can select 10 groups files to do measurement
15 Exit Exit the measurement.
12 Setting
13 Save Results
5 Rectangle
6 Circle
7 Polygon
to draw a circle;
locate the measurement point.)

-18-
1. Avoid removing the lens cap in a dusty environment.
2. When removing the lens cap or mounting a lens, hold the camera face down to
prevent dust from falling on the sensor surface.
3. When the camera is not being used, the lens cap should be replaced.
4. Use a professional dust removal tool to remove any dust on the camera optical
filter.
① If dust gets on the filter, it should be removed using low pressure air.
② For stubborn oily dust, the surface can be gently wiped using a lint-free cotton
swab dipped in ethanol.
5. If it still cannot be cleaned, contact the after-sales personnel for assistance. The
use of non-professional equipment for cleaning is prone to lead to scratches on
the filter surface.
6. Use only the original power adapter. Ensure the adapter and associated cables
are free from items that may cause damage. If the power adapter is damaged,
please contact the supplier for an immediate replacement.
-17-
6. Maintenance
5. Precautions
CAUTION
Do not disassemble
Do not contact water
Do not subject the
camera to physical shock
Immediate repair request
Do not disassemble, repair or modify on your own.
Otherwise it will cause damage to the camera chip
or devices on the circuit board.
Avoid allowing the camera to get wet, since this
may cause the failures such as circuit board device
corrosion, burnout and so on.
Avoid physical impacts such as dropping or banging.
Unplug the data cable, then request TUCSEN to
have the authorized dealer or s
ales for repair.
Note: Man-made damage including self-disassembly, water ingress, physical shock
and so on is not within the scope of warranty.
！
AVEN
99 Washington Street
Melrose, MA 02176
Phone [phone]
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
