AVer E5016 User manual

E5000 series
E5016/E5016H
User Manual
V 2.3.1.3

FCC NOTICE (Class A)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Federal Communications Commission Statement
NOTE- This equipment has been tested and found to comply with the limits for a Class Adigital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by tuning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Class A ITE
Class A ITE is a category of all other ITE which satisfies the class AITE limits but not the class
B ITE limits. Such equipment should not be restricted in its sale but the following warning shall
be included in the instructions for use:
Warning -This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
European Community Compliance Statement (Class A)
This product is herewith confirmed to comply with the requirements set out in the
Council Directives on the Approximation of the laws of the Member States relating
to Electromagnetic Compatibility Directive 2004/108/EC.
Warning - This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures to correct this
interference.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to the
contents of this documentation, its quality, performance, merchantability, or fitness for a
particular purpose. Information presented in this documentation has been carefully checked for
reliability; however, no responsibility is assumed for inaccuracies. The information contained in
this documentation is subject to change without notice.
In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use this product or documentation,
even if advised of the possibility of such damages.
TRADEMARKS
“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for
description purpose only belong to each of their companies.

COPYRIGHT
©2015 AVer Information Inc. All rights reserved.
All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form
or by any means without the prior written permission of AVer Information Inc. is prohibited. All
information or specifications are subject to change without prior notice.
The mark of Crossed-out wheeled bin indicates that this product must not be
disposed of with your other household waste. Instead, you need to dispose of
the waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. For more information
about where to drop off your waste equipment for recycling, please contact
your household waste disposal service or the shop where you purchased the
product.
Battery Safety Information
-Store the batteries in a cool dry place.
-Do not dispose of used batteries in domestic waste. Dispose of batteries at special
collection points or return to point of sale if applies.
-Remove the batteries during long periods of non-use. Always remove exhausted
batteries from the remote control. Battery leakage and corrosion can damage this
remote control, dispose of batteries safely.
-Do not mix old and new batteries.
-Do not mix different types of batteries: alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium).
-Do not dispose of batteries in a fire. The batteries may explode or leak.
-Never short circuit the battery terminals.

Contents
CHAPTER 1 HARDWARE INTRODUCTION................................................................1

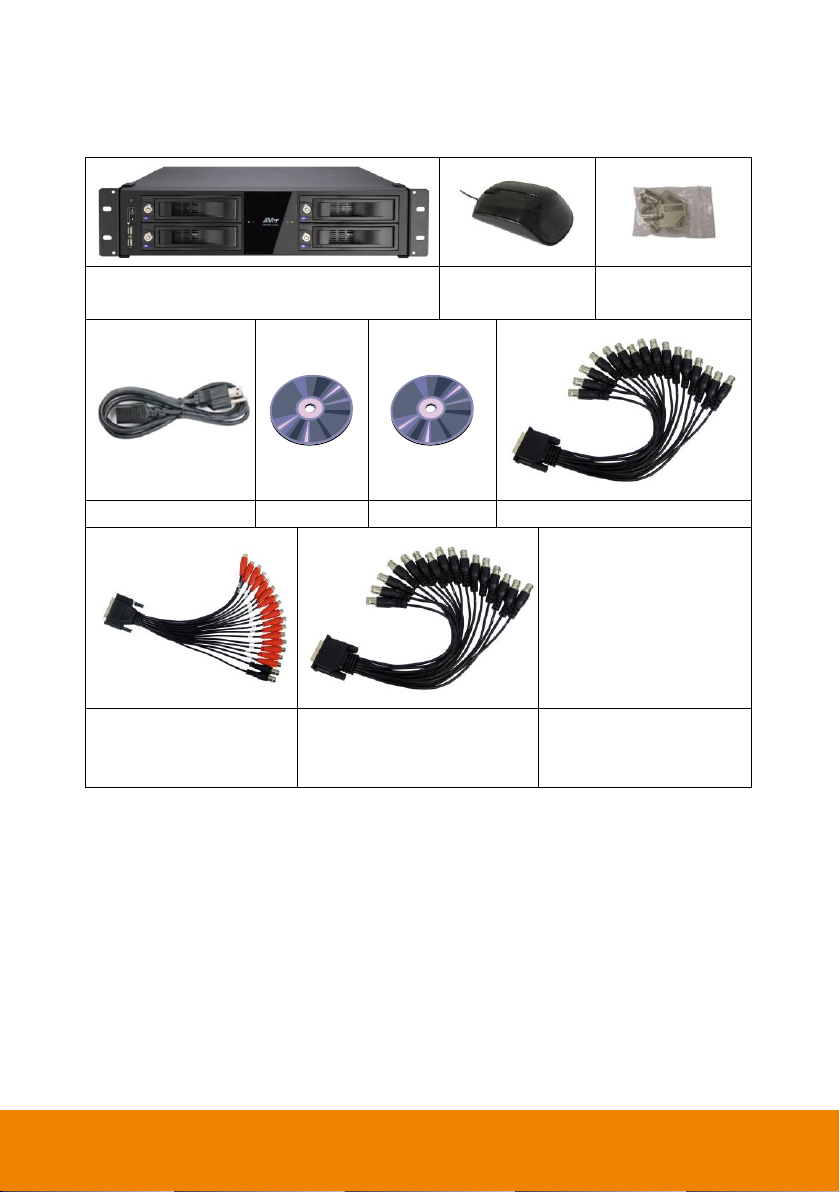

1.1 Package Contents.................................................................................................1
1.1.1 E5016..........................................................................................................1
1.1.2 E5016H.......................................................................................................2
1.2 Front Panel...........................................................................................................3

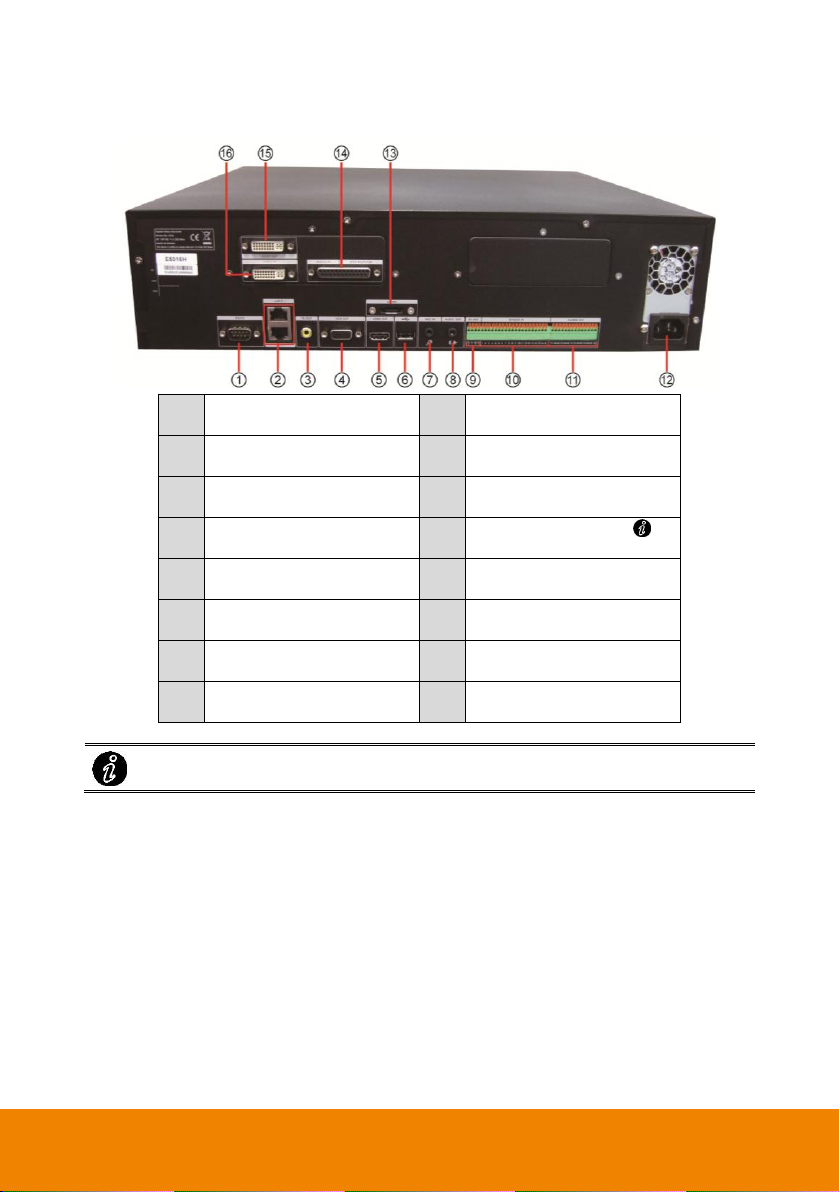

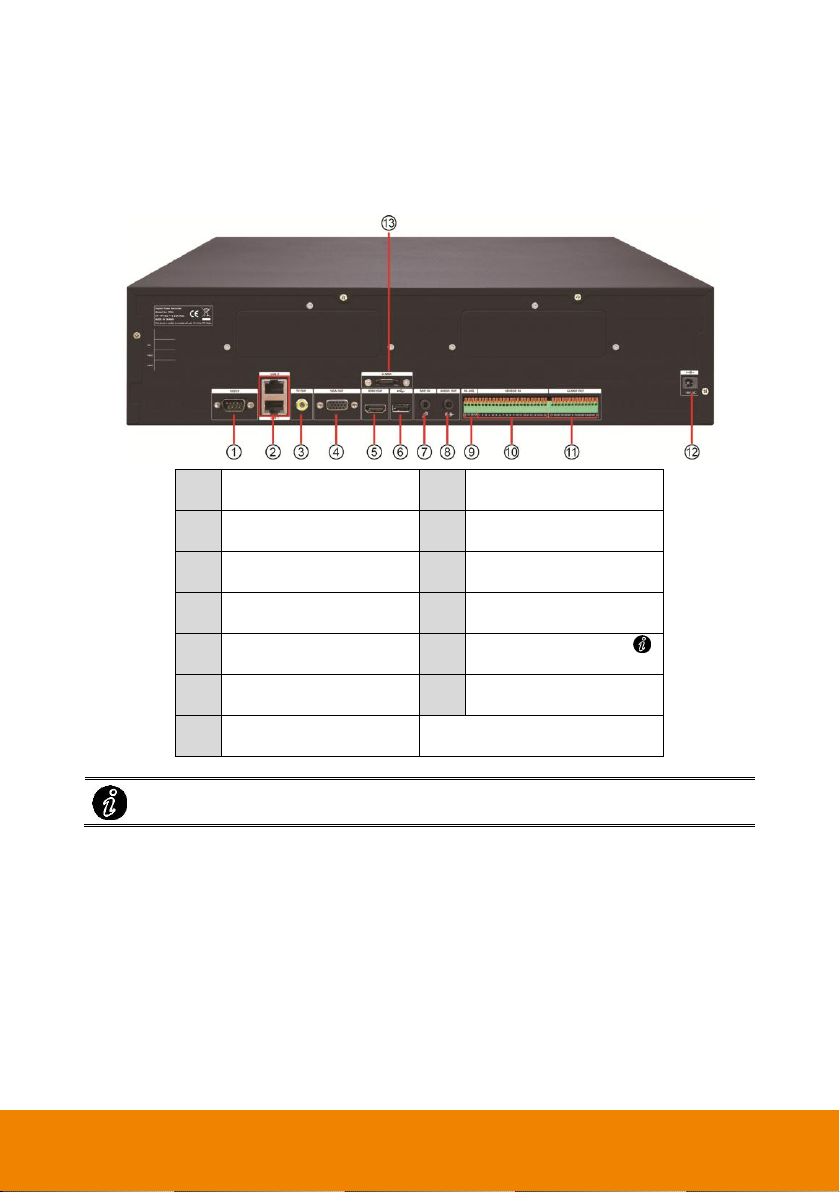

1.3 Back Panel ...........................................................................................................4
1.3.1 E5016..........................................................................................................4
1.3.2 E5016H.......................................................................................................5
1.4 Hard Disk Installation............................................................................................6

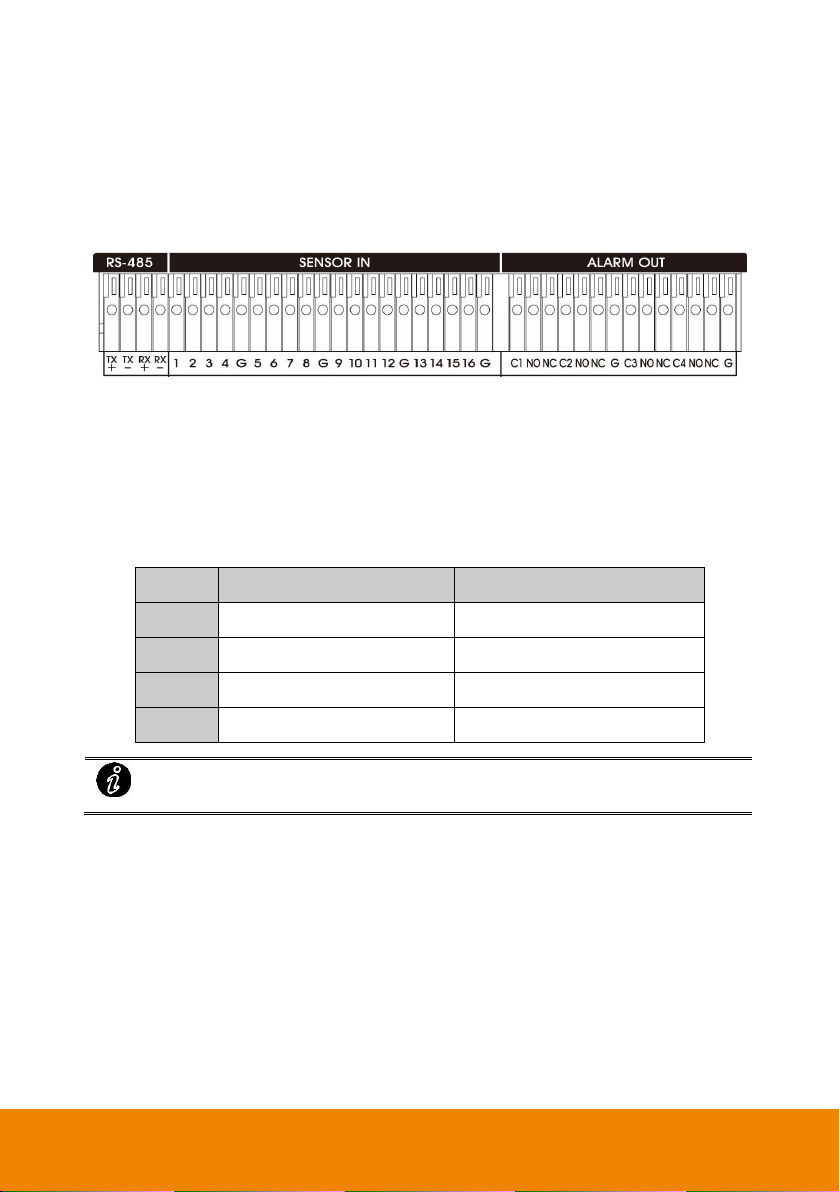

1.5 Pin Definition of Sensor/Relay/RS485 Port ...........................................................7
CHAPTER 2 MAIN SYSTEM CONFIGURATION..........................................................9

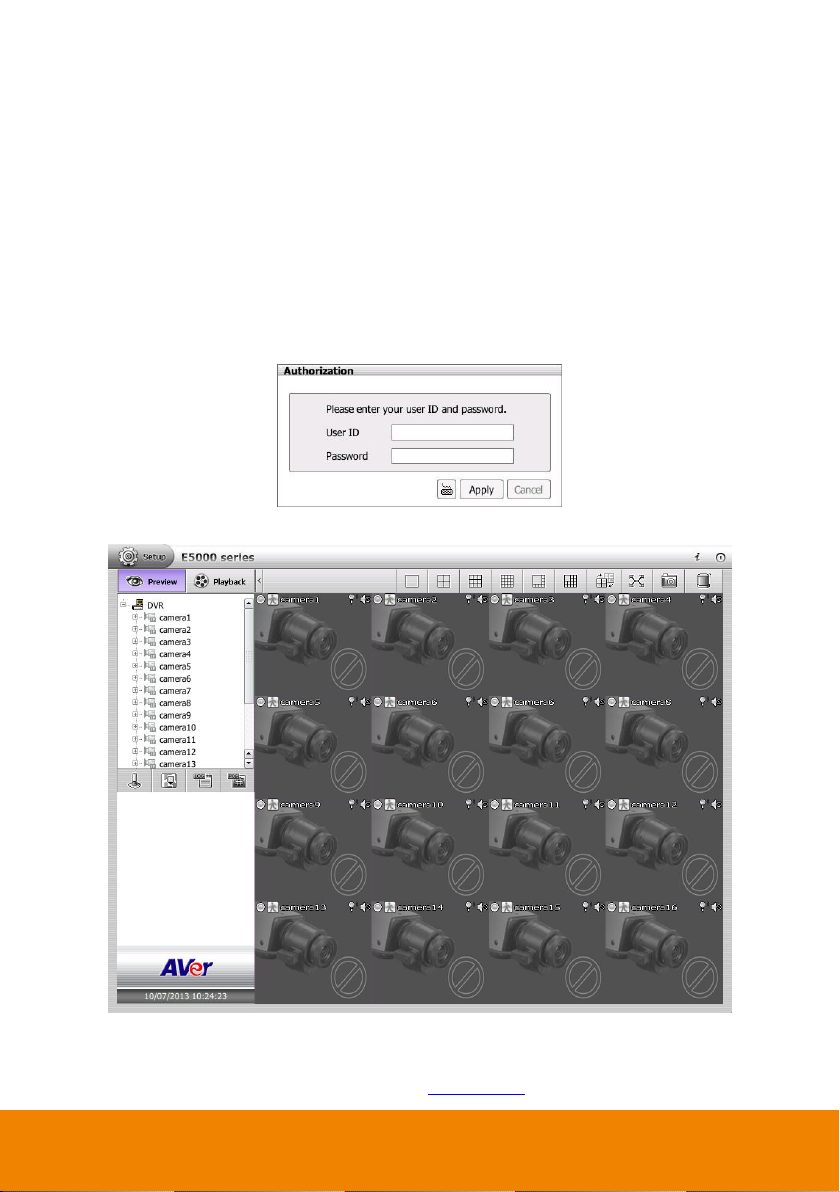

2.1 Getting Started......................................................................................................9
2.1.1 Familiarizing Icons on Dialog Box..............................................................10

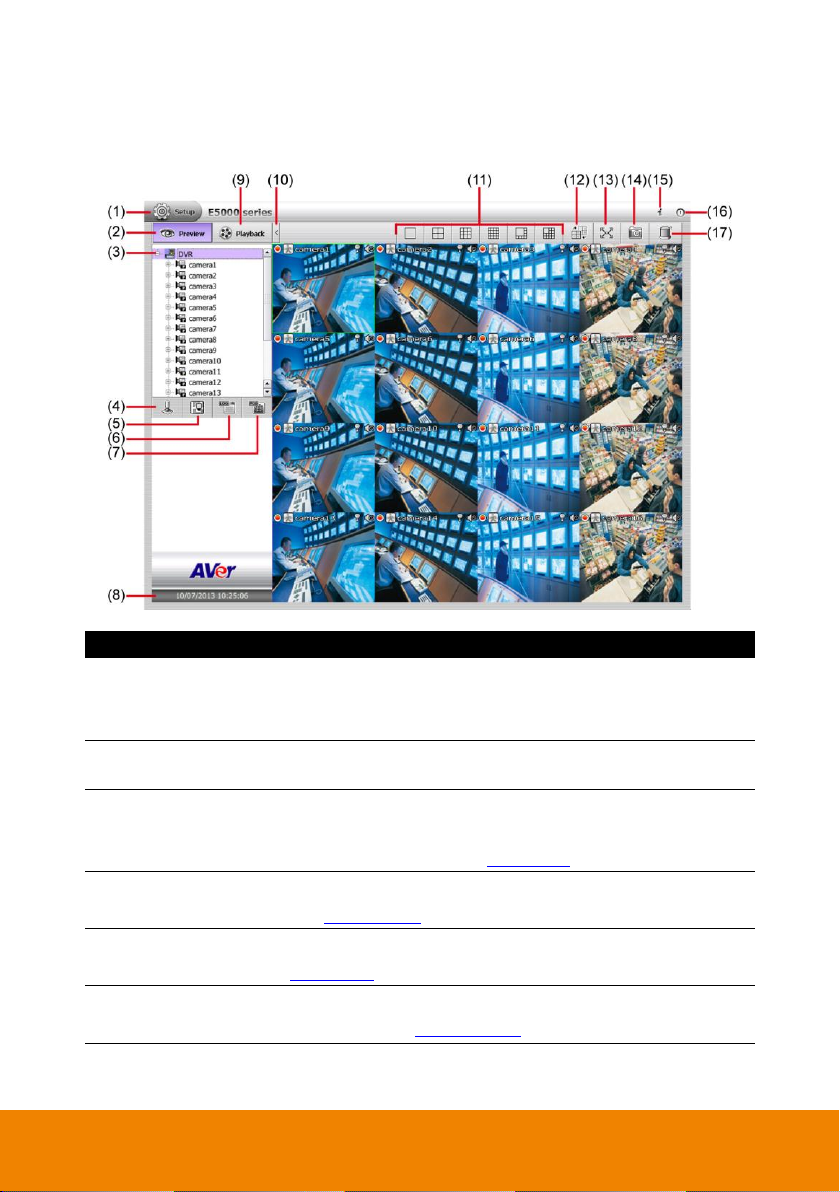

2.2 Familiarizing Functions in Preview Mode ............................................................11
2.3 Familiarizing Functions in Playback Mode...........................................................14
2.4 Compact Mode ...................................................................................................19
2.4.1 Familiarizing Function in Preview Compact Mode......................................20
2.4.2 Familiarizing Function in Playback Compact Mode....................................22
2.5 System Setup.....................................................................................................26
2.5.1 General System Setting.............................................................................27
2.5.2 System Advanced Setting..........................................................................28
2.5.2.1 Daylight Saving Time Setting............................................................29

2.5.2.2 Customizing System Login Setting...................................................30
2.5.3.3 Customizing System Miscellaneous Setting .....................................31
2.5.4 Update/Export/Import ................................................................................32
2.5.4.1 Importing NVR/DVR System Configuration.......................................33
2.5.4.2 Exporting NVR/DVR System Configuration ......................................35
2.5.4.3 Upgrading NVR/DVR Firmware........................................................37
2.5.4.4 Upgrading IP Camera Module Patch................................................39
2.5.4.5 Upgrading Video Server Firmware....................................................40
2.5.5 Setup Dual Monitor....................................................................................41
2.5.6 Reset to Factory Default............................................................................43
2.6 Network Setting ..................................................................................................44
2.6.1 Setup NVR/DVR Server Name..................................................................46
2.6.2 Network Advanced Setting.........................................................................47
2.6.2.1 Setup Transmitting Camera..............................................................48
2.6.2.2 Setup UPnP.....................................................................................48
2.6.2.3 Setup Bandwidth Limit......................................................................48
2.6.2.4 Setup Network Port..........................................................................49
2.7 Storage Setting...................................................................................................50
2.7.1 Formatting Hard Disk.................................................................................51
2.7.2 Creating RAID Drive..................................................................................52
2.7.3 Setup Storage Path for Recording Data.....................................................56
2.7.4 Setup Hard Disk and Event Log Recycle Time...........................................58
2.7.5 iSCSI Setting.............................................................................................59
2.8 Camera Management.........................................................................................61

2.8.1 Connect the Analog Camera......................................................................62
2.8.2 Connect the IP Camera.............................................................................63
2.8.2.1 Use Active IP Function .....................................................................66
2.8.3 Camera Detail Configuration......................................................................68
Info...................................................................................................68
Basic................................................................................................69
Preference .......................................................................................70
Exposure..........................................................................................72
Stream .............................................................................................73
ROI ..................................................................................................74
Smart Stream...................................................................................75
Privacy Mask....................................................................................76
Motion Detection..............................................................................77
IVA...................................................................................................78
Cross Detection...........................................................................79
Tampering ...................................................................................80
Missing Object.............................................................................81
Suspicious Object........................................................................82
Sensor .............................................................................................83
Relay................................................................................................84
MFZ .................................................................................................85
PTZ Function ...................................................................................87
Setup IP PTZ...............................................................................87
Setup Analog PTZ .......................................................................88
2.8.4 Familiarizing Functions on PTZ Control Panel...........................................90

2.9 Record Management ..........................................................................................92
2.10 Schedule Setting.................................................................................................95
2.10.1 Setup Alarm Schedule...............................................................................95
2.11 Backup Setting....................................................................................................97
2.12 Alarm Setting......................................................................................................99
2.12.1 Setup Alarm Condition...............................................................................99
2.12.2 Setting Alarm Action ................................................................................105
2.13 User Account Setting ........................................................................................113
2.13.1 Creating an UserAccount........................................................................113
2.12.1 Deleting an User Account ........................................................................116
2.14 I/O Setting.........................................................................................................117
2.14.1 Sensor Setting.........................................................................................117
2.14.2 Relay Setting...........................................................................................119
2.15 Emap Setting....................................................................................................120
2.15.1 Setting Emap...........................................................................................120
2.16 iPOS Setting.....................................................................................................123
2.17 Log Viewer........................................................................................................126
2.17.1 Using the Event Log Viewer.....................................................................126
2.17.2 Using the Alarm Log Viewer.....................................................................129
Viewing Alarm Event......................................................................................129
Searching Alarm Event Logs..........................................................................131
2.17.3 Using POS Log Viewer............................................................................133
2.18 NVR/DVR System Tools....................................................................................135
2.18.1 Hard Disk Calculator................................................................................135

2.18.2 Using On Screen Keyboard.....................................................................136
CHAPTER 3 MONITORING THE NVR/DVR.............................................................137
3.1 Managing Camera Channels ............................................................................138
3.2 Meaning of Icons and Figures...........................................................................139
3.3 Enable/Disable the Camera Channel................................................................140
3.4 Changing Screen Channel Display Mode..........................................................141
3.5 Enable/Disable the Sound of the Channel.........................................................142
3.6 Switching Multiple Screen to Single Screen Display..........................................143
3.7 Viewing Emap...................................................................................................144
3.8 Snapshot the Screen ........................................................................................145
3.9 Full Screen Display...........................................................................................146
3.10 Hiding Camera List ...........................................................................................147
3.11 Auto Display Channel in Cycle..........................................................................148
3.12 Enable/Disable 2-WayAudio Function ..............................................................149
3.13 Viewing Sensor Status......................................................................................150
3.14 Changing Relay Status .....................................................................................151
CHAPTER 4 PLAYBACK RECORDED VIDEO ON NVR/DVR SYSTEM..................152
4.1 Playback on NVR/DVR System.........................................................................152
4.2 Playback the Specific Date/Time Period............................................................153
4.3 Using Event Search to Playback the Event.......................................................154
4.4 Using Visual Search to Playback the Specific Time...........................................156
4.5 To Bookmark a Section of the Video for Playback.............................................158
4.6 Playback Mode Management............................................................................160
4.6.1 Managing Channel Display Position ........................................................160

4.6.2 Enable/Disable Sound of the Channel .....................................................161
4.6.3 Switching Multiple Screen Display to Single Screen Display....................162
4.6.4 Full Screen Display..................................................................................163
4.6.5 Hiding Camera List..................................................................................164
4.6.6 Output a Video Clip to a USB Pen Drive..................................................165
4.6.7 Snapshot the Screen View.......................................................................167
CHAPTER 5 PLAYBACK BY QPLAYER..................................................................168
5.1 Familiarizing Functions of Qplayer....................................................................169
5.1.1 To Bookmark a Section of the Video for Playback....................................169
CHAPTER 6 USING THE PCVIEWER .....................................................................175
6.1 Familiarizing Functions of PCViewer.................................................................176
APPENDIX RECOVERING NVR/DVR SYSTEM THROUGH THE USB PORT.......179
WARRANTY NOTICE .........................................................................................................181

1
Chapter 1 Hardware Introduction
1.1 Package Contents
1.1.1 E5016
E5016 NVR unit
(Rack ear is not included)
USB optical mouse
Accessories kit for
HDD bay
Power adaptor
Power cable
Software CD
Manual CD

2
1.1.2 E5016H
E5016H DVR unit
(Rack ear is not included)
USB optical
mouse
Accessories kit for
HDD bay
Power cable
Software CD
Manual CD
Video In cable
Audio In cable
(2 Spot monitor cables are
not supported)
Loop Out cable
(optional)

3
1.2 Front Panel
○
1
Power button
○
6
System power indicator
○
2
USB port
○
7
Recording status indicator
○
3
USB port(mouse)
○
8
HDD bay
○
4
HDD bay
○
9
HDD bay
○
5
HDD bay

4
1.3 Back Panel
1.3.1 E5016
○
1
RS232 port
○
8
Audio output port
○
2
LAN1/LAN2 port
○
9
RS485 port
○
3
TV output port
○
10
Sensor input port
○
4
VGA output port
○
11
Alarm(relay)output port
○
5
HDMI port
○
12
Power connector port
○
6
USB port
○
13
e-SATA port
○
7
MIC input port
The power consumption is 120W.

5
1.3.2 E5016H
○
1
RS232 port
○
9
RS485 port
○
2
LAN1/LAN2 port
○
10
Sensor input port
○
3
TV output port
○
11
Alarm(relay)output port
○
4
VGA output port
○
12
Power connector port
○
5
HDMI port
○
13
e-SATA port
○
6
USB port
○
14
Audio In port
○
7
MIC input port
○
15
Loop out port
○
8
Audio output port
○
16
Video In port
The power consumption is 250W.

6
1.4 Hard Disk Installation
The DVR unit can support up to 4 SATA hard disks. Follow the illustrated instructions below to
install the hard disk:
1. Open the door of HDD bay.
2. Slide the hard disk into the HDD bay and
push the hard disk inside the HDD bay
completely.
3. Push to close the door of HDD bay and
lock the HDD drawer by using the key
that is included in accessories kit.
4. User may now connect all the cables
and power on the DVR unit.

7
1.5 Pin Definition of Sensor/Relay/RS485 Port
The I/O card enables you to connect 16 sensor inputs and 4 relay outputs. Just connect the
external sensor and relay pin directly to the I/O card pinhole. Check the table below and locate
which pinhole is assigned to sensor input and relay output.
The signal from the sensor (i.e., infrared sensors, smoke detectors, proximity sensors, door
sensors, etc.) is being transmitted to the I/O card and this triggers the system to respond and
send signal to relay device (i.e., alarm, telephone etc).
RS485 Pin definition
When connect PTZ camera through RS485 interface, please refer to the following pin definition
to connect the DVR and PTZ.
Pin
NVR/DVR site
PTZ site
TX+
RS485 TX+ signal
RS485 RX+ signal
TX-
RS485 TX- signal
RS485 RX- signal
RX+
RS485 RX+ signal
RS485 TX+ signal
RX-
RS485 RX- signal
RS485 TX- signal
If user uses the 2 wires for the PTZ camera connection, please connect to the
RS-485 TX+ and TX- of the DVR site.

8
Sensor Pin definition
Pin
Definition
Pin
Definition
1
Sensor Signal 1
9
Sensor Signal 9
2
Sensor Signal 2
10
Sensor Signal 10
3
Sensor Signal 3
11
Sensor Signal 11
4
Sensor Signal 4
12
Sensor Signal 12
G
Sensor Ground Signal
G
Sensor Ground Signal
5
Sensor Signal 5
13
Sensor Signal 13
6
Sensor Signal 6
14
Sensor Signal 14
7
Sensor Signal 7
15
Sensor Signal 15
8
Sensor Signal 8
16
Sensor Signal 16
G
Sensor Ground Signal
G
Sensor Ground Signal
Alarm Pin definition
Pin
Definition
Pin
Definition
C1
Relay Common 1
C3
Relay Common 3
NO
Relay Normal Open
NO
Relay Normal Open
NC
Relay Normal Close
NC
Relay Normal Close
C2
Relay Common 2
C4
Relay Common 4
NO
Relay Normal Open
NO
Relay Normal Open
NC
Relay Normal Close
NC
Relay Normal Close
G
Relay Ground Signal
G
Relay Ground Signal

9
Chapter 2 Main System Configuration
2.1 Getting Started
1. Connect the power cable and mouse to NVR/DVR unit.
2. Power on the NVR/DVR unit and wait for system start up processing to complete.
3. For security purpose, the NVR/DVR system would require user to enter User ID and
Password before it can be accessed. (If this is the first time, enter the default ID [admin]
and password [admin]).
4. After login successful, the preview UI is displayed.
5. Next, setup the following settings in order to start monitoring.
Setup System Date and Time: Setup the date and time in order to have corrected
recording time and date. Please refer to Chapter 2.5.1.

10
Format Hard Disk: The hard disk must be formatted before use it to save recording
data (see also Chapter 2.7.1).
Before formatting hard disk, please make sure no operations is running on NVR/DVR
system.
Setup Storage Path: Select the hard disk to be a storage path for saving recorded
video. Please refer to Chapter 2.7.2.
Network Setup: Setting up the NVR/DVR system’s IP address that is same IP
segment as your network. Please refer to Chapter 2.6.
Connect IP camera: Please refer to Chapter 2.8.
Setup Recording Schedule: Setting up the record schedule to start recording. Please
refer to Chapter 2.9.
6. For more detail configuration of NVR/DVR system, refer to the chapters in followings.
2.1.1 Familiarizing Icons on Dialog Box
There are some icons are shown on dialog box through the NVR/DVR system and they are
explaining in followings.
Expanding the dialog box on the screen.
Closing the dialog box.

11
2.2 Familiarizing Functions in Preview Mode
Name
Function
(1) Setup
Click Setup button to configure settings for cameras, recording,
network, scheduler, backup, sensors, relays, alarms and user
authentication.
(2) Preview
Switch to Preview mode. This allows you to view live camera
display.
(3) Camera list
Lists all cameras of NVR/DVR. Click +to expand the list. User
can select and drag the camera to video display area to arrange
the monitor layout(see also Chapter 3.1)
(4) PTZ
To call out a PTZ control panel and appoint PTZ camera (see
also Chapter 2.8.4).
(5) EMap
To view the cameras, sensors, and relays on Emap (see also
Chapter 3.7).
(6) Event Log Viewer
Search and display the record of activities that take place in the
system (see also Chapter 2.17.1).
