Avermedia AVerCaster Pro Series User manual

English-1
Introduction
AVerCaster Pro series products are audio/video encoder/transcoder servers especially
designed and developed by AVerMedia Technologies, Inc. to welcome the unstoppable
trend in Internet/digital TV and broadcasting applications. AVerCaster Pro series products
provide comprehensive all-in-one servers to demands in audio/video encoder/transcoder and
streaming services. AVerCaster Pro series products support not only real-time video
streaming but also multi-displa y output, bitrate and resolution configurations, and other
encoding profiles, letting administrators to complete configurations from input signals to
streaming tasks quickly and transmitted high quality videos to various receiving terminals such
as TV sets, desktop PCs or mobile devices. Administrators can easily integrate AVerCaster
Pro series products into currently running IPTV/OTT equipments and working processes.
AVerCaster Pro supports various and multiple input sources, multiple encoding/transcoding
formats, and multiple streaming tasks of single input source too. Administrators are free to
combine or create freely based on different needs easily. Moreover, AVerCaster Pro complies
with 3GPP rules and regulations, expanding its services to a wide range of mobile device
users in its service area. Reliable, high compatibility and expandability, AVerCaster Pro solves
the problems and fits into current environment infrastructures.

English-2
Parts and Names:
Front View –RS7130 / RS7165 / RS7170 / RS7185 / RS7190
No.
Description
No.
Description
1
Unit Identifier Button (UID)
6
Power LED
2
Universal Information LED
7
Reset Button
3
LAN 1 LED
8
Power Button
4
LAN 2 LED
9
Hard Drive Signal
5
Device Activity LED
10
Hard Drive Failure
Universal Information LED Indications
Indication
Status
Fast Blinking Red (1x / 1 sec)
Fan Failure
Solid Red
CPU Overheat
Slow Blinking Red (1x / 4 sec)
Power Failure
Solid Blue
Local UID Button Depressed
Blinking Blue
IPMI-Activated UID

English-3

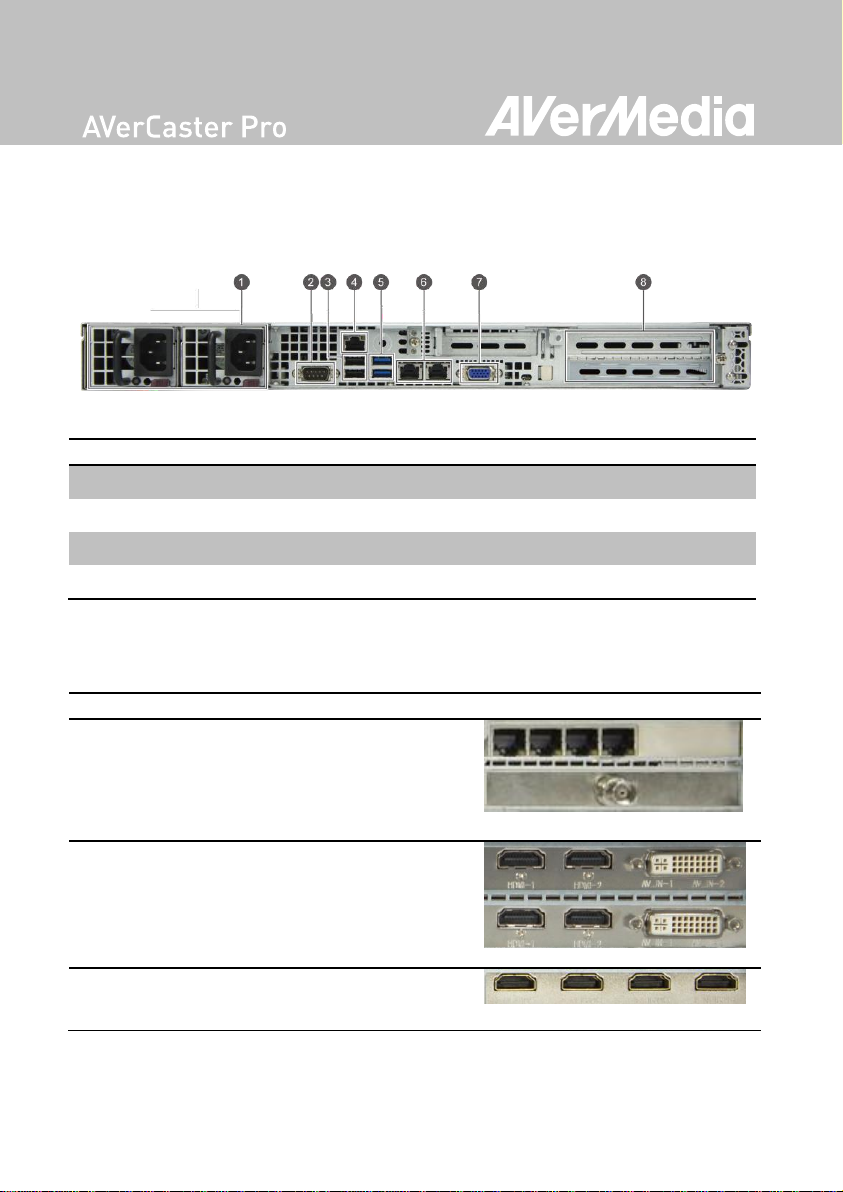

Back View –RS7130 / 7165 / RS7170 / RS7185 / RS7190
No.
Part Name
No.
Part Name
1
Redundant Power Supply
5
USB 3.0 x 2
2
COM 1 Port (for RS232 Controller)
6
LAN 1 & LAN 2 Ports
3
USB 2.0 x 2
7
VGA Port
4
IPMI
8
PCI-E Expansion Slots*
*Interface varies depending on different RS models.
Input Interface for Each RS Model
Model No.
Input Interface
RS7130
HD-SDI/SD-SDI/IP/TS/File
RS7165
4 Ch HDMI/Component/Composite/S-Video
RS7170
4 Ch HDMI

English-4
RS7185
4 Ch HD-SDI/SD-SDI or 2 Ch 3G-SDI
RS7190
4 Ch 3G-SDI/HD-SDI/SD-SDI

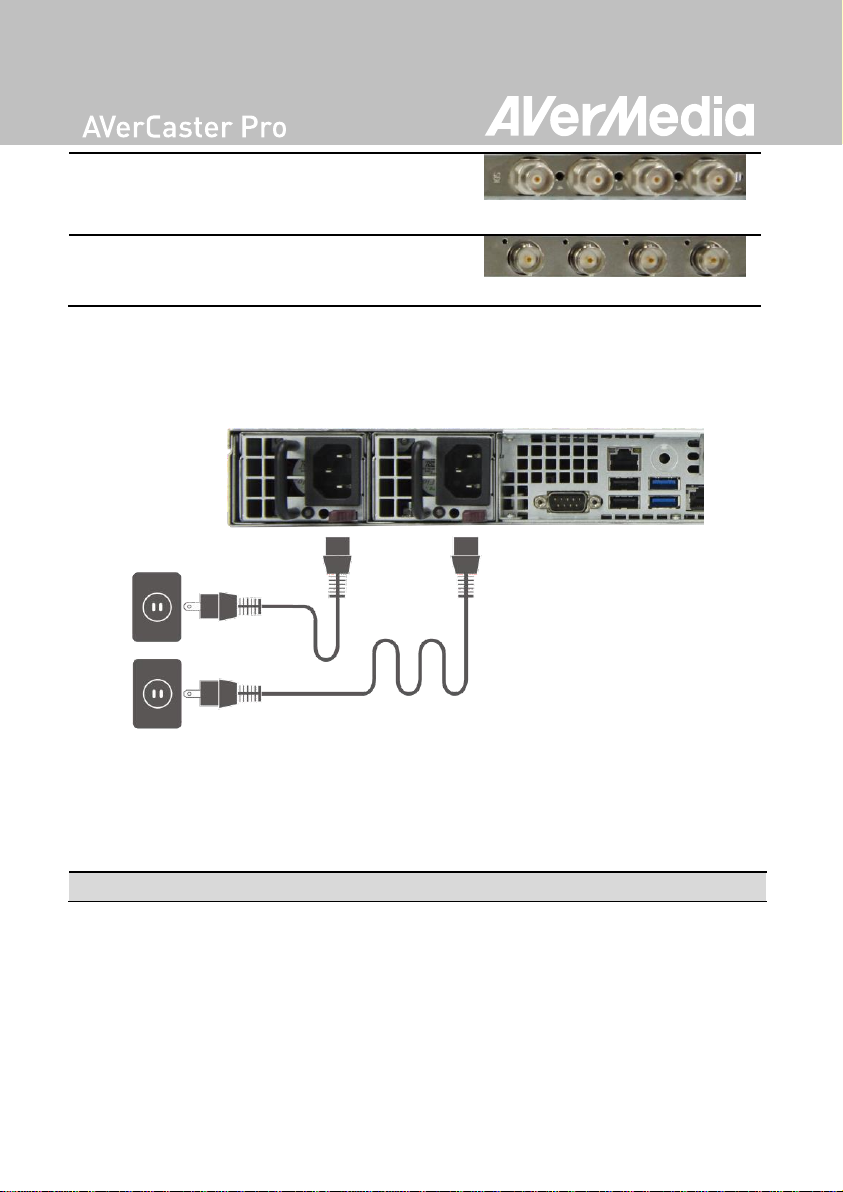

Power Supply Connection
Input Source Connections –RS7165
HDMI / Component / S-Video / Composite

English-5
Input Source Connections –RS7170
HDMI
Input Source Connections –RS7185 / RS7190

English-6
HD-SDI / SD-SDI or 3G-SDI

English-7

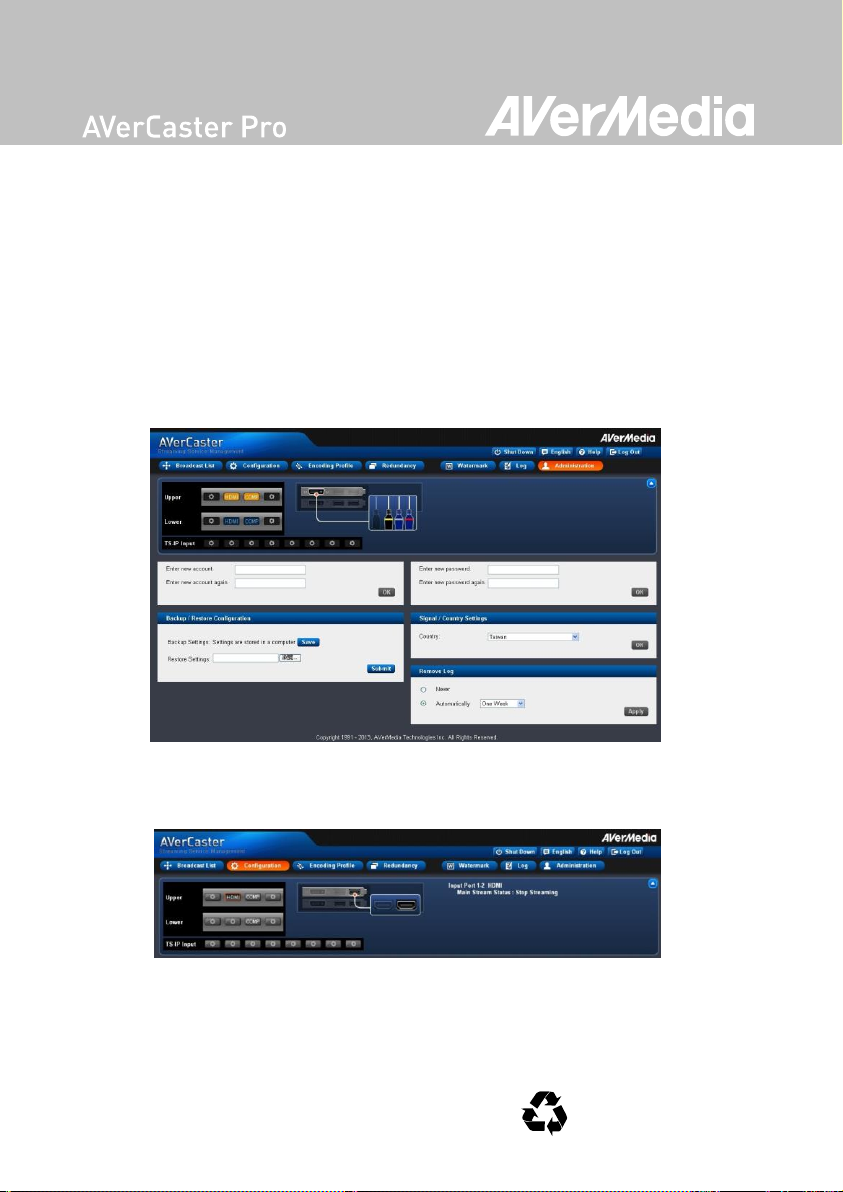

Standard Operation Procedure for First Time Users
1. Log in to Windows with default account and password (admin/admin).
2. Open AVerCaster Streaming Service Management and log in with default account and
password (admin/admin).
Access from remote desktop: type the IP address of the AVerCaster Pro server in the
URL field and click enter, and then enter the default account and password.
3. Set up the country/region where AVerCaster Pro is located:
Click tab Administration and select the country/region where AVerCaster Pro is located.
4. Set up signals:
Click tab Configuration and set up the signal input and broadcast options.
Note: Supported signals and functions might vary depending on different models. Please refer
to the Table of Contents on the next page for specific setup and operation steps.
Model No.: RS7190
P/N 300ARS719D9M
M a d e i n T a i w a n

English-8
Specifications
INPUT SIGNAL
RS7165
HDMI / Component / S-Video / Composite
RS7170
HDMI
RS7185 / RS7190
3G-SDI / HD-SDI / SD-SDI
IP OUTPUT
Output Interface
Dual Gb Ethernet Ports
Transmission Protocol
TS over TCP/ UDP/ UDP Multicast/ RTP/ RTP Multicast/ HTTP/ HTTP Live
Streaming (HLS)/ FLV over HTTP/ RTMP Publish/ RTSP
HLS PUSH/MPEG-DASH PUSH
VIDEO FORMATS
Video Codecs
MPEG-2 / H.264 / H.263
Rate Control
CBR, ABR, VBR
Recommended Resolution
1920x1080, 1440x1080, 1760x990, 1600x900, 1280x720, 720x576, 704x576,
640x576, 544x576, 480x576, 352x576, 960x540, 864x486, 852x480,
720x480, 704x480, 640x480, 544x480, 480x480, 352x480, 640x360,
480x360, 384x288, 352x288, 480x270, 320x240, 320x180, 240x160,
176x144, 128x96, 96x96
Data Rate
H.264: 10 Kbps ~ 20 Mbps (1)
MPEG-2: 10 Kbps ~ 40 Mbps
Entropy Mode
CAVLC/CABAC
Frame Rate
H.264: 10~60 fps
MPEG-2: 25~60 fps
Key Frame Rate
5~300
AUDIO FORMATS
Audio Codecs
AAC, MPEG-2 Audio, MP3, AMR
Sample Rate
8~48 KHz
Data Rate
16~320 Kbps
ADMINISTRATION & MONITORING
Server Operation System
Windows 8 Embedded (64bit)
Administration
Build-in Web Server Browser Management
Monitoring
Support SNMP v1, SNMP v2
PHYSICAL & POWER
Size
1RU
Dimensions
44mm (H) x 430mm (W) x 497mm (D)
Weight
10 Kg
Voltage
100~240 V, AC 60~50 Hz, 6-3 A
Power Consumption
300 W
Operation Temperature
0~40°C (32~104°F)
Storage Temperature
-20~60°C (-4~104°F)
Humidity Tolerance
10~85% at 40°C (104°F)
(1) It is highly recommended that set 10Mbps (H.264) / 20Mbps (MPEG-2) video data rate of HD video quality

English-9
Disclaimer
All the screen shots in this documentation are only example images. The images may vary depending on
the product and software version. Information presented in this documentation has been carefully checked
for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this
documentation is subject to change without notice.
Copyright
© 2016 by AVerMedia Technologies, Inc. All rights reserved. No part of this publication, in whole or in part,
may be reproduced, transmitted, transcribed, altered or translated into any language in any form by any
means without the written permission of AVerMedia Technologies, Inc. Information and specifications
contained in this manual are subject to change without notice and do not represent a commitment on the
part of AVerMedia. For more information, please refer to www.avermedia.com.
"AVerMedia" and “AVerCaster Pro”are trademarks or registered trademarks of AVerMedia Technologies, Inc.
The pictures contained in this manual are provided for reference purposes only.
Made in Taiwan (except accessories).
Headquarters
Address No. 135, Jian 1st Rd.,Zhonghe Dist., New Taipei City 23585, Taiwan
Website www.avermedia.com
Telephone [phone]
US Office
Address 47358 Fremont Blvd., Fremont, CA 94538
Telephone [phone]
Benelux Office
AVerMedia Technologies Europe B.V.
Address Distributieweg 13, 2742 RB Waddinxveen, the Netherlands
Telephone [phone]

English-10
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Follow all instructions.
4. Heed all warnings.
5. Do not use the apparatus on uneven or unstable surfaces.
6. Do not use this apparatus in a wet environment or near water.
7. Unplug the apparatus before cleaning. Clean only with a dry cloth.
8. Use in a well ventilated environment. Do not block any ventilation openings.
9. Use the apparatus in environments with ambient temperatures between 0°C (32°F) and 40°C (104°F).
10. Use power sources within the specified voltage range.
11. Do not place heavy objects on the apparatus.
12. Do not install near heat sources such as radiators or stoves.
13. Do not defeat the safety purposes of the polarized or grounding-type plug.
14. Protect the power cord from being walked on or pinched, particularly where the cord connects with
plugs or adapters.
15. Only use the attachments and accessories specified by the manufacturer.
16. Unplug this apparatus during lightning storms or when unused for prolonged periods of time.
17. Do not modify or disassemble the apparatus in any way.
18. Refer all servicing to qualified personnel.
19. Do not dispose the apparatus as general household waste. Dispose in accordance with local
environmental laws.
重要安全說明
1. 仔細閱讀這些說明。
2. 妥善保存這些說明。
3. 遵守所有的指示。
4. 注意所有的警告。
5. 請勿將本產品安裝於不平穩的表面。
6. 請勿在潮濕或靠近水的地方使用本產品。
7. 清潔前請拔除電源。僅使用乾布清潔。
8. 請於通風的環境使用本產品。請勿堵住通風口。
9. 請在環境溫度介於 0°C (32°F) 至40°C (104°F) 的範圍內使用本產品。
10. 請使用額定電壓範圍內的電源。
11. 請勿放置重物於本產品上。
12. 請勿安裝於熱源附近如暖器或火爐旁。
13. 請勿破壞極性或接地插頭的安全防護設計。
14. 請保護電源線，勿使其被踩踏或碾壓，特別是與插頭或變壓器的連接處。
15. 僅使用製造商指定的配件及零件。
16. 打雷或長時間不使用時請拔除電源。
17. 請勿以任何方式改造或拆解本產品。
18. 如需維修請洽合格維修人員。
19. 請勿當作家庭垃圾任意丟棄。請遵從當地環境法規妥善處理。

English-11
FCC Class A User Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Federal Communications Commission (FCC) Statement (Class A digital device)
Note: This equipment has been tested and found to comply with the limits for a Class Adigital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
Changes and modifications not expressly approved by the manufacturer or registrant of the equipment
could void your authority to operate the equipment under Federal Communications Commission rules.
BSMI Registration of Product Certification
R33183
VCCI Class A Mark
Technical Regulations of the Customs Union
EMC Directive: TR CU 020/2011
