Avigo 6V BMW i8 Spyder Assembly instructions

BMW i8 Children’s Electronic Car manufactured by Paragon Child Products Co., Ltd. The BMW
trademarks are used under license from BMW AG. BMW i8 name and associated logos are
trademarks of BMW AG.
Owner’s Manual and Assembly Instructions
Model 5F62632
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.ariachild.com for
assistance and replacement parts.
Save this manual with your sales receipt.
6V BMW i8 Spyder

Introduction
Thank you for purchasing the BMW i8. We hope the rider enjoys it for miles
to come. Please read this instruction guide carefully before assembling and
operating the vehicle.
Please contact Aria Child Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Web: www.ariachild.com
Email: [email protected]
Phone: [phone]
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 7AH
6V 15W
3 Years and Up
77 lbs.
25.2 in. x 15.75 in. x 50 in.
2.5 MPH
8-12 Hours
1-2 Hours
DC 7.0V0.7A
Distributed by Toys “R” Us, Inc. Wayne, NJ 07470
2014 Geoffrey, LLC
Made in China

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Email or call Customer Service if you need assistance or replacement
parts.
[email protected]
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Left Rear Wheel...............11
Assemble the Right Rear Wheel ............12
Attach the Steering Wheel......................13
Attach the Mirrors ...................................14
Attach the Seat ........................................15
Battery Removal ......................................16
Operating Instructions ............................17
Maintenance ............................................18
General Care ............................................19
Troubleshooting Guide............................20
FCC Information ......................................22
Service and Repairs ...............................23
Warranty ...................................................24
Product Registration ...............................26

6Safety
WARNING: SAFETY RIDING RULES
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view
when child is in vehicle. Direct adult supervision is REQUIRED.
• NEVER use on roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
• ALWAYS wear shoes.
• ALWAYS sit on the seat.
• NEVER allow more than (1) rider in the vehicle.
• Risk of fire. Do not bybass.
The user must follow all safety rules and guidelines, or serious injury or
death may occur to the user.
Always use common sense and safe practices when using the vehicle. The
user must be at least 3 years old and weigh no more than 77 lbs.
This product contains small parts that are for adult assembly only.
Keep small children away when assembling. Remove and dispose of all
protective material and plastic bags before assembly.
Riders must always wear a tted helmet that complies with U.S. Consumer
Product Safety Commission (CPSC) Standard CFR 1203.
Do not overload the vehicle. Do not remove the weight restriction decals.
Do not pull the vehicle with another vehicle or similar device.
Keep body parts such as hands, legs, hair and clothing away from moving
parts. Moving parts can cause serious injury.
Do not operate near loose dirt, mud, sand or ne gravel.
Do not operate near ammable vapors (gasoline, paint thinner, acetone,
etc.).
Always use the vehicle in a safe, secure environment with adult supervision.

7
Safety (Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

8Parts
1. Windshield
2. Mirrors (2)
3. Steering Wheel
Assembly
4. Seat
5. Spoiler
6.
Left Door7.
Right Door
8. Rear Caps (2)
9. Rear Wheels (2)
10. Front Wheels (2)
11. Inner Wheel Spacer
12. Rims (4)
13. Snap Pins (4)
14. Rear Thick Washer
15. Thin Washers (4)
16. Front Thick Washer (2)
17. Hubcaps (4)
18. Charger
19. Battery
20. Front Grill
21. Front Panels (2)
22. Dashboard
• Phillips screwdriver
• Pliers
Not Included:
1
2
3
4
5
6
7
8
9
10
12
15
16
14
11
17
13
18
19
20
21
22

9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the car is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 16.
AC
Battery
AB
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!

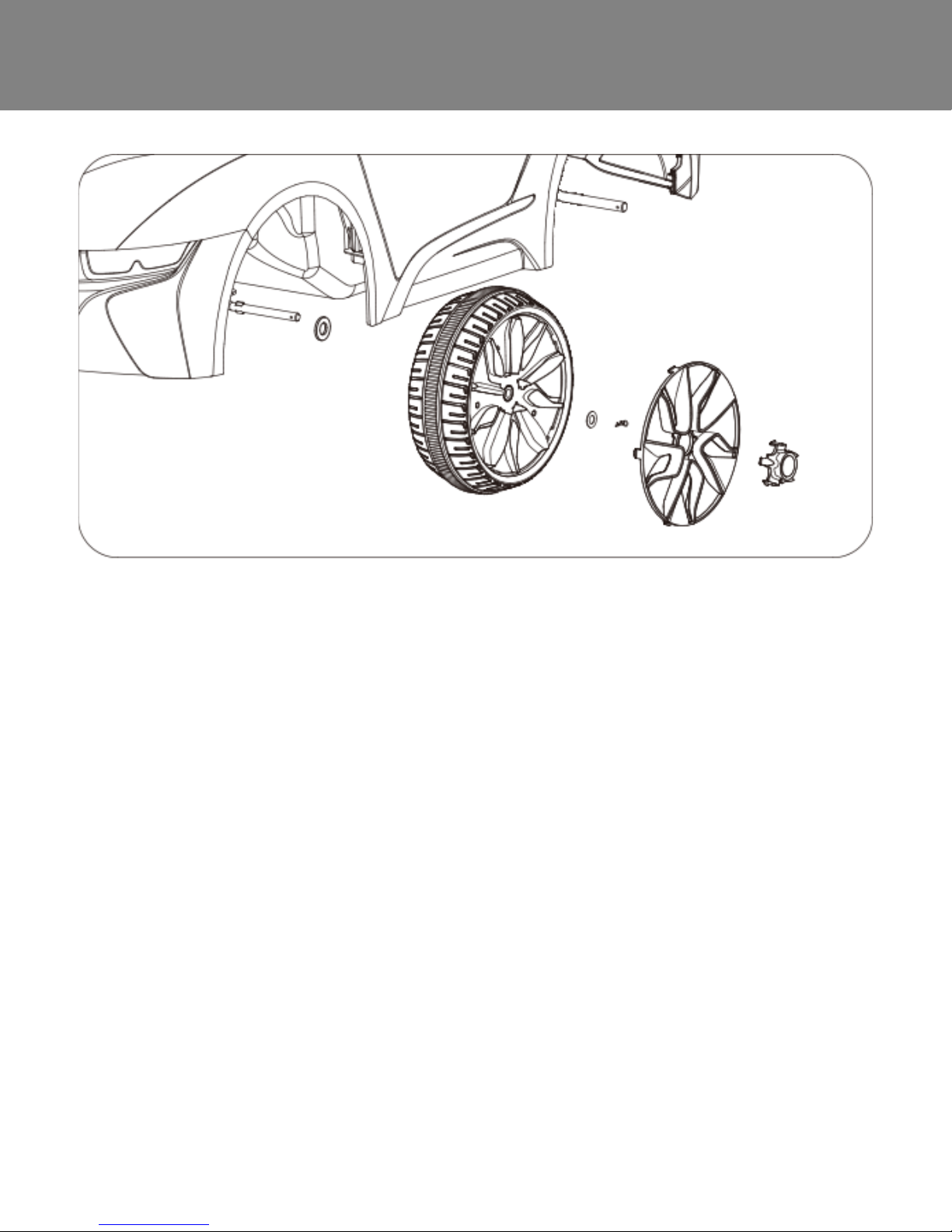

10 Assemble the Front Wheels
1. Slide the front thick washer (16) onto the axle
2. Slide the front wheel (10) onto the front wheel axle
3. Slide the thin washer (15) onto the axle
4. Push the straight end of the snap pin (13) into the hole on the
front wheel axle to secure the parts into place
5. Snap the rim onto the wheel (12), and snap the hubcap (17) onto
the rim
6. Repeat steps 1-5 for the other front wheel

11

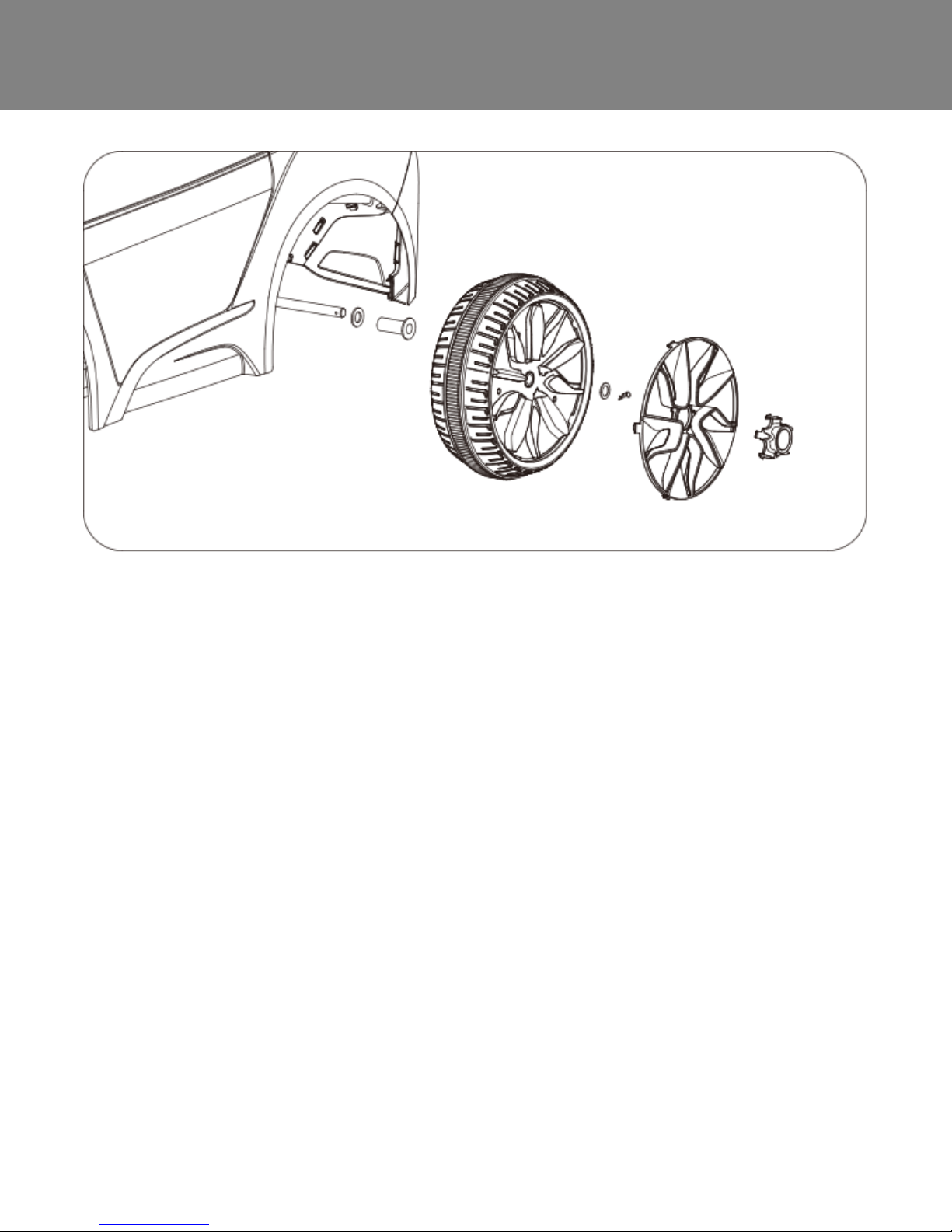

Assemble the Left Rear Wheel
1. Slide the thick rear washer (14) onto the rear wheel axle
2. Slide the inner wheel spacer onto the rear left wheel axle
3. Slide the rear wheel onto the axle
4. Slide the thin washer onto the rear axle
5. Push the straight end of the snap pin (13) into the hole on the
axle
6. Snap the rim onto the wheel, and snap the hubcap onto the rim

12
1. Slide the rear wheel with the gear teeth facing inward onto the
right rear wheel axle
2. Line up the gear teeth on the wheel with the grooves on the
gear box
3. Slide the thin washer onto the rear wheel axle
4. Push the straight end of the snap pin through the hole on the
rear wheel axle
5. Snap the rim onto the wheel, and snap the hubcap onto the rim
Assemble the Right Rear Wheel

13
Attach the Steering Wheel
A
B
1. Remove the screw and nut from the steering wheel assembly (3)
before attaching.
2. Plug the steering wheel connector (A) into the dashboard connector
(B). Please pay attention not to hurt the wire when you are installing,
and not to ap the steering wheel clavier.
3. Insert the steering wheel (3) into the steering rod, and match the
screw holes of the steering wheel and the steering rod.
4. Insert the screw into the hole and fasten the nut to secure.

14 Attach the Mirrors
1. Insert the left mirror into the slot on the left door near the
windshield
2. Push down on the mirror until it clocks into place
3. Repeat steps 1-2 for the right mirror

15

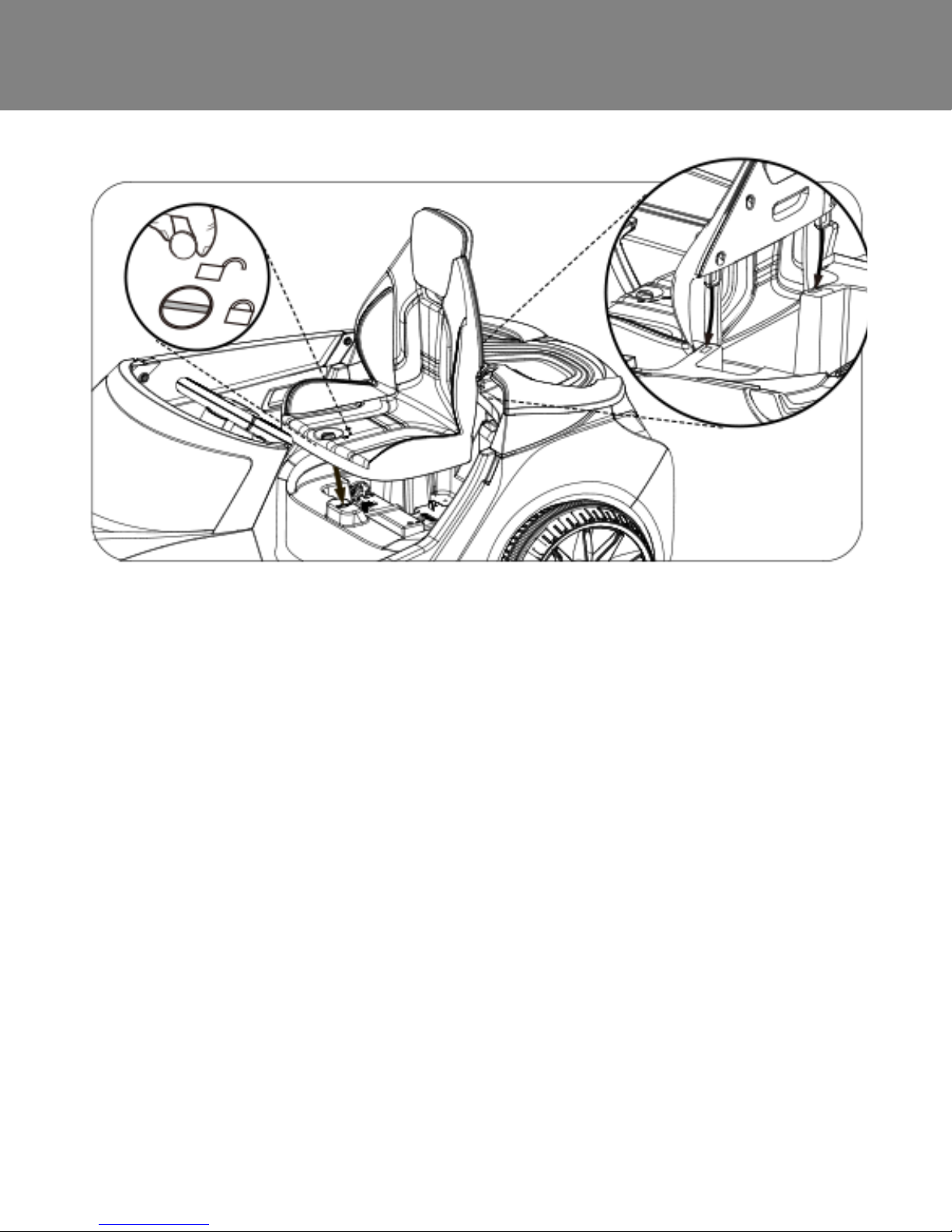

Attach the Seat
1. Position the seat over the battery compartment
2. Slide in the latches on the back of the seat into the slots on the body
of the car
3. Turn the thumbscrew on the seat clockwise to lock it into place

16 Battery Removal
1. Disconnect the red battery connector (A) from the red engine
connector (B) .
2. Loosen and remove the screw.
3. Pull out the battery strap bar.
4. Remove the battery.
Note: It is not necessary to remove the battery for charging. However, if
the battery does not reach the outlet, it can be removed for charging.
Battery Strap
Screw
Battery
AB

17
Operating Instructions
• Power Switch: Press the power switch to turn on the car. A power light will
indicate that the car is turned on. Press the power switch to turn off the car.
• Dashboard Lights: The dashboard lights will light up when the power switch
is pushed to on.
• Gas Pedal: Press the gas pedal to put the car in motion. Release to stop. The
headlights will turn on when the car is moving forward.
• Shifter: Push the up to move forward, press down to move in reverse.
Power Switch
Gas Pedal Shifter
Dashboard
Lights
• Battery Life Button: When the car is on, press the battery life indicator button to
check the battery life.
• Battery Life Indicator: Green, Yellow, Red Lights: Battery is fully charged. Yellow,
Red Lights: Battery power is low. Red Light: Battery is extremely low and needs
recharging.
• MP3 Connector: Insert the MP3 cable into the MP3 jack and connect to an MP3
device. Turn the MP3 on by rotating the on/off dial. To adjust the volume, rotate
the dial.
.
Battery Life
Indicator
MP3 ON/OFF/Volume
MP3 jack

18 Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
• Charge the battery for 24 hours before using the vehicle for the rst
time.
• Charge the battery immediately after each use. Charge for at least 8-12
hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Only use the charger specied with the original item. Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 24 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

19
General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 24 for more
information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

20 Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Consumer
Service for repairs
Battery is dead Call Customer Service for
replacement battery
Electrical system is
damaged
Call Customer Service for
repairs
Motor is damaged Call Customer Service for
repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle (77
lbs max)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.
