Avigo 6V Chevy Silverado Police Rescue User manual

Owner’s Manual and Assembly Instructions
Model #: W460-CPT
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
6V Chevy Silverado Police Rescue
Scan here
to view the
assembly video

Introduction
Thank you for purchasing this vehicle from Rollplay. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.com
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 7AH
6V 15W
3 Years and Up
77 lb. (35 kg)
66.5 x 50 x 129 cm (26.18 x 19.69 x 50.79 in)
4 km/h (2.5 MPH)
8-12 Hours
1-2 Hours
DC 7.0V0.7A
Distributed by Toys “R” Us, Inc. Wayne, NJ 07470
2014 Geoffrey, LLC
Made in China

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.com as we may require proof of purchase.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Rear Wheels.....................11
Dashboard/Windshield Assembly ..........
......
12
Assemble the Steering Wheel ................13
14
Attach the Seat ........................................15
Operation Instructions ............................16
Battery Removal ......................................17
Seatbelt ....................................................18
Maintenance ............................................19
General Care ............................................20
Troubleshooting Guide............................21
FCC Information ......................................23
Service and Repairs ................................24
Warranty ...................................................25
Product Registration ...............................27
Attach the Mirrors/Megaphone/Searchlight

6Safety
WARNING: SAFETY RIDING RULES
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use on roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material and
plastic bags before assembly.
•
Safety Commission (CPSC) Standard 16 CFR 1203.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
must be at least 3 years old and weigh no more than 77 lb.
ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.
Remove batteries if product is to be left unsed for a long time ; Always replace the
whole set of batteries at one time , taking care not to mix old and new ones, or
batteries of different types.

7
Safety (Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

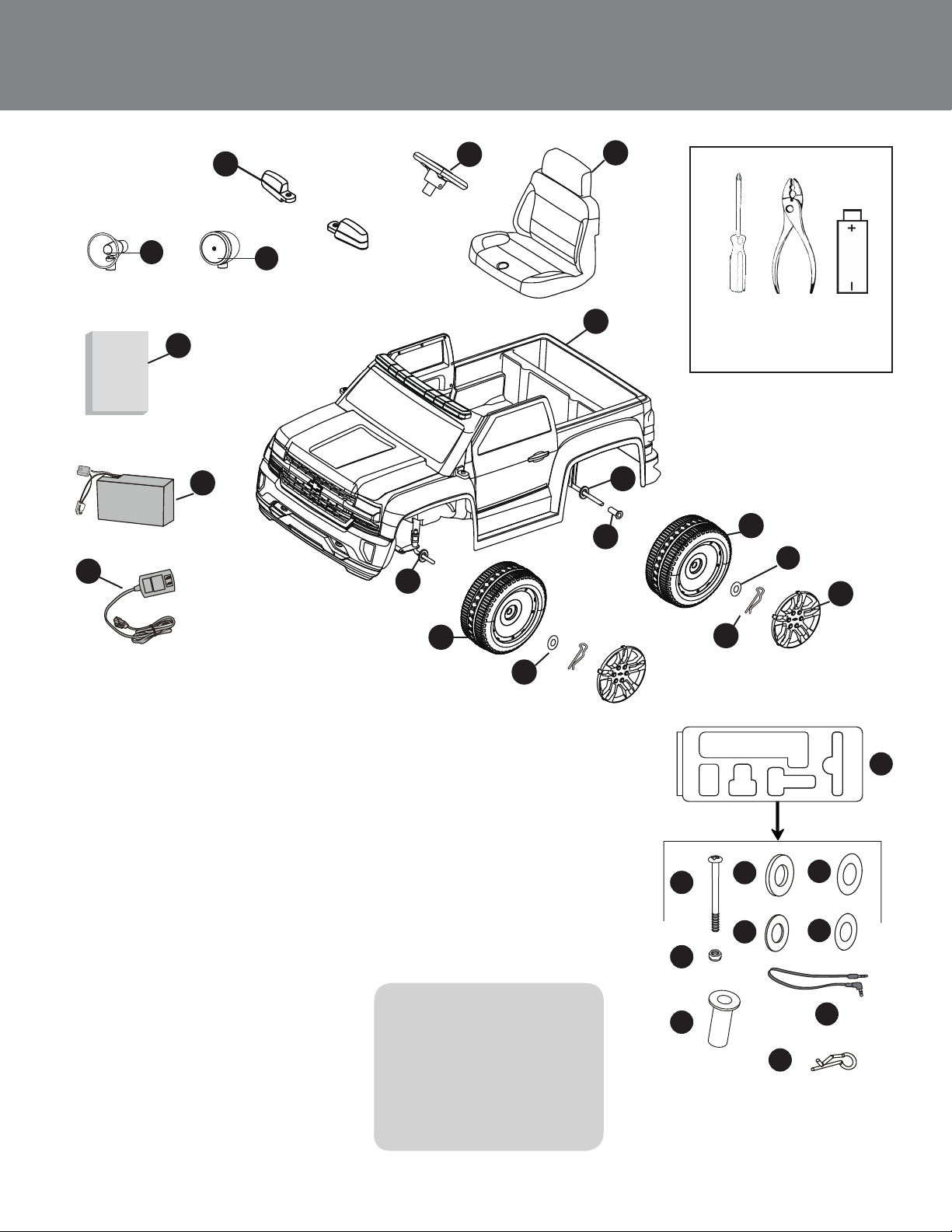

8Parts
1. Car Body
2. Mirror Assembly
3. Steering Wheel Assembly
4. Seat
5. Front Wheel (2)
6. Rear Wheel (2)
7. Chrome Rim (4)
8. Φ12 Thick Washer
9. Φ12 Thin Washer (2+1)
10. Φ10 Thick Washer (2)
11. Φ10 Thin Washer (2+1)
12. Inner Wheel Spacer
13. Snap Pin (4+2)
14. Searchlight
15. Megaphone
16. Manual
17. Battery
18. Charger
19. MP3 Cable
•Phillips screwdriver
•Pliers
•2 AA Batteries
Not Included:
1
4
6
7
12
8
10
11
13
17
18
16
23
9
5
20
21
9
11
8
10
13
12 19
22
20. Steering Wheel Screw
21. Steering Wheel Nut
22. Blister Pack
Helpful Tip:
1. Parts 8-13 and 19-21 are
located in the blister pack
2. Spare parts:
Φ12 Thin Washer 1
Φ10 Thin Washer 1
Snap Pin 2
14
15

9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

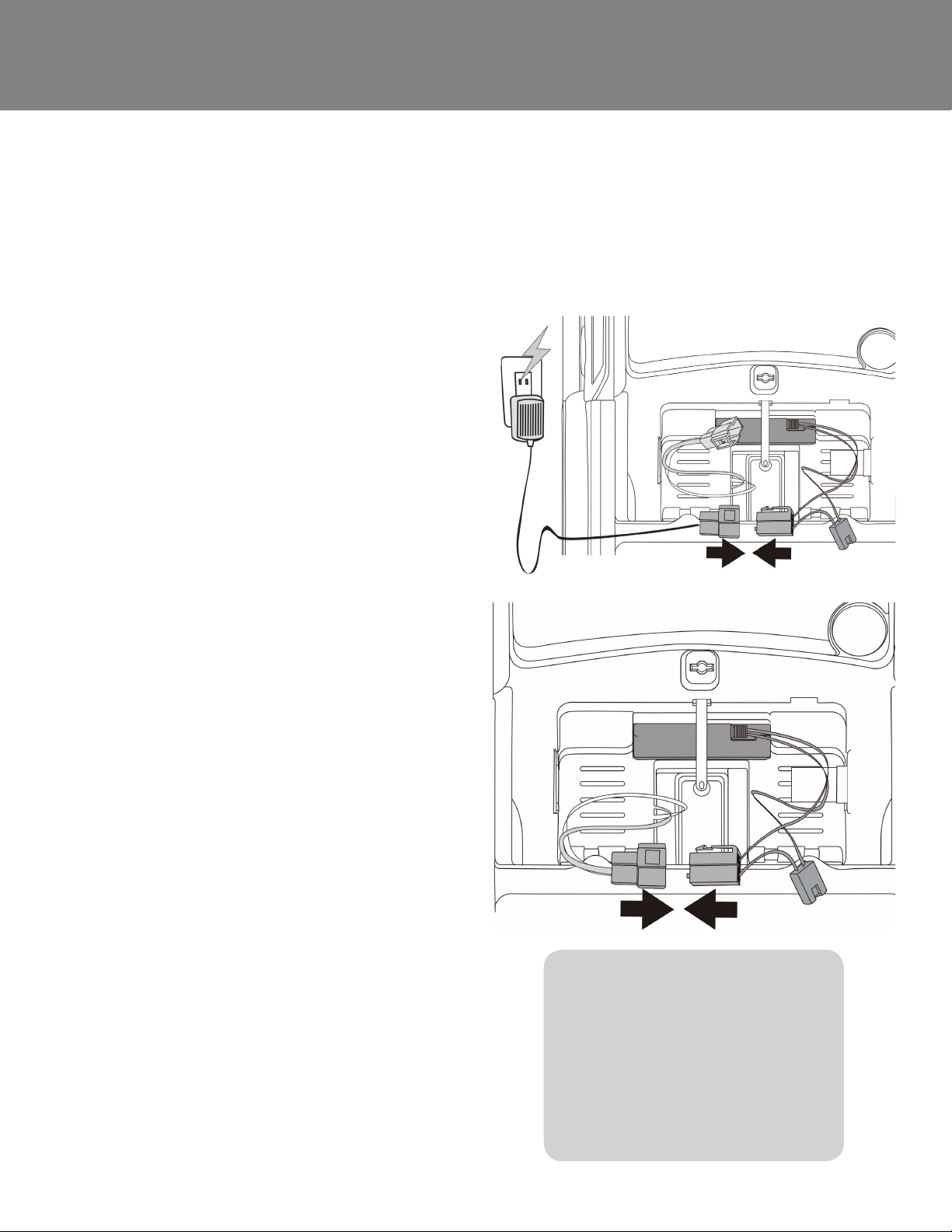

To Charge the Battery:
1. Ensure the vehicle is stopped and turned
off.
2. Unlock and remove the seat.
3. Located the red battery connector (A)
that attaches directly to the battery.
4. Connect the red battery connector to the
red battery charger connector (B).
5. Plug into a 120 V outlet.
To Reconnect the Battery:
6. Unplug the battery charger from the
outlet.
7. Unplug the red battery connector from
the red charger connector (B).
8. Connect the red battery connector (A) to
the red engine connector (C).
9. Replace the seat and tighten lock.
Note: It is not necessary to remove the
battery for charging. However, if the
battery does not reach the outlet, it can be
removed for charging. For Battery
Removal instructions, see Page 18.
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!
A
B
Helpful Tip:
1. Ensure the red battery connector
is connected to the red engine
connector
2. Ensure the white gear box connector
is connected to the white engine
connector
3. NEVER connect a red connector to a
white connector
C

10 Assemble the Front Wheels

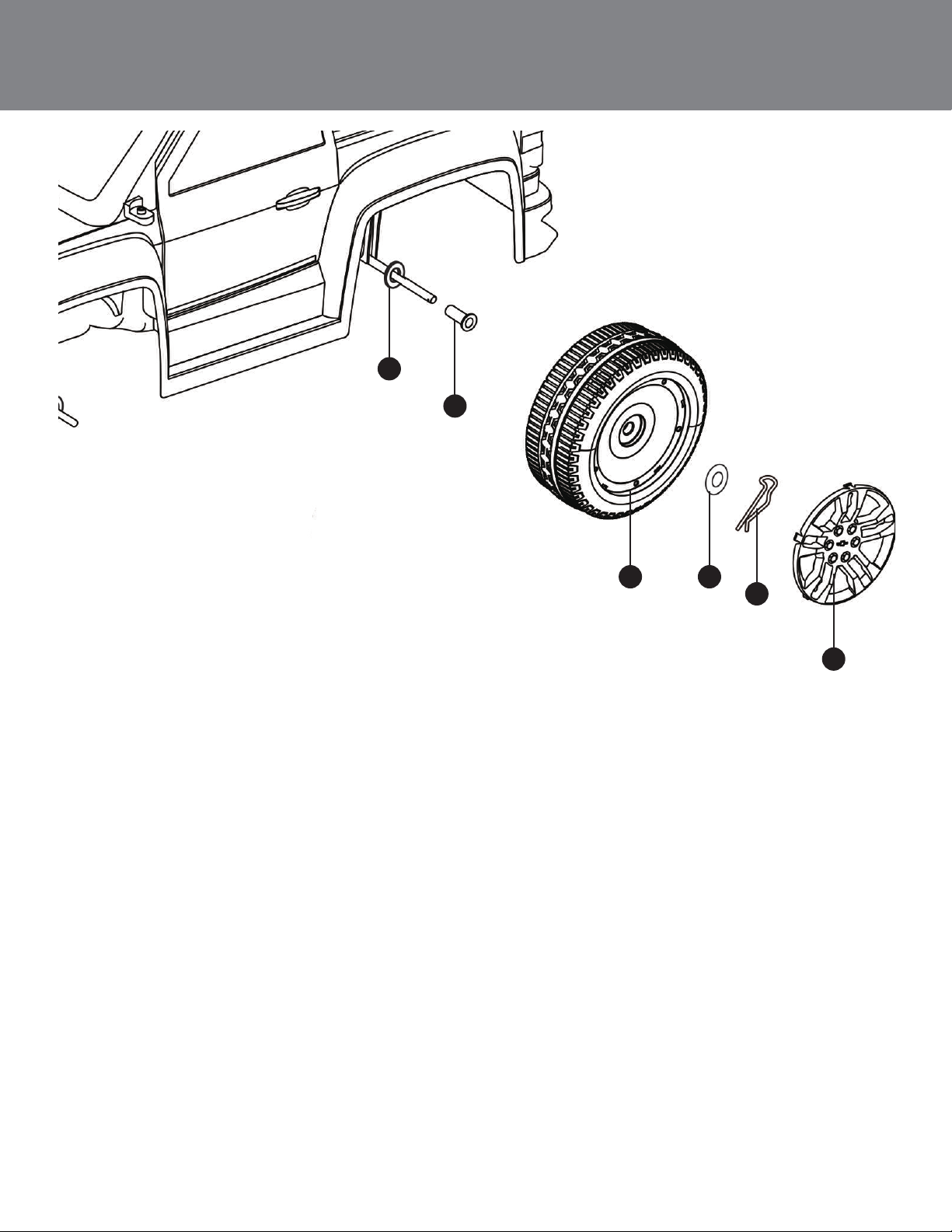

1. Locate the Φ10 Thick Washers (10), the Φ10 thin washers (11), and snap pins (13)
from blister pack.
2. Slide the front Φ10 thick washer (10) onto the axle.
3. Slide the front wheel (5) onto the axle. Ensure that the side of the wheel with the
slots is facing out.
4. Slide the Φ10 thin washer (11) onto the axle.
5. Insert the straight side of the snap pin (13) through the hole at the end of the axle
to keep the wheel in place.
6. Position the chrome rim (7) over the holes on the wheel and snap into place.
7. Repeat steps 1-6 for the other front wheel.
10
11
5
13
7
Helpful Tip:
1. Using pliers will make
it easier to remove
the snap pin from the
wheel axle

11
Assemble the Left Rear Wheel
1. Locate the rear Φ12 thick washer (8), the thin washer (9), the snap pin (13), and
inner wheel spacer (12) from blister pack.
2. Slide the rear Φ12 thick washer (8) onto the axle.
3. Slide the inner wheel spacer (12) onto the axle with the wide end facing out.
4. Slide the left rear wheel (6) onto the axle with the gear teeth facing inward.
5. Slide the Φ12 thin washer (9) onto the axle.
6. Insert the straight side of the snap pin (13) through the hole at the end of the axle
to keep the wheel in place.
7. Position the chrome rim (7) over the holes on the wheel and snap into place.
12
8
6 9
13
7

12 Assemble the Right Rear Wheel
1. Locate the rear Φ12 thin washer (9) and the snap pin (13) from blister pack.
2. Slide the rear wheel (6) onto the axle with the gear teeth facing inward.
Ensure that the gear teeth engage with the gear box already installed on
the axle.
3. Slide the Φ12 thin washer (9) onto the axle.
4. Insert the straight side of the snap pin (13) through the hole at the end
of the axle to keep the wheel in place.
5. Position the chrome rim (7) over the holes on the wheel and snap into
place.
Helpful Tip:
1.
wheels onto the rear axle, then your rear
wheel axle may need to be realigned.
2. Remove both wheels from the rear
wheel axle. Using two hands, push
down on the rear wheel axle and slide it
gently toward the side of the vehicle that
needs more room.

13
DO NOT mix old and new batteries
DO NOT mix alkaline, standard
(carbon-zinc) or rechargeable (nickel-
cadmium) batteries.
Assemble the Steering Wheel
1. Use a Phillips head screwdriver to remove the screw on the battery.
compartment of the steering wheel.
2. Insert two AA batteries into the battery compartment.
3. Replace cover and use the screwdriver to fasten.
4. Locate the steering wheel screw (20) and nut (21) from the blister pack.
5. Slide the steering wheel (3) onto the steering rod.
6. Align the holes on the steering wheel with the holes on the steering rod.
7. Slide the steering wheel screw through the steering wheel and steering
rod.
8. Fasten the nut to the end of the screw and tighten the screw with a
screwdriver.
2
20
21
AA 1.5V
AA 1.5V
AA 1.5V
-
-
+
+

14 Attach the Mirrors/Megaphone/Searchlight
1. Locate the searchlight (14) in the packaging.
2. Insert the searchlight into the slot near the left door.
3. Gently push until it clicks into place.
4. Repeat steps 1-3 for the megaphone (15).
14
15
1. Remove the mirrors from the plastic bags
2. Remove the screw and nut from the mirror assembly
3. Align the hole on the mirror with the hole on the car
4. Insert the screw into the hole and fasten the nut with a screwdriver to
secure the mirror
5. Repeat steps 1-4 for the other mirror

15
Attach the Seat
1. Ensure the lock on the car seat (4) is in the unlock position
2. Align the hook on the back of the car seat (4) with the holes on the
back of the battery compartment
3. Insert the hook into the holes and rotate the seat down into place
4.
position

16 Operation Instructions
Foot Pedal
MP3 Jack
MP3 ON/OFF/Volume Indicator
Battery Life
Loudspeaker
Power Switch
Siren
Shifter
Sounds
Siren and Emergency Lights: Press the siren button for siren sounds and
emergency lights. Press the button to turn off the sounds and lights.
Battery Life Indicator: Green, Yellow, & Red Lights: Battery is fully
charged. Yellow & Red Lights: Battery level is low. Red Light: Battery
power is lower than 5.5V, and the battery must be recharged.
Loudspeaker: Slide the microphone out of the holster. Press the button on
the left side and speak into the microphone.
•Push the power switch to turn on the car. The power indicator light will
turn on when the car is on. Press the power switch again to turn off the
car.
•Push the shifter forward to move forward. Pull the shifter backward to
go in reverse.
•Insert the MP3 cable (19) into the MP3 jack and connect to your device.
Turn the MP3 on by rotating the on/off dial. To adjust the volume, rotate
the dial.
•Press the foot pedal down to go. Release the foot pedal to stop.
•
•
•
•
Press the left and right steering wheel buttons for horn and engine
sounds

17
Battery Removal
1. Unlock and remove the seat
2. Disconnect the red battery connector from the red engine connector
3. Loosen and remove the screw from the battery strap using a Phillips
screwdriver
4. Slide the battery strap out from the battery strap slot
5. Remove the battery
Note: It is not necessary to remove the battery for charging. However,
if the battery does not reach the outlet, then it can be removed for
charging.
Battery Strap
Indicator

Seatbelt
A
B

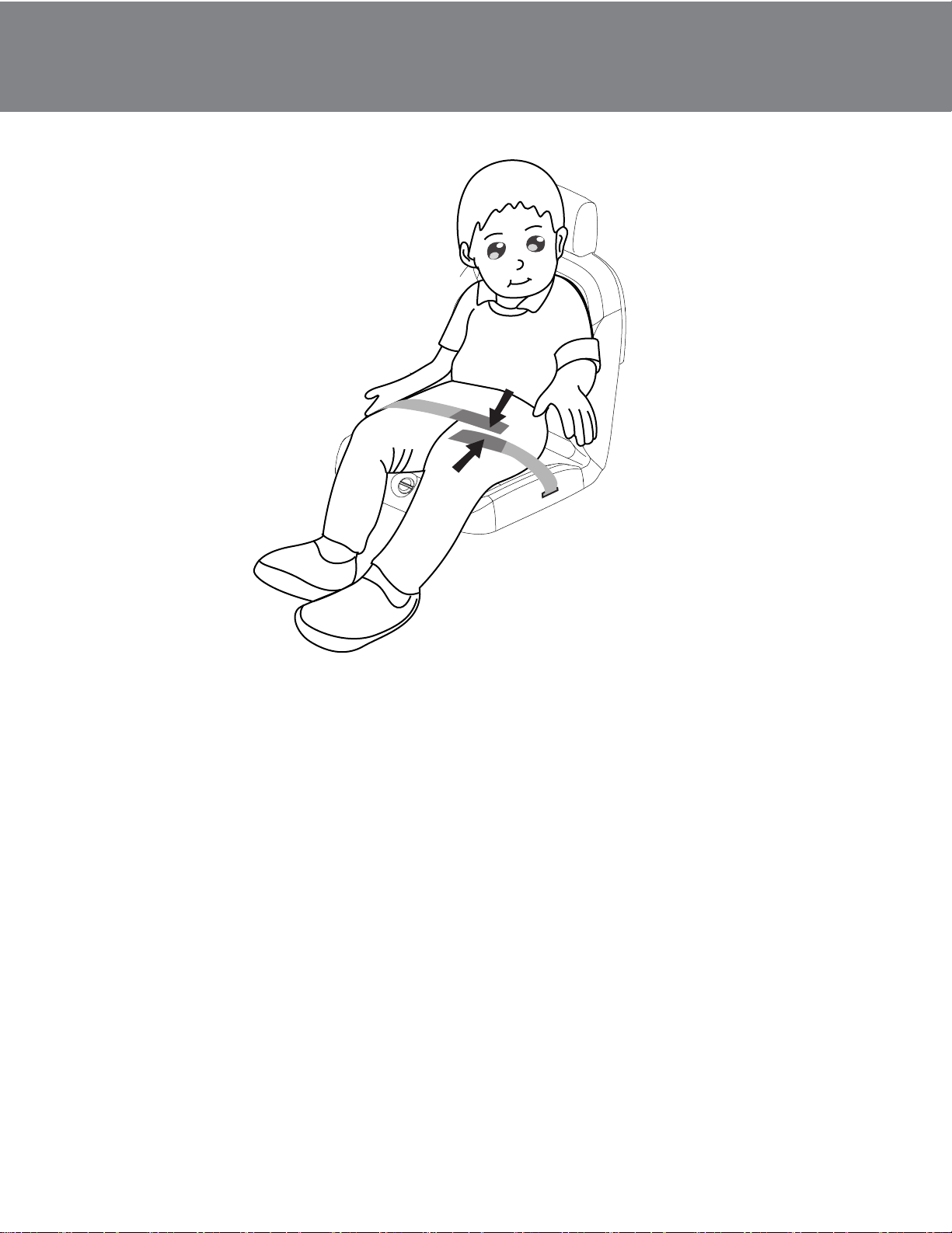

To properly fasten the seatbelt, fold side B over the child’s lap.
Then fold side A over side B, and fasten the seat belt with the
Velcro. Ensure the seat belt is at a suitable length for comfort and
safety.
The seat belt is only intended to keep child seated. Fasten securely
across waist.
18

19
Maintenance
Important Battery and Charger Information
•Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•Charge the battery for 24 hours before using the vehicle for the first time.
•Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
•Charge the battery at least once a month, even if the vehicle is not used
or stored.
•Never leave the battery in a discharged condition.
•Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
•It is normal for the charger to heat slightly. If the charger rises above 71°
C / 160°F, disconnect the charger and call Customer Service for
assistance.
•Keep the charger away from water or excessive moisture to prevent
short-circuiting.
•Only use the charger specified with the original item. Do not charge the
battery with any other charger.
•Do not attempt to recharge non-rechargeable batteries with the original
charger.
•Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 24for
replacement information.
•Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
•Do not short circuit the supply terminals.
•Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
•The vehicle is equipped with a thermal fuse to protect the electric circuit.
If the vehicle cuts out, turn the vehicle off and on to reset.

20 General Care
•Regularly inspect all vehicle parts to ensure they are in good working
condition.
•Regularly inspect the charger, cord, plug, and other related parts for
damage.
•Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 24for more
information.
•DO NOT operate the vehicle if there are any damaged parts.
•Carefully clean the vehicle with a damp cloth and mild soap. Do not get
water in or near any electrical parts. Do not wash the vehicle with a
hose.
•Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.
