Aviom AVIOM16/O-Y1 User manual

9310 1008 0001F rev 3.00
© 2013 Aviom, Inc.
User Guide
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A - N e t O u t p u t C a r d
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A - N e t O u t p u t C a r d
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A - N e t O u t p u t C a r d
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card
Aviom16/o-Y1
C a r t e d e S o r t i e d ' A - N e t
A-Net Output Card

i i
READ THIS FIRST
Important Safety Instructions
Read these instructions.1.
Keep these instructions.2.
Heed all warnings.3.
Follow all instructions.4.
Do not use this apparatus near water.5.
Clean only with a dry cloth.6.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.7.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus8.
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has9.
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or third prong are provided for your safety. If the provided plug
does not fit your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience10.
receptacles, and the point where they exit the apparatus.
Only use attachments/accessories specified by the manufacturer.11.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with12.
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.13.
Refer all servicing to qualified personnel. Servicing is required when the apparatus has been14.
damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
No on/off power switches are included in the system. The external power supply should be used to15.
control power to an Aviom device. This power supply should remain readily operable.
The solid line over dashed line symbol (16. ) indicates that the input voltage must be a DC
voltage.
The box within a box symbol (17. ) indicates that the external power supply is double insulated.

iii
TO REDUCE THE DANGER OF ELECTRICAL SHOCK DO NOT REMOVE COVERS.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
To reduce the risk of fire or electrical shock, do not expose this product to rain or other types of moisture.
To avoid the hazard of electrical shock, do not handle the power cord with wet hands.
Replace fuse with same type and rating.
Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
Risque de choc électrique – ne pas ouvrir. Pour réduire le risque de feu ou de choc électrique, ne pas exposer cet équipement
à la pluie ou la moisissure. Pour réduire le risque de choc électrique, ne pas retirer le couvercle. Pièces non remplaçables par
l’utilisateur. Confier la réparation à une personne qualifiée. Attention – utiliser seulement un fusible de rechange de même type.
Cet appareil est conforme à la section 15 de la norme FCC. Son fonctionnement est soumis aux conditions suivantes : (1) cet
équipement ne doit pas causer des interférences nocives, et (2) cet équipement doit accepter toute interférence captée incluant les
interférences pouvant causer des opérations indésirables.
Cet appareil numérique de Classe B est conforme à la norme NMB-003 du Canada.
WARNING!
! !
CAUTION:
Using any audio system at high volume levels can cause•
permanent damage to your hearing.
Set your system volume as low as possible.•
Avoid prolonged exposure to excessive sound pressure levels.•
IMPORTANT:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the•
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Changes or modifications to the product not expressly approved by Aviom, Inc. could void the user’s FCC
authority to operate the equipment.

i v
Trademarks
Aviom, A-Net, the A-Net icon, Pro16, Pro16e, Pro64, Virtual Data Cables, m-control, One-Touch Ambience,
Dual Profile Channel, Network MixBack, and AllFrame are trademarks of Aviom, Inc. All other trademarks
are the property of their respective owners.
©2013 Aviom, Inc. All rights reserved.
Information is subject to change without notice.
Notice of Rights
All rights reserved. No part of this document may be reproduced or transmitted in any form or by any
means—electronic, mechanical, photocopy, recording, or otherwise—without written permission of
Aviom, Inc.
Certifications
EMC: EN55103-1:2009
EN 55103-2: 2009
EN 55022:2006 / CISPR 22:1997
CAN/CSA-CEI/IEC CISPR 22:02
FCC 47 CFR, Part 15
Safety: UL 60065, 7th Edition, Rev.: 09/21/2012;
CAN/CSAC22.2 No. 60065:03 (R2012)
ETL/cETL Listed and RoHS Compliant
Pb
Pb-Free

v
Aviom, Inc. Limited Warranty
Aviom, Inc. warrants this product against defects in materials and workmanship for a period of one year
from the date of the original retail purchase.
This warranty does not apply if the equipment has been damaged due to misuse, abuse, accident, or
problems with electrical power. The warranty also does not apply if the product has been opened or
modified in any way; if the product serial number has been damaged, modified, or removed; or if the
original Quality Assurance label has been damaged, modified, or removed.
If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization number. No service
will be performed on any product returned without prior authorization. Aviom, Inc. will, at its option, repair
or replace the product at no charge to you. The product must be returned during the warranty period,
with transportation charges prepaid to Aviom, Inc., 1157 Phoenixville Pike, Suite 201, West Chester, PA
19380. You must use the product’s original packing materials for shipment. Shipments should be insured
for the value of the product. Include your name, address, phone number, description of the problem, and
copy of the original bill of sale with the shipment. The Return Authorization number should be written on
the outside of the box.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION). AVIOM’S RESPONSIBILITY FOR
MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH
IN THIS LIMITED WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE. NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER SUCH PERIOD.
AVIOM, INC. DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY
DOCUMENT. AVIOM, INC.’S LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT, AT OUR OPTION, OF
ANY DEFECTIVE PRODUCT, AND SHALL IN NO EVENT INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES
OF ANY KIND.
SOME STATES DO NOT ALLOW EXCLUSIONS OR LIMITATION OF IMPLIED WARRANTIES OR LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

v i
Warranty Information
Please record the following information for future reference:
Your Authorized Aviom Dealer:
Name:
Address:
Phone:
Serial Numbers of Your Aviom Products:
Date of Purchase:
Your Authorized Aviom Dealer is your primary source for service and support. The information recorded
above will be helpful in communicating with your Authorized Aviom Dealer should you need to contact
Aviom Customer Service. If you have any questions concerning the use of this unit, please contact your
Authorized Aviom Dealer first. For additional technical support, or to find the name of the nearest
Authorized Aviom Repair Station, check the Aviom web site at www.aviom.com.
To fulfill warranty requirements, your Aviom product should be serviced only at an authorized Aviom
service center. The Aviom serial number label must appear on the outside of the unit, or the Aviom
warranty is void.
This manual and its contents are copyrighted by Aviom, Inc. All rights are reserved by Aviom, Inc. This
document may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine-readable form without prior written consent from Aviom, Inc.
The software and/or firmware contained within Aviom products is copyrighted and all rights are reserved
by Aviom, Inc.
Although every effort has been made to ensure the accuracy of the text and illustrations in this manual, no
guarantee is made or implied as to the accuracy of the information contained within.

v i i
Table of Contents
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . ii
Certications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Aviom, Inc. Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . v
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Pro16 Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Compatibility with Pro64. . . . . . . . . . . . . . . . . . . . . . . . . 2
Yamaha Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . 3
About A-Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
About Category 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cat-5e Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cable Lengths . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AC Line Conditioning. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cleaning and Maintenance Information . . . . . . . . . . . . . . . . . 7

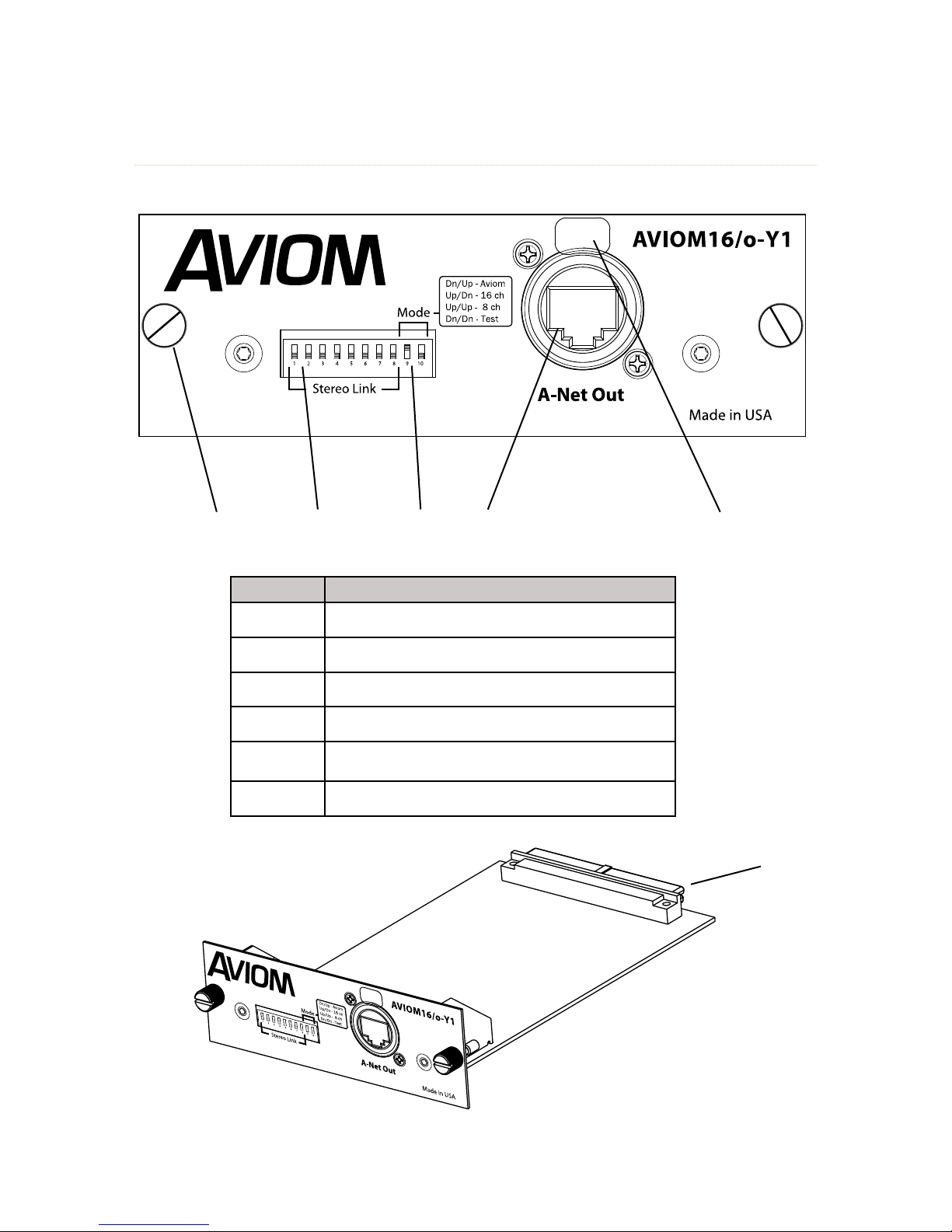

Y1 Card Components . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Y1 Card . . . . . . . . . . . . . . . . . . . . . . . . . . 9

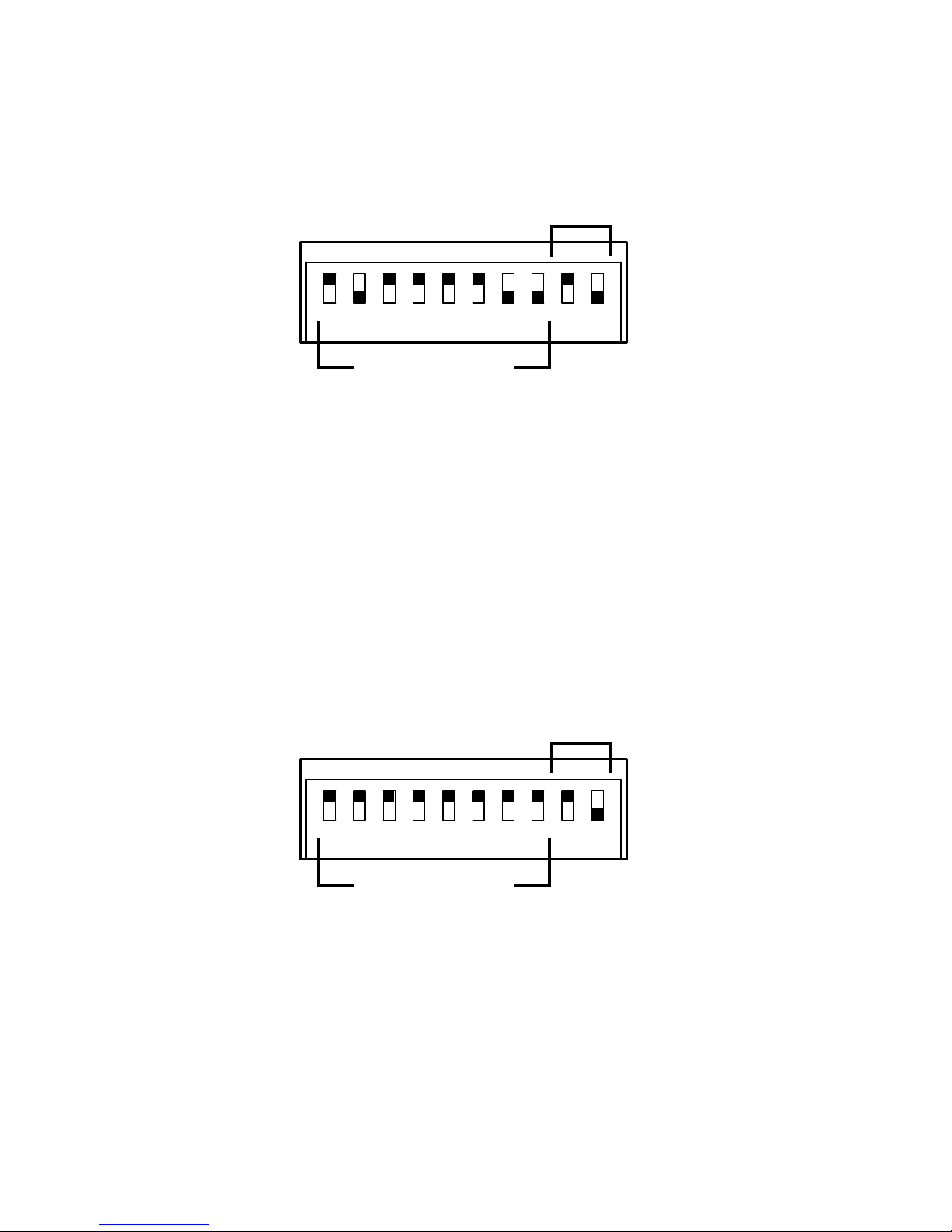

DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Stereo Link Switches . . . . . . . . . . . . . . . . . . . . . . . . 10
Mode Select Switches . . . . . . . . . . . . . . . . . . . . . . . 11
MY16 Mode (default) . . . . . . . . . . . . . . . . . . . . . 11
MY8 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Test Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Aviom Mode . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting Pro16 Devices . . . . . . . . . . . . . . . . . . . . . . . . 14
Series Connection of A-Net Devices. . . . . . . . . . . . . . . . . 14
Parallel A-Net Routing . . . . . . . . . . . . . . . . . . . . . . . 15
Using an A-Net Distributor . . . . . . . . . . . . . . . . . . . 15
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . . . 21

1Y1 A-Ne t CA r d User GU i d e
Welcome
Thank you for purchasing the AVIOM16/o-Y1 A-Net Interface Card for Yamaha® digital
consoles, designed for use with Aviom’s Pro16® personal mixing and audio networking
products. All Pro16 products are powered by A-Net®, Aviom’s proprietary data transmission
protocol designed especially for the unique demands of live streaming audio. This User Guide
is designed to familiarize you with your new product and to have your system up and running
as quickly as possible.
Package Contents
The Y1 A-Net Interface Card box includes:
One Y1 A-Net Interface Card•
User Documentation•
Overview
The AVIOM16/o-Y1 A-Net Interface Card (or “Y1” card for short) provides a host of professional features
designed to make using A-Net personal mixing and audio distribution products flexible and easy to
configure in a variety of professional audio situations.
Y1 A-Net Output Card Features:
Sixteen-channel digital audio output to Pro16 A-Net devices•
One A-Net output, EtherCon® RJ45 connector•
Channel link switches for stereo channel pairing on Personal Mixer products•
Compatible with all Yamaha digital mixing consoles that use the Yamaha•mini-YGDAI (MY)
digital expansion card format
Compatibility modes for 8-channel (•MY8) and 16-channel (MY16) operation
Test mode•
The Y1 card is designed to be electrically and mechanically compatible with any Yamaha mixing board
product that supports the mini-YGDAI card hardware specification. Consult the documentation provided
with your Yamaha product for additional information.

2Y1 A-Ne t CA r d User GU i d e
Pro16 Compatibility
The Y1 card’s A-Net output can be directly connected to:
•A-16II Personal Mixer
A-16R rack-mounted Personal Mixer•
•A360 Personal Mixer
•A-16D A-Net Distributor
•A-16D Pro A-Net Distributor
•AN-16/i v.2 Input Module
•D800 A-Net Distributor
•AN-16/o Output Module
•AV-P2 Output Module
SB4 System Bridge•
When using more than one input module in a Pro16 system, the Y1 A-Net Card can be connected to the
SB4 System Bridge to allow multiple Pro16 A-Net streams to be transmitted over a single Cat-5e cable.
Used in a Pro16e personal mixing system that includes the A360 Personal Mixer, the A-Net output from the
Y1 card may be connected to the A-Net In on the AN-16/i v.2 Input Module where the card’s digital data
will be merged and then distributed to the Personal Mixers.
PNo t e : The original (discontinued) A-16 Personal Mixer is not compatible with the Y1 card; these
Personal Mixers do not have the ability to follow sample rate changes from the host Yamaha
device clock source. Some early A-16R Personal Mixers are also not compatible. Contact
Aviom customer service for additional A-16R information.
Compatibility with Pro64
Many Pro16 products can be connected to a Pro64® A-Net system with the addition of the ASI A-Net
Systems Interface. The ASI translates Pro64 A-Net data into Pro16 data and separates the 64-channel Pro64
stream into up to four 16-channel Pro16 outputs, depending on the Pro64 sample rate being used.
Only Pro16 devices that have an A-Net In port such as A-Net Distributors, Personal Mixers, and output
modules are compatible with Pro64 and the ASI. Pro16 input modules and console interface cards cannot
send their data into a Pro64 network.
The Y1 card cannot be directly connected to a Pro64 network. It can, however, be used along with a Pro64
6416Y2 A-Net Interface Card installed in the same Yamaha digital console.

3Y1 A-Ne t CA r d User GU i d e
Yamaha Compatibility
The following table lists the Yamaha digital products that are compatible with the Y1 A-Net Interface
Card.
Product Expansion Slots Digital Channels Output via A-Net
01V96 1 16 channels per MY slot (at 48kHz)*
02R96 4 16 channels per MY slot
DM1000 2 16 channels per MY slot
DM2000 6 16 channels per MY slot
PM5D 4 16 channels per MY slot
PM5D-RH 4 16 channels per MY slot
M7CL (32 & 48) 3 16 channels per MY slot
LS9-16 1 16 channels per MY slot
LS9-32 2 16 channels per MY slot
PM1D 8 Limited to 8 channels per MY slot
DME24N 1 16 channels per MY slot
DME64N 4 16 channels per MY slot
CL1 3 16 channels per MY slot
CL3 3 16 channels per MY slot
CL5 3 16 channels per MY slot
* Yamaha’s MY16 mode provides 16 channels per card slot at 44.1/48kHz; MY8 mode provides 8 channels
per slot at 48kHz or 96kHz. Not all Yamaha devices are capable of operating at 96kHz.

4Y1 A-Ne t CA r d User GU i d e
About A-Net
A-Net® is a proprietary high-speed data transmission protocol developed by Aviom, capable of sending
and receiving high-quality digital audio using readily available Cat-5 cables.
A-Net is based on the physical layer of Ethernet, a Local Area Network (or LAN) technology. This provides
A-Net with a mature and robust base on which to build. However, it is important to note that A-Net devices
are not compatible with Ethernet devices.
Some of the benefits of using A-Net to transmit digital audio are:
Virtually no latency; analog in to analog out is always less than one millisecond•
No ground loops•
Easy cabling using readily available components•
An unlimited number of A-Net devices can be used in a system•
Ease in spanning long distances between system components•
There are two versions of Pro16 A-Net: the original Pro16 A-Net signal carries sixteen channels of digital
data while the enhanced Pro16e® version of A-Net is capable of carrying up to 64 channels of digital audio
data. Like standard Pro16 A-Net, Pro16e is a point-to-point digital audio protocol.
Pro16e A-Net data is intended for use with the A360 Personal Mixer which can take advantage of the higher
network channel count that Pro16e provides.
PNo t e :While the Cat-5e cables and connectors used on your Aviom products look like typical
computer Ethernet network connections, do not connect computers, routers, or other home
and business networking equipment to your Aviom products.

5Y1 A-Ne t CA r d User GU i d e
About Category 5
The term Category 5 (also referred to as Cat-5) is broadly used to describe a type of high performance
network cabling used for data transmission purposes to connect computer networks and other devices.
A standard patch cable consists of four twisted pairs of copper wire terminated by RJ45 male connectors.
The cable assembly is used to provide connectivity between any two Cat-5 female RJ45 jacks.
A variation of the cable, called Category 5e (or Cat-5e), has largely replaced Cat-5 in the field; it uses additional
twists in the cable’s wire pairs to reduce interference in high-speed network applications. Additional
wire pair variations are found in Cat-6 and Cat-6e cables, typically used with gigabit networking devices.
Use Unshielded Twisted Pair (UTP) cables for all A-Net applications.
RJ45 Jack Cat-5e Cable
PNo t e :While the Cat-5e cables and connectors used on your Aviom products look like typical
computer Ethernet network connections, do not connect computers, routers, or other home
and business networking equipment to your Aviom products.
Cat-5e Cables
Any standard Cat-5e UTP cable may be used with your Aviom products. If you need a longer cable for
a particular application, any computer store should be able to supply you with an appropriate cable. A
qualified technician should be able to build custom cables to any length.
For fixed or permanent installations, you have the option of running Cat-5e cables inside walls and
terminating them with readily available wall panel connectors that include the RJ45 jack. (Solid wire is
recommended for permanent installations.)
In addition to standard Category 5e cables, Cat-6 and Cat-6e cables may also be used.
PNo t e : When purchasing Category 5e cables, be sure to buy only standard Cat-5e UTP cables,
not those sold as crossover cables. A crossover cable is used for file transfer between two
computers and is not compatible with your Aviom equipment.
Cat-5 cables outfitted with the heavy-duty Neutrik EtherCon® connector may also be used in addition to
those that use the standard RJ45 cable connector.

6Y1 A-Ne t CA r d User GU i d e

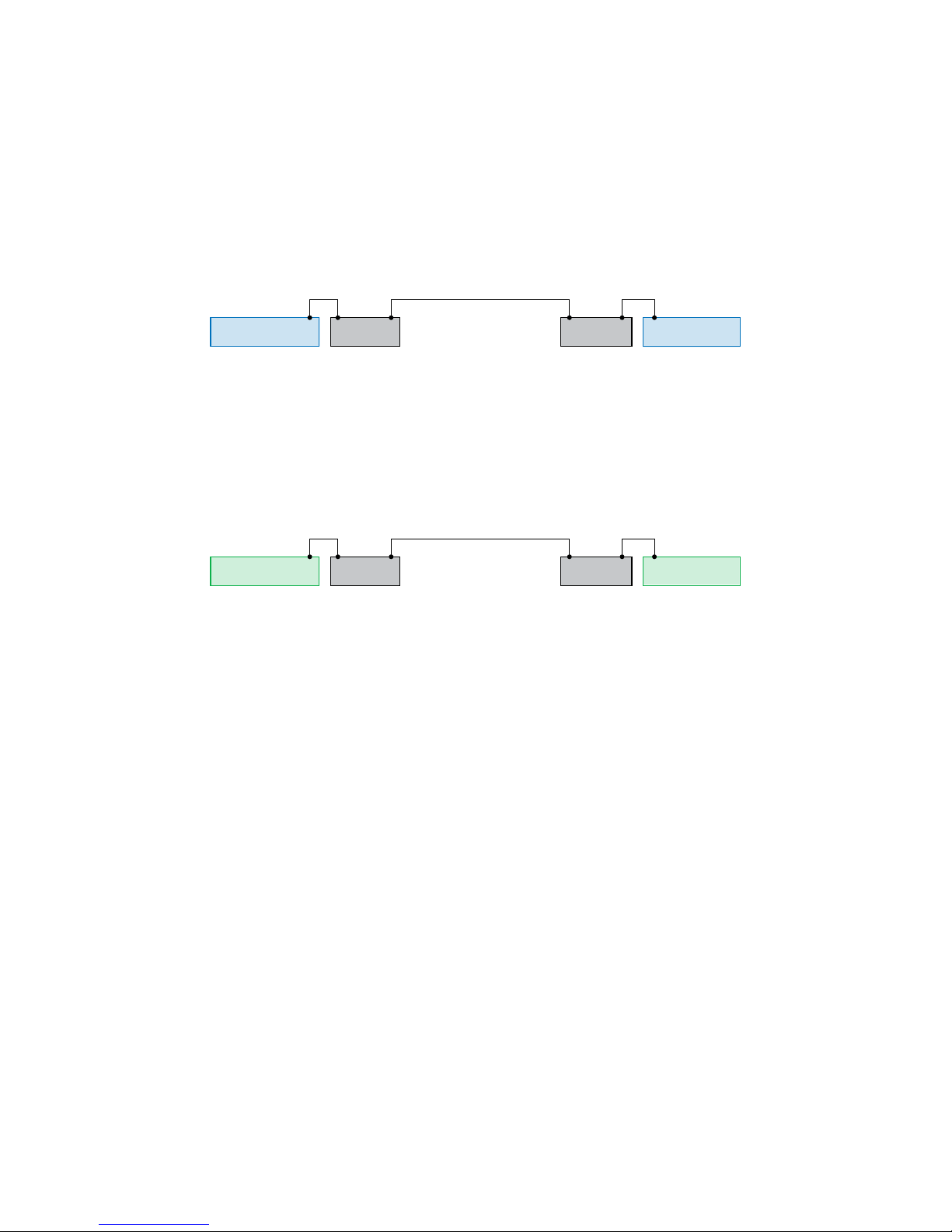

Cable Lengths
For Pro16 applications—connecting one Pro16 device to another—the Cat-5e cables used with your Aviom
products may be up to 500 feet (approximately 150 meters) in length between devices. For example,
connecting an AN-16/i-M Mic Input Module to an AN-16/o Output Module is a Pro16-to-Pro16 connection.
Pro16 A-Net Out Pro16 A-Net In
Total Pro16 A-Net cable length: 500 feet (150 meters)
Passive
Coupler
Passive
Coupler
Pro16e A-Net Out Pro16 or
Pro16e A-Net In
Total Pro16e A-Net cable length: 400 feet (122 meters)
Passive
Coupler
Passive
Coupler
When using Pro16e—such as the A-Net Out from an AN-16/i v.2 to any other Pro16 or Pro16e device—Cat-5e
cables may be up to 400 feet (approximately 122 meters) in length between compatible devices due to the
larger amount of data being transmitted to accommodate Pro16e’s higher channel count.
Pro16 A-Net Out Pro16 A-Net In
Total Pro16 A-Net cable length: 500 feet (150 meters)
Passive
Coupler
Passive
Coupler
Pro16e A-Net Out Pro16 or
Pro16e A-Net In
Total Pro16e A-Net cable length: 400 feet (122 meters)
Passive
Coupler
Passive
Coupler
The maximum cable length specification applies to the total cable length between an A-Ne t ou t port on
one device and the A-Ne t INport on the next A-Net capable device in your system.
Your cable length performance will be affected by a number of factors including the quality of the cables
used, and the number of passive devices such as cable couplers or passive wall panel interconnections in
use.
Stranded or solid Cat-5e cable may be used; stranded cable is easier to deploy on a stage while solid
core cable provides slightly better maximum distance performance. Solid core wire is typically used in
permanent installations in walls and across ceilings.
When using the optional AN-16SBR or SB4 System Bridge with Pro16 and Pro16e devices, the cable length
specification applies to the total cable length between the two active A-Net devices being connected with
the passive AN-16SBR System Bridge, plus all cables. This is also true when using a passive inline coupler to
extend cable lengths.
Pre-made cables in a variety of lengths and colors are available at most computer outlets. Cables may be
extended by using a simple passive device called an inline coupler to add length to existing cables (as long
as you do not exceed the specified maximum cable length). If you need a longer cable on occasion, this is
a simple solution. Note that the maximum cable length performance can be compromised by using inline
couplers or other passive connection devices.

7Y1 A-Ne t CA r d User GU i d e
AC Line Conditioning
Aviom products are digital devices and as such are sensitive to sudden spikes and drops in the AC line
voltage. Changes in the line voltage from lightning, power outages, etc. can sometimes damage electronic
equipment.
To minimize the chance of damage to your equipment from sudden changes in the AC line voltage, you
may want to plug your equipment into a power source that has surge and spike protection. Power outlet
strips are available with built-in surge protection circuits that may help protect your equipment.
Other options for protection of your equipment include the use of an AC line conditioner or a battery
backup system (sometimes referred to as an uninterruptible power supply, or UPS).
Cleaning and Maintenance Information
The exterior of your Aviom products should be cleaned with a dry, soft, lint-free cloth. For tougher dirt,
you can use a cloth slightly dampened with water or with a mild detergent.
When cleaning your Aviom products, never spray cleaners directly onto the product surfaces. Instead,
spray a small amount of the cleaning solution onto a clean cloth first. Then use the dampened cloth to
clean the product.
PNo t e : Never use solvents or abrasive cleaners on the finished surfaces of your Aviom products.

8Y1 A-Ne t CA r d User GU i d e
Function
1Thumb Screws
2DIP Switches - Stereo Link, #1-8
3DIP Switches - Mode Selection, #9-10
4Pro16 A-Net Output
5Locking EtherCon RJ45 connector with
release tab
6Multipin connector
Y1 Card Components
   


9Y1 A-Ne t CA r d User GU i d e
Installing the Y1 Card
The Y1 card can be used in any open MY expansion slot in a Yamaha digital mixing console or mix engine
device. The number of available expansion slots varies with each model. In the Yamaha user interface, the
MY expansion slots are identified by number, starting with “1.”
Align the card with the support guides in the expansion slot.
To install the Y1 card:
Start with the power to the Yamaha mixing console off.•
Remove the console’s power cord from the wall receptacle.•
Remove the cover plate on the rear of the Yamaha expansion port to expose the•
expansion connections.
Remove the Y1 card from its protective anti-static sleeve.•
Slide the card into place, aligning the sides of the card with the support guides in the•
expansion slot.
Press the Y1 card firmly in place to attach the multi-pin card connectors on the Y1 card•
and Yamaha mixer circuit board backplane.
Attach the Y1 card permanently by tightening the two thumb screws on the rear panel of•
the Y1 card.
Connect the Y1 card to other Pro16 A-Net devices using Cat-5e (or better) UTP cables.
PNo t e : Before powering up the console, read the following sections on operating modes.

10Y1 A-Ne t CA r d User GU i d e
DIP Switches
The first eight DIP switches on the front of the Y1 card are used for controlling the stereo link status of the
eight possible audio channel pairs. The last two switches (9 and 10) are used to set the MY mode and to
provide access to the test function.
Stereo Link
Mode
1 2 3 4 5 6 7 8 9 10
DIP switches 1-8 control stereo links; switches 9-10 control the MY modes and the test function. Switch handles are
shown in black.
Stereo Link Switches
DIP switches 1 to 8 of are used for the stereo link function. Stereo linking is possible when using Aviom’s
Personal Mixers (A360, A-16II and A-16R) for monitor mixing. Each DIP switch controls an odd-even pair of
channels; see the list below. When the switch is set to the “On” position (down), the channels are linked as
a stereo pair. If the switch is in the “Off “ (up) position, the channels are not linked and appear in all Pro16
devices an mono channels.
Stereo link changes can be made at any time, even while the Yamaha host console is running. All connected
Pro16 A-Net devices will instantly update and reflect the change. Compatible A-Net devices such as output
modules that do not respond to stereo linking will not be affected by changes to the link status.
DIP switch 1 to 8 settings:
Switch 1 - stereo link for channels 1 and 2•
Switch 2 - stereo link for channels 3 and 4•
Switch 3 - stereo link for channels 5 and 6•
Switch 4 - stereo link for channels 7 and 8•
Switch 5 - stereo link for channels 9 and 10•
Switch 6 - stereo link for channels 11 and 12•
Switch 7 - stereo link for channels 13 and 14•
Switch 8 - stereo link for channels 15 and 16•

11Y1 A-Ne t CA r d User GU i d e
Any combination of mono and stereo channels can be used.
Stereo Link
Mode
1 2 3 4 5 6 7 8 9 10
This example shows a conguration where channel pairs 3-4, 13-14, and 15-16 are set for stereo operation. (DIP switch
handles shown in black.)
Mode Select Switches
Positions 9 and 10 of the DIP switch are used for MY card mode selection. There are four possible switch
combinations; three operational modes and one test mode are provided.
The Y1 card is scanned during the Yamaha console boot-up procedure only. It is therefore important to
remember that mode changes should be made only while the console is off. If it is necessary to alter the
Y1 card operational mode after the console has been booted, a console restart will be required in order for
the mode change to be recognized.
MY16 Mode (default)
Set DIP switch 9 of f and switch 10 oN.
Stereo Link
Mode
1 2 3 4 5 6 7 8 9 10
MY16 mode oers 16 channels at 48kHz.
MY16 mode offers 16-channel output at a 48kHz sample rate. MY16 mode is not compatible with the PM1D
console; it must be set for MY8 mode.
The Yamaha console user interface will recognize the Aviom Y1 card as a generic 16-channel MY expansion
card. Names in text fields referring to the expansion card will display with a generic name (such as “MY16”),
depending on the model and software version of the Yamaha console.
In most cases, MY16 mode should be selected as the default setting.

12Y1 A-Ne t CA r d User GU i d e
MY8 Mode
Set DIP switch 9 of f and switch 10 of f .
Stereo Link
Mode
1 2 3 4 5 6 7 8 9 10
MY8 mode oers 8 channels at 48kHz. (DIP switch handles shown in black.)
MY8 mode offers 8-channel output at 48kHz and 96kHz sample rates. The PM1D console must be set for
MY8 mode.
Test Mode
Set DIP switch 9 oNand switch 10 oN.
Stereo Link
Mode
1 2 3 4 5 6 7 8 9 10
Test mode can be used for troubleshooting a monitoring system. (DIP switch handles shown in black.)
In Test Mode, channels 1 through 4 output a continuous 1kHz sine wave test tone. This mode can be used
to troubleshoot an audio system. Make sure to set the Yamaha console’s internal sample rate to 48kHz when
using Test Mode.
When troubleshooting using the Y1 card Test Mode, if the 1kHz test tones are heard in channels 1 through
4 of a connected A-Net device, the Y1 card is operating properly.
Check the channel routing settings in the Yamaha console user interface to determine that audio is being
routed properly. As an option, download and use the Yamaha Studio Manager software to help diagnose
routing problems or simplify setting up channels routings to expansion cards.
Studio Manager is a free application available from the Yamaha website.

13Y1 A-Ne t CA r d User GU i d e
PNo t e :Before switching the Y1 card to Test Mode, lower the volume on any connected A-Net
devices, amplifiers, powered speakers, etc., to avoid sudden volume changes and/or possible
hearing damage
To exit the Test Mode, a console restart is required. Power off the Yamaha mixing console. Reset the Y1
card DIP switches to the desired operational mode position, and then reboot the Yamaha console.
Aviom Mode
Yamaha consoles do not recognize Aviom mode (Switch 9 on and switch 10 off). Use MY16 mode as the
default setting for the Y1 card.
Stereo Link
Mode
1 2 3 4 5 6 7 8 9 10
Aviom mode is not supported by Yamaha.
