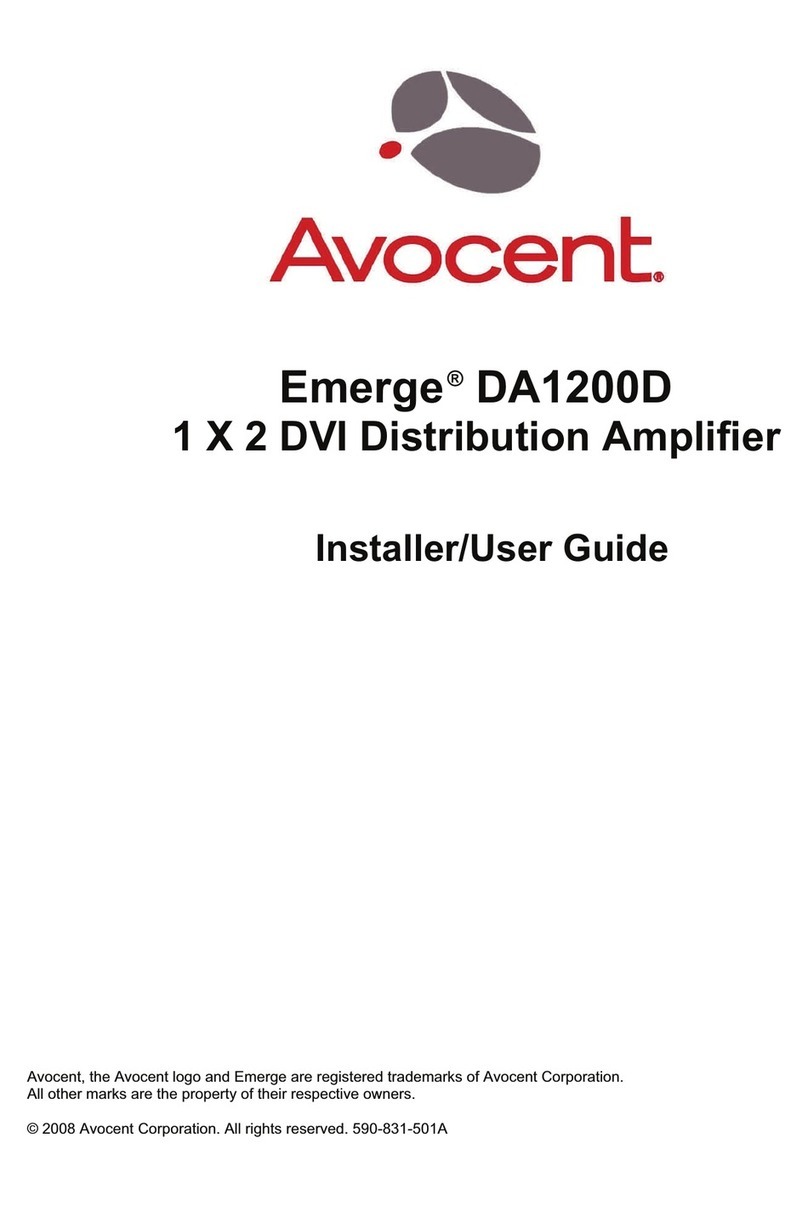

Avocent Emerge DA1200D DVI-D User manual
Emerge®DA1200D DVI-D
Distribution Amplifier
HDCP compliant DVI distribution
The Avocent Emerge DA1200D DVI-D distribution amplifier with HDCP is a compact, high
performance product designed to meet the most demanding requirements for the
distribution of DVI signals with HDCP copy protection. The DA1200D distribution amplifier
provides transparent distribution of a DVI-D signal to two destinations. The unit has DVI-I
connectors for the input and outputs for compatibility with all DVI cables. The DA1200D
distribution amplifier may be cascaded to deliver DVI with HDCP signals over greater
distances from the source using premium grade DVI cable. DDC support offers plug-and-
play operation.
KEY FEATURES
The Emerge DA1200D DVI-D distribution amplifier provides transparent distribution of signals to two
display devices using DVI cables. Fully HDCP complaint, the distribution amplifier inhibits the
unauthorized distribution of digital video material through copying.
•Supports Resolutions up to 1920 x 1200
•Unit Supports Cascading for Greater Flexibility
•Fully HDCP Compliant
•Supports all HDTV Resolutions
•Dual DVI Outputs
Technical Specifications
Mechanical / Power / Environmental
Size: 3.0” (75 mm) D, 6.0” (153 mm) W, 1.65” (42 mm) H
Weight: 1.0 lb (0.45 Kg)
Power: 9VDC@1.3A (external power supply)
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -4°F (-20°C) to 140° F (60°C)
Humidity: 10% to 85% (Non-condensing)
Performance
HDTV Resolutions: 480i, 480p, 720p, 1080i, 1080p
Maximum Display Resolution: 165 MHz
(UXGA)
Maximum Resolution: 1920 x 1200@60Hz
Maximum Cable Distance (Outputs):
32 ft (10 m) using premium grade DVI cable
I/O Connectors
DVI Destination Port Connectors:
(2) DVI-I 29 pin female
Input Port Connector:
(1) DVI-I 29 pin female
Regulatory Approvals
Switcher Unit: FCC, CE
Power Supply: UL, CE, CSA
Warranty
Two years
Ordering Details
Part Number Description
DA1200D 1-2 DVI DA
One Dambrackas Way, Sunrise, FL 33351
TEL 800.275.3500 - 954.746.9000, Ext. 7110
www.connectivity.avocent.com
Avocent, the Avocent logo and Emerge are registered
trademarks of Avocent Corporation or its affiliates. All
other marks are the property of their respective
owners. © 2008 Avocent Corporation.
0108-DA1200D-TP
Workstation
DA1200D
Distribution Amplifier
Display
DVI
DVI
DVI Display
