Avol WP800 User manual

WP800 2.4GHz
Digital Cordless Phone
User’s Manual
Thank you for your purchase. Please read this manual carefully before use.
* Note: Caller ID function is not available in Japan
1

CONTENTS
T1. FUNCTION FEATURES .......................................................................................................................................4
2. BASE AND HANDSET KEY FUNCTION .............................................................................................................5
2.1 BASE KEY FUNCTION ........................................................................................................................................5
2.2 HANDSET KEY FUNCTION................................................................................................................................5
3. DURING STANDBY MODE ，HANDSET DISPLAY . .....................................................................................5
3.1 HANDSET DISPLAY STATE................................................................................................................................5
3.2 MENU STRUCTURE.............................................................................................................................................5
4. MENU SETTING.....................................................................................................................................................8
4.1 BASE FUNCTION SETUP....................................................................................................................................8
4.1.1 Dial Mode Setting................................................................................................................................................8
4.1.2 Flash time setting.................................................................................................................................................8
4.1.3 Local code setting ................................................................................................................................................9
4.1.4 Area code setting................................................................................................................................................10
4.1.5 Change PIN code setting....................................................................................................................................10
4.1.6 Default operation................................................................................................................................................11
4.2 HS FUNCTION SETUP .......................................................................................................................................12
4.2.1 Internal ring tone and ring volume setting.........................................................................................................12
4.2.2 External ring tone and ring volume setting........................................................................................................13
4.2.3 Key Tone setting ................................................................................................................................................14
4.2.4 Time＆Alarm setting..........................................................................................................................................14
4.2.4.1 Date Format setting.........................................................................................................................................14
4.2.4.2 Time Format setting........................................................................................................................................14
4.2.4.3 Time setting.....................................................................................................................................................15
4.2.4.4 Alarm clock 1 setting ......................................................................................................................................16
4.2.4.5 Alarm clock 2 setting ......................................................................................................................................17
4.3 LANGUAGE SETTING.......................................................................................................................................17
4.4 LCD CONTRAST SETTING...............................................................................................................................17
4.5 VOICE CALL SETTING......................................................................................................................................18
4.6 AUTO ANSWER SETTING.................................................................................................................................18
4.7 DEFAULT OPERATION......................................................................................................................................19
5. REGISTRATION....................................................................................................................................................20
5.2 REGISTER AND DEREGISTER HANDSET.....................................................................................................20
5.2.1 Register Handset................................................................................................................................................20
5.2.2 Deregister...........................................................................................................................................................21
5.2.3 Deregister all handset on base............................................................................................................................22
6. DIAL/ANSWER CALLS .......................................................................................................................................22
6.1 TO DIALA CALL ................................................................................................................................................22
6.2 TO ANSWER A CALL.........................................................................................................................................22
6.2.1 To answer a call under normal operation ...........................................................................................................22
6.2.2 To answer a call under auto-answer activated situation.....................................................................................23
6.3 FLASH FUNCTION.............................................................................................................................................23
6.4 PRE-DIALING FUNCTION ................................................................................................................................23
6.5 REDIAL FUNCTION...........................................................................................................................................23
6.6 TALK VOLUME ADJUST...................................................................................................................................23
2

6.7 CONVERSATION FROM TALK MODE TO SPEAK MODE ...........................................................................23
6.8 INTERCOM FUNCTION.....................................................................................................................................23
6.9 TRANSFER FUNCTION OPERATION..............................................................................................................24
6.10 CONFERENCE FUNCTION OPERATION......................................................................................................24
6.11 MUTE FUNCTION ............................................................................................................................................24
6.12 OUTGOING CALL REVIEWING/REDIAL/STORE/DELETE.......................................................................24
6.12.1 Outgoing call reviewing...................................................................................................................................24
6.12.2 Outgoing call redialing.....................................................................................................................................24
6.12.3 Outgoing call store...........................................................................................................................................25
6.12.4 Outgoing call delete .........................................................................................................................................25
6.13 RECEIVED CALL REVIEWING/CALL-BACK/STORE/DELETE ................................................................25
6.13.1 Received call reviewing...................................................................................................................................25
6.13.2 Call back ..........................................................................................................................................................26
6.13.3 Received call store...........................................................................................................................................26
6.13.4 Received call delete .........................................................................................................................................27
6.14 PHONE BOOK FUNCTION..............................................................................................................................27
6.14.1 To review Phonebook memory ........................................................................................................................27
6.14.2 To add phone book memory.............................................................................................................................27
4.14.3 Character comparison.......................................................................................................................................28
6.14.4 To edit Phonebook memory .............................................................................................................................28
6.14.5 To delete one group Phonebook memory.........................................................................................................29
6.14.6 To delete all Phonebook memory.....................................................................................................................29
6.14.7 Phone book dialing...........................................................................................................................................30
7.OTHER FUNCTION...............................................................................................................................................30
7.1 PAGE FROM BASE TO HANDSET ...................................................................................................................30
7.2 KEYPAD LOCK ON/OFF FUNCTION...............................................................................................................30
7.3 NEW MESSAGE INDICATION..........................................................................................................................30
7.3.1 Delete message...................................................................................................................................................30
7.4 OUT OF RANGE ALARM ..................................................................................................................................31
7.5 HANDSET ON/OFF FUNCTION........................................................................................................................31
3

1. FUNCTION FEATURES
2.4GHz frequency band digital enhanced cordless phone.
HANDSET LCD: 66*11 Dots Matrix. 14 digits display
Maximum 3 handsets are linked to the same base unit
Multi Language（English, Spanish, Korean）
CID Voice call function.
2 groups alarm clock function
Time format: 12 hour and 24 hour
Local code and area code function.
Tone and pulse dial select function
Pre-dialing function (32 digits)
40 groups Phonebook memory
40 groups Caller ID memory (number and name)
10 groups Outgoing Call memory
Audio setup that includes 15 melodies each for internal and external ring, 5 steps digital volume adjustment
4 steps digital volume adjustment for earpiece and speaker
Flash time（100ms, 300ms, 600ms, 1000ms）select
Redial function (32 digits)
FSK & DTMF dual Caller ID system
* Note : Caller ID function is not available in Japan
Call Waiting function
One handset transfer to other handset function.
Conference call between external call and two handsets
Intercom between two handsets
Key pad lock function
Mute function
Voice mail function
Battery low alarm and out of range alarm function
Power ON/OFF；
HS Default
4

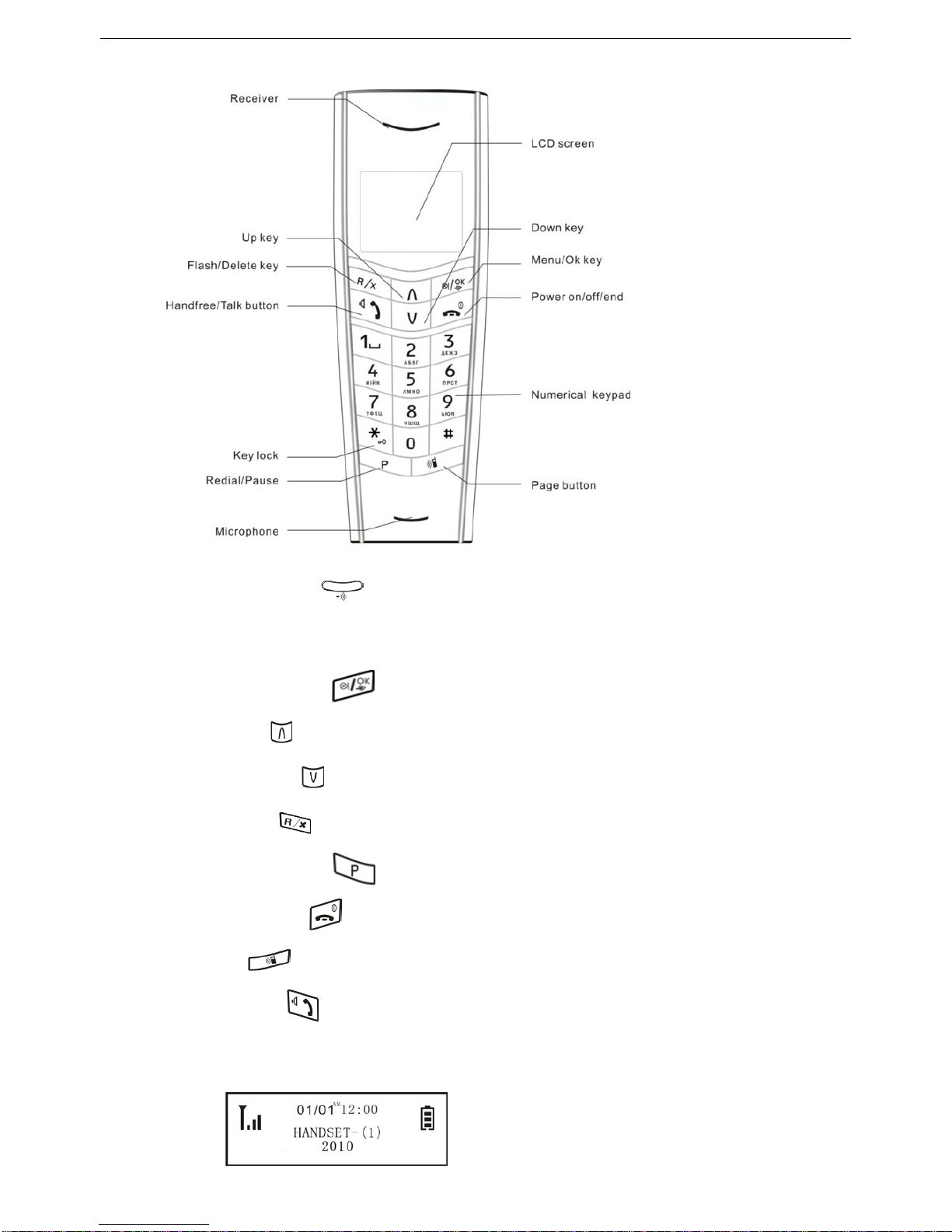

2. BASE AND HANDSET KEY FUNCTION
2.1 BASE KEY FUNCTION
Page/Registerkey ：
2.2 HANDSET KEY FUNCTION
DIAL NUMBER KEY：1,2,3,4,5,6,7,8,9,*,0,#.
MENU/OK/MUTE key ：
UP/CID key ：
DOWN/OUT key ：
FLASH/C key ：
REDIAL/PAUSE key ：
EXIT/POWER key ：
INT key ：
TALK/HF key ：
3. DURING STANDBY MODE, HANDSET DISPLAY .
3.1 HANDSET DISPLAY STATE
5

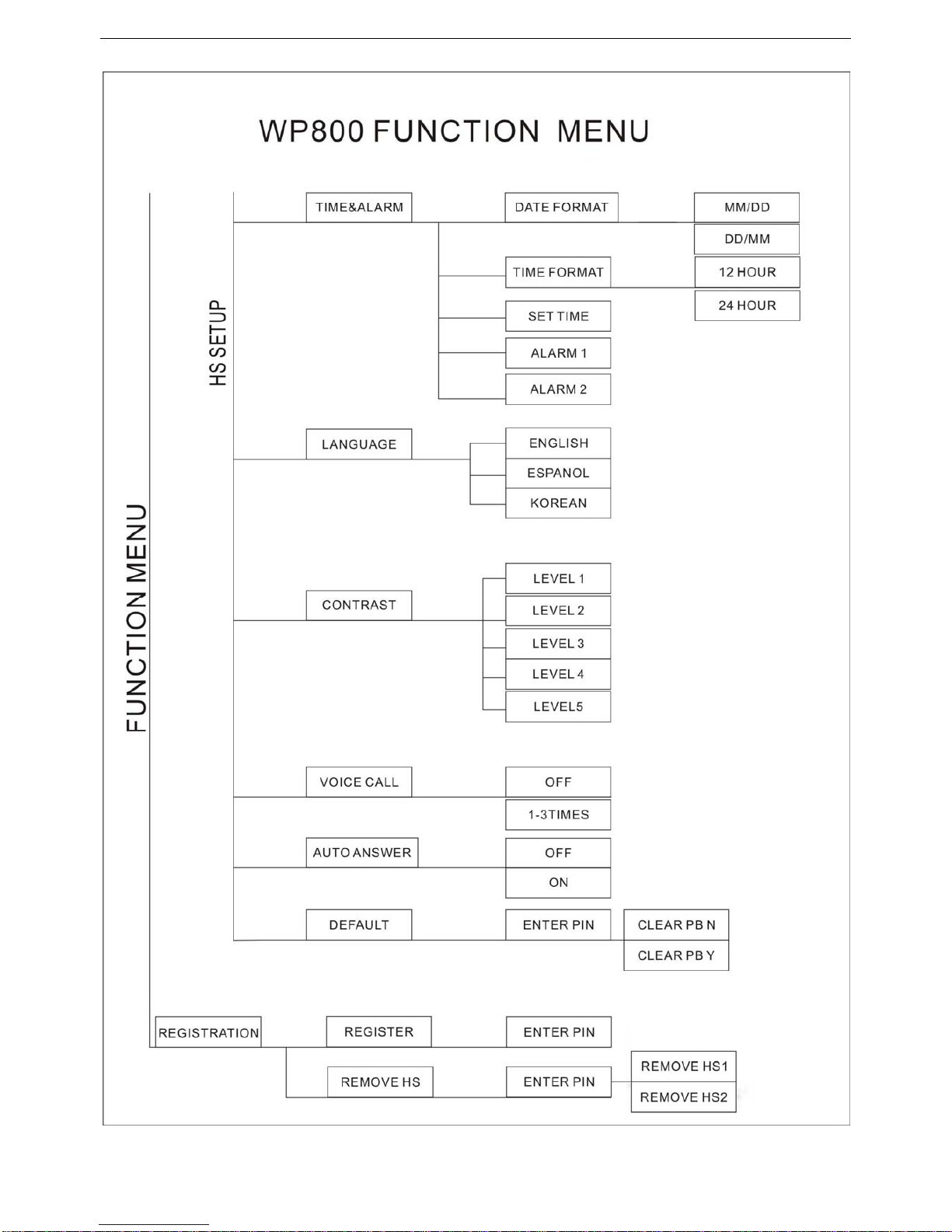

3.2 MENU STRUCTURE
6

7

4. MENU SETTING
4.1 BASE FUNCTION SETUP

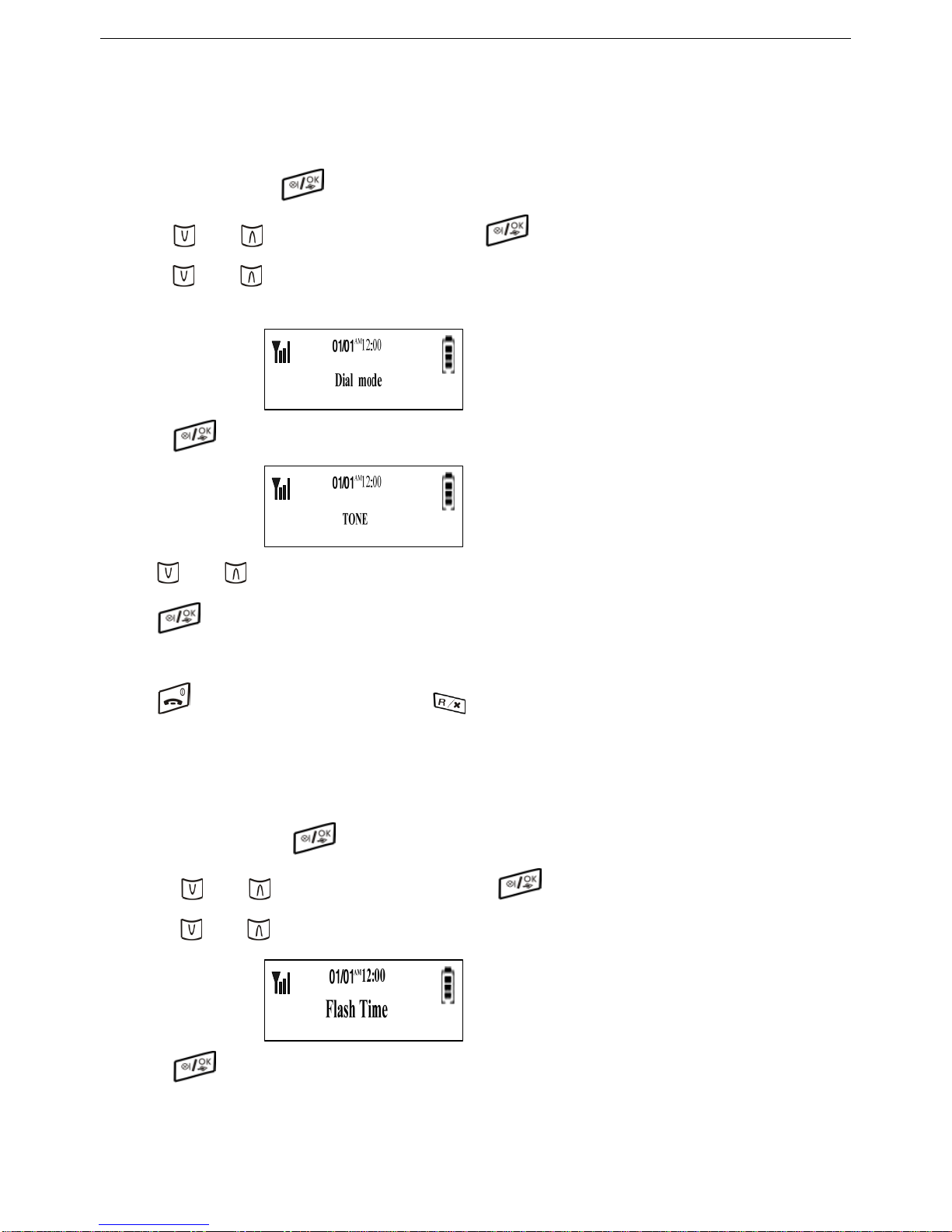

4.1.1 DIAL MODE SETTING
Factory default for Dial Mode is Tone.
a. In standby mode, press key to enter setting mode.
b. Press key or key to select “BS Setup” and press key to confirm.
c. Press key or key to select “Dial mode”，LCD will show as following:
d. Press key to confirm. LCD will show as following:
e. Press key or key to select ‘Tone’or ‘Pulse’.
Press key to confirm and return to “Dial Mode”. After the sound of “di du” heard, it indicates that the setting
is done.
Press key to return to standby mode or press key to return to “BS Setup”menu.
4.1.2 FLASH TIME SETTING
User can select Flash time (100ms, 300ms, 600ms, 1000ms).
Factory default for Flash Time is 600ms.
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “BS Setup” and press key to confirm.
c. Press key or key to select “Flash Time”, LCD will show as following:
d. Press key to confirm, LCD will show as following:
8

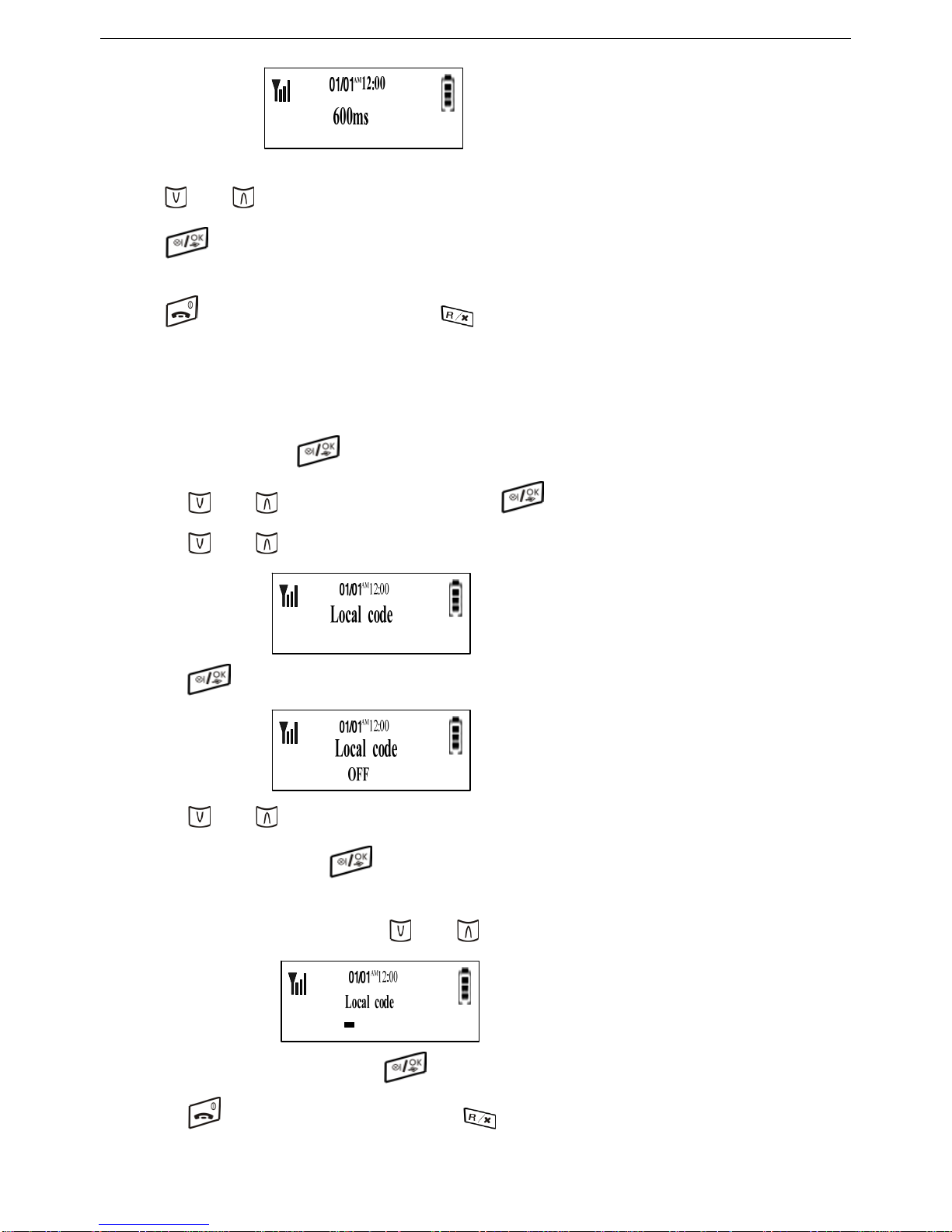

e. Press key or key to select Flash Time you want.
Press key to confirm and return to “Flash Time “. After the sound of “di du” heard, it indicates that the
setting is done.
Press key to return to standby mode or press key to return to “BS Setup”menu.
4.1.3 LOCAL CODE SETTING
Setup:
Factory default for Local Code is “OFF”.
a. In standby mode, press key to enter setting mode.
b. Press key or key to select “BS Setup” and press key to confirm.
Press key or key to select “Local Code”, LCD will show as following:
c. Press key to confirm, LCD will show as following:
d. Press key or key to select “OFF” or “ON”
If you select “OFF”，press key to confirm and return to “Local Code” menu. After the sound of “di du”
heard, it indicates that the setting is done.
If you want to setup Local Code,press key or key and LCD will show as following:
After input one of number 0~9, press key to confirm and return to “Local Code” menu
Press key to return to standby mode or press key to return “BS Setup” menu.
9

*Note: The local code function is particularlly designed for easy use to make calls under the situation when
PABX (Private Automatic Branch Exchange) system connected. This function is invalid when the number
to-be-dial is less than 5 digits.
For example, when this device is used under PABX system, you need to add the controlled number ‘9’ to make
an external call. To ease making an external call, you can set the local code same as PABX controlled code (here
says 9), then you just dial the phone number without adding the controlled number 9 to make an external call.

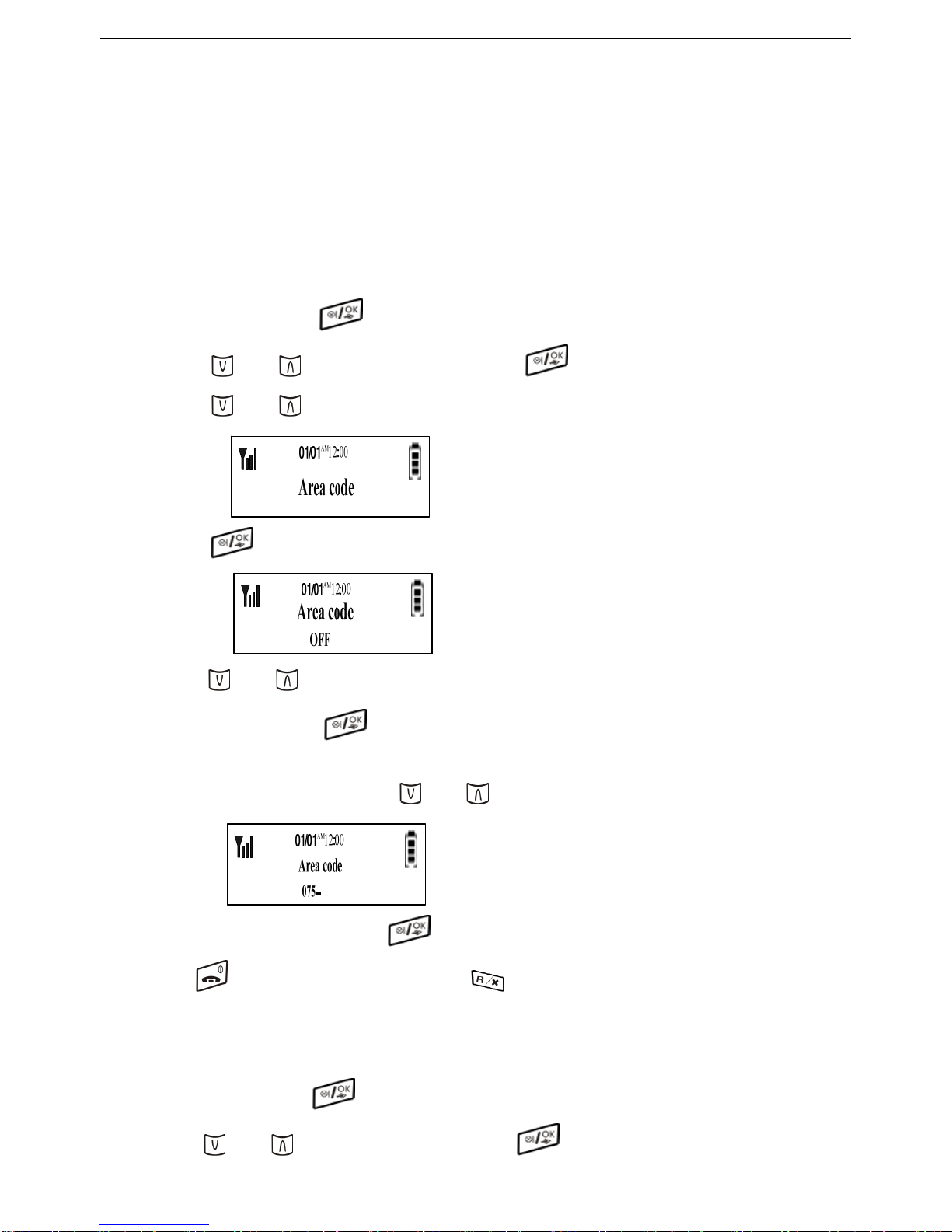

4.1.4 AREA CODE SETTING
a. In standby mode, press key to enter setting mode.
b. Press key or key to select “BS Setup” and press key to confirm.
Press key or key to select “Area Code”，LCD will show as following:
c. Press key to confirm and LCD will show as following:
d. Press key or key to select “OFF” or “ON”
If you select Off，Press key to confirm and return to “Area Code” menu, after the sound of “di du”
heard, it indicates that the setting is done.
If you want to setupArea code,press key or key again, LCD will show as following:
Input up to Maximum 4 digits, press key to confirm and return to “Area code”.
Press key to return.to standby mode or press key to return to“BS Setup”menu.
4.1.5 CHANGE PIN CODE SETTING
Factory default for PIN Code is “0000”.
a. In standby mode, press key to enter setting mode.
b. Press key or key to select “BS Setup” and press key to confirm.
10

c. Press key or key to select “Change PIN” and LCD will show as following:
d. Press key to confirm and LCD will show as following:
Input the old PIN code and then press key to confirm, LCD will show as following:
e. Input new PIN code and then press key to confirm, LCD will show as following
After input the new PIN code again, press key to confirm and return to “Change PIN”. After the sound
of “di du” heard, it indicates that the setting is done.
Press key to return to standby mode or press key to return to “BS Setup” menu.
4.1.6 DEFAULT OPERATION
a. In standby mode, press key to enter setting mode.
b. Press key or key to select “BS Setup” and press key to confirm.
Press key or key to select “Default”, LCD will show as following:
c. Press key to confirm and LCD will show as following:
11

Input PIN code and then press key to confirm, LCD will show as following:
After2seconds,it will return to standby mode.
4.2 HS FUNCTION SETUP
4.2.1 INTERNAL RING TONE AND RING VOLUME SETTING
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select “Sound” and press key to confirm.
d. Press key or key to select “INT Ring” and press key to confirm.
e. Press key or key to select “Melody” and press key, the the melody will be played and LCD
will show as below:.
f. Press key or key to select Melody 1～Melody 15.
g. Press key to save the melody you want, LCD will show as following:
h. Press key or key to select “Volume”, LCD will show as following:
I. Press key to check the current volume level and LCD will show as following:
12

Press key or key to select Volume 1～Volume 5 and press key to confirm. After the sound of
“di du” heard, it indicates that the setting is done.
Press key to return to standby mode or press key to return to “INT Ring”menu.
4.2.2 EXTERNAL RING TONE AND RING VOLUME SETTING
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select “Sound” and press key to confirm.
d. Press key or key to select “EXT Ring” and press key to confirm.
e. Press key or key to select “Melody” and press key, the melody will be played and LCD will
show as following.
f. Press key or key to select Melody 1～Melody 15.
g. Press key to save the melody you want, LCD will show as following:
h. Press key or key to select “Volume”, LCD will show as following:
I. Press key to check the current volume level, LCD will show as following:
Press key or key to select Volume 1～Volume 5 and press key to confirm. After the sound of
“di du” heard, it indicates that the setting is done.
13

Press key to return to standby mode or press key to return to “EXT Ring”.

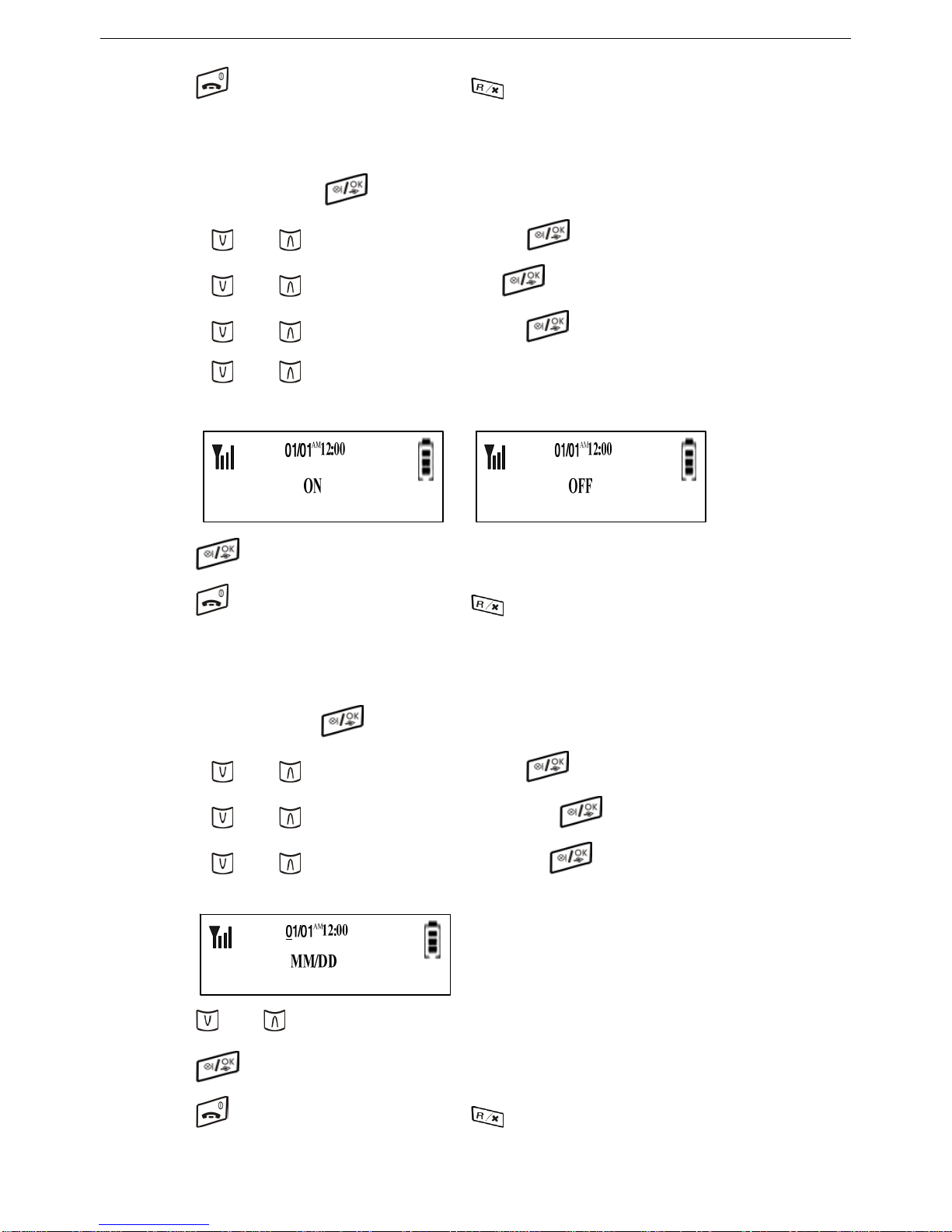

4.2.3 KEY TONE SETTING
Factory default for Key Tone is “OFF”.
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select “Sound”and press key to confirm.
d. Press key or key to select “Key Tone” and press key to confirm.
Press key or key to select “On” or “Off” and LCD will show as following:
Press key to confirm,. After the sound of “di du” heard, it indicates that the setting is done.
Press key to return to standby mode or press key to return to “Key Tone” menu.
4.2.4 TIME＆ALARM SETTING
4.2.4.1 DATE FORMAT SETTING
a. In standby mode, press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select “Time & Alarm” and press key to confirm.
d. Press key or key to select “Date Format” and press key to confirm.
Press key or key to select MM/DD or DD/MM，
Press key to confirm. After the sound of “di du” heard, it indicates that the setting is done.
Press key to return to standby mode or press key to return to“Date Format”.

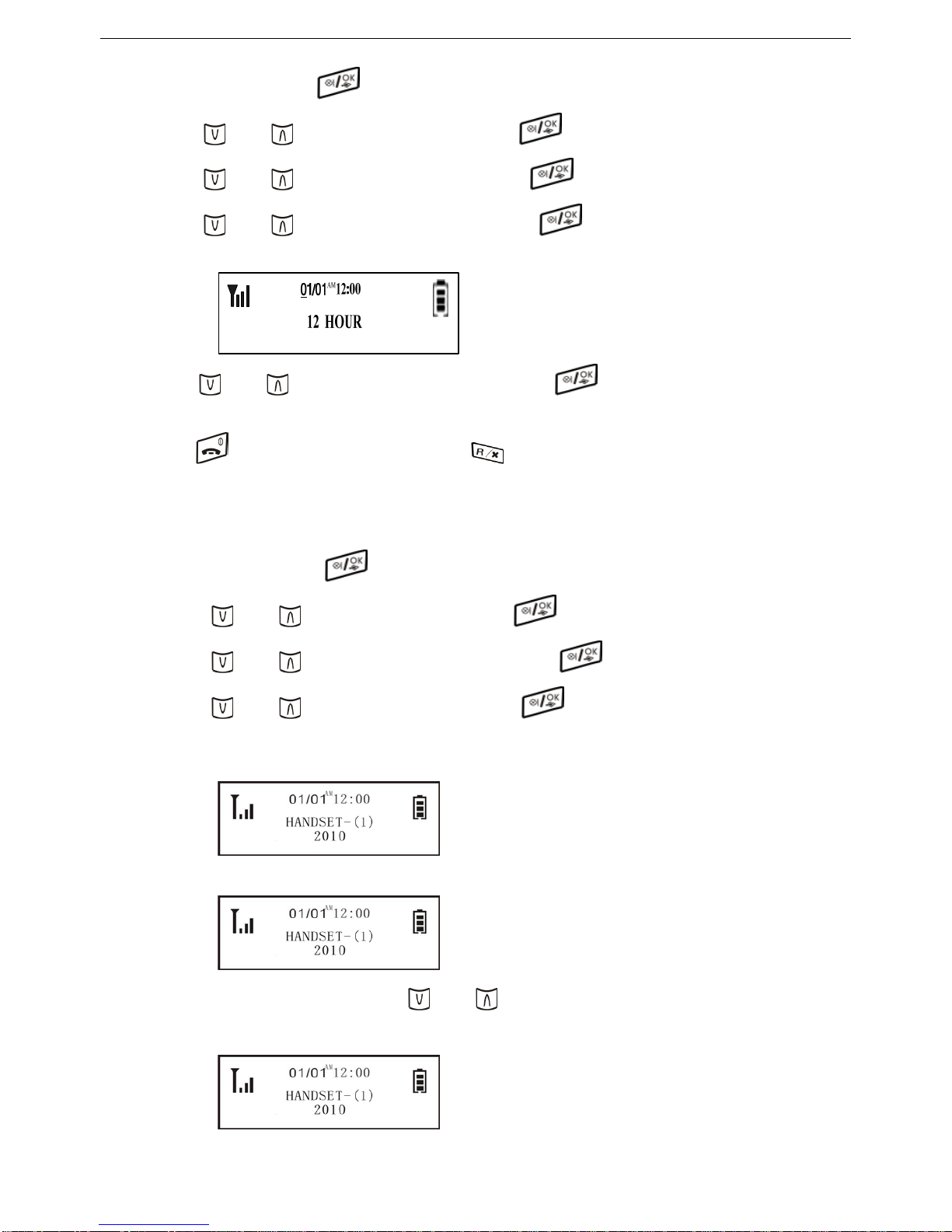

4.2.4.2 TIME FORMAT SETTING
14

a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select“Time & Alarm” press key to confirm.
d. Press key or key to select “Time format” and press key to confirm.
e. Press key or key to select 12 hour or 24hour. And press key to confirm.After the sound of
“di du”heard, it indicates that the setting is done.
Press key to return to standby mode or press key to return to “Time format”.
4.2.4.3 TIME SETTING
Factory default time is 2010.10.01AM12:00。
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup”，Press key to confirm.
c. Press key or key to select “Time & Alarm” and press key to confirm.
d. Press key or key to select “Set Time” and press key to enter year setting.
LCD will show as following:
After inputing number 0~9 when the third digit flashes,the fourth digit will flash as following.
During modifying year, you can use key or key to move cursor.
After year setting，you can enter month setting
15

During modifying month, you can use key or key to move cursor。
If time format is 12 hour, you can use key or key to select AM or PM .
Press key to confirm.After the sound of “di du” heard, it indicates that the setting is done.
Press key to return to standby mode or press key to return “Set Time”.

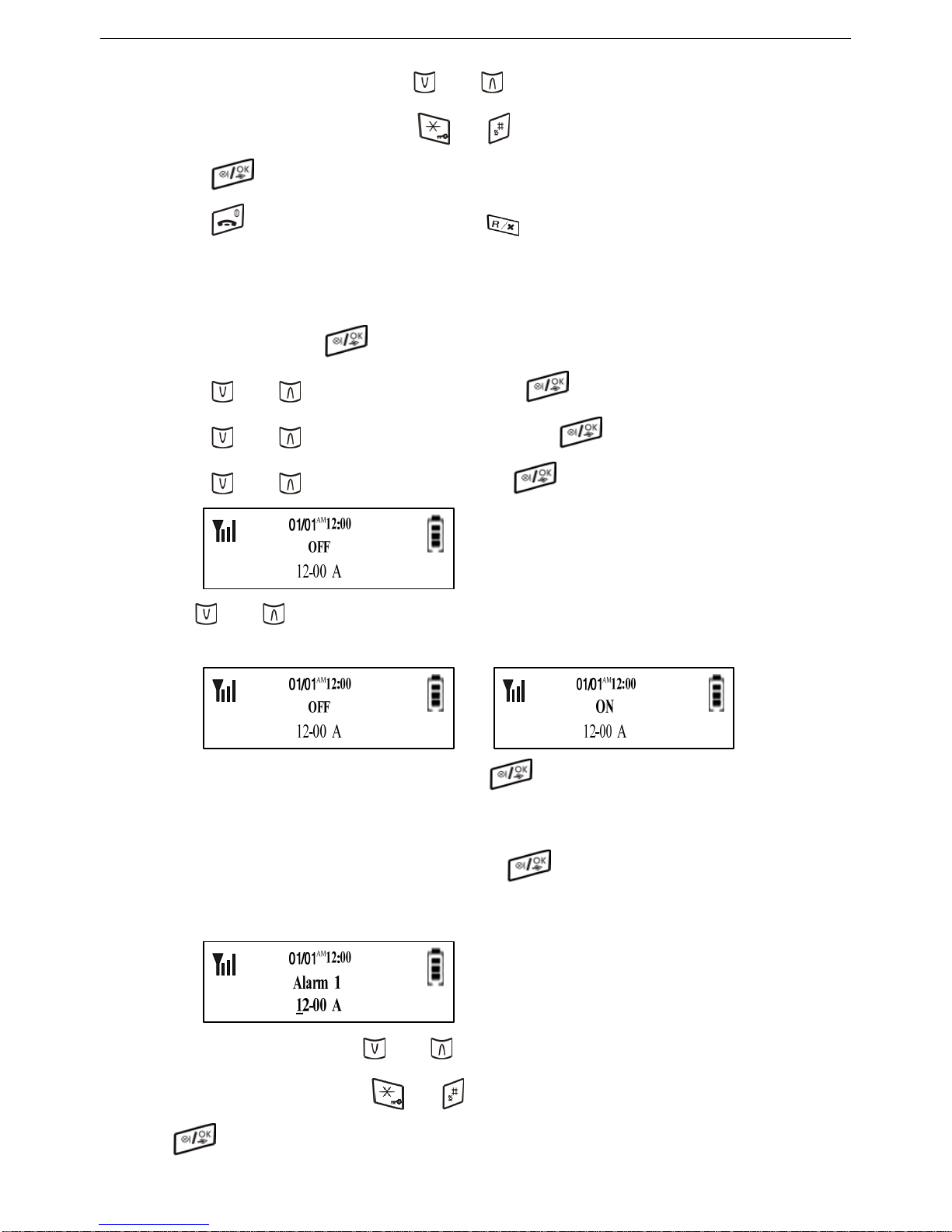

4.2.4.4 ALARM CLOCK 1 SETTING
Factory default for alarm 1 is “Off” and time isAM 12:00。
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select “Time & Alarm” and press key to confirm.
d. Press key or key to select “Alarm1” and press key to confirm.LCD will show as following:
e. Press key or key to selectAlarm 1 “ON”or “OFF”。
If you want the alarm off, please select “Off” and press key to confirm. After the sound of “di du” heard, it
indicates that the setting is done.
If you want to set the alarm, please select “On” and press key to enter Alarm clock time setting. LCD will
show as following:
During modifying time, you can use key or key to move cursor.
If time format is 12 hour, you can use key or key to select AM or PM .
Press key to confirm and return to “Alarm 1”. After the sound of “di du” heard, it indicates that the setting
16

is done.
Press key to return to standby mode or press key to return to “Time & Alarm” menu.
4.2.4.5 ALARM CLOCK 2 SETTING
Factory default forAlarm 2 is “OFF” and time isAM 12:00。
Alarm2 setting is same asAlarm1
4.3 LANGUAGE SETTING
Factorydefault Language is “English”.
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select “Language” and press key to confirm.
d. Press key or key to select the Language you want.
Press key to confirm and return to “Language” menu. After the sound of “di du” heard, it indicates that
the setting is done.
Press key to return to standby mode or press key to return to “HS Setup” menu.
4.4 LCD CONTRAST SETTING
Factory default contrast level is “level 5”
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select “Contrast” and press key to confirm；
17

d. Press key or key to select Contrast level 1 ~ 5.
Press key to confirm and return to “Contrast”. After the sound of “di du” heard, it indicates that the setting
is done.
Press key to return to standby mode or press key to return to “HS Setup”menu.

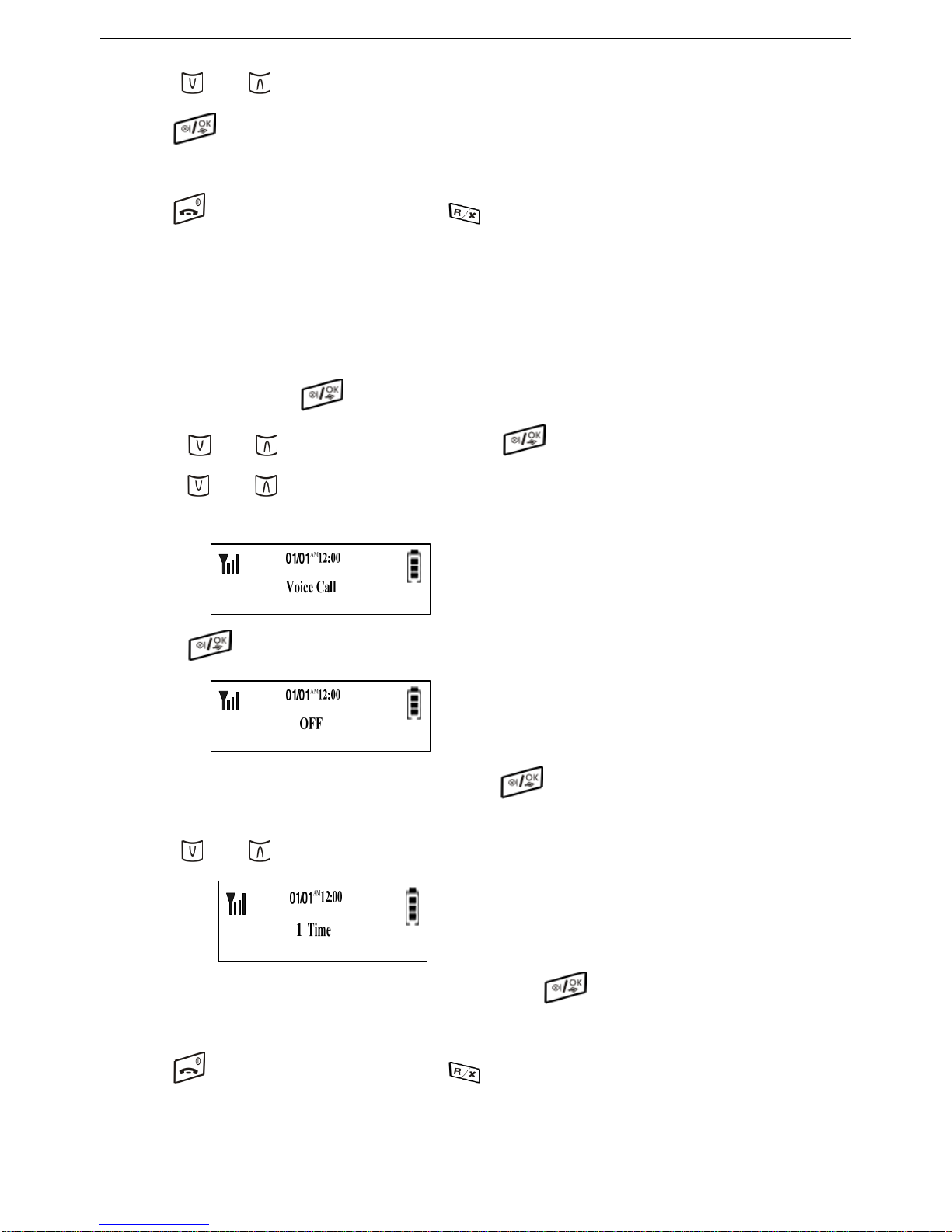

4.5 VOICE CALL SETTING
(This function is that the phone voices the receiving phone No.)
* Note: This function is not available in Japan
Factory default for Voice Calling is “OFF”.
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
c. Press key or key to select “Voice Call” LCD will show as following:
d. Press key to confirm. LCD shows as following:
If you want Voice Call off, please select “OFF” and press key to confirm. After the sound of “di du” heard,
it indicates that the setting is done.
Press key or key to select Voice call times and LCD will show as following:
After you select Voice call times (1 Time ~3 Times), please press key to confirm and return to “Voice Call”.
After the sound of “di du” heard, it indicates that the setting is done.
Press key to return to standby mode or press key to return to “HS Setup” menu.

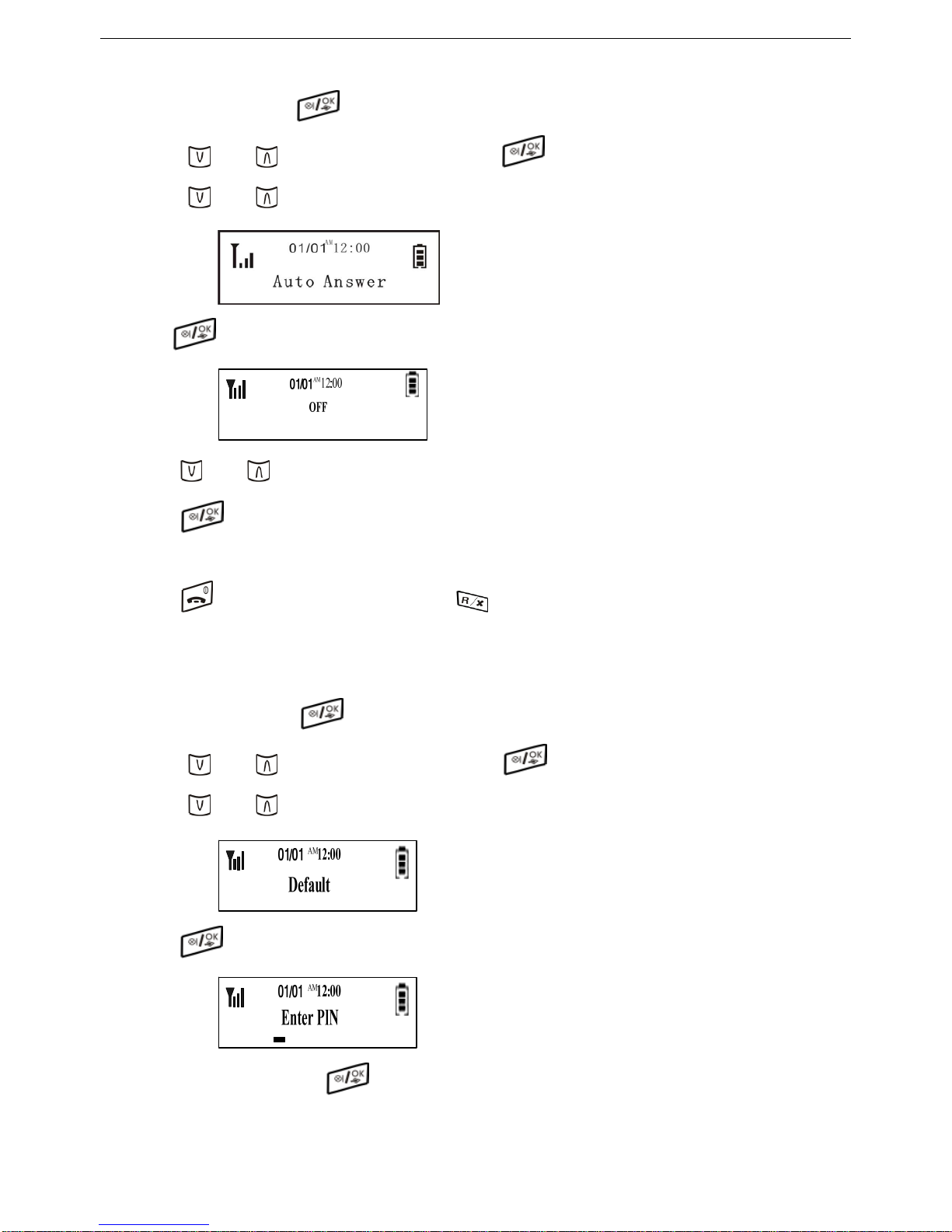

4.6 AUTO ANSWER SETTING
18

Factory default forAutoAnswer setting is “Off”.
a. In standby mode, press key to enter setting menu.
b. Press key or key to select “HS Setup” and press key to confirm.
Press key or key to select “Auto Answer” and LCD will show as following:
Press key to confirm and LCD will show as following:
e. Press key or key to select “On” or “Off”.
Press key to confirm and return to “Auto Answer”. After the sound of “di du” heard,
it indicates that the setting is done.
Press key to return to standby mode or press key to return to “HS Setup” menu.
4.7 DEFAULT OPERATION
Factory default for call ID memory, IP code and Redial memory is empty.
a. In standby mode , press key to enter setting mode.
b. Press key or key to select “HS Setup” and press key to confirm.
Press key or key to select “Default” and LCD will show as following:
c. Press key to confirm and LCD will show as following:
Input PIN code and then press key to confirm, LCD will show as following:
19

Press key or key to select “Clear PB N” or “Clear PB Y”
*Note：When user selects “Clear PB Y”, it will clear all phonebook number.
d. Press key to confirm and LCD will show as following:
After 2 seconds, it will return to standby mode.
5. REGISTRATION
BASE in standby mode，press key for 5 seconds to enter Register mode and LED will blink 500ms
on 500ms off.
5.2 REGISTER AND DEREGISTER HANDSET
5.2.1 REGISTER HANDSET
a. HANDSET in standby mode , press key to setting menu.
Press key or key to select “Registration” and press key to confirm.
Press key or key to select “Registration”, LCD shows as following:
b. Press key to confirm and LCD will show as following
Press key or key to select “Register” or “Remove HS”.
c . If you select “Register”, LCD will show as following:
Please input maximum 4 digits Pin code and press key to confirm
If the PIN code is wrong, it will not be able to register.
20
