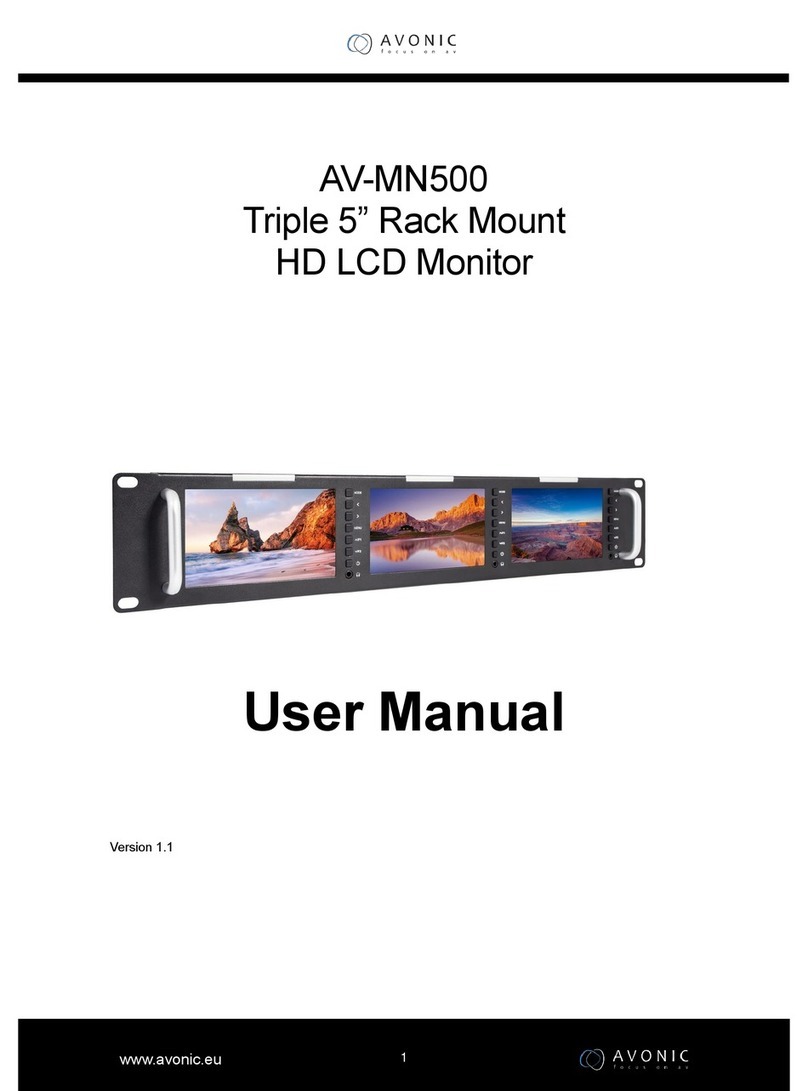

Avonic AV-MN500 User manual

www.avonic.eu
1
Avonic AV-MN500
Triple 5” Rack Mount
HD LCD Monitor
User Manual
Version 1.2
Update notes:
Audio de-embedding to headphone
Join Avonic
linkedin.com/company/avonic
twitter.com/avonic
facebook.com/avonic

www.avonic.eu
2
Contents
Introduction...................................................................................4
Congratulations ................................................................................................................................... 4
Safety Notes......................................................................................................................................... 4
Package contents and Accessories ..................................................4
Product Overview ..........................................................................4
Features............................................................................................................................................... 5
Product Description............................................................................................................................. 5
Front Panel View.............................................................................................................................. 5
Rear Panel View ............................................................................................................................... 6
Installation.....................................................................................7
Power adapter installation .................................................................................................................. 7
Operation Instructions ...................................................................8
Menu.................................................................................................................................................... 8
Menu instruction.............................................................................................................................. 8
Image Color...................................................................................................................................... 8
Setting Menu.................................................................................................................................... 9
Function ......................................................................................................................................... 10
Shortcut button setting.................................................................................................................. 12
Operation........................................................................................................................................... 12
Monitor button instruction............................................................................................................ 12
Maintenance................................................................................ 13
Troubleshooting........................................................................... 13
Only Mono or Single color picture..................................................................................................... 13
No image after put on the power...................................................................................................... 13
No Sound ........................................................................................................................................... 13
Contact ........................................................................................ 13
Appendix ..................................................................................... 14
Technical Data ................................................................................................................................... 14

www.avonic.eu
3
Physical Dimensions........................................................................................................................... 15
Quick Installation Guide..................................................................................................................... 15

www.avonic.eu
4
Introduction
Congratulations
Thank you for purchasing the Avonic AV-MN500 5” Triple Rack Mount Monitor. Before beginning to
operate this device, please read the manual in order to make sure the best performance is obtained.
Please, save this manual for future reference.
Safety Notes
•Installation and servicing should only be done by Qualified Service Personnel and conform to
all local codes.
•This unit is designed for indoor use only and it must not be installed where exposed to water
or other liquids and moisture.
•Before powering on the device, check the input power voltage carefully.
•Avoid shock and vibration when transporting and installing the device.
•Electronic devices produce heat. Do not block the ventilation slots of the device and make
sure the installation environment is well ventilated to avoid overheating.
•Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device, do not
use strong or abrasive detergent to clean as it will damage the device.
•If you wish to dispose this product, please contact Avonic to obtain info about the take-back
procedure.
Package contents and Accessories
Quantity
Description
Avonic SKU
1 pc
Triple 5” Rack Mount HD LCD Monitor
AV-MN500
1 pc
Power adapter 12V 3A
AV-MN500-PSU
1 pc
Tally kit
AV-MN500-TALLY
Product Overview
This monitor adopts advanced integrated circuits and special TFT LED panel, which makes it low
power consumption, stable performance, no radiation etc. This monitor is with HDMI, 3G-SDI, CVBS
and AUDIO input, HDMI, 3G-SDI, CVBS output, Stereo headphone etc. It has a wide range of
application, casing compact, simple operation, and strong compatibility. The advanced features
contain Screen Marker, Pixel to Pixel, Image Flip, and Color Temp. etc.

www.avonic.eu
5
Features
•2U rack mount with triple 5” LCD monitor, compact thin and lightweight design, which
makes it suitable for installing where the space is limited to be installed in the standard 19-
inch rack.
•Three-color Tally indicator.
•With VIDEO, AUDIO, HDMI, 3G-SDI input, suitable for a variety of signals.
•Headphone AUDIO output from all inputs. De-embeds audio from HDMI and 3G-SDI.
•Custom buttons, could set the custom F button function as customers operating habit.
•With advanced functions like Center Marker, Safe Frames,
•Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P, Image Freeze, etc.
Product Description

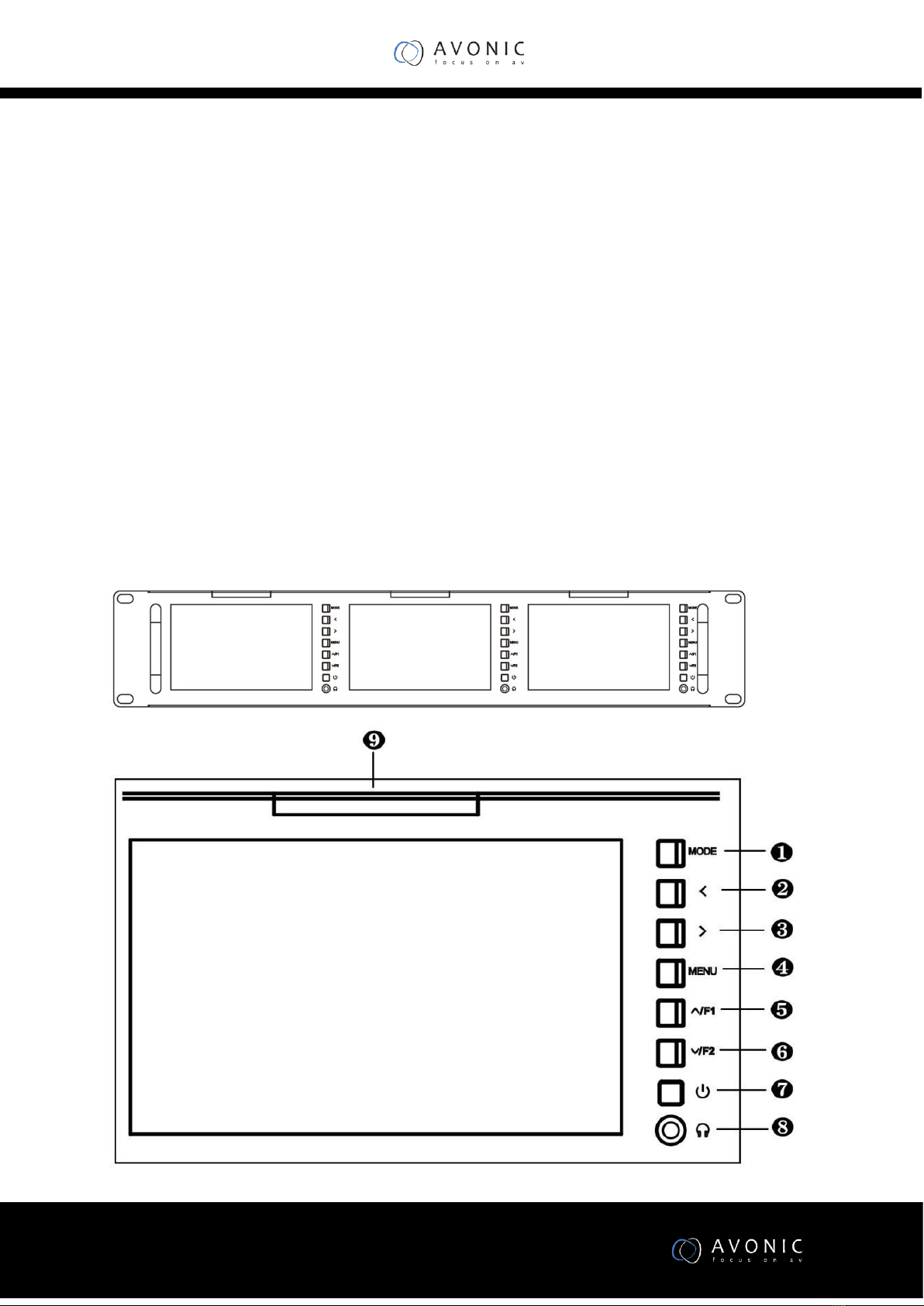

Front Panel View

www.avonic.eu
6
1. MODE: Signal input selection.
2. ＜：Volume down. In menu operation, it is for the adjustment of the set item.
3. ＞：Volume up. In menu operation, it is for the adjustment of the set item.
4. MENU：Menu button
5. ∧/F1：No menu display, it is F1 button, when enters into menu bar, it is for the up item selection.
6. ∨/F2：No menu display, it is F2 button, when enters into menu bar, it is for the down item
selection.
7. ：On/Standby button
8. ：Earphone jack
9. TALLY indicator.
Rear Panel View
1.DC power input port.

www.avonic.eu
7
2. 4-pin XLR DC12V power input.
3. 3G/SDI：input & output
4. CVBS：input & output
5. AUDIO：Audio input L / R
6. HDMI：input & output
7. TALLY indicator input
8. USB program upgrade port
Installation
Power adapter installation
Connect DC12V power to monitor, the three displays light, and then customers could operate the
corresponding display screen button on the panel.

www.avonic.eu
8
Operation Instructions
Menu
Menu instruction
Press MENU button to pop-up menu, and press＜or＞button to enter menu selection, then press∨
/F2 button to enter secondary menu, and then use ∧/F1 or ∨/F2 button to select the menu item,
after enter into secondary menu, use＞or＜button to adjust item parameters, press MENU button
to exit.
Image Color
•Pic. Mode: Standard, Dynamic, Mild, User. Select “User” to adjust Brightness,
Contrast, Saturation Sharpness according to the site situation.
•Brightness: To adjust image's brightness.
•Contrast: To adjust the brightest and the darkest ratio of the image, please note
the sense of picture will make the picture lose the color when adjust proportion too high or

www.avonic.eu
9
low.
•Saturation: To adjust color concentration.
•Sharpness: Also called ‘Resolution’, is an indicator for the image plane definition
and image edge sharpness. If sharpness is higher, then the details contrast on the image is
higher, the image is more clearly.
•Color Temp.: 6500, 9300, User. When select “User”, adjust the R/G/B to meet the
different user's requirement for the different Color Temp.
•Tint: On NTSC video mode, color tint is adjusted by Tint.
Setting Menu
•Language: Language for OSD: English, 中文, Español, Português, Français, Nederlands,
Deutsch, 日本語
•Aspect Ratio: To change the aspect ratio
•Panorama, Just Scan, Zoom 1, Zoom 2, 16:9, 4:3 , Autom No Signal: Color options of screen
background when no signal: Blue Screen, Red Screen, Green Screen, Black
•Screen, White Screen
•OSD Trans.: To adjust the level of transparent.
•OSD H: To adjust the OSD position in horizontal.

www.avonic.eu
10
•OSD V: To adjust the OSD position in vertical.
•Zoom All：Select this function and use “＜” or “＞” button to adjust the image to Zoom In or
Zoom Out separately.
•OSD Time：Menu display time selection: 30s ,20s、10s, Off.
•U/D Zoom: Press “＜”or “＞”button, to adjust the proportion of the image Up and Down to
Zoom In or Zoom Out.
•L/R Zoom Press “＜”or “＞”button, to adjust the proportion of the image Left and Right to
Zoom In or Zoom Out.
•USB Upgrade: When need to upgrade the native data application software, copy the file to the
U disk, then through the USB cable to connect with upgrade USB port, press “＞”key to
confirm. After the upgrade, monitor will automatically restart. Do NOT plug a USB cable into
this connector without contacting the factory.
•Reset: Press “＞”button, back to original setting.
Function
•Center Marker: To set center mark (cross mark) display.
•Safe Frames: To adjust screen marker (off, 96%, 93%, 90%,85%, 80%, 2.35:1)
•Image Freeze: The current picture still (capture function)
•Image Flip: The H_V Flip, H Flip, V Flip of the image around flip.
•Check field: To switch among Color, Mono, Red, Green, Blue.
