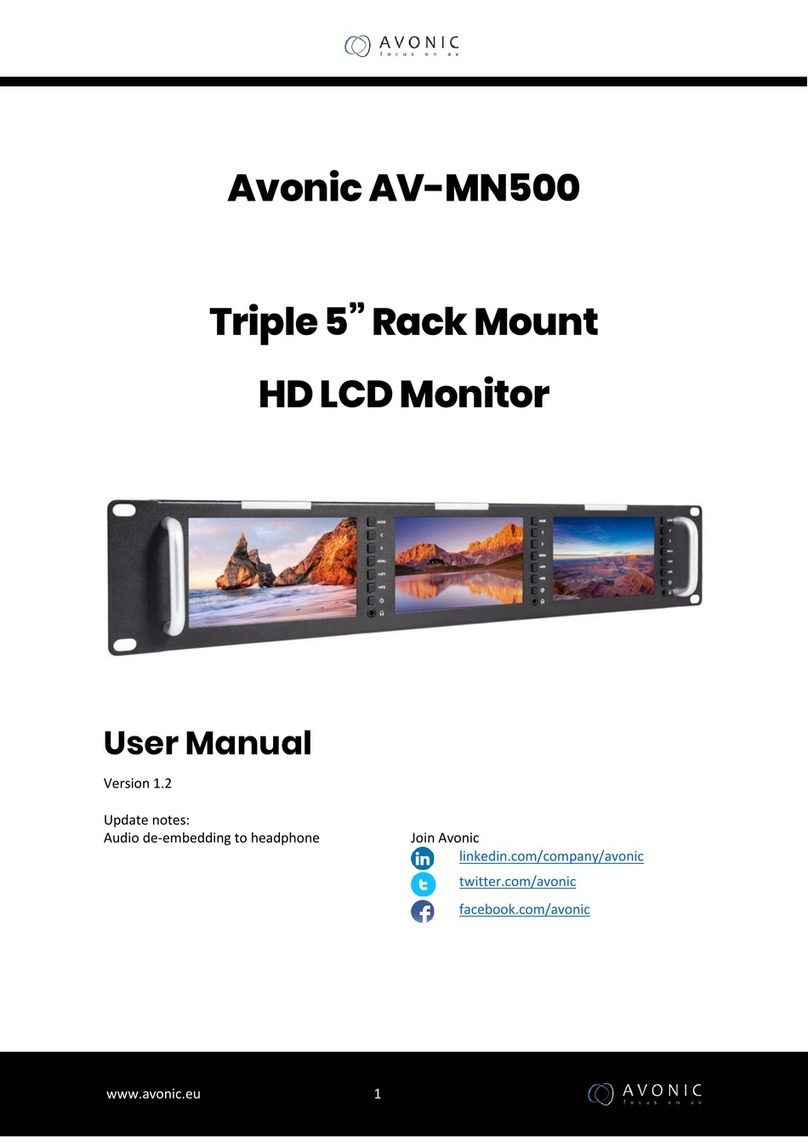

Avonic AV-MN500 User manual

www.avonic.eu
1
AV-MN500
Triple 5” Rack Mount
HD LCD Monitor
User Manual
Version 1.1

www.avonic.eu
2
Product Introduction
Thank you for using the Avonic Triple Rack Mount Color LCD Monitor.
This monitor adopts advanced integrated circuits and special TFT LED panel, which makes it low power
consumption, stable performance, no radiation etc. This monitor is with HDMI, 3G-SDI, CVBS and AUDIO
input, HDMI, 3G-SDI, CVBS output, Stereo headphone etc. It has a wide range of application, casing
compact, simple operation, and strong compatibility. The advanced features contain Screen Marker, Pixel
to Pixel, Image Flip, and Color Temp. etc.
To insure best use of the unit, please read the user's manual carefully.
Caution
Please use the qualified power adapter to charge.
Do not expose this product to direct sunlight, heat or humid Conditions
Keep away from strong light while using this product so as to obtain the clearest and the most colorful
picture.
Please avoid heavy impact or drop on the ground.
Do not use chemical solutions to clean this unit. Please simply wipe with a clean soft cloth to keep the
brightness of the surface.
In order to avoid damaging the product, please do not take apart or repair the unit by yourself without
adjustable component in the unit by professional staff.

www.avonic.eu
3
Features
•Triple rack mount LCD monitor, compact thin and lightweight design, which make it suitable for
installing where the space is limited and also could be installed in the standard 19-inch rack.
•Three-color Tally indicator.
•With VIDEO, AUDIO, HDMI, 3G-SDI input, suitable for a variety of signals.
•Custom buttons, could set the custom F button function as customers operating habit.
•With advanced functions like Center Marker, Safe Frames,
•Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P, Image Freeze, etc.
Product Description
Front panel description
1. MODE: Signal input selection.
2. ＜：Volume down. In menu operation, it is for the adjustment of the set item.

www.avonic.eu
4
3. ＞：Volume up. In menu operation, it is for the adjustment of the set item.
4. MENU：Menu button
5. ∧/F1：No menu display, it is F1 button, when enters into menu bar, it is for the up item selection.
6. ∨/F2：No menu display, it is F2 button, when enters into menu bar, it is for the down item selection.
7. ：On/Standby button
8. ：Earphone jack
9. TALLY indicator.
Rear panel description
1.DC power input port.
2. 4-pin XLR DC12V power input.
3. 3G/SDI：input & output
4. CVBS： input & output
5. AUDIO：Audio input L / R

www.avonic.eu
5
6. HDMI：input & output
7. TALLY indicator input
#1 #2 #3
8. USB program upgrade port
Monitor Operation Instruction
Connect DC12V power to monitor, the three displays light, and then customers could operate the
corresponding display screen button on the panel.
Monitor button instruction
Normal Operation
Mode
Menu mode
Menu Item Mode
Corresponding display
screen On/Standby
button
MODE
Signal input selection
MENU
Menu Button
＞
Volume Up
Menu bar selection
Value selection
＜
Volume down
Menu bar selection
Value selection
∧/F1
F1 Custom Button
Value selection
∨/F2
F2 Custom Button
Value selection
F1/ F2
Menu instruction
Press MENU button to pop-up menu, and press＜or＞button to enter menu selection, then press∨/F2
button to enter secondary menu, and then use ∧/F1 or ∨/F2 button to select the menu item, after enter
into secondary menu, use＞or＜ button to adjust item parameters, press MENU button to exit.

www.avonic.eu
6
Image Color
•Pic. Mode: Standard, Dynamic, Mild, User. Select “User” to adjust Brightness,
Contrast, Saturation Sharpness according to the site situation.
•Brightness: To adjust image's brightness.
•Contrast: To adjust the brightest and the darkest ratio of the image, please note the
sense of picture will make the picture lose the color when adjust proportion too high or low.
•Saturation: To adjust color concentration.
•Sharpness: Also called ‘Resolution’, is an indicator for the image plane definition and
image edge sharpness. If sharpness is higher, then the details contrast on the image is higher, the
image is more clearly.
•Color Temp.: 6500, 9300, User. When select “User”, adjust the R/G/B to meet the
different user's requirement for the different Color Temp.
•Tint: On NTSC video mode, color tint is adjusted by Tint.

www.avonic.eu
7

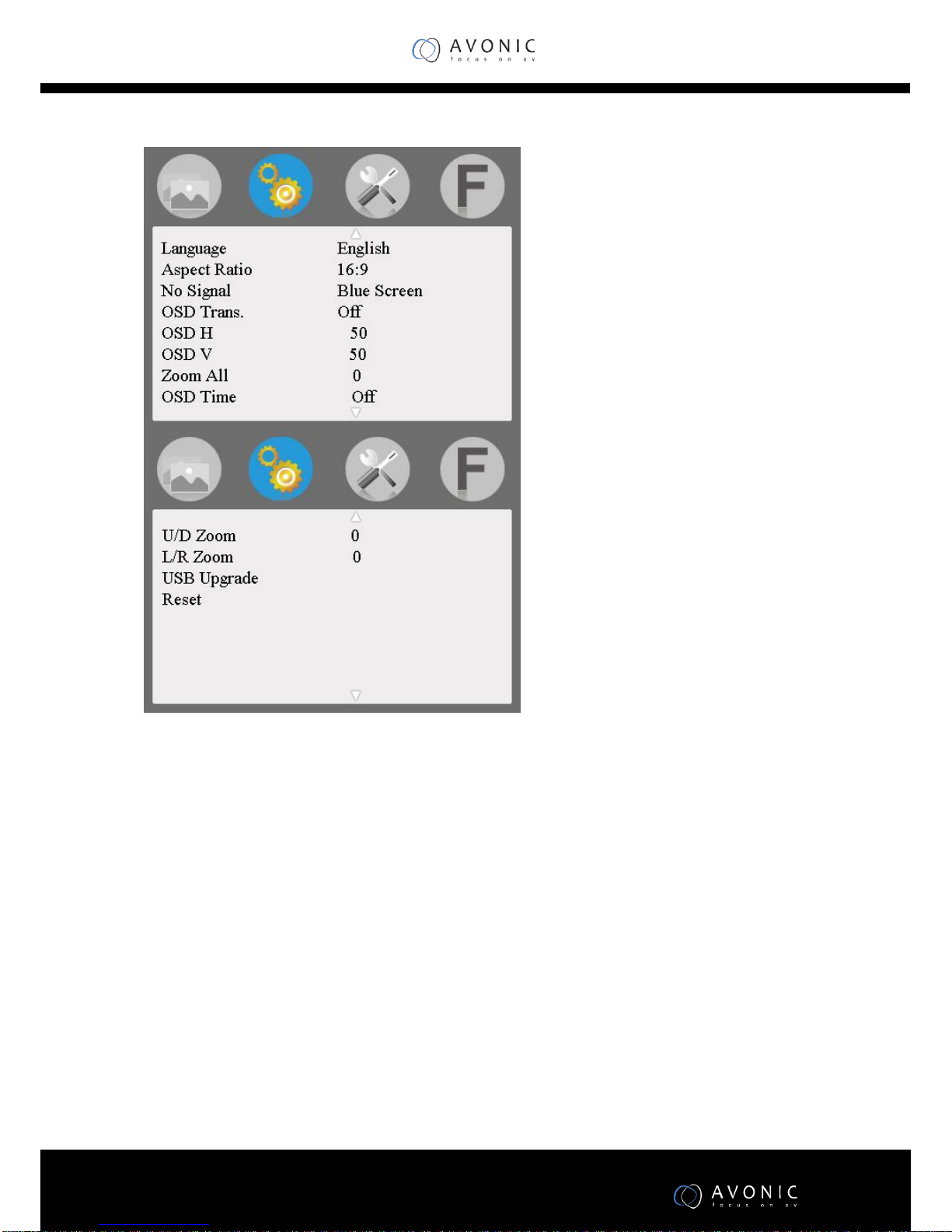

Setting Menu
•Language: Language for OSD: English, 中文, Español, Português, Français, Nederlands,
Deutsch, 日本語
•Aspect Ratio: To change the aspect ratio
•Panorama, Just Scan, Zoom 1, Zoom 2, 16:9, 4:3 , Autom No Signal: Color options of screen
background when no signal: Blue Screen, Red Screen, Green Screen, Black
•Screen, White Screen
•OSD Trans.: To adjust the level of transparent.
•OSD H: To adjust the OSD position in horizontal.
•OSD V: To adjust the OSD position in vertical.
•Zoom All：Select this function and use “＜” or “＞” button to adjust the image to Zoom In or Zoom
Out separately.
•OSD Time：Menu display time selection: 30s ,20s、10s, Off.
•U/D Zoom: Press “＜”or “＞”button, to adjust the proportion of the image Up and Down to Zoom
In or Zoom Out.
•L/R Zoom Press “＜”or “＞” button, to adjust the proportion of the image Left and Right to Zoom
In or Zoom Out.
•USB Upgrade: When need to upgrade the native data application software, copy the file to the U
disk, then through the USB cable to connect with upgrade USB port, press “＞”key to confirm.
After the upgrade, monitor will automatically restart. Do NOT plug a USB cable into this connector
without contacting the factory.
•Reset: Press “＞” button, back to original setting.

www.avonic.eu
8
Function
•Center Marker: To set center mark (cross mark) display.
•Safe Frames: To adjust screen marker (off, 96%, 93%, 90%,85%, 80%, 2.35:1)
•Image Freeze: The current picture still (capture function)
•Image Flip: The H_V Flip, H Flip, V Flip of the image around flip.
•Check field: To switch among Color, Mono, Red, Green, Blue.
•P2P: The display mode makes the resolution of the image consistent with display of the physical
resolution.
•Focus Assist：Under HDMI input, select this function, Peaking (Superimpose red highlight over
parts of the monochrome image in focus), could be used as focus auxiliary function in camera
viewfinder.
Shortcut button setting
•F1：Custom button, Choose F1, press“＜” or “＞”button to pop-up (Center Marker, Safe Frames ,
Check Field, Focus Assist, Image Freeze, Aspect Ratio, Image Flip , P2P, Image Freeze) and use
“∧/F1”or “∨/F2” to set one of them as definition function. Press “MENU” to confirm.
•F2：Custom button, see F1

www.avonic.eu
9
Technical Parameters
Panel Size
5.0inch
Panel Type
TFT LCD
Resolution
800×480
Backlight
LED
Dot Pitch
0.045(W) x 0.135 (H) mm
Aspect Ratio
16:9
Brightness
500cd/m2
Contrast
500:1
Response Time
Ton = 10ms; Toff = 15ms
Viewing Angle
70°/70°(L/R) 50°/70°(U/D)
Input Signal
HDMI/ 3G-SDI / Video / Audio(L/R)
Output signal
HDMI/ 3G-SDI / Video
Color Video Format
PAL-4.43 / NTSC-3.58
HDMI Support Format
480i /480p /576i /576p
720p (60/59.94/50/30/29/25/24/23.98）
1080i (60/59.94/50）
1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
Headphone Output
Stereo headphone output 3.5 mm interface
Input Voltage
DC：9.0～24.0V
Power Consumption
≦25W
Unit Size (mm)
482.6Lx88Hx34D mm
Unit Weight
≈1570g
Working Temperature
-20～55℃
Storage Temperature
-30～65℃

www.avonic.eu
10
Trouble Shooting
Only Mono or Single color picture
Please check Saturation, Brightness &Contrast adjustment.
Please check monitor color from the menu "Check Field" is in Mono image or in other single color state.
No image after put on the power
Check if signal cable connection is in good condition, also need
to check if the monitor is synchronized with the input signal,
press “MODE” button to have a try.
Make sure to use the standard adapter to connect the monitor.
No Sound
Volume control did not open, can press the volume button and try increasing the volume.
Check the AUDIO input and ensure there is AUDIO signal.
