AVS RM SERIES LCD MONITORS – INSTALL GUIDE
October 2019
Thank you for choosing the AVS range of LCD monitors. Please ensure installation is carried out by a qualified technician.
All connections to 12/24v should be appropriately fused.
IMPORTANT: Where wiring diagram shows an ACC connection the wire MUST be connected to ACC do not connect to ignition or constant
12v.
General wiring schematic

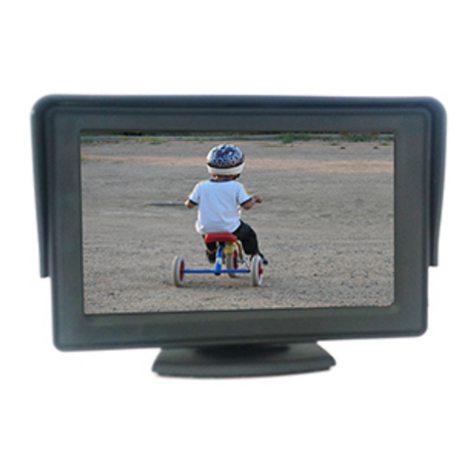

AVS RM43 AVS RM50SM
WIRE COLOUR
FUNCTION
CONNECT TO
RED (ACC)
+12v ACC supply
Appropriately fused +12v switched ACC supply
BLACK
Earth
Good earth source e.g. vehicle body/chassis
YELLOW RCA
AV2 camera input
Reverse camera output. Monitor will auto switch to display this input when a signal is
detected e.g. when the car goes into reverse and powers on the camera. The display will
switch back to AV1 or turn off if there is no signal on AV1.
WHITE RCA (RM43)
AV1 camera input
Camera output. Monitor will display AV1 until a signal is detected on AV2.
YELLOW RCA (RM50SM)
AV1 camera input
Camera output. Monitor will display AV1 until a signal is detected on AV2.
REAR BUTTON
FUNCTION
TOP
Adjust display brightness/contrast up
MIDDLE
MENU – push to enter menu and scroll through functions – brightness – contrast – saturation – language – mode - reset
BOTTOM
Adjust display brightness/contrast display down

AVS RM43B/RM43B-ARM/RM43B-RANGER
WIRE COLOUR
FUNCTION
CONNECT TO
RED (ACC)
+12v ACC supply
Appropriately fused +12v switched ACC supply
BLACK
Earth
Good earth source e.g. vehicle body/chassis
FEMALE RCA
V2 camera input
Reverse camera output. Monitor will auto switch to display this input when a signal is
detected e.g. when the car goes into reverse and powers on the camera. The display will
switch back to V1 or turn off if there is no signal on V1.
MALE RCA
V1 camera input
Camera output. Monitor will display V1 until a signal is detected on V2 or switch off if no
signal on V1.
PARKING LINE PATTERNS
BUTTON
FUNCTION
MENU
MENU – push to enter menu and scroll through functions
UP/DOWN ARROWS
Use to adjust each menu feature
BRIGHTNESS
Adjust the screen brightness between 0-40 (default is 20)
CONTRAST
Adjust screen contrast between 0-40 (default is 20)
COLOUR
Adjust screen colour between 0-40 (default is 20)
PARKING LINE TYPE*
Choose between 1 of 10 patterns*
PARKING LINE X*
Adjust the left/right angle (0 = left, 40 = right, 20 = centre, default)*
PARKING LINE Y*
Adjust the up/down angle (0 = bottom, 40 = top, 5 = default)*
*PARKING LINE
ON/OFF
* This feature must be turned ON before you can adjust the other parking line features
LOGO SELECT**
Choose a start-up logo (VW, Toyota, Hyundai, Nissan, Mazda, Kia, Honda, Suzuki, Chev, Ford)
** LOGO ON/OFF
** This feature must be turned ON before you can choose a logo
RESET
Push up arrow to confirm, resets to factory default values on all menu items
AVS RM50M
WIRE COLOUR
FUNCTION
CONNECT TO
RED (ACC)
+12v ACC supply
Appropriately fused +12v switched ACC supply
BLACK
Earth
Good earth source e.g. vehicle body/chassis
FEMALE RCA
V2 camera input
Reverse camera output. Monitor will auto switch to display this input when a signal is
detected e.g. when the car goes into reverse and powers on the camera. The display will
switch back to V1 or turn off if there is no signal on V2.
MALE RCA
V1 camera input
Camera output. Monitor will display V1 until a signal is detected on V2 or switch off if no
signal on V1.
BUTTON
FUNCTION
M
MENU – push to enter menu and scroll through functions – brightness – contrast – colour – sharpness - reset
< >
Use to adjust each menu feature

AVS RM70M AVS RM70
WIRE COLOUR
FUNCTION
CONNECT TO
RED (ACC)
+12v ACC supply
Appropriately fused +12v switched ACC supply
BLACK
Earth
Good earth source e.g. vehicle body/chassis
GREEN
Switches display to V2
Reverse signal/vehicle reverse light wire (+12v). Use red wire on AVS Camera’s RCA lead
FEMALE RCA
V2 camera input
Reverse camera output. Monitor will power on when green wire is triggered 12v + / or
when monitor is manually turned on and V2 is selected
MALE RCA
V1 camera input
Camera output. Monitor will display V1 when manually turned on and V1 is selected /
will be over ridden by V2 if triggered.
BUTTON
FUNCTION
POWER
Power on/off
+ or Ù
Adjust up
MENU
MENU – push to enter menu and scroll through functions
Includes: brightness, contrast, saturation, language, mode (16:9 or 4:3), image rotation, factory reset
- or Ú
Adjust display brightness/contrast down
V1/V2
Manually switch between camera inputs
AVS RM70C
WIRE COLOUR
FUNCTION
CONNECT TO
RED
+12/24v ACC supply
Appropriately fused +12/24v switched ignition on supply
BLACK
Earth
Good earth source e.g. vehicle body/chassis
GREEN
Switches display to C2
Reverse signal/vehicle reverse light wire (+12/24v)
AV2 4 pin
connector
V2 camera input & power
12v out
4 pin camera cable. Monitor will switch to display this input when a signal is
detected on green wire e.g. when the car goes into reverse. Display will switch back
to V1 or turn off if there is no signal on V2.
AV1 4 pin
connector
V1 camera input & power
12v out
4 pin camera cable. Monitor will display C1 until a signal is detected on green wire.
BUTTON
FUNCTION
POWER
Power on/off
V1/V2
Manually switch between camera inputs
MODE
Switch between standard/soft/vivid/light viewing options
-
Adjust display brightness/contrast down
MENU
MENU – push to enter menu and scroll through functions
+
Adjust display brightness/contrast up

AVS RM70CQUAD / RM90CQUAD
The AVS RM70CQUAD/RM90CQUAD can display up to 4 cameras in a split screen, either any channel full screen, 2/3/4-way split.
The channels can be switched manually using the buttons on the front panel or by remote or can be controlled by each channel’s input wire
e.g. connect the blue wire to the left turn indicator trigger wire and mount camera 3 on the left side of the vehicle. When the left indicator
turns on the monitor will display the left side camera. Do not connect any input control wire to permanent power as this will lock the
display to that channel and may damage the monitor.
WIRE COLOUR
FUNCTION
CONNECT TO
RED
+12/24v ACC supply
Appropriately fused +12/24v switched ignition on supply
BLACK
Earth
Good earth source e.g. vehicle body/chassis
GREEN
Switches display to CH2 REVERSE
Reverse signal/vehicle reverse light wire (+12/24v)
BROWN
Switches display to CH1/FORWARD
Forward camera switch (+12/24v)
BLUE
Switches display to CH3/LEFT
Left turn indicator or switch (+12/24v)
GREY
Switches display to CH4/RIGHT
Right turn indicator or switch (+12/24v)
CH2 (REV) 4 pin
connector
CH2 camera input & power 12v out
4 pin camera cable. Monitor will switch to display this input when a
signal is detected on GREEN wire.
CH1 (FWD) 4 pin
connector
CH1 camera input & power 12v out
4 pin camera cable. Monitor will switch to display this input when a
signal is detected on BROWN wire.
CH3 (L) 4 pin
connector
CH3 camera input & power 12v out
4 pin camera cable. Monitor will switch to display this input when a
signal is detected on BLUE wire.
CH4 (R) 4 pin
connector
CH4 camera input & power 12v out
4 pin camera cable. Monitor will switch to display this input when a
signal is detected on GREY wire.
BUTTON
FUNCTION
POWER
Power on/off
MODE
Switch between – full screen – dual screen – 3 way split even – 3 way split left – 3 way split right – 4 way
split left & right – 4 way split ¼screen
MENU (RM70CQUAD access
through remote only)
MENU –push to enter menu and scroll through functions. See options below
CH1/<
Manually switch to CH1 camera or adjust left
CH2/>
Manually switch to CH2 camera or adjust right
CH3/Ú
Manually switch to CH3 camera or adjust down
CH4/Ù
Manually switch to CH4 camera or adjust up
MENU OPTIONS
FUNCTION
Adjust brightness/contrast/colour/tint/reset
VOLUME
Adjust volume
MIRROR
Camera 1 – 4 mirror option – ON>/OFF<
SYSTEM
Language/RU (rotation) rotates monitor display for upside down mounting (RM70CQUAD only)
CLOCK
Cam 1-4 delay (default 3 sec, adjustable 0-10 sec). Adjusts time display holds on channel after signal
removed from green, brown, blue or black wire.
