AVVA PRO SP-18-4K User manual

Operating Instructions
1
HDMISplitter
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
FEATURES
Distributes 1 HDMI source to 8 HDMI Displays simultaneously.
Supports all the mandatory and several optional 3D formats
Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
Supports High Denition Resolutions : 1080p @ 60HZ, 720p/1080i @ 120Hz.
Supports Digital Audio Format, such as High Denition Audio support: Dolby TrueHD, and DTS-HD Master
Audio.
DC 5V Power.
Compliant HDCP
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.

Operating Instructions
2
TABLE OFCONTENTS
Introduction
Specifications
Package Contents
PanelDescriptions
Connectingand Operating
TypicalApplication
Product Service
Warranty
INTRODUCTION
It is newest 1x8 splitter ,supports all the mandatory and several optional 3D formats ,maintains sharp HDTV
resolution up to 4Kx2K full HD. It offers HD video solution for super market, shopping mall;HDTV,STB,DVD and
projector factory; data control center;conference rooms;education and training ;luxurious house;home theaters
etc.
SPECIFICATIONS
Operating Temperature Range -5 to +35 (℃+23 to +95 )℉
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Data transfer speed rate 6.75Gbps(Maximum)
Video Format Supported DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video support
Video Output HDMI
Support Video Color Format xv-YCC/deep color 36bit
Support Audio Format DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
Power consumption 10watts(Maximum)
Dimension (L×W×H) 270x110x27.5mm
Net Weight 840g
Note: Specificationsaresubject tochange withoutnotice.Mass anddimensionsare approximate.

Operating Instructions
3
①②③
①②③
3) Insert the DC side of 5v power supply into Power input and then connect the AC side of the power supply into
the wall outlet.
2) Indicator of HDMI output. When a HDMI equipment is connected, the corresponding LED lights.
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit.
1) Damagerequiringservice: The unit should be serviced by qualied service personnel if:

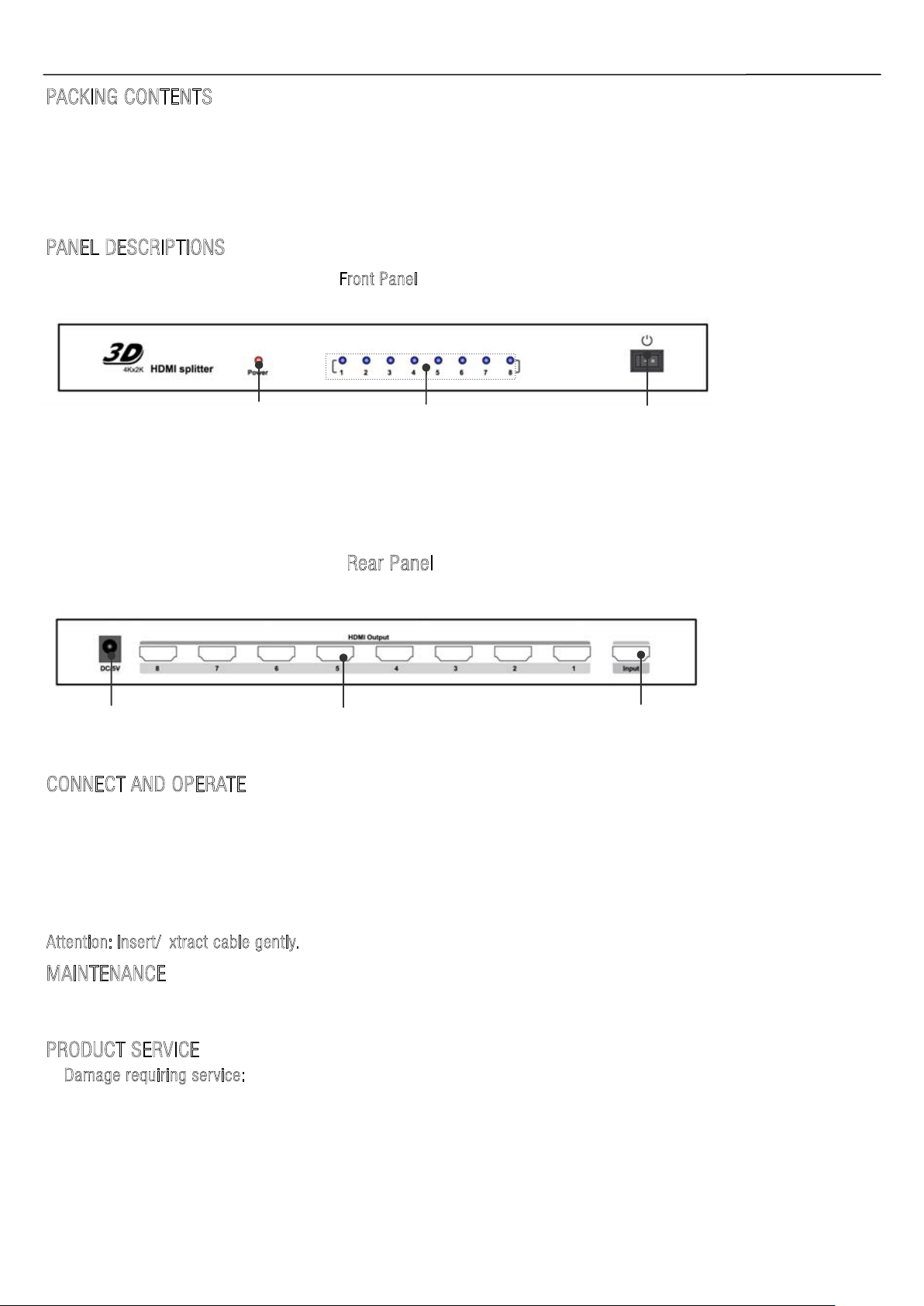

PACKING CONTENTS
1) Main Unit. 8-port HDMI splitter
2) 5VDC Power Supply.
3) Operating Instructions
PANELDESCRIPTIONS
FrontPanel
1) Indicator of Power Input. When power is ON, the corresponding LED lights.
3) Power ON/OFF. Press the up/down button to open/close the device.
RearPanel
2) Connect the HDMI display device (such as :HD-LCD,HD-DLP) into HDMI outputs.
1) Connect the HDMI signal sources(Such as PS3,STB etc) into HDMI input.
1) Power input. 2) HDMI output ports . 3) HDMI input port.
Attention:Insert/Extract cablegently.
CONNECTANDOPERATE
PRODUCTSERVICE
MAINTENANCE

Operating Instructions
4
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
2) ServicingPersonnel:Do not attempt to service the unit beyond that described in these operating instructions.
Refer all other servicing to authorized servicing personnel.
3) Replacementparts: When parts need replacing ensure the servicer uses parts specied by the manufacturer
or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in re,
electric shock, or other hazards.
4) Safetycheck:After repairs or service, ask the servicer to perform safety checks to conrm that the unit is in
proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or workmanship, our Company (referred
to as "the warrantor" ) will , for the length of the period indicated as below, (Parts(2)Year ,Labor(90)Days)
which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your
product with new or refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair
or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warranty is extended only to the original purchaser and only covers product
purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty
service.
Mail-InService
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original
carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you
can be reached.
LIMITEDWARRANTYLIMITSANDEXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT
COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages
which occurred in shipment, or failures which are caused by products not supplied by warrantor,or failures which
result from accidents,misuse,abuse,neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modication, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage
that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".THE
WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY. (As examples, this excludes damages for
lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the
service, loss of or damage to media or images, data or other recorded content. The items listed are not exclusive,
but are for illustration only.
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
