AWB WiMAX RG231 User manual
U
SER
G
UIDE
WiMAX 802.16e Indoor Gateway
RG231
U
SER
G
UIDE
RG231
Indoor IEEE 802.16e-2005 Mobile WiMAX Gateway,
with 2.3/2.5/3.5 GHz Frequency Band Support,
Four LAN (RJ-45) Ports,
Two VoIP (RJ-11) Ports,
and 802.11n Wi-Fi
RG231
E022010-CS-R01
XXXXXXXXXXXXX
– 3 –
COMPLIANCES
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
◆Reorient or relocate the receiving antenna
◆Increase the separation between the equipment and receiver
◆Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
◆Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IMPORTANT NOTE:
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your
body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Due to the essential high output power nature of WiMAX devices, use of
this device with other transmitters at the same time may exceed the FCC
RF exposure limit and such usage must be prohibited (unless such co-
transmission has been approved by FCC in the future).
C
OMPLIANCES
– 4 –
EC CONFORMANCE DECLARATION
Marking by the above symbol indicates compliance with the Essential
Requirements of the R&TTE Directive of the European Union (1999/5/EC).
This equipment meets the following conformance standards:
◆EN 60950-1 (IEC 60950-1) - Product Safety
◆EN 301 489-1, EN 301 489-4, EN 302 326-2 (V1.2.2), EN 302 326-3
(V1.2.2) - EMC requirements for radio equipment
This device is intended for use in all European Community countries.
NCC 警語
Wi-Fi:
經型式認證合格之低功率射頻電機 , 非經許可 , 公司、商號或使用者均不得擅
自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信 ; 經發現有干擾現象
時 , 應立即停用 , 並改善至無干擾時方得繼續使用。前項合法通信 , 指依電信
法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫
療用電波輻射性電機設備之干擾。
「本產品內含射頻模組 : CCAI09LP1650T1」
WiMAX:
減少電磁波影響 , 請妥適使用。
0560
– 5 –
ABOUT THIS GUIDE
PURPOSE This guide details the hardware features of the RG231 WiMAX CPE,
including its physical and performance-related characteristics, and how to
install the device and use its configuration software.
AUDIENCE This guide is for PC users with a working knowledge of computers. You
should be familiar with Windows operating system concepts.
CONVENTIONS The following conventions are used throughout this guide to show
information:
N
OTE
:
Emphasizes important information or calls your attention to related
features or instructions.
C
AUTION
:
Alerts you to a potential hazard that could cause loss of data, or
damage the system or equipment.
W
ARNING
:
Alerts you to a potential hazard that could cause personal injury.
RELATED PUBLICATIONS The following publication gives basic information on how to install and use
the WiMAX CPE.
Quick Installation Guide
Also, as part of the CPE’s configuration software, there is online help that
describes all management features.
REVISION HISTORY This section summarizes the changes in each revision of this guide.
FEBRUARY 2010 REVISION
This is the first revision of this guide. This guide is valid for software
version 0.0.2.10.
– 6 –
CONTENTS
COMPLIANCES 3
ABOUT THIS GUIDE 5
CONTENTS 6
FIGURES 9
TABLES 11
SECTION I GETTING STARTED 12
1INTRODUCTION 13
RG231 Hardware Description 14
Wi-Fi Option 14
WPS/Scan Button 14
Power Status LED 15
Wi-Fi Status LED 15
WPS Status LED 16
WiMAX Signal LEDs 16
10BASE-T/100BASE-TX LAN Ports 17
VoIP Phone Ports 17
USB Port 17
Power Adapter Socket 17
WPS/Scan Button 18
Reset Button 18
2INSTALLING THE RG231 19
Package Checklist 19
Installation Overview 19
Select a Location 19
Cable Connections 20
3INITIAL CONFIGURATION 22
C
ONTENTS
– 7 –
Accessing the Web Management Interface 22
Home Page 23
Using the Basic Setup Wizard 24
The Advanced Setup Menu 26
SECTION II WEB CONFIGURATION 27
4SYSTEM SETTINGS 28
System Status 29
Administrator Settings 30
Firmware Upgrade 31
Configuration Tools 31
System Time 32
Reset 33
5GATEWAY CONFIGURATION 34
WAN Settings 35
Dynamic IP Address 35
Static IP Settings 36
L2TP Settings 36
DNS 37
NAT 37
Port Mapping 37
DMZ 39
Route 40
SECTION III APPENDICES 41
ATROUBLESHOOTING 42
Diagnosing LED Indicators 42
Cannot Connect to the Internet 42
Cannot Access Web Management 43
Forgot or Lost the Password 43
Resetting the Unit 43
BHARDWARE SPECIFICATIONS 44
Physical Specifications 44
– 9 –
FIGURES
Figure 1: Front of the RG231 14
Figure 2: RG231 LED Indicators 15
Figure 3: Back of the RG231 16
Figure 4: Top of the RG231 18
Figure 5: Base of the RG231 18
Figure 6: RG231 Connections 20
Figure 7: Login Page 22
Figure 8: Home Page 23
Figure 9: WiMAX Account Login 24
Figure 10: Confirm Settings 25
Figure 11: Setup Wizard Finished 25
Figure 12: Advanced Setup 26
Figure 13: System Status – Internet 29
Figure 14: System Status – Gateway 29
Figure 15: System Status – Information 30
Figure 16: Setting a Password 30
Figure 17: Firmware Upgrade 31
Figure 18: Configuration Tools 31
Figure 19: Restore Configuration Settings 32
Figure 20: System Time 32
Figure 21: Reset Unit 33
Figure 22: WAN Settings 35
Figure 23: Dynamic IP Address 35
Figure 24: Static IP Settings 36
Figure 25: L2TP Settings 36
Figure 26: DNS Settings 37
Figure 27: Port Mapping 38
Figure 28: DMZ Settings 39
Figure 29: Routing Table 40
Figure 30: RJ-45 Connector 48
Figure 31: Straight Through Wiring 49
– 11 –
TABLES
Table 1: RG231 Models 13
Table 2: Power Status LED 15
Table 3: Wi-Fi Status LED 15
Table 4: WPS Status LED 16
Table 5: WiMAX Signal Status LEDs 16
Table 6: LAN Port Status LEDs 17
Table 7: System Settings 28
Table 8: Gateway Configuration 34
Table 9: Troubleshooting Chart 42
Table 10: 10/100BASE-TX MDI and MDI-X Port Pinouts 49
Table 11: RJ-11 Port Pinout 51
– 12 –
S
ECTION
I
GETTING STARTED
This section provides an overview of the RG231, and describes how to
install and mount the unit. It also describes the basic settings required to
access the management interface and run the setup Wizard.
This section includes these chapters:
◆“Introduction” on page 13
◆“Installing the RG231” on page 19
◆“Initial Configuration” on page 22
– 13 –
1INTRODUCTION
The RG231 WiMAX 802.16e Self-Install Residential Gateway is a WiMAX
subscriber station designed to provide Internet access for a home or small
office. The unit provides a gateway function between a WiMAX service
provider and a local Ethernet LAN. The device enables a service provider to
deliver last mile broadband wireless access as an alternative to wired DSL
or cable modems.
The RG231 is a plug-and-play device. There are several available models
for each of the 2.3, 2.5, and 3.5 GHz WiMAX frequency bands. Which
model you use will depend on the frequency band of your service provider’s
WiMAX service.
The RG231 includes four RJ-45 Ethernet switch ports for LAN connections
and two RJ-11 Voice over IP (VoIP) phone ports. Units also support an
IEEE 802.11b/g/n Wi-Fi module that provides a local Wi-Fi access point
service.
The RG231 offers a user-friendly web-based management interface for the
configuration of all the unit’s features. Any PC directly attached to the unit
can access the management interface using a web browser, such as
Internet Explorer (version 6.0 or above) or Firefox (version 1.5 or above).
C
HAPTER
1
| Introduction
RG231 Hardware Description
– 14 –
RG231 HARDWARE DESCRIPTION
The front of the RG231 provides an array of system status indicators. The
back includes four LAN ports for 10/100 Mbps Ethernet connections, two
RJ-11 VoIP phone ports (on some models), and a DC power jack.

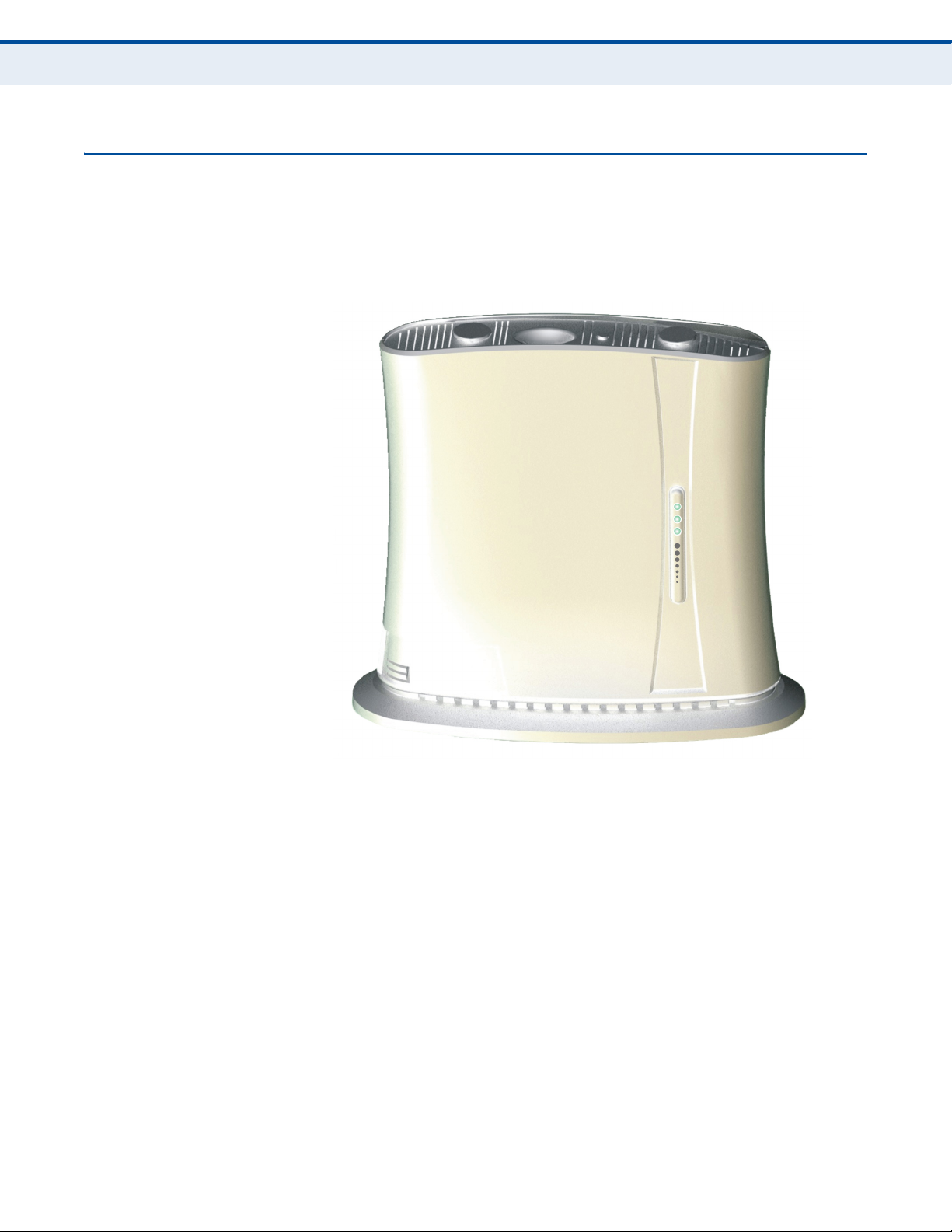

Figure 1: Front of the RG231
WI-FIOPTION The RG231 includes an 802.11b/g/n Wi-Fi support. This unit includes
internal antennas for local wireless connections to PCs.
WPS/SCAN BUTTON Press to automatically authenticate Wi-Fi Protected Setup (WPS) devices in
the Wi-Fi network. Press and hold down for more than 5 seconds to
perform a scan of WiMAX frequencies.
C
HAPTER
1
| Introduction
RG231 Hardware Description
– 15 –
POWER STATUS LED The RG231 includes a Power LED indicator that simplifies installation and
WiMAX network troubleshooting. The LED, which is located on the front
panel, is described in the following table.

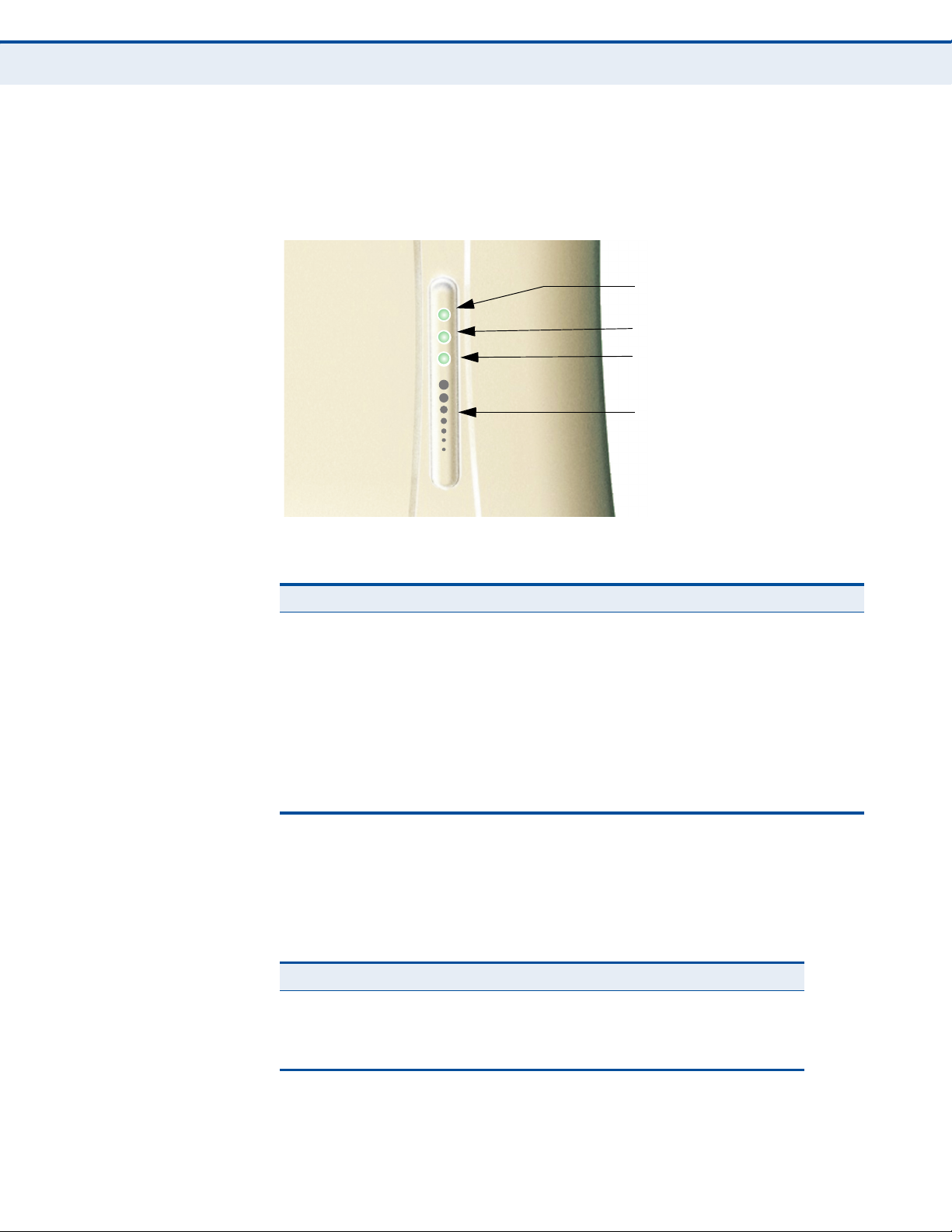

Figure 2: RG231 LED Indicators
WI-FISTATUS LED The models that support Wi-Fi operation include a Wi-Fi LED indicator that
displays the Wi-FI network status. The LED, which is located on the front
panel, is described in the following table.
Table 1: Power Status LED
Status Description
On Green The unit has completed entry to a WiMAX network.
On Amber Indicates one of the following conditions:
◆After power on, indicates the unit is running its self test.
◆Indicates that the network entry process is in progress or has
restarted.
Blinking Amber When blinking with three of the WiMAX signal LEDs turned on, indicates
authentication has failed.
On Red A system failure has occured.
Off No power is being supplied to the unit.
Power Status LED
Wi-Fi Status LED
WiMAX Signal LEDs
WPS Status LED
Table 2: Wi-Fi Status LED
Status Description
On Green The Wi-Fi radio is enabled and operating normally.
Flashing Green Indicates data traffic in the Wi-Fi network.
Off There is no Wi-Fi connection or the radio is disabled.
C
HAPTER
1
| Introduction
RG231 Hardware Description
– 16 –
WPS STATUS LED The models that support Wi-Fi operation include a WPS LED indicator that
displays the status of the Wi-Fi Protected Setup. The LED, which is located
on the front panel, is described in the following table.
WIMAX SIGNAL LEDSThe RG231 includes seven WiMAX signal strength LED indicators that
display the current WiMAX receive signal status. The LEDs, which are
located on the front panel, are described in the following table.
Figure 3: Back of the RG231
Table 3: WPS Status LED
Status Description
On Green WPS authentication of a client has been sucessfully completed.
Flashing Green WPS authentication of a client is in progress.
Off There is no WPS authentication in progress.
Table 4: WiMAX Signal Status LEDs
LED Status Description
1 On Blue Indicates the receive signal is 5 dB or more.
2 On Blue Indicates the receive signal is 8 dB or more.
3 On Blue Indicates the receive signal is 12 dB or more.
4 On Blue Indicates the receive signal is 15 dB or more.
5 On Blue Indicates the receive signal is 18 dB or more.
6 On Blue Indicates the receive signal is 20 dB or more.
7 On Blue Indicates the receive signal is 25 dB or more.
1-7 in sequence On Blue The unit is scanning frequency channels.
All 7 LEDs Off No power is being supplied to the unit.
RJ-45 LAN Ports
(include Link/Activity LEDs)
VoIP Phone Ports Power SocketUSB Port
C
HAPTER
1
| Introduction
RG231 Hardware Description
– 17 –
10BASE-T/
100BASE-TX LAN
PORTS
The RG231 provides four 10BASE-T/100BASE-TX RJ-45 ports. These LAN
ports are standard RJ-45 Ethernet network ports that connect directly to
PCs. They can also be connected to an Ethernet switch or hub to support
more users.
All ports support automatic MDI/MDI-X operation, so you can use straight-
through cables for all network connections to PCs or servers, or to other
switches or hubs. Each of these ports support auto-negotiation, so the
optimum transmission mode (half or full duplex), and data rate (10 or
100 Mbps) is selected automatically.
Each RJ-45 port includes a built-in LED indicator. This LED indicator is
described in the following table.
VOIP PHONE PORTS Some RG231 models optionally provide two RJ-11 telephone ports that
connect directly to a standard (analog) telephone set. This allows a regular
telephone to be used for making VoIP calls over the Internet.
USB PORT Reserved for future use.
POWER ADAPTER
SOCKET
The power socket is located on the rear panel of the RG231. The power
socket is for the AC power adapter connection.
The unit is powered on when connected to its AC power adapter, and the
power adapter is connected to an AC power source between 100-240 volts
at 50-60Hz.
Table 5: LAN Port Status LEDs
LED Status Description
Link/Activity On Green Ethernet port has a valid link with an attached device.
Flashing Green The port is transmitting or receiving data.
Off Ethernet port has no link with another device.
C
HAPTER
1
| Introduction
RG231 Hardware Description
– 18 –
WPS/SCAN BUTTON Press to automatically authenticate Wi-Fi Protected Setup (WPS) devices in
the Wi-Fi network. Press and hold down for more than 5 seconds to
perform a scan of WiMAX frequencies.
Figure 4: Top of the RG231
RESET BUTTON The Reset button is located on the base of the RG231 and is used to reset
the unit or restore the factory default configuration. If you press the button
for less than 1 second, the unit will perform a hardware reset. If you press
and hold down the button for 5 seconds or more, any configuration
changes you may have made are removed, and the factory default
configuration is restored to the unit.
Figure 5: Base of the RG231
WPS Button
Reset Button
– 19 –
2INSTALLING THE RG231
This section describes how to install and connect the RG231 WiMAX
802.16e Self-Install Residential Gateway.
PACKAGE CHECKLIST
The RG231 package includes:
◆RG231 unit (RG231-2.3, RG231-2.5, or RG231-3.5)
◆RJ-45 Category 5 network cable
◆AC power adapter
◆Quick Installation Guide
◆User Guide CD
INSTALLATION OVERVIEW
Before installing the RG231, verify that you have all the items listed in the
package checklist above. If any of the items are missing or damaged,
contact your local dealer. Also, be sure you have all the necessary tools and
cabling before installing the RG231.
SELECT ALOCATION
The RG231 can be installed indoors on any horizontal surface, such as a
desktop or shelf.
When selecting a suitable location for the device, consider these
guidelines:
◆Select a cool, dry place, which is out of direct sunlight.
◆The device should have adequate space (approximately two inches) on
all sides for proper air flow.
◆The device must be near an AC power outlet that provides 100 to
240 V, 50 to 60 Hz.
C
HAPTER
2
| Installing the RG231
Cable Connections
– 20 –
◆The device should be accessible for network cabling and allow the
status LED indicators to be clearly visible.
N
OTE
:
If the RG231 displays a weak WiMAX receive signal, try moving it to
another location.
CABLE CONNECTIONS
The RG231 is a plug-and-play device, so once it has been connected to
your PC and powered up, it is fully operable.
Functioning as a gateway, the unit routes traffic between a WiMAX service
provider’s base station and PCs or notebooks in the local network.
Figure 6: RG231 Connections
To connect the RG231, follow these steps:
1. Power on the RG231 by by first connecting the AC power adapter to the
unit’s power socket, and then connecting the adapter to an AC power
source.
C
AUTION
:
Use ONLY the power adapter supplied with the RG231. Otherwise,
the product may be damaged.
Notebook Computer
Regular Phone
AC Power Adapter
Table of contents
Other AWB Gateway manuals
