Magi 400/450
Hybrid CATV Media Gateway
Entone’s Magi family of hybrid CATV media gateways sets a new standard for
interactive cable services. The Magi 400 is a two-way DVR optimized for digital
cable operators. The Magi 450 adds a fourth tuner and MoCA support. The Magi
450a is designed for system operators who need to support analog recording. All
three models feature dual-core CPUs and 3D-graphics acceleration to tackle even
the most demanding user interfaces and software applications. To minimize truck
rolls and reduce support costs, Magi provides automatic conguration and remote
administration via TR-069.
Magi 400
The Magi 400 is a value packed workhorse for digital system operators. Its three
digital tuners can be used for TV viewing, recording, DOCSIS downstream and
combinations of these activities. CableCARD enables the Magi 400 to be compatible
with legacy encryption, provisioning and authorization systems. The integrated
DOCSIS 3.0 modem makes it an ideal device for interactive environments that
becomes a cost-effective DVR equipped with a hard disk drive.
Magi 450
Magi 450 is Entone’s most advanced interactive platform for digital system
operators. It incorporates a DOCSIS 3.0 modem for video over IP streaming and
interactive applications. MoCA 1.1 provides in-home connectivity at speeds up
to 175 Mbps. Magi 450 incorporates two digital QAM-only tuners and two multi-
standard tuners with ATSC, NTSC** and QAM support.
Magi 450a
Magi 450a is a full-featured DVR for system operators that need to support analog
program recording. In addition to all the features of the Magi 450, the 450a adds a
hardware H.264 encoder capable of simultaneously digitizing and compressing two
analog channels. Viewers can record one program while watching another and have
full control to pause live TV even for analog channels.
Magi 400 Magi 450 Magi 450a
Digital QAM-only Tuners 3 2 2
Multi-standard Tuners (ATSC/NTSC/QAM) — 2** 2
CableCARD 444
Optional Hard Disk Drive 320GB 500GB 500GB
DOCSIS 3.0 Modem 444
MoCA 1.1 Modem — 44
Touch Panel — 44
LED Clock Display 444
Security Features
Magi offers several features to protect operators from service theft and content
piracy, such as integrated DVB-CSA, DES, AES and Multi-II descrambling in addition
to CableCARD support. It supports a wide range of conditional access solutions from
leading DRM vendors such as Latens, Nagravision, SecureMedia, Verimatrix and
Widevine. Rovi technology provides anti-taping support that is fully endorsed by
major studios and content owners.
_________________________________
* Some features optional, see each model’s specications for more detail
** NTSC recording is only supported on 450a
Key Features*
u High-denition video decoder
for MPEG-4 (H.264) and MPEG-2
programming
u Flexible DVR options for storing up
to 300 hours of HD programming
u Four QAM tuners allow viewers to
watch one show while recording up
to three more
u CableCARD enables compatibility with
legacy conditional access systems
u Integrated DOCSIS 3.0 modem
supports video over IP and interactive
applications
u MoCA 1.1 for in home connectivity
at speeds up to 175 Mbps
u Seamless support for analog, digital
and hybrid cable systems
u H.264 encoder enables space efcient
recording for analog programs
connecting the home™

Magi 400/450 Hybrid CATV Media Gateway
Supported Media Formats
Audio •AAC LC, AAC LC+SBR Level 2, AAC+ Level 2, AAC+ Level 4
•Dolby Digital, Dolby Digital Plus
•MPEG I Layer 1, 2 and 3 (MP3)
Video •High Profile up to Level 4.1 H.264/AVC streams (up to 40 Mbps) at 30 fps
•High or Main Profile Level 3.1 H.264/AVC streams at 60 fps
•VC-1 Advanced Profile @ Level 3
•VC-1 Simple and Main Profile
•HD MPEG-2 4:2:0 streams (up to 125 Mbps) at 30 fps
•SD MPEG-2 4:2:0 streams at 60 fps
•MPEG4 P2 SP/ASP L5 SD Progressive/Interlaced
Graphics •Supports 32, 16 and 8-bit color models with Alpha blending over video
•Video resolutions 576i, 576p, 720p, 1080i, 1080p
•2D and 3D hardware acceleration
•JPEG, GIF and PNG picture formats
Security
Encryption Support •AES/1DES/3DES/CPRM/CPPM/CSS/DTCP copy protection algorithms/standards
•DVB, ARIB and DC2-compliant transport demux with 1DES/3DES/DVB/Multi2/AES descramblers
CAS/DRM Support •Latens
•Verimatrix VCAS
•Conax
•Widevine
•CableCARD
Content Protection •HDCP 1.1 over HDMI
•Rovi 7.1 Analog Copy Protection
DOCSIS 3.0 Standard for Magi 400/450/450a
Downstream QAM 64/256
Symbol Rate 5.0569 or 5.3605 Msym/s
Input Level –17 ~ 15 dBmV (QAM 64)
–15 ~ 17 dBmV (QAM 256)
Upstream QPSK, QAM 8/16/32/64/128
Frequency Range 5 ~ 42 MHz
Symbol Rate TDMA: 160, 320, 640, 1280, 2560, 5120 Ksym/s
S-CDMA: 1280, 2560, 5120 Ksym/s
Output Level 8 ~ 58 dBmV (QPSK)
8 ~ 55 dBmV (QAM 8/16)
8 ~ 54 dBmV (QAM 32/64)
8 ~ 53 dBmV (S-CDMA)
Output Level Control 1 dB
Internal Networking for Magi 400
Wi-Fi (802.11 b/g/n)
Tuners Magi 400 Magi 450/450a
Number of Tuners 3 2
Frequency Range 85 ~ 862 MHz 85 ~ 862 MHz
Channel Bandwidth 5, 6, 7, 8 MHz 5, 6, 7, 8 MHz
Input Level –15 ~ 15 dBmV (QAM 64), –15 ~ 15 dBmV (QAM 64),
–12 ~ 15 dBmV (QAM 256) –12 ~ 15 dBmV (QAM 256)
Demodulator QAM 16/64/128/256 QAM 16/64/128/256
Input Symbol Rate 1 ~ 7 Msym/s 1 ~ 7 Msym/s
Roll-off Factor 0.15 0.15
FEC ITU-T J.83 Annex A, B and C ITU-T J.83 Annex A, B and C
Technical Specications

Global Headquarters
20863 Stevens Creek Blvd, Suite 300
Cupertino, CA 95014
U.S.A.
T: [phone]
F: [phone]
Asia Pacic
Level 28, Saxon Tower
7 Cheung Shun Street
Lai Chi Kok, Hong Kong
T: [phone]
F: [phone]
Europe, Middle East & Africa
Gaston Crommenlaan
4-B501, 9th Floor
9050 Ghent
Belgium
T: [phone]
F: [phone]
www.entone.com
© 2012 Entone, Inc. Entone, Magi and connecting the
home are trademarks of Entone, Inc. All rights reserved.
DS-v2.1012NA
Magi 400/450 Hybrid CATV Media Gateway
Technical Specications (continued)
Multi-standard Tuners Magi 450/450a
Number of Tuners 2
Frequency Range 45 ~ 1000 MHz
Channel Bandwidth 5, 6, 7, 8 MHz
Input Level –18 ~ 15 dBmV (QAM 64),
–15 ~ 15 dBmV (QAM 256)
Demodulator NTSC, BTSC, ATSC, QAM 16/64/128/256
Input Symbol Rate 1 ~ 7 Msym/s
Roll-off Factor 0.15
FEC ITU-T J.83 Annex B
Inputs and Ouputs
Front Panel Magi 400 Magi 450/450a
Standby button with bi-color status indicator 44
USB 2.0 Host Type A 44
Function keys ( , , , , Menu, Back, Enter) — 4
IR receiver 44
Indicators for DVR, Network and HD 44
4 digit, 7-segment display 44
Rear Panel
Ethernet (RJ45) 44
Cable input (F-type) 44
Loop-through output (F-type) 44
Component video (RCA Red, Green, Blue) — 4
Composite video (RCA Yellow) 44
Analog audio (RCA Red, White) 44
Digital audio (S/PDIF) 44
USB 2.0 host Type A 44
HDMI 1.3 44
DC power jack 44
Physical Magi 400 Magi 450/450a
Power Supply 100 ~ 250 VAC, 50/60 Hz (input) 100 ~ 250 VAC, 50/60 Hz (input)
12V @ 2.5A (output) 12V @ 3A (output)
Power Consumption 25W (on), 1W (standby) 30W (on), 1W (standby)
Environmental 10 ~ 35 °C, 25 ~ 95% humidity 10 ~ 35 °C, 25 ~ 95% humidity
(non-condensing) (non-condensing)
Dimensions 10 x 6.5 x 2 in 14 x 11 x 2.2 in
Certifications FCC Part 15, IEC-60065 FCC Part 15, IEC-60065
ts
s
s

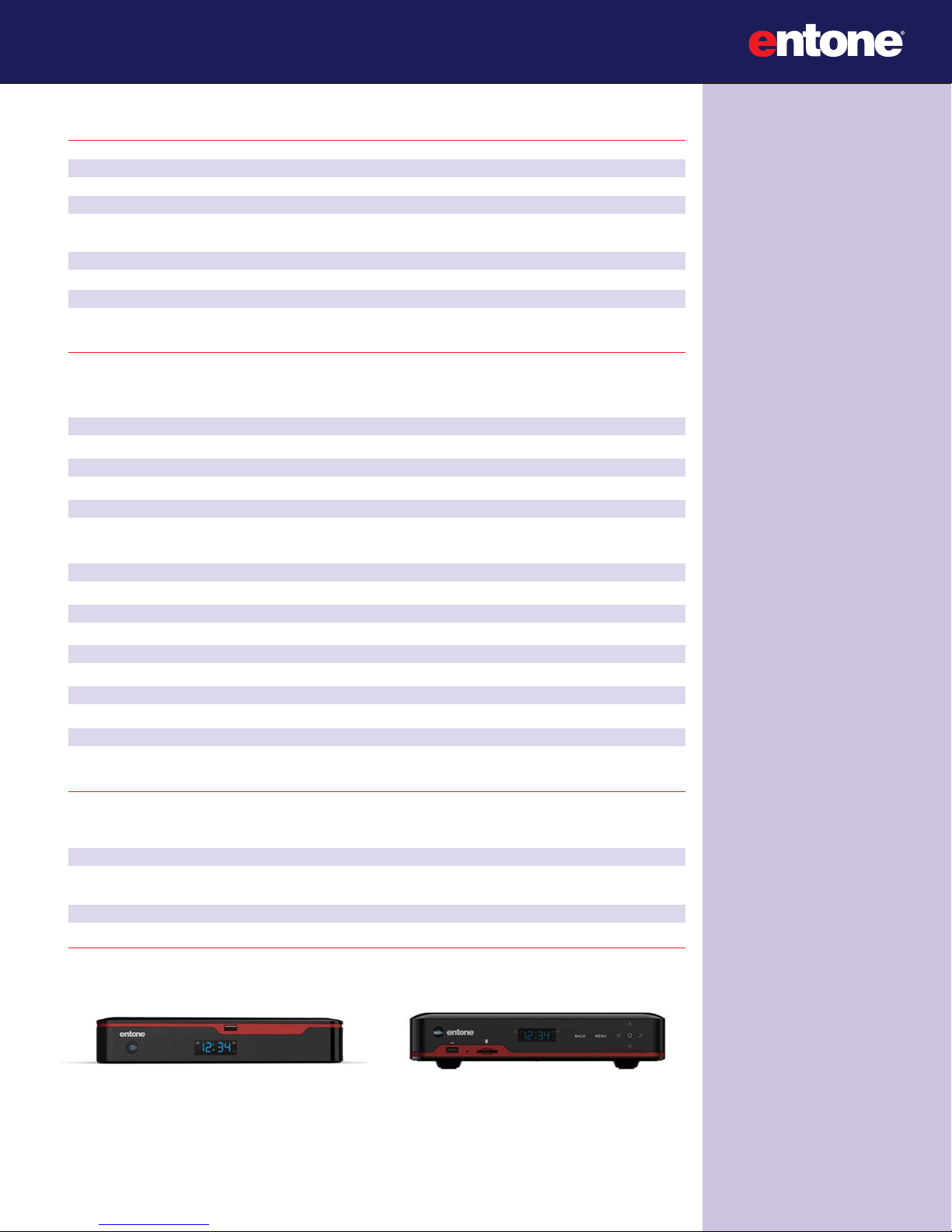

Magi 450Magi 400
