AX Quad Box HD 2400 User manual

(A) PRECAUTION!!!
(B) Packaging Contents
(C) Product Descriptions
(D) Conditional Access
(E) Remote Control
(F) Main Features
(G) Technical Data
I. Installation of the Receiver

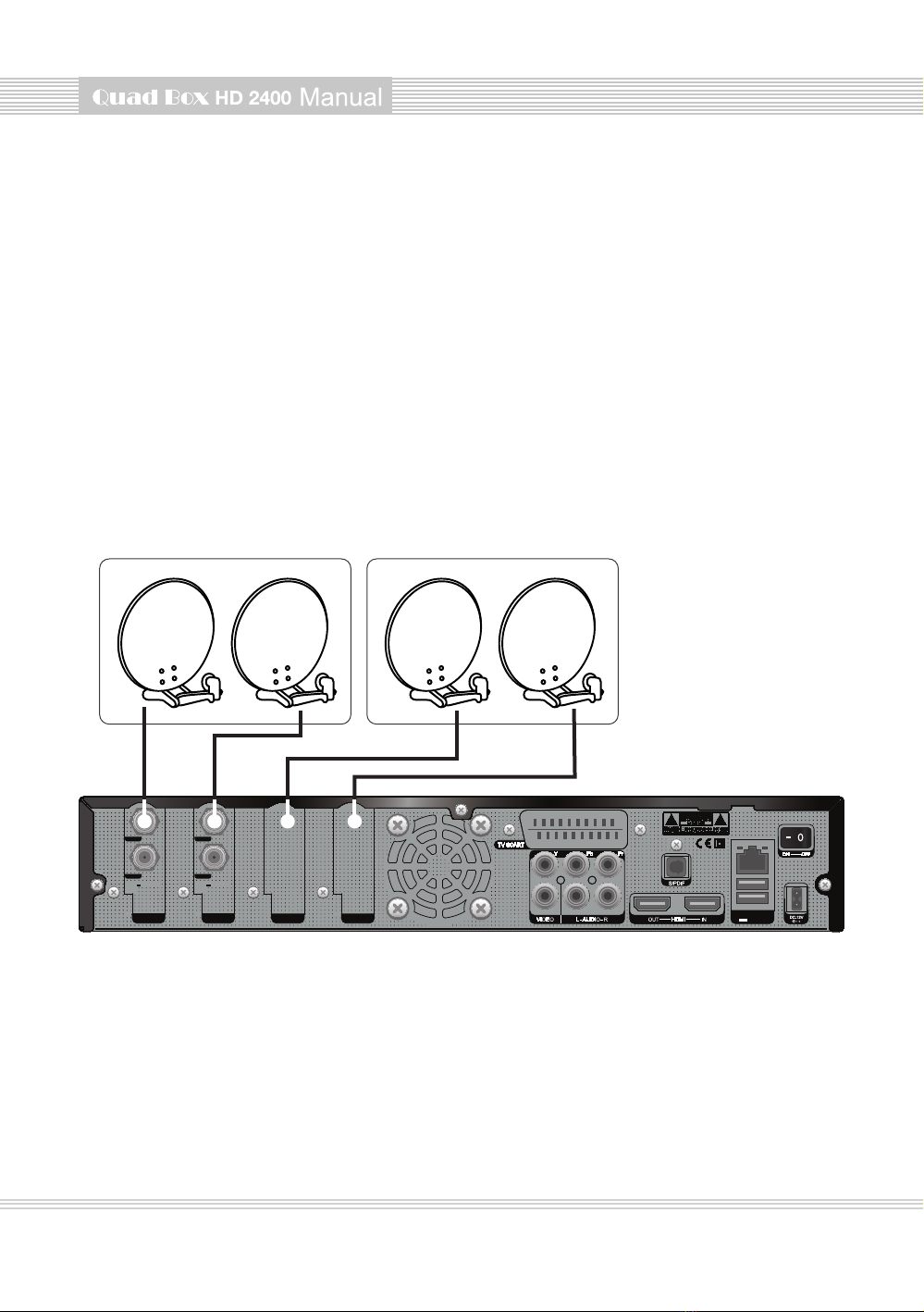

1. Connecting satellite cables
2. Connecting the TV (and VCR)
3. Connecting Power
4. Power ON/OFF
II. First Time Installation (using Wizard)
Step1. Video Input Selection
Step2. Video Mode Selection
Step3. Language Selection
Step4. Configuring Satellite Connection
Step5. Check The Internet Connection
Step6. Configuring Tuner A
III. Basic Operations
1. Switching Channel
2. Volume Control
3. Selecting Audio Track
4. Subtitle
5. Teletext
6. Program Information (Infobar)
7. Channel List (Channel Selection Menu)
8. Electronic program Guide (Event View)
9. Timeshift
10. Media Player
11. Plug-ins
12. Sleep Timer
Contents
4
6
7
9
11
13
14
15
16
18
18
19
19
20
20
21
21
24
24
25
25
26
26
27
29
31
32
33
34

IV. System Configuration
1. Main menu
2. System Setup
2-1. System Configuration
A. A/V Setting
B. Customization
C. Language Selection
D. Time Zone
E. Hard Disk Set Up
F. Network Setup
G. Display Setup
H. Skin (Change)
2-2. Service Searching
A. Tuner Configuration
B. Automatic Scan of Services
C. Manual Scan of Services
D. Fast Scan
E. Positioner Setup
F. Satfinder
2-3. Checking CAM
2-4. Parental Control
2-5. Factory Reset
2-6. Soft Update
A. Service Information
B. System Information
2-7. Transcoding
2-8. Inserting Tuner
Functional requirements for SRC
VI. Copyright – GNU GPL
VII. Menu Structure
VIII. Troubleshooting
IX. Glossary
GERMAN Manual
35
36
36
37
38
39
40
40
41
45
45
46
46
46
48
50
50
51
51
53
57
58
58
59
60
61
62
65
69
70
71
75

4
(A) PRECAUTION!!!
The receiver has been designed and manufactured in compliance with EU consumer safety
requirement (CE). Please read the following safety precautions carefully.
1. Connecting Power
• This product operate only in the range of AC 100V ~240V and 50Hz/60Hz. Please check first your
power supply to see if it fits this range.
• Please be noted that you need to disconnect from the mains before you start any maintenance or installation
procedures.
• Make sure that the power cord is placed in a position where it is easy to unplug it from the mains
in an emergency.
2. Overloading
• Do not overload a wall outlet, extension cord or adapter as this may cause electrical fire or shock.
3. Liquid
• This product is not water-proof and should not be exposed to dripping, splashing, or any type of liquid.
• No objects filled with liquid such as base shall be placed on the product.
• Please do not clean the product with wet cloth, which may cause a short circuit.
• No wet objects should be placed near the product.
4. Ventilation
• Allow a sufficient space between the product and other objects to make sure air ventilation of the product.
• Do not block the top or rear of the product with an object, which will close the ventilation holes and
lead to a high temperature of the system. This may cause a failure of the product.
• Do not stack other electronic devices on top of the product.
• Do not insert any kind of pointed objects like screw, gimlet, etc. into the ventilation holes of the product.
5. Connecting the Satellite Cable
• Disconnect the power of the product before you connect the satellite cable to the product.
Otherwise, it may cause
6. Grounding
• The LNB must be earthed to the system earth for the satellite dish.
7. Location
• Place the product indoor.
• Do not expose the product to rain, sun or lightening.
• Do not place the product near any heat appliances as a radiator.
• Ensure that there is more than 10cm distance from any electrical devices and wall.

5
8. Lightening, Storm or Not In Use
• Unplug the product and disconnect the antenna cable during a thunderstorm or lightning, especially
when left unattended and unused for a long period of time. This will prevent possible damages from
power surges or lightening.
9. Replacement of Parts
• Unauthorized part replacements, especially by one who is not a qualified technician may result in damage
to the product.
• Ensure that when part replacements are necessary qualified technicians perform the task using the
components specified by the manufacturer.
10. Hard Disk Drive ( In case of using external USB HDD)
• Do not move the product or turn the power off suddenly while the Hard Disk Drive (HDD) is still running.
• The company shall not be liable for any corruption of data on the HDD caused by careless use or misuse
of users.
11. Battery
• There is danger of explosion if batteries are incorrectly replaced.
• Replace batteries only with the same or equivalent type.
◎ “WEEE” Symbol instructions.
This product should not be disposed with other house hold wastes at the end of its working life.
Please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources. This will help prevent harm to the environment or human health form
uncontrolled waste disposal.

6
(B) Packaging Contents
Please check all package contents before using your product.
• Receiver
• Remote Control
• HDMI Cable (Optional)
• User Manual
• Adaptor
• Power Code
• Loop Cable
Quad Box
HD 2400
Quad Box

7
Quad Box
(C) Product Descriptions
▣Front Panel
F1: OLED Display
Displays the current channel or certain programming function when using the menus.
256 x 64 pixels (Blue)
F2: Button (Power On/Off)
F3: Buttons (CH ▼/▲, Vol -/+)
F4: USB Host
Connects the USB memory stick or external HDD.
F5: CI Module Slot
Two CI module slots are provide.
F6: Smartcard Reader Slot
Two Smartcard slots are provide.
F1 F4 F5
F6F3
F2

8
USB2.0X2
5V 500mA Max
TUNER A
LNB IN
Loop Out
13/18V Max 400mA
22KHz
13/18V Max 400mA
22KHz
Loop Out
TUNER C TUNER D TUNER B
LNB IN
▣Rear Panel
R1: Two pluggable Tuner Slots
Pluggable Type DVB-S2 and DVB C/T Hybrid Tuner available. Insert plug DVB-T/T2 Tuner.
R2: SCART
One SCART connector is provided for TV using SCART cable.
R3: Video Output
Connects to TV using RCA cable(composite YPbPr).
R4: Component (YPbPr)
Connects to TV using a component cable.
R5: Audio output
Connects to TV using RCA cable.
R6: HDMI OUT
Connects to TV using a HDMI cable for both audio and video signals.
R7: HDMI IN
Connects external devices to the receiver.
R8: Ethernet
Connects the PC or another set top box of the receiver.
R9: USB
Connects the USB memory stick or external HDD.
R10: S/PDIF
Connects to a digital audio system using S/PDIF cable.
R2 R13R11
R5
R1
R7 R9R6
R10
R3
R4 R8
R12

9
R11: FAN
R12: Power Inlet
Connects the datachable power cord.
R13: On/Off Switch
Powers on/off.
(D) Conditional Access
Amongst the channels that are scanned via the receiver, some channel can be properly tuned on
only with the corresponding Smartcard. The receiver provides one Smartcard Reader slot and users
need to purchase those Smartcards that are required for viewing such subscription based services.
Insertion of Smartcard
① Open the door on the right side.
② Insert Smartcard as in the following instruction.
③ Make sure that the Smartcard remains inserted while viewing.
Quad Box

10

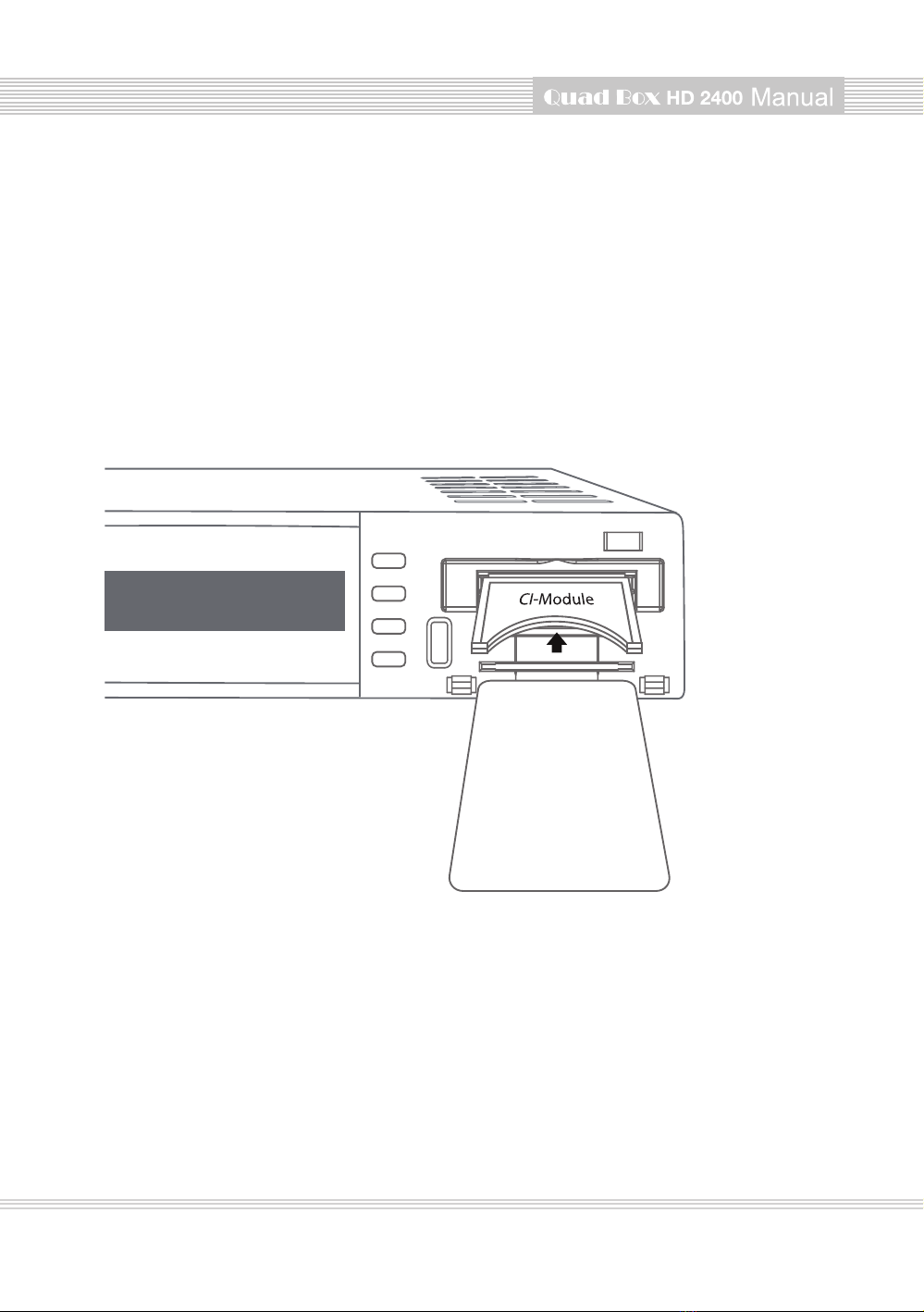

Insertion of CAM (Conditional Access Module)
There ore several Conditional Access Systems(CAS), other than Xcrypt that the receiver supports. To
be able to watch channels that are encrypted in such CAS as Nagravision, NDS, Irdeto, Viaccess, etc,
users need to purchase a CAM that is corresponding to each CAS, as well as Smartcard to decrypt
those encrypted channels.
① Insert a Smartcard into the CAM as in the below picture.
② Once the Smartcard inserted into the CAM, insert the CAM into the CI slot.
③ Make sure that the CAM remains inserted while viewing.
Quad Box

11
(E) Remote Control
. MUTE
Silences the audio temporarily.
NOTE: when Teletext is activated, mute key is also used when toggling
between the Teletext page and the lice mode.
. Power
To switch receiver to ON or to STANDBY
. Recording
Displays instantly the recording menu.
. Play/ Pause
Plays the selected file (e.g. recording) at the normal speed.
Pause the live program or recording play.
. Previous, Next
. Timer
Sets sleep timer.
. Stop
Stops playing of a recording and goes to the live mode.
. Fast Forward
Fast Forward at up to 128 times faster than the normal speed
(x2 / 4 / 8 / 16 / 32 / 64 / 128).
. Fast Forward
Pause the live program or recording play.
. Subtitle
Displays the subtitle of the current channel if the channel provides subtitle.
. Video
Displays the video track option to choose.
. Audio
Displays the audio track option to choose (e.g. ACS, Stereo).
. TTX
Displays the teletext information of current channel, if the channel provides
teletext data.
. FAV
Listed channel
. Back
Returns to the previous screen.
. PVR
Records video in a digital format to HDD & USB storage device.
TIMER
SUBT
VIDEO
AUDIO
TTX
FAV
BACK
PVR

12
. Info
To display current channel information.
. OK
Confirms the selected menu option.
. Guide
Displays the programme guide.
. Navigation Keys
Navigates up/down and left/right on the menu options.
Up/down keys are used to call up the channel list.
. Menu
Displays the main menu.
. EXIT
Exits the current menu option into the live mode, or switches one step back
of the menu.
. TV
Displays the TV Channel list.
. Radio
Displays the Radio channel list.
. Volume +/-
Adjusts the audio volume.
. Channel +/-
Navigates through the scanned channel list
. Context, User
*Option : Xbmc
. F1, F2, F3
Assign a key function of your own. (Air mouse & Vioce optional)
. Number Keys
Enter a channel number or numbers required to be input according to menu op-
tions.
. Navigation Keys
Navigates left/right on the menu options.
. Color Keys
Each key is assigned a specific function that may be different in each menu.
• Red
• Green
• Yellow
• Blue
NOTE : QWERTY is also supported. (optional)
0
QZ_
INFO
OK
GUIDE
MENU
EXIT
TV
RADIO
VOL+
VOL-
CH+
CH-
F1 F2 F3
< >
CONTEXT
USER

13
(F) Main Features
• Powerful Dual Thread CPU 1.3GHz
• 2 x Smartcard Readers
• 2 x Common Interface
• Dual MPEG2 / H.264 Hardware Decoding
• 4 x Pluggable Tuner
• 2 x DVB-S2 Tuner (Pre-installed)
• OLED Display - 256x64 Pixels (Blue)
• 4MByte SPI Flash/ 1GB NAND Flash/ 2GB RAM
• Gigabit Ethernet
• 3 x USB 2.0
• SATA Ⅲ 2.5” HDD Support
• HDMI
• Composite Video / Component Video
• 1 x SCART
• SPDIF for digital bit stream out
• Power On/Off Switch
• Linux Operating System
• Media Player
• Downloadable Plug-ins support
• EPG support
• Automatic & Manual Service Scan support
• Multiple LNB control (DiSEqC) support
• Skin change support

14
(G) Technical Data
The receiver Technical Specifications
Front
Panel
Display 256x64 pixel OLED(Blue)
smart card slot 2
Common Interface 2
USB2.0 1
Key Ch+/-, Vol+/-, Standby
Rear
Panel
Power switch 1
Sat-IF input/output 2 x F-type (or DIN) Socket
Connection TV 1 x Scart socket
Video output (analogue) 3 x Cinch socket(Y/Pb/Pr) 1 x Cinch-socket(Video)
Video/audio output(digital) 1 x HDMI
Audio output (analogue) 2 x Cinch socket
Audio output (digital) Standard optical (SPDIF)
USB 2.0 2
Ethernet 1 x Gigabit
Power
Mains voltage AC 100-250V / 50-60Hz
Power consumption
(Max./typ. Operation/stand-by) 60 / 25 / 1W
RF RF range 950-2150 MHz
Modulation, FEC, de-multiplexer DVB-S / DVB-S2 standard
Video
Video resolution CCIR 601 (720 x 576 lines), 576p, 720p, 1080i
Video decoding MPEG-2, MPEG-4 compatible
Input data rate 2 – 45 MSymb/s
S/N > 53 dB
Decoding
Decoding Dolby Digital, MPEG-4 (AAC-HE), MPEG-1,
Layer 1, 2, 3
Sampling rate 32 / 4.1 / 48 kHz
S/N > 65 dB
LNB LNB supply (vert./horiz.) 13 / 18V; Max. 400mA
Control signal 22kHz; ToneBurst ; DiSEqCTM1.0 / 1.1 / 1.2
General Dimensions(W x H x D) 340 x 200 x 60 mm
Weight 1.9 kg

15
I. Installation of the receiver
This chapter will guide you through the whole installation process of the receiver. Please
read each section carefully to make sure that the system runs properly.
1. Connecting Satellite Cables
The receiver is a Quad Tuner STB which allows you to connect up to 4 satellite, cable, and/or terres-
trial connections. One of the first steps is to connect satellite cable(s) to STB in order to gain optimal
signal quality. You can either choose one of the following connection methods depending on the
equipment you have.
A. Four Separate Satellite/Cable/Terrestrial Cables
In case you have four separate satellite, cable, or terrestrial cables providing different broadcast
signals, you can configure TUNER A Input and TUNER B-D Input independently.
B. Internal Loop-through
In case you have only one satellite cable, connect the cable to input of TUNER A. Then connect the
loop-though cable from TUNER A output to TUNER B input.
C. Combination of DVB-S/-S2/-C/-T/-T2
Connect a various combination of satellite, cable, and terrestrial connection to your TUNER A-D.
USB2.0X2
5V 500mA Max
TUNER A
LNB IN
Loop Out
13/18V Max 400mA
22KHz
13/18V Max 400mA
22KHz
Loop Out
TUNER C TUNER D TUNER B
LNB IN

16
USB2.0X2
5V 500mA Max
TUNER A
LNB IN
Loop Out
13/18V Max 400mA
22KHz
13/18V Max 400mA
22KHz
Loop Out
TUNER C TUNER D TUNER B
LNB IN
Ceryon X4
USB2.0X2
5V 500mA Max
TUNER A
LNB IN
Loop Out
13/18V Max 400mA
22KHz
13/18V Max 400mA
22KHz
Loop Out
TUNER C TUNER D TUNER B
LNB IN
2. Connecting the TV (and VCR)
The receiver provides a variety of audio/video connection methods.
A. Connecting TV via HDMI cable
For the sake of the best picture quality, especially for digital TV, HDMI connection is recommended.
Most HDTVs Have HDMI connectors to ensure the highest picture quality. In the rear panel of the
receiver. one HDMI connector is available for this purpose. Connect your TV to the receiver. using a
HDMI cable as follows.
B. Connecting TV via Component Cable
The secondly recommend TV connection for digital TV is vi component cable (YPbPr). However, unlike
the HDMI connection which delivers audio and video signal at the same time, YPbPr connection
requires additional audio connection either via RCA cable (Stereo L/R) or S/PDIF as follows.
NOTE: When you have an A/V receiver with S/PDIF digital audio input, this connection is recommended
to enjoy the best audio quality, especially for the Digital sound.
Y, Pb, Pr
HDMI
AUDIO S/PDIF

17
USB2.0X2
5V 500mA Max
TUNER A
LNB IN
Loop Out
13/18V Max 400mA
22KHz
13/18V Max 400mA
22KHz
Loop Out
TUNER C TUNER D TUNER B
LNB IN
USB2.0X2
5V 500mA Max
TUNER A
LNB IN
Loop Out
13/18V Max 400mA
22KHz
13/18V Max 400mA
22KHz
Loop Out
TUNER C TUNER D TUNER B
LNB IN
C. Connecting TV via RCA (Video) Cable
The receiver provides Composite video connection as well. Composite cable has normally three connectors
at the both end; one video (Yellow) and Audio (White/Red). Connect your TV to the receiver using SCART
cable as follows.
D. Connecting TV via SCART cables
In case your TV is analogue TV, SCART cable is the most common method. Connect to your receiver
using SCART cable as follows.
VIDEO AUDIO
TV
SCART

18
3. Connecting Power
An A/C adapter and a power cord are provided as the basic accessories of the receiver.
• Connect the A/C adapter to DC IN at the rear panel of the receiver.
• Connect the power cord to the A/C adapter.
• Connect the power cord to a power outlet.
• Turn on the power switch at the rear panel.
NOTE: AC input condition
• Nominal Voltage Range: 100 – 240 VAC
• Maximum Voltage Range: 90 – 264 VAC
• Nominal Frequency: 50 / 60 Hz
• Maximum Frequency: 47 – 63 Hz
NOTE: means Remote control operation order.
4. Power ON/OFF
[ : Press Power key / Press Menu > Select Standby / Reset]
There are several ways to turn your receiver ON or OFF
• Complete Power Shutdown
There is a Power Switch in the rear panel and once it is ON, you do not need to turn it on or off
each time.
It takes a longer time to boot the system if you turned it off by this switch.
• Standby Mode
POWER key is normally used to turn the power of the receiver on or off. If you press POWER, it
instantly switches your receiver. Off or On in this mode, the system is not completely shutdown
and thus it sakes a shorter time to turn it on and off.
• Deep Standby Mode [ : Menu > Standby/Restart > Deep Standby]
Deep Standby is used to reduce standby power consumption. the receiver is designed to be
energy efficient and to guarantee the power consumption to be under 1W in the deep standby
mode.

19
II. First Time Installation (using Wizard)
When you turn on the receiver for the first time after purchase, an installation wizard will begin step
by step.
NOTE: OK key is used for confirmation and turns to the next step. Press EXIT key to return to the precious
page.
This manual has been edited in reference to the standard SD skin. You can change it to the default HD skin.
Step 1. Video Input Selection
The receiver various I/O for video connection and here you can choose the main video connection
port for your receiver. Use UP/DOWN key to scroll up and down to find the video connection port
you want.
Step 2. Video Mode Selection
The receiver provides various modes for video and here you can choose the video mode for your
receiver. Use UP/DOWN key to scroll up and down to find the video mode you want.

20
Step 3. Language Selection
The receiver provides various languages and here you can choose the main language for your receiver.
Use UP/DOWN key to scroll up and down to find the language you want.
Step 4. Configuring Satellite Connection
From now on you need to configure the satellite connection. You have two options:
• Use wizard to set up basic features
• Exit wizard
You are strongly recommended to use wizard as it is designed to guide you through the configuration
process.
