Cattron Remtron Patriot Series User manual

Remtron®
Patriot
User Manual
9M02-9028-A001-EN

Remtron®Patriot
User Manual
2
9M02-9028-A001-EN
Rev 12
Revision History
VERSION
DATE
NOTES
K
08/2018
12
11/2019
Document rebranded and contact information updated. Revision tracking changed
from alphabetical to numerical.
Any information furnished by Cattron™ and its agents is believed to be accurate and reliable. All specifications are subject to change without notice.
Responsibilityfortheuseandapplication ofCattronproductsrestswiththeendusersinceCattronanditsagentscannotbeawareofallpotentialuses.
Cattron makes no warranties as to non-infringement nor as to the fitness, merchantability, or sustainability of any Cattron products for any
specificor generaluses.CattronHoldings,Inc.,oranyofitsaffiliatesoragentsshallnotbeliableforincidental or consequentialdamagesof any
kind. All Cattron products are sold pursuant to the Terms and Conditions of Sale, a copy of which will be furnished upon request. When used as a
tradename herein, Cattron means Cattron Holdings, Inc. or one or more subsidiaries of Cattron Holdings, Inc. Cattron™, corresponding logos,
and other marks are trademarks or registered trademarksofCattronHoldings,Inc.Othermarksmaybethepropertyofthirdparties.Nothingherein
providesalicenseunderanyCattronoranythirdpartyintellectualpropertyright.

Remtron®Patriot
User Manual
3
9M02-9028-A001-EN
Rev 12
Contents
1. Warnings..............................................................................................................................................................5
2. FCC Compliance Statement ................................................................................................................................6
3. Safety Rules.........................................................................................................................................................7
3.1 Installation ..................................................................................................................................................7
3.2 Personal Safety ..........................................................................................................................................7
3.3 Care............................................................................................................................................................7
4. Introduction...........................................................................................................................................................8
4.1 Purpose ......................................................................................................................................................8
4.2 How the System Works..............................................................................................................................8
4.3 Important Safety Rules...............................................................................................................................8
5. Operations......................................................................................................................................................... 10
5.1 How the System Works........................................................................................................................... 10
5.1.1 Frequency............................................................................................................................................ 10
5.1.2 Range and Antenna Coverage............................................................................................................ 10
5.1.3 License-Free Channels........................................................................................................................ 10
5.1.4 Command Format................................................................................................................................ 11
5.1.5 Safety................................................................................................................................................... 11
5.2 Transmitter Operation and Features ....................................................................................................... 11
5.3 Operation................................................................................................................................................. 12
5.4 Commands .............................................................................................................................................. 12
5.4.1 Command Switches............................................................................................................................. 12
ON/ALARM ..................................................................................................................................................... 12
OFF/STOP...................................................................................................................................................... 12
A–B SWITCH.................................................................................................................................................. 12
AUTO OFF...................................................................................................................................................... 12
5.5 Status Indicators...................................................................................................................................... 12
5.5.1 Status LED........................................................................................................................................... 12
5.5.2 Function Select LEDs .......................................................................................................................... 13
6. Installation......................................................................................................................................................... 14
6.1 General.................................................................................................................................................... 14
6.2 Locating the Equipment........................................................................................................................... 14
6.2.1 Antenna Location................................................................................................................................. 14
6.2.2 Receiver Location................................................................................................................................ 15
6.3 Installation Wiring.................................................................................................................................... 15
6.4 Output Snubbers ..................................................................................................................................... 15

Remtron®Patriot
User Manual
4
9M02-9028-A001-EN
Rev 12
6.5 Power/Control Wiring............................................................................................................................... 16
6.6 Installation Testing................................................................................................................................... 16
7. Maintenance & Troubleshooting ....................................................................................................................... 19
7.1 Monthly Inspection................................................................................................................................... 19
7.2 Installation Troubleshooting .................................................................................................................... 19
7.3 General Troubleshooting......................................................................................................................... 19
7.4 Transmitter Troubleshooting ................................................................................................................... 19
7.4.1 Normal Operation ................................................................................................................................ 20
7.4.2 Replacing the Transmitter Batteries .................................................................................................... 20
7.4.3 Changing the Transmitter ID Code...................................................................................................... 21
7.4.4 Transmitter Spare Parts List................................................................................................................ 21
7.5 Receiver Troubleshooting ....................................................................................................................... 22
7.5.1 General................................................................................................................................................ 22
7.5.2 Receiver Testing.................................................................................................................................. 22
7.5.3 Receiver Repairs ................................................................................................................................. 23
7.5.4 Fuse Replacement............................................................................................................................... 23
7.5.5 Receiver Spare Parts List.................................................................................................................... 24
8. Warranty Statement .......................................................................................................................................... 25
9. CE Declaration of Conformity............................................................................................................................ 25
Appendix I: Transmitter Specifications.................................................................................................................... 26
Appendix II: Receiver Specifications....................................................................................................................... 27

Remtron®Patriot
User Manual
5
9M02-9028-A001-EN
Rev 12
1. Warnings
WARNING
Read all safety rules and warnings before installing and operating this system.
WARNING
The use of unapproved components or accessories in the systems sold by Cattron and its
subsidiaries is strictly prohibited. Unapproved components are defined as any component not
inspected and sold by Cattron. This also includes any component modified from its intended use
and/or any component exhibiting observable damage or defect. Use of non-conforming parts,
assemblies, and accessories may lead to injury or death.
WARNING
The remote control system you have purchased is designed to stop in a safe mode under a variety
of conditions. Some examples of these conditions are: excessive radio signal interference, loss of
battery or electrical power, failure of certain components, operation beyond signal range and
others. Although Cattron and its subsidiaries do not specify the position of the operator when
controlling the equipment, we are aware that some users are instructed and trained by their
employer to ride the equipment in a safe manner. It is imperative that you are prepared for an
unplanned stop of the equipment at any time and do not place yourself or others in a position
where this situation may cause you to fall from the equipment. Failure to use caution may lead to
serious personal injury or death.
!
!
!

Remtron®Patriot
User Manual
6
9M02-9028-A001-EN
Rev 12
2. FCC Compliance Statement
The CommandPro®series receivers have been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy; if not installed and used in accordance
with the user manual, it may cause harmful interference to radio communications. However, there is no guarantee
that harmful interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning this equipment on and off, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna connected to the device that is receiving the interference
•Increase the separation between our equipment and the equipment that is receiving the interference
•Consult our factory or one of our Service Representatives for additional help

Remtron®Patriot
User Manual
7
9M02-9028-A001-EN
Rev 12
3. Safety Rules
WARNING
Read all Instructions. Failure to follow these rules can result in serious personal injury or death.
3.1 Installation
•GROUND THE RECEIVER CASE. In order to ensure safety of the system, firmly connect the receiver
case to earth ground
•PROVIDE A SAFETY CUTOFF SWITCH. If maintenance is required, disconnect the radio from power to
prevent accidental activation
•USE PROPER WIRING. Loose or frayed wires can cause accidental activation of machinery
•DO NOT INSTALL IN HOT AREAS. This apparatus can be damaged by heat in excess of 160º F
•DO NOT INSTALL IN HIGH VIBRATION AREAS. The life of this apparatus may be shortened through
long exposure to intense shaking or vibration
3.2 Personal Safety
•MAKE SURE MACHINERY IS CLEAR BEFORE OPERATING. Do not activate the remote system unless
it is safe to do so
•TURN OFF THE RECEIVER POWER BEFORE WORKING ON MACHINERY. Always disconnect the
remote system before doing any maintenance to prevent accidental operation of the machine
3.3 Care
•KEEP DRY. If water or other liquids get inside, immediately dry the unit
•KEEP ANTENNAS CLEAN. Keep antenna connections clean and free of corrosion
Note: Throughout this manual, other safety rules appear under the following heading:
WARNING
Failure to follow these rules can result in serious personal injury or death.
!
!

Remtron®Patriot
User Manual
8
9M02-9028-A001-EN
Rev 12
4. Introduction
4.1 Purpose
This manual provides information on the safe installation and operation of the Cattron Patriot wireless control
systems. Information is also included on the maintenance and repair of the Patriot systems.
4.2 How the System Works
Information is included on all Cattron Patriot transmitters and receivers. See the detailed information contained in
each section of this manual for your particular equipment.
The transmitters covered in this manual contain enhanced features that expand the types of applications for the
systems.
Many new features have been added, but most changes are transparent to the user. If you are already familiar
with Cattron transmitters, you are encouraged to read the section on operating the transmitters, where you will
find information about the latest changes in operation.
To help you identify your system, Figure 1 and Figure 2 provide a reference for the transmitters and the receivers
covered in this manual.
4.3 Important Safety Rules
Using wireless control systems with heavy industrial equipment can improve the safety of the equipment.
It is important to adhere to the safety rules presented throughout this manual, especially during installation, in
order to achieve the safest operating system possible.
Figure 1: Cattron Patriot Transmitters

Remtron®Patriot
User Manual
9
9M02-9028-A001-EN
Rev 12
Figure 2: Cattron Patriot Receivers

Remtron®Patriot
User Manual
10
9M02-9028-A001-EN
Rev 12
5. Operations
Cattron Patriot Wireless Control Systems are designed for control of industrial machinery. These rugged controls
are built to survive the wear and tear of life in factories, mills and foundries.
These systems comply with requirements for operation under Part 15 of the FCC Rules and Regulations. This
means that neither the operator nor the company need apply or register for a license to operate this equipment.
The basic system consists of a transmitter and a receiver. The transmitter sends commands to the receiver by
means of radio waves in the 900 MHz band. Receivers operate at 120 VAC 50/60 Hz power.
5.1 How the System Works
5.1.1 Frequency
Cattron Patriot equipment operates in the 902 to 928 Megahertz (MHz) frequency band. A wavelength at our
frequency is 12.9 inches.
Like light, 900 MHz radio signals pass through glass and plastics, and will reflect off of walls, buildings, and metal
structures. Unlike light, 900 MHz radio signals penetrate all plastics, including those that you cannot see through,
as well as thin-gauge steel, dry wood, dry concrete, plasterboard, fog and rain.
However, trees, earth, water, people, aluminum, copper and some window tints will not readily pass our signals.
5.1.2 Range and Antenna Coverage
Antennas convert radio signals into radio waves and convert radio waves back into radio signals. They can send
and receive in all directions or in a single direction, depending on their design.
An omnidirectional antenna is like a light bulb, and a directional antenna is like a flashlight. Metal objects reflect
radio waves, just as a mirror next to a light bulb will reflect light. Metal objects near an antenna alter the intended
pattern of an antenna by either shading or reflecting signals.
Our standard antennas are omnidirectional; they ‘see’ equally well in all directions. We have other antennas that
will ‘see’ further in one direction for special applications.
5.1.3 License-Free Channels
The 902 to 928 MHz spectrum is set aside by the FCC as an ISM Band (Industrial, Scientific and Medical), and
this spectrum accommodates many license-free users. We have the ability to change frequencies in this band,
and we have 81 different channels that we can assign to our transmitters and receivers. The actual frequency is
coded into the receiver and transmitter at the factory, but it can be changed to one of the other 80 channels in the
field.
Other devices in this band include wireless phones, computer data links and inventory equipment. As a condition
of using this band, our products must accept and handle interference from other users.
The 900 MHz band has worked well for most users, and not being burdened with licensing regulations is often
desirable. The FCC has allowed 50,000 microvolts per meter field strength on this band, which is 250 times
higher than other unlicensed frequencies below this band. This allows our systems to operate very reliably in the
presence of other signals.

Remtron®Patriot
User Manual
11
9M02-9028-A001-EN
Rev 12
5.1.4 Command Format
We use packet-mode, Frequency Modulation (FM) to carry commands in a packet form from our transmitter to our
receiver.
To reduce battery drain, our transmitter transmits for a hundredth of a second, which is long enough to send one
packet to our receiver at a repetition rate of either 16 times per second or four times per second.
The rate varies: 16 times per second for three times when sending a command and four times per second when
there is no change in commands and the transmitter is still on. Any time a lever or switch is activated, we send all
control settings three times at the 16-per-second rate and then return to the slower rate of four times per second.
Our receiver uses the slower rate for maintaining transmitter timing and provides for a maintained link where one
is used. The only exception to this is the ‘STOP’ switch, which transmits at 16 times per second as long as it is
depressed. In addition to lever and switch positions, each packet contains a unique address and CRC check sum
(described in the next section).
5.1.5 Safety
Safety and preventing loss of control are very important issues at Cattron. We use a unique identification (ID)
code for each user. There are provisions in the system for 65,535 individual codes.
Each transmission includes a CRC check sum, which is a polynomial created by factoring all of the previous bits
transmitted. Once the receiver receives a valid start command from the transmitter, the receiver tracks the time of
the transmitter and ignores all other transmissions that do not fall within the expected time frame of the
transmitter.
Maintained link systems must receive at least one valid transmission each second in order to allow the remote-
controlled equipment to function. The receiver provides a loss-of-signal control output that safely shuts down the
equipment if a loss of signal occurs.
The receiver will not allow restart of equipment under its control after a loss of signal until a valid system start
command is received from the transmitter. This prevents an unintended start-up from occurring if the transmitter
returns within range of the receiver and is still operating.
The transmitters also check the position of all controls upon start-up. The transmitter will not issue a start
command if any of the controls are pressed at the time the start command is invoked.
5.2 Transmitter Operation and Features
WARNING
Do not operate the system until you are familiar with radio-controlled operation. If you are not
familiar with radio-controlled operation, contact your supervisor before attempting to use the radio
control system.
!

Remtron®Patriot
User Manual
12
9M02-9028-A001-EN
Rev 12
IMPORTANT
To stop the system in an emergency, press and hold the OFF/STOP button. Pressing and holding
this button down stops all functions.
5.3 Operation
1. Press and release the ON/ALARM button. Verify that the status LED starts flashing at a low rate. If
equipped, the Alarm function should sound.
2. Press the required switches to operate the desired function. Note that more than one function can be
controlled at any time.
3. To stop sending any command, release the switch.
4. To switch the transmitter off, press the OFF/STOP button. (Note that the transmitter will switch itself off if
no commands are sent for a predetermined time if Auto Off is enabled).
5.4 Commands
5.4.1 Command Switches
The command switches are labeled according to their function.
•If opposing commands are attempted, that is, two commands that conflict with each other, in most cases
no function will result. In the case of ON/OFF functions, OFF will predominate
•If more than one speed command is sent for the same function, the lower speed will predominate
ON/ALARM
This button turns on the transmitter and puts the system in the active mode. It sends an ALARM command to the
receiver while the switch is depressed. The transmitter will remain active until the OFF/STOP button is pressed or
the transmitter switches itself off (see Auto Off).
OFF/STOP
While depressed, this button sends a STOP command to the receiver. The transmitter does not need to be
switched ‘ON’ to send this command. When this switch is released, the transmitter will be switched off.
A–B SWITCH
(25T15A only) A Selector switch is provided to control more than one similar function with the same controls (that
is, controlling hoist/trolley A, hoist/trolley B, or both A and B simultaneously). A single button will cycle between A,
B, BOTH, and OFF each time the button is pressed. LED indicators show the control status.
AUTO OFF
The transmitter will switch itself off if no commands have been sent for a predetermined time. This time is
normally set to 15 minutes but can be reset to 0–60 minutes (or disabled) using a RAC16A Series Programmer
(01 to 60 = minutes, 00 = disabled).
5.5 Status Indicators
5.5.1 Status LED
The status LED provides an indication of the transmitter operation. When the transmitter is operating normally, the
LED indicator will emit short flashes at a low rate when no commands are activated and at a higher rate when a
!

Remtron®Patriot
User Manual
13
9M02-9028-A001-EN
Rev 12
command is activated. Some transmitters use a red LED only. Others use a multicolored LED that flashes
GREEN when no problems are present and changes to RED under low battery conditions or when other problems
are encountered. See the Status Chart below.
Transmitter Status Chart
LED Indication
Possible Cause
LED is off
Transmitter is off –switch transmitter ON
Batteries are dead –replace batteries
Transmitter failure –contact Cattron at www.cattron.com/contact for
service
LED flashes at low rate
Transmitter is operating in a normal mode
LED flashes at high rate
Command switch is pressed
LED flashes Red/Green (‘A’ Series
Only)
Batteries getting low –change batteries at the next convenient
opportunity
LED flashes On/Off at a slow rate
(½ second on and ½ second off)
Batteries getting low –change batteries at the next convenient
opportunity
LED remains on continuously (LED
might flicker slightly)
A switch was activated at the time the transmitter was switched on, or a
general failure occurred that requires factory service. Ensure no other
switches are pressed while attempting to switch the transmitter on
LED will not light when ON/OFF
button is pushed
Replace batteries. If this does not correct the problem, the transmitter
must be repaired
5.5.2 Function Select LEDs
Two LEDs are used on 25T15A transmitters to indicate which control functions are active (such as hoist/trolley A
or hoist/trolley B) and are intended to be used with pilot relays. When both are lit, both controls are active. When
both LEDs are unlit, neither control is active.

Remtron®Patriot
User Manual
14
9M02-9028-A001-EN
Rev 12
6. Installation
6.1 General
Check all of the components to confirm that they are the components you ordered for your system and that they
are in good condition. If any components are missing, or if any are not in good condition, contact Cattron at
www.cattron.com/contact .
WARNING
READ ALL INSTRUCTIONS. Failure to follow the SAFETY RULES can result in serious personal
injury. Before starting this installation, ensure that the crane power has been disconnected and
that all applicable safety precautions are followed.
Figure 5 in Section 6.6 shows a typical Patriot receiver. See this figure for mounting dimensions and antenna
connector location.
6.2 Locating the Equipment
6.2.1 Antenna Location
The antenna is one of the most important components of a radio receiving system. Proper placement of the
receiver antenna ensures reliable operation under the most severe conditions. A direct ‘line-of-sight’ path between
the transmitter and receiver antenna provides best performance (refer to Figure 3).

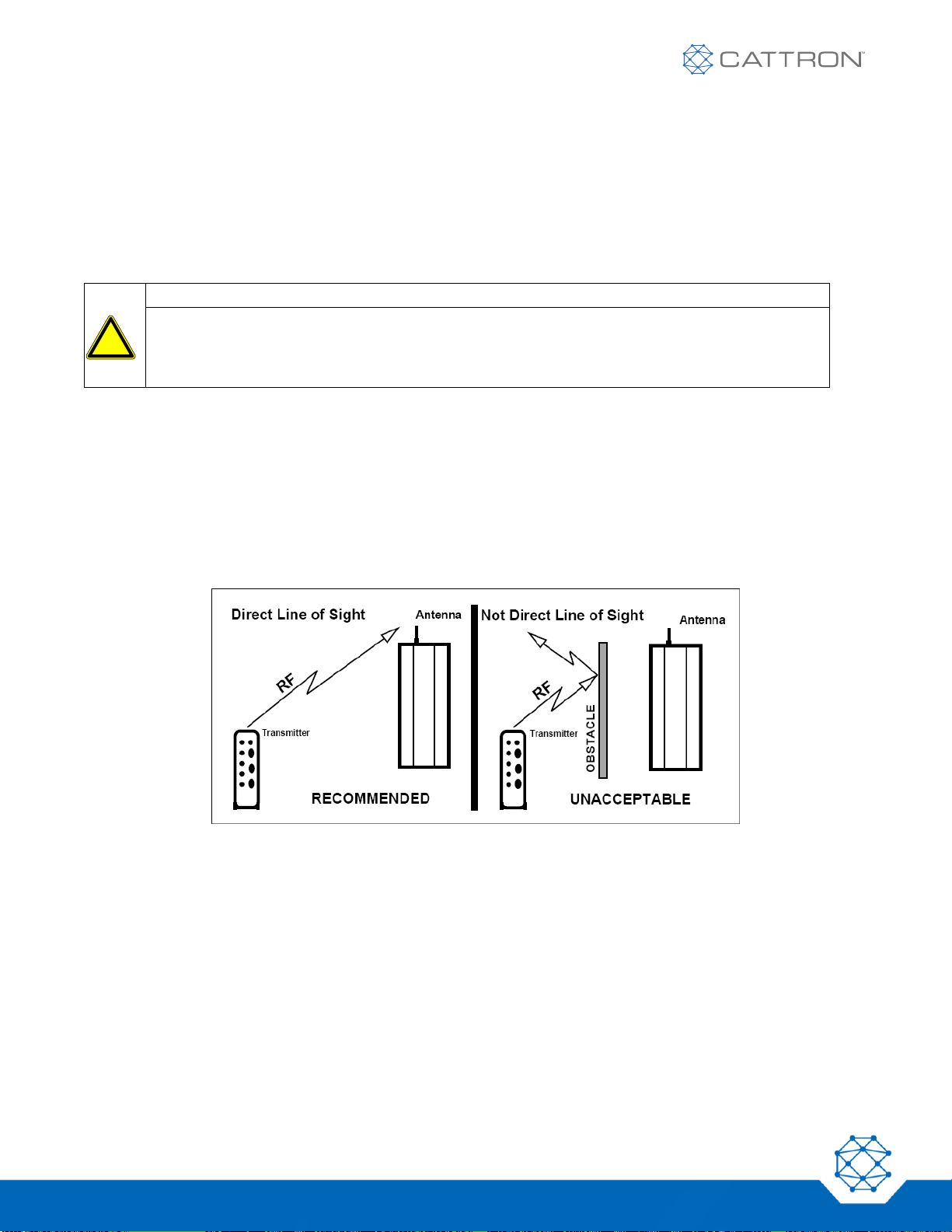

Figure 3: Transmitter/Receiver Communication
In most cases, the antenna may be mounted directly on the receiver cabinet. In determining the mounting
location, consider the following items:
•Mount the antenna vertically
•For optimum performance, give the antenna itself a minimum of 8 inches clearance in all directions,
excluding the wall or plate to which the receiver cabinet is mounted (refer to Figure 4)
•If the receiver cabinet location cannot provide this clearance and the antenna must be mounted at a
remote location, the Cattron Remote Antenna Mounting Kit should be used. See Receiver Spare Parts
List or contact Cattron at www.cattron.com/contact for more information
!

Remtron®Patriot
User Manual
15
9M02-9028-A001-EN
Rev 12
Figure 4: Antenna Clearance
6.2.2 Receiver Location
To ensure safe and reliable system operation, the following items must be considered when selecting a location
for mounting the receiver:
•Install the receiver in an environment where the ambient temperature during operation does not drop
below -20º F (-28º C) or rise above +160º F (+71º C)
•To ensure that the receiver enclosure is electrically at earth ground, connect the green wire in the
interface cable to earth ground
•Mount the receiver enclosure securely using appropriate locking-type hardware
6.3 Installation Wiring
WARNING
Before starting this installation, ensure that the crane power has been disconnected and that all
applicable safety precautions are followed.
CAUTION
Connection to equipment or contactors with higher voltage or current requirements requires
intermediate relays.
6.4 Output Snubbers
Snubbers are recommended for the suppression of noise generated from arcing relay contacts. When a contactor
opens, the contactor coil produces a large voltage potential, much like automotive ignition systems. When the
points open on automotive ignition systems, the coil sends a large voltage to the distributor. This voltage jumps
across the spark plug (called arcing). The result is a large amount of noise generated in the system.
A snubber is a device designed to reduce arcing (noise). To increase relay life, it is recommended that all
contactors have snubbers installed directly across the coils. If more snubbers are needed, see the Receiver
Spare Parts List or contact Cattron at www.cattron.com/contact .
!
!

Remtron®Patriot
User Manual
16
9M02-9028-A001-EN
Rev 12
6.5 Power/Control Wiring
See Figure 6 in Section 6.6 for Patriot receiver wiring diagrams.
Patriot receivers are prewired according to the wiring label on the face of the receiver. Limit the load current
applied to the output relay bank ‘common’ to 5 A maximum.
Use the following steps to install the wiring to the receiver.
1. Connect the ‘hot’ input wire for the bridge (X1A) to the black wire of the interface cable. This provides
power for the bridge and alarm functions as well as power for the receiver.
2. Connect the neutral (X2) wire for the bridge to the white wire of the interface cable. This provides power
return for the receiver.
3. Connect the ‘hot’ input wire for the trolley and hoist (X1B) to the black/white wire of the interface cable. If
only one power source (phase) is used, this will be the same as Step 1 above.
4. Connect the red wire to the coil of the main line (ML) contactor. This wire will provide a continuous
voltage to the ML Coil when the transmitter is active. If a pendant is also connected to the controls, we
recommend the addition of a transfer switch to select either pendant or radio control.
5. Connect the remainder of the wires to the control relays as required.
Note: The standard Patriot receiver can interface to either 3- or 4-wire hoist controls. When installing the
Patriot on standard 3-wire hoist controls, the two wires for hoist second speed (GRN/WHT and
RED/WHT) need to be joined and wired into the appropriate location for hoist second speed.
Review the steps above to ensure the accuracy of the wiring before applying power to the installation.
6.6 Installation Testing
Before putting the system into service, the following testing procedure must be performed:
1. Apply power to the receiver.
2. Verify that PWR indicator turns on. See Figure 5.
3. Turn on the transmitter.
4. Verify that the SIGNAL indicator flashes.
5. Verify that voltage is present at the receiver output to the Main Line Contactor (MLC).
6. Verify that no voltage is present at any of the relay output terminals that are used for your application.
7. Recheck the system wiring if voltage is present at any output terminal that is used.

Remtron®Patriot
User Manual
17
9M02-9028-A001-EN
Rev 12
Figure 5: Patriot Receiver (25R15A)

Remtron®Patriot
User Manual
18
9M02-9028-A001-EN
Rev 12
Figure 6: Connections and Labels for Patriot Receivers

Remtron®Patriot
User Manual
19
9M02-9028-A001-EN
Rev 12
7. Maintenance & Troubleshooting
7.1 Monthly Inspection
Cattron recommends performing the following tasks once a month:
•Inspect the transmitter for damage to the keypad and case
•Inspect all electrical and antenna connections to ensure they are clean and tight
7.2 Installation Troubleshooting
If the system fails to operate at the time of installation, or after a system component is repaired, try to remedy the
problem by using the following troubleshooting chart. If this does not solve the problem, proceed to the transmitter
and receiver troubleshooting charts or contact Cattron at www.cattron.com/contact .
Table 1: Installation Troubleshooting Chart
Problem
Possible Cause
Remedy
Receiver will not respond
to the transmitter.
Wrong transmitter code
Make sure transmitter is the correct one for
the receiver. Re-program the transmitter
Transmitter problem
See Transmitter Troubleshooting
Receiver problem
See Receiver Troubleshooting
System has short range.
Antenna placement
Move the antenna. See Antenna Location
Antenna cable shorted or open
Check cable and connections to the antenna
Some functions are
incorrect.
Programming error
Check the configuration sheet against
system requirements. Contact Cattron at
www.cattron.com/contact
7.3 General Troubleshooting
Most problems are likely to occur in the transmitter, due to the rough treatment it can be subjected to. The
transmitter should therefore be thoroughly diagnosed before proceeding to the receiver.
7.4 Transmitter Troubleshooting
WARNING
When testing the transmitter, the receiver can become active and cause system operation. Always
assume the system is working and will respond when testing a transmitter.
!

Remtron®Patriot
User Manual
20
9M02-9028-A001-EN
Rev 12
7.4.1 Normal Operation
When the transmitter is operating normally, the LED indicator emits short flashes at a low rate when no
commands are activated, and at a higher rate when a command is activated.
Some transmitters use a red LED only. Others use a multicolored LED that flashes green when no problems are
present and changes to red under low battery conditions or when other problems are encountered.
Table 2: Transmitter Troubleshooting Chart
Problem
Possible Cause
LED is off
Transmitter is off –switch transmitter ON
Batteries are dead –replace batteries
Transmitter failure –contact Cattron at www.cattron.com/contact for
service
LED flashes at low rate
Transmitter is operating in a normal mode
LED flashes at high rate
Command switch is pressed
LED flashes Red/Green (‘A’
series only)
Batteries getting low –change batteries at the next convenient
opportunity
LED flashes on-off at a slow rate
(½ second on and ½ second off)
Batteries getting low –change batteries at the next convenient
opportunity
LED remains on continuously
(LED might flicker slightly)
A switch was activated at the time the transmitter was switched on or a
general failure occurred that requires factory service. Ensure no other
switches are pressed while attempting to switch the transmitter on
LED will not light when ON/OFF
button is pushed
Replace batteries. If this does not correct the problem, the transmitter
must be repaired
7.4.2 Replacing the Transmitter Batteries
WARNING
The transmitter’s electronic components are exposed when the back of the case is removed. Take
care to prevent dirt or other contaminants from entering the case. Do not allow the circuit to be
scraped or damaged in any way.
Handheld Transmitters
Refer to Figure 7 in Section 7.4.4 for your particular transmitter.
1. For Standard transmitters, fully release the two captive screws and remove the battery door.
2. Remove and replace the AA Alkaline batteries. Be sure to observe the correct polarity.
3. For Standard transmitters, fully replace the battery door and secure using the two captive screws. ‘A’
Series Battery door screws should be tightened until snug, plus half a turn.
!
