AXELL D-MBR 3007-3008-PS User manual

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
SMR 700/800 Digital Multi-Channel IP65
(NEMA 4) Ban Selective Repeater
PRODUCT DESCRIPTION AND USER’S MANUAL
for AXELL D-MBR 3007-3008-PS NFPA REPEATER
UMCD00013 Rev 2.2
D-MBR 3007-3008 PS NFPA

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
II UMCD00013 Rev 2.2 © Axell Wireless Ltd
Copyright © 2014 Axell Wireless Lt
All rights reserve .
No part of this ocument may be copie , istribute , transmitte , transcribe , store in a retrieval system, or
translate into any human or computer language without the prior written permission of Axell Wireless Lt .
The manufacturer has ma e every effort to ensure that the instructions containe in this ocument are a equate
an free of errors an omissions. The manufacturer will, if necessary, explain issues which may not be covere
by this ocument. The manufacturer's liability for any errors in the ocument is limite to the correction of errors
an the aforementione a visory services.
This ocument has been prepare to be use by professional an properly traine personnel, an the customer
assumes full responsibility when using them. The manufacturer welcomes customer comments as part of the
process of continual evelopment an improvement of the ocumentation in the best way possible from the
user's viewpoint. Please submit your comments to the nearest Axell Wireless sales representative.
Contact Information
Hea quarters Axell Wireless
Aerial House
Asheri ge Roa , Chesham
Buckinghamshire HP5 2QD
Unite King om
Tel: [phone]
Fax: [phone]
Commercial inquiries [e-mail]
Web site www.axellwireless.com
Support issues [e-mail]
Technical Support Line, English
speaking
[phone]
Contact information for Axell Wireless offices in other countries can be found on our web site,
www.axellwireless.com

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 III
About This Manual
This Pro uct Manual provi es the following information:
•Description of the Repeater
•Proce ures for setup, configuration an checking the proper operation of the
Repeater
•Maintenance an troubleshooting proce ures
For whom it is inten e
This Pro uct Manual is inten e for experience technicians an engineers. It is assume
that the customers installing, operating, an maintaining Axell Wireless Mini-Repeaters
are familiar with the basic functionality of Repeaters.
Notice
Confi ential - Authorize Customer Use
This ocument may be use in its complete form only an is solely for the use of Axell
Wireless employees an authorize Axell Wireless channels or customers. The material
herein is proprietary to Axell Wireless. Any unauthorize repro uction, use or isclosure
of any part thereof is strictly prohibite .
All trademarks and registered trademarks are the property of their respective owners.
Disclaimer of Liability
Contents herein are current as of the ate of publication. Axell Wireless reserves the right
to change the contents without prior notice. The information furnishe by Axell Wireless
in this ocument is believe to be accurate an reliable. However, Axell Wireless assumes
no responsibility for its use. In no event shall Axell Wireless be liable for any amage
resulting from loss of ata, loss of use, or loss of profits an Axell Wireless further
isclaims any an all liability for in irect, inci ental, special, consequential or other similes
amages. This isclaimer of liability applies to all pro ucts, publications an services
uring an after the warranty perio .
Guarantees
•All antennas must be installed with lightning protection. Damage to power
mo ules, as a result of lightning are not covere by the warranty.
•Antennas must be connected before switching on AC or DC power. Switching
power on prior to the connection of antenna cables is regar e as faulty installation
proce ure an therefore not covere by the Axell Wireless warranty.
•The repeater box should be closed using the two screws. The screws must be
fully tightene . Failure to o so may affect the IP65 compliancy an therefore any
warranty.
Exclusive Reme ies
The reme ies provi e herein are the Buyer’s sole an exclusive reme ies. Axell Wireless
shall not be viable for any irect, inci ental, or consequential amages, whether base on
contract, tort, or any legal theory.

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
IV UMCD00013 Rev 2.2 © Axell Wireless Ltd
Compliance with FCC
Note the following: This repeater can be operated as Part 90 Class A repeater.
FCC Part 90 Warning Statement
WARNING: This is NOT a CONSUMER device. It is designed for installation by FCC
LICENCEES and QUALIFIED INSTALLERS. You must have an FCC LICENCE or
express consent of an FCC Licensee to operate this device.
This is a Class A signal booster.
You MUST register Class B signal boosters (as defined in 47 CFR 90.219) online at
www.fcc.gov/signal-boosters/registration.
Unauthorized use may result in significant forfeiture penalties, including penalties in
excess of $100,000 for each continuing violation.
Note the following
The installation proce ure must result in the signal booster complying with FCC
requirements 90.219( ). In or er to meet FCC requirements 90.219(d , it may be
necessary for the installer to re uce the UL an /or DL output power for certain
installations.
FCC Part 15
This evice complies with part 15 of the FCC Rules. Operation is subject to the following
two con itions:
1. This evice may not cause harmful interference, an
2. This evice must accept any interference receive , inclu ing interference that may
cause un esire operation.
This equipment has been teste an foun to comply with the limits for a Class A igital
evice, pursuant to part 15 of the FCC Rules. These limits are esigne to provi e
reasonable protection against harmful interference when the equipment is operate in
a commercial environment. This equipment generates, uses, an can ra iate ra io
frequency energy an , if not installe an use in accor ance with the instruction
manual, may cause harmful interference to ra io communications. Operation of this
equipment in a resi ential area is likely to cause harmful interference in which case the
user will be require to correct the interference at his own expense.

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 V
Only for in-buil ing applications
One must be aware that FCC regulation man ate that this repeater is to be use only for
in-buil ing applications an thus fee passive or active DAS (Distribute Antenna
Systems) accor ingly.
FCC RF Exposure Limits
This unit complies with FCC RF exposure limits for an uncontrolle environment. This
equipment can only be installe in in-buil ing applications, riving passive or active DAS
systems. All antennas must be operate at a minimum istance of 35 cm between the
ra iator an any person’s bo y.
Antenna Installation
Installation of an antenna must comply with the FCC RF exposure requirements. The
antenna use for this transmitter must be mounte on permanent structures.
The FCC regulation man ate that the EIRP of type B signal boosters shoul not excee
5W.
Therefore the max antenna gain allowe for this type of signal booster shoul be limite
to the values given by equation (1) for the service antenna an equation (2) for the onor
antenna
Equation (1) - Max SERVICE antenna gain
Max SERVICE antenna gain (dBi) = 37dBm[EIRP] – (33dbi – 10log(N)(dB) – cable loss in dB).
For example:
No. of Antennas Cable Losses Max Allowed Antenna Gain
4 2 37 - (33+6-2) = 0 B
1 2 37- (33+0-2) = 6 B
10 2 37- (33+10-2) = -2 B
Note :0 B = 2.15 Bi
Equation (2) - Max DONOR antenna gain
Max DONOR antenna gain (dBi) = 37 – (27dbi - cable losses in dbi).

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
VI UMCD00013 Rev 2.2 © Axell Wireless Ltd
Compliance with FCC eployment rule regar ing the ra iation of noise
Goo engineering practice must be use in regar to the signal booster’s noise ra iation.
Thus, the gain of the signal booster shoul be set so that the EIRP of the output noise
from the signal booster shoul not excee the level of -43 Bm in 10 kHz measurement
ban wi th.
In the event that the noise level measure excee s the aforementione value, the signal
booster gain shoul be ecrease accor ingly.
In general, the ERP of noise on a spectrum more than 1 MHz outsi e of the pass ban
shoul not excee -70 Bm in a 10 kHz measurement ban wi th.
The 3308 signal booster has a noise level of -43 Bm in 10 kHz measurement at 1 MHz
spectrum outsi e the passban of the signal booster an an in-band noise level at aroun
-37 Bm in a 10 kHz ban wi th. Therefore, the noise at the antenna input port shoul be
calculate base on equation (3).
Equation (3) - Input Noise to service antenna
Input Noise to service antenna:
-43 dBm + Service Antenna gain – Antenna splitter losses in dBi – cable loss in dB
Example:
Signal booster connecte to 10 service antennas with a 100m long ½ inch cable.
•Losses of such a cable with the connectors = ~ 11 B
•Gain = ~ 2 Bi
Assuming 10 service antennas: antenna splitter losses = 11 B
Base on equation (3) Input antenna noise (to the antenna) = -43+2-11 -11=-63 Bm
The inban input noise to the antenna shoul be -37+2 -11-11= -57 bm
NOTE: In this example you may be required in general to add an external bandpass filter that would
attenuate by additional 7 dB the out of band noise.
Conclusion:
Goo engineering practice requires that in general when the out of ban noise measure
at the service antenna input is more than -70 bm per 10 kHz measurement ban wi th,
an external ban pass filter shoul be a e to attenuate the out of ban noise level.
Compliance with IC
Un er In ustry Cana a regulations, this ra io transmitter may only operate using an
antenna of a type an maximum (or lesser) gain approve for the transmitter by In ustry
Cana a. To re uce potential ra io interference to other users, the antenna type an its
gain shoul be so chosen that the equivalent isotropically ra iate power (e.i.r.p.) is not
more than that necessary for successful communication.
The Manufacturer's rate output power of this equipment is for single carrier operation.
For situations when multiple carrier signals are present, the rating woul have to be
re uce by 3.5 B, especially where the output signal is re-ra iate an can cause
interference to a jacent ban users. This power re uction is to be by means of input
power or gain re uction an not by an attenuator at the output of the evice.

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 VII
This equipment complies with IC RSS-102 ra iation exposure limits set forth for an
uncontrolle environment. This equipment shoul be installe an operate with minimum
istance of 35 cm between the antenna an your bo y.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. ans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l'établissement d'une communication satisfaisante.
La puissance de sortie nominale indiquée par le fabricant pour cet appareil concerne son
fonctionnement avec porteuse unique. Pour des appareils avec porteuses multiples, on
doit réduire la valeur nominale de 3.5dB, surtout si le signal de sortie est retransmis et
qu'il peut causer du brouillage aux utilisateurs de bandes adjacentes. Une telle réduction
doit porter sur la puissance d'entrée ou sur le gain, et ne doit pas se faire au moyen d'un
atténuateur raccordé à la sortie du dispositif.
Cet appareil est conforme aux limitations de la norme IC RSS-102 concernant l’exposition
aux radiations dans un environnement non contrôlé. Cet appareil doit être installé et
utilisé avec une distance minimale de 30 cm entre l’antenne et le corps de l’utilisateur.

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
VIII UMCD00013 Rev 2.2 © Axell Wireless Ltd
General Safety Warnings Concerning Use of This System
Always observe stan ar safety precautions uring installation, operation an
maintenance of this pro uct.
Caution labels!
Throughout this manual, there are "Caution" warnings. "Caution"
calls attention to a proce ure or practice, which, if ignore , may
result in injury or amage to the system, system component or
even the user. Do not perform any proce ure prece e by a
"Caution" until the escribe con itions are fully un erstoo an
met.
Danger: Electrical
Shock
This equipment must be installe in oors only. . To prevent
electrical shock when installing or mo ifying the system power
wiring, isconnect the wiring at the power source before working
with un insulate wires or terminals.
Caution: Safety to
personnel
Before installing or replacing any of the equipment, the entire
manual shoul be rea an un erstoo .
The user nee s to supply the appropriate AC or DC power to the
repeater. Incorrect power settings can amage the repeater an
may cause injury to the user.
Please be aware that the equipment may, uring certain
con itions become very warm an can cause minor injuries if
han le without any protection, such as gloves.
Caution: Safety to
equipment
When installing, replacing or using this pro uct, observe all
safety precautions uring han ling an operation. Failure to
comply with the following general safety precautions an with
specific precautions escribe elsewhere in this manual violates
the safety stan ar s of the esign, manufacture, an inten e
use of this pro uct.
Axell Wireless assumes no liability for the customer's failure to
comply with these precautions. This entire manual shoul be rea
an un erstoo before operating or maintaining the repeater.
Warning: Restricte
Access Location
Access to the Axell unit installation location is restricte to
SERVICE PERSONNEL an to USERS who have been instructe on
the restrictions an the require precautions to be taken.
Attention:
Electrostatic
Sensitivity
Observe electrostatic precautionary proce ures.
ESD = Electrostatic Discharge Sensitive Device.
Semicon uctor transmitters an receivers provi e highly reliable
performance when operate in conformity with their inten e
esign. However, a semicon uctor may be amage by an
electrostatic ischarge ina vertently impose by careless
han ling.
Static electricity can be con ucte to the semicon uctor chip
from the centre pin of the RF input connector, an through the
AC connector pins. When unpacking an otherwise han ling the
repeater, follow ESD precautionary proce ures inclu ing use of
groun e wrist straps, groun e workbench surfaces, an
groun e floor mats.

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
IX UMCD00013 Rev 2.2 © Axell Wireless Ltd
Table of Contents
1 Introduction ..................................................................................................................................1
1.1 Main Features ........................................................................................................................2
1.2 Repeater Model......................................................................................................................3

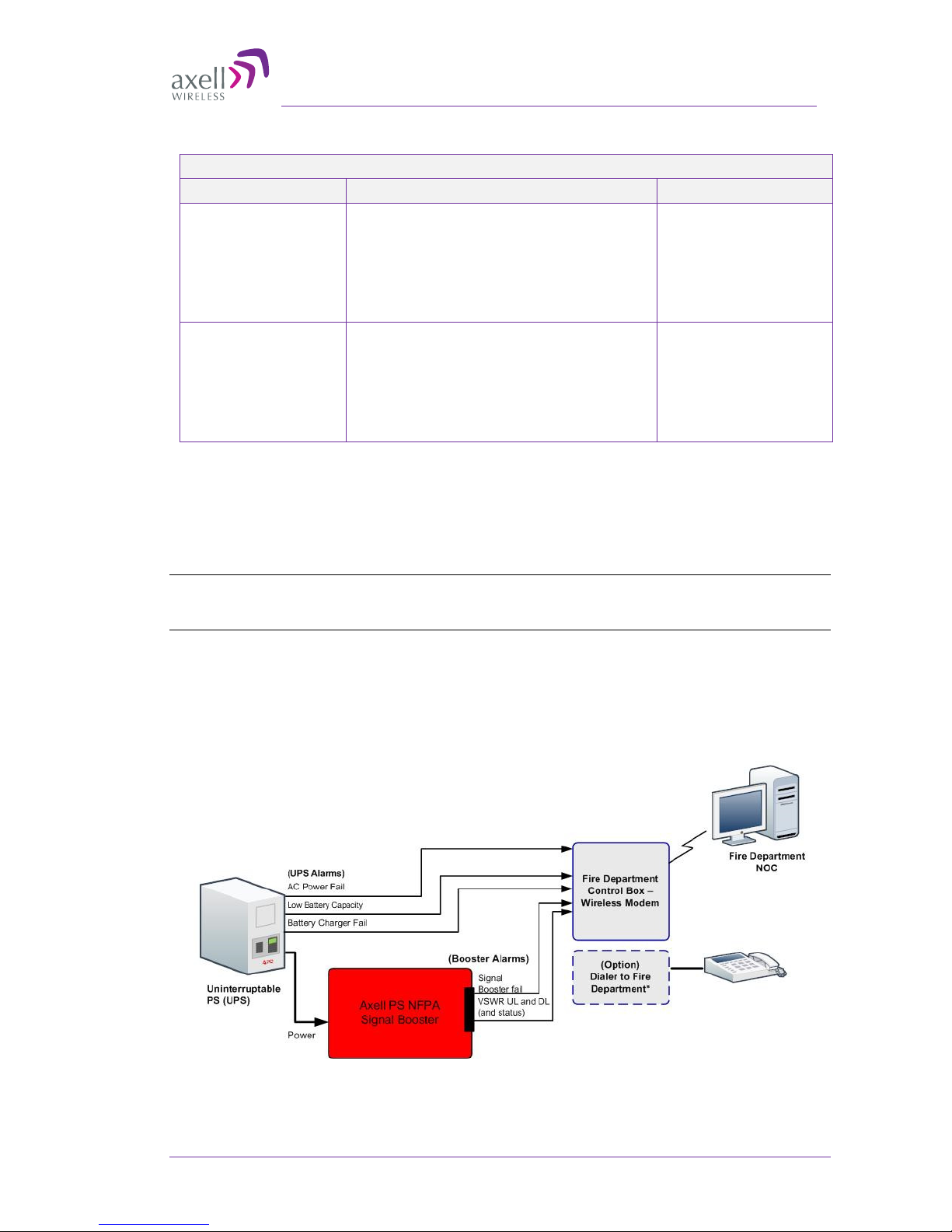

1.3 NFPA Installation Architecture ...............................................................................................3
1.4 Smart-ALC Function...............................................................................................................4

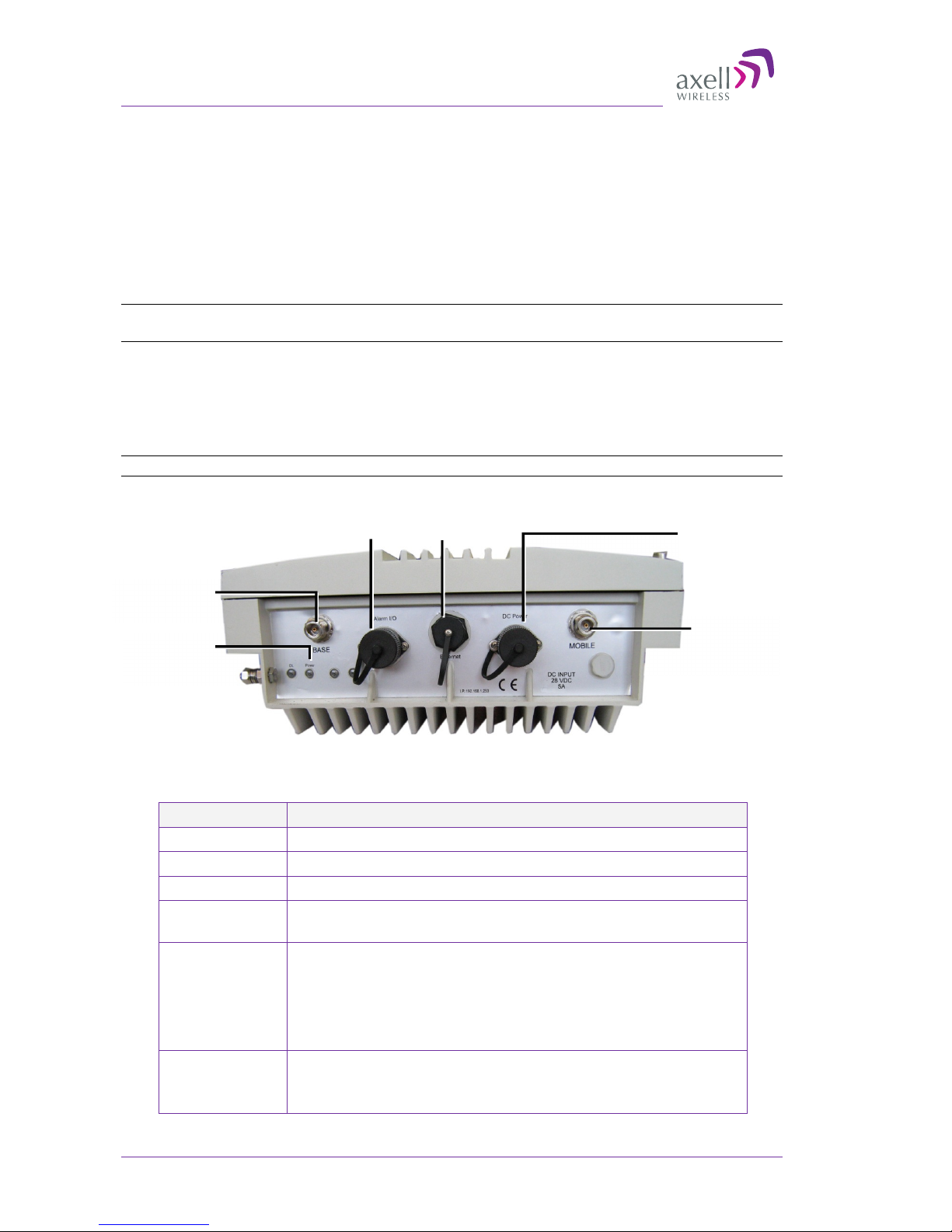

1.5 Interfaces................................................................................................................................4

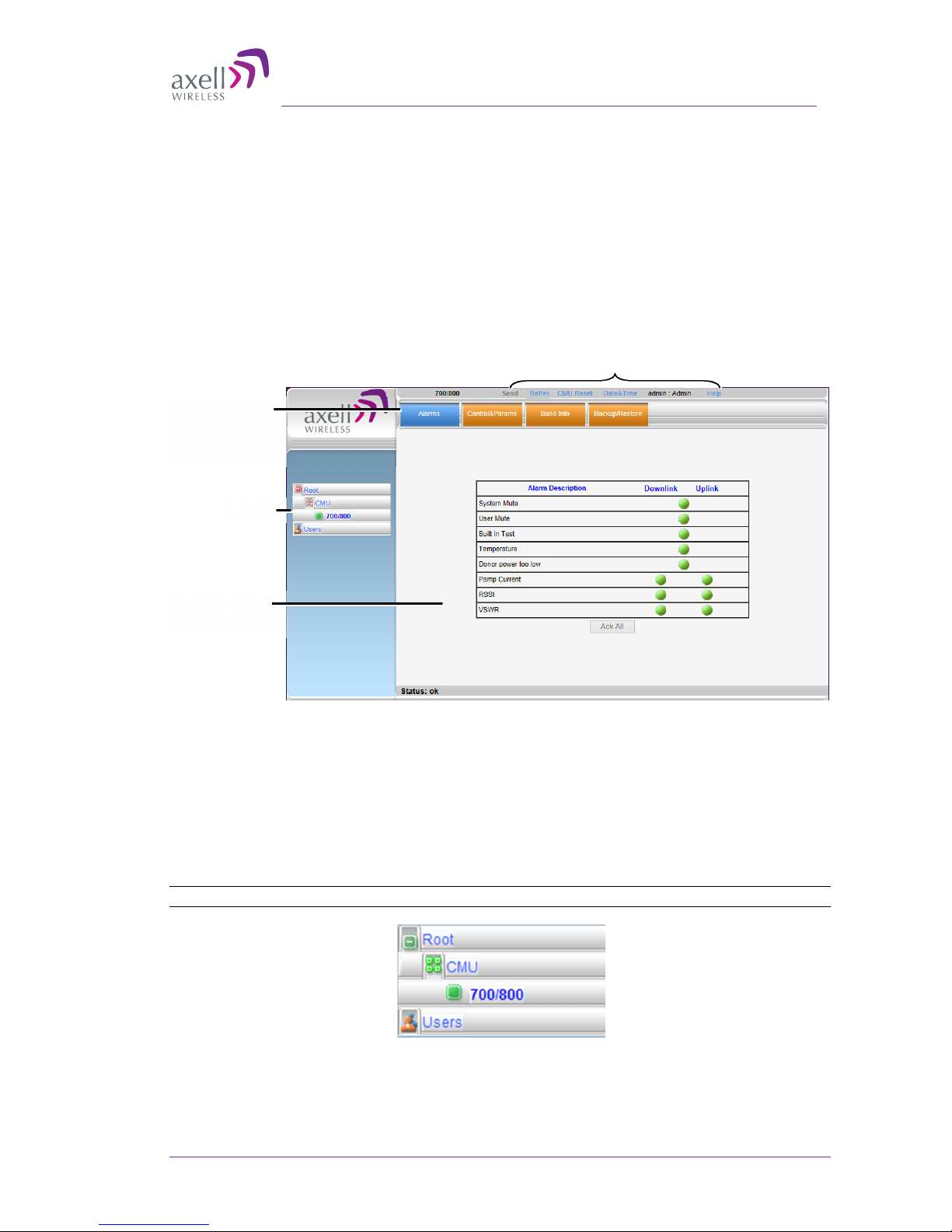

1.6 Navigating the Web GUI Application......................................................................................5
1.6.1 Topology Tree Branches ...........................................................................................5
1.6.2 Operation Buttons .....................................................................................................6
1.6.3 Band Pane and Tabs.................................................................................................6
1.6.4 CMU Pane and Tabs.................................................................................................7
2 Antenna Installation Requirements ...........................................................................................8
2.1 Base (Donor) Antenna Requirements....................................................................................8
2.1.1 Required Antenna Information ..................................................................................8
2.1.2 Donor Antenna Specifications ...................................................................................8
2.1.3 Installation Criteria.....................................................................................................8
2.2 Service Antenna Requirements .............................................................................................9
2.2.1 Required Information .................................................................................................9
2.2.2 Indoor Antenna Installations......................................................................................9
2.2.3 Outdoor Installations ...............................................................................................10
3 Installing the Repeater ..............................................................................................................13
3.1 Repeater Pre-Installation Requirements ..............................................................................13
3.1.1 Safety Guidelines ....................................................................................................13
3.1.2 Required BTS Information.......................................................................................13
3.1.3 Installation Location and Environment ....................................................................13
3.1.4 RF Cable Installation Guidelines .............................................................................14
3.1.5 Grounding Wires Requirements..............................................................................14
3.2 Overview of the Installation Procedure ................................................................................14
3.3 Unpacking ............................................................................................................................15
3.4 Mounting the D-MBR............................................................................................................16
3.4.1 Pre-Mounting Procedure .........................................................................................16
3.4.2 Installing the Mounting Bracket ...............................................................................17
3.4.3 Preparing Power Supply Cables .............................................................................17
3.4.4 Mounting the Repeater............................................................................................18
3.5 Grounding.............................................................................................................................20
3.6 Before Connecting Antennas or Powering On! ....................................................................20
3.6.1 Verifying Isolation between Donor and Mobile Antennas .......................................20
3.6.2 Verifying the Link between the BTS and the Repeater ...........................................21
3.7 Antenna Connections...........................................................................................................21
3.8 Powering Up the D-MBR......................................................................................................22
3.8.1 Standard Power Connection ...................................................................................22
3.8.2 D-MBR-PS NFPA Power Connection......................................................................23
3.9 Alarm Connections...............................................................................................................23
3.9.1 Alarm Connector Pinout ..........................................................................................24
3.9.2 Load Restrictions.....................................................................................................24
3.9.3 Summary Alarms Trigger Criteria............................................................................25
3.9.4 D-MBR-PS-NFPA Installation Alarm Connections ..................................................25

AXELL D-MBR 3007-3008-PS NFPA
PRODUCT DESCRIPTION AND USER’S MANUAL
X UMCD00013 Rev 2.2 © Axell Wireless Ltd
4 Initial Setup and Commissioning .............................................................................................26
4.1 Open a Session to the Repeater..........................................................................................26
4.1.1 Connect the Repeater to the Computer ..................................................................26
4.1.2 Configure the Computer Network Parameters ........................................................26
4.1.3 Login to the Repeater..............................................................................................29
4.2 Configuring RF Parameters and Channels ..........................................................................30
4.2.1 Control Params Tab ................................................................................................30
4.3 Setting Date and Time..........................................................................................................34
4.4 Configuring the External Alarms ..........................................................................................35
4.5 Setting the IP Address..........................................................................................................36
5 Administrative Operations ........................................................................................................37
5.1 User Management................................................................................................................37
5.1.1 User Levels..............................................................................................................37
5.1.2 Viewing the List of Defined Users ...........................................................................37
5.1.3 Adding Users ...........................................................................................................38
5.1.4 Editing a User ..........................................................................................................38
5.1.5 Deleting a User........................................................................................................38
5.2 Repeater and Band Level Information .................................................................................39
5.2.1 Viewing Repeater Level Information .......................................................................39
5.2.2 Viewing Band Level Info..........................................................................................39
5.3 Configuration Files Backup/Restore.....................................................................................40
5.3.1 The Backup/Restore Tab ........................................................................................41
5.3.2 Backup of Repeater Configuration ..........................................................................42
5.3.3 Restoring Previous Repeater Configuration............................................................42
5.3.4 Uploading New Configuration File to Repeater.......................................................43
5.3.5 Saving Configuration File to Computer ...................................................................43
5.4 CMU Software Upgrade .......................................................................................................44
6 Monitoring and Troubleshooting..............................................................................................47
6.1 Front Panel LED...................................................................................................................47
6.2 GUI Alarm Descriptions........................................................................................................48
6.3 Alarms Log ...........................................................................................................................50
Appendix A: Specifications ..........................................................................................................51

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 1
1 Introduction
D-MBR 3007-3008 PS NFPA-A (Digital Multi Ban Repeater for Public Safety) is a high-
power igital multi-channel signal booster (DCSB). It features an array of up to 12 DSP
base , software-controlle , variable ban wi th filters, that are user-programmable across
the 700 an 800 MHz ban s.
D-MBR 3007-3008 PS NFPA-A supports all public safety technologies. For each filter, the
user can specify the start an stop frequencies with ifferent options varying in time elay
an filter slope. This allows the engineer to tra e off a jacent channel rejection an time
elay interference against a wi er coverage area, permitting D-MBR 3007-3008 PS NFPA-
A usage in applications where no other booster solution will work.
Every parameter of D-MBR 3007-3008 PS NFPA-A, inclu ing filter tuning an selection,
can be controlle via web base management. The patente Axell Wireless’ igital RF
filter enables simple initial setup for any channel plan an if necessary, allows some basic
reconfiguration ue to re-ban ing.
SALC-Smart ALC mechanism to protect the igital signal booster from oscillation an
shut own the signal booster when require .
With the NFPA option, this Axell pro uct meets the rigi requirements as efine by the
NFPA an International Fire Co e evelopmental organizations. The amplifier meets
NEMA4 compliance for hose- own an provi es all Alarming outputs as efine by NFPA
2010, Chapter 24, inclu ing system an antenna failures.
Axell also offers the following options to meet a itional co e compliance nee s:
•12 or 24 hour compliant UPS back up – meets NEMA 4 an alarming requirements
•External Phone Dialer – meets NEMA 4 an allows Dial-out to paging evices when
an alarm is triggere
•Outer casing is painte Fire Life Safety Re
D-MBR 3007-3008 PS NFPA-A

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
2 UMCD00013 Rev 2.2 © Axell Wireless Ltd
1.1 Main Features
•Class A signal booster ( base on filter setting) for SMR an public safety networks
•Supports APCO 25 phase 1 an 2 for public safety networks
•NFPA 72-2010, Chapter 24 an IFC 510.1 Compliant
•SMR 700MHz an 800MHz ban s in a single enclosure
•RF Gain: Up to 85 B Gain
•SALC-Smart ALC mechanism to protect the igital signal booster from oscillation
an shut own the signal booster when require
•Output Power per ban : DL +30 Bm; UL +24 Bm
•Composite Output Power: DL +33 Bm; UL +27 Bm
•Web base management GUI, SNMP traps
•Patente DSP filtering™ technology
•Supports up to 12 in epen ent filters; user programmable ban wi th /
frequency
•For SMR700: Programmable 12.5 kHz to 75KHz
•For SMR800: Programmable 12.5 kHz to 75KHz
•User-selectable a jacent channel rejection an time elay to minimize
interference
•IP65 (NEMA 4) Enclosure

Axell D-MBR 3007-3008-PS-NFPA
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 3
1.2 Repeater Model
ORDERING INFORMATION
I entification Description Part Number
D-MBR 3007-3008
PS NFPA AC
Digital Multi Channel Selective Repeater
700/800 12 channels,
30 Bm output power per ban , 85 B
gain, AC powering with NFPA an IFC
compliant Alarm Outputs, Re colore
case
D-MBR 7/8 PS
30DBM 12 FIL NFPA
RED
D-MBR 3007-3008
PS NFPA DC
Digital Multi Channel Selective Repeater
700/800 12 channels,
30 Bm output power per ban , 85 B
gain, DC powering with NFPA an IFC
compliant Alarm Outputs, Re colore
case
D-MBR 7/8 PS
30DBM 12F NFPA DC
1.3 NFPA Installation Architecture
To meet the National Fire Protection Association (NFPA) requirements, power to the
Repeater is provi e via a UPS an the status of the UPS, Repeater an DAS system
(antennas) is monitore via alarm connections to the Fire Department Control Box.
NOTE: An alternative to the Fire Department Control Box connections is to connect the D-MBR PS
NFPA and UPS dry contact alarms to an Automatic Dialer. Axell Wireless recommends the AD-2000
Automatic Voice/Pager Dialer System.
The alarms are connecte as follows:
•From the UPS - the power in icator alarms are connecte irectly to the Fire
Department Control Box.
•From the Repeater – the Repeater status an antenna status alarms are connecte
to the Control Box
Figure 1-1. D-MBR PS NFPA Architecture

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
4 UMCD00013 Rev 2.2 © Axell Wireless Ltd
1.4 Smart-ALC Function
The Repeater’s power amplifier inclu es power-monitoring circuits with Automatic Level
Control (ALC) that prevents excessive output power while maintaining the power amplifier
linearity
The Smart Automatic Level Control (Smart-ALC) is an innovative algorithm for automatic
Repeater gain a justment. Combine with a vance control algorithms, S-ALC is capable
of learning the traffic loa characteristics an a justing the Repeater RF Gain to the
esire value. Smart-ALC effectively re uces isolation problems.
NOTE: To reset the Repeater to its highest set gain value, disconnect the Repeater power cable for
several seconds and re-connect.
1.5 Interfaces
All the Repeater interfaces are locate on the units’ un ersi e panel. The following figure
shows the interfaces on the D-MBR.
NOTE: The NFPA unit is colored RED.
1-2. Axell D-MBR 3007-3008-PS NFPA Front Panel Interfaces
The following table provi es a escription of the front panel ports an connections.
Interface Description
Base Connection to Base ( onor) si e antenna
Mobile Connection to mobile (service) si e antenna
Ethernet Connection to Ethernet evices.
Dry contact
NFPA alarms
See section 3.9 for escription of alarm connections.
DC Power Mo el epen ant:
•Power from system AC to DC converter mounte on the
wall mount bracket. Do not connect irectly to any other
power supply!!!
•Power from system DC source.
LED - Stea y Green – Normal operation
- Re or Orange - see section 6.1Error! Reference source
not found.
Service
antenna
connections
DC Power
Donor antenna
connections
DL
and
Power LEDs
Ethernet
Dry contact
NFPA alarms

Axell D-MBR 3007-3008-PS-NFPA
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 5
1.6 Navigating the Web GUI Application
This section escribes how to navigate the Web Management application. The Web Access
interface provi es the following groups of options:
•Topology Tree – provi es access to unit level an ban level options
•Tabs – Ban an unit (CMU) level options correspon ing to the selecte tree item
•Operation buttons – control an management options
The operation buttons at the top are common to all tree items an menus.
Figure 1-3. Web GUI Overview
1.6.1 Topology Tree Branches
The Topology Tree isplays:
•CMU – Communication parameters
•700/800 - Repeater configuration an monitoring options
•Users - User management options
NOTE: The items in the Tree Pane display the color of the most severe alarm.
Figure 1-4. Topology Tree
Tree
Pane related to
selected
tab
Tabs related to
selected
Tree
item
Operation buttons

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
6 UMCD00013 Rev 2.2 © Axell Wireless Ltd
1.6.2 Operation Buttons
The following Operation buttons are available.
Item Description / Values
Sen Click to save changes – before exiting the screen; otherwise,
changes will not be save .
Refresh Click to refresh the current screen an up ate the isplaye
ata
CMU Reset Click to reset the Web Access application. Use in case of failure
or isplay problems
Date an Time Use to set the Repeater clock.
A min: A min Shows the current access level.
Help Click Help to isplay an e-gui e line for the system operation.
This Help is general by its nature an some features may not
be inclu e .
1.6.3 Band Pane and Tabs
The upper area of each selecte pane shows the tabs correspon ing to that pane.
Item Description / Values
Alarms Displays various alarms generate by the Repeater an
enables monitoring. See section 6.2.
Control an
Params
Use for a justing RF parameters an channel
configuration (signal level, gain an ban wi th). See
section 4.2.
Ban Info Shows information on the current ban . See
section 5.2.2
Backup an
Restore
Configuration files management options (configuration
files can be store on the Repeater for access). See
section 5.3.

Axell D-MBR 3007-3008-PS-NFPA
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 7
1.6.4 CMU Pane and Tabs
CMU Topology Tree menu items.
Item Description / Values
Axell-CMU Alarms Shows any generate external alarms .
Axell CMU Info Shows Repeater level information such as SW an HW
versions an i entification number. In a ition, enables
setting minimum alarm levels. See section 5.2.1
Communication
Configuration
Use to set communication parameters. See section 4.5.
Alarms Log Log of past an current alarms. See section 6.3
External Alarms Use to efine any connecte external alarms. See
section 4.4.
Axell-CMU SW Upgra e Options for CMU software upgra e. See section 5.4.
Mo em Direct Access N/A

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
8 UMCD00013 Rev 2.2 © Axell Wireless Ltd
2 Antenna Installation Requirements
This chapter provi es information on the specifications of the onor an service antennas
suitable for operation with this repeater, on the installation requirements of the antennas
an on the Repeater installation site an cable requirements.
ATTENTION!!
The BSR-3308 mo els escribe in this manual have been approve by In ustry Cana a
to operate with the antenna types liste below with the maximum permissible gain an
require antenna impe ance for each antenna type in icate . Antenna types not inclu e
in this list, having a gain greater than the maximum gain in icate for that type, are
strictly prohibite for use with this evice.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son
numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal et l'impédance requise pour chaque type d'antenne. Les types
d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
2.1 Base (Donor) Antenna Requirements
The Base (Donor) antenna is usually installe out oors an is either a irectional antenna
such as a Yagi or a Panel antenna.
2.1.1 Required Antenna Information
You will require the following antenna information
• Antenna type an characteristics
• Height
• Length an type of coaxial cable require for connecting the Donor antenna to the
Repeater an the attenuation.
2.1.2 Donor Antenna Specifications
• Max DONOR antenna gain ( Bi) = 37 – (27 bi - cable losses in bi).
• Very sharp beam pointe to the BTS.
• Minimum cable an jumper loss = 2 B.
2.1.3 Installation Criteria
Installation requirements:
• Verify the Donor antenna location provi es a line-of-sight to the Base Station an
maximum input power.
• Install the Donor Antenna at the esignate height.
• Install the onor antenna at a higher level (i.e. floor) than the mobile antenna.
• Must be installe at a minimum istance of 30 cm for in oor applications from any
personnel within the area.

Axell D-MBR 3007-3008-PS-NFPA
PRODUCT DESCRIPTION AND USER’S MANUAL
© Axell Wireless Ltd UMCD00013 Rev 2.2 9
2.2 Service Antenna Requirements
The Service antenna type depends on whether the Repeater is installed indoors or outdoors.
WARNINGS!!!
• The installer is hel accountable for implementing the rules require
for eployment.
• Goo engineering practice must be use to avoi interference.
• Output power shoul be re uce to solve any IMD interference issues.
2.2.1 Required Information
The following antenna requirements, specifications an site consi erations shoul be met:
• Type of installation – in oor only
• Service area type an size an characteristics
• Height
• Length an type of coaxial cable require for connecting the antenna to the Repeater
an the attenuation.
2.2.2 Indoor Antenna Installations
2.2.2.1 Recommended Antennas
The following escribes the requirements for an omni- irectional mobile use for in oor
applications.
Specifications:
• One or a combination of the following antennas can be use : Ceiling Mount Patch
antenna, Wall Mount Patch antenna, Corner Reflector.
• Choose an antenna with high si e lobe attenuation which enables maximum
isolation.
• Maximum antenna gain for in oor operation 2.2 Bi.
• Cable an jumper loss is at least 2 B.
• [Gain Antenna – Cable loss] shoul not excee 0.2 B

AXELL D-MBR 3007-3008-PS NFPA REPEATER
PRODUCT DESCRIPTION AND USER’S MANUAL
10 UMCD00013 Rev 2.2 © Axell Wireless Ltd
2.2.2.2 Installation Criteria
Installation requirements:
• An in oor antenna shoul be installe at a convenient location. It shoul be free of
metallic obstruction.
• Install the Service Antenna at the esignate height an tune it roughly towar the
Service coverage area.
• Installation of this antenna must provi e a minimum separation istance of 20cm
from any personnel within the area.
2.2.3 Outdoor Installations
For applications in which the Mobile antenna is installe out oor, the antenna type is
chosen accor ing to the available infrastructure (single-pole or horizontal installation). In
a ition, isolation between the onor an service antennas must be taken into account
when selecting the location of the antennas.
2.2.3.1 Recommended Antennas
The antenna type epen s on the installation:
• For vertical Single Pole installations a high side lobe suppression antenna is
require .
• For horizontal installations either on two separate poles or on two si es of one
buil ing a high front to back ratio antenna is require .
Specifications:
• Maximum antenna gain for out oor operation 8 Bi.
• Cable an jumper loss is at least 2 B.
• [Gain Antenna – Cable loss] shoul not excee 6 B
Installation requirements:
• Installation of this antenna must provi e a minimum separation istance of 40 cm
from any personnel within the area.
NOTE: The Single Pole (Vertical) and Horizontal Installations are described in sections 2.2.3.2 and
2.2.3.3.
