Axesstel PG430 User manual

1

2
INTRODUCTION
The Fixed Wireless Cordless phone operates through a wireless connection instead of a
landline phone cable, enabling the subscriber to set up the phone at any where wireless
service is available.
Axesstel GSM Technology Fixed Wireless Cordless phone provides high quality and
superior performance with many features such as excellent voice quality,caller ID,
three-way calling, call waiting, short message service, speaker phone etc.
A large 4-line dot matrix liquid crystal display provides user-friendly interface for
quick and easy-to-understand information display.
FEATURES
1. Speaker Phone with Hands-Free Dialing
2. Signal Strength Indicator
3. Redial
4. Volume Control
5. Dust-proof Laminate Keypad
6. Battery Power Backup
7. LCD Backlit
8. One-touch, Two-touch Dialing
9. Automatic Sending
10. Phone Book
11. Short Message Service

3
TABLES OF CONTENTS
Safety Precautions……………….…..........4 Advanced Features
Checking Parts .……………………..….…5 Changing Greeting Message..................31
Setting up Your Phone ……….…….....…6 System Reset…………………………….31
Getting to Know Your Phone …………...10 Restricting Use of the Phone…………..32
Display Icons………………………..…..….11 Locking / Unlocking the Phone………...33
Function Keys……....……………..…….....12 Changing the Lock Code…………...…..33
Language………………………………...33
Basic Operation
Making Calls ...…….……………...…….. 14 Optional Features
Redial…………………………...…………. 15 Call Forwarding…………………………35
Receiving Calls ……………..….……….. 15 Call Waiting………………………………35
Adjusting Volumes …………..….………. 16 Three-Way Calling………………....……35
Choosing the Ring Tone …………...…... 16
Message Service ......…………………… 17
Miscellaneous
Internal Phone Book Menu Table………………………………37
Internal Phone Book ……………............ 21 Specification……………………………..38
Storing in phonebook ……..……………. 21 Conformance Statements………..………..38
Searching for Entries in Phonebook ..…22
Erasing An Entry in Phonebook ….…... 23
Erasing All Entries in Phonebook ....…24
One-Touch Dialing ………………….… 24
Useful Features
Call History.......................................... 26
Mute………………………………..…27
Silent Key Pad………………………………. 27
Selecting Time Mode……………………27
Setting the Alarm………………………...28
Checking and Clearing Call Times .......29
Setting Warning Alerts…………………29

4
SAFETY PRECAUTIONS
1. Avoid placing the phone in a dusty location, or near a source of gas or fire.
2. Don't Shake, hit or drop the phone.
3. To clean the outside of the phone, use only a soft, dry cloth. The chemicals
in alcohol, benzene or acetone can damage the surface of the phone.
4. Do not twist or pull the cord out of the phone.
5. Do not disassemble the phone.
6. Do NOT use the power adaptor if:
- The power cord is damaged.
- The phone has been dropped or damaged in any way.
7. Use only the AXESSTEL provided adaptor for the phone. Do not use the AXESSTEL
adaptor for any other purpose.
8. Use only the AXESSTEL provided antenna. Do not use the antenna for any
other purpose.
9. Frequency and length of use can affect the life of the self-charging battery.
Contact your customer service if the battery is not operating properly.
10. Use only the designated self-charging battery. Dispose of exhausted batteries
properly. Never discard a battery in or near fire or flame.
11. Do not place the telephone near water, for example, near a bathtub, sink, wet
basement, or swimming pool.
NOTE 1: The input and output voltages are indicated on the adapter.
(Input: AC 100~240V, 50~60 Hz, Output: DC 5V, 1A)
NOTE 2: Do not insert or eject SIM card while the phone is powered on.

5
CHECKING THE PARTS
After unpacking your phone, make sure that you have all the parts shown below.
If any piece is missing or broken, please call your customer service center.
1. Handset 4. Power Adaptor
2. Cradle 5. Battery
3. User Manual

6
SETTING UP YOUR PHONE
Installing SIM card
1. Remove SIM bracket cover.
2. Insert proper SIM card.
3. Put the bracket back in place.
4. Close the cover.

7
USING SIM CARD FOR THE FIRST TIME
1. Entering PIN code.
NOTE1: The PIN feature function can be set on/off in
Change PIN code menu.
NOTE2: Change PIN code menu can be visible after you
enable in PIN code request menu.
2. If an incorrect PIN code is entered, an error message
displays.
NOTE: There are 3 chances to enter the correct
PIN code. If incorrect PIN codes are entered
3 times, the SIM card will be locked. To unlock
the SIM card, contact your service provider.
3. The phone is ready to use after entering the correct
PIN code.
* Default PIN code is provided by your service provider.

8
Place the Handset on the Cradle. To turn on the Phone,
Press END Key and hold
The Power On Image will be displayed
Plug the Power adaptor into an
appropriate Wall outlet
Place the Cradle on the Flat Area
Installing the phone
This phone operates by receiving DC power from the AXESSTEL power adaptor,
which connects to an electrical outlet. The phone is equipped with a rechargeable
battery as a back up in case of an AC power failure.
Desktop installation

9
Service Status Check
Display in the Service Area
When the phone’s power is turned on, LCD will display
Power ON Image while the phone loads information from
SIM card. After the loading is finished, LCD will display
greeting with date and time. The number of bars of signal
strength indicator (antenna icon) indicates the strength of
service signal of the area.
Display in area with no service
When there is no service signal detected in your area,
no antenna bar appears. Contact your service provider
for the coverage area information.
Also move to find better signal areas.

10
GETTING TO KNOW YOUR PHONE
1. Menu: Press to access the phone's menus.
2. Call Log: Press to access the Call log sub menu directly.
3. Calendar: Press to access the Calendar menu directly.
4. Contact: Press to access the Contacts sub menu directly.
5. Speaker: Press to activate “Speaker Phone” function.
6. Message: Press to access the Messages menu directly.
7. End: End or Reject the Call.
8. Sound: Press to access the Sound menu directly.
9. Talk: Call to the dialled number or Answer the Call.
3.CALENDAR
5.SPEAKER
4.CONTACT
2.CALL LOG
6.MESSAGE
7.END
8.SOUND
9.TALK
1.MENU

11
DISPLAY ICONS
Icons display on the screen to indicate what features you are using, signal strength
and battery status etc...
Indicate the strength of the signal. More bars indicates stronger signal.
Indicates the level of battery power. The more bars, the more power. When
the battery is low, the icon blinks, and an alert tone sounds.
Indicates that all calls are diverted
.
Indicates that the alarm has been set.
Indicates that you have text message.
Indicates that you have a voice mail message.
Indicates that a voice call is in progress.

12
FUNCTION KEYS
Press this key to display the phone's main menu.
Press this key to access the Calendar menu directly.
Press this key to access the Messages menu directly.
Press this key to access the Contacts sub menu directly.
Press this key to access the Call log sub menu directly.
Press this key to access the Sound menu directly.
In Idle state, It is working as The Speaker button that is used to place or receive a
call without using the handset. The integrated microphone and speaker on the
Main unit allows hands free conversation.
In Sub menu, It is working as the select key.

13
Basic Operation
Making Calls
Redial
Receiving Calls
Adjusting Volumes
Choosing the Ring Tones
Message Service

14

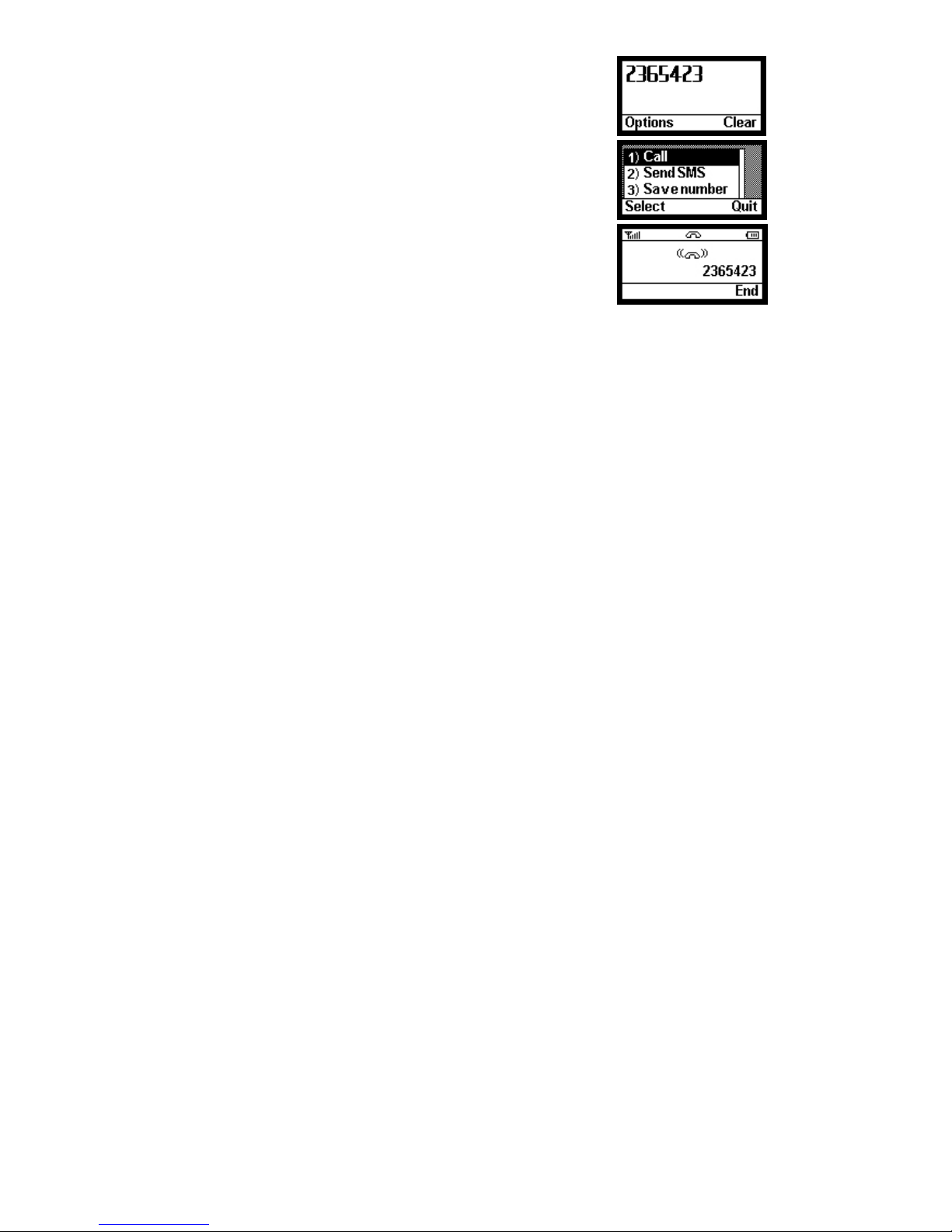

MAKING CALLS
1. Make sure your phone is turned on.
2. Press the TALK key to hear a dial tone.
When the phone fails to acquire service signal, you will
hear "No Service" tone (intermittent tone).
3. Dial the number to call. The LCD window displays
the number.
4. Wait for a moment for auto calling or press <TALK> .
5. When the other person answers, begin conversation.
6. To end the call, press <END>.
NOTE1: Modifying a phone number while dialing.
- To erase the last digit entered: Press
<CLEAR> .
- To erase the entire number: Press <CLEAR> and hold.
NOTE2: Automatic calling
The phone was set to places a call automatically 3~8 seconds
after last digit entry. To disable automatic calling,
access “Auto redial” menu to change settings.
1. Press <Menu> , <6> (Settings) , <4> (Call) , <4> (Auto redial).

15
REDIAL
Redial the last number you dialed.
1. Press <Navigation UP> key.
2. Press <TALK>.
NOTE: You may not redial when there is no last number dialed stored
in the memory. "Log empty" message is displayed on the LCD.
RECEIVING CALLS
When there is an incoming call, the phone rings and shows
Incoming Call Animation on the display.
1. Press <TALK> to answer the call.
2. To disconnect, Press <END>.
NOTE: When the ringer volume is set to 0 Level, the
phone does not ring. Only the Incoming Call Animation
blinks.
When the Caller ID service is activated.
Call ID Display
The Caller ID feature displays the caller's number when the
phone receives a call. If the caller's name and number are
stored together in the phone book, the caller's name is
displayed. Contact your service provider to activate this
feature.
NOTE: If the call is not answered, the phone displays the
“Call missed" message with the call arrival date and
time.

16
ADJUSTING VOLUMES
You can control the sound volumes including the key tone,
Message and the ringer
Adjusting earpiece volume
Press <Navigation UP/DOWN> key repeatedly during
a phone call to adjust earpiece volume.
Adjusting ring volume
1. Press <Menu> , <6> (Settings) , <2> (Sound) , <1> (Incoming call) , <2> (Ring
volume)
2. Press the <Navigation UP/DOWN> key to adjust ringer
volume.
3. Press <Save> to save.
NOTE: If volume is 0 Level, the phone does not ring
when an incoming call comes in. Only the
Incoming Call Animation blinks on the
display.
CHOOSING THE RING TONES
You can choose from ten different ring tones.
1. Press <Menu> , <6> (Settings) , <2> (Sound) , <1> (Incoming
call) , <1> (Ringing tone).
2. Press the Navigation UP/DOWN key to select ring type.
3. Press <Select> to save.

17
MESSAGE SERVICE
Message service is a network dependent feature and is available only when your
service provider supports it. Make sure your service provider is providing message
service before using this function.
Sending New Text Messages
1. Press <Menu> , <2> (Messages), <1>(New message).
2. Write message using the keypad. Toggle between
Uppercase, lowercase, and numeric by pressing <#> button.
3. Press <Options> entering to be done, insert template or quit
a job. and Select <1>(Done).
4. Press <OK> to enter destination number and Press
<Option> and Select <1>(Done).
5. Press <Option>, Select <Send> to send message or <Save>
to save message.
NOTE: See page 21 for more information on text edit.
Sending Saved Text Messages
1. Press <Menu> , <2> (Messages), <3>(Outbox).
2. Select message to resend with <OK>.
3. Review the content of the message and press <Options> to
send and edit if needed.

18
Received Text Message
1. When a new text message arrives, ‘1 New message’ will be
displayed and the Message Icon will be appeared in the icon line.
2. Press <List> and use <Navigation UP/DOWN> key to
select message you want to see and press <OK>.
3. The message, arrival time and call back number displays.
If the message is longer then single line, scroll up and
down by pressing <Navigation UP/DOWN> key.
NOTE: If the call back number is already stored in the
phonebook with a matching name, the matching
name will be displayed instead of the phone number.
4. Press <Options> after viewing. Different options are available.
5. Select <1>(Replay) to reply message to sender.
6. Select <5>(Delete) to delete message.
7. Select <2>(Forward) to forward the message.
Retrieving Voice Messages
1. When a new voice message arrives, ‘1 New voicemail’ will be
displayed and the voicemail Icon will be appeared in the icon line.
2. Press <Call> to connect voice mail center directly.

19
Erasing Received Messages
1. Press <Menu> , <2> (Messages), <2>(Inbox).
2. Press <Options>, <5>(Delete all).
3. Select <Yes> or <No>.
Erasing Sent Messages
1. Press <Menu> , <2> (Messages), <3>(Outbox).
2. Press <Options>, <5>(Delete all).
3. Select <Yes> or <No>.
Retrieve Saved Message
1. Press <Menu> , <2> (Messages), <3>(Outbox).
2. Select appropriate message by scrolling.
Press <OK> to confirm.
Saving Sent Message Acknowledge
1. Press <Menu> , <2> (Messages), <8>(SMS Settings),
<2> (Delivery report).
2. Select "ON" or "OFF".
3. With Delivery report set, the network will send
acknowledgement that the message was received by
the network.
NOTE: Your service provider must support Message
Ack service in order to use this feature

20
Phone book
Internal phone Book
Storing in phonebook
Searching For Entries in Phonebook
Erasing An Entry in Phonebook
Erasing All Entries in Phonebook
One-Touch Dialing
