Axminster Craft AC250CM User manual

AC250CM 250mm
DeLuxe Combination
Machine
AT&M: 22/06/2018
BOOK REF: 105171
Code 105104
Original Instructions

Index of Contents
2
EU Declaration of Conformity
EU Declaration of Conformity 02
What’s Included 03
General Instructions for 230V Machines 04
Specific Safety Precautions 05-06-07
Specification 07
Assembly Instructions 08-09-10-11-12-13-14-15
Positioning the Machine 15-16
Machine Dimensions 16-17
Illustration and Parts Description 18-19-20-21-22-23-24-25
Setting Up the Machine 26-27-28
Operating Instructions 28-29-30-31-32-33-34-35
Routine Maintenance 35
Exploded Diagrams/Lists 36-37-38-39-40-41-42-43-44-45-46-47-48-49-50-51-52-53
Wiring Diagram 54
Cutter Block Accessories 55
Cert No: ML353G
Axminster Tools & Machinery Ltd
Axminster Devon
EX13 5PH UK
axminster.co.uk
Type Combination Machine
Model AC250CM conforms to the machinery example for which the
EC Type-Examination Certificate No BM50314354, AN50176407, AN50217062
has been issued by Laizhou Planet Machinery Co., Ltd
at:Yutai West Street, Laizhou, Shandong 261400 China
and complies with the relevant essential health and safety requirements.
2006/95/EC
2004/108/EC
EN 5514-1: 2006+A1
EN 61000-3-2: 2006+A1+A2
EN 61000-3-11: 2000
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
EN 5514-2: 1997+A1+A2
06/42/EC - Annex I/05.2006
EN 60204-1: 2006+A1+AC
EN 940: 2006+A1
Signed
Andrew Parkhouse
Operations Director Date: 16/07/2015
The symbols below advise the correct safety procedures when using this machine.
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn
HAZARD
Dust mask
should be worn

What’s Included
3
Model Number: AC250CM
Panel Saw:
1 250mm DeLuxe Combination Machine
1 Rip Fence Assembly
1 250mm Saw Blade
1 Saw Guard
1 Flexible rubber Hose with Support Rod
1 Adjustable Work Clamp Assembly
1 Depth Stop Bracket
1 Sliding Table Guide Rail
2 Sliding Table Guide Rail Stops
1 Sliding Table Extension
1 Sliding Table Extension Support Casting
1 Sliding Table Extension Fence (with Adjustable Depth Stop)
Spindle Moulder:
1 Spindle Moulder Guard Assembly (Fully Assembled):
Planer/Thicknesser: Tools:
1 Planer Fence 1 Blade Setting Tool
1 Planer Fence Mounting Base 1 12mm Hex Key
1 Fence Securing Bracket 1 10mm Hex Key
1 Overhand Planer Guard Mounting Bracket 1 8mm Hex Key
1 Overhand Planer Guard 1 6mm Hex Key
1 Overhand Planer Guard Locking Plate 1 5mm Hex Key
1 Spring Metal Plate 1 4mm Hex Key
2 M10 Washers 1 3mm Hex Key
2 M10 Lever Handle Bolts 1 7/5.5mm Spanner
2 M6 x 12mm Cap Head Bolts 1 8/10mm Spanner
2 M6 Eye Bolts (for lifting) 1 13/16mm Spanner
1 36/41mm Spanner
1 16mm Socket Spanner
1 Tommy Bar
Wheel Mobility Kit:
1 Mobility Operating Handle
2 Adjustable Wheel Carriages
1 Lifting Bracket
10 M8 Cap Head Bolts and Washers
1 Manual

General Instructions for 230V Machines
4
The following will enable you to observe good working
practices, keep yourself and fellow workers safe and
maintain your tools and equipment in good working
order.
WARNING!! KEEP TOOLS AND EQUIPMENT
OUT OF REACH OF YOUNG CHILDREN
Mains Powered Tools
• Tools are supplied with an attached 16 Amp plug.
• Inspect the cable and plug to ensuree that neither are
damaged. Repair if necessary by a suitably qualified
person.
• Do not use when or where it is liable to get wet.
Workplace
• Do not use 230V a.c. powered tools anywhere
within a site area that is flooded.
• Keep machine clean.
• Leave machine unplugged until work is about to
commence.
• Always disconnect by pulling on the plug body and not
the cable.
•Carry out a final check e.g. check the cutting tool
is securely tightened in the machine and the correct
speed and function set.
•Ensure you are comfortable before you start work,
balanced, not reaching etc.
•Wear appropriate safety clothing, goggles, gloves,
masks etc.Wear ear defenders at all times.
•If you have long hair wear a hair net or helmet to
prevent it
being caught up in the rotating parts of the machine.
•Consideration should be given to the removal of rings
and wristwatches.
•Consideration should also be given to non-slip footwear
etc.
•If another person is to use the machine, ensure they are
suitably qualified to use it.
•Do not use the machine if you are tired or distracted
•Do not use this machine within the designated safety
areas
of flammable liquid stores or in areas where there may
be volatile gases.
•Check cutters are correct type and size, are undamaged
and are kept clean and sharp, this will maintain their
operating performance and lessen the loading on the
machine.
• OBSERVE…. make sure you know what is happening
around you and USE YOUR COMMON SENSE.
KEEP WORK AREA AS UNCLUTTERED AS IS
PRACTICAL. UNDER NO CIRCUMSTANCES SHOULD
CHILDREN BE ALLOWED IN WORK AREAS.

Specific Safety Precautions
5
Panel Saw
Make sure the saw blade is the correct type for the job in
hand.
Do not force the saw, if the saw begins to‘stall’ you are
‘forcing the cut’ or over working the saw. Ensure that the
saw blade is clean and sharp. Resin build up on the blades
will increase the friction of the saw passing through the
timber, and cause over heating of the blade, blunt teeth
will work harder tearing the fibre of the timber as
opposed to shearing it, also with subsequent overheating.
Both faults unnecessarily load the machine beyond
normal usage, and shorten its longevity.
Do not use blades that are deformed in any way.
Do not remove the blade guard.The design of the riving
knife on the machine will not allow for slotting or‘blind’
grooving, so there is no reason to remove the guard.There
is adequate clearance under the guard for the capacity of
the machine (75mm).
Do not remove the riving knife.
Do not use any blades that cut a smaller kerf than the
riving knife thickness. Make sure the riving knife is
correctly adjusted to the blade and is securely fastened.
If the table insert becomes damaged or broken, and will
not support the timber ‘up close’ to the blade, replace it.
Do not start the saw with the work piece touching the
blade.
Do not commence sawing until the blade has run up to
full speed. After switching off, never try to slow the saw
down more quickly by applying side pressure (with a
piece of wood?) to the blade. Apply the old joiner’s adage
of never getting hands within one handbreadth of the
blade. Leave the machine disconnected from the mains
supply until you are about to commence work.
Always disconnect the machine if you are leaving it
unattended.
Never leave the vicinity of the machine unless the blade
has come to a complete stop.
Do not attempt to carry out any maintenance, corrective
work, setting up etc., unless the machine is disconnected
from the mains supply. If any tools have been used during
setting up procedures, make sure they are removed from
the machine and stowed safely away.
Do not attempt to carry out cross cutting operations
‘freehand’, always use the mitre fence for small material
and the sliding carriage for larger work pieces. Unless you
are an experienced machine operator, do not attempt to
‘rip’ freehand, always use the guiding facility of the rip
fence. It is perfectly acceptable to support, guide, and feed
the timber with your hands whilst ripping stuff of some
length, however, as you approach the blade ensure that
the push stick is to hand, and you use it.
Remember the emphasis of the ‘push’ should be between
the blade and the fence and close to the fence. Use your
free hand to support and guide the material on the
offside of the saw blade and at least 100mm away from
it. If the timber does not extend to at least 100mm to the
offside of the saw blade, the material possibly does not
need guiding or supporting.
Check (especially on site), that there are no foreign
objects e.g. old nails, screws, small stones etc embedded
in the material you are about to cut. If necessary take a
wire brush to the timber before working.
If you are being assisted whilst using the saw (by a ‘take
off’or ‘support’ number?), remember there is only one
sawyer at a machine, and they stand in front of it.The
assistant does not push, pull, guide etc., unless specifically
asked or instructed to do so by the sawyer.
Spindle Moulder
Authorised Use
This machine is designed for shaping wood and wood
derived materials.
Machining of other materials is not permitted and may be
carried out in specific cases only after consulting with the
manufacturer.
The proper use also includes compliance with the
operating and maintenance instructions given in this
manual.
The machine must be operated only by persons familiar
with its operation and maintenance and who are familiar
with its hazards.
The required minimum age must be observed.The
machine must only be used in a technically perfect
condition.When working on the machine, all safety
mechanisms and covers must be in operation.
Continues Over....

Specific Safety Precautions
6
In addition to the safety requirements contained in these
Operating Instructions and your country’s applicable
regulations, you should observe the generally recognized
technical rules concerning the operation of woodworking
machines.
Any other use exceeds authorisation.
In the event of unauthorised use of the machine, the
manufacturer renounces all liability and the responsibility
is transferred exclusively to the operator.
General Safety Notes
Woodworking machines can be dangerous if not used
properly.Therefore the appropriate general technical
rules as well as the following notes must be observed.
Read and understand the entire instruction manual
before attempting assembly or
operation.
Keep these Operating Instructions close by the machine,
protected from dirt and humidity, and pass them over to
the new owner if you part with the tool.
No changes to the machine may be made.
Daily inspect the function and existence of the safety
appliances before you start the machine.
Remove all loose clothing and enclose long hair.
Before operating the machine, remove tie, rings, watches,
other jewellery, and roll up sleeves above the elbows.
Wear safety shoes; never wear leisure shoes or sandals.
Always wear the approved working outfit.
Do not wear gloves while operating the machine.
For the safe handling of cutting tools wear work gloves.
Control the stopping time of the machine, it may not
exceed 10 seconds.
Remove cut and jammed work pieces only when the
machine is at a complete standstill and motor is turned
off.
Install the machine so that there is sufficient space for safe
operation and work piece handling.
Keep work area well lit.
Planer/Thicknesser
Most machines currently are well interlocked to ensure
that the machine must be in the correct configuration to
perform one task or the other. Make yourself familiar with
these configurations and do not try to use the machine
in a half and half state, or rig the interlocks to enable you
to do so.These machines are designed for cutting timber
only.They will, but are not designed to, cut timber
derivatives or composites. Glue lines in plywood, block
board etc, will ‘notch’ the blades.The bonding agent in
chipboard is likewise detrimental to the health of your
planer knifes. It is best to leave them alone. If you have
to machine composites, work out the costs of tungsten,
against HSS (plus the sharpening costs), and proceed
accordingly. On larger machines it is common practice to
leave a portion of the blade (usually the offside 30 mm) to
be used on ‘aggressive’ materials.
Overhand Planing
Make sure during overhand planing operations, that the
fence is set to the required angle, is securely fastened and
locked in position. Ensure the planer block guarding is in
position and secured.
Disengage the autofeed for the thicknesser. Ensure both
tables are correctly seated and locked down. Ensure the
dust extraction hood is in place and is not blocked. Fit
dust extraction.
Check the sharpness of planer knifes, check for‘nicks’ and
‘notches’, if there are damaged sections on the blades, try
to plane in the ‘clear’ areas.
Especially when planing material down to‘thin’
dimensions, maintain pressure on the‘front’ of the
material i.e., that portion of the stuff that has passed
over the block, but use a push stick or a pusher shoe to
clear the end of the stuff over the block.
Thicknessing
When thicknessing, remove the fence. Lower the
thicknessing table slightly.
Unlock and swing both tables ‘up and out of the way’,
taking care not to foul the overhand guard/arm assembly,
which will probably swing free.
Turn the dust extraction hood up and over the block.
Connect the dust extraction. Ensure the hose will not foul
the wood when being passed through the machine.

Specific Safety Precautions
7
Check the height of the thicknessing table.
Engage the autofeed mechanism.
Periodically, clean any excess build up of resin from the
thicknessing table, and apply any proprietary brand of
lubricating agent.
NOTE, Consideration should be given to the type of
finish you will be applying to the wood when you
select your cleaning/lubrication agent. Some
compounds won’t mix. i.e. PTFE and Acrylic.
Specification
Code 105104
Model AC250CM
Power 3,000W (Saw) 2,000W ( Planer) 3,000W (Spindle) 230V
Number of Motors 3
Blade Speed 4,050rpm
Blade Tilt 0 - 45°
Blade Dia/Bore 250mm x 30mm
Table Size 1,200 x 840mm (Saw) 250 x 1,050mm (Planer) 250 x 600mm (Thicknesser)
Max Ripping Width 460mm
Max Depth of Cut @ 45˚ 45mm
Max Depth of Cut @ 90˚ 65mm
Max Planing Width 250mm
Sliding Table Size 1,200 x 120mm
Cutterblock Speed 4,000rpm
Cutterblock Diameter 75mm
Knives HSS x 3
Feed Speed 8m/min
Max Thicknesser Capacity 180mm
Spindle Speed 3,500, 5,500, & 7,500rpm
Spindle Diameter 30mm
Spindle Travel 130mm
Max Tooling Diameter Above Table 140mm
Dust Extraction Outlet 100mm x 3
Weight 370kg

Assembly Instructions
8
PLEASE NOTE: Some of this assembly
procedure is best accomplished by two
persons. Although the tasks are not impossible,
some of the items are heavy and awkward, and
a mishandling error could cause injury. Please think about
what you are doing, your capabilities and your personal
safety.
Unpack all the boxes and check all the components
against the“What’s in the Boxes’ List. If any parts or
components are missing, please contact our customer
services department using the procedures and telephone
numbers listed in our catalogue, and you will be dealt
with quickly and efficiently.
PLEASE NOTE: that, on occasion, the packing list is not
strictly adhered to, please check all the boxes, packets etc,
to make sure that all the parts have been accounted for.
Having unpacked the boxes, (please dispose of any
unwanted packaging responsibly), put the parts and
components whereby they are readily to hand. Break
down the main box by knocking the sides away (be
careful of exposed nails etc.), but leave the machine
sitting on its pallet. Remove the protective grease film
that is coating all the unpainted parts of the machine.
Use a proprietary de-greasing agent or paraffin.
Unfortunately, this cleaning process is always a bit ‘mucky’
especially if you tackle the job with a high level of
enthusiasm.You are advised to wear overalls or coveralls
etc., during the process. After cleaning, especially if you
used paraffin, lightly coat the exposed metal surfaces to
prevent any rusting.
Note:The AWC4 Combination Machine comes 95%
assembled, in order to reduce the footprint of the
machine for packaging, several items are dismounted
from the machine and need to be re-affixed.
WHEN YOU FIRST RECEIVE YOU COMBINATION
MACHINE IF YOU INTEND TO USE THE SPINDLE
MOULDER FIRST PLEASE GO TO PAGES 12-13
FOR ASSEMBLY INSTRUCTION.
Panel Saw

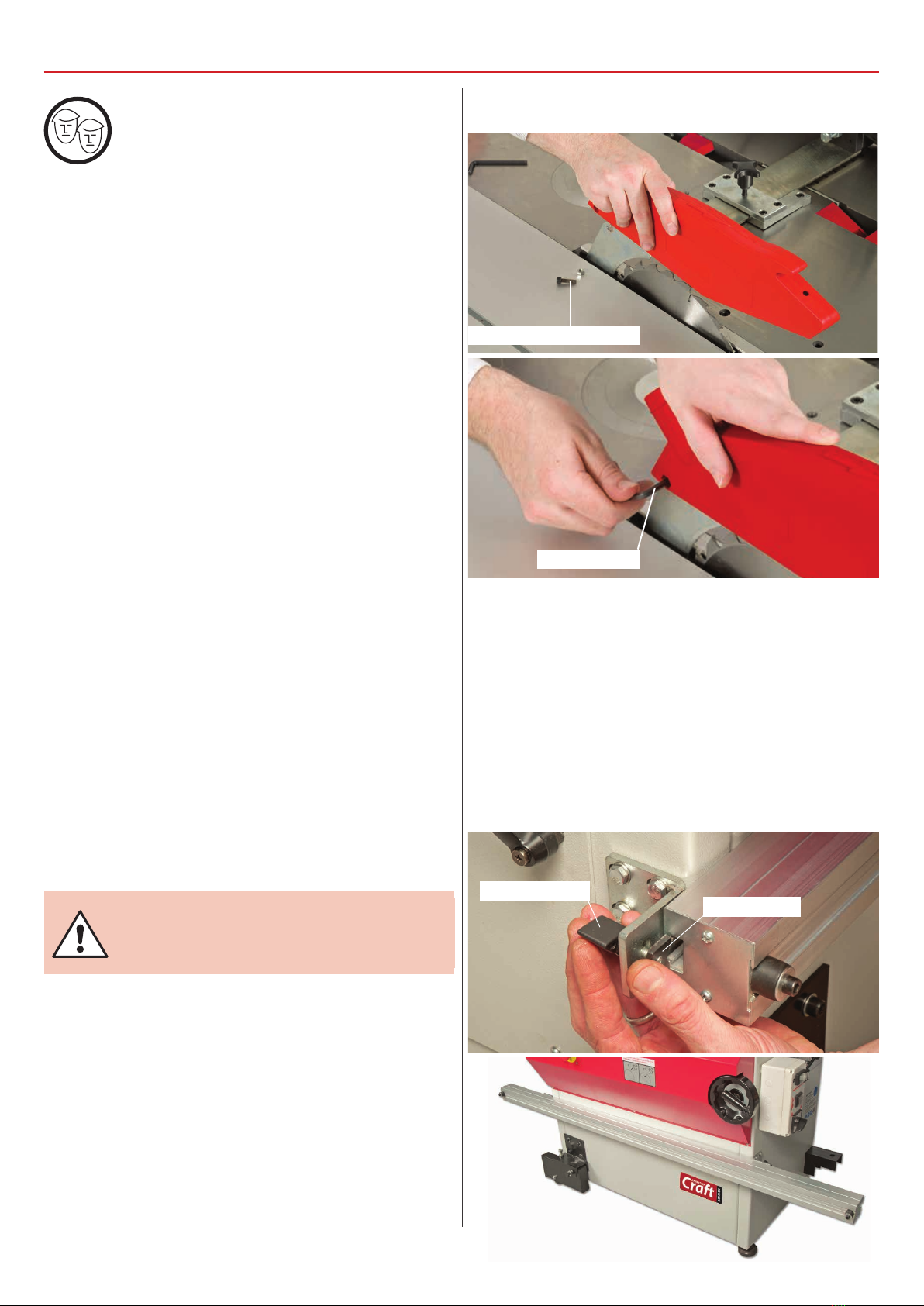

Fitting the Saw Guard
Locate the saw guard and M6 caphead screw and M6 nut
and attach it to the riving knife using a 5mm hex key, see
fig 1.
Fig 01
Extension Table
1). Locate the table extension guide rail and two square
inserts and butterfly screws. Insert the butterfly screws
through the pre-drilled holes in the angle brackets, screw
on the square inserts and slot them into the ‘T’ slots on
the extension rail see fig 2. Position the extension rail so
it’s over hanging more to the right of the machine and
tighten the butterfly screws to clamp the extension rail in
position, see fig 3.
Fig 02-03
Butterfly screw
M6 Caphead screw/nut
5mm Hex key
Square insert

Assembly Instructions
9

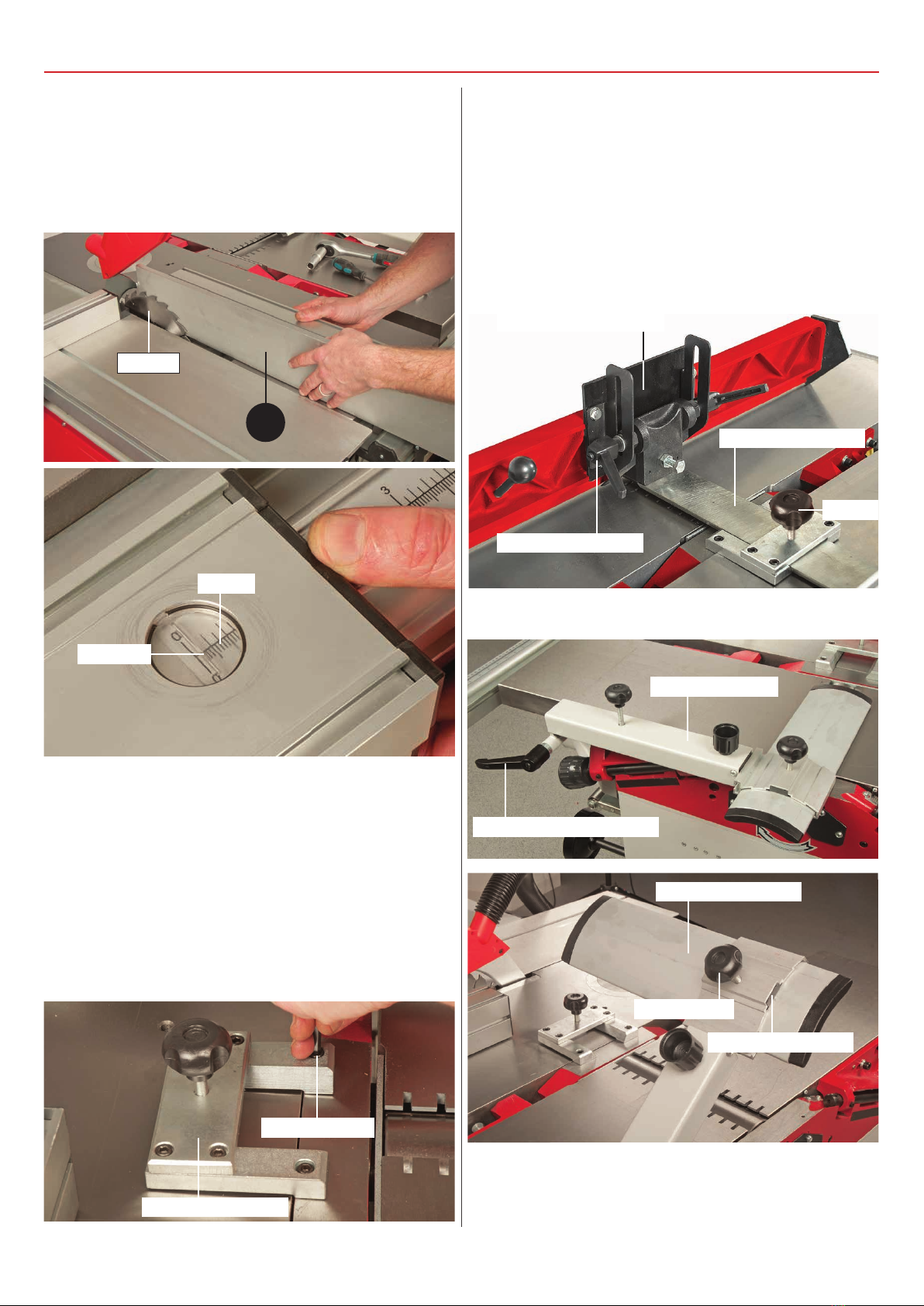

2) Locate the steel pin plate (A) , line up the pins with the
elongated slots in the extension table (B) and lower the
plate into the table, see fig 4. Locate the two lift and shift
Fig 04
Fig 05
handles and slot them through the two pre-drilled holes
in the extension table (B) and screw them into the
threaded holes in the steel pin plate (A).NOTE: Make
sure to leave sufficient clearance between the steel
plate and the table frame for the next step.
3) Position the extension table (B) against the sliding
table assembly. Line up the steel pin plate (A) with the‘T’
slot to the end of the sliding table and slide on the exten-
sion table (B), see fig 05.
4) Position the extension table so it’s roughly centred to
the sliding table and tighten the two lift and shift handles
to lock the asssembly in position, see fig 6.
Fig 06
MAKE SURE THE SUPPORT CASTING WHEEL
RUNS SMOOTHLY ALONG THE EXTENSION RAIL!
A
B
B
Lift and shift handle
5) On top of the extension table there are two adjustment
caphead screws, using a straight edge adjust the screws
until both sliding and extension tables are level.
Fig 07-08
Caphead screw
Straight edge
Caphead screw
Sliding Table Fence
Locate the sliding table fence, loosen the angle bracket
clamp by undoing the butterfly knob (A), loosen the steel
pin by releasing the clamping handle beneath the fence,
see fig 9. Line up and push the steel pin into one of the
Fig 09
Continues Over....
Steel pin
Clamping handle
Sliding table fence
A

Assembly Instructions
10
two pre-drilled holes on top of the extension table, see
fig 10. Lift-up the 90˚ stop located to the corners of the
extension table, push the fence up against the 90˚ stop,
see fig 11 and clamp the angle bracket (A) to the table’s
steel girder by tightening the butterfly knob, see fig 12.
Re-tighten clamping handle to lock the fence in position,
see fig 10.
Fig 10
Fig 11-12
Steel pin
Pre-drilled hole
90˚ Stop
Butterfly
Clamping handle
A
Workstop Plate
Fit the workstop plate by loosening the butterfly nut,
insert the steel square clamp into the ‘T’ slot on the sliding
table and re-tighten the butterfly nut, see fig 13.
Fig 13
Butterfly nut
Steel square clamp
Work Clamp
Locate the work clamp assembly, loosen the clamping
ring, slot the clamp assembly into the sliding table’s ‘T’
slot and tighten the ring to clamp the assembly in place.,
see fig 14.
Fig 14
Clamping ring
Dust Extraction Hose
Locate the‘Y’ rod which will support the flexible hose
and screw the threaded end into one of the pre-drilled
holes on top of the planer/thicknesser chassis, see fig 15.
Attach one end of the hose to the moulded outlet in the
saw guard, (make sure it is a snug fit) see fig 16. Attach
the other end to the dust
extraction outlet, see fig
17. Lower the hose into
the ‘Y’ support rod to raise
the hose clear of the work
table, see fig 18.
Fig 15

Assembly Instructions
11
Fig16
Fig 17
Fig 18
Dust extraction outlet
Flexible hose
Flexible hose
Rip Fence Assembly
Locate the rip fence (A), rip fence extension (B) with ‘T’
bolts, washers and clamping knobs, fence guide rail (C)
and two M8 x 50 bolts and nuts.
1) Insert the two M8 bolts into the pre-drilled holes to the
side of the main saw table and loosely screw on the nuts.
2) Remove the cover to the end of the fence guide rail (C)
by removing the two Phillips screws, place safely aside,
see fig 19.
3) Line up the first bolt head with the ‘T’ slot in the fence
guide rail and slide on the rail, repeat for the remaining
bolt, see figs 20-21.
Fig 19
Fig 20-21
4) Replace the cover to the end of the guide rail (C)
and secure with the Phillips screws you removed earlier.
Position the rail so it lines up with the edge of the saw
table and only finger tighten the nuts at this point,
see fig 22. Fig 22
Continues Over....
End cover
C
C
M8X50 Bolt
‘T’ Slot

Assembly Instructions
12 Clamping knob

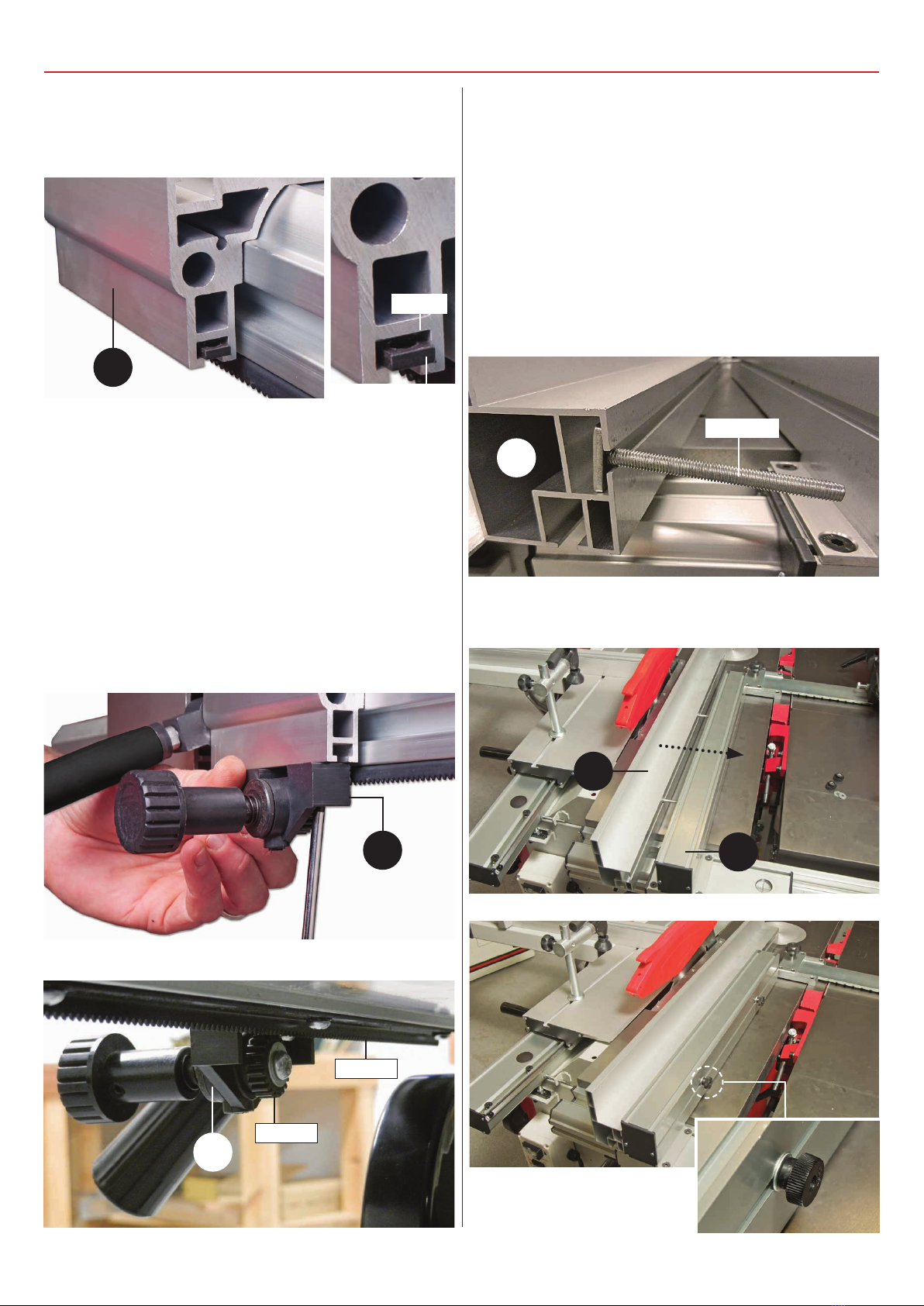

5) Locate the rip fence (A) and lower the clamp assembly
over the guide rail (C), see fig 23.
Fig 23- 24
Fig 25
Fig 26
1) Locate the rip fence extension (B) and the two ‘T’ bolts,
washers and clamping knobs. Slide the ‘T’ bolts into the ‘T’
slot to the end of the fence extension casting, see fig 27.
2) Line up the ‘T’ bolt threads and insert them through
the two pre-drilled holes to the side of the rip fence, push
the fence extension up against the fence and secure in
place with the two clamping knobs and washers, see figs
28-29.
Fig 27
Fig 28-29
Rack
Pinion
D
D
B
A
‘T’ bolt
Rip-Fence Extension
B
A
6) Locate the micro adjuster assembly (D) and remove
the mounting bracket by removing the two Phillips
screws, place safely aside. Remove the end cover from
the fence clamp assembly (A) and place aside. Insert the
mounting bracket into the‘T’ slot to the side of the fence
casting assembly, see fig 24. Line up the pre-drilled holes
in the micro adjuster with the holes in the mounting
bracket, making sure the pinion engages into the rack
beneath the fence guide rail (C), secure the micro
adjuster with the two Phillips screws you removed
earlier, see figs 25-26.
‘T’ Slot
Mounting Bracket

Assembly Instructions
13
Fig 31
Mount the overhand plane guard arm onto the side of
the out feed table that corresponds to your preferred
handing, then fit the overhand cutter block guard. In the
accessories packet there is a small spring metal plate,
this fits into the overhand guard clamping assembly to
spread the load of the guard clamp onto the guard. It also
prevents the bolt scoring the upper surface of the guard,
fasten in position using the guard lock,see fig 33-34.
Fig 32
Caphead bolt
Mounting bracket
Clamping handles
Planer fence base
Clamp
Fence support bracket
Fig 33-34
Cutter block guard
Guard clamp
Spring metal plate
Plane guard arm
Guard arm clamp handle
Planer/Thicknesser
Locate the fence mounting bracket and fix to the
machine casting as shown in fig 31, using 2 No. M6 x
12mm caphead bolts, depending on your preferred
handing. Introduce the planer fence base into the
bracket; so that the planer fence base slides into the
fence mounting bracket; then secure; position the fence
approximately mid-table, see fig 32.
3) Raise the saw blade to it’s highest point and slide the
fence assembly (A) up against the blade and adjust the
fence guide rail (C) until the pointer reads‘0’on the scale
then tighten the two nuts beneath the arm rail to secure
the assembly, see fig 30.
Continues Over....
Fig 30
Blade
Pointer
Scale
A

Assembly Instructions
14
Spindle Moulder
1) Remove the panel saw rip fence by lifting the locking
lever up and lifting the fence away from the guide rail,
place safely aside.
2) Disconnect the dust extraction hose from the saw
guard, remove the guard and place safely aside then
lower the saw beneath the table.
4) Remove the planer/thicknesser fence assembly by
undoing the two M6 caphead bolts on the mounting
bracket and placing the fence assembly safely aside.
5) Remove the workstop plate.
The spindle moulder guarding comes fully assembled
but is not yet mounted to the work table, see instructions
below for mounting the spindle moulder assembly.
1) Remove the circular rings from the work table and
place aside, see fig 35-36-37.
NOTE: IN ORDER TO INSTALL THE SPINDLE
MOULDER ASSEMBLY THE FOLLOWING
COMPONENTS NEED TO BE REMOVED.
WARNING!! DISCONNECT THE MACHINE FROM
THE MAINS BEFORE CONTINUING!
Fig 35-36-37
Fig 38-39-40
2) Lift the spindle guard assembly onto the work table,
manoeuvre the assembly over the pre-drilled holes in the
table. Insert threaded clamping handles through the
elongated slots and align the two pre-drilled threaded
holes on either side of circular ring, see fig 38.
3) Loosely screw the guard assembly down onto the table,
see fig 39-40.
Pre-drilled holes
Elongated slot
Threaded clamping handle
Spindle guard assembly

Assembly Instructions
15
4) Place a 90˚degrees square against the fence and adjust
the assembly until the fence is perpendicular to the table,
tighten the clamping handles to lock the guard in place,
see fig 40.
Fig 40

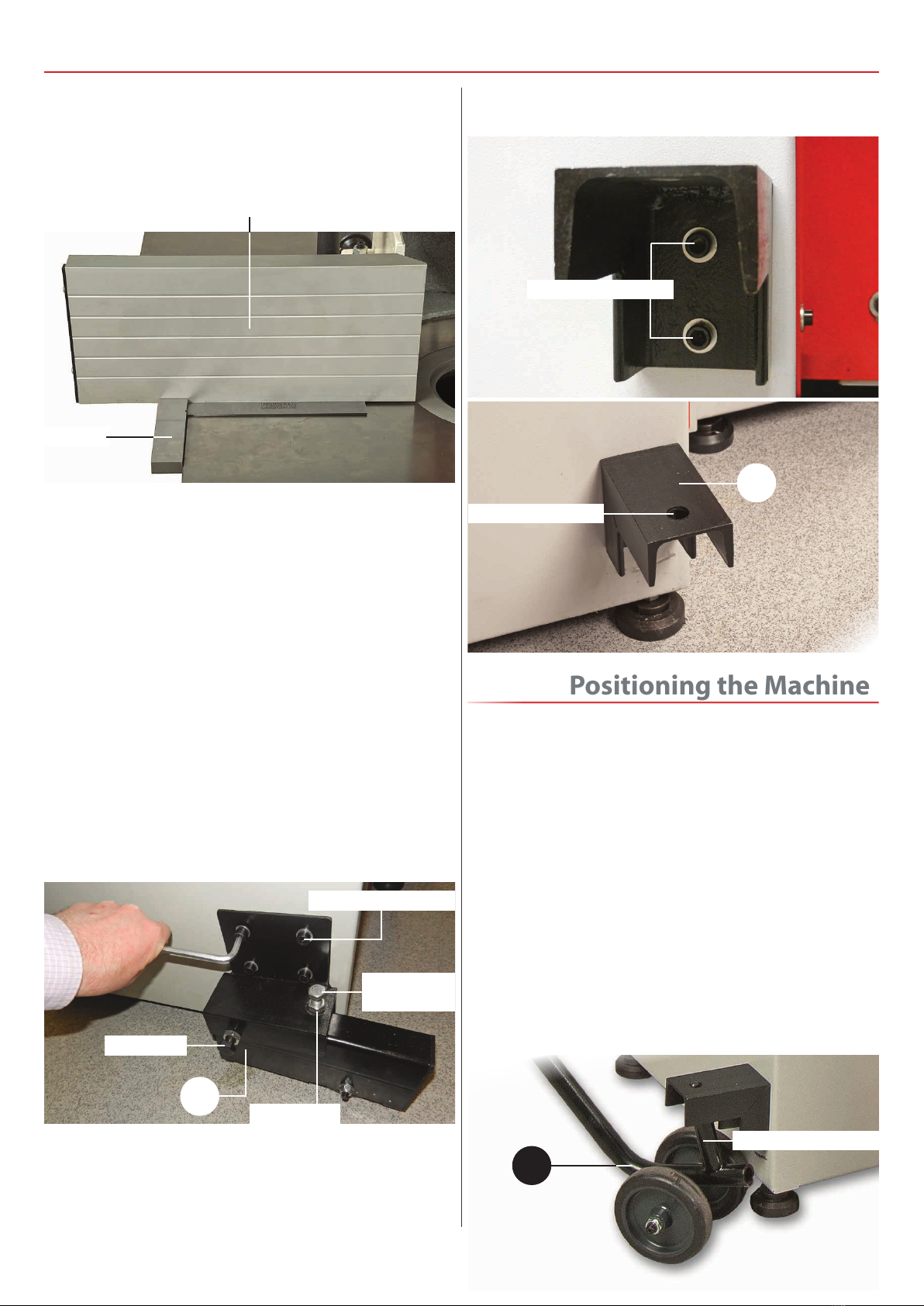

Wheel Mobility Kit
Fig 41
The wheel mobility kit enables the combination machine
to be moved easily to a new location.The kit comprises of
two adjustable wheel carriages (A) that bolts to each side
of the machine, a mobility operating handle (B) and lifting
bracket (C). Follow the instruction below to assemble the
kit.
1) Put to hand eight M8 cap head bolts and washers and
the two wheel carriages (A). Line up the four holes in one
of the wheel carriages mounting brackets with the four
threaded holes to one side of the machine and secure
using the M8 cap head bolts and washers, see figs 41.
Tighten using the supplied Hex key. Repeat for the
remaining wheel bracket.
2) Locate the lifting bracket (C) and two M8 cap head
bolts and washer. Line up the two pre-drilled holes in
the bracket with the threaded holes to the base of the
machine and secure in place with the M8 cap heads, see
figs 42-43.
Fig 42-43
M8 Cap head bolts
Lifting point hole
M8 Cap head bolt
Pivot bolt
Locking nut
Raise and
lowing bolt
Fence
Square
C
A
Manoeuvring the Machine
1) Turn the “raise and lowing bolts”on the wheel
carriages clockwise until the rear feet are lifted away from
the floor then nip up the locking nut to secure the setting.
2) Locate the mobility operating handle (B), insert the
handles lifting bar into the hole in the lifting bracket (C),
see fig 44 and push down the handle to raise the machine.
Fig 44
Ascertain the orientation of the machine and move it to
its desired position in the workshop. Ensure that the
machine is positioned to allow sufficient clearance all
round to cater for the maximum length of timber you
wish to machine.The machine should be positioned on a
flat level surface.
Continues Over....
Positioning the Machine
Handle lifting bar
B

Positioning the Machine
16
Fig 45
Machine Dimensions
2200mm
1600mm
3) Manoeuvre the machine to the
chosen location making sure there is
sufficient space all round, then carefully
lower the machine down, see fig 45.
4) With the machine in position lower
the rear feet by loosening the two
“raise and lowering bolts”, on the
wheel carriages (A), fig 41.

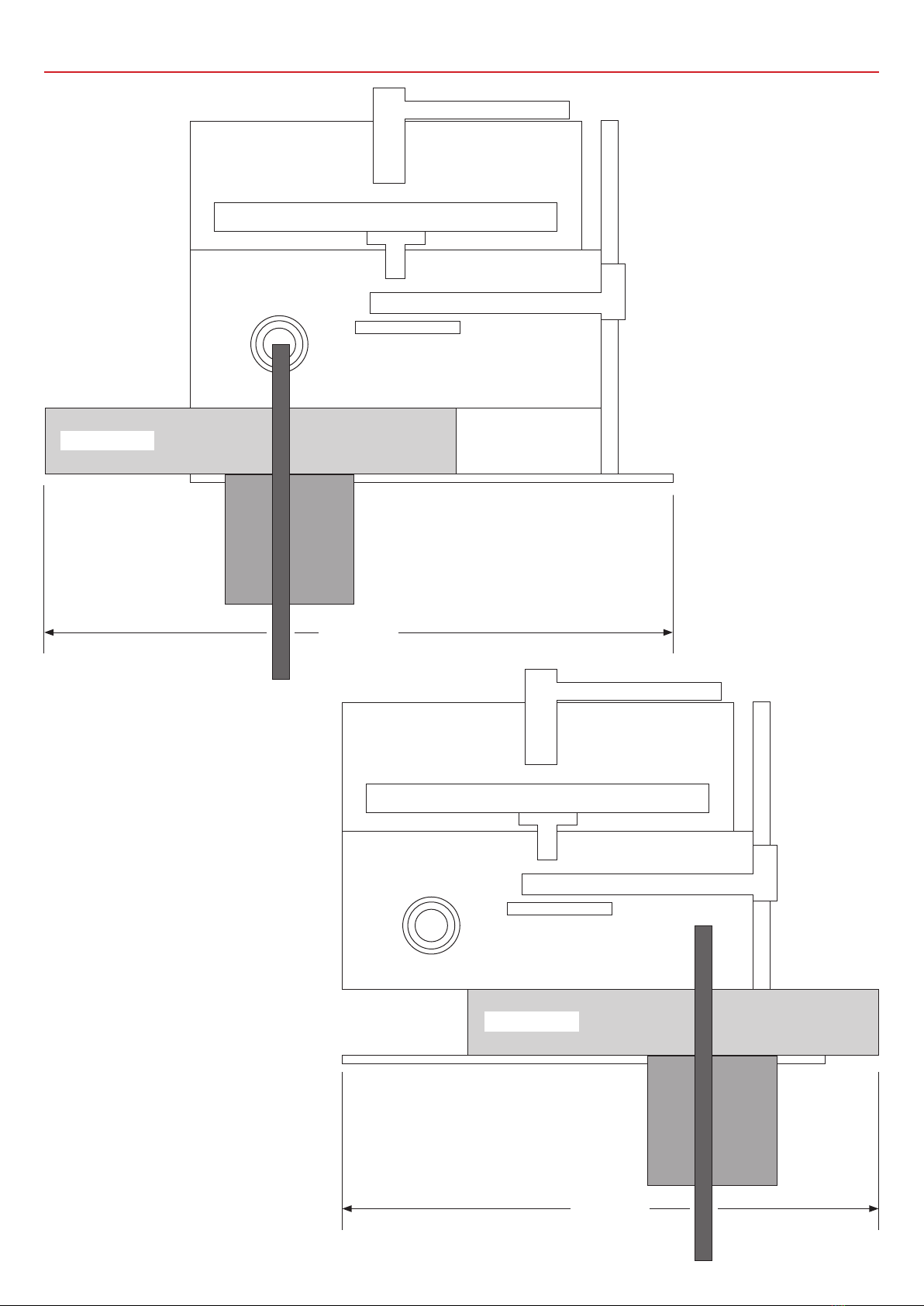

Machine Foot Print
17
2020mm
1920mm
Sliding Table
Sliding Table

Illustration and Parts Description
18
Spindle Moulder Set Up
Panel Saw Set Up

Illustration and Parts Description
19
Planer Set Up
Thicknesser Set Up

Illustration and Parts Description
Saw table
Sliding table
Guide rail
Table extension fence
Saw guard
Rip fence
3 Way control
switch assembly
Flexible hose
Tilt control hand wheelMain emergency stop
‘Y’ support rod
Distance stop
Fence assemblySaw table
Planer out feed table
Panel saw rise and fall
control handle wheel
Table extension
Guide rail stop
Table extension support
Spindle moulder assembly
Carriage wheel assembly
Telescopic extension
20
