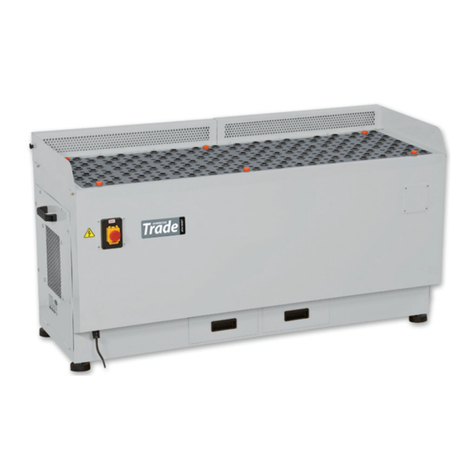

Axminster Trade AT306DT User manual

AT306DT
Downdraft Table
AT&M: 30/04/2019
Code 501227
Original Instructions

Cert No: FT-1000, FT-1600
Axminster Tools & Machinery Ltd
Axminster Devon
EX13 5PH UK
axminster.co.uk
Type Downdraft Table
Model AT6100DT and conforms to the machinery example for which the
EC Type-Examination Certificate No RA/2015B0001C, RD/2015/90036C
has been issued by CHANG TJER MACHINERY CO., LTD.
at: NO. 600, SEC. 4, CHANG PING RD., DA YA DIST.,TAICHUNG, 42850,TAIWAN, R.O.C.
and complies with the relevant essential health and safety requirements.
2006/42/EC
2004/108/EC
EN ISO 12100 :2010
EN 60204-1 :2006/AC :2010
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
EN 61000-6-4: 2007/A1:2011
Signed
Andrew Parkhouse
Operations Director Date: 08/10/2015

1
CONTENTS:
IMPORTANT SAFETY RULES -------------------------------------------------------------- 2
IMPORTANT SAFETY RULES FOR DUST COLLECTORS ------------------------- 3
GROUNDING INSTRUCTIONS ------------------------------------------------------------- 4
SPECIFICATIONS ------------------------------------------------------------------------------ 5
CONTENTS OF PACKAGE ------------------------------------------------------------------ 6
CONTENTS OF PARTS BAG ---------------------------------------------------------------- 7
ASSEMBLY INSTRUCTION ------------------------------------------------------------------ 8

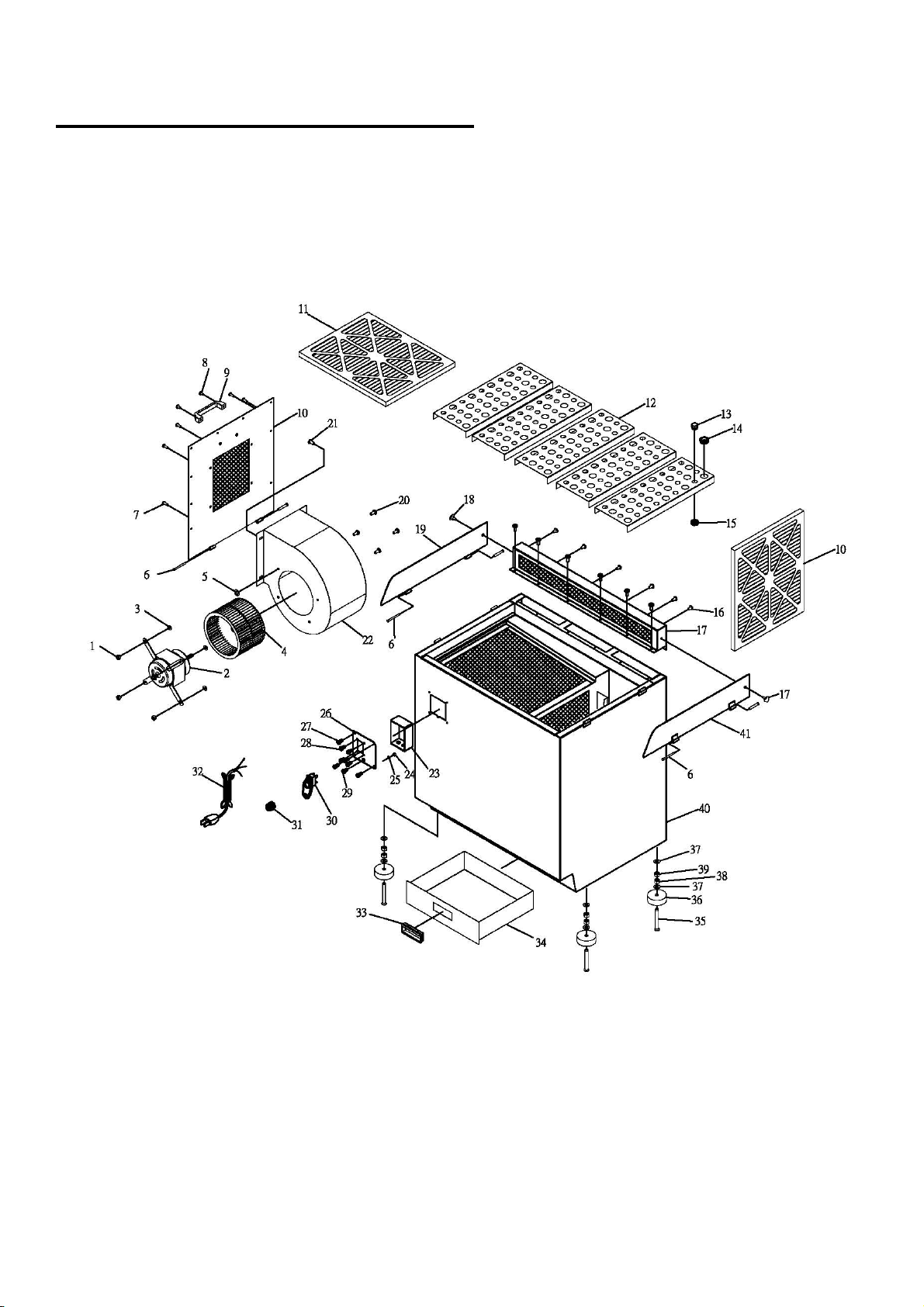

EXPLODED DIAGRAM ------------------------------------------------------------------------ 9
PARTS LIST -------------------------------------------------------------------------------------- 10
•WARNING!
Please read this manual carefully before assembly,
testing and operating.
•WARNING!
Do not operate this unit until hose or pipe is installed
onto the dust inlet port.
•WARNING!
This machine is for woodworking machinery use only,
and prohibited from other purpose.

2
IMPORTANT SAFETY RULES
Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain
hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of
personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result.
Safety equipment such as guards, push sticks, hold-downs, feather boards, goggles, dust masks and hearing protection can reduce your
potential for injury. But even the best guard won’t make up for poor judgment, carelessness or inattention. Always use common sense
and exercise caution in the workshop. If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer.
REMEMBER: Your personal safety is your responsibility.
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY
1. FOR YOUR OWN SAFETY, READ INSTRUCTION
MANUAL BEFORE OPERATING THE TOOL. Learn the
tool’s application and limitations as well as the specific
hazards peculiar to it.
2. KEEP GUARDS IN PLACE and in working order
3. ALWAYS WEAR EYE PROTECTION
4. GROUND ALL TOOLS. If tool is equipped with
three-prong plug, it should be plugged into a three-hole
electrical receptacle. If an adapter is used to
accommodate a two-prong receptacle, the adapter plug
must be attached to a known ground. Never remove the
third prong.
5. REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it “ON”.
6. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
7. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t
use power tools in damp or wet locations, or expose them
to rain. Keep work area well lighted.
8. KEEP CHILDREN AND VISITORS AWAY. All children
and visitors should be kept a safe distance from work
area.
9. MAKE WORKSHOP CHILDPROOF –with padlocks,
master switches, or by removing starter keys.
10. DON’T FORCE TOOL. It will do the job better and be
safer at the rate for which it was designed.
11. USE RIGHT TOOL. Don’t force tool or attachment to do a
job for which it was not designed.
12. WEAR PROPER APPAREL. No loose clothing, gloves,
neck-ties, rings, bracelets, or other jewelry to get caught in
moving parts. Non-slip footwear is recommended. Wear
protective hair covering to contain long hair.
13. ALWAYS USE SAFETY GLASSES. Wear safety glasses.
Everyday eyeglasses only have impact resistant lenses;
they are not safety glasses. Also use face or dust mask if
cutting operation is dusty.
14. SECURE WORK. Use clamps or a vise to hold work when
practical. It’s safer than using your hand and frees both
hands to operate tool.
15. DON’T OVERREACH. Keep proper footing and balance
at all times.
16. MAINTAIN TOOLS IN TOP CONDITION. Keep tools
sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
17. DISCONNECT TOOLS before servicing and when
changing accessories such as blades, bits, cutters, etc.
18. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by us
may cause hazards or risk of injury to persons.
19. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure switch is in “OFF” position before plugging in
power cord.
20. NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is accidentally
contacted.
21. CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to ensure that it will operate properly
and perform its intended function –check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged should
be properly repaired or replaced.
22. DIRECTION OF FEED. Feed work into a blade or cutter
against the direction of rotation of the blade or cutter only.
23. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
POWER OFF. Don’t leave tool until it comes to a
complete stop.
24. DRUGS, ALCOHOL, MEDICATION. Do not operate tool
while under the influence of drugs, alcohol or any
medication.
25. MAKES SURE TOOL IS DISCONNECTED FROM
POWER SUPPLY while motor is being mounted,
connected or reconnected.
26. WARNING: The dust generated by certain woods and
wood products can be injurious to your health. Always
operate machinery in well ventilated areas and provide for
proper dust removal. Use wood dust collection systems
whenever possible.

3
IMPORTANT SAFETY RULES FOR DUST COLLECTORS
WARNING: Basic precautions should always be
followed when using your dust collector. To reduce the
risk of injury, electrical shock or fire, comply with the
safety rules listed below:
1. READ and understand the instruction manual
before operating the dust collector.
2. DO NOT leave the dust collector plugged into the
electrical outlet. Unplug dust collector from outlet
when not in use and before servicing, changing
bags, unclogging and cleaning.
3. ALWAYS turn the power switch “OFF” before
unplugging the dust collector.
4. WARNING: TO REDUCE THE RISK OF
ELECTRICAL SHOCK do not use outdoors or on
wet surfaces. Use for dry pickup only!
5. FOLLOW all electrical and safety codes, including
the National Electric Code (NEC) and the
Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring
should be made by qualified personnel only.
6. DO NOT use the dust collector to pick up
flammable or combustible liquids, such as gasoline.
NEVER use the dust collector near any flammable
or combustible liquids.
7. USE the dust collector to pick up wood materials
only. DO NOT use the dust collector to pick up
metal shavings, dust, water, or parts.
8. NEVER use the dust collector to dissipate fumes or
smoke. NEVER pick-up anything that is burning or
smoking, such as cigarettes, matches or hot ashes.
9. USE only as described in this manual.
10. DO NOT pull the dust collector by the power cord.
NEVER allow the power cord to come in contact
with sharp edges, hot surfaces, oil or grease.
11. DO NOT unplug the dust collector by pulling on
the power cord. ALWAYS grasp the plug, not the
cord.
12. DO NOT handle the plug or dust collector with wet
hands.
13. REPLACE a damaged cord immediately. DO
NOT use a damaged cord or plug. If the dust
collector is not operating properly, or has been
damaged, left outdoors or has been in contact
with water, return it to an Authorized Service
Center for service.
14. DO NOT use the dust collector as a toy. DO NOT
use near or around children.
15. DO NOT insert fingers or foreign objects into the
dust intake ports. Keep hair, loose clothing,
fingers, and all body parts away from openings
and moving parts of the dust collector.
16. DO NOT use the dust collector without a filter bag
and dust collection bag in place and properly
secured.
17. DO NOT operate the dust collector with unused
dust intake ports uncapped. ALWAYS cover
exposed dust intake ports.
18. PERIODICALLY INSPECT dust and filter bags for
any cuts, rips or tears. NEVER operate the dust
collector with a damaged bag or vacuum hose.
19. The dust collector is designed for home use or
light commercial duty ONLY!
20. CONNECT dust collector to a properly grounded
outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS

4
GROUNDING INSTRUCTIONS
The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with
a cord having equipment-ground conductor and grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
WARNING –Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the
outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the
outlet; have a proper outlet installed by a qualified electrician.
For grounded, cord-connected appliances:
This appliance is for use on a circuit having a normal rating more than 120 volt and is factory-equipped
with a specific electric cord and plug to permit connection to a proper electric circuit. Make sure that
the appliance is connected to an outlet having the same configuration as the plug. No adaptor should
be used with this appliance. If the appliance must be reconnected for use on a different type of electric
circuit, qualified service personnel should make the reconnection.
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system; or an
equipment-grounding conductor must be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the appliance.

5
SPECIFICATIONS:
Motor---------------------------------------------------------------------------------------------------------------1/2 HP
AMP------------------------------------------------------------------------------------------------------------------ 6 A
Motor Speed--------------------------------------------------------------------------------------------------- 1650 RPM
Suction Capacity---------------------------------------------------------------------------------------------- 1790 CFM
Impeller Size---------------------------------------------------------------------------------------------------- 9” x 7”
Switch---------------------------------------------------------------------------------------------------- On / Off Switch
Overall Dimensions of Unit------------------------------------------------------------------- 1050 x 600 x 850
mm
N.W. ---------------------------------------------------------------------------------------------------------------- 70 KGS
G.W. ---------------------------------------------------------------------------------------------------------------- 81 KGS
CUFT -------------------------------------------------------------------------------------------------------------- 21.7’

6
CONTENTS OF PACKAGE FT-1000:
NO.
Description
Q’TY
Part List NO.
NO.
Description
Q’TY
Part List NO.
A
Main Housing
1
NO.40
F
Drawer
1
NO.34
B
Sucking Head Set
1
NO.17
G
Filter Net
2
NO.11
C
Side Cover
2
NO.19.41
H
Rubber
90
NO.14
D
Handle
1
NO.9
I
Foot Pad
4
NO.35~39
E
Sucking Board
5
NO.12

7
CONTENTS OF PARTS BAG FT-1000:
NO.
Description
Specification
Q’TY
Part List No.
A
Phillips Head Screw
3/16”x3/8”
12
NO.16
B
Stopper
6
NO.13
C
Stopper Nut
6
NO.15
D
Triangular Knob
1/4”x1/2”
2
NO.18
E
Flat Head Screw
1/4”x5/8”
2
NO.8
F
Foot Pad
4
NO.35~39

8
ASSEMBLY INSTRUCTION:
STEP1-1:
Place the Sucking Head Set (NO.17) on the Main
Housing (NO.40) and tight with Phillips Head Screws. (NO.16)
See (FIG.1)
STEP1-2:
Place the Pad & Accessory (NO.35~NO.39) and
fixing the Pad & Accessory (NO.35~NO.39) on the machine
bottom as shown in FIG.1-2.
.
STEP2-1.
取出側封蓋板(左)(NO.5).側封蓋板(右)
(NO.4)將插銷(NO.32)與機體板扣位置栓上,如圖
.
STEP2-1:
Assemble Left Side Cover (NO.19) and Right Side
Cover (NO.41) on the Main Housing with Pins. (NO.6)
See (FIG.2)
STEP2-2:
Use Triangular Knob (NO.18) to tight the Left and Right Side
Covers on the sucking head set.
(FIG1-2)
(FIG.1)
(FIG.2)

9
EXPLODED DIAGRAM FT-1000:

10
FT-1000 Part List:
NO.
Description
Specification
Q’TY
1
Lock Nut
1/4”
4
2
Motor Set
1
3
Washer
1/4”x25
4
4
Impeller
9”x7”
1
5
Packing
4
6
Pin
6
7
Flange Bolts
1/4”x1/2”
10
8
Flat Head Screw
1/4”x5/8”
2
9
Handle
1
10
Outlet Cover
1
11
Filter Net
2
12
Sucking Board
5
13
Stopper
6
14
Rubber
90
15
Stopper Nut
6
16
PhillipsHead Screw
3/16”x3/8”
12
17
Sucking Head Set
1
18
Triangular Knob
1/4”x1/2”
2
19
Left Side Cover
1
20
Hex Head Bolt
4
21
Flat Head Screw
5/16”x1/2”
4
22
Blower Housing
1
23
Switch Box
1
24
Nut
3/16”
1
25
Tooth Washer
3/16”
1
26
Switch Plate
1
27
PhillipsHead Screw
3/16”x1/2”
4
28
Tapping Screw
4
29
PhillipsHead Screw
3/16”x3/8”
1
30
On/Off Switch
1
31
Bushing
Mg-16
3
32
Power Cord
1
33
Pull Handle
1
34
Drawer
1
35
Cap Screw
1/2”x4”
4
36
Pad
ψ76x25
4
37
Washer
1/2”x25x2
8
38
Lock Nut
1/2”
4
39
Nut
1/2”
4
40
Main Housing
1
41
Right Side Cover
1

Axminster Tools & Machinery
Axminster Devon EX13 5PH
axminster.co.uk
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.
EU Countries Only
The Axminster guarantee is available on
Craft,Trade, Engineer, Air Tools & CNC Technology Series machines
Buy with confidence from Axminster!
So sure are we of the quality, we cover all parts and labour free of charge for three years!
For more information visit axminster.co.uk/3years
